Dry-Lam SL27 User manual

SL27 / 679185 Instruction Manual
1 of 19
DryLam School & Office Laminator
Model SL27 (27"120V)
Instruction Manual
Also includes: School Smart model 679185 (manufactured: January 2011, and later)
(For School Smart models manuf. prior to January 2011 use DryLam model 27STA
Instructions)
Revised 1/20/14, 3/12/14, 4/10/15 Brian Jennett

SL27 / 679185 Instruction Manual
2 of 19
Contents
Models SL27 and 679185 Specifications.........................................................................................................3
Important Safeguards .....................................................................................................................................3
General Diagrams............................................................................................................................................5
Unpacking .......................................................................................................................................................7
Information about Laminating Film ................................................................................................................7
Operating ........................................................................................................................................................7
Control Panel...............................................................................................................................................7
Heat.............................................................................................................................................................7
Motor ..........................................................................................................................................................8
Key switch ...................................................................................................................................................8
Loading Film on 1” Supply Shafts....................................................................................................................9
Threading the Laminator ..........................................................................................................................10
Laminating.................................................................................................................................................12
Supply Roll Tension Adjustment ...............................................................................................................13
Maintaining the Model SL27 / 679185 Laminator........................................................................................15
Care and Cleaning .....................................................................................................................................15
Specific Troubleshooting Guide ....................................................................................................................16
Removing a “Wrap-Around” .....................................................................................................................16
Replacing the hand held Cutter Blades.........................................................................................................18
Important Information..................................................................................................................................19
Equipment Warranty ....................................................................................................................................19

SL27 / 679185 Instruction Manual
3 of 19
Important Safeguards
• Read all the safety and operating instructions before connecting or using this unit.
• Retain this notice and the owner’s manual for future reference.
• Adhere to all warnings and operating instructions.
• Do not use this unit near water (e.g. near a bathtub, etc.)
• The wearing of ties or jewelry while operating a laminator may be hazardous to the
operator.
• Warning: Do not touch hot surfaces such as heat shoes and heat rollers.
•This unit should be installed so that its location or position does not interfere with its
proper ventilation.
For example, it should not be situated on a bed, sofa, rug or similar surface that may block
the ventilation openings; or placed in a built-in installation, such as bookcase or cabinet or
against the wall, that may impede the flow of air through its ventilation openings.
•This unit should be situated away from heat and air ventilation systems such as radiators,
heat registers, stoves, etc.
•This unit should only be connected to a power supply outlet of the voltage, amperage and
frequency marked on its serial tag.
• For 120 volt machines the socket outlet shall be installed near the equipment and be easily
accessible.
•The power supply cord should be routed so that it is not likely to be walked upon or
Models SL27 and 679185 Specifications
Height
15”
Width
34”
Depth (with feed tray)
20”
Net Weight
66lbs.
Shipping weight
88 lbs.
Capacity
27”
Electrical
120V AC 60Hz 1400w
Lamination Speed
6 feet per minute

SL27 / 679185 Instruction Manual
4 of 19
pinched, especially near the plug, convenience receptacles, or where the cord exits from the
unit.
• Unplug the machine during any machine repairs.
• Clean unit only as recommended in this instruction manual.
• Make sure to remove the Feed Table before reversing the machine!
•Care should be taken so that objects do not fall, and liquids are not spilled, into the
enclosure through any openings.
• Caution: The Cutter blade is extremely sharp. Please handle carefully and dispose of
properly.

SL27 / 679185 Instruction Manual
5 of 19

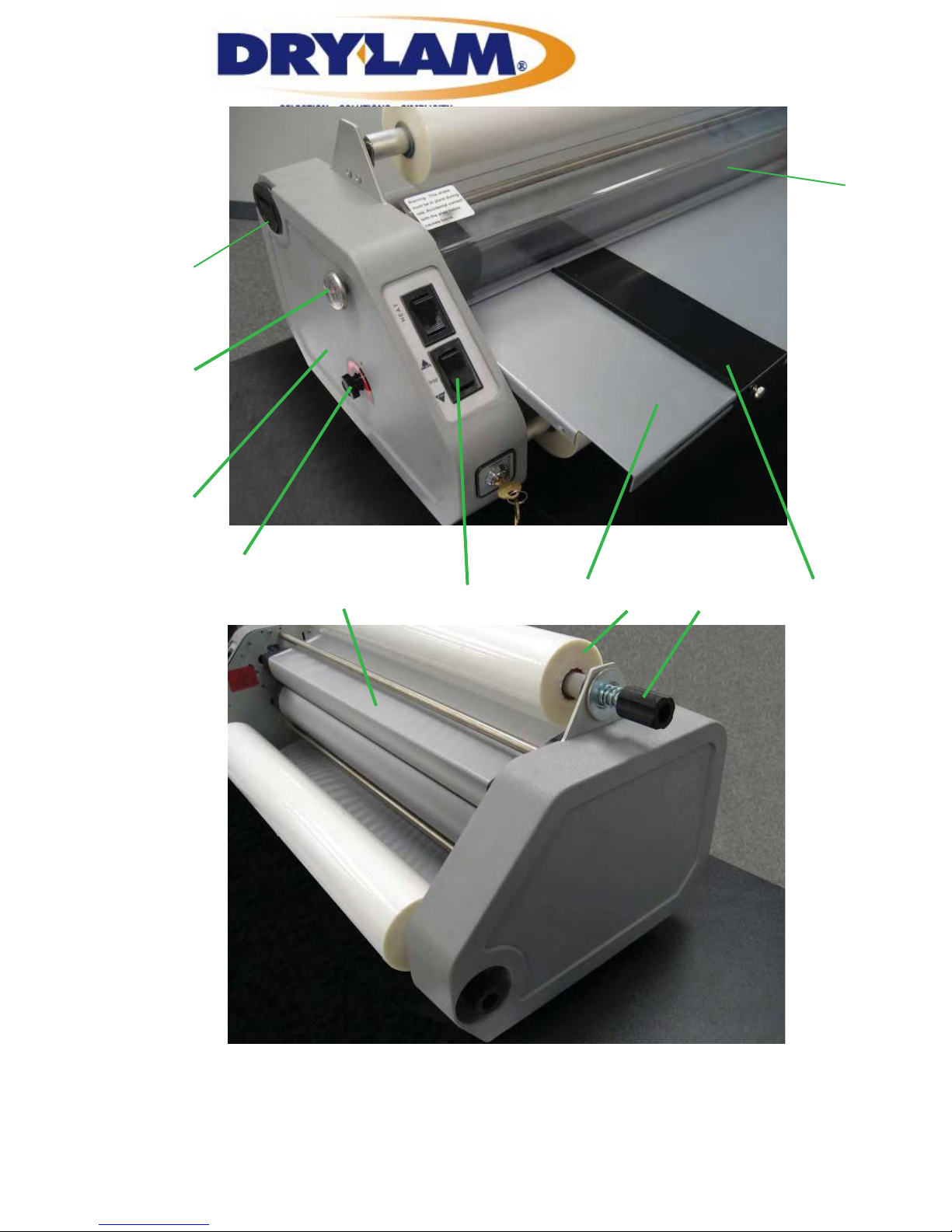

General Diagrams

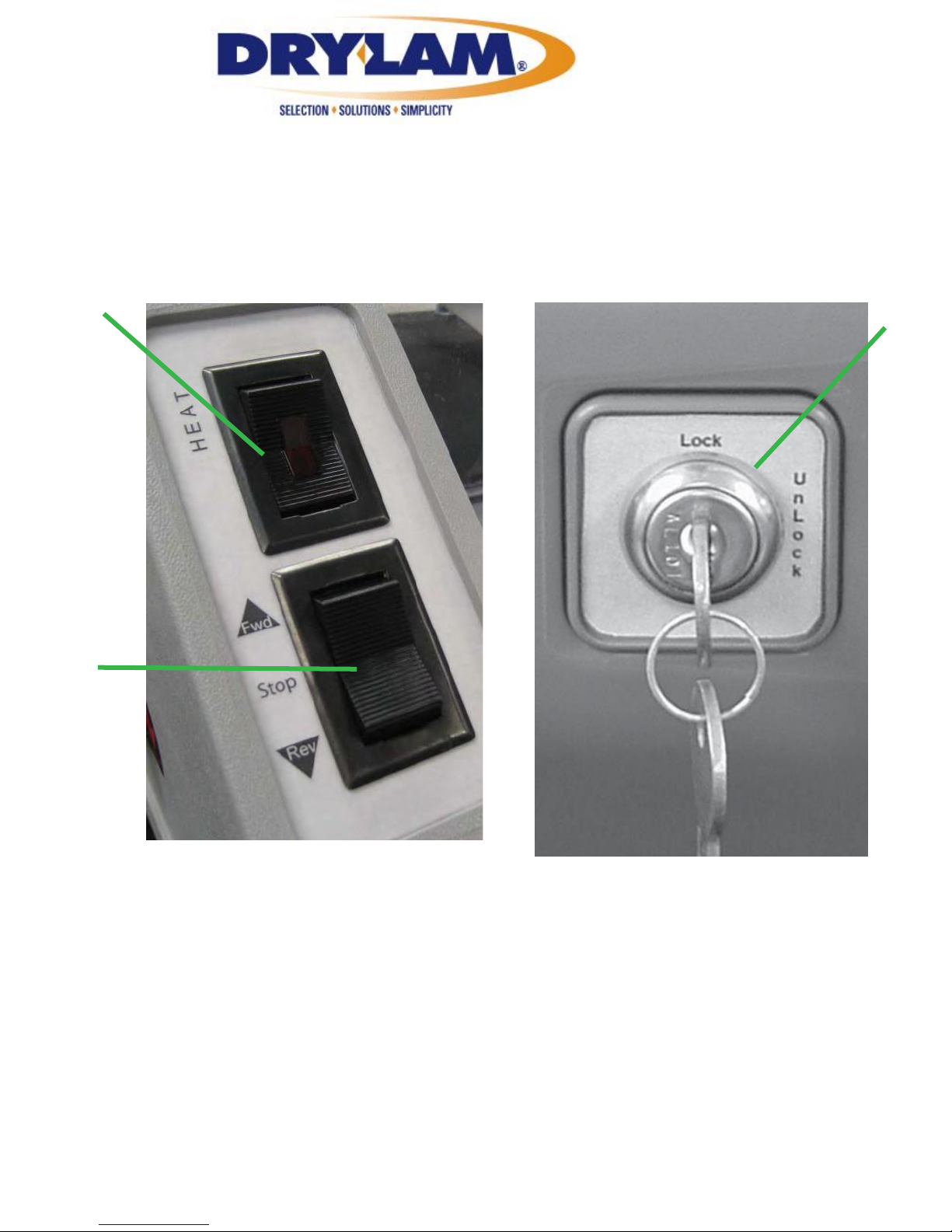

The Model SL27 offers a reverse feature and is designed to laminate a variety of materials using
up to 27” laminating film. Tension Adjusting Knobs (L) are conveniently located to the right sides of
the supply shafts (K) for easy access. A Control Panel (G) is located on the Left Housing (E), with a
Motor Stop/Reverse switch (B), and a Heat On/Off Switch (A).
A C
B
The Feed Tray (H) and Feed Guide (I) provide a smooth, durable paper path and the Heat Guard (F)
protects hands from hot surfaces inside. Teflon coated Heat Shoes (J) minimize friction. The Cutter
(D) cuts and trims your laminated documents and the Key Switch (C) prevents unauthorized usage.

SL27 / 679185 Instruction Manual
6 of 19
F
D
M
E
N
J G H K L I

SL27 / 679185 Instruction Manual
7 of 19
Unpacking
Remove the laminator from its box by grasping the housings and pulling up. Do not use
rollers or shafts as handles - this could cause damage. Choose a location for the laminator
that is clean, well-lit and draft free. Make sure it is not in the path of any fans, room air
conditioners, or positioned too close to the wall. The laminator comes to you ready to load
the film onto the supply shafts, thread the film through the machine, perform basic setup and
install the feed table for laminating.
Information about Laminating Film
Laminating film is made up of two layers: a glossy polyester layer which gives the lamination
its strength, clarity and rigidity, and a dull or matte side which is heat activated and serves as
the “glue” to bond the film to the product being laminated. Once heated, small amounts of
the “glue” side can stick to the heat shoes and rollers and must be periodically cleaned from
the laminator.
Laminating film is available in a variety of different lengths, and thicknesses. Models SL27
and 679185 School Smart Laminators are designed to use 1.5 mil (#150), and 3 mil (#300), film
thicknesses.
Operating
Control Panel
The control panel is located on the left side of the laminator. This panel is used to control
the various machine functions listed below.
Heat (A, M, N)
The temperature can be turned either “on” or “off” using the heat switch (A) which is
located on the control panel. The heat can be controlled manually using the heat control knob
(N) located on the left housing (E). A thermostat (M) is also located on the left housing (E) and
provides the current temperature of the laminator. Note: depending on room conditions and
desired set point, it will take between 20 and 30 minutes for the laminator to heat up to
desired temperature.

SL27 / 679185 Instruction Manual
8 of 19
Motor B
The motor will not run unless the key switch is turned “ON” (in the horizontal position). To
stop the motor, press the “Stop/Reverse” switch in the “Stop” (center) position. To start the
motor, press the “Stop/Reverse” switch in the “Fwd” (up) position. To reverse the motor,
press the “Stop/Reverse” switch in the “Rev” (down) position. The motor will remain in
reverse only as long as the button is depressed.
Key switch
The key switch (located just below the control panel) locks out the motor, allowing the
machine to remain heated; yet, preventing unauthorized usage when in the locked position.

SL27 / 679185 Instruction Manual
9 of 19
Loading Film on 1” Supply
Shafts
Unpack the upper and lower supply
shafts. The upper and lower supply
shafts are different. The word “TOP” is
stamped on the shaft of the upper
supply shaft and the word “LOW” is
stamped on the shaft of the lower
supply shaft. The ends of each supply
shaft are also different. The round
“hanger” end fits in the bracket on the
left side of the laminator. The “slot end”
fits into the tension adjuster on the
right side.
Slide the film roll onto the supply
shaft by rotating the supply shaft in the
opposite direction of the gripper points,
leaving equal lengths of supply shaft
sticking out of each end. The film roll
will slide over the gripper, which will
keep the roll from turning on the shaft.
Load the supply shaft on the
laminator by inserting the slot end of
the supply shaft into the tension
adjuster on the right side and then
lowering the hanger end into the
bracket on the left side.
LOWER
UPPER

SL27 / 679185 Instruction Manual
10 of 19
Threading the Laminator
Remove the feed tray and the heat guard. Thread the film as shown in the figure on the right.
Pull the film around the idler rollers as shown. On some models do not mistake the reinforcing
bar for the idler roller. Make sure the glossy and dull sides of the film are as indicated in the
diagram. The dull side must not touch the heat shoes! Position the threading board provided.
Turn power and key switch to on.
