VividLeds VVD202 Series User manual

PHOTOCONTROLLER
VVD202 series
Product Summary
The VVD202 series is applicable to control the street lighting, garden lighting, passage lighting
and doorway lighting automatically in accordance with the ambient natural lighting level.
This product is designed on the basis of thermal - bimetallic structure that provides time delay
over 30 seconds to avoid mis-operation due to spotlight or lightning during the night time. A
temperature compensation system provides consistent performance regardless to the ambient
temperature. This product provides three twist-lock terminals meeting the requirements of ANSI
C136.10-1996 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area
Lighting UL773, 4th Edition, dated Jan.19th, 1995. VVD202 series has been listed by UL Inc for
United States and Canada.
zANSI C136.10-1996 Twist Lock
zTime Delay 30~120 seconds
zTemperature compensated
zVarious Enclosures
zLightning Arrester Available
z1” Photocell Deluxe Version Available
UL
®
LISTED
File No. E188110
UL
®
C

Technical Data
Model No. VVD202A VVD202B VVD202C VVD202D
Nominal Rated Voltage 110-120VAC 220-240VAC 208VAC 277VAC
Applicable Volt Range Nominal +/-10%
Rated Frequency 50/60Hz
Rated Loading 1800W Tungsten, 1000VA Ballast
Power Consumption 1.5VA (Average)
Standard Operate Level 10~20Lx On, 30~60Lx Off
Photocell Size**** 0.5” with heat sink (Standard) / 1” (Deluxe)
Ambient Temperature -40℃~ +70℃
Related Humidity 99%
Overall Dimensions (mm) Null: 74dia.x 50 (Clear) / M: 74dia.x 60 / H: 84dia.x 65
**Enclosure Color (M/H) Gray Maroon Blue or Client Request
**Clear Enclosure (Null) Available
Weight Approx. 62~90grs
Materials: Enclosure & Lens – High impact UV stabilized Polycarbonate
Base – High impact Polybutylene terephthalate
Photocell – Cadmium Sulfide 0.5” with heat sink (Standard) / 1” (Deluxe)
Installation

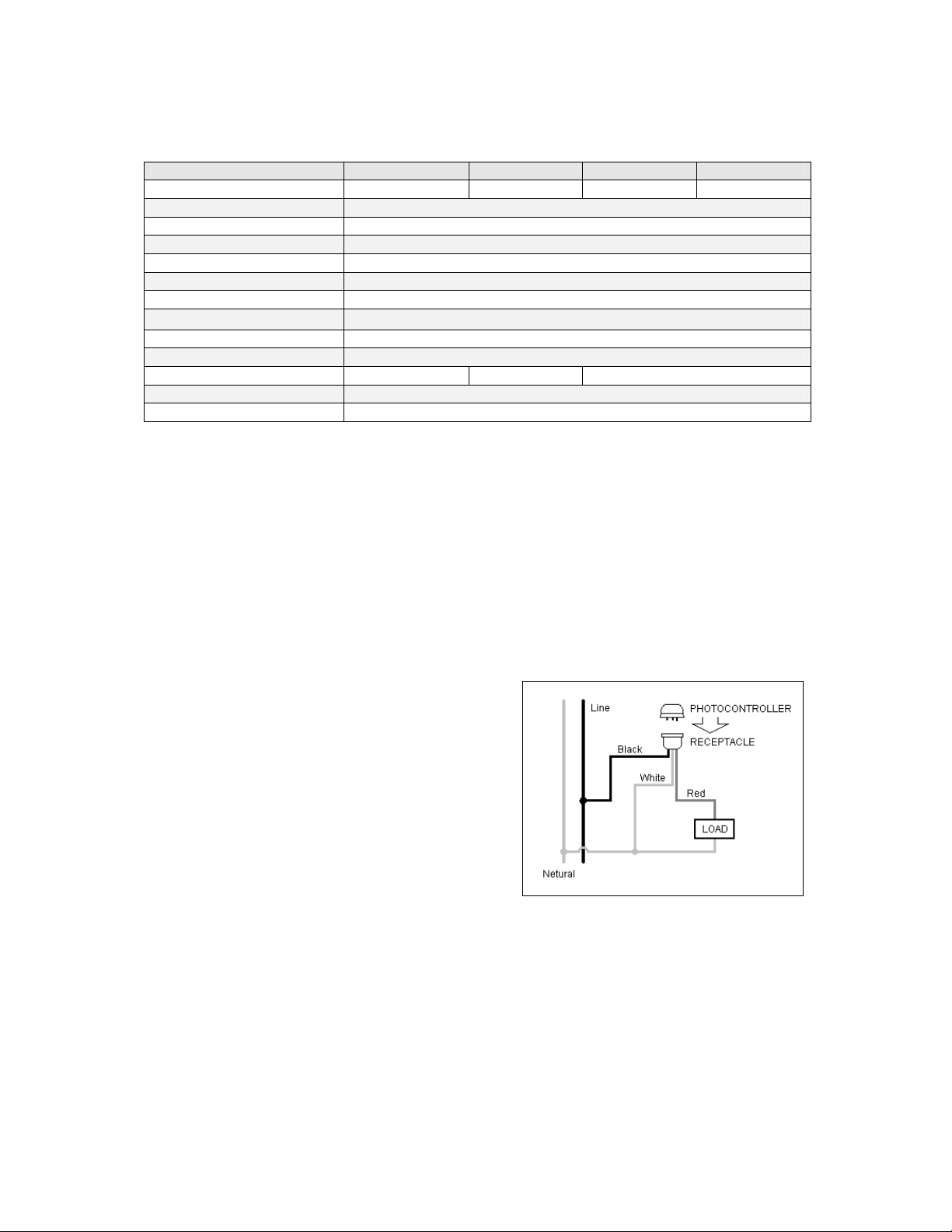

Disconnect power; wire the color coded receptacle according to the diagram below.
Push the photocontroller on and twist it clockwise to lock it into the receptacle.
Install the photocontroller with the Photocell facing the NORTH direction as indicated on
the top of the photocontroller.
Adjust the receptacle position if necessary.
Ordering Information
*VVD202B - **M - ***12-****U
*: The Model Number;
**: Enclosure Size:
Null = 74dia.x 50mm;
M = 74dia.x 60mm;
H = 84dia.x 65mm.
***: MOV diameter in mm:
12 = 110Jole / 3500Amp;
15 = 235Jole / 5000Amp;
23 = 460Jole / 7500Amp.
****:Photocell Options:
Null = 0.5” photocell with heat sink
U = 1” photocell Deluxe Version
Shorting/Open Caps
Model VVD208 = Shorting Cap (74dia.x 50mm, Black Cover)
Model VVD209 = Open Cap (74dia.x50mm, Maroon Cover)

TWIST-LOCK PHOTOCONTROL RECEPTACLE
Product Summary
All the photocontrol receptacles were designed for the lanterns those without an ANSI C136.10-1996
receptacle equipped to fit a twist-lock photocontrol and has been recognized by UL to applicable US and
Canadian safety standards, under their file E188110, Vol.1 & Vol.2.
Technical Data
Model No. JL-200X JL-200 JL-200Z
Applicable Volt Range 0~480VAC
Rated Frequency 50/60Hz
Su
gg
ested Loadin
g
AWG#18: 10Amp; AWG#14: 15Amp
Ambient Temperature -40℃~ +70℃
Related Humidity 99%
Overall Dimensions (mm) 65Dia.x38.5 65Dia.x65
Accessory
Back/Front
Cover - ●●
Zinc Alloy
Lock Nut - ●●
Mounting
Plate/Base - -
●
30x(70+130)
Leads 6” Min.
Weight Approx. 80g 105g 135g
zANSI C136.10-1988 Twist Lock
zHigh Temperature Resistive
zAWG#18~14 Color Coded Leads
zComplete Mounting Accessories Available

Installation
Disconnect power; wire the receptacle according
to the diagram in right hand. An arrow indicating
NORTH on the top of the receptacle is used to
assist correct direction. Push the photocontroller
on and twist it clockwise to lock it into the
receptacle.
Install the photocontroller with the Photocell
facing the NORTH direction as indicated on
the top of the photocontroller.
Adjust the receptacle position if necessary.
Drilling Plan
For other mounting methods, ask for the
drilling plan to ensure the properly secured.
