ALPHA LITE E Series Owner's manual

E2040E2040
E SERIES
ALPHA LITEALPHA LITE
USER MANUAL USER MANUAL
BOOKBOOK

1
Product name. E2040 1 Product name. E2040
Do not open or disassemble the cover to reduce the risk of electric shock.
〔 WARNING 〕
Please wear safety equipment such as safety helmet during work.
Be sure to fix the safety chain on the product when installing and moving.
Please install the signs below for people to bypass when install
the product on high truss.
The work should be done under the direction of approved specialist
who is trained in safety and mechanical installations.
The brightness and color temperature before and after aging may be different.
2
3
4
5
6
1
Precautions

2ALPHA LITE ┃USER MANUAL BOOK
Contents
Power Connection
DMX Connection
9
10
Fixture Installation
Unlocking
Screen Instruction
Menu Tree
Main Screen by Mode
& Product Information
DMX Mode
(Channel Change & Address Setup)
User Mode
(Intensity & Color Temperature Adjust)
11
12
13
14
15
16
LCD Screen Instruction
Safety Information 1
Sleep Mode Function
RDM Function
Dimming Speed Setup
Master Function
Fixture ID Number Setup
Device Label Setup
17
18
19
Extra Function
Temperature Sensor
Network Connection
20
Error Information
DMX Protocols
RDM Protocols
21
23
Protocols
Fixture Information
Fixture Exterior View
Dimensions
Accessory Options
Technical Specifications
Photometry Data
Side Reflection System
3
4
5
6
7
8
Fixture Information

3
Product name. E2040 3 Product name. E2040
E2040
Product name.
⇒Flat light source lighting fixture, which is mainly used in broadcast studio, can create
a variety of atmospheres in the set.
⇒Excellent light quality, and average CRI 95~98 / R9, R12 are CRI 90 or higher
⇒The LED source sets on the side(edge) with reflection and pattern optical technology applied.
⇒The LED source is not directly visible, no glare and extremely soft light distribution
⇒No fan and noiseless
⇒2900~6000K color temperature control function
⇒Support RDM network communication and various mode setting possible
⇒Smart touch control method makes it easy and convenient to check all information at a glance
⇒Long life, reduce maintenance costs and power consumption.

4ALPHA LITE ┃USER MANUAL BOOK
Fixture Exterior View
Yoke
Clamp
Barndoor
Fixed Knob
Connector
Panel
Smart Touch
LCD Screen
Handle

5
Product name. E2040
Dimensions

6ALPHA LITE ┃USER MANUAL BOOK

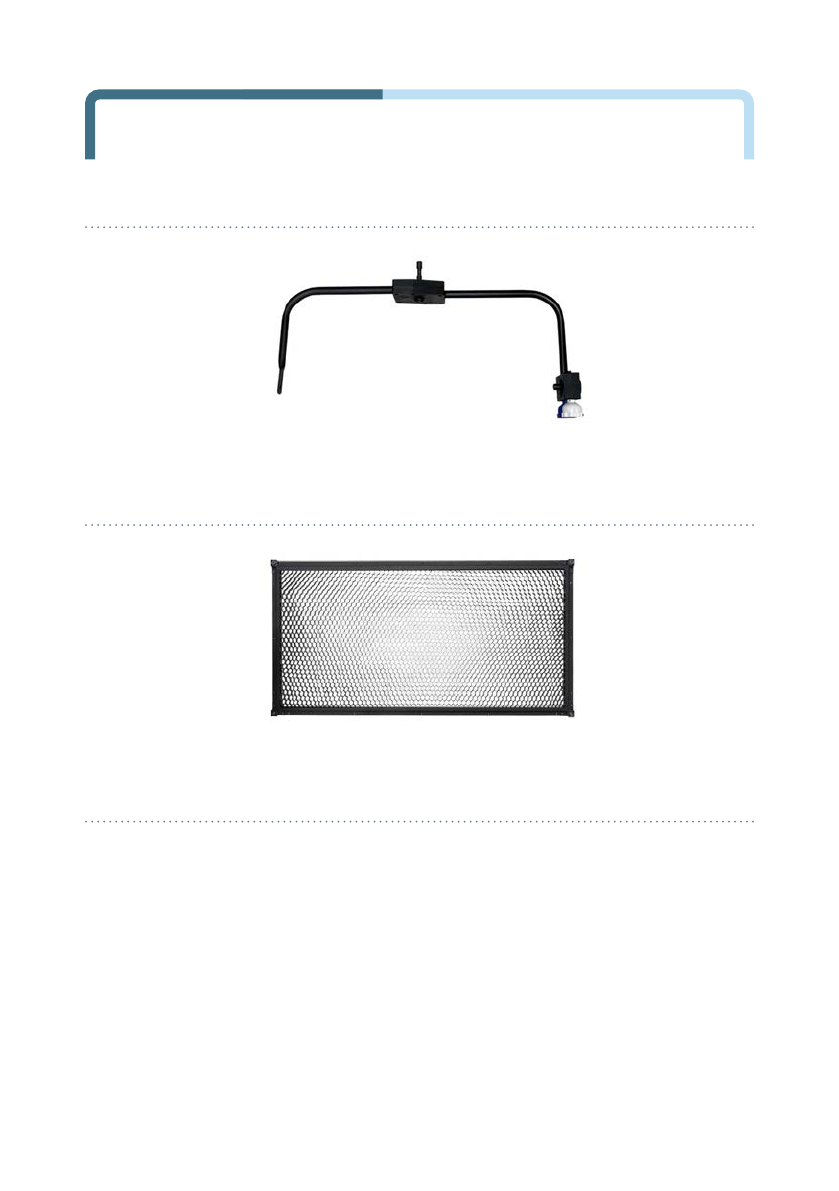

Accessory Options
Pole operation yoke
· Pan & Tilt
Honeycomb
· Detachable

7
Product name. E2040
LED Chip Type 0.5W 3030 PKG LED + Edge Reflector
Estimated LED Lifetime (hours) 50,000
White Light (K) 2,900~6,000 (VCT)
Color Rendition (%) CRI 97 / TLCI 97
Dimming (%) 0~100 (16-bit)
Light Aperture Size (mm/inch) 425 x 200 / 16.7 x 7.9
Beam Angle ( °) 135
Signal Control 5-Pin DMX In and Out
Individual Control Smart Touch LCD Controller
Supported Protocol DMX512 / RDM
(Optional) Supported Protocol DMX512 Wireless / RDM Wireless
Remote Device Management Supported
Channel Function Dimming / CCT
Power Input Voltage AC 100-240V / 50~60Hz
Power Consumption (W) 150
Ambient Temperature
Operation ( °C) -20~45
Body Dimensions
(mm/inch) (WHD) 514 x 256 x 112 / 20.2 x 10.1 x 4.4
Full Dimensions with Manual
Yoke (mm/inch) (WHD) 566 x 355 x 112 / 22.3 x 14 x 4.4
Body Weight (kg/lbs) 6.8 / 15
Full Weight with Manual Yoke
(kg/lbs) 7.7 / 17
Protection Class IP20
* This specification data is based on the aging state of the equipment,
and the brightness and color temperature before and after aging may be different .
Technical Specications

8ALPHA LITE ┃USER MANUAL BOOK
0m 1m 3m 5m 7m 9m
135° 277 123 69 41
5600K5600K
Photometry Data
Side Reection System
Reflection
Sheet
LGP (Lamp + Reflector)
Ad Film
Reflection Sheet Light
LGP
Distance(m)
Illuminance(lux)

9
Product name. E2040

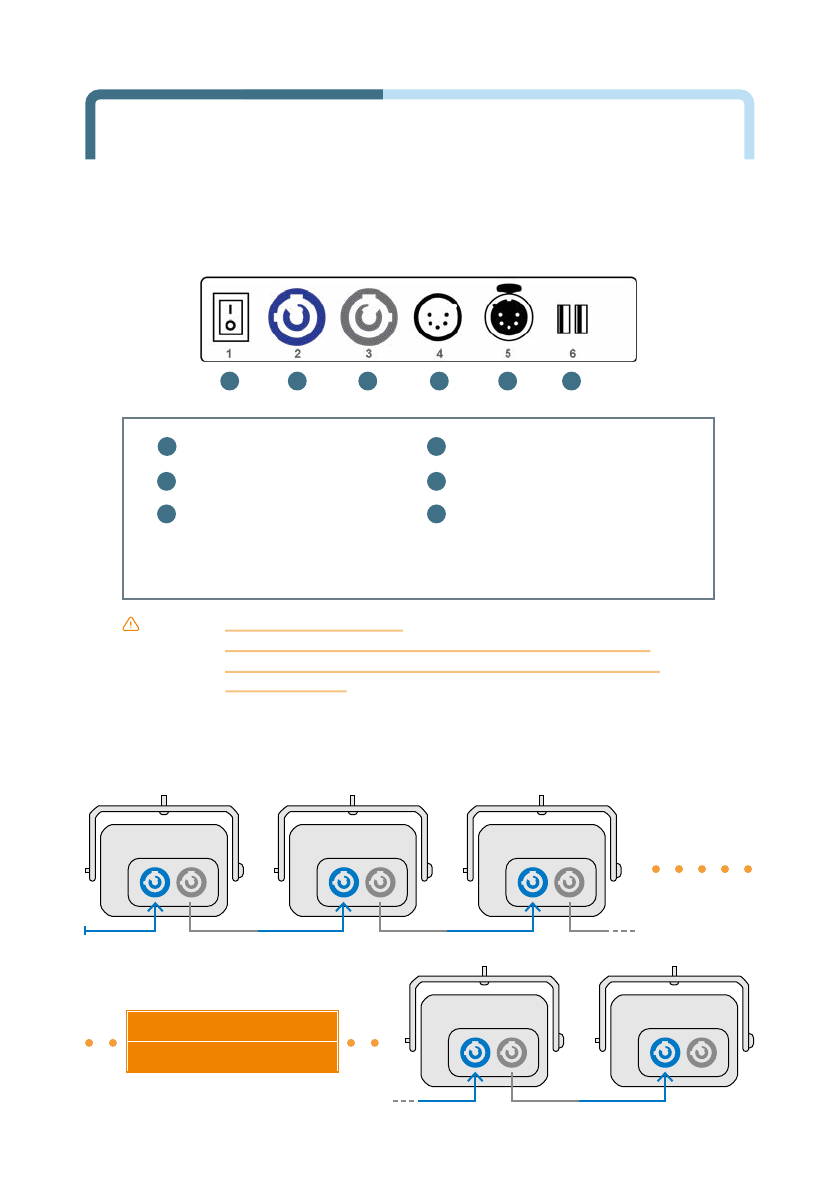

Power Connection
AC power at 100-240V, 50-60Hz
2 3 4 5 6
1
2
4
3
5
6
1
POWER IN
DMX IN
POWER OUT
DMX OUT
POWER ON/OFF SWITCH
USB PORT
(for ADMINISTRATOR ONLY)
※Do not connect USB without
administrator's permission.
1. Observe the proper voltage rang.
2. If power is supplied outside the range, noise may be generated from the SMPS.
3. If the operating voltage is out of the proper voltage range, SMPS function may be
degraded or damaged.
WARNING
Power Pass-Thru : Based on operating voltage 240V and using the cable provided
by ALPHA LITE.
IN OUT IN OUT IN OUT
IN OUT IN OUT
<Connect 01>Start
connection
<Connect 02> <Connect 03>
<※Max Connect 17><Connect 16>
Recommended 12 devices
Up to 18 devices

10 ALPHA LITE ┃USER MANUAL BOOK

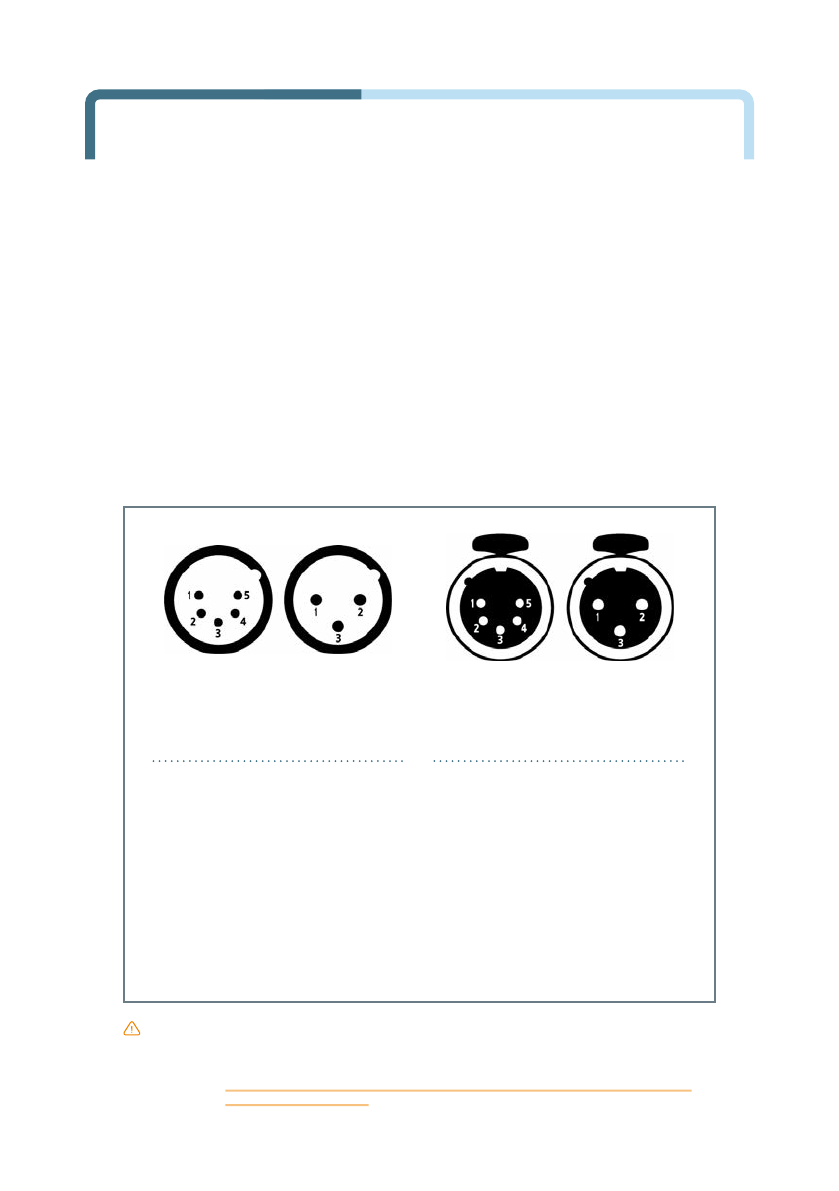

DMX Connection
3-pin or 5-pin XLR sockets are equipped for DMX input and output, depending on
user needs.
Connect the controller to a lighting, or lighting fixture to other lighting fixture.
If user uses a standard DMX controller, the DMX output of the controller can
connect directly to the DMX input of the first fixture in the DMX chain.
User must use an adapter cable for connect the DMX controller to other XLR
output.
⑴Shield
⑵Signal (-)
⑶Signal (+)
⑷Not Connected
⑸Not Connected
⑴Shield
⑵Signal (-)
⑶Signal (+)
⑷Not Connected
⑸Not Connected
DMX-INPUT
XLR Mounting-plugs
DMX-OUTPUT
XLR Mounting-sockets
1. Connect the DMX output of the first lighitng fixture in DMX chain to the DMX input of
the next fixture.
2. Connect one output to the input of the next fixture until all fixtures are connected.
3. In the last lighting fixture, the DMX cable must be end with a terminator(120 Ω resistor)
in DMX output signal (+, -).
WARNING

11
Product name. E2040

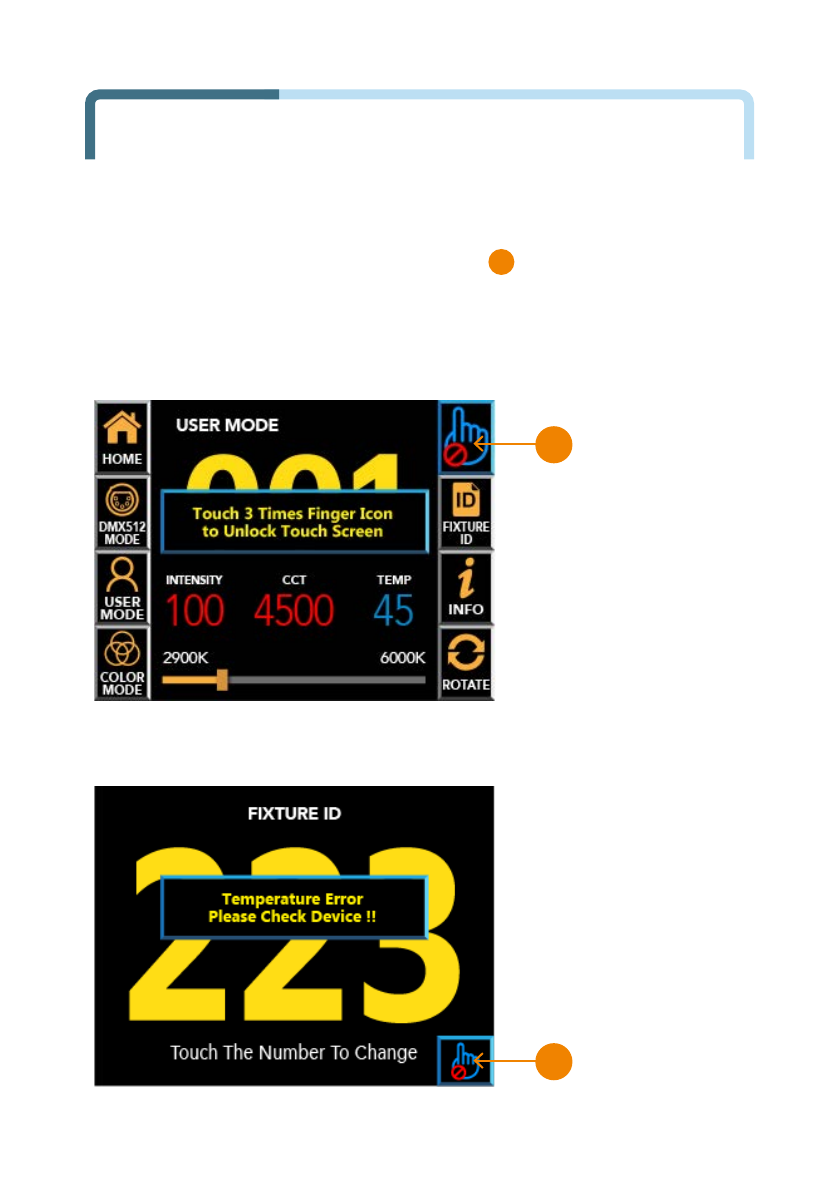

Unlocking
When the fixture is turned on, the Smart Touch screen automatically locked.
To unlock the touch screen, touch the finger icon( ) three times.
If you do not touch for 30 seconds, the lock is reset.
〔Main Screen (Locked) 〕
〔Fixture ID Screen (Locked) 〕
A
A
A
x 3
x 3

12 ALPHA LITE ┃USER MANUAL BOOK
16
17
18
19
08 12
09 13
10 14
11 15
03
04 05 06
07
01 02

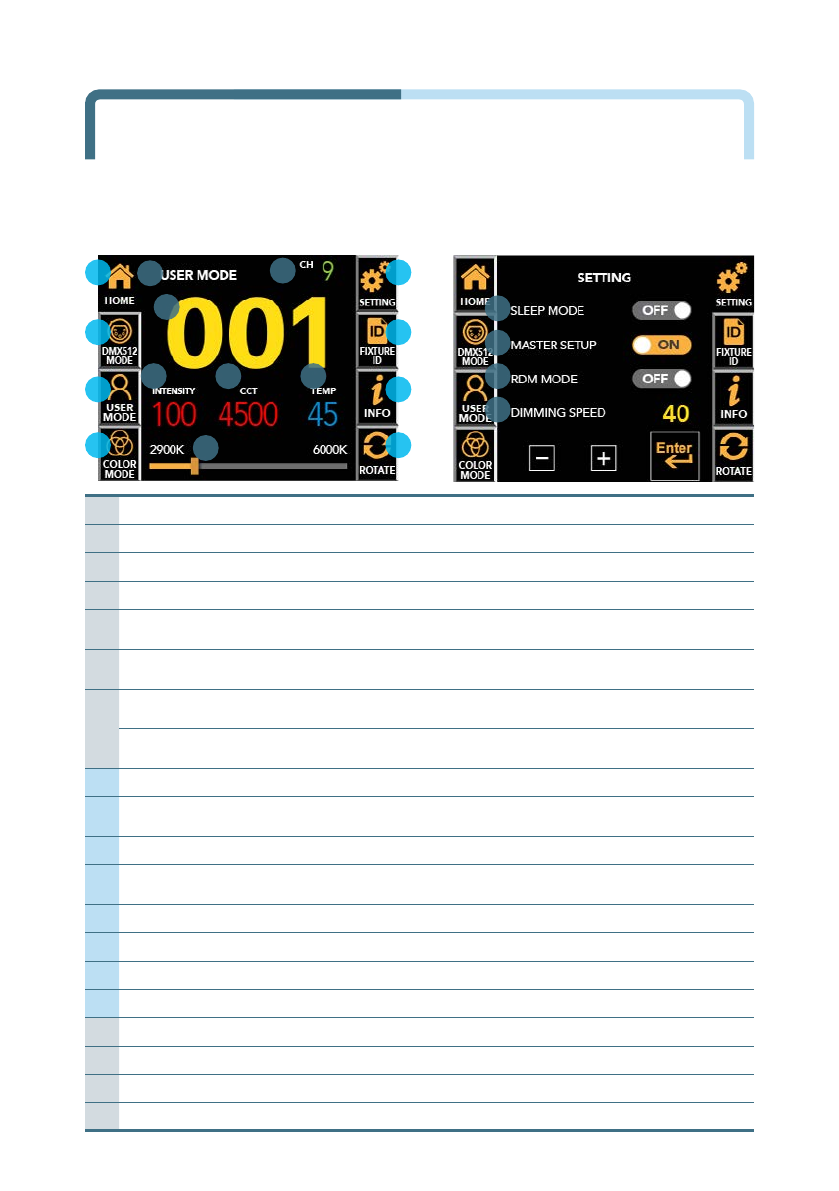

Screen Instructions
〔Main Screen (Unlocked) 〕 〔 Setting Screen 〕
01 Current Mode Display DMX MODE or USER MODE or COLOR MODE.
02 Current Channel Mode Display current channel mode. *Only display on DMX MODE
03 DMX512 Address Display current DMX512 Address.
04 Brightness (Intensity) Displays the brightness value(0~100%) of the equipment.
05 CCT (Correlated
Color Temperature) Displays the color temperature(2900~6000K) of the equipment.
06 Fixture Current Temperature The current temperature of the instrument is detected and
displayed in °C.
07
(In USER MODE) Activated
function control bar
Adjust the selected function
among Intensity and Color Temperature.
(In DMX MODE)
Current channel mode Display current channel mode. *Only display on DMX MODE
08 Home Return to the main screen
09 DMX512 Mode &
Address Setup Set channel mode and DMX512 address
10 User Mode Setup Set ‘Intensity’ and ‘CCT’ manually.
11 Color Mode Setup
(No applicable model) Set ‘RGB’ lighting color, ‘Saturation’, and ‘Intensity’
12 Setting Setting or changing the function of the equipment.
13 Fixture ID Displays numbers for equipment management.
14 Equipment Information Displays the help that describes the screen.
15 Screen Rotation LCD screen is rotated 180° for each touch.
16 Sleep Mode Setup Activate and deactivate LCD Auto off function
17 Master Setup Activate and deactivate Master function
18 RDM Mode Setup Activate and deactivate RDM function
19 Dimming Speed Setup Set dimming speed

13
Product name. E2040
Menu Tree
DMX512 Mode
User Mode
Color Mode
Setting
Fixture ID
Information
Rotate
DMX mode select
Intensity setup
RGB color setup
Sleep mode setup
Fixture ID screen
Basic equipment information
DMX address input
Color temperature setup
Saturation setup
Master function setup
Information
Tint setup
White setup
RDM mode setup
DMX channel value
Description of each function
Individual RGB setup and Preset
RGBW value
Description of each function
Description of fixture ID
Information
Full screen
Dimming speed setup
Information
Information
Fixture ID number input
Information
Home
No applicable model
No applicable model
[ Main screen ]

14 ALPHA LITE ┃USER MANUAL BOOK

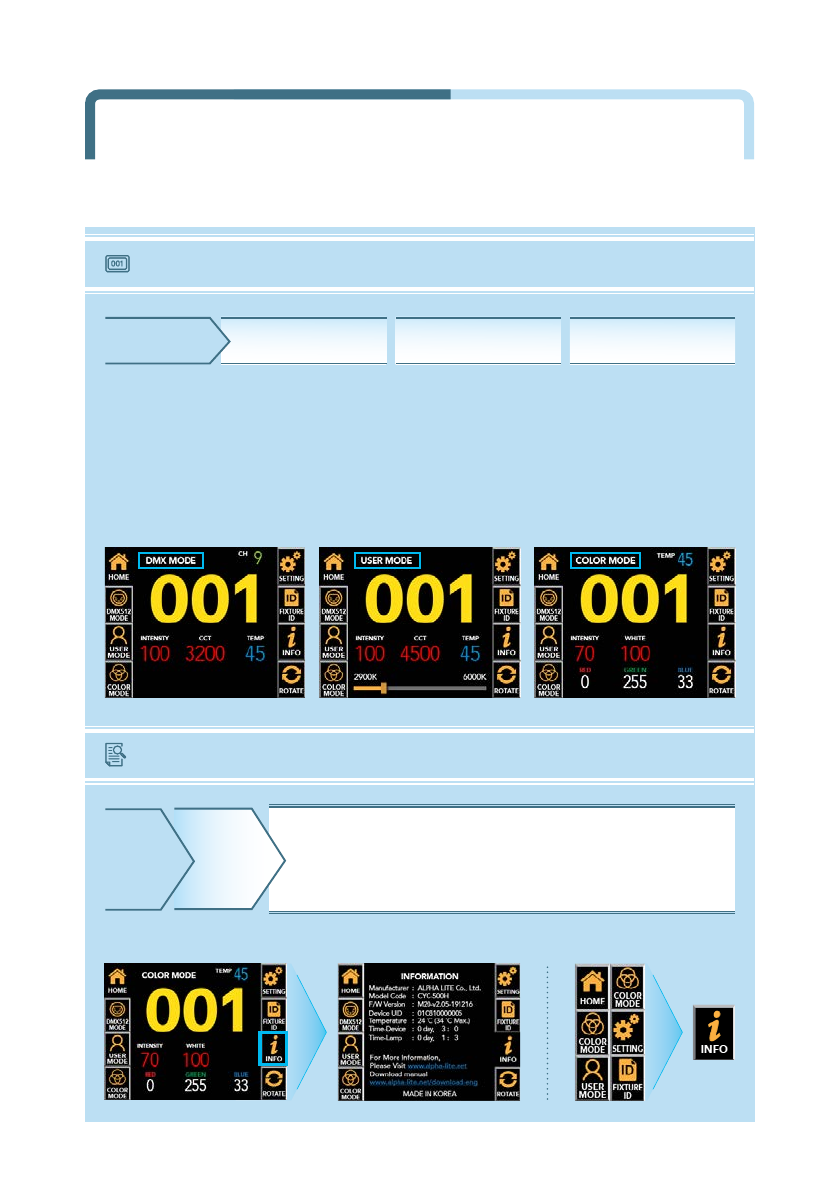

Each 'MENU' ▶ Touch the 'INFO' ▶ User can check the menu description and functions.
The current mode is displayed in the upper left corner of the main screen among DMX MODE,
USER MODE and COLOR MODE (No applicable model), and the DMX address number of the
equipment is displayed in the middle with a yellow number. At the bottom, the current
lighting value and fixture temperature are displayed, and some lighting value can be
adjusted on the main screen by touching the value.
〔DMX MODE 〕 〔 USER MODE 〕 〔 COLOR MODE 〕
HOME DMX MODE USER MODE COLOR MODE
INFO
Product model name, firmware version, UID number,
current temperature of equipment, usage time of equipment,
LED usage time, website, manual download link, etc.
by clicking the INFO button on the main screen.
HOME
Main Screen by Mode Information
Product Information
Main Screen by Mode &
Product Information

15
Product name. E2040
DMX512 MODEHOME Move to the DMX channel change screen.
※To return to the previous screen, press the 'INFO' button again.
INFO
DMX512 MODE SCREEN Displays each channel information and value.
- 1 (1 Ch Mode) : Dimming - 2 (2 Ch Mode) : Dimming, CCT
* Support channels and features vary by product.
information

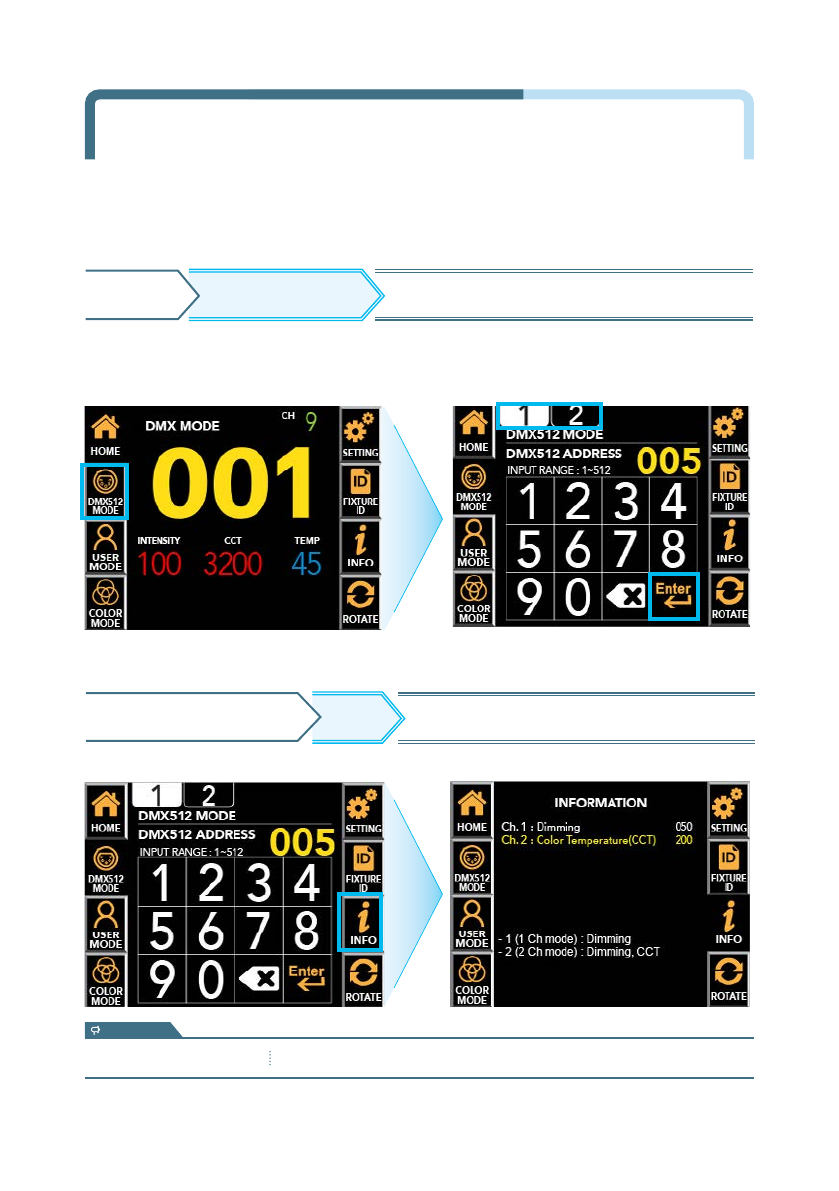

DMX Mode Channel Change &
Address Setup
DMX MODE : It is used to adjust value by DMX512 signal.
In DMX512 MODE screen, user can select DMX channel mode on top tap.
▶Input DMX512 address by pressing the number pad.

16 ALPHA LITE ┃USER MANUAL BOOK

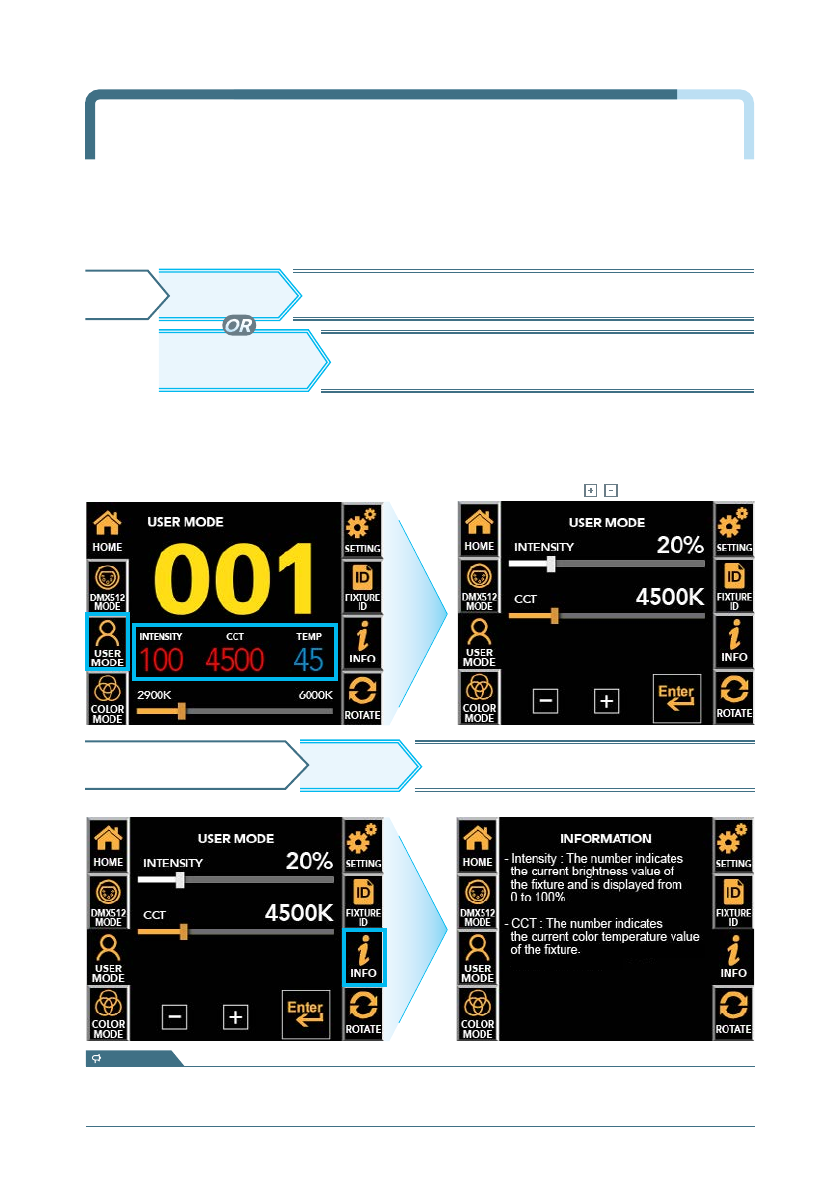

User Mode Setup & Intensity / CCT Adjust
USER MODE : It is used when the user directly manipulates the equipment.
Move to user-operable screen to change Intensity/CCT.USER MODEHOME
Activate control bar and adjust value directly
according to selected function.
'Current Intensity'
'Current CCT'
OR
※To return to the previous screen, press the 'INFO' button again.
- Intensity : The number indicates the current brightness value of the fixture and is displayed from 0 to 100%.
- CCT : The number indicates the current color temperature value of the fixture and is displayed from 2,900~6,000Kelvin.
INFO
USER MODE SCREEN Displays description of each function.
information
※In DMX mode, even if you press the current value on the main screen,
the bottom bar is not active.
USER MODE screen ▶Touch the function you want to change ▶Active in Orange ▶
Adjust the value with touch or drag. Drag the activated bar close to the desired value,
and then touch , to set the exact value.
* If the equipment does not support COLOR MODE, the Tint function does not work.

17
Product name. E2040

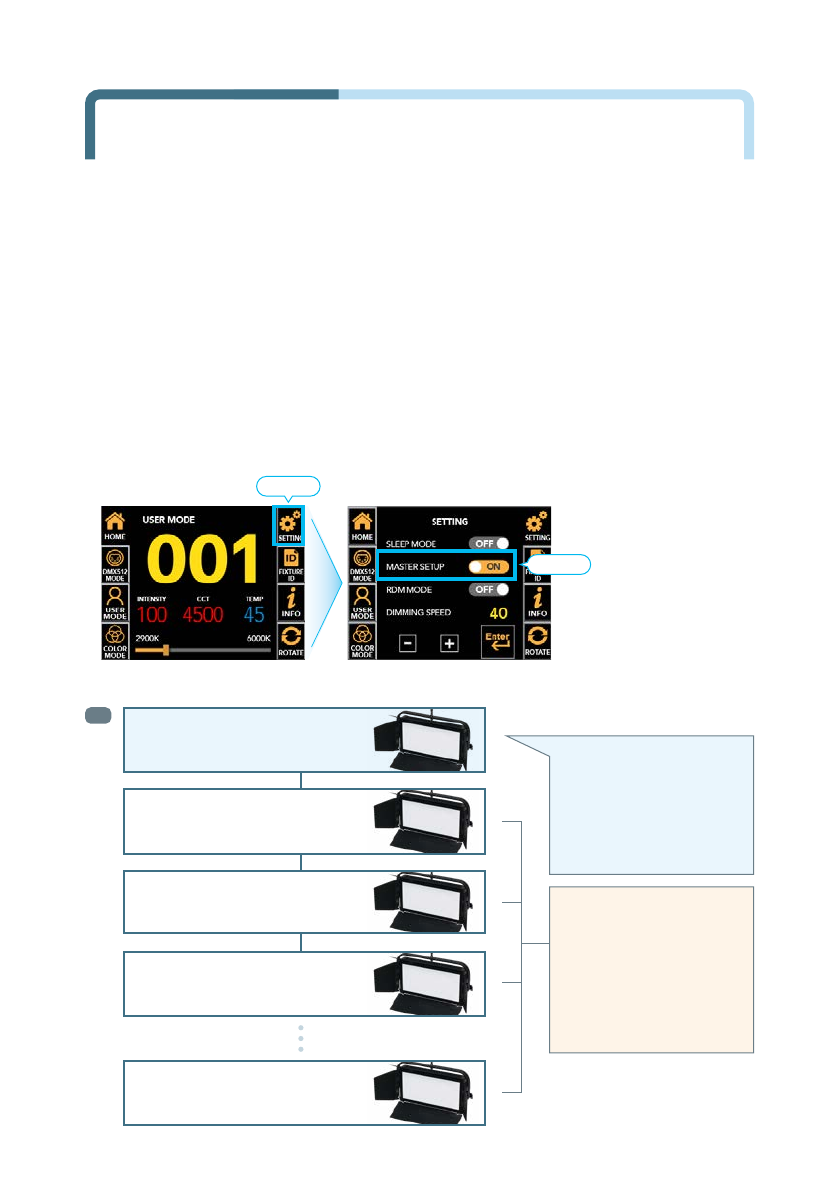

Extra Function
– Sleep Mode / Master / RDM / Dimming Speed
※Press the INFO button again to return to the setting screen.
INFO
SETTING SCREEN Displays description of each function.
- Sleep mode setup
(Default=Off)
The function to automatically turn off the screen when there is no operation
for 30 seconds. If OFF, it is always on the screen while power is on.
- Master setup
(Default=Off)
The function to synchronize and user control all connected fixtures without
a console connection. If OFF, the DMX signal will follow.
- RDM setup
(Default=On)
The function to enable two-way wireless communication through RDM
equipment. If OFF, it is not detected by RDM equipment.
- Dimming speed
setup
The number indicates the current dimming speed value of the fixture and is
displayed from 0 to 40. The higher the value, the slower the dimming speed,
and ’15’ is default speed.
information
SETTING screen ▶Touch ON/OFF the function you want to change among SLEEP
MODE, MASTER and RDM MODE ▶Active in Orange ▶Set ON/OFF
- DIMMING SPEED SETUP can be activated by touching, and press , to adjust the value.
SETTING
HOME Move to additional settings other than the main icon.

18 ALPHA LITE ┃USER MANUAL BOOK
ex
Master
#Last
#1
#2
#3
- Remove 'DMX in' cable.
- Set ‘Master Enable’
- Set the same
channel mode.
- Operation After setting.
- Connecting
'DMX in & out' cable.
- Set ‘Master Disable’
- Set the same
channel mode.
- No operation
after setting.
Extra Function
– Sleep Mode / Master / RDM / Dimming Speed
Master Setup
•The master slave function allows to synchronize and control all connected lighting
fixtures through the DMX signal without a console connection.
•If a problem occurs in the console or communication line, it is possible to control
the brightness and CCT and color with only the lighting fixture.
•Main screen ▶Setting ▶Touch MASTER SETUP, the function turns on. (2 Touch)
•Functions available with one setting of the first lighting fixture.
〔Main Screen 〕 〔 Fixture ID Screen 〕
Touch!
Touch!
DMX cable connect

19
Product name. E2040
Fixture ID & Label Setup
〔Device Label Setup 〕
[ Change the device label through RDM ]
《The device label is basically the model name. It can be changed
through RDM communication, but it can’t be changed through
the Smart Touch LCD 》
Enter the device name and the management
number in the 'Device Label' field.
▶The entered contents
are displayed in the upper left corner.
Move to fixture management number setting screen.
FIXTURE IDHOME
Move to input screen that can change the number ▶Input the desired number 001 to
9999 and press Enter ▶Move to the FIXTURE ID screen that displays the large size
entered value ▶Touch HOME icon to go back to the main screen.
- The fixture ID is displayed in 3 or 4 digits from automatically recognized 4 digits in contents.
- If user do not enter any number, the fixture ID is displayed as ‘001’.
〔Main Screen 〕 〔 Fixture ID Screen 〕〔Fixture ID Input Screen 〕
※It is the number value 001 to 9999 for the management of
the lighting fixture can be changed by manual or RDM device.
ex 1 ex 2 ex 3 ex 4 ex 5
Input(Device Label in RDM) BASE123 BASE1234 BASE12345 BASE STUDIO13-23
Fixture Label(in Fixture) BASE123 BASE1234 BASE12345 BASE STUDIO13-23
ID Number(in Fixture) 123 1234 2345 001 023
Displays description of each function.
INFO
Fixture ID
Input
Screen
