ASIN AquaSALT
User Manual
1
is an electrolysis system for slightly salted water. Salt water with a concentration of 4 to 8 kg
salt per 1 m3 is decomposed by the most advanced electrolytic system creating chlorine, which
destroys all bacteria, viruses and algae in pool water.

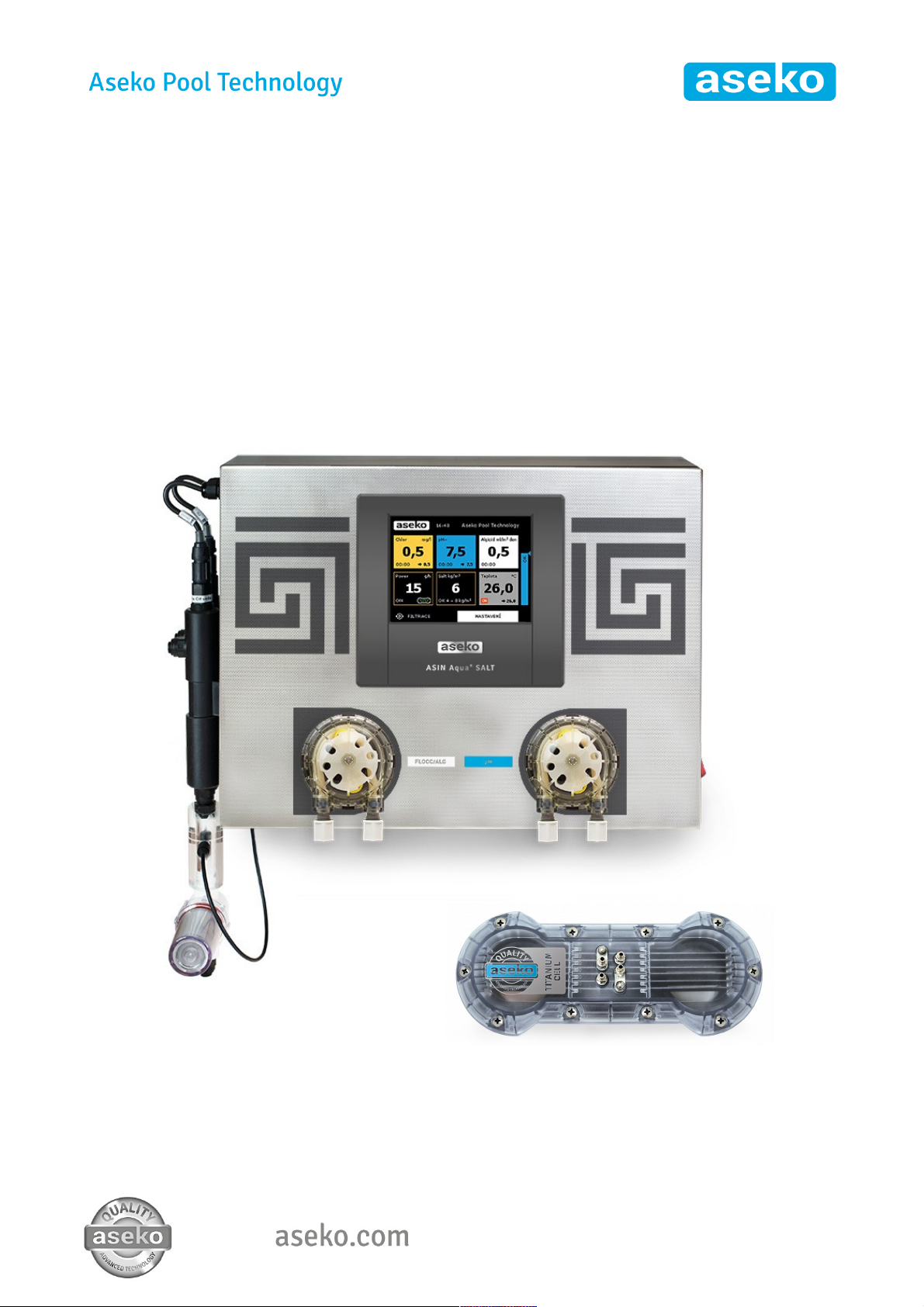

The system consists of the T 27 electrode and ASIN Aqua SALT control unit, the first „all in one“
water quality management model. ASIN Aqua SALT is equipped with automatic regulation of
operation of the electrolyser. It is also equipped with a programmable algaecide dosing pump.
The resulting effect is continuously clean, clear water, without any odor, conforming to all
hygienic requirements.
ASIN Aqua SALT also takes over direct control of the filtration pump, thanks to
a filtration pump socket, allowing power supply to the pump of up to 1,4 kW / 230 V AC.
To regulate the content of chlorine in the water, the user can choose between using a free
chlorine CLF probe or a R DOX potential probe for measurement. The third option is using simple
time-control, without measuring the concentration of the disinfection.
•indicates if the electrolyser is overloaded
•measures salinity of water
•displays the output of the electrolyser in g Cl / h
•ensures self-cleaning of electrodes by switching polarity
•to regulate water heating by attaching a water temperature meter
•for automatic control of water level in accumulation tank by attaching a water level
meter
•for remote monitoring of pool using option to connect to internet via a LAN network
•for pool status, water temperature and air temperature and relative humidity data
transfer straight to the pool area by connecting an external display.
2
Power supply 230 V AC 50 Hz
Power input without filtration
pump
190 VA
Total power input incl. pump 1449 VA
Apparatus fuse T6,3A
Internal electronics fuse T800 mA
xterior sensor input fuse T160 mA
Cover IP30
Climate resistance 5 – 40 C
Input non-potential relay load up to 230V/1A, it is not P RMISSIBL to connect varying
network phases to the relay.
Chlorination output 13 – 27 g Cl/ hour
Filtration pump power supply 1,4 kW , 230 V AC
Peristaltic pump output 60 ml/min at max. counter-pressure 1 bar
Maximum pressure of
measured water
1,5 bar
Dimensions 450 x 330 x 150 mm
Weight 10 Kg
3

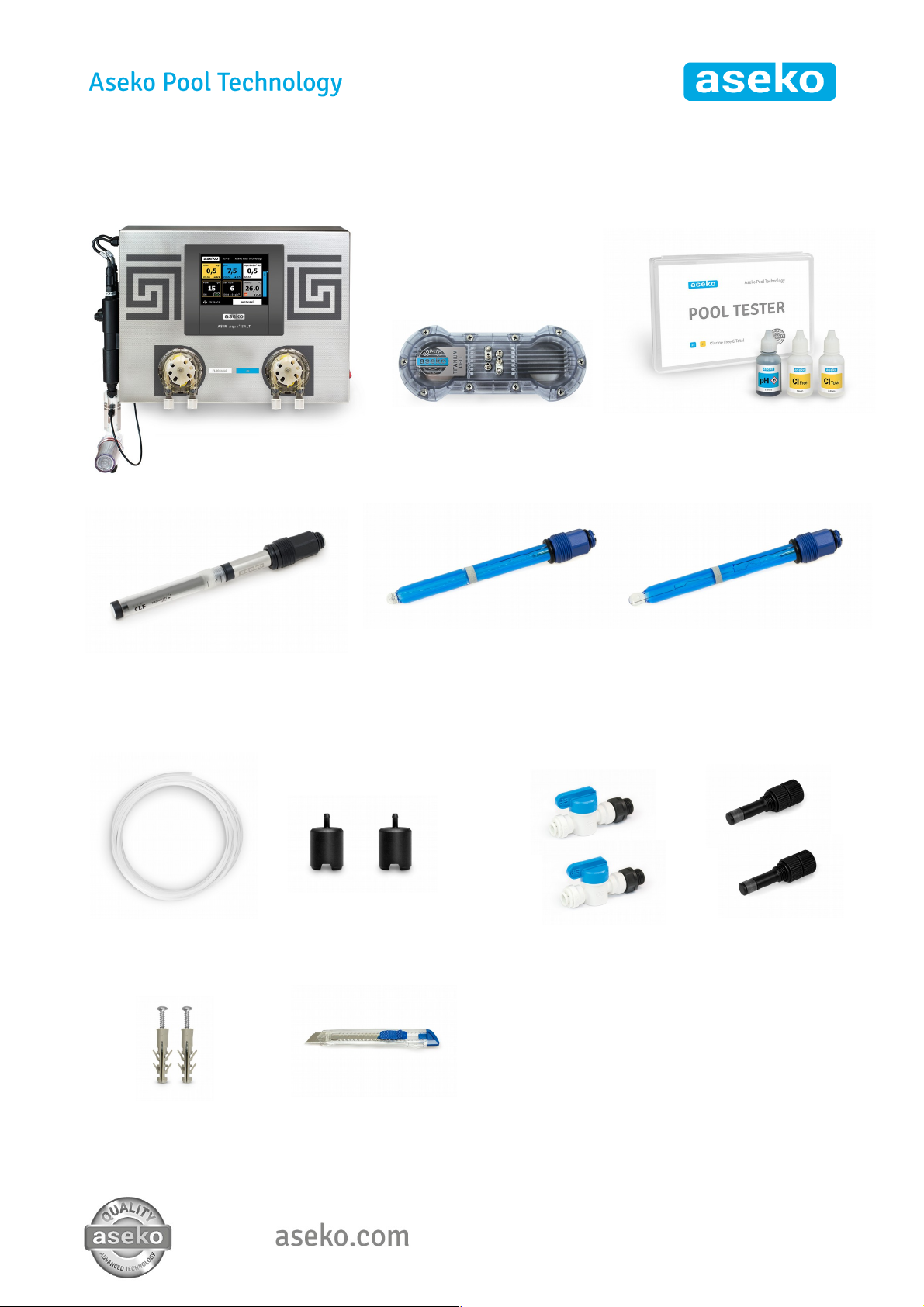

4
! "#
$!%&
'
$!'
&
(%)
%!*! %*++ %!,&++
*
-** !
&

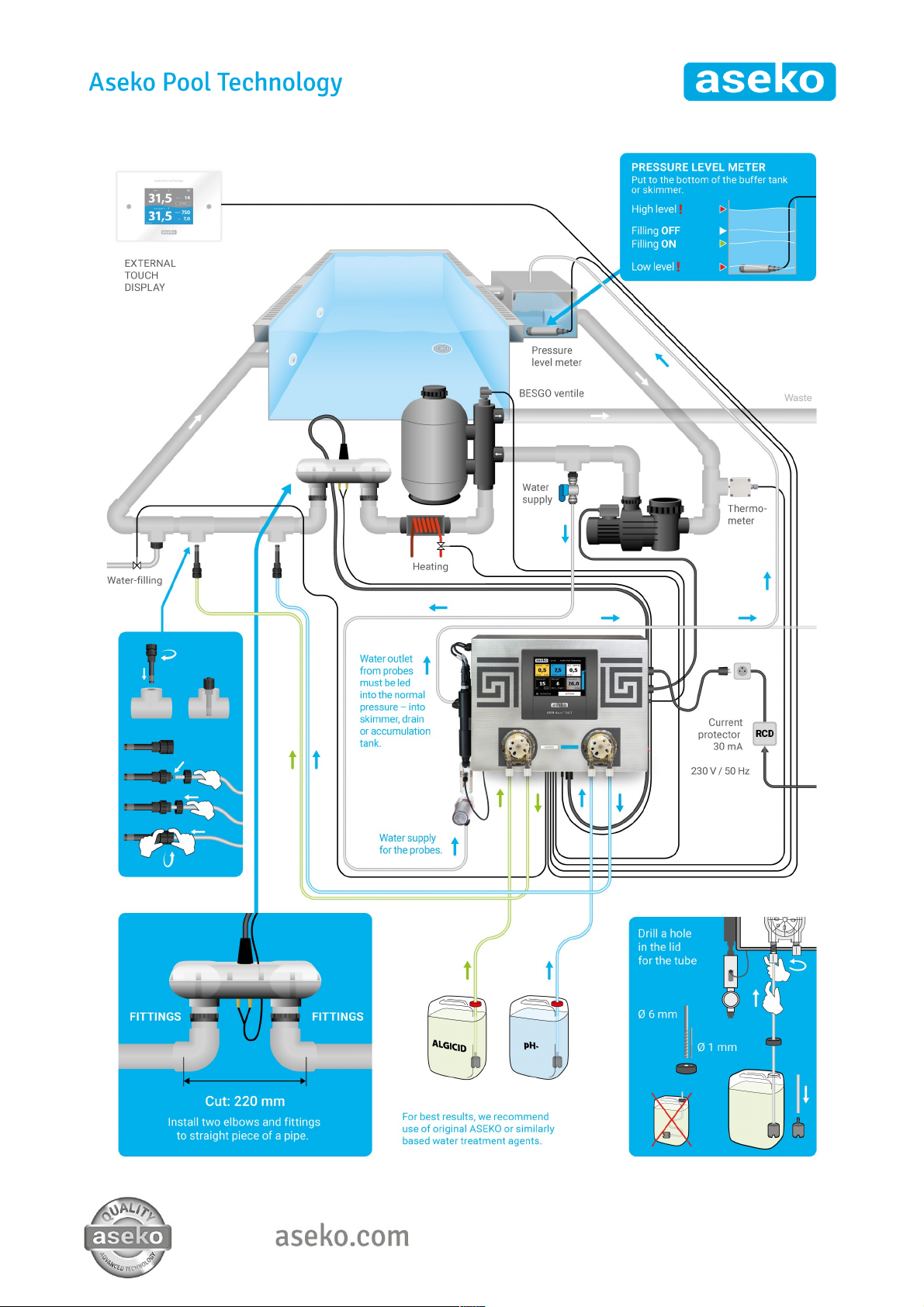

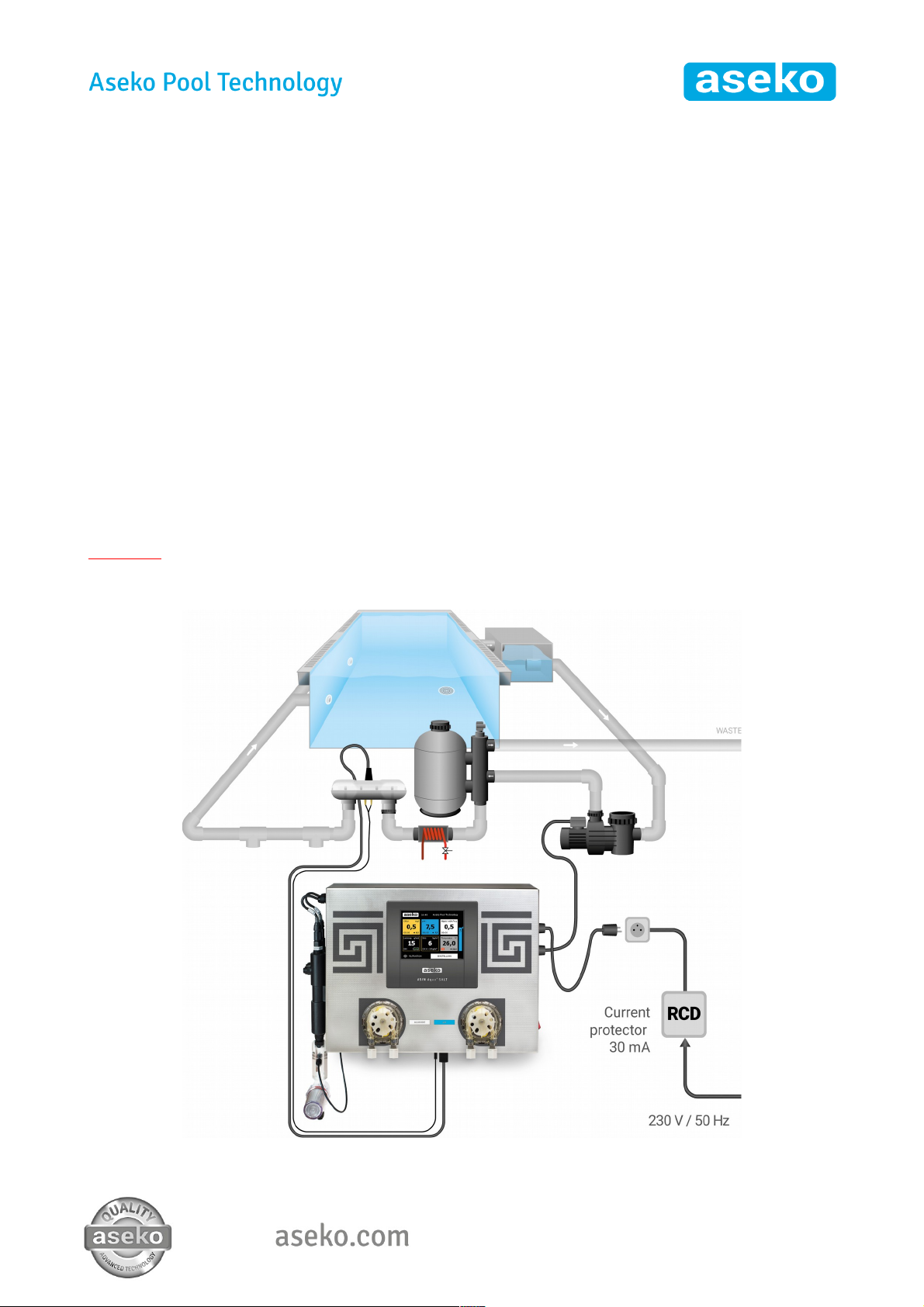

How the ASIN Aqua SALT system is connected to the filtration circuit is shown in fig. Wiring diagram
The input of measurement water to probes must be connected behind the filter pump and the output
before the filtration pump or into the drain. Water is pushed around the probes by the pressure
difference.
The probes for measuring pH and free chlorine (or alternatively redox) are screwed into the probe holder
on the side of ASIN Aqua SALT. Tighten all only manually, without using pliers or spanners.
ASIN Aqua SALT is mounted onto the wall vertically by two 5 x 40 screws into 8 mm dowels. The maximum
distance of ASIN Aqua SALT from the T 27 electrode is 1,5 m.
ASIN Aqua SALT is connected to the electrode T 27 by a bunch of cables, which are a part of the electrode
(they cannot be disconnected).

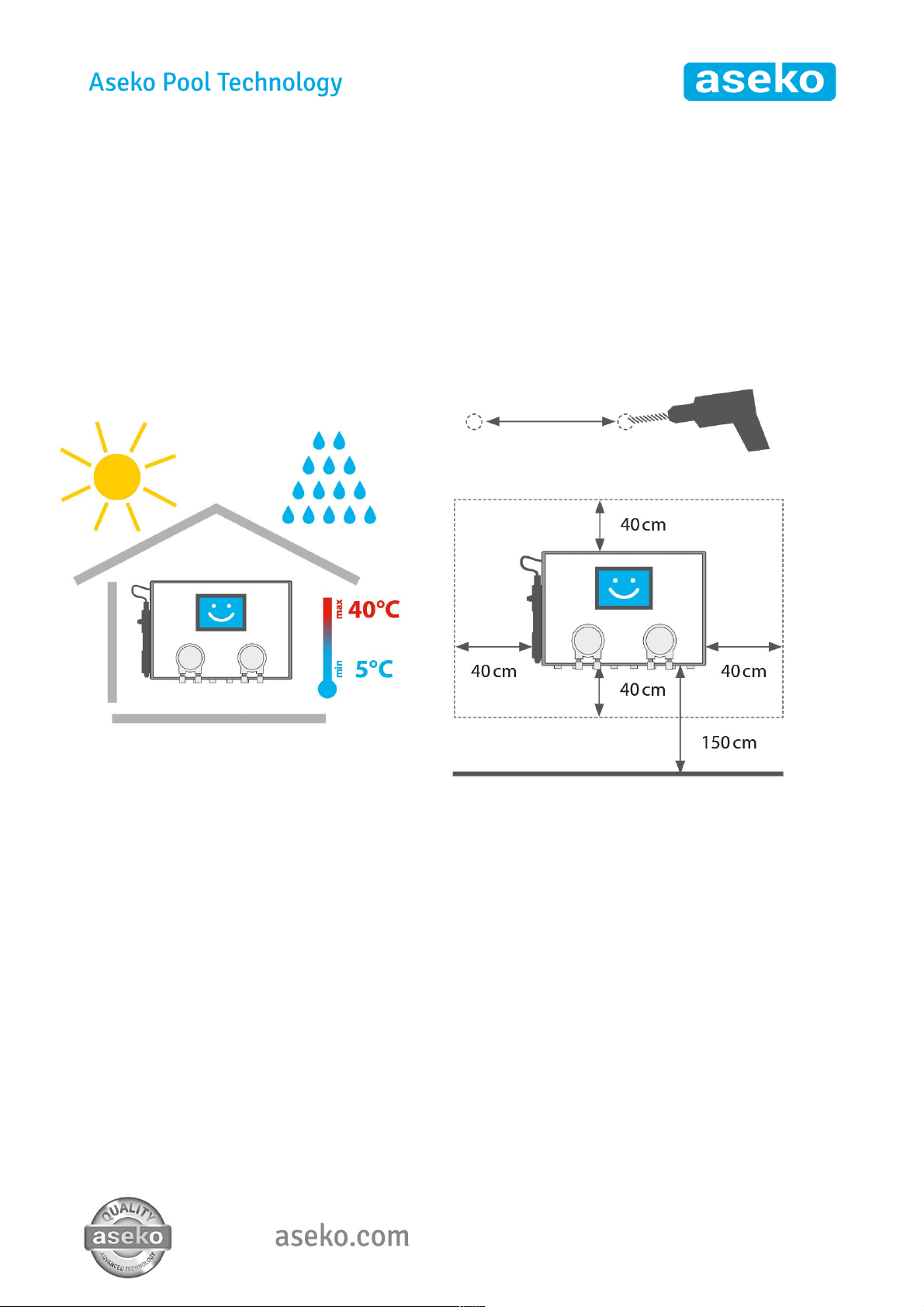

ASIN Aqua SALT should never be placed near heat sources or in direct sun, ASIN Aqua SALT must always be
mounted vertically. There is a deflector cooler on the back side of the ASIN Aqua SALT unit, around which
air must flow freely to prevent overheating.
The T 27 electrode (fig.2) is glued into the DN50 output pipe between the filter and pool. It is put in by
gluing or screwing the electrolyser into the pipe according to the diagram in fig. 1. The gluing or screwing
set is not part of the delivery.
5
35,7 cm
6
!&.
Pung into operaon:
1. Leave the power switch in the off position.
2. Plug the filtration unit into the contact socket on the ASIN Aqua SALT
(filtration power supply – max. output 1,4 kW / voltage 230 V AC).
3. Plug the 230 V/50 Hz power cable into ASIN Aqua SALT (on the right side).
The power socket must be surge-protected (30 mA).
4. Turn the power switch to on.
After turning on, the display will light up and the ASIN Aqua SALT start-up screen will be visible for the
duration of the start-up.
Turning o:
1. Put the power switch into the off position.
2. Unplug the power cable from the 230 V/50 Hz socket.
3. Unplug the power cable from the ASIN Aqua SALT unit.
4. Disconnect the filtration unit.
WARNING: If the ASIN Aqua SALT is used in a different manner, not specified by the manufacturer,
the ASIN Aqua SALT may not provide the full protection it is designed for.
7
!*!!!$
8
.
We recommend starting up operation with clean chlorinated water.
ASIN Aqua SAL only begins to produce a sufficient amount of chlorine several hours after first start-up.
Since it is necessary to use a much larger quantity of chlorine for first chlorination than during regular
operation, it may happen that ASIN Aqua SAL would not attain the required level. That is why we
recommend chlorinating the water in the pool by pouring in approx. 30 ml chlorine disinfectant per each
m3 of water or 50 g of SUP RCHLOR per every 10 m3.
xample: If the capacity of your pool is 33,6 m3, pour 30 x 33,6 = 1008 ml, i. e. approx. 1 liter of chlorine
disinfectant into the pool.
Put 4 – 8 kg of salt per every 1 m3 of water into the pool.
xample: The dimensions of the pool are 4 m x 7 m and water depth is 1,2 m. Its capacity is than 4 x 7 x
1,2 = 33,6 m3. The amount of salt to be put in is 33,6 x 8 = 268,8 kg.
Before plugging the ASIN Salt SALT into the power supply, you must let the salt dissolve completely
(approx. 24 hours) and check the pH level. If it is less than 7,3 (the optimum value is 7,5), treatment
with a pH+ agent is necessary.
Unsuitable pH values reduce the life of electrodes.
9

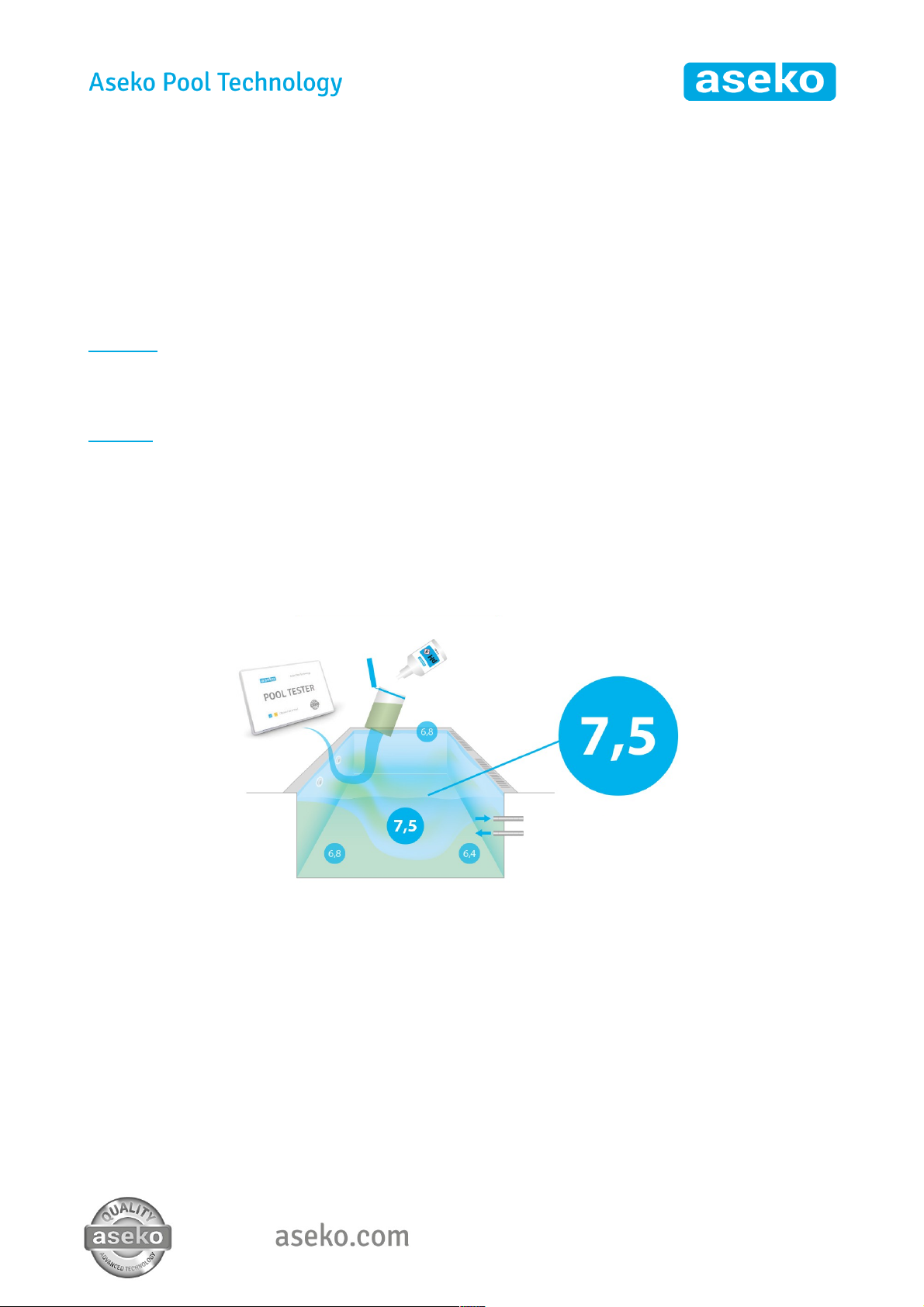

Maintain 7,5
'*
Conguraon

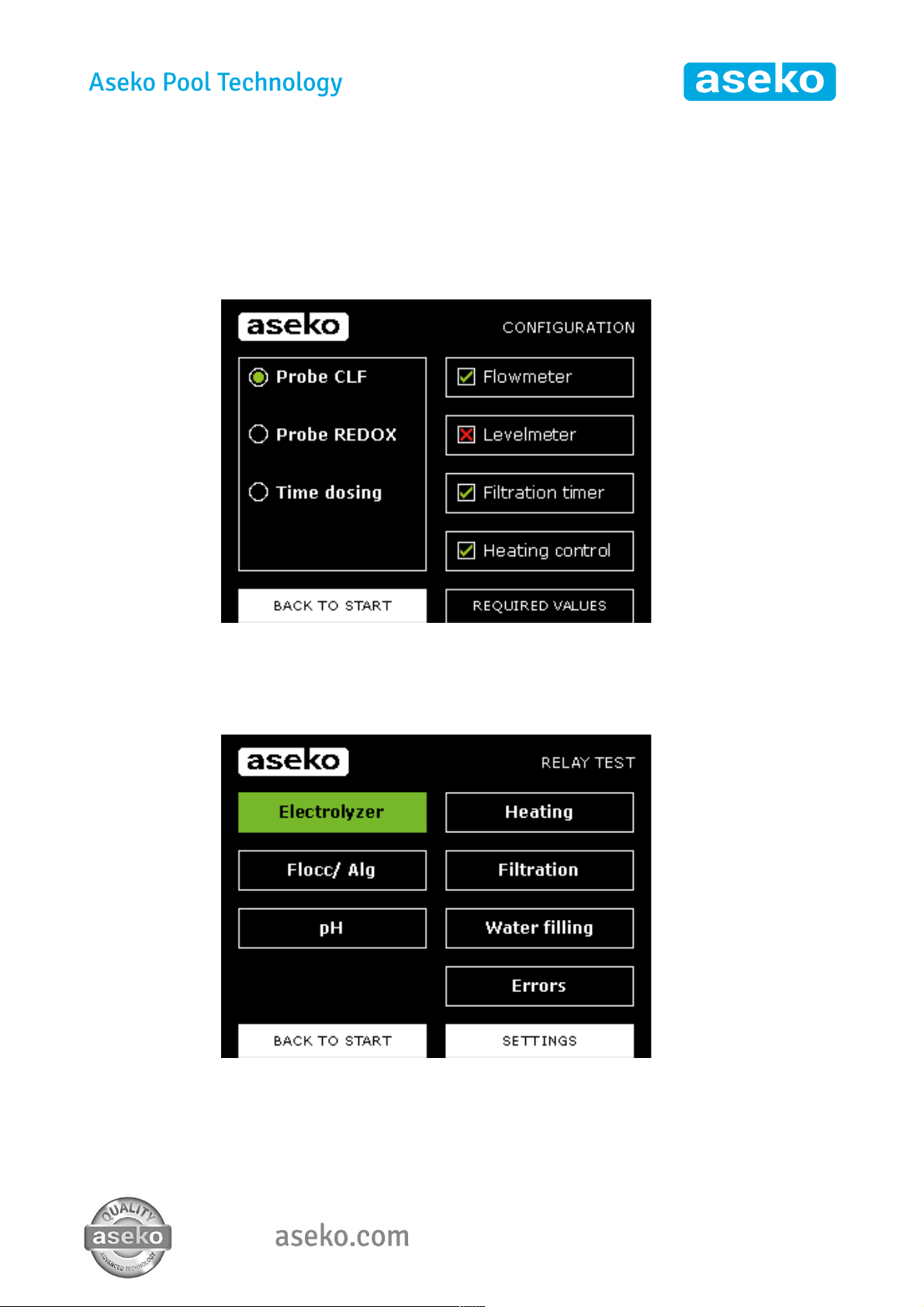

You can configure the ASIN Aqua SALT through the CONFIGURA ION menu. In the menu, choose what probe
will be used to measure chlorine content. Further, choose what optional functions you will be using
Installaon test
You can check if the dosage pumps and external apparatuses are fully connected in the test menu for
manual dosage. It also allows one-off dosage of chlorine disinfectant.
10
Required values

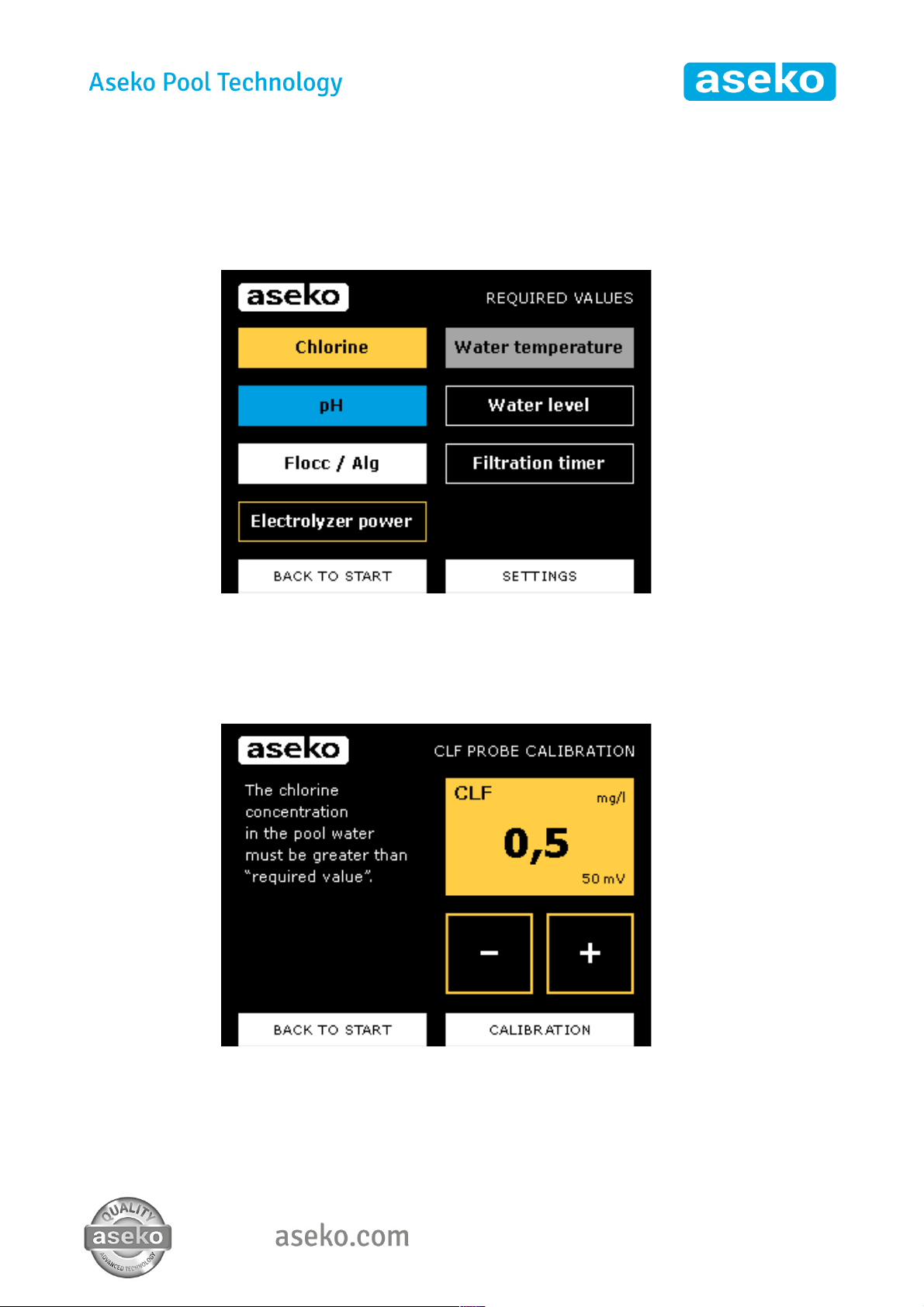

You can set the values you want ASIN Aqua SALT to maintain automatically in the R QUIR D VALU S menu.
When starting up, set Chlorine to 0,3 mg/l (redox to 650) and the pH to 7,6.
After 24 hours, calibrate the CLF chlorine probe, or REDOX setting, according to the manual tester
measurement. It is only possible to calibrate if the chlorine concentration in the water is higher or the
same as the concentration you will want to use as your required value.
11
Chlorine production depends on the quantity of salt in the water and water temperature. The lower the
water temperature, the less chlorine is produced. To increase the electrolyser output, use the menu
R QUIR D L CTROLYS R OUTPUT.
If it is not possible to further increase output this way, you can achieve it by adding an extra quantity of
salt. 1 kg of salt per every 1 m3 of water increases output by approx. 10%. The maximum amount of salt
that can be used is approx. 8 kg per m3. If you exceed this concentration, you could overload the power
source part of the ASIN Aqua SALT. In order to prevent this, the ASIN Aqua SALT is equipped with automatic
maximum power control. It will automatically disconnect upon overloading. Before it is turned on again,
the water in the pool must be diluted. Never use salt concentration below 4 g per liter – that would
significantly decrease electrode life. Concentrations higher than 8 g per liter are very corrosive and can
cause corrosion of pool fixtures.
The need or disin econ is signicantly in#uenced by actors such as:
•temperature
•intensity of sunlight
•number of bathers
•rain, wind
•organic pollution
When using the electrolyser, you must mainly follow these instructions:
Never turn on the ASIN Aqua SALT if there is at least 4 g of salt dissolved per every liter of water in the
pool. This would destroy the electrodes. The optimum value is 4 – 8 grams per liter.
The quantity of disinfectant produced by the ASIN Aqua SALT depends on the quantity of salt in the water,
the time for which the ASIN Aqua SALT is in operation and the set output of the electrolyser.
ASIN Aqua SALT must not be plugged in the power supply prior to the salt being completely dissolved in the
pool. The electrode may only be connected to the ASIN Aqua SALT when turned off.
12
/ !
We recommend using vacuum-packed kitchen salt.
You may not use rock salt. Any additives could significantly decrease the life of the electrode.
ASIN Aqua SALT is designed for electrolysis of water containing 4 – 8 kg/m3 salt.
Using concentrations lower than 4 kg/m3 could damage the electrode. That is why regular monitoring of
salt content in water is necessasry. The concentration of salt in the water changes only marginally through
the actual operation of the electrolyser.
The main losses of salt are due to filtering, splashing out and rain in case of outdoor pools.
The table shows the amounts of salt in kg, which must be added to increase concentration, given in the
left column, to 4 kg/m3 relative to pool capacity.
Salt
conten
t
kg/m3
Pool capacity in m3
10 15 20 25 30 35 40 50 60 70
Quantity of salt in kg to increase its content to 4 kg/m3
0 40 60 80 100 120 140 160 200 240 280
0,25 37,5 56,25 75 93,75 112,5 131,25 150 187,5 225 262,5
0,5 35 52,5 70 87,5 105 122,5 140 175 210 245
0,75 32,5 48,75 65 81,25 97,5 113,75 130 162,5 195 227,5
1 30 45 60 75 90 105 120 150 180 210
1,25 27,5 41,25 55 68,75 82,5 96,25 110 137,5 165 192,5
1,5 25 37,5 50 62,5 75 87,5 100 125 150 175
1,75 22,5 33,75 45 56,25 67,5 78,75 90 112,5 135 157,5
2 20 30 40 50 60 70 80 100 120 140
2,25 17,5 26,25 35 43,75 52,5 61,25 70 87,5 105 122,5
2,5 15 22,5 30 37,5 45 52,5 60 75 90 105
2,75 12,5 18,75 25 31,25 37,5 43,75 50 62,5 75 87,5
3 10 15 20 25 30 35 40 50 60 70
3,25 7,5 11,25 15 18,75 22,5 26,25 30 37,5 45 52,5
3,5 5 7,5 10 12,5 15 17,5 20 25 30 35
3,75 2,5 3,75 5 6,25 7,5 8,75 10 12,5 15 17,5
4 0 0 0 0 0 0 0 0 0 0
Table – Salt to be added to attain a concentration of 4 kg/m3
13
0 &$
You can set the current date and time in the DAT AND TIM menu.
0&&$ 1&$
You can set the required times for turning filtration on in the menu R QUIR D VALU S/FILTRATION.
14
0 *+*!!
$&!$$

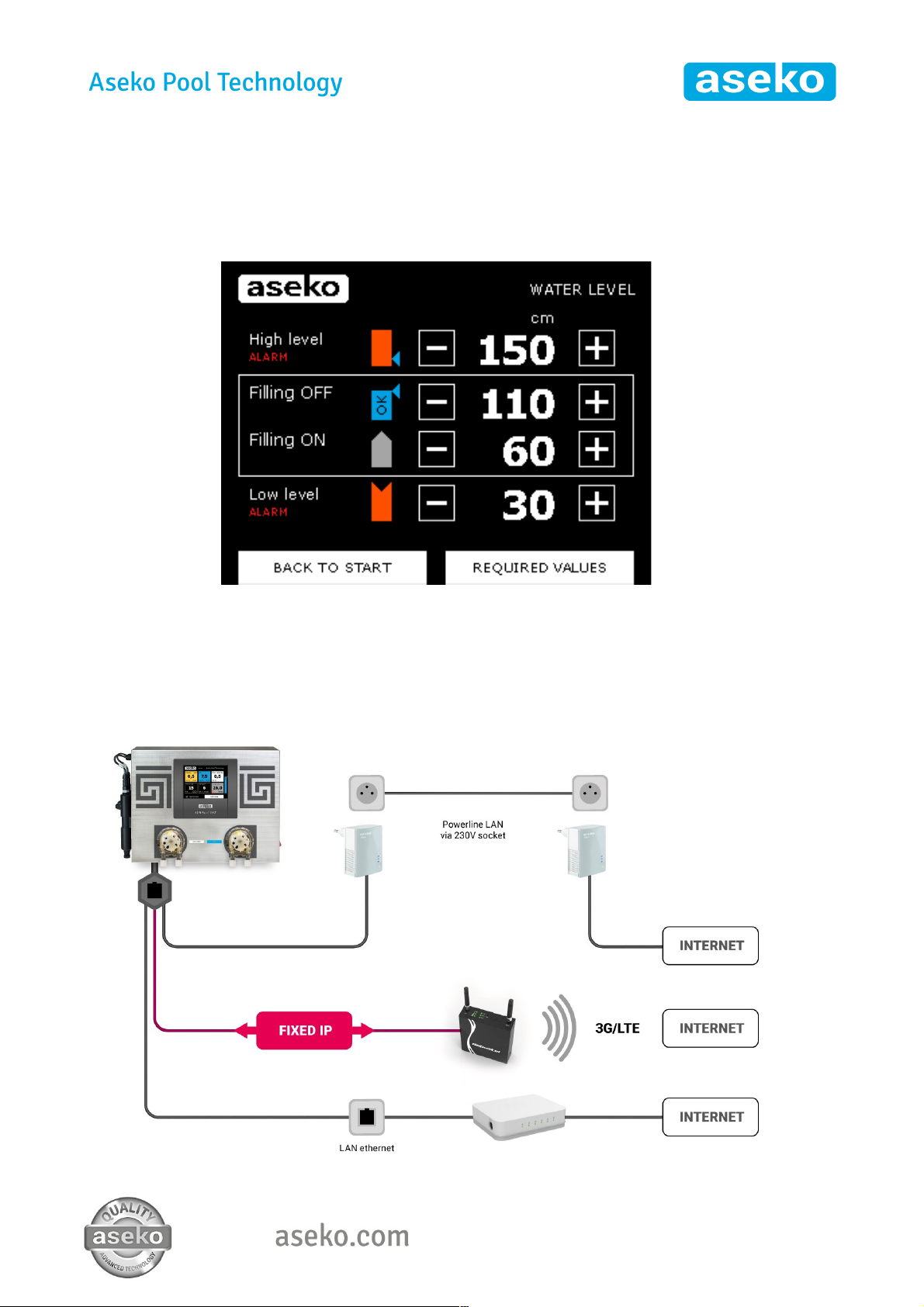

Set the required values in the menu R QUIR D VALU S/WAT R L V L.
& !
The device is connected through LAN cable to the router. Data are send in 10 seconds intervals to IP
217.11.244.139, port 10004, must NOT be blocked by firewall.
15
!!+!22$

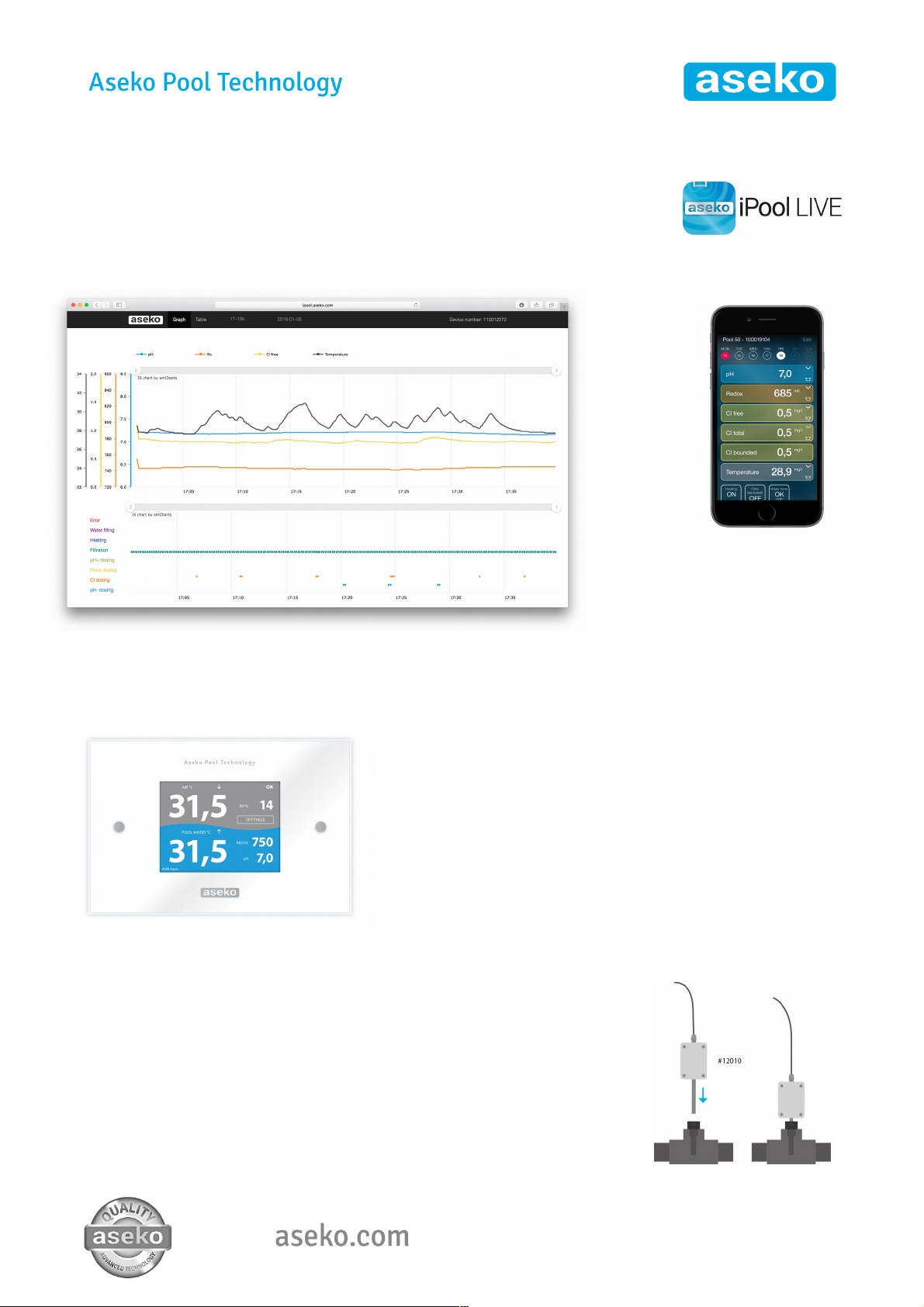

Connection to the internet can take advantage of our mobile
app iPool live or our web page ipool.aseko.com for monitoring
of your pool on your mobile device anywhere you are.
% !3
Showing measured values of your pool water, humidity
and temperature of the pool room where the display
is installed and you can also change setup value of pH
and chlorine. You can also chose which parameters you
want to see on the display.
$$&
Install temp. holder to the pipe system then insert the thermometer.
Connect the cable (2m as standard, other lengths on request) into
nnector at the bottom side of the device.
16
!
The T 27 electrodes, which are a substantial part of the electrolyser, are made of titanium coated with a
special layer of ruthenium and iridium, which are used up during operation. To minimize their
consumption, you must beware of
•low salt content (under 4kg/m3)
•water temperature under 10°C
•low water flow
•water is too hard
•pH values under 7,5
•use of additives containing metals
!
During operation, the electrodes are gradually covered by sediments from hard water, which must be
periodically removed. lectrode coverage by sediments leads to a lower output of the electrolyser, we can
recognize this by the decreasing output (as shown on the ASIN Aqua SALT display) while the salt content
remains the same. In this case we must turn off the system, take the electrodes out and soak them in the
electrode cleaning tank, filled with electrode cleaning solution, for approx. 10 minutes. The whitish
coating on the electrodes should disappear and the electrodes can be put back into the electrolyser.
/3
The manufacturer provides a two year warranty for ASIN Aqua SALT units as of the date of sale. If this date
cannot be credibly documented, the warranty runs from the date of manufacture on the manufacturer's
label.
The manufacturer is not liable for defects caused by use of the ASIN Aqua SALT in disregard of the manual.
The manufacturer is further not liable for damages caused by inexpert installation of the unit. Before you
call a service technician to claim the warranty, check the following points, which are under your liability:
1. electric supply is functional
2. the unit is mounted in compliance with the manual
3. the water meets the required pH and salt content parameters
4. the electrode is clean
5. there is sufficient water flow through the electrode
6. the apparatus fuse is all right.
17
4!
The ASIN Aqua SALT and T 27 electrolyser do not require maintenance. However both apparatuses are in a
highly corrosive environment and should be checked regularly, or the electric contacts should be cleaned.
The electrolyser must be maintained in temperatures above zero, the water inside should not freeze
under any circumstances!
3*
The apparatus may be operated by persons withou electro-technical qualification. Taking off covers and
exchanging any parts is not allowed. To clean the apparatus, you may use a cloth soaked in water or
detergent. It is not admissible to use other organic solvents, nor to apply means that could cause
mechanical damage to the surface of the plastic casing or face cover.
he person operating the ASIN Aqua SAL unit should be advised that should the apparatus be used in
a manner different than that designated by the manufacturer, the unit may not provide the full
protection it is designed for.
18
Other manuals for ASIN Aqua SALT
1
Table of contents
Other Aseko Lighting Equipment manuals
