Fun Generation LED Pot 12x1W QCL RGB WW 15 User manual

LED Pot 12×1W QCL RGB WW 15°,
LED Pot 12×1W QCL RGB WW 40°
LED PAR
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
01.12.2022, ID: 409499, 428047, 512677, 512675 (V5)

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 11
3 Features....................................................................................................................................................... 14
4 Installation.................................................................................................................................................. 16
5 Starting up.................................................................................................................................................. 19
6 Connections and controls................................................................................................................... 21
7 Operating.................................................................................................................................................... 25
7.1 Operating mode Auto.................................................................................................................... 25
7.2 Programme mode............................................................................................................................ 26
7.3 Operating mode DMX.................................................................................................................... 28
7.4 Operating mode Slave................................................................................................................... 33
7.5 Operating mode Dimmer.............................................................................................................. 34
7.6 Sound control.................................................................................................................................... 35
7.7 Reset to factory defaults................................................................................................................ 35
7.8 Device info.......................................................................................................................................... 36
7.9 Menu overview................................................................................................................................. 37
Table of contents
LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40° 3
LED PAR

8 Technical specications....................................................................................................................... 38
9 Plug and connection assignments.................................................................................................. 41
10 Troubleshooting...................................................................................................................................... 42
11 Cleaning....................................................................................................................................................... 44
12 Protecting the environment.............................................................................................................. 45
Table of contents
4LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40°
LED PAR

LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40° 5
LED PAR

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40°
LED PAR

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40° 7
LED PAR

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Instructions
General information
8LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40°
LED PAR

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
General information
LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40° 9
LED PAR

Warning signs Type of danger
Warning – danger zone.
General information
10 LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40°
LED PAR

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use only and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the operating life of the device by regular breaks and by avoiding frequent
switching on and o. The device is not suitable for continuous operation.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40° 11
LED PAR

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER!
Electric shock caused by short-circuit
Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a
registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
Safety instructions
12 LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40°
LED PAR

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a
longer period.
Safety instructions
LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40° 13
LED PAR

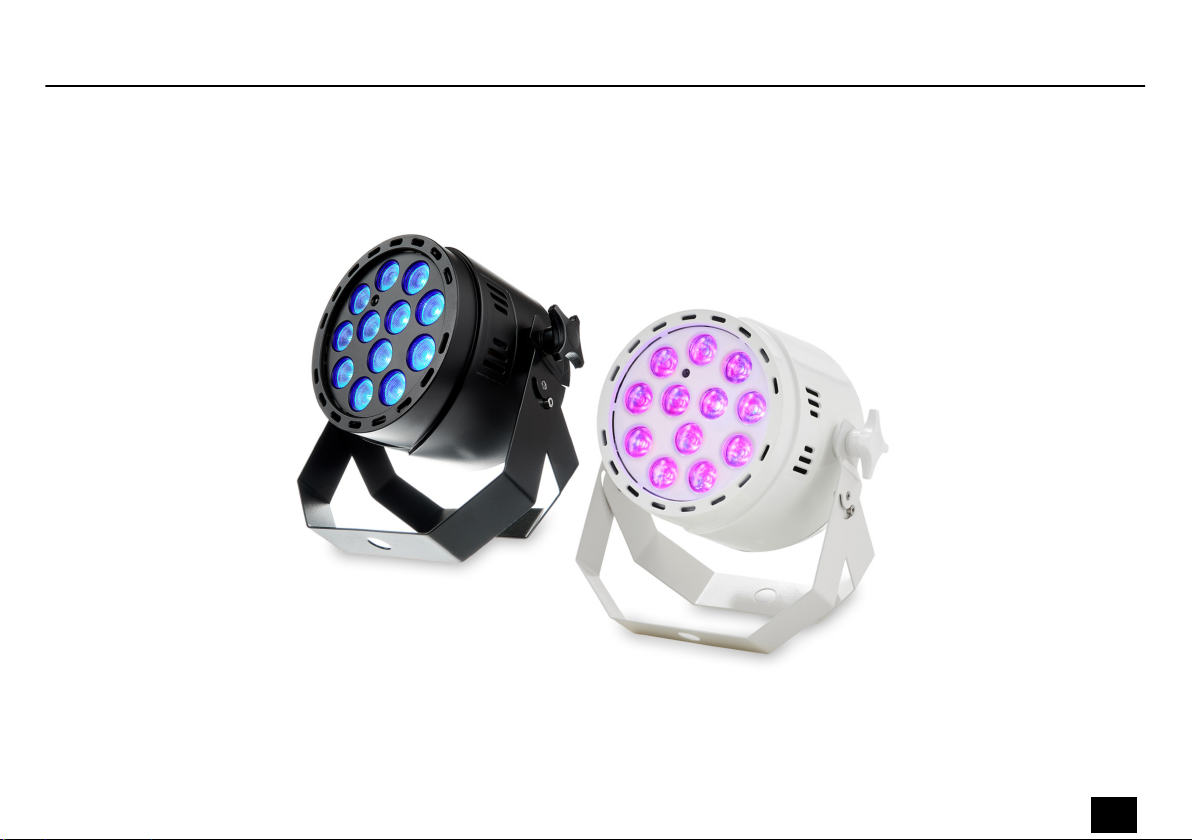

3 Features
Compact multicolour LED spotlight, especially suitable for use in installations and systems with
limited space
n12 × QCL-LEDs RGBWW (each 1 watt)
nControl via DMX, buttons and display on the device and optionally available
IR remote control (item no. 354223)
n14 preprogrammed automatic shows
nOperating modes:
– Sound control
– Automatic mode
– Programme mode
– Master/Slave
– DMX
nCompact plastic housing
nBeam angle 15°
– LED Pot 12x1W QCL RGB WW 15° (item no. 409499) (housing colour: black)
– LED Pot 12x1W QCL WH RGB WW 15 (item no. 512677) (housing colour: white)
nBeam angle 40°
– LED Pot 12x1W QCL RGB WW 40° (item no. 428047) (housing colour: black)
– LED Pot 12x1W QCL WH RGB WW 40 (item no. 512675) (housing colour: white)
nTwo-part mounting bracket
nOptionally available accessories: Infrared remote control, transport bag for four LED spot‐
lights
Features
14 LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40°
LED PAR

For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40° 15
LED PAR

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Installation
16 LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40°
LED PAR

NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
You can install the device in hanging or standing position. When in use, the device must
always be attached to a solid surface or an approved truss. Use the openings provided on the
two-part bracket for attaching.
Always work from a stable platform whenever installing, moving or servicing the device. In
doing so, the area underneath the device must be cordoned o.
The safety cable must be attached to the bracket.
Please note that this device must not be connected to a dimmer.
Mounting options
Installation
LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40° 17
LED PAR

Press the lock of the battery holder to the centre of the housing and pull out the battery holder
like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing
base of the remote control. Slide the battery holder back into the remote until it clicks into
place.
When shipping, the battery is already installed in the remote and protected against discharge
by a transparent plastic foil. Remove the plastic foil prior to rst use.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.
Inserting the battery into the
remote control
Installation
18 LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40°
LED PAR

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).
Connections in DMX mode
Starting up
LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40° 19
LED PAR

When you congure a group of devices in master/slave mode, the rst unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the rst slave device. Then connect the DMX output of the rst slave device to
the DMX input of the second slave device and so on.
Connections in master/slave
mode
Starting up
20 LED Pot 12×1W QCL RGB WW 15°, LED Pot 12×1W QCL RGB WW 40°
LED PAR
