1.Getting Started

1.1 Key Features

NovoDS is an easy-to-manage digital signage solution for creating dynamic multimedia content for

a variety of large-scale corporate and educational applications. Designed with a user-friendly

interface, the NovoDS allows users to generate signage content without the need of any

programming skills. Its features include

Support 4K display resolution;

Built-in WiFi and built-in internal storage

Intuitive playlist creation;

Scheduled playback;

Network-based management;

Remote monitoring

1.2 Hardware setup

Component

Function

RJ45 Port

Ethernet connection

USB Port

USB mouse/keyboard and USB thumb drive

HDMI Port

Display output

DC 5V Power Jack

Power input

microSD Card Slot

microSD card for additional storage

Kensington® Security

Slot

Secure lock

User’s Manual

1.3 Configuring the NovoDS

There are several buttons available at NovoDS’ home-screen for device configuration, such as

display resolution, WiFi settings, etc. The following figure illustrates the key functionalities and

Information shown on the home-screen after power-up.

1.3.1 Display Options

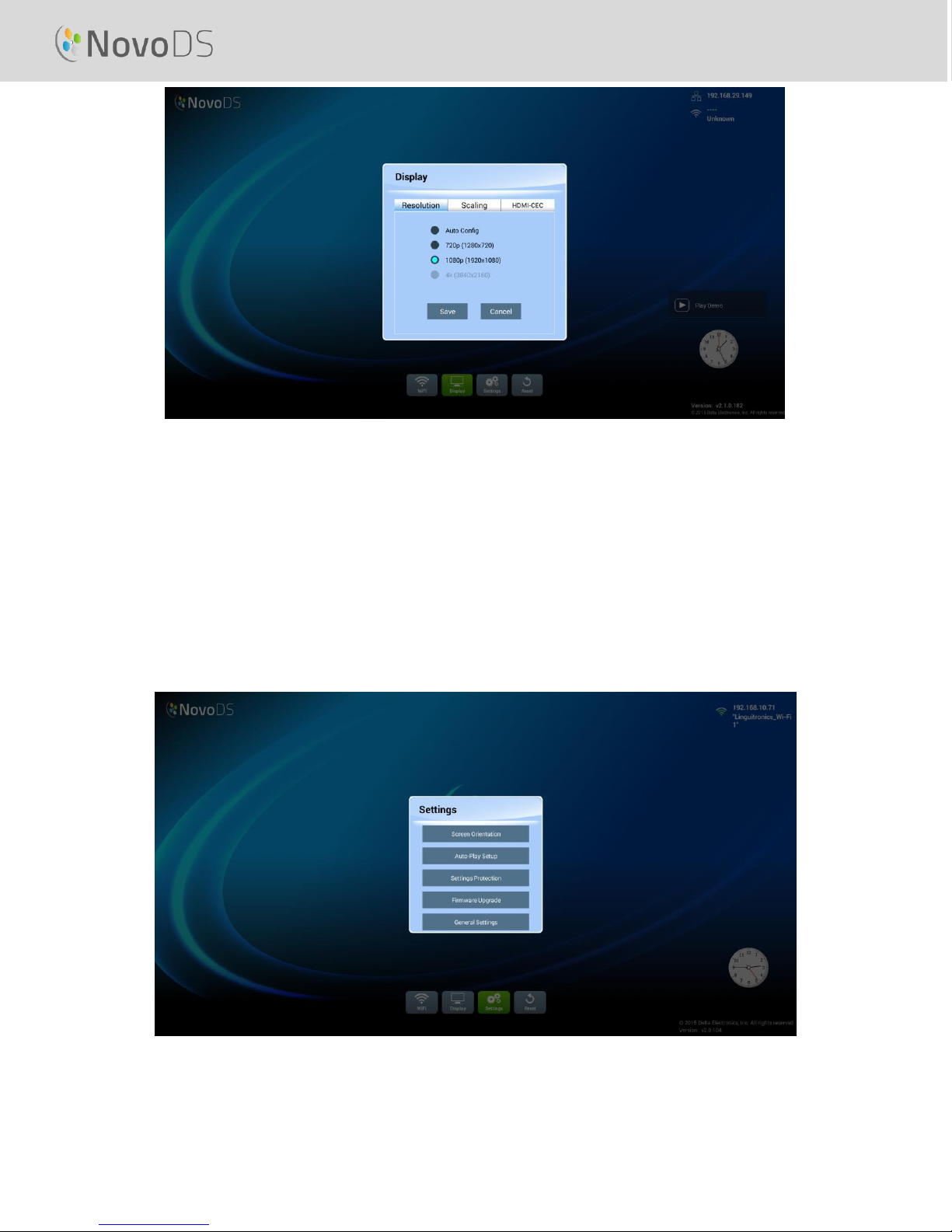

Button “Display” allows you to select the proper display resolution through tab “Resolution”, and

to resize the display output dimension through tab “Scaling”. It is worth mentioning that

unsupported display resolutions will become inactive. For example, if you connect a non-4K

monitor to NovoDS, the “4K” resolution will be greyed out, as shown in the figure below. “HDMI-

CEC” tab allows you to enable/disable HDMI-CEC feature. Once it is enabled, you can use TV

remote control to control NovoDS device as well.

Device Configuration buttons

Click this button to start playing

the upcoming playlist

immediately

Click this button to start

playing the built-in “Demo”

playlist immediately

Network connection information

User’s Manual

1.3.2 Settings

There are several actions you can take under button “Settings”.

(1) “Screen Orientation” –Configure the display output in “Landscape” or “Portrait” mode

(2) “Auto-Play Setup” –Configure auto-playback after device’s boot-up and upon microSD card

insertion.

(3) “Settings Protection” –Lock or unlock device settings with a password.

(4) “Firmware Upgrade” –Check for firmware upgrade from our Internet server.

(5) “General Settings” –Set regional language, date & time, etc.

User’s Manual

1.3.3 Reset

Click on button “Reset”to restart the NovoDS device.

1.4 Modes of Operation

Users can manage content via two ways,

(1) Stand-Alone mode (by using a microSD card)

(2) Network mode (via the network)

1.4.1 Stand-Alone Mode

Stand-alone mode is simple plug-and-play operation and requires no direct management of the

NovoDS device, which is suitable for single-device deployment.

To run NovoDS in Stand-Alone mode:

a. Create the desired playlist on your computer using the NovoDS software (See section 3.1 ).

b. Save and export the playlist to a microSD card (See section

c. 3.5 Exporting a Playlist ).

d. Launch the NovoDS device.

e. Optionally, disable WiFi function through button “WiFi” at NovoDS’ home-screen.

f. Insert the microSD card into the NovoDS device. Then, the device will start playback

automatically.

1.4.2 Network Mode

Network mode allows users to synchronize playlists to multiple devices from a computer via WiFi

or Ethernet connection.

User’s Manual

To run NovoDS in Network mode:

a. Power on your NovoDS devices.

b. You have a choice of using Ethernet or WiFi.

To use Ethernet, simply plug in an Ethernet cable.

To use WiFi connection, the configuration will take a few more steps, described as

follows.

i. Click on button “WiFi” in NovoDS’ home-screen

ii. Select “Connect to Wi-Fi” and

then click on button “Configure”.

This will bring you to a WiFi

configuration page, where you

can select the desired WiFi

network. You may require to

enter network credentials when

necessary.

iii. Once this is completed successfully, the

network SSID and IP address will be

displayed in the top-right corner of the

screen.

c. Connect your PC to the same network (Ethernet or WiFi) as the one used by your NovoDS

devices.

d. From this point onwards, you can use NovoDS software on your computer to manage your

NovoDS devices.

WiFi Hotspot

NovoDS can function as a WiFi hotspot which can be

convenient for small-scale deployment or product

evaluation. To connect via Hotspot Mode:

a. In the WiFi configuration screen, select

“Enable Wi-Fi Hotspot” and then click on

button “Apply”

User’s Manual

b. An IP address and its SSID will be displayed for the

NovoDS device in the top-right corner. (In the figure

below, the IP address is 192.168.43.1 and the SSID is

“NVC_61961.”)

c. Now you can connect your computer to this WiFi Hotspot and start managing this NovoDS

device.

To test the connection

We can use “Preview” feature to test the network

connection.

a. Open NovoDS software and select a playlist

b. Click on “Preview” tab on the left pane, and then,

enter the corresponding IP address of the

NovoDS device.

c. Click on button “Connect” to connect to the

device. If the network configuration is done

properly, the connection will be established

successfully.

IMPORTANT: To enable successful operation of a NovoDS device, specific TCP and UDP ports should not be blocked by

your network’s firewall. If you are operating behind a network firewall ensure that the TCP and UDP ports used by

NovoDS are open. For details on the ports used by NovoDS see Section 5.Error! Reference source not found.. For

nformation on how to open specific ports, consult your router’s user’s manual.

1.5 Software Download and Installation

NovoDS comes with playlist editing and device management software available for both Windows

and Mac computers. Please go to the Vivitek website (http://www.vivitekcorp.com) to download

the latest version.

User’s Manual

2.NovoDS Software Overview

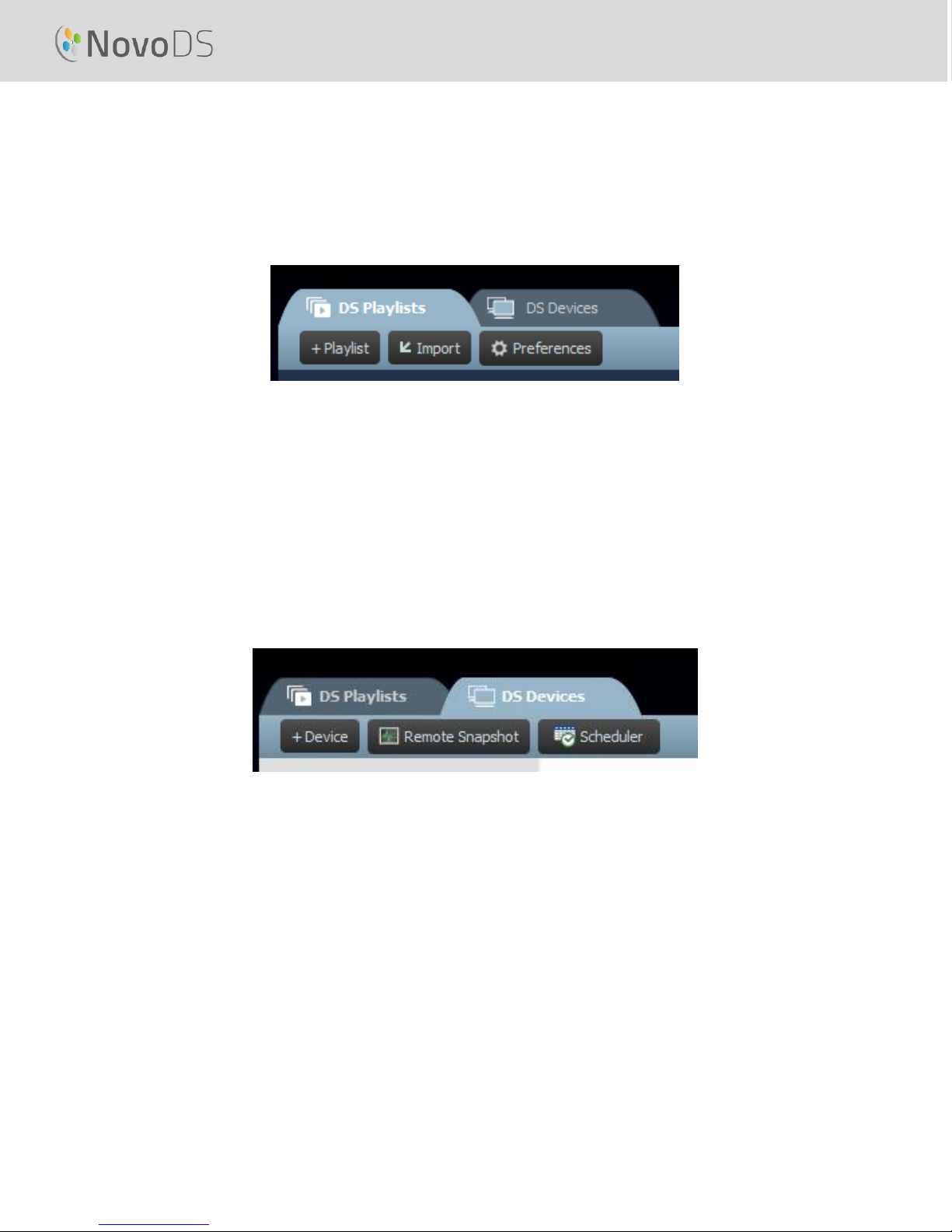

There are two tabs available in the software, DS Playlists and DS Devices.

2.1 DS Playlists

This tab allows users to create and organize playlists for your digital signage, including

Creating a Playlist

Selecting or customizing a template

Placing and editing your content

Testing your Playlist

Setting user preferences, including language and playlist path

2.2 DS Devices

This tab enables users to control and manage NovoDS devices over the network. Key features

include

Adding/Deleting NovoDS devices

Grouping multiple devices, and synchronizing their playback

Setting a specific playlist for a device or group

Setting a schedule for different devices or groups

Monitoring playback status of each NovoDS device

User’s Manual

3.DS Playlists (Playlist Editing)

3.1 Terminology Definition

“Playlist” is the key concept in NovoDS software. Before we describe how to create a playlist, let’s

start with some terminology definitions.

Playlist: a multi-media content package designed to be played on NovoDS devices,

consisting of one or multiple pages.

Page: a screen layout that is filled with content.

Template: a screen layout that consists of one or multiple “regions”, and, can be applied to

any “page”.

Content: resources that can be placed in a “page”, including text, images, music/audio,

video, web pages, video streaming over IP, Twitter and RSS feeds, as well as weather, clock

and Google Calendar.

Attribute: mainly refers to associated playback characteristics such as duration, rendering

effect, etc.

The following figure illustrates their relationship.

Playlist

. . . .

Page

= + +

Template AttributeContent

User’s Manual

3.2 Creating a Playlist

3.2.1 Selecting a Template

NovoDS has 40 built-in templates in both landscape and portrait orientation.

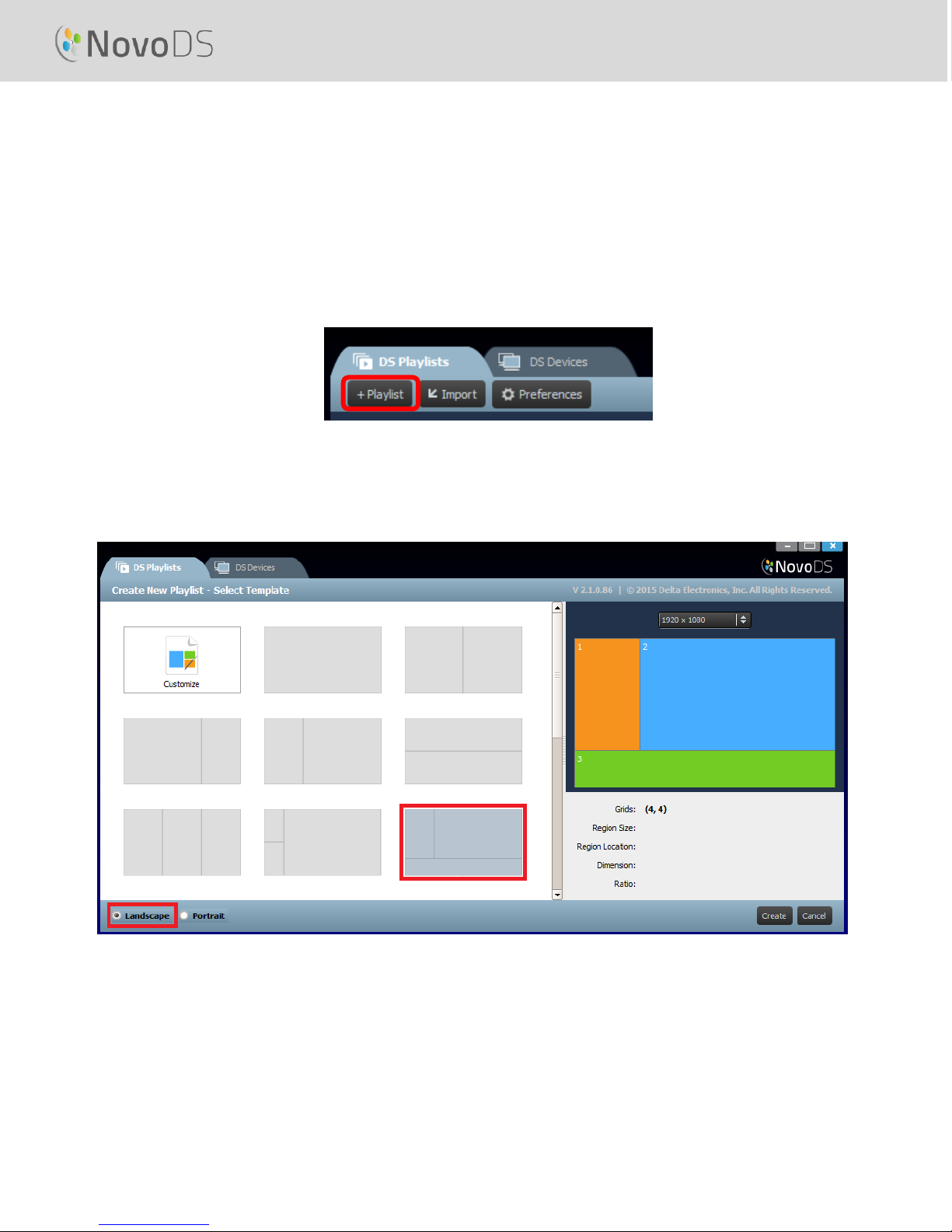

a. To select a template, open the DS Playlists tab and select the +Playlist button from the Edit

Playlist screen. You will be given the option of creating a custom configuration or choosing

one of the 40 built-in templates.

b. Check ‘Landscape’ or ‘Portrait’ to match your screen orientation. Then select a template

from by clicking on the desired one.

a. Click on button “Create” to create this playlist.

b. Click on button “Cancel” to discard the playlist creation.

User’s Manual

On the right side of the window,

You can adjust display resolution

You can find out each region’s geometry by

mouse-over.

3.2.2 Creating a Custom Template

You also have the option of creating your own display configuration for your playlist.

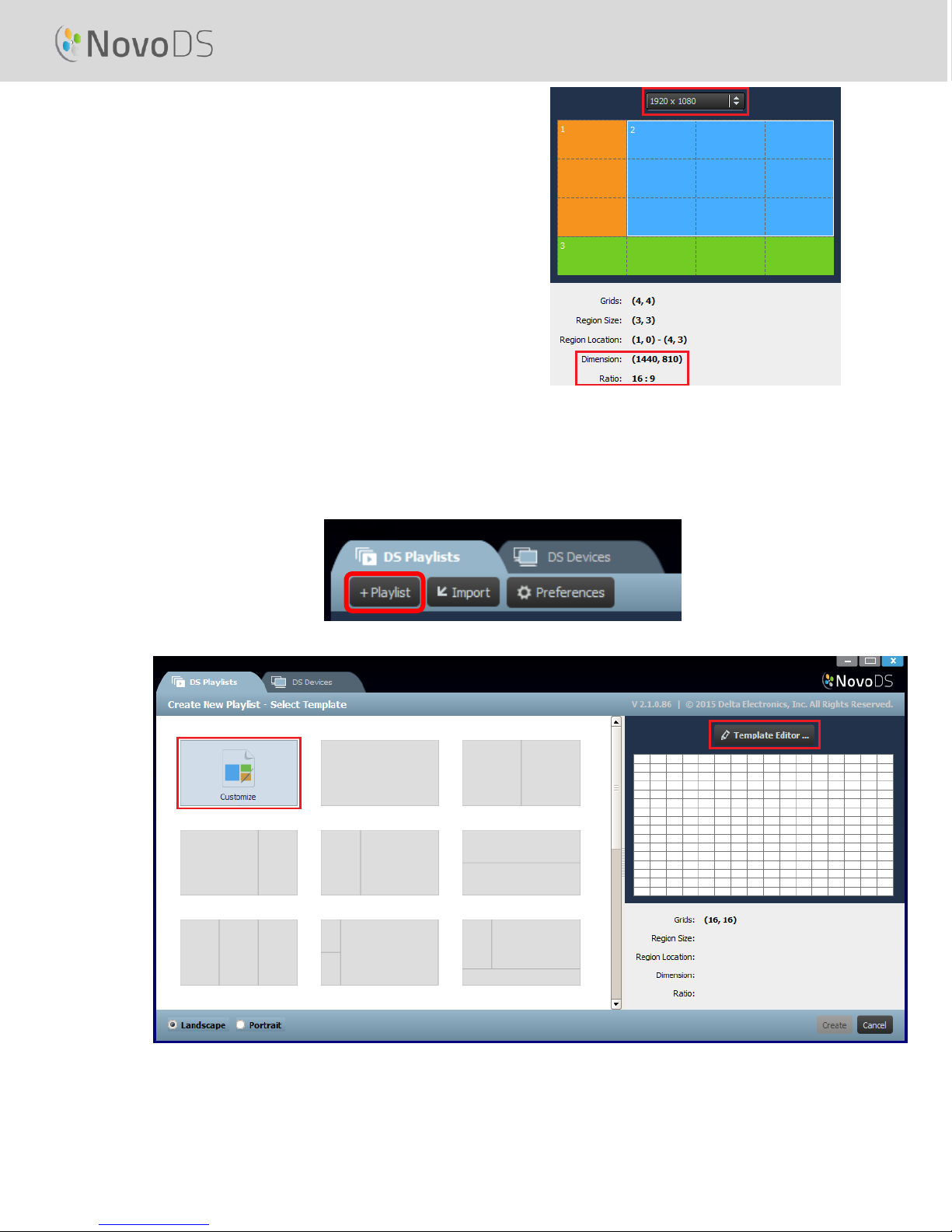

a. Open the DS Playlists tab and select the +Playlist button from the Edit Playlist screen.

b. Click on “Customize” and then “Template Editor”to open an editor dialog.

c. The editor dialog shows a table grid, which will be used to defined regions within this

customized template. You can adjust its column and row numbers through the two spinners

User’s Manual

at the top-left corner. You also can change your desired resolution at the bottom-left

corner.

d. Left-click your mouse and drag over grids to form the regions you desire.

User’s Manual

e. Click on “OK”to return to Template Selection screen. Then click on “Create” to create a

playlist with this customized template.

3.2.3 Editing a Playlist

Once you settle on a template, you are ready

to edit your playlist.

a. Name: Name for the playlist.

b. Description: Optional text for you to

describe this playlist.

c. Background Music: Optional

background audio (MP3 file). This

audio will be played repeatedly

unless video playback is in progress.

d. Background Image: Optional

background image (wallpaper).

e. Resolution Spinner: Change display

output resolution.

f. Button “Change…”: Change current

template.

User’s Manual

3.2.4 Adding Content to a Playlist

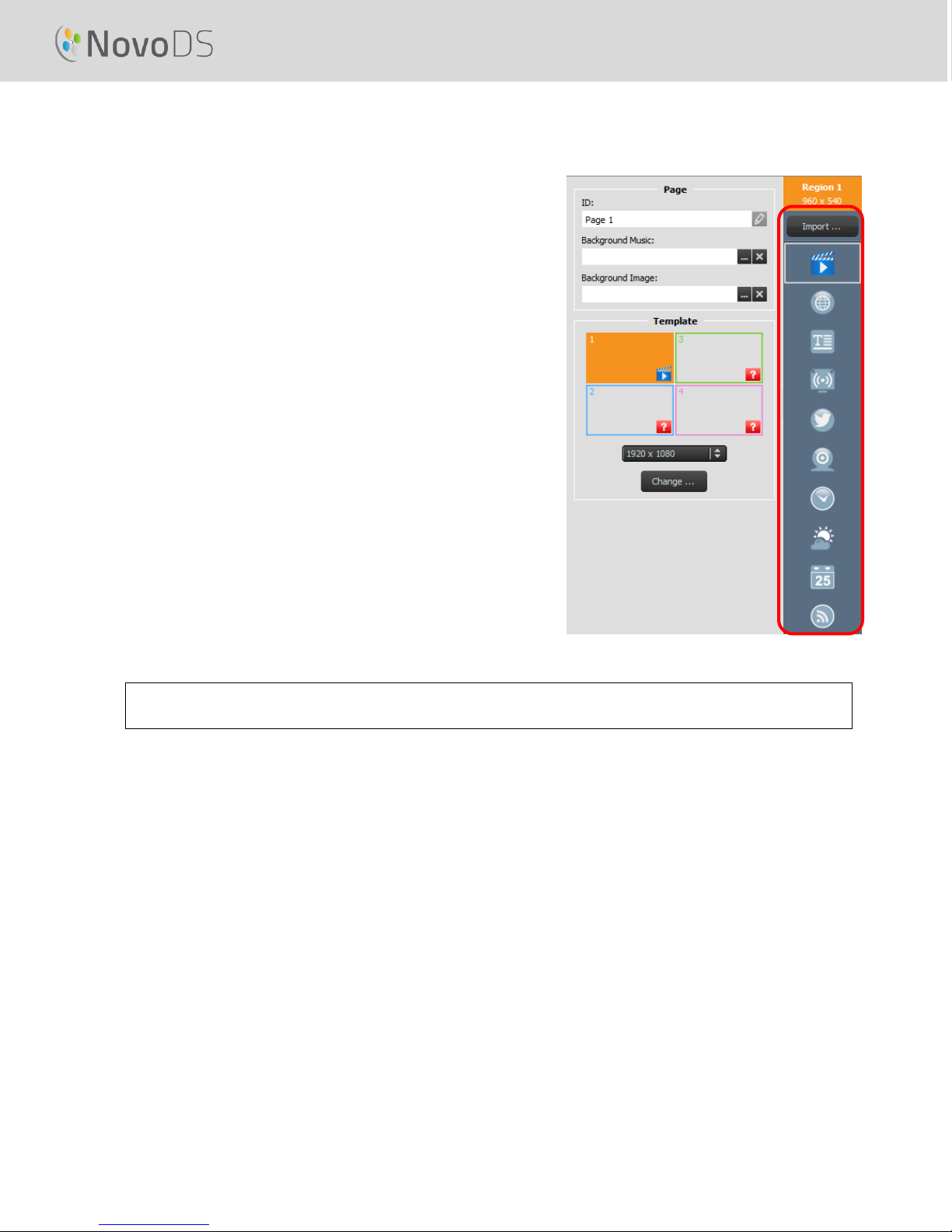

You are now ready to add content to the regions of your template. Select a region to edit. The

region toolbar will appear.

1) Button “Import…” allows you to import content

from a region of another playlist.

2) Other buttons allow you to add the following types

of content:

Media –images and video clips

Web Page* –Online and offline content

Text

IP Streaming* –A video stream from an network

server (IP)

Twitter*

USB Camera –A video stream from a USB

camera attached to the NovoDS device

Clock –An analog or digital clock

Weather* –A location-based weather report

Google Calendar*

RSS Feed*

*Internet or Intranet access is required to use this content type.

NOTE: For each page of a playlist you can only have one region playing a video file at a time.

This does not include a USB camera feed.

3.2.4.1 Importing from an Existing Playlist Region

This option allows you to import content and the associated attributes from a region of an existing

playlist. To do so,

1) Click on button “Import…”

2) Then in the new dialog, select a “Playlist”, then a “Page”, then a “Region”.

3) Click on button “OK” to complete this action.

User’s Manual

3.2.4.2 Adding Media (Image or Video files)

This option allows you to add one or multiple image and video files to a region. These multi-media

files can reside on your local computer (called “Local Media”) or a remote FTP/Samba server or

Dropbox (called “Remote Media”).

NovoDS supports image files with the following extensions: .jpg, .jpeg, .png, and .bmp. It also

supports the following video file formats: .wmv, .mp4, .3gp, .avi, and .mov.

To add files from “Local Media”:

a. Select “Local Media” tab, and then select +File and choose a media file with one of the

above file extensions.

User’s Manual

b. If you have chosen an image file, the image options will be displayed across the top of the

page, including ‘Duration’, ‘View Type’ and ‘Scale Type’. If you have chosen a video file, you

will also get the option ‘Stretch Video to Fill Region’.

c. Once the file is selected you will see the file information including a thumbnail image, the

file name and location, the file duration, and the window for an optional caption.

d. To adjust the duration of the media file (if loading multiple files into the field), select the

display time in the Duration field.

e. The View Type option allows you to select either a standard static view called ‘Default’or a

pan-and-scan visual effect called the ‘Ken Burns Effect’.

f. The Scale Type option gives you three scaling options:

Fit_Center: Fit the entire image within the region without changing the aspect ratio

Fit_XY: Stretch the entire image to fill the region. (Aspect ratio may be changed.)

Center_Crop: Scale the image uniformly so that both dimensions (width and height) of the image will

be equal to or larger than the corresponding dimension of the region. Aspect ratio of the image is not

changed and the region is filled with the image.

g. An optional caption can be added to a media file by clicking on the Caption field and typing

text.

h. Add additional images for a slideshow effect by selecting the +File button, choosing more

media files, and following the steps outlined.

i. Media files can be removed from the playlist by selecting the file and selecting the trash can

icon.

To add files from “Remote Media”:

a. Select “Remote Media” tab, and then set up the proper properties to access your remote

FTP/Samba server or Dropbox.

b. Field “Update frequency” allows you to define the period for NovoDS devices to retrieve

updated content (if any).

User’s Manual

c. The other display properties, such as duration, view type, etc. are the same as “Local

Media”.

3.2.4.3 Adding Web Page

This option allows users to add the content from a web page to a region.

a. To begin, select the desired region and select the Web Page button from the region toolbar.

b. To choose an offline web page saved on your PC, select Offline Content and choose the

folder containing your HTML/JavaScript/Media files.

c. To choose a live web page, select Online Link. Type the URL address for the desired Web

page into the window and hit return or select the reload button to load the page.

d. You can also define the period for NovoDS devices to reload the webpage.

e. Unlike other media formats, web pages cannot be scaled, repositioned or stretched to fit a

region. Take this into account when choosing a region to display web pages. It is a good idea

to first test the web page in the desired region before saving the playlist.

NOTE: NovoDS cannot display flash animations or video contained in a Web

page, so take this into account when choosing a Web page to display.

Table of contents

Other Vivitek Digital Signage manuals

Vivitek

Vivitek novods User manual

Popular Digital Signage manuals by other brands

Philips

Philips 86BDL3550Q user manual

Red Arrow

Red Arrow HTLEDCM installation instructions

Samsung

Samsung QM50R user manual

EQD

EQD EQ4055C Specifications

LG 55LV35A-5B owner's manual

Elo TouchSystems

Elo TouchSystems ESY10i1 user manual

Samsung

Samsung IC025H user manual

LG 84TR3B manual

Hyundai

Hyundai D46ES Series user guide

Samsung

Samsung QB Series user manual

Suntronic

Suntronic GSU4600L1 user manual

KeyWest Technology

KeyWest Technology BREEZE installation guide

Samsung

Samsung ME32C user manual

LG 65EE5PC manual

LG 55EV5C owner's manual

EYEZONE

EYEZONE P110-2 user manual

Source Technologies

Source Technologies 10 Series installation guide

LG 22SM3B-B owner's manual

Vivitek NovoDS 200 Series User manual

Popular Digital Signage manuals by other brands
