LG 98UM5K-B User manual

OWNER’S MANUAL
LG Digital Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it for future
reference.
www.lg.com
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
98UM5K-B
110UM5K-B

2
ENGLISH
TABLE OF CONTENTS
BASIC .............................................3
- Checking the Accessories ............................................3
- Learning the Buttons......................................................4
GETTING READY ...........................5
- External Equipment Setup...........................................5
- Kensington Lock Device ................................................6
CHECKING BEFORE
INSTALLATION ..............................7
- Installation Orientation .................................................7
- Installation Location........................................................8
- Wall Mount Holder ..........................................................9
PRECAUTIONS FOR USE............ 10
- Dust.......................................................................................10
- Afterimage ........................................................................10
PRODUCT SPECIFICATIONS...... 12
LICENCE...................................... 15

3
ENGLISH
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
BASIC
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
•SuperSign Software & Manual
- Visit https://partner.lge.com to download the latest SuperSign software and manual.
Checking the Accessories
x 3
Depending on country

4
ENGLISH
Learning the Buttons
The illustrations may differ depending on the model.
98UM5K-B
110UM5K-B
•: Adjusts up and down.
•: Moves left and right.
•: Displays the current signal and mode.
•: Accesses the main menus, or saves your input and exits the menus.
•: Change the input signal.
•: Turns the power on and off.

5
ENGLISH
GETTING READY
External Equipment Setup
IR Receiver
This allows a remote control sensor to be placed in a custom location.

6
ENGLISH

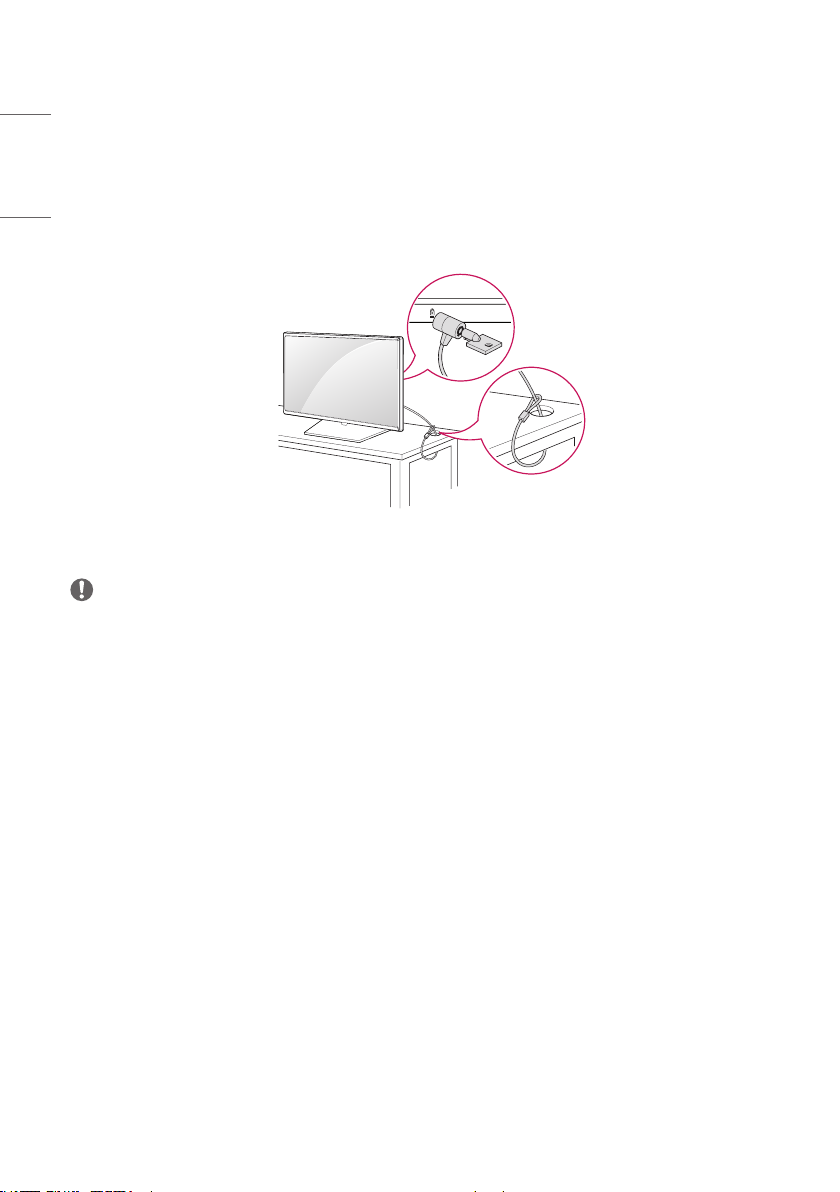

Kensington Lock Device
(This feature applies only to some models.)
The Kensington lock device connector is located on the back of the monitor. For more information on installation and
use, refer to the user manual provided with the locking device.
Connect the Kensington security system cable between the monitor and a table.
NOTE
•The Kensington lock device is an optional specification.
•This is a general illustration of installation and may look different from the product held by the customer.

7
ENGLISH
CHECKING BEFORE INSTALLATION
We are not responsible for product damage caused by failure to follow the guide.
Installation Orientation
Using Vertically
(98UM5K-B Only)
When installing vertically, rotate the monitor 90 degrees clockwise while facing the front of the screen.
Tilt Angle
40 mm
15˚
Ceiling, Floor Orientation

8
ENGLISH
Installation Location
We are not responsible for product damage caused by failure to follow the guide.
Indoor
Installing on a Wall
A
C
B
BB
A
A: 40mm (1.5inches) or more
•The warranty will not cover any damage
caused by using the product in direct sunlight
on the front panel.
Installing on a Recessed Wall
A
C
B
BB
A
A : 40mm (1.5inches) or more
B : 50mm (1.9inches) or more
C: 100mm (3.9inches) or more
•The warranty will not cover any damage
caused by using the product in direct sunlight
on the front panel.
Outdoor
Outdoor Enclosed

9
ENGLISH

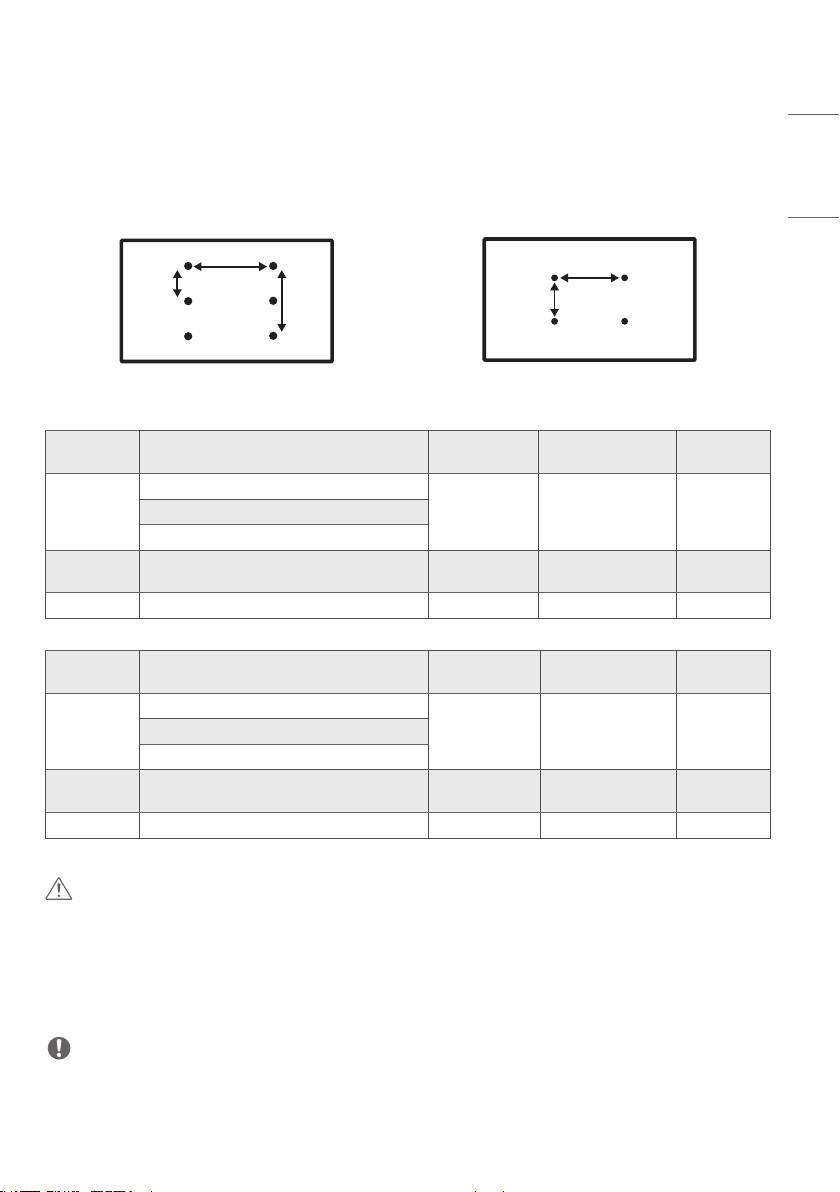

Wall Mount Holder
To install the monitor on a wall, attach a wall mount holder (optional) to the back of the monitor.
Take caution, and ensure that the wall mount holder (optional) is securely fixed to the monitor and to the wall.
The Wall Bracket dimensions of the wall mount by model are as follows.
A
B1 B2
C
D
98UM5K-B 110UM5K-B
Model Wall Bracket Dimensions (A x B1) (mm) Standard
Dimensions
Length (Maximum)
(mm) Quantity
98UM5K-B
800x400
M8 20 6
Wall Bracket Dimensions (A x B2) (mm)
800x800
Model Wall Bracket Dimensions (C x D) (mm) Standard
Dimensions
Length (Maximum)
(mm) Quantity
110UM5K-B 1500x600 M8 30 4
Model Wall Bracket Dimensions (A x B1) (inches) Standard
Dimensions
Length (Maximum)
(inches) Quantity
98UM5K-B
31.4x15.7
M8 0.7 6Wall Bracket Dimensions (A x B2) (inches)
31.4x31.4
Model Wall Bracket Dimensions (C x D) (inches) Standard
Dimensions
Length (Maximum)
(inches) Quantity
110UM5K-B 59.0x23.6 M8 1.1 4
CAUTION
•Disconnect the power cord first, and then move or install the monitor. Otherwise, it may result in electric shock.
•If the monitor is installed on a ceiling or inclined wall, it may fall and result in injury.
•Damage to the monitor by tightening the screws too tightly may void your warranty.
•Use screws and wall mount plates conforming to Wall Mount standards. Breakage or personal injury due to use or
misuse of inappropriate components is not covered by the warranty of this product.
NOTE
•Using screws longer than the indicated depth may damage the inside of the product. Be sure to use the proper length.
•For more information on installation, please refer to the user manual for the wall mount.

10
ENGLISH
PRECAUTIONS FOR USE
Dust
The warranty will not cover any damage caused by using the product in an excessively dusty environment.
Afterimage

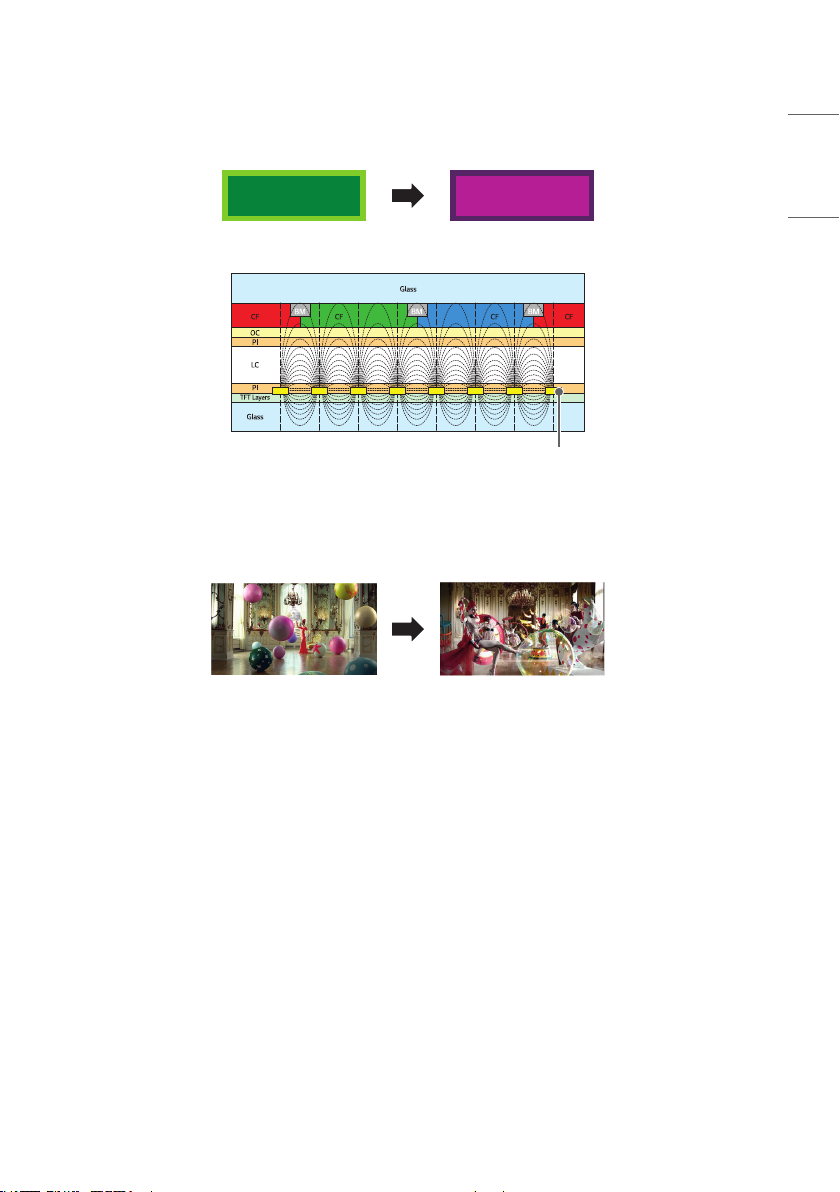

•After-image appears when the product is turned off.
- Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screen-
saver function.
- Switching from a screen with high differences in luminance (black and white or grey) to a darker screen may cause
an afterimage. This is normal due to the display characteristics of this product.
•When the LCD screen is in a still pattern for extended periods of use, a slight voltage difference may occur between
the electrodes that operate the liquid crystal (LC). The voltage difference between the electrodes increases over time
and tends to keep the liquid crystal aligned in one direction. At this time, the previous image remains, which is called
an afterimage.
•Afterimages do not occur when continuously changing images are used but take place when a certain screen is fixed
for a long time. The following are operational recommendations for reducing the occurrence of afterimages when
using a fixed screen. The maximum recommended time for switching the screen is 12 hours. Shorter cycles are better
for preventing afterimages.
•Recommended Usage Condition

11
ENGLISH
1 Change the background color and text color at equal intervals.
- Afterimages occur less when the colors to be changed are complementary to one another.
AA
ITO or MoTi Pixel Layer
2 Switch the screen at equal time intervals.
- Take caution, and ensure that text or images from before the screen change are not left in the same location after
the screen change.

12
ENGLISH
PRODUCT SPECIFICATIONS
Without prior notice, all product information and specifications contained in this manual are subject to change to
improve the performance of the product.
98UM5K-B
Input/Output Ports
Resolution
Recommended Resolution
HDMI1,2 / DisplayPort: 3840x2160 @ 60Hz
HDMI3: 3840x2160 @ 30Hz
DVI-D: 1920x1080 @ 60Hz
- This may not be supported on some OS or graphics card
types.
Max Resolution
Power Voltage 100-240V~50/60Hz 5.8A
Environmental
Conditions
Operating Temperature
Operating Humidity
0°C to40°C (32°F to 104°F)
10% to 80% (Condition for preventing condensation)
Storage Temperature
Storage Humidity
-20°C to60°C (-4°F to 140°F)
5% to 85% (Condition for preventing condensation)
* Product box packaging storage conditions
Power
Consumption
On Mode 430W(Typ.)
Sleep Mode / Standby Mode ≤0.5W
110UM5K-B
Input/Output Ports
Resolution
Recommended Resolution
HDMI1,2 / DisplayPort: 3840x2160 @ 60Hz
HDMI3: 3840x2160 @ 30Hz
DVI-D: 1920x1080 @ 60Hz
- This may not be supported on some OS or graphics card
types.
Max Resolution
Power Voltage 100-240V~50/60Hz 6.0A
Environmental
Conditions
Operating Temperature
Operating Humidity
0°C to40°C (32°F to 104°F)
10% to 80% (Condition for preventing condensation)
Storage Temperature
Storage Humidity
-20°C to60°C (-4°F to 140°F)
5% to 85% (Condition for preventing condensation)
* Product box packaging storage conditions
Power
Consumption
On Mode 440W(Typ.)
Sleep Mode / Standby Mode ≤0.5W

13
ENGLISH
Model Name Size (Width x Height x Depth) (mm) Weight (kg)
98UM5K-B
2198x1253x79.5 78
Size (Width x Height x Depth) (inches) Weight (lbs)
86.5x49.3x3.1 171.9
Model Name Size (Width x Height x Depth) (mm) Weight (kg)
110UM5K-B
2474x1408x99 80
Size (Width x Height x Depth) (inches) Weight (lbs)
97.4x55.4x3.8 176.3
HDMI / DVI-D / DisplayPort (PC) Support mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark
800 x 600 37.879 60.317
1024 x 768 48.363 60
1280 x 720 44.772 59.855
1280 x 1024 63.981 60.02
1680 x 1050 65.29 59.954
1920 x 1080 67.5 60
3840 x 2160 67.5 30 HDMI1/2/3, DisplayPort
3840 x 2160 135 60 HDMI1/2, DisplayPort
HDMI / DisplayPort (DTV) Support mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark
480/60p 31.5 60
576/50p 31.25 50
720/50p 37.5 50
720/60p 45 60
1080/50i 28.1 50
1080/60i 33.75 60
1080/50p 56.25 50
1080/60p 67.432 59.94
1080/60p 67.5 60
2160/30p 67.5 30 HDMI1/2/3, DisplayPort
2160/50p 112.5 50 HDMI1/2, DisplayPort
2160/60p 135 60 HDMI1/2, DisplayPort

14
ENGLISH
Wireless module (LGSBWAC92) Specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency range (MHz) Output power (Max.) (dBm)
2400to2483.5
5150to5725
5725to5850
18
18
18
Bluetooth
Frequency range (MHz) Output power (Max.) (dBm)
2400to2483.5 8
•As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is
configured for the regional frequency table.
•For consideration of the user, this device should be installed and operated with a minimum distance of 20cm
(7.8inches) between the device and the body.
•FCC ID: BEJLGSBWAC92 / IC: 2703H-LGSBWAC92

15
ENGLISH
LICENCE
Supported licenses may differ by model. For more information of the licenses, visitwww.lg.com.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Vision IQ, Dolby Audio, Dolby Atmos,
and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by LG Electronics Inc. is under license. Other trademarks and trade names are those of their respective owners.

Temporary noise is normal when powering ON or OFF
this device.
The model and serial number of the product are
located on the back and on one side of the product.
Record them below in case you ever need service.
MODEL
SERIAL NO.
Supplier’s Declaration of Conformity
Trade Name LG
Responsible Party LG Electronics USA, Inc.
Address 111 Sylvan Avenue, North
Building, Englewood Cliffs, NJ
07632
E-mail [email protected]om

USER GUIDE
LG Digital Signage
(MONITOR SIGNAGE)
www.lg.com
98UM5J-B 110UM5J-B
Please read the user manual before using this product to ensure safe and
convenient use.

2
ENGLISH
CONTENTS
SAFETY PRECAUTIONS ................4
- Precautions for the AC Adapter and Power ......5
- Precautions for Moving the Product......................7
- Precautions for Installing the Product ..................8
- Precautions for Cleaning the Product................10
- Precautions for Using the Product.......................11
- Precautions for Using the Remote control......13
- Precautions for Experiencing Image
Retention ...........................................................................14
- Product Disposal............................................................14
USING THE REMOTE
CONTROL.................................... 15
MAKING CONNECTIONS........... 18
- Connecting to a PC.......................................................18
- External Device Connection.....................................18
SETTINGS ................................... 21
- [Image]................................................................................21
[Image Mode]
[Color Temp]
[Eye Comfort]
[Restore Default Settings]
[HDR]
[MEMC]
[Image Enhancement]
- [Audio].................................................................................26
[Audio Mode]
[Advanced Sound]
[Speaker Control]
[Audio Balance]
[Night Mode]
[Restore Default]
- [Network]..........................................................................30
[Available Network]
[Manually Add Network]
[Ethernet]
- [Bluetooth]........................................................................33
[Enable Detection]
[Available Device]
- [General].............................................................................34
[First On]
[Simplink]
[Screensaver]
[No Signal Standby]
[Auto Standby]
[Timed Shutdown]
[Rest Notification]
[Boot State]
[Standby Indicator]
[Remote Control Lock]
[System Language]

3
ENGLISH
[Time Zone]
[Input Method]
[Screen Orientation]
[System & Device]
[Online Update]
[Display Name]
[Storage Details]
[Local Info]
[Open Source License]
[Restore to Factory Settings]
TROUBLESHOOTING.................. 41
To obtain the source code that is contained in
this product, under GPL, LGPL, MPL, and other
open source licenses that have the obligation to
disclose source code, and to access all referred
license terms, copyright notices and other relevant
documents, please visit
https://opensource.lge.com.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the
cost of performing such distribution (such as the
cost of media, shipping, and handling) upon email
request to[email protected]om.
This offer is valid to anyone in receipt of this
information for a period of three yearsafter our
last shipment of this product.

4
ENGLISH
SAFETY PRECAUTIONS
The safety precautions are intended to prevent unexpected danger or harm by helping the user to use the product
safely and for its intended purpose.
WARNING
If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured or the product may be damaged.
Model corresponding to sentence color
COMMON ENCLOSURE LED
