Vivo DESK-AC07SW User manual

White Desk Corner Connector
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/desk-ac07s
SKU: DESK-AC07SW
[email protected]om www.vivo-us.com 309-278-5303
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2
If you do not understand these directions, or if you have any doubts about the safety of the installation,
please call a qualified technician. Check carefully to make sure there are no missing or defective parts.
Improper installation may cause damage or serious injury. Do not use this product for any purpose that is
not explicitly specified in this manual and do not exceed weight capacity. We cannot be liable for damage
or injury caused by improper mounting, incorrect assembly, or inappropriate use.
PACKAGE CONTENTS
TOOLS NEEDED
ASSEMBLY STEPS

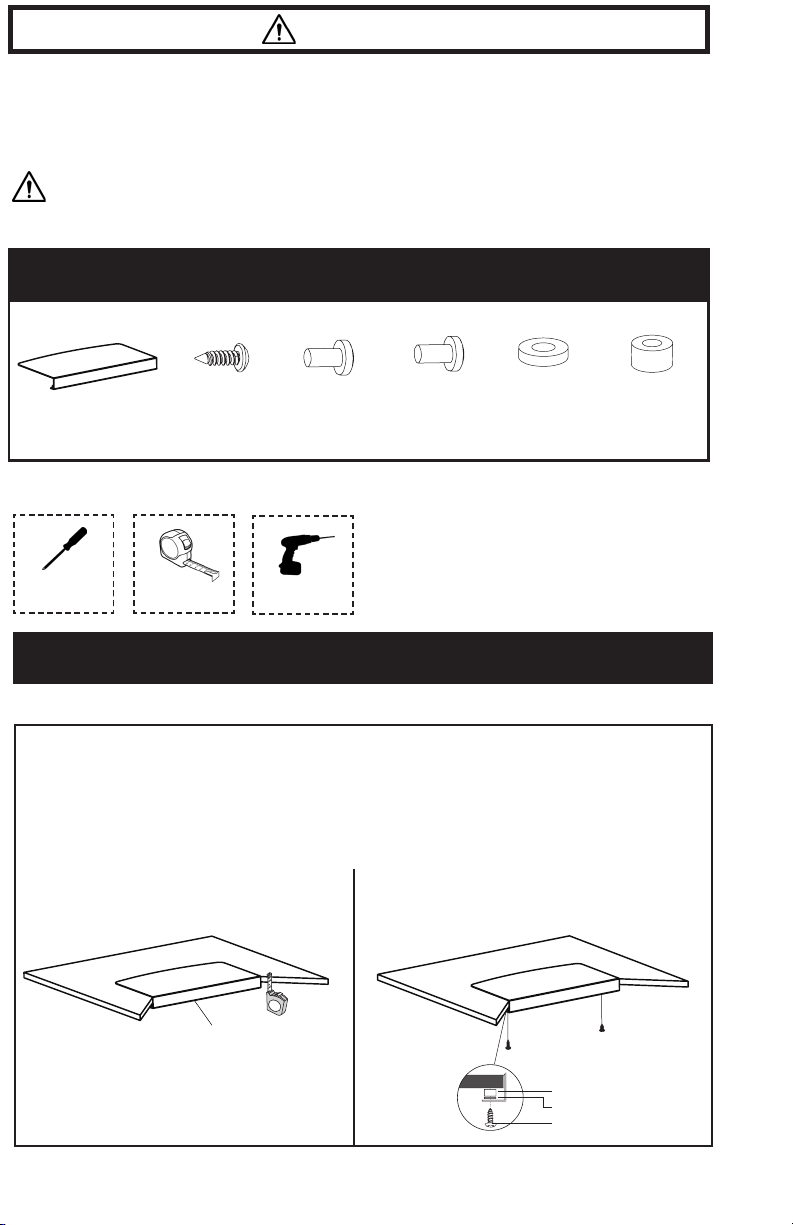

Place Desk Sleeve (A) on the desktop at the desired location. Measure the space between the
underside of the desktop and the lower portion of the sleeve to determine the required Spacers (S-E)
and Washers (S-D) for mounting. Drill 10mm deep pilot holes in the desktop for the desk sleeve and
the rear end of the keyboard mount using a 3mm (1/8”) drill bit. Install using M5x35mm Screws (S-A)
and previously counted Washers (S-D) and Spacers (S-E).
S-A (x4)
M5x35mm
Screw
S-C (x2)
M6x8mm
Screw
S-D (x6)
Washer
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
NOTE: SOME HARDWARE MAY NOT BE USED
Tape Measure Drill
Phillips
Screwdriver
A (x1)
Desk Sleeve
S-E (x12)
Spacer
S-B (x3)
M5x8mm
Screw
OPTION A: Regular Mounting
M5X35
20X6.2
15X5.3X1.2
WARNING
S-E
S-D
S-A
A

3
OPTION B: Mounting with Keyboard Tray
Place Desk Sleeve (A) on the desktop at the desired location. Measure the space between the
underside of the desktop and the lower portion of the sleeve to determine the required Spacers
(S-E) and Washers (S-D) for mounting. Remove Desk Sleeve (A) from the desktop.
Install front end of the keyboard mount (not provided) to Desk Sleeve (A) using either the M5x8
Screws (S-B) or M6x8 Screws (S-C), depending on the keyboard mount to be installed. Tighten with
a Phillips screwdriver.
DESK
/M6X8
M5X8
M5X35
20X6.2
15X5.3X1.2
S-B
S-C
A
Fit Desk Sleeve (A) with keyboard mount to the desktop. Drill 10mm deep pilot holes in the desktop
for the desk sleeve and the rear end of the keyboard mount using a 3mm (1/8”) drill bit.
Secure Desk Sleeve (A) and keyboard mount to the desk using M5x35 Screws (S-A) and previously
counted Spacers (S-D) and Washers (S-E). Tighten with a Phillips screwdriver.
S-E
S-D
S-A

LAST UPDATED: 07/18/2022
REV1.1
