Vivo FVM-V01 User manual

Multi-function Portable
HD LCD Monitor
User Manual

1
Product description:
Thank you for purchasing our photography, broadcast color LCD
Monitor kit. This product adopts proprietary digital signal processing
circuit and professional IPS LCD screen. It's high brightness, low
power consumption, stable performance and emits no radiation
advantages. It's with HDMI Input, AV input and output, which make it
wide application, casing compact, simple operation, and portable
convenient. Advanced features include Screen Marker, Camera
Mode, Zoom All, Image Flip and Color Temp. etc. It is an ideal
portable light weight frame supporting the monitor.
The monitor built-in battery plate, you can use the power adapter
supply or use the external battery for power supply.
To insure best use of the unit, please read the
user’s manual carefully
CAUTION
1. Do not use any damaged or leaking battery and please replace
the battery immediately if its working life becomes short
significantly
2. Do not expose this product to direct sunlight, heat or humid
conditions
3. Keep away from strong light while using this product so as to
obtain the clearest and the most colorful picture. Please use sun
shade for the outdoor necessary
4. Please avoid heavy impact or drop on the ground.
5. Do not use chemical solutions to clean this unit. Please simply
wipe with a clean soft cloth to keep the brightness of the surface.
6. Without adjustable component in the unit, please do not take
apart or repair the unit by yourself, to avoid damage the product.

2
Features
●High brightness, contrast, high resolution with sun
shade, visible under the sunshine
●Built-in VIDEO/AUDIO /HDMI inputs, enable for a various of
signal
●External remote control,to control the functions of the mon
itor in distance.
●Optional for external battery plate and various batteries for
outdoor usage
●4 F Buttons can be self-defined for different function,
●Picture Zoom can be operated Zoom All, U/D Zoom, L/R
Zoom
●Contain Camera Mode, Center Marker, Safe Frames, Image
Freeze, Image Flip, Check Field, P2P,Focus Assist etc.
CONTENTS
1. Product description --------------------------3
2. Operation instruction ------------------------9
3. Technical parameters -----------------------15
4. Trouble shooting------------------------------16

3
1. Product description
1.1 Front view:
1. Power Indicator light: when power on/standby, it turns red;
when signal in, it turns green!
2. : Power on/off
3. F4: Custom button, enter secondary menu item
F(self-defined button), then self-define the function that
user need
4. F3: Custom button, same as F4 operation
5. : Multi button. In OSD Menu for up adjustment. It can
be custom button when not in OSD. See F4.
6. : Multi button. In OSD Menu for down adjustment. It
can be custom button when not in OSD. See F4.

4
7. MENU: Menu button
8. >: Volume up, in OSD menu to increase the value of
analog on the menu.
9. <: Volume down, in OSD menu to decrease the value of
analog on the menu.
10. MODE: Signal Switch Button
11. LCD Display
1.2 Rear View:
1. USB Upgrade Port
2. OSD Controller input. Can insert OSD Controller into this
port, to have a remote operation on the parameters of the
monitor

5
3. : Earphone insert
4. AV: AV signal input, to input the AV signal into the monitor
through the assorted port
5. HDMI: HDMI(High Definition Multimedia Interface) signal
input
6. : DC power input interface, pole of the power should
match the image.
7. Battery Plate
8. Built-in Speaker
1.3 VIEDO Matched Cable (option)
The input of the VIDEO signal is 3.5mm four section plug (as the
picture above)
When use，
Insert the black plug (1) into the video input of the monitor
White RCA jack (2) for L Audio input
Red RCA jack (3) for R Audio input
Yellow RCA jack (4) for Video input

6
1.4 HDMI Lock
1. HDMI locking plate
2. Locking Screw
To use HDMI locking plate to lock the plug of HDMI cable, then
put the locking plate close to the monitor, and finally bolt the locking
screw to lock the plate with the monitor. As the picture below (arrow
direction)

7
1.5 Sunshade
①Sunshade SunshadeFrame②
Complete Shape Sunshade Application③④
First to open the sunshade ①，and match the sticker on the
sunshade inside to the marked part of the sunshade frame，press
the side of the sunshade frame，smo③oth and press 3 sides on
the sunshade, to lock the sunshade with the monitor tight.④
1.6 Battery Plate
There is a battery plate installed on the back of the monitor, can
assemble the corresponding battery to power the monitor. There
are many different battery plates. The customers can choose the
suitable battery plate according to the battery.

8
Battery Plates in different model as below:
F970 LP-E6 D28
●Sony F970 battery plate for battery of Sony DV:
Sony F970 F960 F950 F930 F770 F750 F730 F570 F550 F530
QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70
QM51D QM51 FM71 FM70 series
●LP-E6 battery plate for battery of Canon DV:
Canon LP-E6
●D28 battery plate for battery of Panasonic DV:
Panasonic D55 554S D54SE D40 D35 D33 D32 D28 D25 D22
series
●Three types of batteries corresponding to the upper three
slots
F970 LP-E6 D28
Remark: Different specifications of the battery, capability is
different. The working time for the monitor will be different. Higher
capability (working time) will be longer. Please take off the battery
from the monitor if you don’t use the monitor in a long time

9
2. operation instruction
Before setting the menu functions, please make sure the
device is connected correctly. Power switch dial to ON position,
according to the input signal to switch VIDEO、HDMI，When the
power indicator of the monitor go on (Red)，then following
instructions below and choose the corresponding key to operate
monitor.
2.1 Button instructions:
Poweron/off
MODE Signal Switch Button
MENU Menu button
F3、F4 custom button, enter the OSD menu of the F
secondary menu，operate “>” on the unit to select，
then using“ ”or“ ”to select，Press
"MENU" button to custom Settings.
Multi button. In OSD Menu for down adjustment. It
can be custom button when not in OSD. See F4.
Multi button. In OSD Menu for up adjustment. It can
be custom button when not in OSD. See F4.
> Volume up, in OSD menu to increase the value of
analog on the menu
<Volume down, in OSD menu to decrease the value of
analog on the menu.

10
2.2 Menu instructions

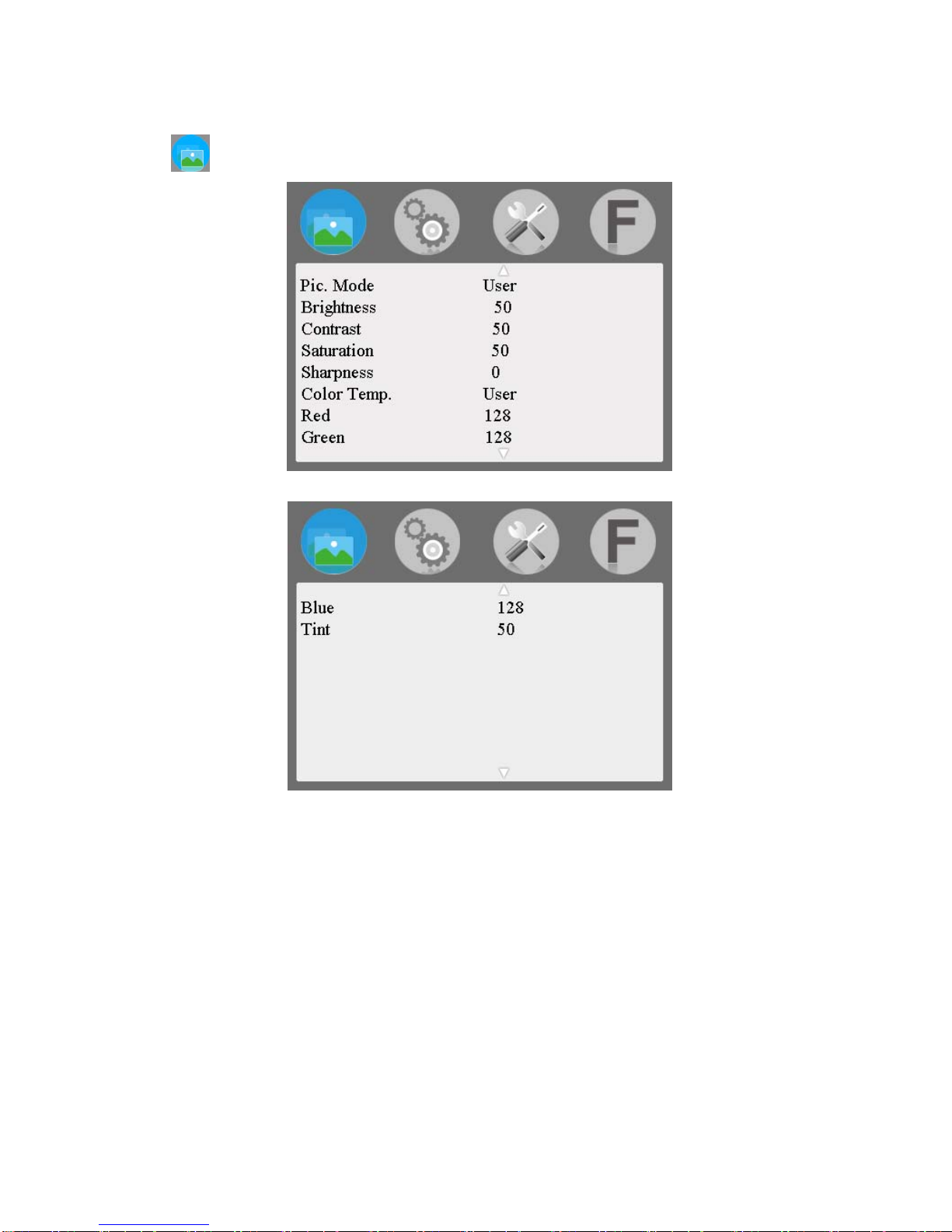

Image color (including 2 page menu )
※Pic. Mode: Standard, Dynamic, Mild, User
When select “user”, it could according to the practical
situation to adjust the image of "Brightness, Contrast,
Saturation, Sharpness.
※Brightness: To adjust the image's brightness.
※Contrast: To adjust the brightest and darkest ratio of
the image, please note the sense of picture when

11
adjust, proportion too large or small, will make the
picture lose the color of showy.
※Saturation: To adjust color concentration.
※Sharpness: Also called “Resolution”, an indicator for the
Image plane definition and image edge sharpness. If
Sharpness is higher, then the details contrast on the
image is more higher, the image is more clearly。
※Color Temp. : 6500, 9300, User
When select “user”, adjust the R/G/B to meet the
different user's requirement on the different Color Temp.
※Tint: On NTSC video mode, the image color tint
difference is adjusted by tint.
Setting（including 2 page menu)

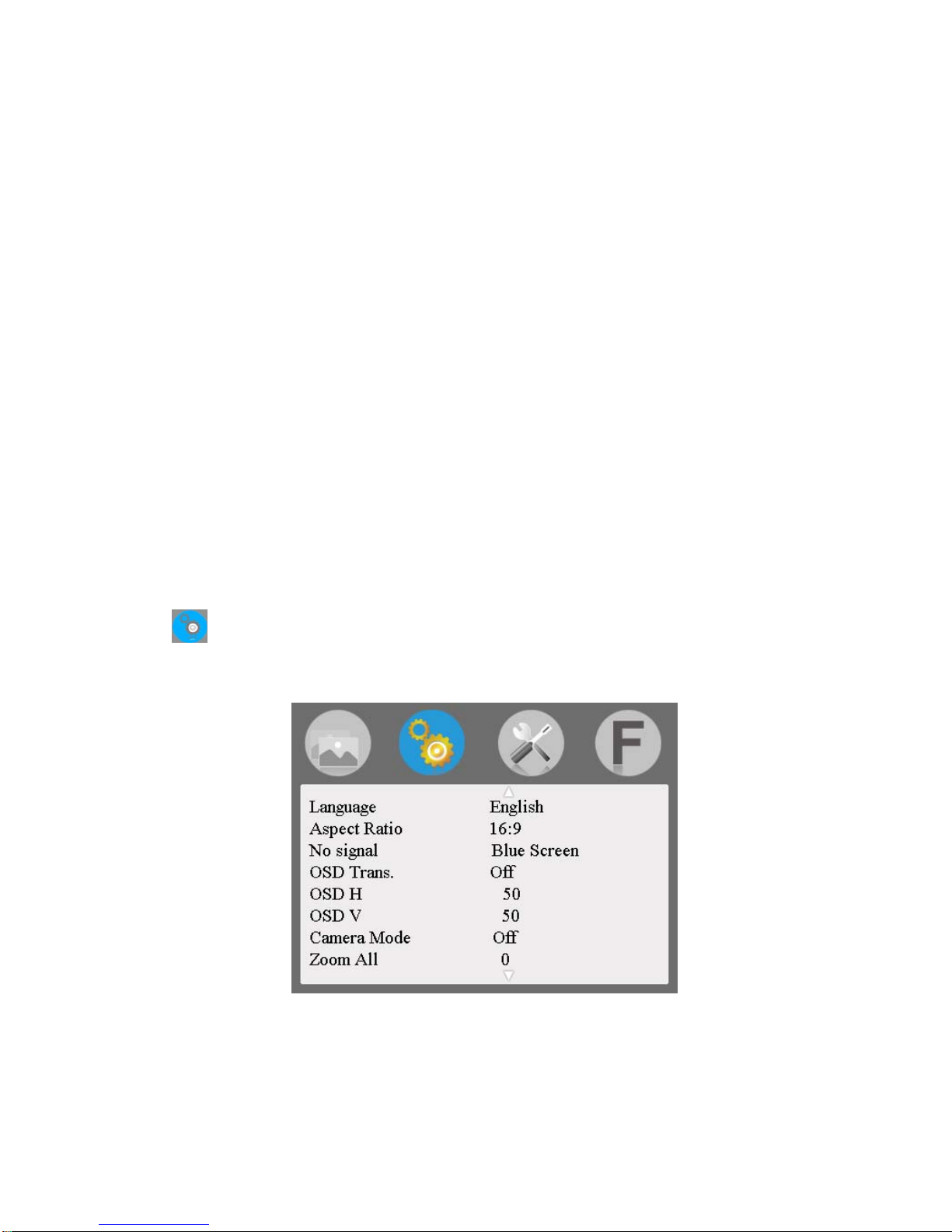

●Menu of Page one
※ Language: language for OSD:
English、中文、Español、Português、
Français、Nederlands、Deutsch、日本語

12
※ Aspect Ratio:To change the display to Panorama、
Auto、Just Scan、Zoom 1、Zoom 2、16:9、4:3.
※ No Signal: Color options of screen background when no
signal: Black Screen, White Screen, Red Screen, Green
Screen, Blue Screen.
※ OSD Trans. : To adjust the level of transparent
※ OSD H: To adjust the OSD position in Horizontal.
※ OSD V: To adjust the OSD position in Vertical.
※ Camera Mode: The monitor video has real-time images.
NO black screen, NO delay, perfect without distortion.
※ Zoom All: Press“<” or“>”button, to adjust the image to
Zoom In or Zoom Out.
●Menu of page two
※ FPV Mode：When use as FPV monitor, open the mode,
the monitor exits no signal blue screen function.
※OSD Time: To adjust the clock.
※U/D Zoom: Press“<” or“>”button, to adjust the
proportion of the image up and down to Zoom in or
Zoom out.

13
※L/R Zoom: Press“<” or“>”button, to adjust the
proportion of the image Left and right to Zoom in or
Zoom out.
※USB Upgrade: When the need for the native data
application software upgrade, copy the file to the U disk,
again through the USB cable to connect with upgrade
USB port, press ">" key to confirm. After the upgrade,
monitor will automatically restart. Do NOT plug a USB
cable into this connector without first calling factory.
※Reset: Press“>”button, back to original setting.
Function
※ Center Marker: To set center mark (cross mark) display
※ Safe Frames: To adjust screen marker(off, 96%, 93%,
90%, 85%, 80%, 2.35:1)
※Image Freeze: the current picture still (capture function)
※Image Flip: The H_V Flip, H Flip, V Flip of the image
around flip

14
※Check Field: To switch among Off, Mono, Red, Green,
Blue.
※P2P: The display mode that made the resolution of the
image consistent with display of the physical resolution.
※Focus Assist: Under HDMI input, open this function, red
highlight over parts of the image in focus.

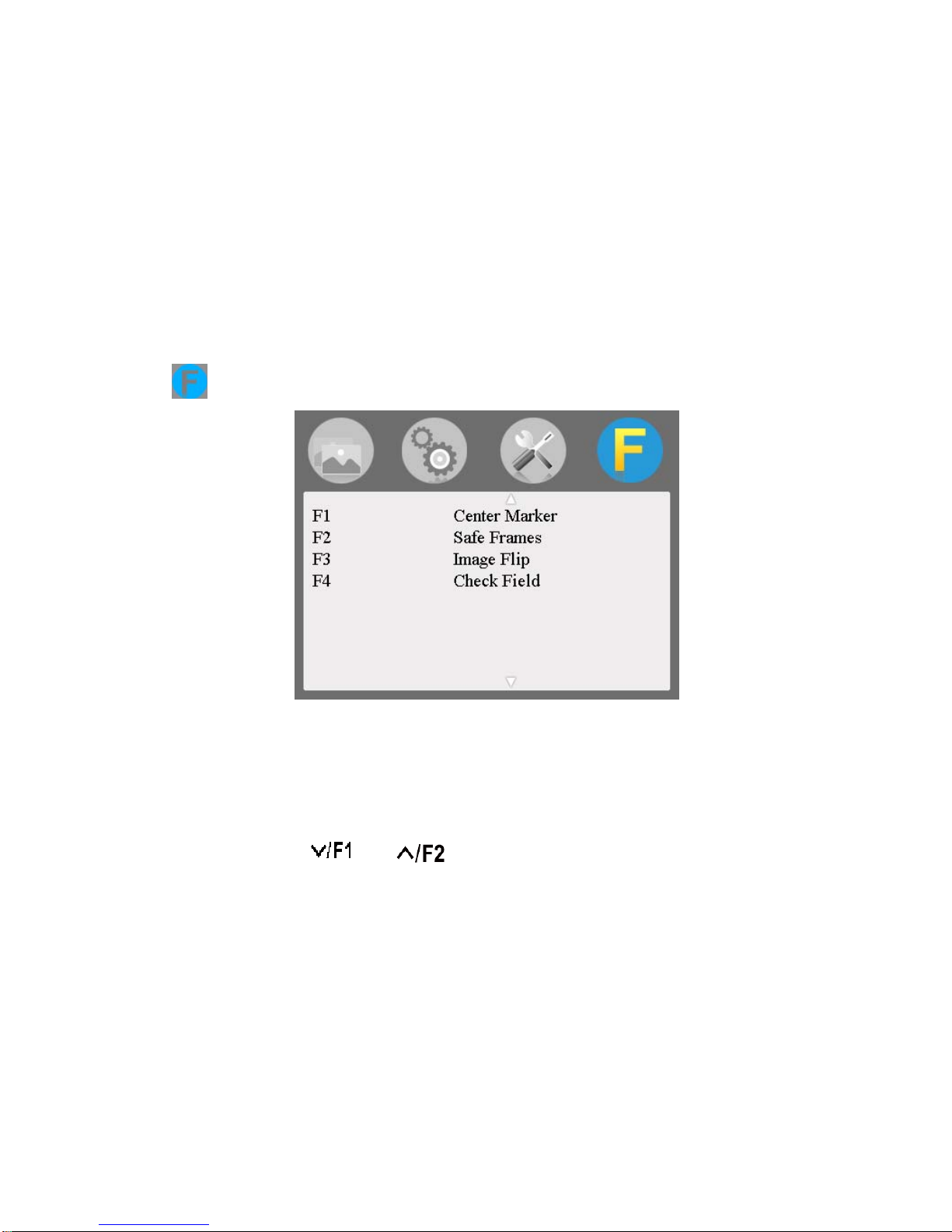

Shortcut button setting
※ F1: Optional F1, then press “>”button, can select (Center
Marker, Safe Frames, Check Field, Focus Assist, Aspect
Ratio, Image Flip, P2P, Image Freeze, Camera Mode),
use “ ” or “ ”button to select one of optional as
definition function. Press “MENU” button to confirm and
exit or press “MENU” again return to setting。
※ F2: Custom button, see F1
※ F3: Custom button, see F1
※ F4: Custom button, see F1

15
3. Technical parameters
Panel Size IPS LCD 7.0inch
Panel Type IPS LCD
Resolution 1280×800×RGB ＝3072000 Pixels
Backlight LED
Dot Pitch 0.11775(W) x 0.11775 (H)
Aspect Ratio 16:10
Brightness 400cd/㎡
Contrast Ratio 800:1
Response Time 25ms
Viewing Angle 89°/89°(L/R) 89°/89°(U/D)
Input Signal Video / Audio / HDMI
Video Color System PAL-4.43 / NTSC-3.58
HDMI Support Format
480i /480p /576i /576p
720p (60/59.94/50/30/29/25/24/23.98）
1080i (60/59.94/50）
1080p(60/59.94/50/30/29.97/25 / 24/24fps/ 23.98/23.98fps)
Headphone stereo 3.5mm
Input Voltage DC:7.4~35V
Power Consumption ≦5W
Unit Size (mm) 176(L)x130(H)x17(D)mm
Unit Weight 400g
Installation Method 1/4 inch bracket screw holes, can be easily connected to the
hot shoe mount, tripod fixed installation
Working Temperature －20～50℃
Storage Temperature －30～60℃

16
4. Trouble shooting
4.1 Only black and white or monochrome picture:
①Please check saturation, brightness & contrast adjustment.
Please check monitor "color" from the menu "monochrome" is in②
black and white or monochrome image or other condition.
4.2 NO Image after put on the power
①Check signal cable contact are in good condition, a monitor is
synchronized with the input signal, and can press the "MODE"
give it a try.
②Check signal cable connecting, and make sure use the standard
adapter connect the monitor. If power supply by battery, please
check the battery whether fully charged.
4.3 No sound
①Volume control did not open, can press the volume button, and
try increasing the volume.
②Check the AUDIO input and ensure there have AUDIO signal
■Remark: If there are still other problems, please contact with our
related deals.
★If there are changes without prior notice.
