Vizio VW47L FHDTV10A User manual

Service Manual
V, Inc
320A Kalmus Drive Costa Mesa, CA 92626
TEL : [phone] FAX :[phone]
Top Confidential

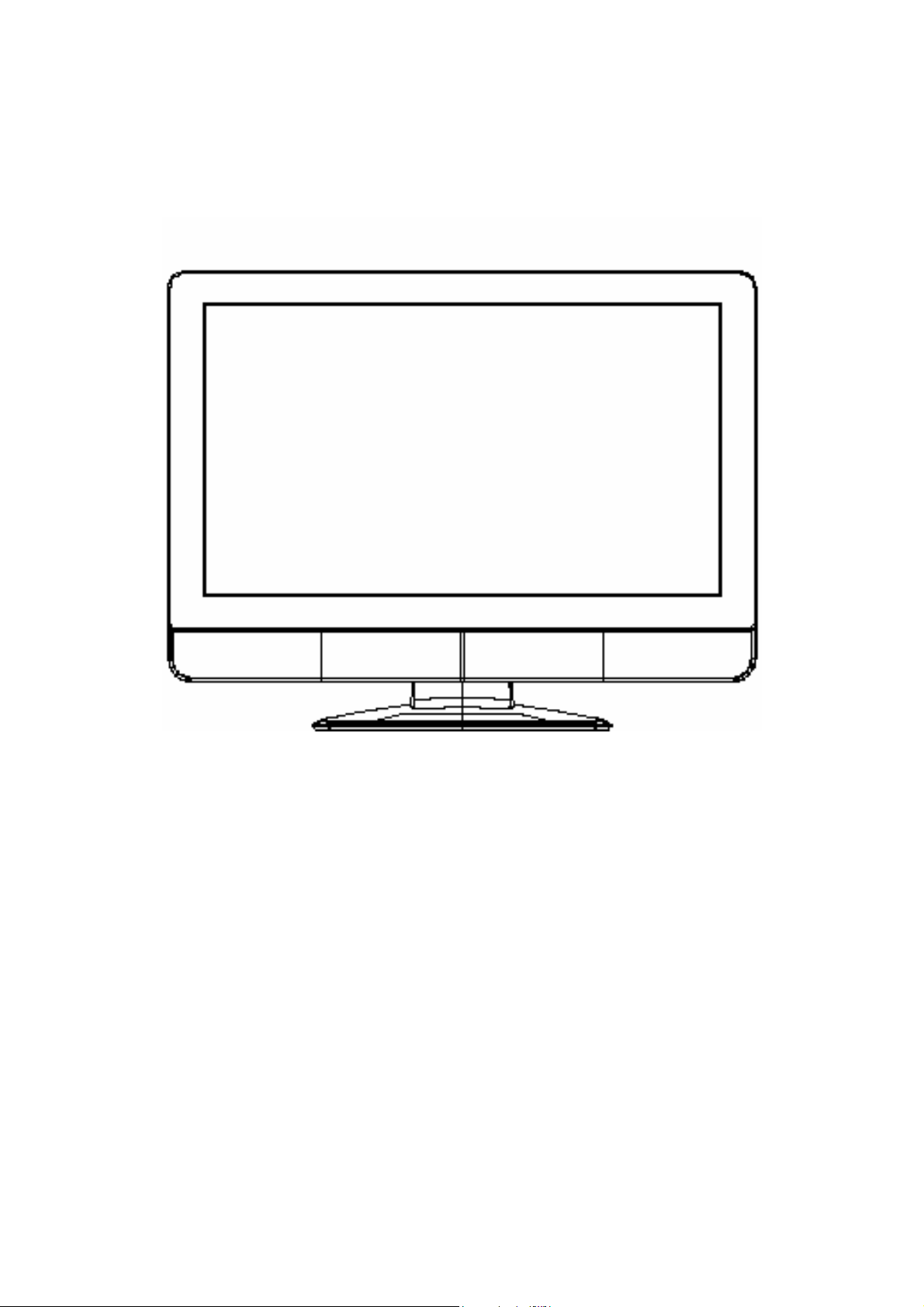

Model #: VIZIO VW47L
FHDTV10A_LPL

VIZIO VW47L FHDTV10A_LPL Service Manual
Table of Contents
CONTENTS PAGE
Sections
1. Features 1-1
2. Specifications 2-1
3. On Screen Display 3-1
4. Factory Preset Timings 4-1
5. Pin Assignment 5-1
6. Main Board I/O Connections 6-1
7. Theory of Circuit Operation 7-1
8. Waveforms 8-1

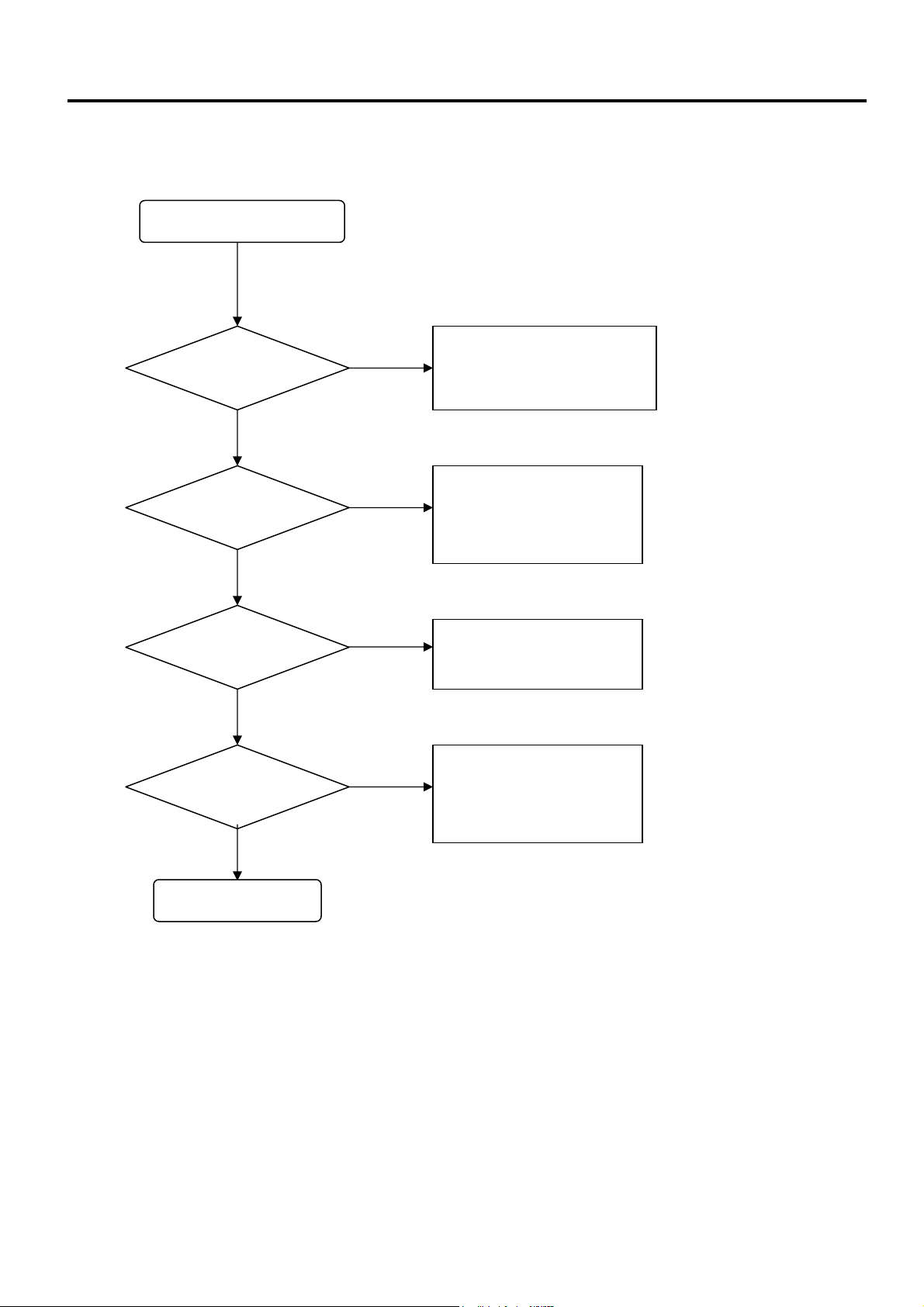

9. Trouble Shooting 9-1
10. Block Diagram 10-1
11. Spare parts list 11-1
12. Complete Parts List 12-1
Appendix
1. Main Board Circuit Diagram
2. Main Board PCB Layout
3. Assembly Explosion Drawing
Block Diagram

VINC Service Manual
VIZIO VW47L FHDTV10A_LPL A
VIZIO VW47L FHDTV10A_LPL Service Manual
COPYRIGHT © 2000 V, INC. ALL RIGHTS RESERVED.
IBM and IBM products are registered trademarks of International Business Machines
Corporation.
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
VINC and VINC products are registered trademarks of V, Inc.
VESA, EDID, DPMS and DDC are registered trademarks of Video Electronics Standards
Association (VESA).
Energy Star is a registered trademark of the US Environmental Protection Agency (EPA).
No part of this document may be copied, reproduced or transmitted by any means for any
purpose without prior written permission from VINC.
FCC INFORMATION
This equipment has been tested and found to comply with the limits of a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that the interference will not occur in a particular installation. If this equipment
does cause unacceptable interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures -- reorient or relocate the receiving
antenna; increase the separation between equipment and receiver; or connect the into an
outlet on a circuit different from that to which the receiver is connected.
FCC WARNING
To assure continued FCC compliance, the user must use a grounded power supply cord and
the provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized
changes or modifications to Amtrak products will void the user’s authority to operate this
device. Thus VINC Will not be held responsible for the product and its safety.
CE CERTIFICATION
This device complies with the requirements of the EEC directive 89/336/EEC with regard to
“Electromagnetic compatibility.”
SAFETY CAUTION
Use a power cable that is properly grounded. Always use the AC cords as follows – USA (UL);
Canada (CSA); Germany (VDE); Switzerland (SEV); Britain (BASEC/BS); Japan (Electric
Appliance Control Act); or an AC cord that meets the local safety standards.

CONFIDENTIAL – DO NOT COPY Page 1-1
File No. SG-0240
Chapter 1 Features
1. Built in TV channel selector for TV viewing
2. Simultaneous display of PC and TV images
3. Connectable to PC’s analog RGB port
4. Built in HDTV, composite video, S-Video ,HDMI ,ATV out and DTV out ,Audio
line out, Audio optical out
5. Built in auto adjust function for automatic adjument of screen display
6. Smoothing function enables display of smooth texts and graphics even if image
with resolution lower than 1920x1080 is magnified
7. Power saving to reduce consumption power too less than 3W
8. On Screen Display: user can define display mode (i.e. color, brightness,
contrast, sharpness, backlight), sound setting, TV channel program, aspect
and gamma or reset all setting.

CONFIDENTIAL – DO NOT COPY Page 2-1
File No. SG-0240
Chapter 2 Specification
1. TFT LCD CHARACTERISTICS
47.0”WUXGA TFT LCD
Item Specification
Active Screen Size 46.96 inch (1192.87mm) diagonal
Outline Dimension 1096.0(H) x 640.0 (V) x 51.0 mm(D) (Typ.)
Pixel Pitch 0.5415 mm x 0.5415 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 8-bit, 16.7 M colors
Luminance, White 500 cd/m2 (Center 1point ,Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Typ.), U/D 178 (Typ.))
Power Consumption Total 262.56W (Typ.) (Logic=7.56W, Inverter=255 W [IBL=
6.5mA] )
Weight 16.5 Kg (Typ.)
Display Mode Transmissive mode, Normally black
Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer
2.Input Connectors
Service port (USB) , HDMIX3, RCA (DVI Audio IN),D-SUB15PIN (MINI, 3rows),
RCAX2 (Component), RCAX2 (Audio IN) , RCAX1 (Audio IN), RCA (Composite) ,
S-Video (Composite), Tuner
3.Output Connectors
SPDIF Out (Optical Audio) , RCA (Audio OUT)
4. Power Supply
Power Consumption: 433.5W MAX
Power OFF: to less than 0.6W MAX
5.Speaker
Output 6Ω/10W (max) X2
6. ENVIRONMENT
6-1. Operating Temperature: 5c~35c (Ambient)
6-2. Operating Humidity: Ta= 35 °C, 90%RH (Non-condensing)
6-3. Operating Altitude: 0 - 14,000 feet (Non-Operating)

CONFIDENTIAL – DO NOT COPY Page 2-2
File No. SG-0240
7. Dimensions (Physical dimension)
With Base Without Base
a. Height 755.6mm 724mm
b. Width 1129.5mm 1129.5mm
c. Depth 267mm 114.3mm
8. Weight (Physical weight)
a. Net 35.5 +/- 0.5 kgs
b. Gross 42.9 +/- 1.0 kgs
9. Precautions
Please pay attention to the followings when you use this TFT LCDmodule.
9-1. Mounting Precautions
(1) You must mount a module using holes arranged in four cornersor four sides.
(2) You should consider the mounting structure so that uneven force (ex. Twisted
stress) is not applied to the module. And the case on which a module is
mounted should have sufficient strength so that external force is not transmitted
directly to the module.
(3) Please attach the surface transparent protective plate to the surface in order to
protect the polarizer. Transparent protective plate should have sufficient
strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable
because the former generates corrosive gas of attacking the polarizer at high
temperature and the latter causes circuit break by electro-chemical reaction.
(6) Do not touch, push or rub the exposed polarizers with glass,tweezers or
anything harder than HB pencil lead. And please do not rub with dust clothes
with chemical treatment. Do not touch the surface of polarizer for bare hand or
greasy cloth.(Some cosmetics are detrimental to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or
other soft materials like chamois soaks with petroleum benzine. Normal-hexane
is recommended for cleaning the adhesives used to attach front / rear polarizers.
Do not use acetone, toluene and alcohol because they cause chemical damage
to the polarizer.

CONFIDENTIAL – DO NOT COPY Page 2-3
File No. SG-0240
(8) Wipe off saliva or water drops as soon as possible. Their long time contact with
polarizer causes deformations and color fading.
(9) Do not open the case because inside circuits do not have sufficient strength.
9-2. Operating Precautions
(1) The spike noise causes the mis-operation of circuits. It should be lower than
following voltage:
V=±200mV(Over and under shoot voltage)
(2) Response time depends on the temperature.(In lower temperature, it becomes
longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes
lower.) And in lower temperature, response time(required time that brightness is
stable after turned on) becomes longer.
(4) Be careful for condensation at sudden temperature change. Condensation
makes damage to polarizer or electrical contacted parts. And after fading
condensation, smearor spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to
occur.
(6) Module has high frequency circuits. Sufficient suppression to the
electromagnetic interference shall be done by system manufacturers.
Grounding and shielding methods may be important to minimized the
interference.
(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise,
LCM can’t be operated its full characteristics perfectly.
(8) A screw which is fastened up the steels should be a machine screw. (if not, it
causes metallic foreign material and deal LCM afatal blow)
(9) Please do not set LCD on its edge.
9-3. Electrostatic Discharge Control
Since a module is composed of electronic circuits, it is not strong to electrostatic
discharge. Make certain that treatment persons are connected to ground through
wrist band etc. And don’t touch interface pin directly.
9-4. Precautions for Strong Light Exposure
Strong light exposure causes degradation of polarizer and color filter.

CONFIDENTIAL – DO NOT COPY Page 2-4
File No. SG-0240
9-5. Storage
When storing modules as spares for a long time, the following precautions are
necessary.
(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent
light. Keep the temperature between 5°C and 35°C at normal humidity.
(2) The polarizer surface should not come in contact with any other object. It is
recommended that they be stored in the container in which they were shipped.
9-6. Handling Precautions for Protection Film
(1) The protection film is attached to the bezel with a small masking tape. When the
protection film is peeled off, static electricity is generated between the film and
polarizer. This should be peeled off slowly and carefully by people who are
electrically grounded and with well ion- blown equipment or in such a condition,
etc.
(2) When the module with protection film attached is stored for a long time,
sometimes there remains a very small amount of glue still on the bezel after the
protection film is peeled off.
(3) You can remove the glue easily. When the glue remains on thebezel surface or
its vestige is recognized, please wipe them off with absorbent cotton waste or
other soft material like chamois soaked with normal- hexane.

CONFIDENTIAL – DO NOT COPY Page 3-1
File No. SG-0240
Chapter 3 On Screen Display
Main unit button
Power
MENU
CH ▲
CH ▼
VOL +
VOL -
Input
On Screen Display
TV Source
A. Picture：
a. Picture Mode (Custom/ Standard / Movie / Game)
b. Backlight (0~100)
c. Brightness (0~100)
d. Contrast (0~100)
e. Color (0~100)
f. Tint (-32~32)
g. Sharpness (0~7)
h. Color Temperature (Custom/Cool/Normal/Warm)
h-1. Custom：Red (0~255)
Green (0~255)
Blue(0~255)
i. Advanced Video
i-1. DNR(Off/Low/Medium/Strong)
i-2. Black Level Extender (On/Off)
i-3. White Peak Limiter (On/Off)
i-4 CTI(Off/Low/Medium/Strong)
i-5 Flesh Tone (On/Off)
i-6 Adaptive Luma (On/Off)

CONFIDENTIAL – DO NOT COPY Page 3-2
File No. SG-0240
B. Audio：
a. Volume (0~100)
b. Bass (0~100)
c. Treble (0~100)
d. Balance (-50~50)
e. Surround (On/Off)
f. Digital Audio Out (Off/Dolby Digital/PCM)
g. Speakers (On/Off)
h. Lip Sync (0~5)
C. TV：
a. Tuner Mode (Antenna/Cable)
b. Auto Search
c. Skip Channel (Cable 1~135 / Antenna 2~69)
d. MTS (Stereo/SAP/Mono)
e. Time Zone (Hawaii/Eastern/Indiana/Central/Mountain/Arizona/Pacific/Alaska)
f. Daylight Saving (On/Off)
D. Setup：
a. Language (English/Francais/Espanol)
b. Sleep Timer (Off/30 Minutes/60 Minutes /90 Minutes /120 Minutes)
c. Wide (Wide/Zoom/Panoramic/Normal)
d. Input Naming (AV/Comp1/Comp2/RGB/HDMI1/ HDMI2/ HDMI3)
e. CC (Off/CC1/ CC2/ CC3/ CC4)
f. CC On Mute (Off/On)
g. Digital CC Style
g-1. Caption Style (Custom/As Broadcaster)
Custom：
g-2. Font Size (Large/Small/Medium)
g-3. Font Color (white/Green/Blue/Red/Cyan/Yellow/Magenta/Black)
g-4. Font Opacity (Translucent/solid/Transparent)
g-5. Background Color (white/Green/Blue/Red/Cyan/Yellow/Magenta/Black)
g-6. Background Opacity (Translucent/solid/Transparent)
g-7. Window Color (white/Green/Blue/Red/Cyan/Yellow/Magenta/Black)
g-8. Window Opacity (Translucent/solid/Transparent)

CONFIDENTIAL – DO NOT COPY Page 3-3
File No. SG-0240
h. H/V Position
h-1. H.Position (0~64)
h-2. V.Position (0~32)
h-3. H.Size (0~100)
h-4. V.Size (0~100)
i. Reset All Setting
E. Parental：
a. PASSWORD
RGB Mode
A. Picture：
a. Auto Adjust (Run)
b. Backlight (0~100)
c. Brightness (0~100)
d. Contrast (0~100)
e. Color Temperature(Custom/6500/9300)
e-1. Custom：Red (0~255)
Green (0~255)
Blue(0~255)
f. H-size (0~255)
g. H-Position (0~100)
h. V-Position (0~100)
i. Fine Tune (0~31)
B. Audio：
a. Volume (0~100)
b. Bass (0~100)
c. Treble (0~100)
d. Balance (-50~50)
e. Surround (On/Off)
f. Digital Audio Out (Off/Dolby Digital/PCM)
g. Speakers (On/Off)
h. Lip Sync (0~5)

CONFIDENTIAL – DO NOT COPY Page 3-4
File No. SG-0240
C. Setup：
a. Language (English/Francais/Espanol)
b. Sleep Timer (Off/30 Minutes/60 Minutes /90 Minutes /120 Minutes)
c. Wide (Wide/Zoom/Panoramic/Normal)
d. Input Naming (AV/Comp1/Comp2/RGB/HDMI1/ HDMI2/ HDMI3)
e. Reset All Setting

CONFIDENTIAL – DO NOT COPY Page 3-5
File No. SG-0240
HDMI MODE
A. Picture：
a. Picture Mode (Custom/ Standard / Movie / Game)
b. Backlight (0~100)
c. Brightness (0~100)
d. Contrast (0~100)
e. Color (0~100)
f. Tint (-32~32)
g. Sharpness (0~7)
h. Color Temperature (Custom/Cool/Normal/Warm)
h-1. Custom：Red (0~255)
Green (0~255)
Blue (0~255)
i. Advanced Video
i-1. DNR(Off/Low/Medium/Strong)
i-2. Black Level Extender (On/Off)
i-3. White Peak Limiter (On/Off)
i-4 CTI(Off/Low/Medium/Strong)
i-5 Flesh Tone (On/Off)
i-6 Adaptive Luma (On/Off)
B. Audio：
a. Volume (0~100)
b. Bass (0~100)
c. Treble (0~100)
d. Balance (-50~50)
e. Surround (On/Off)
f. Digital Audio Out (Off/Dolby Digital/PCM)
g. Speakers (On/Off)
h. Lip Sync (0~5)
C. Setup：
a. Language (English/Francais/Espanol)
b. Sleep Timer (Off/30 Minutes/60 Minutes /90 Minutes /120 Minutes)
c. Wide (Wide/Zoom/Panoramic/Normal)

CONFIDENTIAL – DO NOT COPY Page 3-6
File No. SG-0240
d. Input Naming (AV/Comp1/Comp2/RGB/HDMI1/ HDMI2/ HDMI3)
e. H/V Position
e-1. H.Position (0~64)
e-2. V.Position (0~32)
e-3. H.Size (0~100)
e-4. V.Size (0~100)
f. Reset All Setting
Video Sources：
AV1、AV2、COMPONENT1、COMPONENT2
A. Picture：
a. Picture Mode (Custom/ Standard / Movie / Game)
b. Backlight (0~100)
c. Brightness (0~100)
d. Contrast (0~100)
e. Color (0~100)
f. Tint (-32~32)
g. Sharpness (0~100)
h. Color Temperature (Custom/Cool/Normal/Warm)
h-1. Custom：Red (0~255)
Green (0~255)
Blue(0~255)
i. Advanced Video
i-1. DNR(Off/Low/Medium/Strong)
i-2. Black Level Extender (On/Off)
i-3. White Peak Limiter (On/Off)
i-4 CTI(Off/Low/Medium/Strong)
i-5 Flesh Tone (On/Off)
i-6 Adaptive Luma (On/Off)
B. Audio：
a. Volume (0~100)
b. Bass (0~100)
c. Treble (0~100)
d. Balance (-50~50)

CONFIDENTIAL – DO NOT COPY Page 3-7
File No. SG-0240
e. Surround (On/Off)
f. Digital Audio Out (Off/Dolby Digital/PCM)
g. Speakers (On/Off)
h. Lip Sync (0~5)
C. Setup：
a. Language (English/Francais/Espanol)
b. Sleep Timer (Off/30 Minutes/60 Minutes /90 Minutes /120 Minutes)
c. Wide (Wide/Zoom/Panoramic/Normal)
d. Input Naming (AV/Comp1/Comp2/RGB/HDMI1/ HDMI2/ HDMI3)
e. CC (Off/CC1/ CC2/ CC3/ CC4)
f. CC On Mute (Off/On)
g. Digital CC Style
g-1. Caption Style (Custom/As Broadcaster)
Custom：
g-2. Font Size (Large/Small/Medium)
g-3. Font Color (white/Green/Blue/Red/Cyan/Yellow/Magenta/Black)
g-4. Font Opacity (Translucent/solid/Transparent)
g-5. Background Color (white/Green/Blue/Red/Cyan/Yellow/Magenta/Black)
g-6. Background Opacity (Translucent/solid/Transparent)
g-7. Window Color (white/Green/Blue/Red/Cyan/Yellow/Magenta/Black)
g-8. Window Opacity (Translucent/solid/Transparent)
h. H/V Position
h-1. H.Position (0~64)
h-2. V.Position (0~32)
h-3. H.Size (0~100)
h-4. V.Size (0~100)
i. Reset All Setting
D. Parental：
a. PASSWORD

CONFIDENTIAL – DO NOT COPY Page 9-1
File No. SG-0240
N0
Yes
N0
N0
Yes
N0
N0
Yes
Yes
Yes
Chapter 9 Trouble shooting
MONITOR DISPLAY NOTHING (PC MODE)
Start
LED is lighted
1. Is Power board output
+5VSB &DV12?
2. Is J1 connector good?
3. Is DC-DC OK?
4. Is U14 (+5V) working ok?
LED is lighting?
It is in power saving
1. Check video cable
2. Is the timing supported?
3. Check sync input
4. Check VGA SOG rout if analog
(SOG)
Is backlight on? 1.Check J1 PIN1
2.Is Power Board ok?
U13 no data out?
It means data to LVDS
1.Is J8 connecting OK?
2.Check J1 +5V & +12V
3.Is panel ok?
4. Check P5 D-sub Input correct
5. Check analog input route
END

CONFIDENTIAL – DO NOT COPY Page 9-2
File No. SG-0240
Yes
N0
N0
N0
Yes
Yes
Yes
N0
(TV, COMPOSITE VIDEO )IS NOT DISPLAY CORRECTLY
Start
Input signal good? 1. Check video
2. Check DVD player
U13 input correct?
1. Check P2(VIDEO) signal
2. Check signal between U13 (IF IN AV
mode)
LVDS output correct?
1. Check U13 :DV33&DV12&AV15&AV12
2. Check X1 is OK?
1. Check J8 Connect is good?
2. Is panel working ok?
END
U13 output correct?
1. Check LVDS LINE
2. Check U13 clock (60MHz)
3. Check LVDS 5V or 12V

CONFIDENTIAL – DO NOT COPY Page 9-3
File No. SG-0240
N0
N0
N0
N0
Yes
Yes
Yes
Yes
(COMPONENT) IS NOT DISPLAY CORRECTLY
Start
Input signal good? 1.Check video
2.Check host’s setting
P3 input correct? 1.Check signal between P3
2.Check power 12V& 5v
U13 input correct?
1.Check signal between U14&P1
2.Check U13 Clock (60MHZ)
3.Check U13 :DV33&DV12&AV15&AV12
LVDS output correct ?
1.Check U13
2. Check LVDS 5V or 12V
1.Is J8 connected good?
2.Is panel working ok?
END

CONFIDENTIAL – DO NOT COPY Page 9-4
File No. SG-0240
Yes
Yes
N0
N0
Yes
(HDMI)IS NOT DISPLAY CORRECTLY
Input signal good?
Start
1.Check video
2.Check host’s setting
U13 no data out ?
1.Check U13 power
2.Check between signal U13
3.Check U13 clock 60MHZ
1.Is J8 connected good?
2.Is panel working ok?
END

CONFIDENTIAL – DO NOT COPY Page 9-5
File No. SG-0240
Yes
N0
N0
The voltage is about + 12V while power switch on
1. J1 connection good
2. Check J1 Pin2,3,4 transform +5V_TUNER
3. Check power board
The voltage is about +5V while power switch on
1. J1 connection good
2. Check U13 OPWRSB & OPCTRL2 Pin
ROUBLE OF DC-DC CONVERTER
Start
J1 PIN9,10,11
J1 PIN 2,3,4
The voltage is about 5VSB
1. Check power board
2. Check power cable connection J1
U14 pin 5 6 7 8
U22,U15 pin2 The voltage is about +3.3V
U20 pin2 The voltage is about +1.8V
U21 pin2 Th
e
v
o
lt
age
i
s
abou
t +1.2
5
V
U17 pin2 The voltage is about +3.3V
U19 pin2 The voltage is about +2.5V
U18 pi2 The voltage is about +1.1V
END
