Vjoycar TK05 User guide

Web: www.vjoycar.com Email: [e-mail] Skype: vjoycar Whatsapp:[phone]
VJOYCAR GPS Tracker - Quick Operation Guide
Step 1 Install SIM Card.
A. Make sure the SIM card is with 2G service still if you are using 3G or 4G
SIM cards but your GPS trackers are VJOYCAR 2G GPS trackers; Make sure
the SIM card is with both gsm sms and gprs service even you don’t want to use
online tracking platform; Make sure the SIM card is with Call ID service also.
B. Make sure SIM with metal face top, clipped icon to the right as below. Or
follow the SIM direction sticker on the device to operate!
C. For Portable Trackers, insert SIM and you will see GREEN light flash once
and then turn to on for 30 second, trackers will be on directly, don’t need press
the button again;For cable installed trackers, once complete install and get
power with car battery, trackers will be on directly also.
D. Call Device’s SIM phone number and make sure it could get through but
without answer.!
Step 2 Set APN (Access Point Name).
This setting is to enable tracker to upload data to the server through GPRS!
A. Different Telecom provider has different APN. Please confirm APN setting
on your SIM operator’s website or call your SIM operator directly. E.g.
Vodafone APN:live.vodafone.com (Some time APN will include username and
password)!
B. Use your cellphone to send SMS *apn*aXXX*bXXX*cXXX* to the SIM
number in the device.
aXXX refer to APN, bXXX refers
to username, cXXX refers to
password. If there is no username
and password required, just leave
bXXXXX*cXXXXX* as blank.! aXXX,
bXXX, cXXX are just samples, don’t
send this sms directly!
C. Your cellphone will receive SMS reply, says the appointed APN is set (See
screenshot as above).
Notes:
1. No matter what APN settings you send to the device,you will get a reply as
long as the SMS format is right. But it doesn't mean the device has connected

Web: www.vjoycar.com Email: [e-mail] Skype: vjoycar Whatsapp:[phone]
to server successfully. You have to finish the second step to make sure the
APN settings is correct.!
2. The APN setting is for the SIM card inside the gps tracker, not for your own
master control cellphone number. Especially, when the SIM card inside the
tracker and the SIM card inside your master control cellphone are from two
different operator, and you mess them up, then you can’t see the device work
at all.
3. Step 3 Set Master Number.
A. Use master conrol cellphone to
send SMS *master*123456*+country
code and your cellphone number* to
the device sim number!
B. Your cellphone will receive reply
says “mater phone number is
successfully set”. And you cellphone
number will be the only master phone
to the tracker (See screenshot as
below).
Notes:
1.on above photo, +86 is our country code, pls replace it to your own country
code; 13621925935 is the cellphone number which is sending sms to the
tracker SIM phone, not the tracker SIM phone number. Don’t mess it up!
2.123456 is the default password, it can be changed by SMS command after
the registration.
3.“+” symbol is necessary before the country code so that server is able to tell
where the data is coming from. E.g. +1 for US, +44 for UK , +39 for Italy!
4.If there is no sms reply. Pls kindly double check: whether APN settings is
wrong, please contact the SIM operator to confirm APN settings again;
whether the tracker is with gsm signal now, pls kindly call it; whether the SIM
card is with 2G service still(3g gps trackers no need 2G service), pls contact
with your operator.
Step 4 Enable the data upload function.

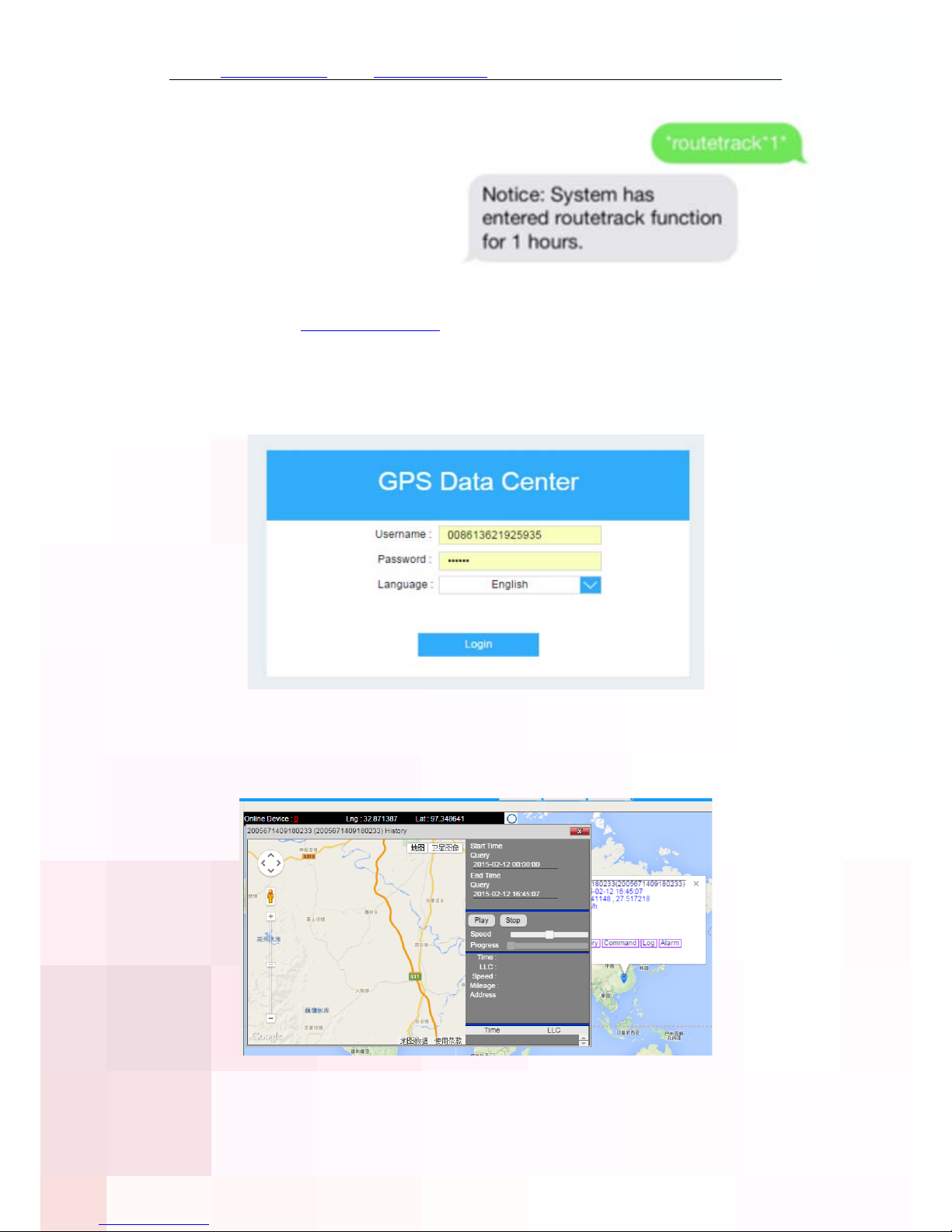

A.Use cellphone to send SMS *routetrack*1* for 1 hour data upload, 6
locations per minute when device is moving; Or use cellphone to send SMS
*checkm*10*, tracker will upload 1 data each 10 minutes both stationary or
moving.
(For other command you need to test, please see details in the user manual.)
Step 5 Send sms to get tracker’s location.

Web: www.vjoycar.com Email: [e-mail] Skype: vjoycar Whatsapp:[phone]
A. If send *locate*,it will reply
coordinates; if send
*locataddress*,it will reply
address; if send *locatemap*,it
will reply google map link.
Step 6 See tracking information on-line!
A. Visit website: www.miitown.com
B. Login with master number (with 00country code) and default password
123456. (See screenshot as below) ,Replace the 00 to + on the master control
number. Eg, if set master control number [phone], then login in with :
008613621925935
C. All trackers under the same master phone number will be shown under the
device list.!
D. Click history on the pop up info window, chose the date and time you need
you view, and click Play to view the tracking history of the appointed time.
E. Click report, chose the device, date and time you need you view, and click

Web: www.vjoycar.com Email: [e-mail] Skype: vjoycar Whatsapp:[phone]
submit and you will see the detail tracking report
FAQ when usage:
1. Can your gps trackers work in our country
Answer: Yes, it can. As long as your country has regular 2G GSM network. If you use 3G SIM
card or 4G SIM card, before testing, make sure it has 2G GSM service. Again,latest 3G gps
trackers no need 2G service.
2. When I send SMS to it, it doesn’t reply GPS location, only LBS location.
Answer: your gps tracker is indoor? Please make sure it’s outdoor. No heavy rain, then the
signal is good. Still LBS location? Then, pls send 0000 or *status* to check its status, and see
how many satellites quantity it have now.
3. How does the command *sleepv* work?
Answer: once the device receive the sms command *sleepv* and keep stationary for over 3
minutes. The device will go to sleep right now. Once it device the motion or vibration, it will
wake up directly and keep awake for 12minutes. After 12 minutes, it will go to sleep again,
don’t care whether the device is moving or stationary. However, if after this 12 minutes, it
detect motion again, it will wake up again, then keep wake still. ( As usual, it takes around 1-3
minutes to wake up from sleeping mode)
4. Under *sleepv* mode, does the gps and gsm module work still?
Answer: No. Both GSM and GPS don’t work. When you send sms or call the device, no
answer at all. Only when the device detect motion, it will wake up and send you the location.
Therefore,if you are using the signal detector to detect it, nothing found at all.
5. Under *sleep*3*,does the gps and gsm module work?

Web: www.vjoycar.com Email: [e-mail] Skype: vjoycar Whatsapp:[phone]
Answer: No. Both GSM and GPS are off. When you send sms or call the device, no answer at
all. It only wake up after 3 hours later.
6. Under *sleep*3*,will the gps wake up if detect motion or vibration?
Answer: No.It won’t. It will only wake up when the time is upto 3 hours.
7. Can I wake the gps up remotely if under deep sleeping mode eg: *sleepv* or *sleep*3*
Answer: No, it can’t wake up remotely. *sleepv* only wake up when it detect motion; *sleep*3*
only wake up after 3 hours. Can’t wake the GPS trackers by sms remotely. However, if you
press the “on” button for 10 times by hand to wake the device up
8. When I set sleeping mode for my GPS, then power off the device, and power on again ,
can it remember the old setting?
Answer: Yes, it can. However, it will stay awake for 12 minutes because it treat you “power
on/off” as motion. After 12 minutes, it will login into sleep mode again.
9. What does “ routetrack” command mean?
Answer: routetrack default setting is: collecting interval = 10seconds, and uploading
interval=60seconds,it means it will upload 6 pieces of location each 1 minute, but it will work
only when the device is moving. If you want to set the routetrack function detailed, please
kindly use rsampling and rupload command.
If you set *routetrack*1*, it will upload 6 pieces of locations in each 1 minutes when the device
is moving, and keep this kind of working mode in the follow 1 hours. If you set *routetrack*2*,
it will upload 6 pieces of locations in each 1 minutes when the device is moving, and keep this
kind of working mode in the follow 2 hours If you set *routetrack*99*,t will upload 6 pieces of
locations in each 1 minutes when the device is moving, and keep this kind of working mode
forever.
10. What’s the difference between “routetrack” and “rsampling” / “rupload”
Answer: routetrack is a rough setting with collecting interval = 10seconds, and uploading
interval=60seconds. However, rsampling is used to set the detailed collecting interval, and
rupload is used to set the detailed upload interval.

Web: www.vjoycar.com Email: [e-mail] Skype: vjoycar Whatsapp:[phone]
11. T16/T18/T18H bike lamp GPS looks bad because it will attractive the bike theft notice,
we want it to be a faulty lamp always, Can I ?
Answer: yes, just press the “on/off” button for 3 times to turn off the light always.
Does your device has the identifies function for its inserted SIM card?
Answer: yes, when the SIM card is moved out, and insert a new SIM card, it will send a alert to
the master controller number: mobile [phone](device SN number) has changed to
this phone number.
12. Hong long can the battery last?
Answer: pls kindly check our battery testing report here. All of our device are using the same
battery, the only different is the capacity.
http://www.vjoycar.com/Company-News/tk-star-gps-tracker.html
13. What’s the battery consumption?
Answer: 2G
Standby current is: 2-3mA
GPS Position Working Current is：50-80mA
Uploading data current is：100-200mA
3G:
Standby current is: 2-10mA
GPS Position Working Current is：80-100mA
Uploading data current is：170-320mA
14. Can I combine your gps trackers on our own web tracking platform?
Answer: yes, of course, if you need, pls kindly contact with us to ask for our hardware
communication protocol.
15. Do your GPS device support UDP protocol? What’s the format to transfer the
default IP from your server to our server?
Answer:
Yes, our device support both UDP and TCP protocol. If you need, pls contact with our sales to
ask for hardware communication protocol.

Web: www.vjoycar.com Email: [e-mail] Skype: vjoycar Whatsapp:[phone]
Besides, the format sample is as below: If your server is:
IP: 89.207.145.86
Port: 2045
Then the command is:
*setip*89*207*145*86*2045*
Note: If want to be back to our serer www.miitown.com pls kindly use master phone to send
sms: default
(it won't reply, after 5 minutes, need set apn and master again)
16. How long can i charge the gps device?
Answer: when you insert the charge, the LED light will be on, it means the device is charging;
when it's full charged, the LED light will be off. For your reference, below is the charging table if
you use 5V /1Aadaptor:
TK05（5000×1.3）÷1000 = around 7 hours
TK10（10000×1.3）÷1000 = around 13 hours
TK15（15000×1.3）÷1000 = around 20 hours
TK20（20000×1.3）÷1000 = around 26 hours
T13（3000×1.3）÷1000 = around 4 hours
T10（2200×1.3）÷1000 = around 3 hours
T18（2200×1.3）÷1000 = around 3 hours
17. How can I know the device battery level?
Answer: when the device is at your hand, if you press the button on, the LED light will show the
battery level. When the device is not at your hand, you could send *status* to know its battery
level. If you active *uploadalert*on*, you could see the battery level on the server platform
also.
18.What’s the battery life?
Answer: the battery life is based on the working mode. Eg, if routetrack is on or only under
sleeping mode, then the battery life will be very different. For detailed battery life,pls kindly
check our battery testing result:
http://www.vjoycar.com/Up/day_150101/Product%20Specification%20List.pdf
19. Does T12se have microphone, support voice monitor remotely?

Web: www.vjoycar.com Email: [e-mail] Skype: vjoycar Whatsapp:[phone]
Answer: No. All of our gps tracker model numbers end with SE wont’ have microphpone any
more. Only TK05 TK10 TK20 T13 T4024FC have voice monitor function.
20. Do the portable gps tracker have overspeed alert?
Answer: No, all of our portable device don’t have over speed alert .
21. How much data will the gps use in one month?
Answer: As usual, one piece of data is around 1KB. If you active the routetrack and drive the
vehicle always, 50M is enough for one month.
22. When I register master control phone number, it shows ” register failure, no gprs…”
Answer: that’s mostly because:
A. The SIM card inside gps tracker doesn’t have GPRS data plan.
B. The APN setting is wrong although you get a reply. Pls call to your operator to confirm the
right APN. Or tell our sales the operator name,we will google its APN for you.
23. How to reset the GPS? How to back to factory setting?
Answer: pls kindly send 88888888 or default to reset the device.
24. I have set the master control and apn, but can’t see the gps online, the address is
still in China, why?
Answer: You haven’t actived the GPRS uploading function. Pls kindly try one command
*rouettrack*1*, then move your device.
25. How can I configure just for night alerts (sms or call) for example: from 20:00 to 8:00
in the morning?

Web: www.vjoycar.com Email: [e-mail] Skype: vjoycar Whatsapp:[phone]
Answer: First of all, our device default time is Greenland time(UK time).If you are not in time,
you need set the time zone. The sms format is *timezone* your local time* eg, in China, we
send sms *timezone*8*. Secondly, set the sms *continuousalert*20*08*
26. What does the vehicle color mean(on the web tracking platform)?
Answer:
-Blue Car Icon : Device has connected to server within the past 24 hours!
-Red Car Icon: Device has connected to server before the past 24 hours!
-Green Car Icon: Device has connected to server within the past 15minutes!
-Gray Car Icon: Device has been activated, but there is no any server connection so far!
-Gary Minus Icon: Device is not activated. No any master number is registered with this
device so far!
