VOGUE Ceramic Cooktop 600mm
To prevent the risk of accidents or damage to the appliance, it is essential
to read these instructions before it is installed and used for the first time
320156
INSTALLATION
INSTRUCTIONS
USER GUIDE

2
Content
1…………………………………..…………………Safety instructions
2…………………………………..…………………Installation
3…………………………………..…………………Description of the Ceramic hob surface layout
4…………………………………..…………………Using the ceramic hob
5…………………………………..…………………Hob guidelines
6…………………………………..…………………Maintenance and cleaning
7…………………………………..…………………Environmental note
Safety instructions
This User Instruction Manual contains important information, including safety
& installation points, which will enable you to get the most out of your
appliance. Please keep it in a safe place so that it is easily available for future
reference; for you or any person not familiar with the operation of the appliance.

3
Caution!
Do not use the ceramic hob until you
have read this instruction manual.
The ceramic hob is intended for
household use only.
The appliance becomes hot during
operation. Take care not to touch the
hot surface.
Always keep children away from the
ceramic hob.
While in operation direct contact with
the ceramic hob may cause burns!
Ensure that small items of household
equipment, including connection leads,
do not touch the hob as the insulation
material of this equipment is usually
not resistant to high temperatures.
Do not leave the ceramic hob
unattended when frying. Oils and fats
may catch fire due to overheating or
boiling over.
Do not switch on the hob until a pan
has been placed on it.
Do not put pans weighing over 25kg
on the hob.
Do not use the ceramic hob in the
event of a technical fault. Any faults
must be fixed by an appropriately
qualified and authorized person.
In the event of any incident caused by
a technical fault, disconnect the power
and report the fault to the service
centre to be repaired.
The rules and provisions contained in
this instruction manual should be
strictly observed. Do not allow
anybody who is not familiar with the
contents of this instruction manual to
operate the ceramic hob.
The ceramic hob should not be
cleaned using steam cleaning
equipment.
IMPORTANT: The adjacent
furniture or housing and all materials
used in the installation must be able to
withstand a minimum temperature of
95°C above the ambient temperature
of the room it is located in, whilst in
use.
Any damage caused by the appliance
being installed in contravention of this
temperature limit, or by placing
adjacent cabinet materials closer than
4mm to the appliance, will be the
liability of the owner.
This appliance complies with all
current European safety legislation.
We do wish to emphasize that this
compliance does not remove the fact
that the appliance surfaces will
become hot during use and retain heat
after operation.
Child Safety
We strongly recommend that
babies and young children are
prevented from being near to the
appliance and not allowed to touch
the appliance at any time.
If it is necessary for younger family
members to be in the kitchen,
please ensure that they are kept
under close supervision at all times.
General Safety
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety.
Children should be supervised to
ensure that they do not play with
the appliance.
NEVER try to extinguish a fire with
water, but switch off the appliance

4
and then cover flame e.g. with a lid
or a fire blanket.
WARNING: Danger of fire: do not
store items on the cooking surfaces.
Means for disconnection must be
incorporated in the fixed wiring in
accordance with the wiring rules.
Do not allow electrical fittings or
cables to come into contact with
areas on the appliance that get hot.
Do not use the appliance to heat
the room it is located in or to dry
clothing.
Do not install the appliance next to
curtains or soft furnishings.
If the supply cord is damaged, it
must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
The appliance is not intended to be
operated by means of an external
timer or separate remote-control
system.
Power cord can’t accessible after
installation.
This product can be worked but not
through outside timer and remote
control.
Warning: If the surface is cracked,
switch off the appliance to avoid the
possibility of electric shock, for hob
surfaces of glass ceramic or similar
material which protect live parts.
Warning: a steam cleaner is not be
used.
CAUTION: The cooking process
has to be supervised. A short term
cooking process has to be
supervised continuously.
WARNING: Unattended cooking
on a hob with fat or oil can be
dangerous and may result in a fire.
This appliance should be
connected to a circuit which
incorporates an isolating switch
which can accessible by the user
after installation providing full
disconnection from the power
supply. The disconnection may be
achieved by incorporating a switch
in the fixed wiring in accordance
with the wiring rules.
Warning: Before obtaining access
to terminals, all supply circuits must
be disconnected.
WARNING: Use only hob guards
designed by the manufacturer of
the cooking appliance or indicated
by the manufacturer of the
appliance in the instructions for use
as suitable or hob guards
incorporated in the appliance. The
use of inappropriate guards can
cause accidents.
WARNING: The appliance and its
accessible parts become hot during
use.
Care should be taken to avoid
touching heating elements.
Regarding the instructions for how
to Installation,thanks to refer to the
section “Installation”.
Installation
Electrical connection
Before connecting the appliance, make sure that the supply voltage
marked on the Rating Plate corresponds with your mains supply voltage.

5
WARNING: THIS APPLIANCE MUST BE EARTHED.
If you have to change the oven power cord, the earthing (yellow/green) conductor
must always be 10 mm longer than the line conductors.
Care must be taken to ensure that the temperature of the mains supply cable does
not exceed 50°C.
If the mains supply cable is damaged, then it must be replaced by an appropriate
replacement which can be obtained from Spares Department.
Assembly of ceramic hob :
Preparing the unit for a built-in appliance
WARNING
The kitchen units that are in direct contact with the appliances must be heat-
proof(min. 95°).
The appliance can be installed on a work surface with a thickness of between 30
and 40 mm and near to walls which are higher than the work surface,maintaining a
minimum distance of 100 mm.
Carry out all cutting of the unit and work surface then carefully remove shavings or
sawdust before inserting the appliances.
To ensure a correct ventilation of the hob please comply with the dimensions
shows in figures .
Always refer to the manufacturer for specific instructions,
Make sure the surface is level and square and that no part interferes with the
space required for installation.
Prepare the cut as indicated(see installation dimensions).
560
490
510
580
50

6
Installing the hob
WARNING
Risk of cutting.
Be careful of cutting edges.
End parts in foamed plastic - be careful.
During transportation these could cause slight injury or cuts.
Remove the material and envelope of documents from the packaging.
Before proceeding with installation read the work instructions carefully.
Step.1
Put a towel or cloth on the work surface.Place the hob face
down on the protected surface.
Step.2
Apply the strip seal,supplied with the hob,which is for sealing
it onto the work surface.
Do not use silicone. Apply the seal to the edge of the bottom
of the hob,leaving about 3mm from the edge of the glass.
Apply the seal all around the circumference.
Cut any excess and bring the two ends of the seal together
so they match.
Step.3
Fix the brackets(4 or 5 pcs) on the front side and rear side by screw.Put the hob in the
cut-out cabinet,and make it centered.Ensure that the front edge of the hob is parallel to
the side edge of the work surface.

7
IMPORTANT: You must observe the ventilation
requirements shown in the drawing opposite.
IMPORTANT: There are ventilation holes around the
outside of the hob. YOU MUST ensure that these
holes are not blocked by the work top, when you put
the hob into position (see drawing opposite).
IMPORTANT: Do not use a silicon sealant to seal the
appliance against the aperture. This will make it
difficult to remove the hob from the aperture in future,
particularly if it needs to be serviced.
Carefully turn the hob back over and then gently lower it into the aperture hole that
you have cut out.
Fitting guidelines
The ceramic hob is manufactured to work with two-phase
alternating current (400V2N~50Hz).The voltage rating of the
ceramic hob heating elements is 230V. Adapting the ceramic
hob to operate with one-phase current is possible by
appropriate bridging in the connection box according to the
connection diagram below. The connection diagram is also
found on the cover of the connection box. Remember that
the connection wire should match the connection type and
the power rating of the ceramic hob.
The connection cable must be secured in a strain-relief clamp.
Warning!
Remember to connect the safety circuit to the connection box terminal marked with
.The electricity supply for the ceramic hob must have a safety switch which
enables the power to be cut off in case of emergency. The distance between the
working contacts of the safety switch must be at least 3mm.
Before connecting the ceramic hob to the power supply it is important to read the
information on the data plate and the connection diagram.
2
1

8
wires for each domino hob with 4D models
model
Adaptive voltage range and wires
The wiring diagram
220-240 1N
～
50-60Hz
380-420 2N
～
50-
60Hz
KADO K 1/5
AHW-4D-60-2 H05VV-F 3G2.5
H05VV-F 4G2.5
H05GG-F 4G2.5
H07RN-F 4G2.5
KADO XT
The cable connections must be in accordance with the diagram located on the
bottom of the hob.
The cable type must be connected to the corresponding power supply terminal box.
You should use a good quality screwdriver to carefully, fully tighten ALL of the
terminal screws.
If when the hob is first switched on, only two of the zones work, you should
recheck that the terminal screws are all fully tightened. This should be done before
contacting the Customer Care Department.
IMPORTANT: The appliance must NOT be connected to the mains supply by
means of a 13A plug and socket.
This appliance must be wired into a 30 A double pole switched fused spur outlet,
having 3 mm contact separation and placed in an easily accessible position
adjacent to the appliance. It should not be located above the appliance and no
more than 1.25m away from it.
The cable can be looped if necessary, but make sure that is not kinked or trapped
when the hob is in position. Care must be taken to avoid the cable being in contact
with hot parts of the appliance.
Replacing the mains supply cable
If the mains supply cable is damaged, then it must be replaced by an appropriate
replacement.
The mains supply cable should be replaced in accordance with the following
instructions:
Switch the appliance off at the control switch.
Open the terminal block on the underside of the hob.
Unscrew the terminal screws fixing the cable.

9
The “green-yellow” earth wire must be connected to the terminal marked . It
must be about 10 mm longer than the live and neutral wires.
The “blue” neutral wire must be connected to the terminal marked with letter (N)
- the live wire(L1) must be connected to the terminal marked with letter (L1)
(220-240V 1N～).
The “blue” neutral wire must be connected to the terminal marked with letter (N)
- the live wire L1 must be connected to the terminal marked with letter (L1),. the
live wire L2 must be connected to the terminal marked with letter (L2) (380-
420V 2N～).
Electrical principle diagram

10

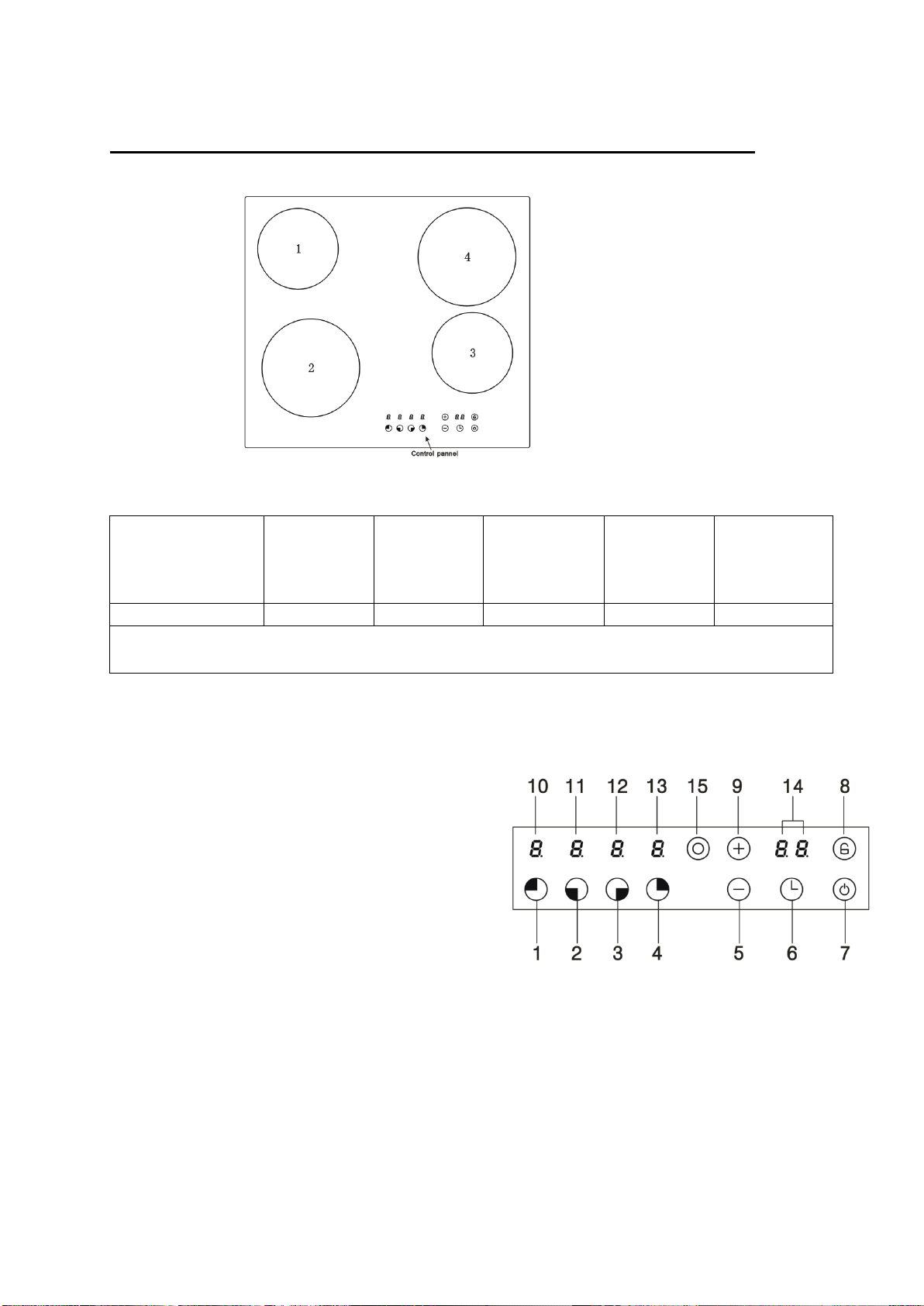

Description of the Ceramic hob surface layout
4 zone ceramic hob schematic diagram
Surface layout table
Model
Furnace
plate 1
power
（
kW）
Furnace
plate 2
power
（
kW）
Furnace
plate 3
power
（
kW
）
Furnace
plate 4
power
（
kW）
Total power
（
kW
）
AHW-4D-60-2
1.2
1.8
1.2
1.8
6.0
Note
：
1.2 kW hyperspeed zones (diameter 165 mm)
；
1.8 kW hyperspeed zones (diameter 200 mm).
Control panel layout
1. Cooking zone rear left select button(#1)
2. Cooking zone front left select button(#2)
3. Cooking zone front right select button(#3)
4. Cooking zone rear right select button(#4)
5. minus button
6. Timer selector
7. ON/OFF button
8. Safety lock button
9. Plus button
10. Cooking zone indicator of rear left(#1)
11. Cooking zone indicator of front left(#2)
12. Cooking zone indicator of front right (#3)
13. Cooking zone indicator of rear right(#4)
14. Timer display
15. Double zone select button(ON/OFF)
Display:can operate that cooking zone
Non-display: not selected that cooking zone,can not operate.

11
Using the ceramic hob
Before first use
IMPORTANT: You should clean the ceramic hob surface (see “Maintenance
and cleaning” section).
You should switch on one cooking zone at a time, for 5 minutes at the maximum
setting. This will help to eliminate any new smell that exists and evaporate any
humidity that has formed on the heating elements during transit.
Do not burn off more than one zone at once.
You must place a saucepan filled half full with cold water on each zone as you
burn it off.
Operation instruction
1. Power on
After switch on the appliance,the hob will beep to remind power on,all of the
indicator lights on the display screen and digital tube will lit on for 2s, then the
appliance goes into power off mode.Note: The indicator lights will not lit on if there
is no multiple-ring heating function.
Power off mode: All the display will close except the residual heat indicator; Except
long press the “on/off” button, other buttons can not be operated.
2. Standby mode
Under power off mode, long press “on/off” button for 3s, the hob will beep and then
enter standby mode.
All of the number in the cooking zone indicator reaches “0”(The letter “H” will show
in the cooking zone indicator if there is residual heat,and decimal point will flash),
timer place will show “00” as well, it will not heat at this time.
Under standby mode, heating operation can be carried out on each cooking zone;if
no any cooking zone heating operation, the appliance will go into power off mode
automatically after 10s and beep once.
3. Power off
Under standby mode or heating mode, long press “on/off” button for 3s, a short
audible signal will be heard,the appliance will go into power off mode. If the
corresponding cooking zone surface has residual heat at this time, the digital tube
of power level indicator will flash display “H”,and indicate residual heat warning.
4. Heating control
Under standby mode, you can choose the target heating hob top by pressing the
cooking zone select button, then press “+” and “-” buttons to adjust the power level
of the target heating hob top. Long press plus/minus buttons can continuously
increase or decrease the power level.
When the hob top is in heating status, long press “on/off” button for 3s to switch
off, and stop the 4 cooking zones to heat, the corresponding cooking zone
indicator of the hob top which has heated before will flash and display high
temperature warning symbol “H”.

12
Under standby mode, if some hob tops still exist residual heat, display will show
“H”.
If needing to switch off one of the cooking zones, you can select that zone first,
then press the minus button until “0” power level to switch off that zone, and will
not affect the heating of the other cooking zones. When power level reaches “0”,
the corresponding cooking zone indicator of the hob top which has heated before
will display high temperature warning symbol “H”.
If more than one zone is operating at the same time, total power will equal to the
sum power of all the working cooking zones, each cooking zone will work
according to their power modulation ratio, and will not affect each other.
Note: 1. During the same period,only one hob top button is valid,that is only one
decimal point can be displayed.
2. Press minus button to set the power level to “0”,then the heating hob top
will close automatically.
3. Each cooking zone has 9 power levels.
5. Multiple-ring heating function(partial models)
5.1 Open double ring heating function : The outer ring can only start after the inner
ring is open.
1) Touch the cooking zone select button which need to heat, corresponding
cooking zone digital tube decimal point will display.
2) Select the power level you need.
3) Touch the double-ring select button to open the outer ring,the corresponding
indicator light of cooking zone outer ring will lit on afterwards.
5.2 Open tricyclic heating function : The outer ring can only start after the inner ring is
open.
1) Touch the cooking zone select button which need to heat, corresponding
cooking zone digital tube decimal point will display.
2) Select the power level you need.
3) Touch the double-ring select button to open the outer ring,the corresponding
indicator light of cooking zone outer ring will lit on afterwards.
It will open the second ring when press for the first time, the third ring when
press the second time,and it will close the outer ring heating when pressing the
third time.
5.3 Close multiple-ring heating function
1) Touch the cooking zone select button which need to heat, corresponding hob
top digital tube decimal point will display.
2) Touch the double ring/ multiple-ring select button to close the outer ring.
6. Power level adjustment
Press cooking zone select button to choose the corresponding cooking zone,
using the plus and minus buttons to adjust the porper output power level.
By holding down either of these buttons, the value on the zone indicator will adjust
up or down.Each pressing “+” button,power level will add one,until level 9; Each
pressing “-” button,power level will reduce one,until level 0(Each pressing of “+” or
“-” button, a short audible signal will be heard).Keep pressing “+”, “-” buttons will
make continuously press effect.

13
Upon completion of power level adjustment, the decimal point of digital tube will
stop flashing and normally display the power level within 10 seconds of no
operation.
When switching any of the cooking zone power level to 0, it will stop the power
output of that cooking zone.
If power level of all the cooking zone are “0”, the appliance will automatically enter
into power off status after 1 minute no operation.
7. Fast-heating function
Your hob can fast-heating following the below steps:
Press plus buttons or minus buttons to set the power to level 9,then touch plus
buttons to let the burner alternately display “A” and “9”.
Press minus buttons to set the final fast-heating level you need.
Press “plus button” to achieve 9 speed, and then press one more time to activate
fast-heating function. Cooking zone indicator will dislay “A”. Continue to press
“minus button” and choose the cooking speed
The power level and time corresponding tables of Fast-heating are as below:
Power Level 1 2 3 4 5 6 7 8 9
Fast-heating
time
（minute）
1 3 4.8 6.5 8.5 2.5 3.5 4.5 5
For example, press “plus button” to achieve “A”, and press “minus button” to select
speed 4. The cooktop will start cooking at speed 9 for 6.5 mins. After then it returns
back to the set speed 4.
Notice:
1.Only if fast-heating at max power within 30s,press minus button can reduce the
power,if press minus button after 30s,it will exit the fast-heating mode.
2. If fast-heating at max power after 30s,as long as it is still alternately display “A” and
“9”, press plus button the hob will stay at fast-heating mode.
3. When changing power level,the passed time will be automatically calculated into the
corresponding heating time of the new power level.
4. Within 30s fast-heating time,if press minus button to any level,the passed time will
be calculated to the new set level time,after heating at that remaining time,the hob will
return to normal heating mode.
8. Safety lock button
The whole hob top can be locked by long pressing the safety lock button for 3S
whilst the appliance is under standby status or heating status,and the safety lock
icon will display.When the appliance switch off the safety lock icon will extinguish.
There are 3 kinds of display to indicate that the safety lock feature has been
activated,they are as followings:
4D series: Indicator light of safety lock will lit on.
4D1 series: For model D1,all digital tube flash display “Lo” and working status of
the burner(it will display power level when the burner is working,it will display “H”
when there is residual heat,it will display “0” when the burner is not at work).
To disable the safety lock feature, you should long press the safety lock button.

14
When the safety lock has been switched on, it will disable any of the other buttons
on the control panel, apart from the ON/OFF button.
Note: To avoid misoperation,if activate the safety lock by pressing the safety lock
button,and the safety lock is not cancelled before the controller is switched off,the
safety lock function will continue to be effective when the controller is switched on
again. It will disable any of the other buttons except ON/OFF button if not
cancelling the safety lock.
9. Timer adjustment
Your hob has a timer which will countdown a period of time between 1 and 99 minutes.
If timer display shows 0 for the initial status,press minus button,countdown period will
be 30 to 0.At the end of the countdown period an audible signal will sound for 2
minutes, press any key within 2 minutes can close the audible signal.
Press the timer button,use the plus button and minus button to set the countdown
time,first pressing “+” button,timer will begin from 1.
If you want to cancel the timer,you can adjust the countdown time to 0.
The timer display will show the countdown time that is being set.
The timer display will increase in 1 minute intervals each time the timer plus button
is pressed,and a short audible signal will be heard.
The timer display will decrease in 1 minute intervals each time the timer minus
button is pressed,and a short audible signal will be heard.
If the set time exceeds 99 minutes, the timer display will return to showing 0.
Note: 1. For timer adjustment,touch timer button and use plus button or minus
button to input new time.
2. After selecting the burner,you can set the timer before setting the power
level of the burner,within 10S(decimal point of corresponding digital tube will
flash,1 time/S) no operation after timer adjustment,timer will automatically return
to 0(display show 00),and decimal point will extinguish.
3. After the burner is working,durning timer setting and completed, indicator
of corresponding burner will flash(1 time/S),and it will keep flashing until end of
the timer.
9.1 Partition timing
The hob timer can be used as a minute minder for any of the cooking zones without
affecting the cooking process or power setting of each burner,and each value can be
different.
Single cooking zone timing
When setting a countdown time for a cooking zone,press timer button first,the
indicator light of the selected cooking zone will flash display, the decimal point of
digital tube will display,and to indicate the set timer has been related with the
selected cooking zone.At this time,you can use the plus button and minus button
to set the countdown time.
Several cooking zones timing
Each timer setting operation will be same as “Single cooking zone timing”.As long
as setting a countdown time for the burner,the corresponding indicator light of that
burner will flash.

15
Press any of the cooking zone select button,the digital tube will show the timer
value of that burner.
When not selecting any burner,the digital tube will show the minimum timer value
of all burners, that is associated with the cooking zone of the cookingzone
indicator lamp.
9.2 Default timing
All of the 4 cooking zones have default timing function,if not setting the timer
manually, the relationship of default timing and power level refers to table below:
Power Level
1
2
3
4
5
6-9
Default timing
6h
6h
5h
5h
4h
1.5h
When all the default timing is reached, the cooking zones will switch off
automatically and enter into standby mode.
10. High temperature warning
Manual long press “on/off” button for 3s till power off, the whole appliance will stop
heating, but the cooking surface still has high temperature, the indicator of
corresponding cooking zone which stop heating will show residual heat warning
symbol “H”, to indicate corresponding cooking surface high temperature.
As long as the burner has heated before, the indicator of the corresponding burner
will continued display “H” for 20 minutes after switched off.
11. Protection function
High temperature protection: When the temperature of the hob plate is too high,
the mechanical temperature limiting protection device of its own will start up, then
the hob will stop heating, it will return to heat after the temperature falls.
Residual heat protection: When the whole appliance stops heating, the digital tube
of the relative heating zone will display residual heat warning symbol “H”, cooking
surface temperature is too high, please do not touch to avoid getting burned.
Safety cut-off protection:For the models with plug,when cut off after 1S at any
time,the voltage between L/N of the plug should fall to below safe voltage range.
Connection of display board and power supply board breakdown: When the
appliance is switched on, if the display board does not receive the correct power
board signal for 20 consecutive seconds, the timer 2 digit digital tube will display
"E1" and all loads stop working.It will return to power off mode after 1 minute,and
display will continuously show residual heat warning symbol “H” for the one which
under residual heat protection.
How to use the hot plate
Put the pot in center of the heating zone, Turn the knob clockwise and anticlockwise to
turn on the hob.
High temperature indication lamp:
When the glass plate is too hot, the high temperature indication lamp will light up, don’t
touch the glass plate until the indication lamp goes out.
Shut down:after using,please turn the knob to “OFF”,the hob will stop heating.

16
Caution!
Ensure the heating plate is clean-a soiled zone does not transfer all of the heat.
Protect the plate against corrosion.
Switch off the plate against corrosion.
Do not leave pans with prepared dishes based on fats and oils unattended on the
switched-on plate; hot fat can spontaneously catch fire.
Hob guidelines
The first few times the hob top is used, it may give off an acrid, burning smell. This
smell will disappear completely with repeated use.
The worktop is fitted with cooking areas of different diameter and power.
The positions where the heat will radiate from are clearly marked on the hob top.
The saucepans must be positioned exactly on these zones for efficient heating to
occur. Pans should have the same diameter as the cooking zone that they are
being used on.
You should not use saucepans with rough bottoms, as this can scratch the
ceramic surface.
Before use, make sure that the bottoms of the saucepans are clean and dry.
When cold, the bottom of the pans should be slightly concave, as they expand
when hot and lie flat on the surface of the hob. This will allow the heat to transfer
more easily.
The best thickness for the bottom of the pans is 2 – 3 mm of enamelled steel and
4 – 6 mm for stainless steel with sandwich type bottoms.
If these rules are not followed, then there will be a great loss of heat and energy.
Heat not absorbed by the saucepan, will spread to the hob, frame and surrounding
cabinets.
Preferably cover pans with a lid to permit cooking at a lower heat.
Always cook vegetables and potatoes, etc. in as little water to reduce cooking
times.
Food or liquid that has high sugar content may damage the hob top if it comes into
contact with the ceramic hob surface. Any spillages should be wiped up
immediately, however this may not prevent the hob surface from becoming
damaged.
IMPORTANT: The ceramic hob surface is tough; however it is not unbreakable
and can be damaged. Especially if pointed or hard objects are allowed to fall on it
with some force.

17
Maintenance and cleaning
Cleaning operations must only be carried out when the hob is cool.
The appliance should be disconnected from your mains supply before
commencing any cleaning process.
Cleaning the ceramic hob top
Any residues that are left on the hob top surface from cleaning agents will
damage it. You should remove any residues with warm water mixed with a little
washing up liquid.
Abrasive cleaners or sharp objects will damage the hob surface; you should
clean it using warm water mixed with a little washing up liquid.
You may find it easier to clean some deposits whilst the hob surface is still
warm. However you should take care not to burn yourself if cleaning the hob
surface when it is still warm.
After each use
Wipe the appliance over with a damp cloth.
Dry the appliance by rubbing the surface with a clean cloth.
Cleaning table
Type of deposit
Remove
immediately?
Remove when
the appliance
has cooled
down?
What should I use
to remove the
deposit?
Sugar or food/liquid
containing sugar
Yes No Ceramic hob scraper
Tin foil or plastic
Yes
No
Ceramic hob scraper
Fat splashes
No
Yes
Ceramic hob cleaner
Metallic
discolouration
No Yes Ceramic hob cleaner
Water splashes or
water rings
No Yes Ceramic hob cleaner
Important!
The inside of the hob should only be washed with warm water and a small amount of
washing-up liquid.
Caution!
Ensure the heating plate is clean-a soiled zone does not transfer all of the heat.
Protect the hob against corrosion.
Switch off the hob against corrosion.
Do not leave pans with prepared dishes based on fats and oils unattended on the
switched-on plate; hot fat can spontaneously catch fire.

18
IMPORTANT: If your appliance appears not to be operating correctly, Please
contact with dealer.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
Please note that if an engineer is asked to attend whilst the product is under guarantee
and finds that the problem is not the result of an appliance fault, then you may be
liable for the cost of the call out charge.
The appliance must be accessible for the engineer to perform any necessary repair. If
your appliance is installed in such a way that an engineer is concerned that damage
will be caused to the appliance or your kitchen, then he will not complete a repair.
Environmental note
Note: Before discarding an old appliance, switch off and disconnect it from
the power supply. Cut off and render any plug useless. Cut the cable off
directly behind the appliance to prevent misuse. This should be undertaken
by a competent person.
This appliance is marked according to the European directive 2002/96/EC on Waste
electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling
of this product.
The symbol on the product or on the documents accompanying the product
indicates that this appliance may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for
waste disposal. For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office or local waste management office.
The packaging materials that we use are environmentally friendly and can be recycled.
Please discard all packaging material with due regard for the environment.
