Vogue 357120 User manual

357120
To ensure proper use of this appliance and for your safety,
please read the following instructions completely before
operating this appliance.
COUNTERTOP
ICE MAKER
INSTRUCTION
MANUAL

5
6
6
7
4
5
1
8
TABLE OF CONTENTS
Operating procedures & maintenance
Unpacking your ice maker
Connecting your ice maker
How to clean
Specification 
Important safety instruction 
Using your ice maker
Important safety tips
Name of the parts
Before getting started
 
Care and maintenance
Troubleshooting
1
1

1
BEFORE GETTING STARTED
SPECIFICATION
IMPORTANT SAFETY TIPS
1. Before connecting the appliance to the power supply, let the unit stand upright for 1 hour,
which will reduce the possibility of the cooling system malfunctioning due to improper handling.
2. Clean your unit thoroughly before putting into use. (See “How to Clean”)
3. Use the parts diagram on page 4 to insure proper positioning of internal components.
Product Description Countertop Ice Maker
357120
Silver
Width
225 313 334
Height Depth
Model No.
Color
Unit Dimensions
(Inches)
IMPORTANT SAFETY INSTRUCTION
When using electrical appliances, basic safety precautions should be followed to reduce the
risk of fire, electric shock, and injury to persons or property. Read all instructions before using
any appliance.

2
1. Do not operate this or any other appliance with a damaged cord.
2. Connect to properly polarized outlets only. No other appliance should be plugged into the
same outlet. Be sure that the plug is fully inserted into the receptacle.
3. Do not run cord over carpeting or other heat insulators. Do not cover the cord. Keep cord
away from traffic areas, and do not submerge in water.
4. Unplug the ice maker before cleaning or making repairs.
5. Exercise caution and use reasonable supervision when appliance is used near children.
6. Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard
or explosion.
7. Do not tip over.
8. If the ice maker is brought indoors from outdoors during the wintertime, give it a few
hours to adjust to room temperature before plugging it in.
9. To change the cord, make sure to unplug ice maker or disconnect unit from power supply
before removing the cord. Replace the current cord with a new one carrying the same or
similar warning sticker as below.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.
Units of physical quantities and their symbols according to international standardized system:
Symbol ISO 7010 W021
Warning: risk of fire / flammable materials .
The height of the triangle in the symbol.
ISO 7010–W021 shall be at least 15 mm .

3
IMPORTANT SAFETY TIPS
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
1. Children should be supervised to ensure that they do not play with the appliance.
2. Do not use extension cords or ungrounded (two prong) adapters;
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similar qualified person in order to avoid hazard.
4. Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
- WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
- WARNING: Do not damage the refrigerant circuit.
- WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
- WARNING: Ice-make shall only use potable water.
This appliance is intended to be used in household and similar applications such as：
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses and by clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Catering and similar non-retail applications.

4

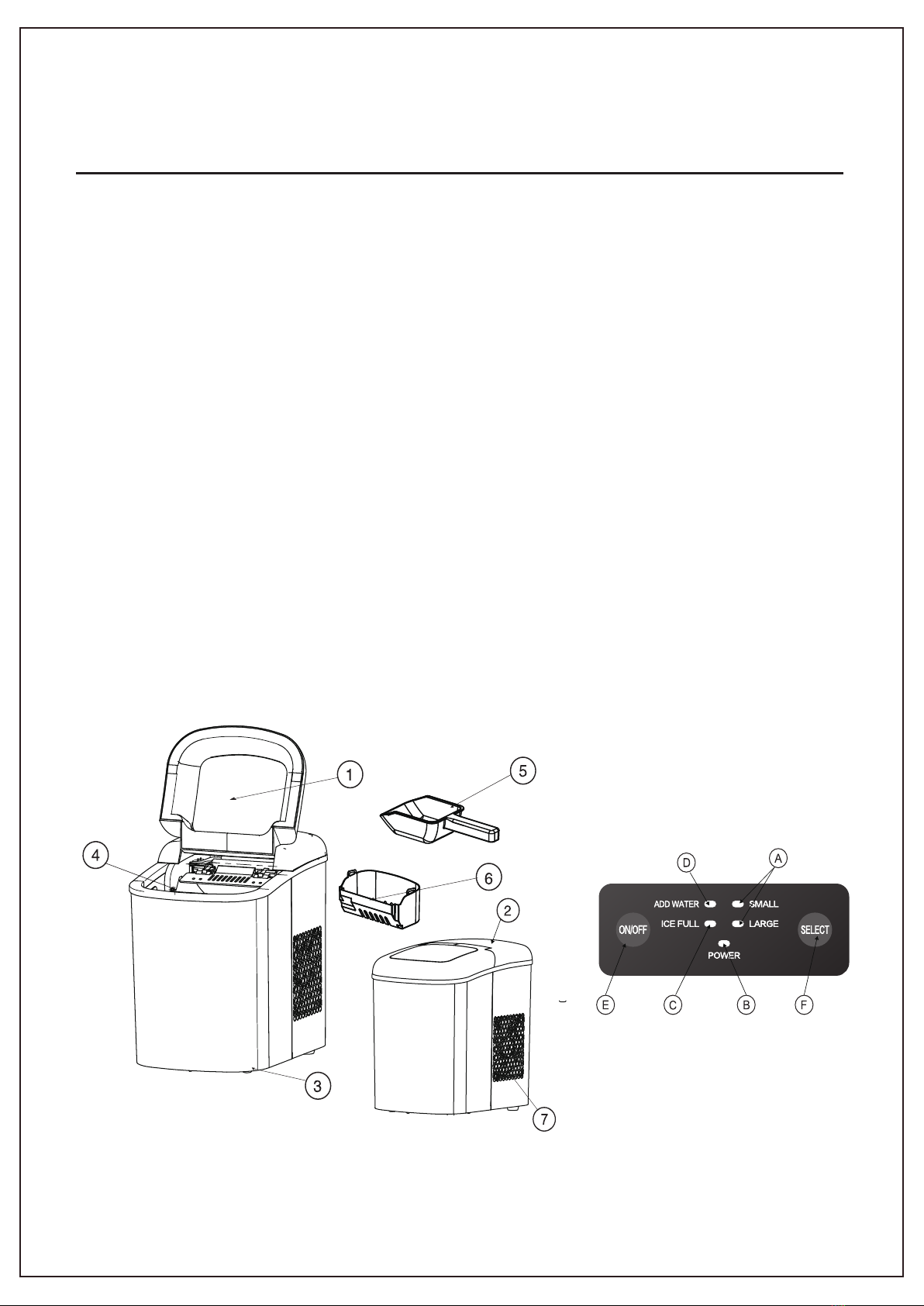

NAME OF THE PARTS
1. Cover: See through window to allow interior visibility.
2. Control panel: Easy to use, visible functions touch display setting.
A) Selected ice size: small or large.
B) Power indicator.
C) Ice Full indicator.
D) Water shortage indicator.
E) Button to turn on/off the unit.
F) Button to select ice cube size.
3. Water drain cap: At front underside of the unit.
4. Ice full sensor. 5. Ice scoop.
6. Ice basket. 7. Air outlet.
8. MAXIMUM WATER LEVEL: --------△---------(Not shown on the below unit image.)
Remove the ice basket, you can see the water level mark.

5
UNPACKING YOUR ICE MAKER
OPERATING PROCEDURES & MAINTENANCE
1. Remove all exterior and interior packaging. Check that ice basket and ice scoop is included.
If any part or accessory is missing, please contact our customer service.
2. Clean the interior with lukewarm water and a soft cloth. Remove the ice basket and wash it
in warm water.
3. Find a location for your ice maker that is protected from direct sunlight and other sources
of heat(i.e.: stove, furnace, radiator). Place the ice maker on a level surface. Make sure that
there is at least 5 inches of space between the back and slides of your ice maker and the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging in the unit.
5. The appliance must be positioned so that the plug is accessible.
CONNECTING YOUR ICE MAKER
DANGER
Improper use of the grounded plug can result in the risk of electrical
shock. If the power cord is damaged please call our customer service
at 800-562-0738.
1. This unit should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which connects with standard three prong wall outlets to
minimize the possibility of electric shock.
2. Plug your appliance into an exclusive, properly installed, grounded wall outlet. Do not under
any circumstances, cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician.
3. This appliance requires a standard 220-240 volt, 50Hz electrical outlet with three-prong ground.

6
Before using your ice maker, it is strongly recommended to clean it thoroughly.
The ice maker is not designed to be installed in an outside area such as a garage or a
porch. Ambient temperatures of below 50OF or above 100OF will hinder the performance
of the appliance.
HOW TO CLEAN
Remove the ice basket.
1. Pull off the drain plug from the front underside to drain out the water.
2. Clean the interior with diluted detergent, warm water and a soft cloth.
3. The outside of the ice maker should be cleaned regularly with a mild detergent solution and
warm water.
4. Dry the interior and exterior with a soft cloth.
5. Put back the drain plug.
6. When the machine is not in use, open water drain cap to drain water completely from water
reservoir.
CARE AND MAINTENANCE
1. The ice maker should be cleaned on a regular basis. (See:”HOW TO CLEAN”)
2. It is necessary to have adequate ventilation space around the ice maker in order to sustain
proper performance, dissipation of heat, maintain efficiency, and low power consumption.
Clearance of minimum 5 inches should be maintained at the rear and sides of the unit and 8
inches at the top of the unit.
3. To attain proper performance, be sure to plug the appliance into a properly grounded
220-240/50 Hz outlet.

7
4. Do not modify the power cord under any circumstances to allow the unit to be plugged
into a non-grounded outlet. To avoid heat damage to the power cord, please ensure that it
does not come in proximity or in direct contact with the compressor of the ice maker.
5. Please avoid installing the ice maker in a location where the appliance will come in contact
with water or moisture to minimize rusting of metal parts.
6.The ice maker should not be installed near any heat source or in a location where it will
come in direct contact with the sunlight.
USING YOUR ICE MAKER
1. Clean your ice maker thoroughly.
2. Open the cover, remove the ice basket and pour drinkable water (preferably purified water
or distilled water) into tank.

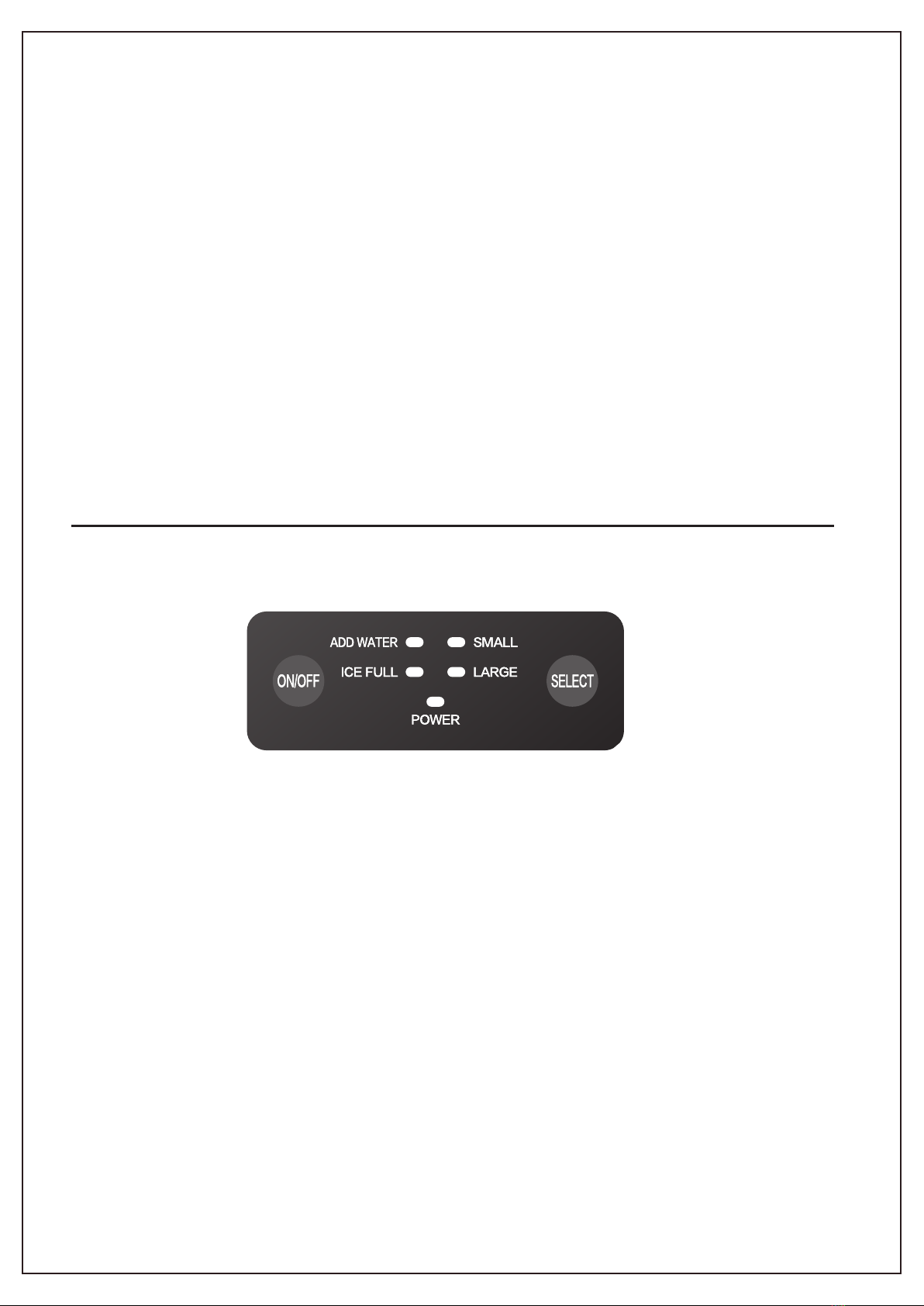

3. Plug in the unit and the “POWER” indicator light will blink.
4. Press "ON/OFF" on the control panel to begin the ice making cycle. The “POWER” indicator
light will light.
5. Select the size of the ice cube by pressing the “SELECT” button. If ambient temperature is
below 60ºF, it is recommended to select small size to avoid ice sticking together.

8
6. While the icemaker is on, check water level periodically. If water pump can’t inject water,
the ice maker will stop automatically, and the “ADD WATER” indicator will be on.
Press the “ON/OFF” button, fill water up to the level mark and press “ON/OFF” again.
Allow 3 minutes for the refrigerant to settle before restarting.
7. The ice maker automatically stops working when the ice basket is full and the “ICE FULL”
indicator will be illuminated. Warning: Direct sunlight or sunlight reflection may cause infared
sensor malfunction. If the unit does not stop, even ice cubes can obstruct sensor, move the
unit where there is no sunlight.
8. Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level.
If unit is not in use, drain all water in the tank reservoir.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
"ADD WATER"
indicator is on.
Lack of water.
Stop the ice maker, fill water, and
press "ON/OFF" button again to
restart the unit.
"ICE FULL"
indicator is on. Remove ice from ice basket.Ice basket is full.
No ice, but "ICE FULL"
indicator is illuminated.
1. Ice-Full sensor
(transmitter and
receiver) is covered
by the impurities
contained in water or
other pollutants.
2. Ice-Full sensor is
malfunctioning.
Use a soft cloth dip into water to
clean the Ice-Full sensor. After
cleaning, to see if the ice maker
resume working, otherwise,
please consult a certified
technician.

9
"ICE FULL" indicator
is on for 3 seconds
and off for 3 seconds.
Ice shovel is stuck or
the flip system is
malfunctioning.
Check if the ice is blocking the ice
shovel, otherwise, press "ON/OFF"
button to turn off the ice maker
and press it again to turn it on
to see if it can make ice normally.
If the "ICE FULL"indicator is still
on for 3 seconds and off for 3
seconds, press "ON/OFF" button to
turn off the machine and consult a
certified technician.
PROBLEM POSSIBLE CAUSE SOLUTION
Water is added, but
"ADD WATER"
indicator is illuminated
and ice is not made.
Ice-Full sensor is
malfunctioning.
Please consult a certified
technician.
Ice cubes stick
together.
Ice making cycle is
too long.
Stop the ice maker, and restart
when the ice blocks melt.
Select the small ice size.
Water temperature in
inner tank is too low.
Change the water in the reservoir.
Use water between 45
ºF -90 º F.
Leaving ice in the appliance
for an extended period of
time may result in the
appliance recycling the ice
by melting it down and
making a new batch.
Transfer ready-made ice to
another container and store in a
cooler or freezer to avoid recycling.

10
PROBLEM POSSIBLE CAUSE SOLUTION
The ice cubes are
melting.
Leaving ice in the appliance
for an extended period of
time may result in the
appliance recycling the ice
by melting it down and
making a new batch.
The ice maker is not designed
to store ice for very long.
Melting ice is normal operation
if ice is not used or moved to
a cooler or freezer regularly.
After extended period transfer
ready-made ice to another
container and store in a cooler
or freezer to avoid recycling.
Ice making cycle is
normal but no ice is
made.
Ambient temperature or
water temperature
in inner tank is too high.
Please operate the ice maker
below ambient temperature
of 90
ºF and use cold water.
Refrigerant liquid leakage. Consult a qualified technician.
Pipe in the cooling
system is blocked. Consult a qualified technician.
