Void Nexus 6 User manual

Nexus 6
User Guide V1.1

©2018 Void Acoustics Research Ltd.
Version 1.1
This user guide is subject to change without notice.
For the latest online version, visit: www.voidacoustics.com
Void Acoustics and the Void logo are registered trademarks of Void
Acoustics Research Ltd. in the United Kingdom, USA and other
countries; all other Void trademarks are the property of Void Acoustics
Research Ltd.

Nexus 6 User Guide V1.1
Page 3
Contents
1 Safety and regulations 4
1.1 Important safety instructions 4
1.2 Limitations 4
1.3 EC declaration of conformity 4
1.4 WEEE directive 4
2 Limited warranty 5
3 Unpacking and checking 6
4 About 7
4.1 Welcome 7
4.2 Nexus 6 overview 7
4.3 Key features 7
4.4 Nexus 6 specifications 8

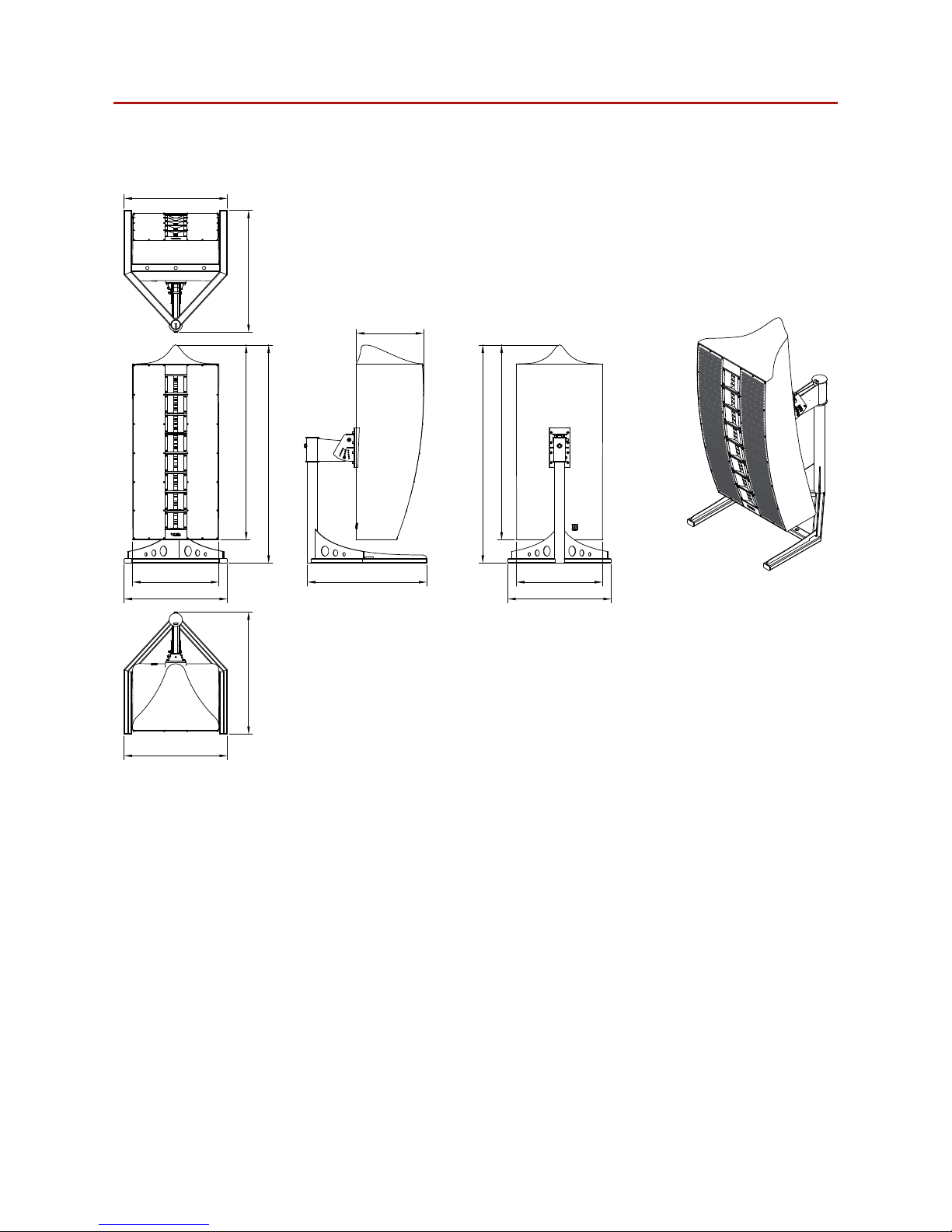

4.5 Nexus 6 dimensions 9
5 Cabling and wiring 10
5.1 Electrical safety 10
5.2 Cable considerations for fixed installations 10
5.3 Nexus 6 wiring diagram 11
5.4 Bias Q5 speakON™ wiring 12
6 System design 13
6.1 System design principles 13

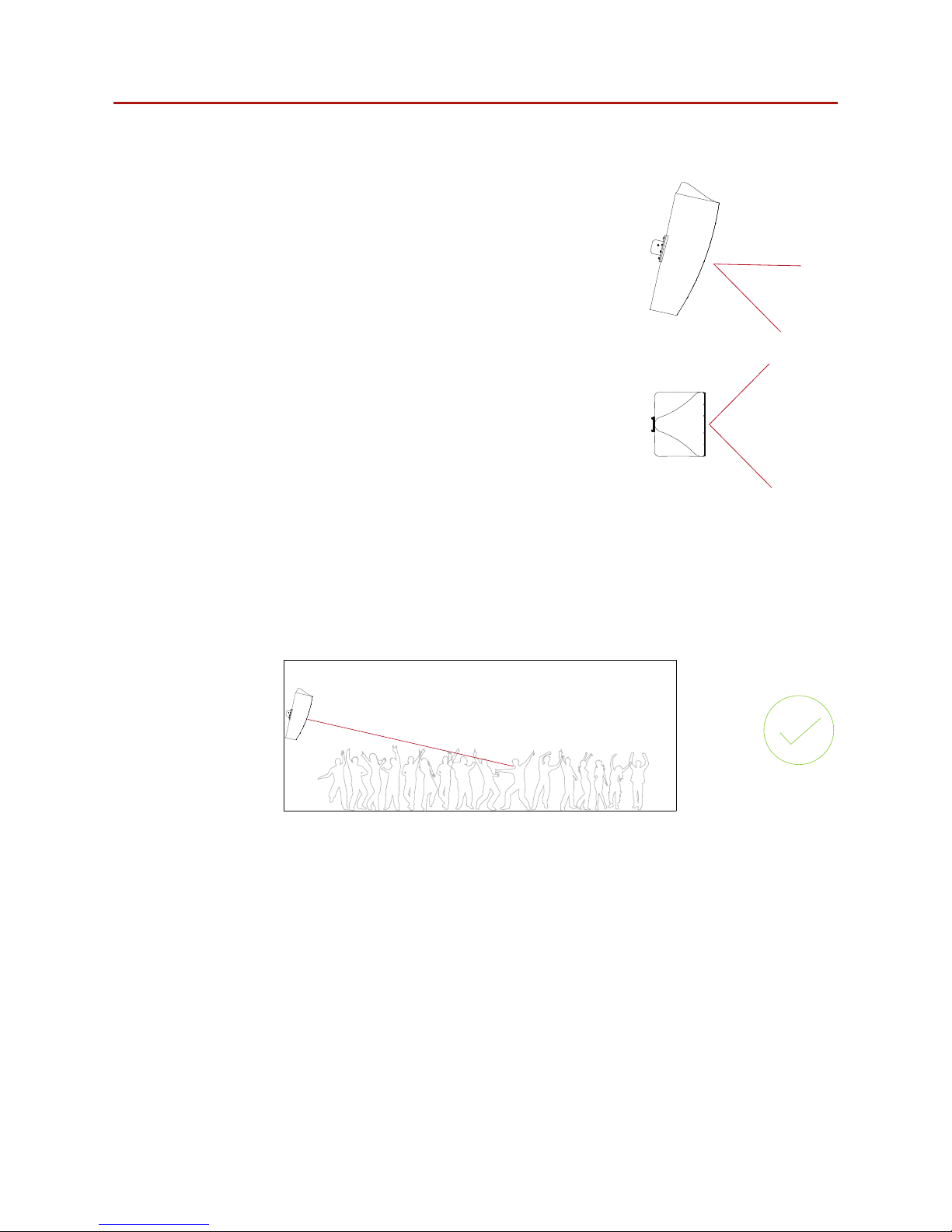

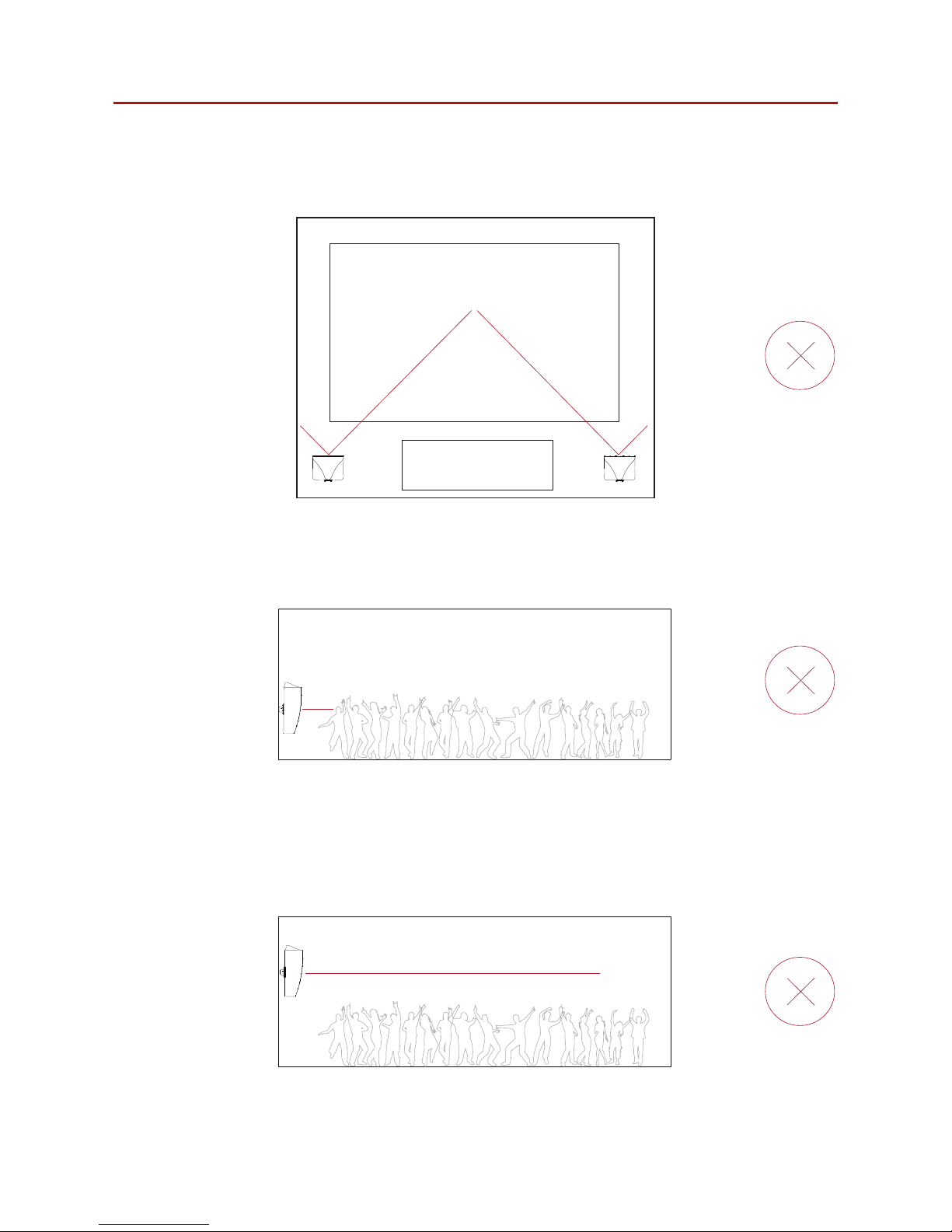

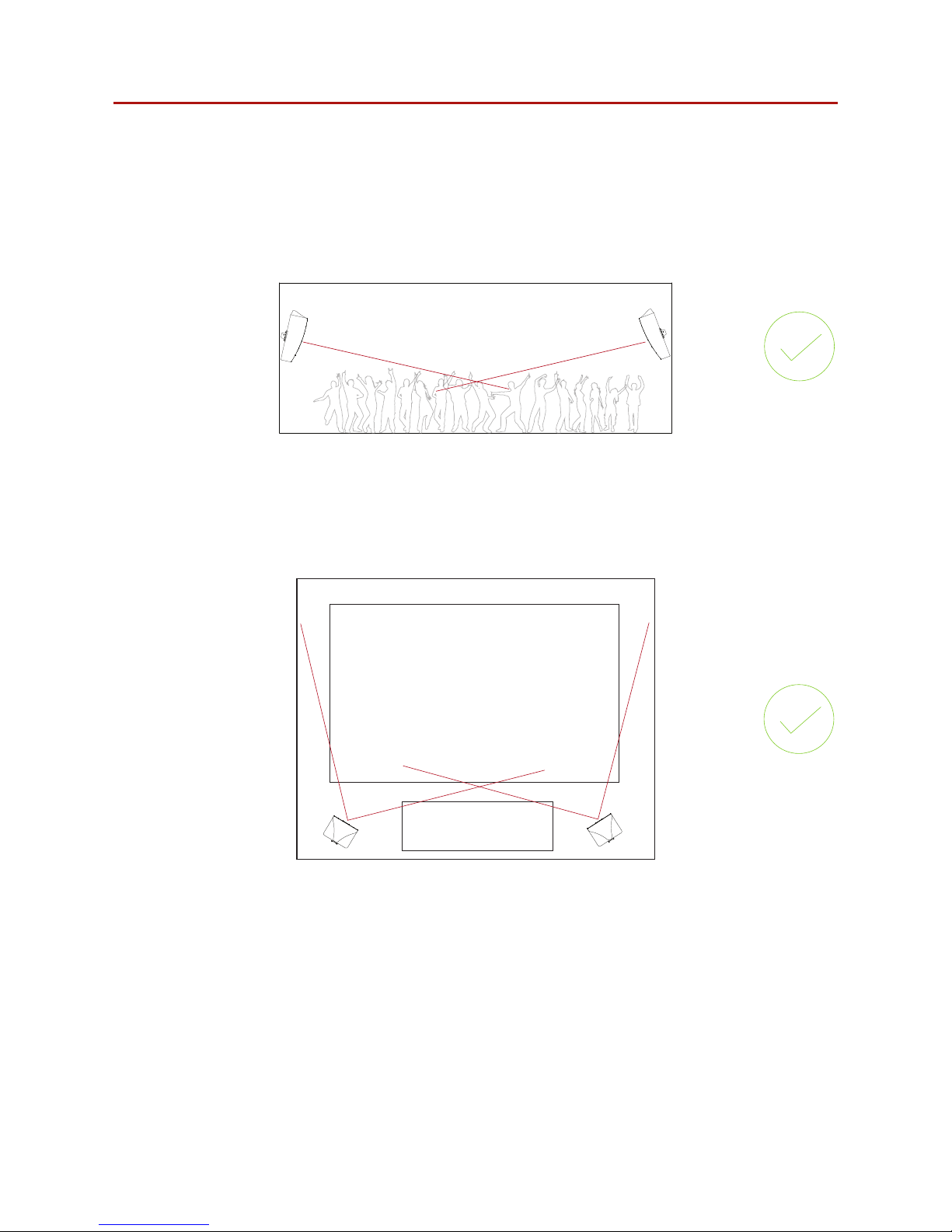

6.2 Loudspeaker placement and positioning 14

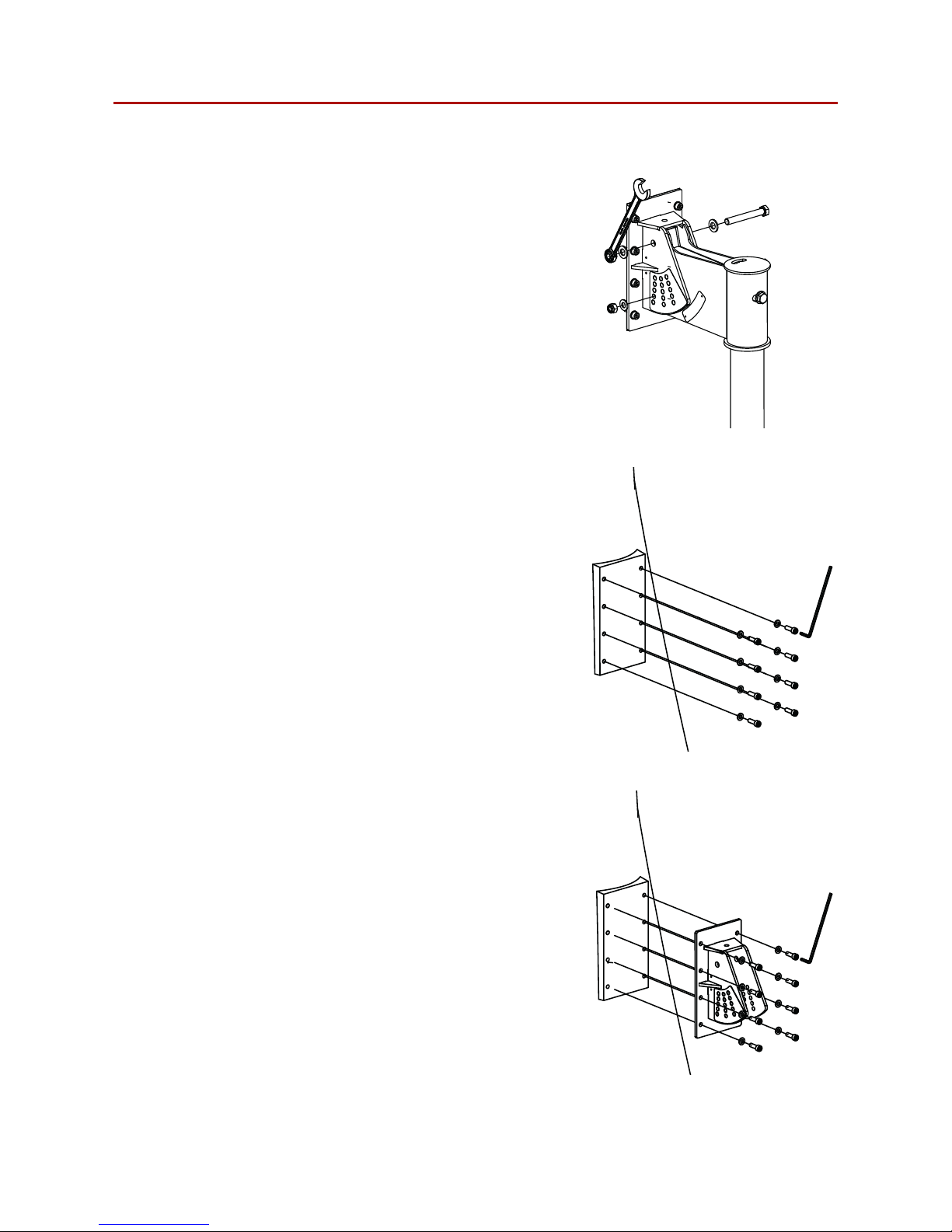

7 Mounting 17
7.1 Installation safety 17
7.2 Ground stacking 18
8 Service 22
8.1 Return authorisation 22
8.2 Shipping and packing considerations 22
9 Appendix 23

Nexus 6 User Guide V1.1
Page 4
1.1 Important safety instructions
The lightning flash with and arrowhead symbol
within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sucient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user of the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
Safety instructions - read this first
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat source such as radiators, heat
registers, stoves, or other such apparatus that produce heat.
9. Do not defeat the safety purpose of the grounding-type
plug. A grounding type plug has two blades and a third
grounding prong. The third prong is provided for your safety.
If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect power cords from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit the apparatus.
11. Onlyuseattachmentsandaccessoriesspecifiedby Void
Acoustics.
12. Only use with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplugtheapparatusduringlightningstormsorwhenunused
forlongperiodsoftime.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in
any way, such as when the power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. Since the mains power supply cord attachment plug is used
to disconnect the device, the plug should always be easily
accessible.
16. Void loudspeakers can produce sound levels capable
of causing permanent hearing damage from prolonged
exposure. The higher the sound level, the less exposure
needed to cause such damage. Avoid prolonged exposure to
the high sound levels from the loudspeaker.
1.2 Limitations
This guide is provided to help familiarise the user with the
loudspeaker system and its accessories. It is not intended to provide
comprehensive electrical, fire, mechanical and noise training and is
not a substitute for industry-approved training. Nor does this guide
absolve the user of their obligation to comply with all relevant
safety legislation and codes of practice.
While every care has been taken in creating this guide, safety is
user-dependent and Void Acoustics Research Ltd cannot guarantee
complete safety whenever the system is rigged and operated.
1.3 EC declaration of conformity
Manufacturer:
Void Acoustics Research Ltd,
Unit 15 Dawkins Road Ind Est,
Poole, Dorset,
BH15 4JY,
United Kingdom.
We declare the under our sole responsibility the following product
models: Nexus 6, Q, X and XL
are intended to be used as loudspeakers and are in conformity with
the following EC Directives, including all amendments, and with
national legislation implementing these directives:
• BS EN 60065:2002
• BS EN 55103-1/-2
March 2016
Alex Skan
Technical Director
1.4 WEEE directive
If the time arises to throw away your product, please recycle all the
components possible.
This symbol indicates that when the end-user
wishes to discard this product, it must be sent
to separate collection facilities for recovery
and recycling. By separating this product from
other household-type waste, the volume of
waste sent to incinerators or land-fills will be
reduced and natural resources will thus be
conserved.
The Waste Electrical and Electronic Equipment Directive (WEEE
Directive) aims to minimise the impact of electrical and electronic
goods on the environment. Void Acoustics Research Ltd complies
with the Directive 2002/96/EC and 2003/108/EC of the European
Parliament on waste electrical finance the cost of treatment and
recovery of electronic equipment (WEEE) in order to reduce the
amount of WEEE that is being disposed of in land-fill sites. All of
our products are marked with the WEEE symbol; this indicates that
this product must NOT be disposed of with other waste. Instead
it is the user’s responsibility to dispose of their waste electrical
and electronic equipment by handing it over to an approved
reprocessor, or by returning it to Void Acoustics Research Ltd for
reprocessing. For more information about where you can send
your waste equipment for recycling, please contact Void Acoustics
Research Ltd or one of your local distributors.
1 Safety and regulations

Nexus 6 User Guide V1.1
Page 5
Limited warranty
The warranty
For a period of three (3) years from the date of
delivery to the original purchaser (as shown on the
original invoice or sales receipt; a copy of this may be
required as proof of warranty dates), Void Acoustics
Research Ltd (hereinafter “Void”) warrants to the
Original Owner (person or company who originally
purchased the product brand new from either Void
or a Void Authorised Dealer/Distributor) of each new
Nexus Series product (provided it was purchased at
an Authorised Void Dealer) that it is free of defects
in materials and workmanship and that each
product will meet or exceed all factory published
specifications for each respective model. Void agrees
to repair or replace (at its discretion) all defective
parts at no charge for labour or materials; subject to
following provisions:
Warranty violations
Void shall take no responsibility for repair or
replacement as specified under this warranty, if
the damaged product has been subject to misuse,
accident, neglect or failure to comply with normal
maintenance procedures; or if the serial number
has been defaced, altered or removed. Nor will Void
accept responsibility for, or resulting from, improper
alterations or unauthorised parts or repairs. This
warranty does not cover any damage to speakers
or any other consequential damage resulting from
breach of any written or implied warranty.
Void warranty provisions
Void will remedy any defect, regardless of the
reason for failure (except as excluded) by repair, or
replacement. Void will remedy the defect and ship
the product within a reasonable time after receipt of
the defective product at a Void Authorised Service
Centre.
To obtain warranty service
If a Void product requires service, the Owner must
contact Void or an Authorised Void Service Centre to
receive an R.A.N. (Return Authorisation Number) and
instructions on how to return the product to the Void
Authorised Service Centre, or to Void.
Void (or its Authorised Service Centre) will initiate
corrective repairs upon receipt of the returned
product. Please save the original carton and all the
packing materials in case shipping is required. All
products being returned to the factory or service
centre for repairs must be shipped prepaid.
If the repairs made by Void or the Void Authorised
Service Centre are not satisfactory, the Owner
is instructed to give written notice to Void. If the
defect or malfunction remains after a reasonable
number of attempts by Void to remedy the defect
or malfunction, the Original Owner shall then have
the option to elect either a refund or replacement of
said Void product free of charge. The refund shall be
an amount equal to but not greater than the actual
purchase price, not including any taxes, interest,
insurance, closing costs and other finance charges
(minus reasonable depreciation on the product).
If a refund is necessary, the Original Owner must
make the defective or malfunctioning product
available to Void free and clear of all liens or other
restrictions.
Equipment modifications
Technical and design specifications are subject to
change without notice.
Void reserves the right to modify or change
equipment (in whole or part) at any time prior to
delivery thereof, in order to include therein electrical
or mechanical improvements deemed appropriate
by Void, but without incurring any liability to modify
or change any equipment previously delivered, or
to supply new equipment in accordance with any
earlier specifications.
Disclaimer of consequential and incidental
damages
You, the Original Owner, are not entitled to recover
from Void any incidental damages resulting from any
defect in the Void product.
This includes any damage to another product or
products resulting from such a defect.
Warranty alterations
No person has the authority to enlarge, amend, or
modify this Warranty. This Warranty is not extended
by the length of time which the Original Owner
is deprived of the use of product. Repairs and
replacement parts provided pursuant to the Warranty
shall carry only the non-expired portion of the
Warranty.
This Statement of Warranty supersedes all
others contained in this user guide.
2 Limited warranty

Nexus 6 User Guide V1.1
Page 6
All Void Acoustics products are carefully manufactured and thoroughly tested before being
dispatched. Your dealer will ensure that your Void products are in pristine condition before
being forwarded to you but mistakes and accidents can happen.
Before signing for your delivery:
• Inspect your shipment for any signs of contamination, abuse or transit damage as soon as
you receive it
• Check your Void Acoustics delivery fully against your order
• If your shipment is incomplete or any of its contents are found to be damaged; inform the
shipping company and inform your dealer.
Nexus 6 loudspeakers are heavy (75.5 kg/166.5 lbs) and require a minimum two people to lift.
• Undo the four butterfly catches on the transport case then remove the lid making sure the
lid is clear before moving sideways
• If you need to place the Nexus 6 on a flat surface ensure you use a lint free product to
protect the finish
• When removing the Nexus 6 take care not to damage the lower tray of the transport case.
Keep the original packaging in case you need to return a product for service later.
See section 2 for warranty conditions and see section 8 if your product needs servicing.
3 Unpacking and checking

Nexus 6 User Guide V1.1
Page 7
4.1 Welcome
Many thanks for purchasing this Void Acoustics Nexus 6. We truly appreciate your support.
At Void, we design, manufacture and distribute advanced professional audio systems for
the installed and live sound market sectors. Like all Void products, our highly skilled and
experienced engineers have successfully combined pioneering technologies with ground-
breaking design aesthetics, to bring you superior sound quality and visual innovation. In buying
this product, you are now part of the Void family and we hope using it brings you years of
satisfaction. This guide will help you both use this product safely and ensure it performs to its
full capability.
4.2 Nexus 6 overview
Aimed at the larger venue, the radical styling of the Nexus 6 is born from the innovative
internal layout of its twenty transducers. The multi-way Nexus 6 consists of no less than
twelve 6.5” low frequency drivers and eight 1” high frequency compression drivers housed in
a sculpted fibreglass enclosure that can be ground stacked on low frequency enclosures, or
suspended independently using the optional proprietary Void suspension system.
Virtual Arc technology is implemented on every component to form a common acoustic
centre, or virtual point source, that exists rearwards of the array. This approach overcomes all
the disadvantages that compromise a traditional array of multiple sound sources emitting from
dierent locations. Dispersion, phase, coherency and timing are all controlled and unified due
to the common acoustic feed point and multi-channel access. Virtual Arc technology ensures
that the same experience is had by all that are in the throw of the Nexus 6, wherever they are,
due to its wide and controlled dispersion. Total summation of all the components in each
passband can also take place within the Nexus 6, allowing for much higher eciency, greater
output and improved reliability due to reduced component stress.
The Nexus 6 oers excellent value for money when compared to the array of enclosures
normally required to achieve the same dispersion. Whether placed on low frequency
enclosures to form a dance stack or suspended independently, the Nexus 6 brings the
performance and styling of the future to the here and now.
4.3 Key features
• Visually striking appearance for style-led environments
• Virtual Arc technology forms common acoustic centre
• Unified dispersion, phase and timing
• Twenty discrete proprietary drive units
• Stack mounted or proprietary suspension system
• Fibreglass composite construction
• Standard red finish, optional custom colours
• Smooth cellulose finish
4 About

Nexus 6 User Guide V1.1
Page 8
4.4 Nexus 6 specifications
Frequency response 78 Hz - 21 kHz ±3 dB
Eciency1LF: 105 dB 1W/1m, HF: 110 dB 1W/1m
Crossover point 1.6 kHz active
Nominal impedance LF: 2 x 5.3 Ω, HF: 2 x 4 Ω
Power handling2LF: 2 x 1350 W AES, HF: 2 x 160 W AES
Maximum output3137 dB cont, 140 dB peak
Driver configuration 12 x 6.5” LF, 8 x 1” HF compression driver
Dispersion 110°H x 50°V
Connectors 1 x 8-pole speakON™ NL8
Height 1267 mm (49.8”)
Width 562 mm (22.1”)
Depth 430 mm (16.9”)
Weight 75.5 kg (166.5 lbs)
Enclosure Fibreglass composite
Rigging Stack mounted or proprietary suspension system
Finish Smooth cellulose
1Measured in half space 2AES2 - 1984 compliant 3Calculated
Figure 4.1: Horizontal directivity isobars Figure 4.2: Vertical directivity isobars
4 About

Nexus 6 User Guide V1.1
Page 9
4.5 Nexus 6 dimensions
671 (26.4")
1418 (55.8")
776 (30.5")
671 (26.4")
1418 (55.8")
562 (22.1")
1267 (49.8")
430 (16.9")
562 (22.1")
1267 (49.8")
671 (26.4")
671 (26.4")
795(31.3") 795 (31.3")
Figure 4.3: Dimensions
4 About

Nexus 6 User Guide V1.1
Page 10
5.1 Electrical safety
To avoid electrical hazards please note the following:
• Do not access the inside of any electrical equipment. Refer servicing to
Void-approved service agents.
5.2 Cable considerations for fixed installations
We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for
permanent installations. The cables should use Oxygen Free Copper (OFC) of grade C11000
or above. Cables for permanent installations should be compliant with the following standards:
• IEC 60332.1 Fire retardancy of a single cable
• IEC 60332.3C Fire retardancy of bunched cables
• IEC 60754.1 Amount of Halogen Gas Emissions
• IEC 60754.2 Degree of acidity of released gases
• IEC 61034.2 Measurement of smoke density.
We suggest using the following maximum copper cable lengths to keep level losses below 0.6 dB.
Metric mm2Imperial AWG 4 Ωload
2.50 mm213 AWG 18 m
4.00 mm211 AWG 30 m
5 Cabling and wiring

Nexus 6 User Guide V1.1
Page 11
+
-
Left 6.5” LF
+
-
Left 6.5” LF
+
-
Left 6.5” LF
+
-
Left 6.5” LF Right 6.5” LF
Right 6.5” LF
Right 6.5” LF
Right 6.5” LF
+
-
Bottom 1” HF
+
-
Bottom 1” HF
+
-
Bottom 1” HF
+
Bottom 1” HF
1+
1-
2+
2-
3+
3-
4+
4-
In
1+ 1-
2+
2-3+
3-
4+
4-
+
-
Top 1” HF
+
-
Top 1” HF
+
-
Top 1” HF
+
Top 1” HF
+
-
Left 6.5” LF
+
-
Left 6.5” LF
Right 6.5” LF
Right 6.5” LF
+
-
+
-
+
-
+
-
+
-
+
-
5.3 Nexus 6 wiring diagram
Figure 5.1: Wiring diagram
speakONTM NL8 assignments
Pins Driver Power handling Impedance
+/-1 Left side 6 x 6.5” LF 1350 W AES 5.3 Ω
+/-2 Right side 6 x 6.5” LF 1350 W AES 5.3 Ω
+/-3 Bottom 4 x 1” HF 320 W AES 4 Ω
+/-4 Top 4 x 1” HF 320 W AES 4 Ω
5 Cabling and wiring

Nexus 6 User Guide V1.1
Page 12
5.4 Bias Q5 speakONTM wiring
LF 1+
LF 1-
LF 2+
LF 2-
HF 3+
HF 3-
HF 4+
HF 4-
LF 1+ (LF 1+)
LF 1- (LF 1-)
HF 2+ (HF 3+)
HF 2- (HF 3-)
LF 1+ (LF 2+)
LF 1- (LF 2-)
HF 2+ (HF 4+)
HF 2- (HF 4-)
Figure 5.2: Bias Q5
Bias Q5
Output 1 Output 2
Channel Channel 1 Channel 2 Channel 3 Channel 4
Output Left side 6 x 6.5”
LF
Bottom 4 x 1” HF Right side 6 x 6.5
LF
Top 4 x 1” HF
speakONTM NL8
pins
+/-1 +/-2 +/-3 +/-4
5 Cabling and wiring

Nexus 6 User Guide V1.1
Page 13
6 System design
6.1 System design principles
Nexus 6 loudspeakers can be arrayed as a single pair facing forward to provide a wide
stereo image.
For permanent installation, it is recommended to fly the Nexus 6 loudspeakers for more even
coverage. This also allows co-located low frequency enclosures in a single block, increasing
sensitivity and providing more consistent bass coverage.
Figure 6.1: Nexus 6 pair arrangement
Figure 6.2: Permanent installation

Nexus 6 User Guide V1.1
Page 14
6 System design
6.2 Loudspeaker placement and positioning
When deploying Nexus 6 loudspeakers, it is important to
consider the speakers’ vertical position to maximise coverage
in the vertical axis. Horizontal loudspeaker dispersion figures
dictate the coverage of the loudspeaker, left to right, to the
-3 dB points. The same can be said for the vertical dispersion
figure, but when applied to a listening area, this figure dictates
the audience area coverage front to back.
Vertical dispersion is often overlooked or not assessed
properly, resulting in ineciently deployed loudspeaker
systems that require more fill loudspeakers than are necessary
to achieve required coverage. Following are some basic
guidelines when considering the vertical position of your
Nexus 6 loudspeaker.
With optimum vertical positioning and aiming applied the
loudspeaker system can be used at maximum eciency. With
a point source loudspeaker in this configuration the speaker
is placed 2m-4m from the ground, aimed half way to two thirds of the way back from the
audience area, as shown in figure 6.4. The applied aiming reduces unwanted reflections from
the ceiling and directs the highest energy concentration to the audience area requiring it most.
This is the most desirable position for the loudspeakers in this example.
Figure 6.4: Correct loudspeaker placement
Figure 6.3a: Vertical dispersion (side view)
Figure 6.3b: Horizontal dispersion (top view)

Nexus 6 User Guide V1.1
Page 15
6 System design
A multi-point loudspeaker system in a club/bar environment can be very pleasing for the
listener. However, it’s important that the processes applied to previous examples are still
implemented. In figure 6.5 you can see the loudspeakers have been positioned and aimed
optimally. When deploying a multi-point loudspeaker system, extra consideration must be
taken to counter unwanted room eects. Careful positioning and aiming of loudspeakers will
minimise room eects, while maintaining even coverage throughout the audience area.
Figure 6.5: Multi point loudspeaker arrangement
Audience
Stage
Figure 6.6: Correct horizontal dispersion
In the horizontal plane rotate the Nexus 6 loudspeaker toward the audience area at an angle
such that the centre line of the dispersion from each loudspeaker meets about two thirds of
the way towards the rear of the audience area. This will help provide a wider coverage and
result in more of the power being used usefully.

Nexus 6 User Guide V1.1
Page 16
Figure 6.8: Incorrect loudspeaker placement
Figure 6.9: Incorrect loudspeaker placement
Figure 6.9 shows the loudspeaker vertical position is optimal for the audience area but the
user hasn’t applied an aiming angle. In this case, a large portion of energy is directed at the
ceiling that could result in reduced intelligibility and unwanted room acoustic characteristics.
The shallow angle of attack will also induce refraction issues on a hot dance floor, leading to
reduced HF penetration at mid and far distances, again reducing intelligibility and coherence.
In figure 6.8 the loudspeakers vertical positioning is too low for the audience area. Mid
and high range frequencies are absorbed by the first two rows of people, resulting in poor
coverage and potential acoustic issues from room reflections.
Audience
Stage
Avoid directing the Nexus 6 loudspeakers straight forward. This will result in a proportion of the
power being directed towards the walls, creating possible reflective issues, as well as causing a
gap in coverage at the centre of the audience area.
Figure 6.7: Incorrect horizontal dispersion
6 System design

Nexus 6 User Guide V1.1
Page 17
7 Mounting
Tools required
• 19 mm ratchet spanner/wrench
• 13 mm ratchet spanner/wrench
• 6 mm Allen key
7.1 Installation safety
To avoid mechanical hazards, please note the following:
• Safety regulations vary in dierent regions. Full compliance with those
regulations must be your priority
• Rigging must only be undertaken by fully-qualified and experienced riggers who
understand local regulations
• This may include consulting a structural engineer before installation of wall brackets
• Remember that all personnel have a duty of care to themselves, to their assistants, to the
venue sta and to the public
• Before lifting any part of the system above head height, check the whole rig for loose tools
or other items that may fall and cause injury
• Do not use a telephone (even if hands-free) while rigging. Always concentrate fully on the
rigging operation
• Do not rig equipment that is worn, damaged, corroded, mishandled or over-stressed in any way
• Use only Void-approved mounting equipment and accessories.

Nexus 6 User Guide V1.1
Page 18
7.2 Ground stacking
Step 1:
Removing the backing plate from the Nexus
6 bracket by removing the M8 and M12 bolts
from the bracket assembly.
Figure 7.1: Backing plate removal
Step 2:
Remove all eight M8 bolts from the rear of the
Nexus 6 loudspeaker.
Figure 7.2: M8 bolt removal
Step 3:
Attached the backing plate to the Nexus 6
ensuring that all eight M8 bolts are securely
fastened.
Figure 7.3: Backing plate attachment

Nexus 6 User Guide V1.1
Page 19
14
15
13
12
11
2
3
4
10
9
6
7
8
8
7
9
55
4
6
3
2
1
1
0
DATUM
-15
-10
+9
+5
0
-5
Step 4:
Carefully lower the Nexus 6 loudspeaker into
position onto the bracket assembly.
Note: Nexus 6 loudspeakers are heavy and
require a minimum of two people to lift. At this
stage of the mounting procedure it becomes
necessary to have three people, two to lift the
Nexus 6 loudspeaker and one to attach the
bracket.
Figure 7.4: Nexus 6 positioning
Step 5:
With the lifting equipment still in place attach
the M12 bolt to the bracket assembly.
Figure 7.5: M12 bolt attachment
Step 6:
Adjust the vertical angle required using the
datum line to select the required angle (shown
here set to zero degrees indicated in yellow).
The Nexus 6 bracket is capable of negative
angle adjustment to point down (indicated in
black) and positive angle to point up (indicated
in red). The corresponding hole for each angle
is indicated by that number and its colour.
Figure 7.6: Angle selection
7.2 Ground stacking

Nexus 6 User Guide V1.1
Page 20
7.2 Ground stacking
Step 7:
Once the vertical angle has been selected
attach the M8 bolt through the appropriate
slot.
Figure 7.7: M8 bolt replacement
Step 8:
Loosen, but do not remove, the M8 bolt from
the rear of the bracket assembly.
Figure 7.8: M8 bolt loosening
+15-15
Step 9:
Adjust the horizontal angle of the Nexus 6 to
the desired direction using the angle finder on
the top of the bracket assembly.
Figure 7.9: Horizontal angle adjustment
