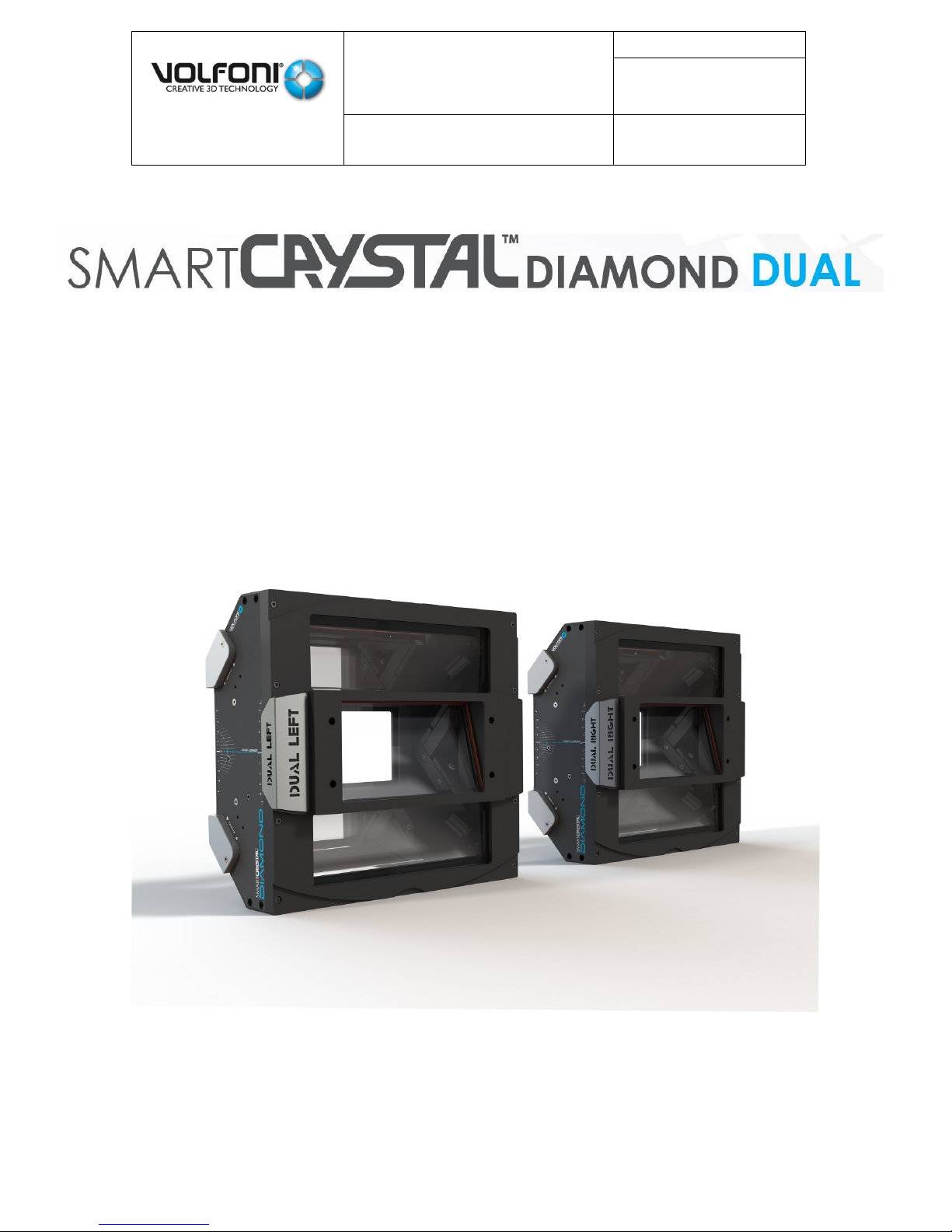

Volfoni SmartCrystalDiamond Dual User manual

SmartCrystal™
Diamond Dual
n ° : MUV1600178
Version : A01
USER MANUAL
Date : 08/06/2017
This document is the property of the Co VOLFONI and may not be reproduced or disclosed without permission
1
User Guide
MODEL: VBSP-13000

SmartCrystal™
Diamond Dual
n ° : MUV1600178
Version : A01
USER MANUAL
Date : 08/06/2017
This document is the property of the Co VOLFONI and may not be reproduced or disclosed without permission
2
TABLE OF CONTENTS
I. PRODUCT OVERVIEW ----------------------------------------------------------------------------------------------- 3
II. REQUIREMENTS ------------------------------------------------------------------------------------------------------ 3
III. SMARTCRYSTAL DIAMOND DUAL FEATURES ----------------------------------------------------------------- 4
1. General specifications --------------------------------------------------------------------------------------------- 4
2. Technical specifications -------------------------------------------------------------------------------------------- 4
3. Electrical specifications--------------------------------------------------------------------------------------------- 4
4. Theoretical brightness performance SmartCrystal Diamond Dual -------------------------------------- 4
IV. INSTALLATION OF THE SMARTCRYSTAL DIAMOND DUAL ------------------------------------------------- 5
1. Mechanical Installation ------------------------------------------------------------------------------------------- 5
a. Electrical Installation------------------------------------------------------------------------------------------------ 6
V. TROUBLES SHOOTING --------------------------------------------------------------------------------------------- 6
VI. IMPORTANT SAFETY RECOMMENDATIONS ---------------------------------------------------------------- 6
VII. WARRANTY ----------------------------------------------------------------------------------------------------------- 6
VIII. FURTHER INFORMATION ----------------------------------------------------------------------------------------- 7
IX. REGULATORY STANDARDS --------------------------------------------------------------------------------------- 7

SmartCrystal™
Diamond Dual
n ° : MUV1600178
Version : A01
USER MANUAL
Date : 08/06/2017
This document is the property of the Co VOLFONI and may not be reproduced or disclosed without permission
3
I. PRODUCT OVERVIEW
The SmartCrystal™ Diamond Dual is a complete standalone automatic dual
glass polarized filter for dual projection and large format screen
II. REQUIREMENTS
To use the SmartCrystal™ Diamond Dual unit, the following is required:
- 3D content
- 2X3D cinema projector
- Polarization-preserving silver screen
- Passive circular-polarized 3D glasses
Most types of 3D cinema projectors are compatible with the SmartCrystal™
Diamond Dual system.
DLP (Digital Light Processing) projectors are especially efficient for 3D projection.
The system is easy to set up with a DCI-compliant DLP projector and works with
projector lamps up to 7KW.
Please consult Volfoni for additional information.
Polarization-preserving silver screen
In order to enjoy the best quality 3D images, a polarization-preserving silver
screen designed for 3D projection is required. If your screen was not
manufactured specifically for 3D use, you might experience uncomfortable and
blurry 3D images with a high level of cross-talk.
Passive polarized 3D glasses
The SmartCrystal™ Diamond Dual is compatible with most commonly used
passive 3D glasses (circular-polarized only).

SmartCrystal™
Diamond Dual
n ° : MUV1600178
Version : A01
USER MANUAL
Date : 08/06/2017
This document is the property of the Co VOLFONI and may not be reproduced or disclosed without permission
4
III. SMARTCRYSTAL DIAMOND DUAL FEATURES
1. General specifications
- Meets all standards for electronics approved by CE
- For use with lightweight circular-polarized passive 3D glasses
- Passive 3D glasses as well as clip-on 3D glasses are available from Volfoni.
Please contact us for more details.
2. Technical specifications
- Maximum power of projector: 7 kW
- Power supply: 110V/240V 50/60Hz
- Operating temperature: +10°C to +50°C (50°F to 122°F)
- Storage temperature: -5°C to+50°C (23°F to 122°F)
- Entrance window dimension: 70x100 mm
- Product dimensions (L x W x H): 280 x 260 x 100 mm
- Weight: 5.6kg per units (12.3 lb)
3. Electrical specifications
- V= 240 / 110 V AC
- F = 50 / 60 Hz
- Consumption <40mA AC / 220V (e)
- The unit has a built-in surge protector
- The system is supplied with two different power cables, a European model and
an American model.
- This equipment should be electrically grounded.
- To rectify any indicated faults, please contact your dealer, installer stating the
model number shown in the silver label of the product.
4. Theoretical brightness performance SmartCrystal Diamond
Dual
Maximum power of projector: 7 kW | Power supply: 110V/240V 50/60Hz
30K lumens (x2)
20K lumens (x2)
15K lumens (x2)
6 FI on the screen
4.5 FI on the screen
6 FI on the screen
4.5 FI on the screen
6 FI on the screen
4.5 FI on the screen
Feet
Meter
Feet
Meter
Feet
Meter
Feet
Meter
Feet
Meter
Feet
Meter
Aspect
ratio
(LxH)
Flat (1.85)
114.5x 62
35 x 19
132 x 72
40.2 x 21.8
93.5 x 51
28.5 x 15.5
108 x 58.5
33 x 18
81 x 44
25 x 13.3
93 x 50.5
28.5 x 15.4
Scope (2.35)
129 x 55
39.30 x 16.7
149 x63
45.5 x 19.3
105 x 45
32 x 14
122 x 52
37 x 15.7
91 x39
28 x 12
105 x 45
32 x 13.6

SmartCrystal™
Diamond Dual
n ° : MUV1600178
Version : A01
USER MANUAL
Date : 08/06/2017
This document is the property of the Co VOLFONI and may not be reproduced or disclosed without permission
5
IV. INSTALLATION OF THE SMARTCRYSTAL DIAMOND
DUAL
1. Mechanical Installation
To install properly the SmartCrystal™ Diamond Dual, please refer to the user
manual of the SmartCrystal™ Diamond that you can find online.
Document => MUV140036
REMINDER

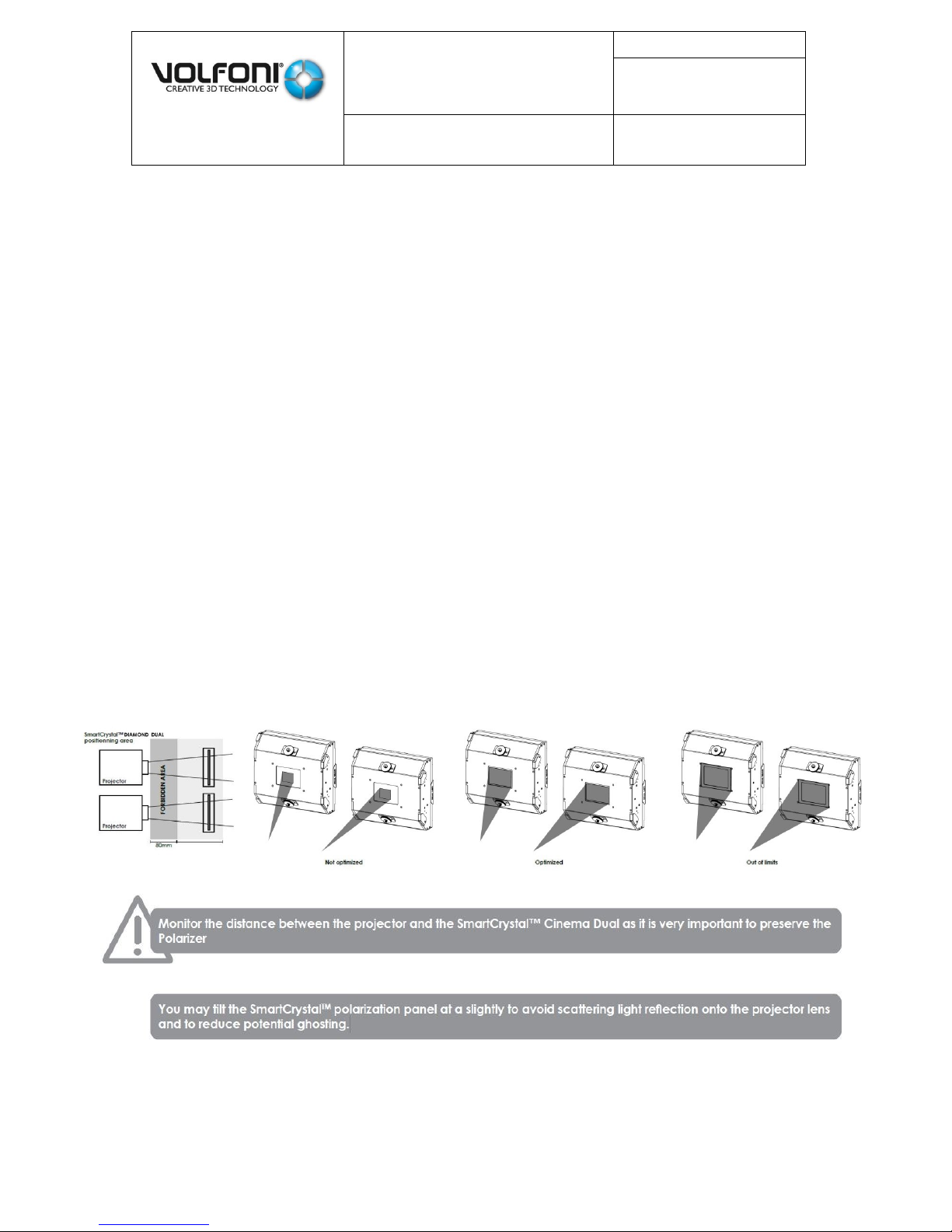

The SmartCrystal™ Diamond Dual should be placed directly in front of the lens of
the projector at a distance such that the image from the projector covers as
much as possible the entire area of the entrance window in order to minimize
thermal heating effects.
Ensure that the side of the SmartCrystal™ Diamond marked “PROJECTOR SIDE” is
facing towards the projector and the polarizer marked with a «RIGHT EYE» is in
front of your right projector and the polarizer marked with a «LEFT EYE» is in front
of your left projector. The SmartCrystal™ Diamond entrance window must be
placed at least 20mm (1 inch) away from the projector lens.

SmartCrystal™
Diamond Dual
n ° : MUV1600178
Version : A01
USER MANUAL
Date : 08/06/2017
This document is the property of the Co VOLFONI and may not be reproduced or disclosed without permission
6
a. Electrical Installation
As for the mechanical installation please refer to the user manual of the
SmartCrystal™ Diamond that you can find online. The only difference is for the
SmartCrystal™ Diamond Dual there is no auto mode.
Document => MUV140036
V. TROUBLES SHOOTING
PROBLEM
The image is blurred
SOLUTION
Check that 2D images coil out polarizers are sharp
IF YOU DO NOT NOTICE ANY IMPROVEMENT FURTHER TO THE SUGGESTED
SOLUTIONS, PLEASE CONTACT YOUR SUPPORT
VI. IMPORTANT SAFETY RECOMMENDATIONS
Protect all parts of the 3D system from direct sunlight, heat or water.
•Extreme conditions may alter the product’s performance.
•Do not modify the electrical or mechanical components of your 3D system.
•Do not apply force to the window of the polarization modulator.
•Do not touch the polarization window.
•Avoid vibrations and shock.
•Use a clean soft cloth when cleaning the polarization modulator to avoid
scratching.
•Always transport the SmartCrystal™ Diamond Dual system in its original
packaging to avoid scratching the LCDs or the frame.
•In case of damage to the SmartCrystal™ Diamond Dual where the skin is
exposed to liquid crystal material, we recommend that you immediately
wash the area with soap and water.
•In case of eye exposure to liquid crystal material, please seek medical
advice immediately.
•Please note that passive 3D glasses must not be used as sunglasses.
VII. WARRANTY
The SmartCrystal™ Diamond Dual is protected under warranty to the original
purchaser for five (5) years according to local legislation.
Equipment (modules and cables) should be returned in their original packaging
along with the original proof of purchase. Equipment that is broken or scratched is

SmartCrystal™
Diamond Dual
n ° : MUV1600178
Version : A01
USER MANUAL
Date : 08/06/2017
This document is the property of the Co VOLFONI and may not be reproduced or disclosed without permission
7
not covered. Volfoni does not guarantee uninterrupted or error-free operation of
the product.
VIII. FURTHER INFORMATION
NOTICE:
The Volfoni Group reserves the right to make changes in the hardware,
packaging or other documentation without prior written notice. SmartCrystal™
Diamond Dual is a trademark of the Volfoni Group. All trademarks are the
property of their respective companies.
www.volfoni.com
IX. REGULATORY STANDARDS
European Union - Disposal information
This symbol means that according to local laws and regulations your product
should be disposed of separately from household waste. When this product
reaches the end of its life, take it to a collection point designated by local
authorities. Some collection points accept product for free.
The separate collection and recycling of your product at the time of disposal will
help conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment.
This Class B digital apparatus complies with Canadian ICES-003.
