Volkswagen Radio Beta User manual

www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

Contents
next Page
Z..'z< Ki'S'snce Guide 2
-r:-;-- notes 4
Rzz'z cceraticn 5
-21 ::e-a-ion 13
Casse~eoperation 19
-------e~ coding 21
--.edisplay 23
-cr--= cc-cerning your car radio ' 24
~az~-:zz\k ReferenceGuide 25
Notes
Please detach the „Radio
Card" and keep ina safe
place - under no circum-
stances inthe vehicle!
Ifthe radiocard with the
codenumber is lost,
please contact a
Volkswagendealer.
They will be able to help
you free of charge.
Radio Card
beta
Serial no.
Code no.
Please attachserial and code no.
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
BR-201K
The"Radiocard"mustbedetached
and kept ina safeplace- underno
circumstances inthevehicle.
Iftheradiocard with thecode
numberislost,pleasecontacta
Volkswagendealer.
They will beabletohelpyou free of
charge.
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
Quick Reference
Guide
Pos. Page
... 5
- Rotary/pushknob
- On/ Off: Press knob
- Volumecontrol:turnknob
- Soundsetting: Press soundsetting
button (2),turnknob
- Soundsettingbuttons6
pressand adjust asrequiredbyturning
therotary/pushbutton(1)
- Treblesetting(TRE)
- Bass setting(BAS)
- Balance (BAL)
- TP/Set button7
- thetrafficinformationfunctioncanbe
switchedonbypressingbriefly
- keepthebuttonpressedto access the
Set-upmenu
- Sourceselectionbuttons10
theindividualsourcesormemorylevels
canbeselectedbybrieflypressingthe
button:
- FMbutton(VHF)
- AMbutton(MWandLW)
- CDbutton(CDoperation)
- CCbutton (Cassette operation)
Page^
.. 11™
Pos.

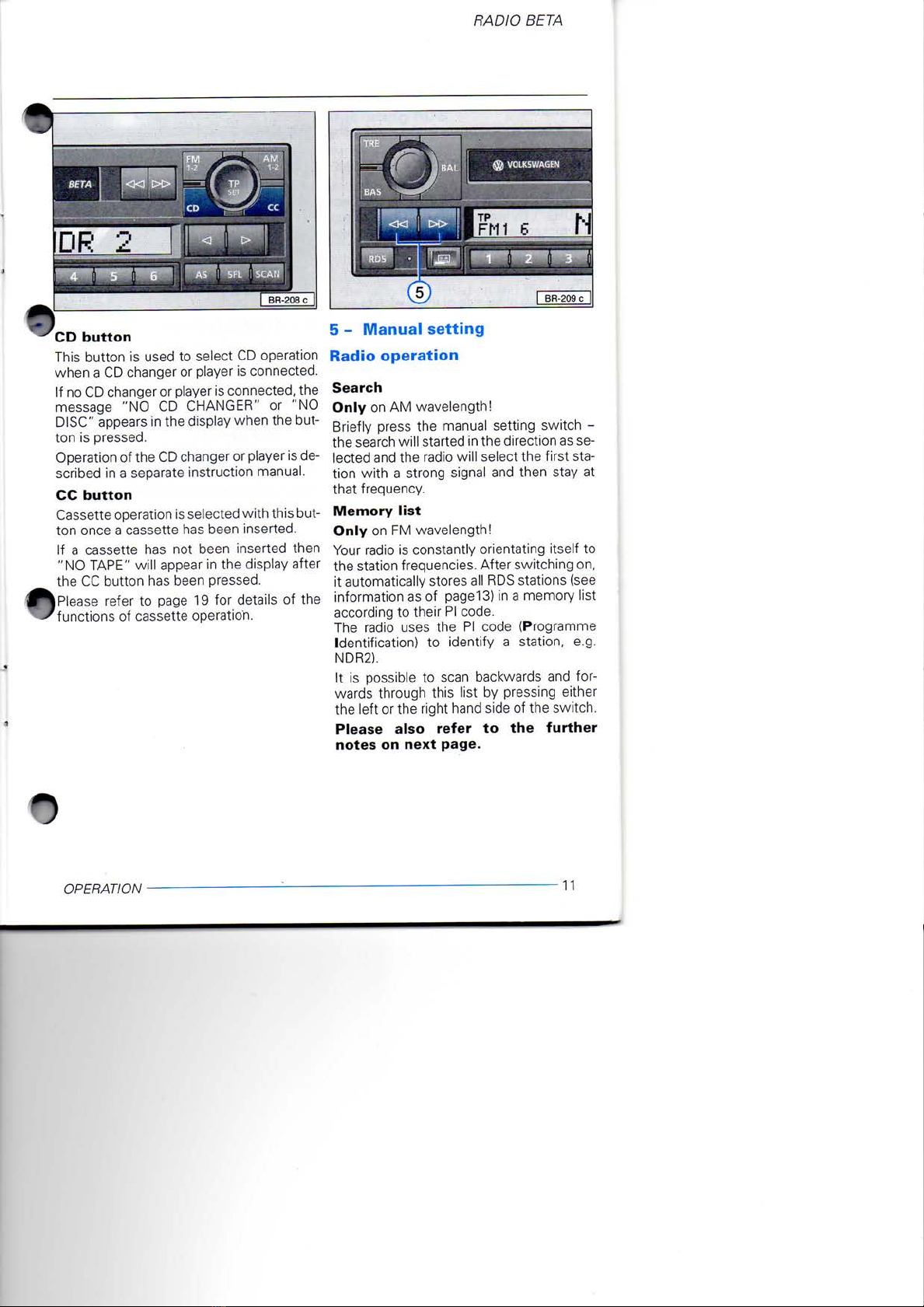

5- Search function
- a stationsearchcanbestartedininAM
mode. Thememorylistcanbeviewed
inFMorTPmode.
- foraudible fast forwardorreverseofa
title inCDmode.

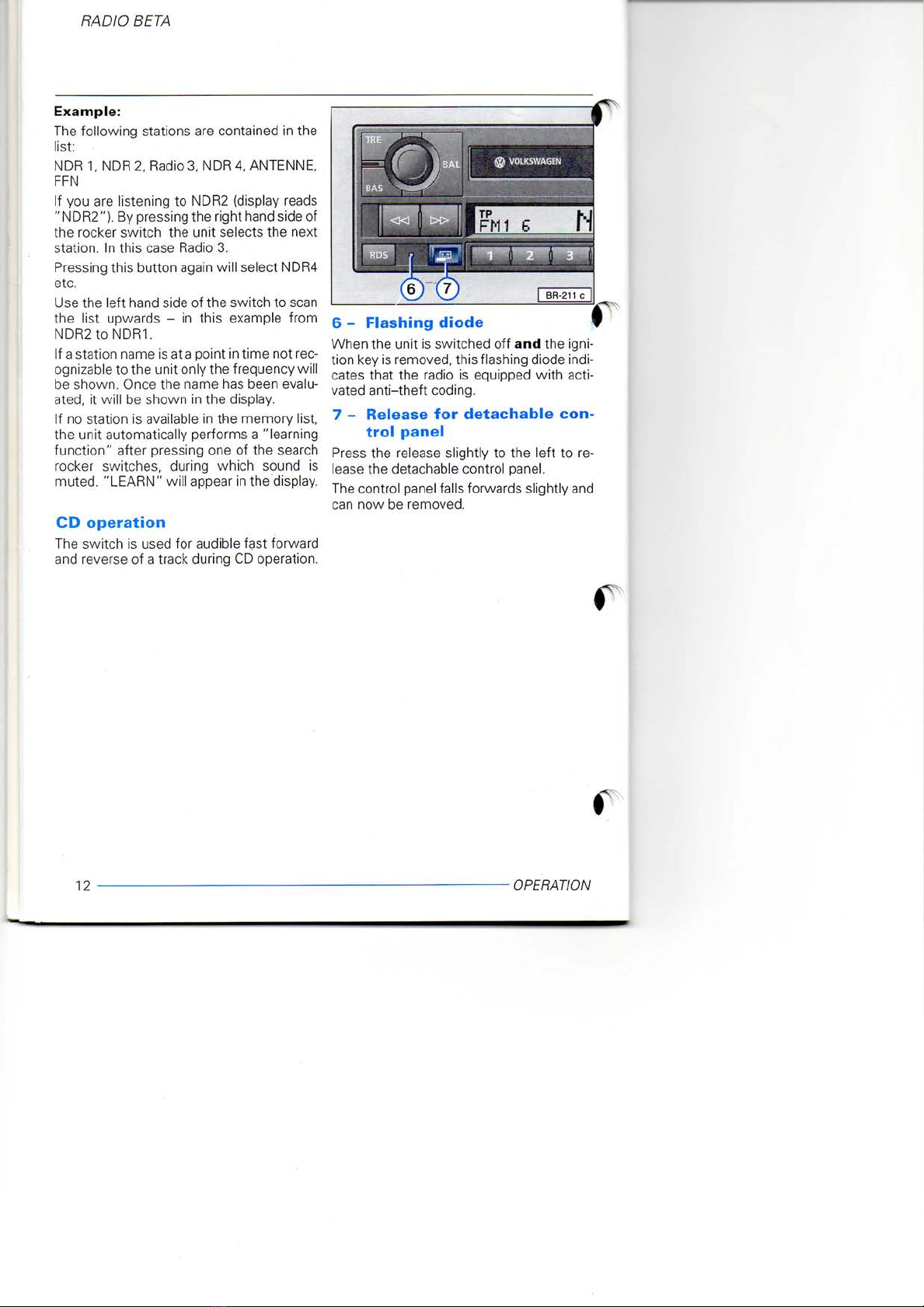

6- Flashingdiode12
Whentheunithasbeenswitchedoff
andtheignitionkeyhasbeenremoved,
this flashingdiodeindicates thatthe
anti-theftcodingonthecarradiohas
beenactivated.
7-Releasefordetachable*control
panel12
pushthereleasetothelefttoremove
thedetachablecontrolpart.
8-RDSbutton:
SwitchesRadioDataSystem1'on/off
bypressing13
Note
Note:Theradiofeaturesananti-theft cod-
ingsystem.Iftheradiodoesnotemitany
soundwhenitisswitchedonandtheword
"SAFE" isdisplayed,ithasbeenelectroni-
callylocked.See page 21forinstructions!
11 DetailsontheRDScanbefoundonpagel3.
2
QUICK REFERENCE GUIDE
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
jfc°os. Page
- Station buttons
for 12FM,12 AM, 6 TPstations..17
10- Detachablecontrol panel*17
11 - Manualsetting
- Stationscanbetunedinmanuallyby
pressingbrieflyorasrequired....18
- Selects thetitles whentheCDplayeris
inoperation- see CD-Changer operat-
inginstructions.
12-ASbutton18
theASbuttoncanbeusedtostor6 or
30stationsautomatically.
13-SFLbutton19
theSFLbuttoncanbeusedtoselctthe
' title shuffle function ifa CDchangerhas
beeninstalled.
14-SCANbutton19
- Stationsortitles canbeplayedbrieflyin
radio, CDorcassettemodebypressing
thisbutton.
Pos. Page
15-Cassetteslot19
16- Buttonsfor fast
forward andrewind19
- Autoreverse:
Press bothbuttonsinhalfway
atthesametime20
- Cassetteejection:
Keepbuttonpressedfor
longerthan2 seconds19
Display
17-TPdisplay23
18-Wavebandindicator23
19- Presetstationdisplay23
20- Stationname23
QUICK REFERENCE GUIDE
3
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
Important notes
Operatingtheradiowhilst
driving
Modern trafficconditionsdemandthecon-
stantattention of roadusers.
Besides a wealth of entertainment,modern
carradios,withtheir range of sophisticated
features,alsoprovide a greatdeal ofin-
formation abouttrafficandroadconditions,
etc.
However,theradio,withallits
possibilities,shouldonlybeusedif
conditionsreallyallowit.
Forexample,changingcassettesorreading
cassettelabelswhiledrivinghavefre-
quentlyledtodangeroussituations.
Thevolume of theradioshouldalso beset
sothatacoustic signals fromoutside can
also be heard.
Warning
Pleaseconcentrate
ingaboveall!
on
yourdriv
-
Convenienceradiocoding
Fortechnicalreasons, the convenience
radiocoding is not available forall vehicle
models.
Inthepastonehadtorecodetheradioman-
uallyeverytime the unit was removed or
when the vehiclebattery had beendisen-
gaged.
That hasallchangedwiththenewconveni-
enceradiocodingfunction:Oncethecode
number has beeninput inthe radio, it will
thensynchroniseitselfwith"its"vehicle!
Ifthe currentsupply has beeninterrupted^^
theradio will automatically check tosee if it /
isstill in "its"vehicleaftertheignition has
beenswitchedon. Ifitis happy, the radio
will be ready foruse after just a few sec-
onds.
Itis thereforenolongernecessarytodisen-
gage theelectroniclockmanually!
Ifthe radio has beenfitted to another ve-
hicle, however,theelectroniclock will have
to be disengagedmanually.
This code number, togetherwiththe
unit'sserial number, can be found onjt~
the"RadioCard"atthefrontof this /
instructionmanual,nexttothe con-
tacts.
Itisveryimportantthatyoudetach
this "RadioCard"andkeepitina
safeplace- neverkeepitintheve-
hicle.Onlythenistheradio useless
to thieves!
CDmode
This car radioalsohastheattractiveoption
ofcontrolling the GenuineVolkswagen CD
changer1) orCD player11.
Theoperation of theunits is describedin a
separatemanual.
Volkswagendealershave all theinformation
concerningtheretrofitting of theseunits. |
1 Canbedelivered as fittedfromthefactory.
Theunitsshouldbefittedby a Volkswagen
dealeriftobeinstalledat a laterdate.
OPERATION
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
Operating the radio
I BR-203 c 1
J\ Rotary / Pushknob
Theknobserves:
• Switchingon/off.
• Volumecontrol.
• Soundsetting
On/Off,
Volumecontrol
Brieflypress the knob toswitchthe
radioonandoff.
The frequencyandvolumesettingsused
beforetheradiowaslastswitchedoffwill
be reactivated.
Iftheradioisonwhenthekeyisremoved
fromtheignition,itautomaticallyswitches
^off.
VThe radiowillswitchonautomaticallyifthe
key isreplacedintheignitionandturned.
The radiocanbeswitchedonagainwhen
theignitionkeyhasbeenremovedbypres-
sing therotary/ pushknob(1).Itwillswitch
offautomaticallyapproximately 1 hourafter
thekeyhasbeenremovedtoensure that
thebatterydoesnotrun flat.
This procedurecan,however,berepeated
as oftenasrequired.
When the unit isswitchedoffandtheigni-
tion keyhasbeenremoved,aflashingdiode
(see page12)indicates that theradiois
equipped with anactivatedAnti-Theft
Code.
Iftheradio unit makesnonoiseafterswitch-
ingonand "SAFE" isshowninthedisplay,
please refertotheoperatingnotesasof
page 21.
Thevolume canbesetby turning the
knob
Sound setting
Afterpressingoneofthefoursoundsetting
buttons:
• Treble(TRE)
• Bass (BAS)
• Balance(BAD
the scale valueinthedisplaycanbesetby
turningtherotary/knob(1)(seenextpage).
The settingsforthetrebleand bass will
automaticallybemadefortheappropriate
source, so that differentsettingscanbe
made fortheradio,cassetteorCD!
OPERATION
5
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
•
1
•
1
|FMI e N
•
1

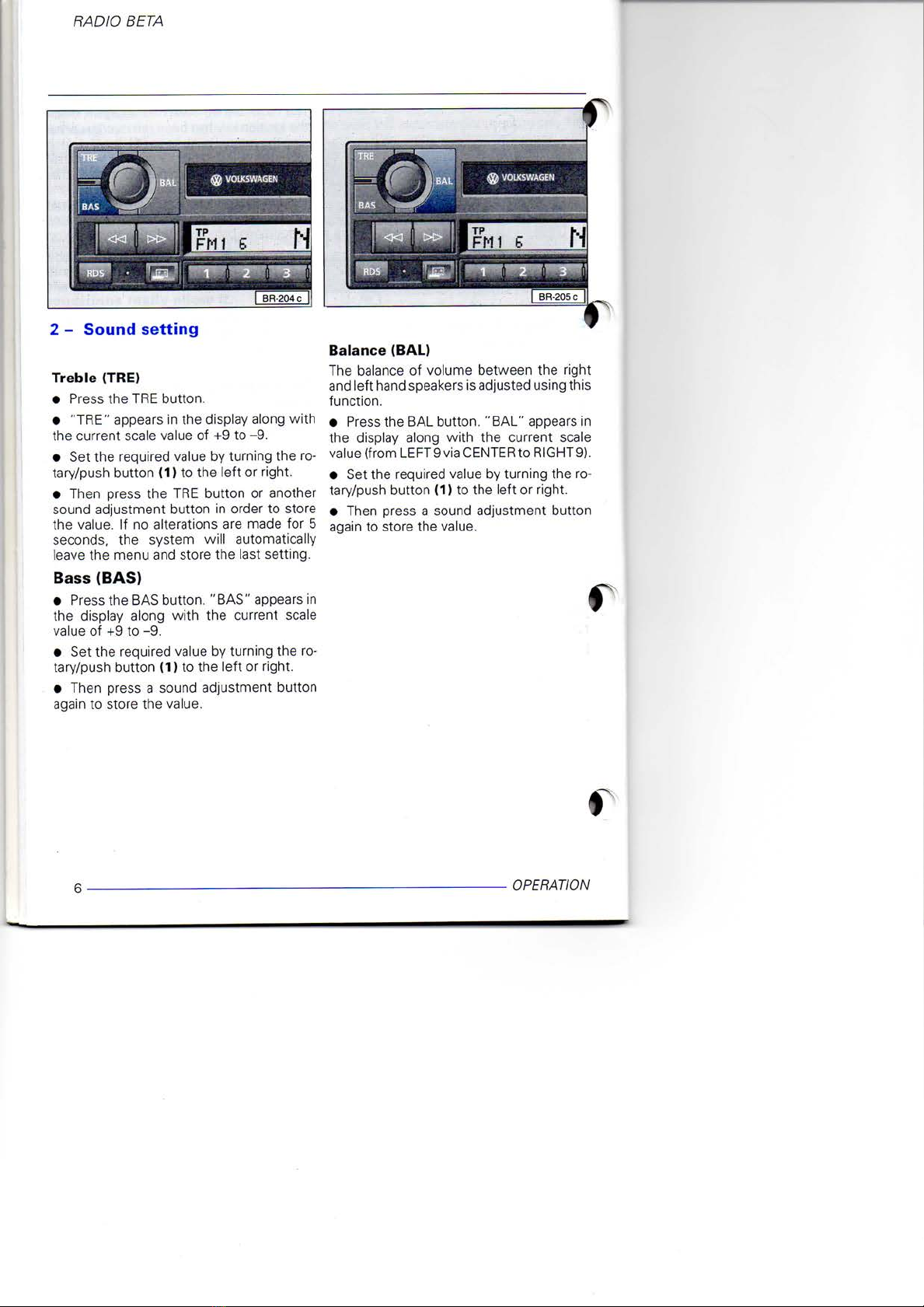

2 - Sound setting
Treble (TRE)
• Press theTREbutton.
•"TRE"appearsinthedisplayalong with
thecurrent scale valueof+9to-9.
•Settherequiredvalueby turning thero-
tary/push button (1)tothe left or right.
•ThenpresstheTRE button oranother
soundadjustment button inordertostore
thevalue.Ifnoalterationsaremadefor5
seconds, thesystem will automatically
leavethemenuandstorethelastsetting.
Bass(BAS)
• Press theBASbutton."BAS"appearsin
thedisplayalong with thecurrent scale
valueof+9to-9.
•Settherequiredvalueby turning thero-
tary/push button (1)tothe left or right.
•Thenpressa soundadjustment button
againtostorethevalue.
Balance (BAD
Thebalanceofvolumebetweenthe right
and left handspeakersisadjustedusingthis
function.
• Press theBALbutton."BAL"appearsin
thedisplayalong with thecurrent scale
value (from LEFT9 via CENTER toRIGHT9).
•Settherequiredvalueby turning thero-
tary/push button (1)tothe left or right.
•Thenpressa soundadjustment button
againtostorethevalue.
f
6
OPERATION
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
-TP/Set-Taste
UsingtheTrafficProgram/Setupbutton
youcanaccesstrafficprogramfunctions
(trafficinformation).Itis alsopossibletoset
specialRDSfunctionsandmakespecific
adjustmentsinthecomprehensiveset-up
menuviathedisplayandtherotary/push
knob(1).
TrafficProgramfunctions
BybrieflypressingtheTP/Setbutton,you
choosetheTPmodeandsetastationwith
trafficinformation.A TAreadymode
(TrafficAnnouncement)issetupatthe
sametime.
Theletters"TP"appearinthedisplay-see
point20.
Ilfthecurrentstationisnota TPstation,the
radioautomaticallyselectsthelastTP sta-
tionlistenedto(LastStationMemory).
Ifthisstationis cannotbereceived,the
radiowillautomaticallysearchforthenext
TPstationwitha strongsignal."NOTPTP-
SEEK"appearsinthedisplay.The letters
"TP" appearinthedisplayasconfirmation
thata TPstationis beingreceived.
Ifyouleavetherangeoftheselected sta-
tion, youshouldtunetoanotherstation.
Thefrequenciesandnamesofstations
broadcastingtrafficnewsannouncements
arefrequentlypostedalongmotorwaysand
trunkroads.
Itispossibletostore6 trafficinformation
stationsintheTPmode.
TAreadymode
TheTAreadymodemakesitpossibleto
listentotrafficinformationreportsexclus-
ively.Thesereportswillbeplayedatthe
programmedvolume,evenwhenthe vol-
umeissetat"veryquiet"- pleasealsorefer
topage8.Iftherangeofthesettrafficin-
formationstationisleft,thestationsearch
functionwillstartafterapproximately30
seconds.
Interruptinga trafficnewsan-
nouncement
Insomesituationsitcanoccurthata traffic
newsannouncementis interrupted,e.g.:
-Theannouncementdoesnotapplyto
thisstretchofroad.
-Theannouncementis verylongandthe
partconcerningthisstretchofroadis
complete.
PresstheTP/setbuttonduringthean-
nouncementwhichistobeinterrupted.
Theannouncementisinterruptedandthe
previousoperatingmode- cassette,radio
orCD- is resumed.Subsequenttraffic
newsannouncementswillstillbeheard.
Itispossibletoswitchoffthetraffican-
nouncementsmodepermanentlybyexiting
theTPmode.
OPERATION
1
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
Set-upMenu
IftheTP/Setbuttonispressedforlonger
than2 seconds,specificsettingscanbe
madeandspecialRDSfunctionscanbeset
viathedisplayandtherotary/pressknob
(1).
Theindividualset-upmenupointscanbe
selectedusingeithertheTP/Setbuttonit-
selforbypressingoneofthetworocker
switches(seepoints5 and
KEIIMMERKER)Anychangesbetween
themenupointswillbeindicatedbymeans
ofanacousticsignal.
Thefollowingset-upmenupointscanbe
selected:
•GALA
•ONVOL
•TAVOL
•PHONE
•M/S
•AutoREG/ REGOFF
•NAMEFIX/ VAR
•CDSFLM/D
IftheTP/Setbuttonispressedforlonger
than2 secondsornosettingsaremadefor
30seconds,thenanyalterationsmadewill
bestoredandtheset-upmenuwillbe
closedautomatically.Thisclosingpro-
cedurewillbeindicatedbymeansofan
acousticsignal.
GALA
Asroadspeedincreases,thenoiselevelin
thecarincreasesaccordingly.Inthepast,
radiovolumehadtobeadjustedmanually.
GALA(Speeddependentvolumecon-
troDwillnowautomaticallyadjustthe vol-
umeinaccordancewithroadspeed.
TheGALAfunctioncanbesettomeetyouij
individualrequirements:
•Selectinthemenu:GALA."SETUP
GALA"andthecurrentvalueareshownin
thedisplay.
•Therequiredlevelisadjustedbymeans
oftherotary/pressknob(1).Thevalue
rangegoesfrom1-9.GALAcanbe
switchedoffwiththe"NO"setting.
Ifthebasicvolumehastobereset(when
thestationorcassetteischanged,for
example),simplyadjusttherotary/press
knob. Thevolumeadjustmentwillcontinue*
tofunctionautomatically.
ONVOL
Themaximumvolumeleveloftheradio
uponswitchingonissetusingtheONVOL
value:
Normally,thelastsettingforthevolumewill
automaticallybeusedwhentheradiois
switchedon.If,however,thatvalueis
greaterthantheONVOLvalue,thevolume
whenswitchingonwillautomaticallyreset
totheONVOLvalue.
•Selectinthemenu:ONVOL.
"SETUPONVOL"andthecurrentvalueare
showninthedisplay.
•Setthevaluetoyourrequirementsusing
therotary/pressknob(1).Thevaluerange
goesfrom1-35.t
TAVOL
Thevolumelevelforthetrafficinformation
reportscanbesetusingtheTAVOLvalue.
•Selectinthemenu:TAVOL.
"SETUPTAVOL"andthecurrentvalueare
showninthedisplay.
•Setthevaluetoyourrequirementsusing
therotary/pressknob(1).Thevaluerange
goesfrom1-9.
8 OPERATION
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
^fepHONE
•^/tispossible,usingthe PHONE function,to
set-upthesystemtoenablea telephone
conversationtobeheardovertheloud-
speaker system,ifa mobilephonehasbeen
installed. Thevolumeofthisfunctioncan
also beset.
•Select: PHONE inthemenu.
"SETUP PHONE" andavaluefrom0-35are
showninthedisplay.
•Settherequiredvalueusingtherotary/
press knob(1).
^fcjThefunctioncanbeswitchedoffbyselect-
ing"0".
Itisnolongertousethetelephoneviathe
loudspeaker systemafterthefunctionhas
been switchedoff,andthediallingtoneis
nolongeraudible.Ifthetelephonerings,
"PHONE" willsimplybeshowninthedis-
playandtheradiowillbemuted.
M/S
Using theM/Sfunctionitispossibletoset
whetherornotthesystemshouldautomati-
cally selectbetweenoptimalsoundrepro-
ductionformusicorthespokenwordusing
theRDSsignal..
•Selectinthemenu:M/S. "SETUP M/S"
andthecurrentvalueareshowninthedis-
play.
Set therequiredvalueusingtherotary/
-^press knob.Thefunctioncanbeswitched
onbyselecting"ON"andoffbyselecting
"NO".
Auto REG/ REGOFF
Ifthereceptionqualitybecomesworse,the
radiowill first trytofindalternativefre-
quencies fortheselectedstation.
However,ifthequalitybecomesobad that
receptionbecomes intermittent, theradio
willalsoacceptfrequenciesofa "related"
station:
Programme1 oftheNDRbroadcasting
company,forinstance,transmitsdifferent
regionalprogrammestoSchleswig-Hols-
tein(indicator:"NDR 1 SH"),Hamburgindi-
cator:"NDR 1 HH")andLowerSaxony(indi-
cator:"NDR1 NDS").
As thesestationstransmitdifferentre-
gionalprogrammes,a changeoffrequency
maywellmeanachangeofprogrammetoo.
Withthe"Auto REG/REG OFF"functionit
is possibletotellthesystemwhetherornot
itshouldonlyreceivealternativefre-
quencies with identicalprogrammesusing
theRDSsignali.e.otherregionalstations
shouldonlybereceived"ifneedsbe".
•Selectinmenu:Auto REG/REG OFF.
"SETUP" willbeshowninthedisplay with
thecurrentvalue.Thefactorysettingforthe
radiois"Auto REG".
•Settherequiredvalueusingtherotary/
press knob(1):
REG OFF: freeselectionofallstations con-
nectedthroughtheregions.
AUTO REG: preferredfrequencychangeto
identicalprogramme,changetoregional
programming"ifneedsbe".
OPERATION
9
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
NameFIX/ VAR
Somestationsalsotransmitrunningadver-
tisingandinformationtextalongwiththe
stationnameinthedisplay.
Itis possibletosetwhetherornotthis run-
ningtextshouldbeshownornotforstored
stationsbyusingthe"NameFIX/VAR"
function.
•Selectinthemenu:Name.
"SETUPName"andthecurrentvaluewill
beshowninthedisplay.
•Settherequiredvalueusingtherotary/
pressbutton(1).Therunningtextcanbe
switchedonbyselecting"VAR"and
switchedoffbyselecting"FIX".
Theprocedureforstoringa stationis de-
tailedunderpoint9.
Note
Pleaseensurethatthestationnameis al-
waysdisplayedwhenstoring.
CDSFLM/D
Thetracksona CDcan,ifa CDchangerhas
beeninstalled,beplayedina randomorder
duringCDoperationbypressingtheSFL
button(seepage19).
UsingtheCDSFLM/Dfunctionyoucande-
cidewhetherthetracksofoneCDorall
CDsinthemagazineshouldbeplayedina
randomorder.
•Selectinmenu:CDSFLM/D.
"SETUPSFL"andthecurrentvalueare
showninthedisplay.
•Settherequiredvalueusingtherotary/
pressknob.
"M" indicatesthatallCDswillbeplayedin
randomorderand"D"indicatesthatthe
currentCDwillbeplayedinrandomorder.
BETA
11 1
Y--r
OR 2
—,.—,
|BR-207C[
4- Sourceselectionbuttons
FMbutton
TheVHFwavelengthcanbeelectedby
pressingtheFMbutton.
ThefirstmemoryleveloftheVHFwave-
lengthcanbereachedbypressingtheFM
buttononce.
Thesecondlevelcanbereachedbypres-
singthebuttonagain.
"FM1" appearsinthedisplayforthefirst
memorylevelor"FM2"forthesecond-
seepage23.
AMbutton
TheMWwavelengthcanbeselectedby
pressingtheAMbutton.
ThefirstmemoryleveloftheAMwave-
lengthscanbereachedbypressingtheAM
buttononce.
Thesecondlevelcanbereachedbypres-
singthebuttonagain.
"AM1" appearsthefirstmemorylevelor
"AM2" forthesecond- seepage23.
10
OPERATION
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
S2G1 1
DR2 1 J.,i
L1, J .
..L-L3
BR-208C|
^CD button
This button isusedtoselectCDoperation
whena CDchangerorplayerisconnected.
IfnoCDchangerorplayerisconnected,the
message "NOCD CHANGER" or"NO
DISC" appearsinthedisplaywhenthe but-
tonispressed.
OperationoftheCDchangerorplayerisde-
scribed ina separateinstructionmanual.
CC button
Cassette operationisselected with this but-
tononcea cassettehasbeeninserted.
Ifa cassettehasnotbeeninsertedthen
"NO TAPE" willappearinthedisplayafter
theCC button hasbeenpressed.
Please re*ertopage19fordetailsofthe
''functionsofcassetteoperation.
5- Manual setting
Radio operation
Search
Only onAMwavelength!
Brieflypressthemanualsettingswitch-
thesearchwillstartedinthedirectionasse-
lectedandtheradiowillselectthe first sta-
tion with a strongsignalandthenstayat
that frequency.
Memory list
Only onFMwavelength!
Your radioisconstantlyorientatingitselfto
thestationfrequencies.Afterswitchingon,
itautomaticallystoresallRDSstations(see
informationasofpage13)ina memorylist
accordingtotheirPIcode.
TheradiousesthePIcode(Programme
Identification)toidentifya station,e.g.
NDR2).
Itispossibletoscanbackwardsand for-
wardsthroughthislistbypressingeither
the left orthe right handsideoftheswitch.
Pleasealso refer tothe further
notes on next page.
0
OPERATION
11
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
Example:
Thefollowingstationsarecontainedinthe
list:
NDR1,NDR2,Radio3,NDR4,ANTENNE,
FFN
IfyouarelisteningtoNDR2(displayreads
"NDR2"). Bypressingtherighthandsideof
therockerswitchtheunitselectsthenext
station. InthiscaseRadio3.
PressingthisbuttonagainwillselectNDR4
etc.
Usethelefthandsideoftheswitchtoscan
thelistupwards- inthisexamplefrom
NDR2toNDR1.
Ifa stationnameisata pointintimenotrec-
ognizabletotheunitonlythefrequencywill
beshown.Oncethenamehasbeenevalu-
ated, itwillbeshowninthedisplay.
Ifnostationisavailableinthememorylist,
theunitautomaticallyperforms a "learning
function" afterpressingoneofthesearch
rockerswitches,duringwhichsoundis
muted. "LEARN"willappearinthedisplay.
CDoperation
Theswitchis usedforaudiblefastforward
andreverseofa trackduringCDoperation.
r
f$ VOLKSWAGEN
I • '
P FM1e N
_J7f£Zi|{. I * I
|BR-211c |
6- Flashingdiode"
Whentheunitis switchedoffandthe igni-
tionkeyis removed,thisflashingdiode indi-
catesthattheradiois equippedwith acti-
vatedanti-theftcoding.
7- Releasefordetachablecon-
trolpanel
Pressthereleaseslightlytothelefttore-
leasethedetachablecontrolpanel.
Thecontrolpanelfallsforwardsslightlyand
cannowberemoved.
f
12
OPERATION
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
- RDS button
First ofallRDS (RadioDataSystem),
makes it possible to show the name ofthe
stationbeingreceived inthe display - "NDR
2", for example.
Previously, for stationsbroadcasting on
severalfrequencies, youhadto manually
tune the radio to stationfrequencywith
bestreception asyou travelledfrom one
area tothe next.This was frequently
necessarywhenreceptionconditionswere
poor.
Now, RDS automaticallyselects the
bestfrequencyfrom a list of alternativefre-
quencies and tunes the radio toit. Thispro-
cess is almostentirelyinaudible!
^Thisensuresyou the bestpossiblerecep-
tion in atransmittingrangeevenunderunfa-
vourablereceptionconditions.
Operating RDS
• TheRDSis switchedon/off by pressing
the RDS button.
"RDS ON" appears inthe displaywhen the
unit is switched on.
"RDS OFF" appearsbriefly inthe display
when the unit is switched off.
WhenRDS is switchedoff, the radiowill not
automaticallytransfer to alternativefre-
quencies.
If the radio is switched onandtheRDSis
switched off, "RDSOFF"willappearbriefly
in the display.
•Whenselecting a new frequency (e.g.
stationsearch,stationbuttons etc.)RDSis
automaticallyswitched on again.
When theRDSis switched on, stations
which arenot transmittingusing RDScan
still be received. Itis thereforerecom-
mended to leave RDSonas perma-
nently as possible.
Ifwhen theRDSis switched ona station is
selectedwhich is transmittingusing RDS,
thefrequencyinitiallyappears inthe display.
Once the radio has evaluated the informa-
tion, the frequencywill be replaced bythe
name ofthe station.
• "RDS ON/OFF" canbe storedtogether
with the desiredstation onthe stationbut-
tons.
Pleasealsorefer tothe further
notes on nextpage.
OPERATION
13
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
Localstations
German broadcastingcompaniesbroadcast
some programmes that varyfromonere-
giontothenext.
Programme 1 oftheNDRbroadcasting
company, forinstance,transmitsdifferent
regionalprogrammestoSchleswig-Hols-
tein(indicator:"NDR 1 SH"),Hamburgindi-
cator:"NDR1HH")andLowerSaxony(indi-
cator:"NDR1 NDS").
The radio first triestocollectonlyalternative
frequencies fortheselectedstation.
However, ifthequalitybecomesobad that
receptionbecomes intermittent, theradio
willalsoacceptfrequenciesofa "related"
NDR1 station.Assuchstationsbroadcast
differentprogrammesfromtimetotime,
such a changeinfrequencycanalsoresult
ina differentprogrammebeingheard.
For thisreasontheradiosaresetupinthe
factoryso that RDSsystemwillonlyselect
regionalstationswhichhaveidenticalpro-
grammecontent.
Ifthereisa change,however,the"Auto
REG" settingintheset-upmenumustbe
activated(seepage10).
Generalnotes onRDS reception
•Dependingonthestrengthofthesignals
received, itmaytaketheradiouptoseveral
minutestoevaluatetheRDSdata.
•Inunfavourablereceptionconditions
(e.g. inmountainousareas),theradiowill
search foralternativefrequencies with
greatregularity.Thiscangiverisetobrief
muting.
•In cases ofextremelybadreception!
wheremutingand/ordistortionsarefre-
quent,theRDScanbetemporarily
switchedoff.
• RDS alwaysselectsthemostfavourable
frequencyfroma listofalternativefre-
quencies. Ifnoneofthealternativespro-
vides a clearsignal,youwill,ofcourse,also
hear interferenceinRDSmode!
•ItisnotpossibletoevaluateRDSdata
whenthesignalreceivedistooweak.Inthis
case thefrequencywillremaininthedis-
play. 4
Storing RDS stations
When storing RDS stations,theappropriate
station button shouldnotbepressed until
thestationnameappearsinthedisplay.This
ensures that allRDSinformationhasbeen
evaluatedand,whereappropriate,auto-
maticallystored.
Whenselectingstored RDS stations,
therespectivestationnameappears.Ifthe
storedfrequencyisnotavailable,theradio'
automaticallyselectsa suitablealternative
frequency(Beststationfunction).
if none ofthestoredalternativefre-
quencies areavailable,thedesiredstation
cannotbereceived.A differentstation
should beselected.
Note ^
Please ensure that thenameofthestation
is showninthedisplaywhenstoring.Other-
wise anyrunning text beingdisplayed,and
notthestationname,willbestoredalong
with thestationdata.
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
^owdoesRDS work?
InmanyEuropeancountriesRDShasal-
readybeenintroducedbya greatmany
radiostations.Thesestationsattemptto
cover thewidestpossible area.
InadditiontonormalFMradiosignals,a
further,inaudibleflowofdigitalizedinforma-
tionistransmittedtotheRDSreceiver.
Amongst otherthings,thisinformation con-
trolsthefollowingfunctions.
• Programme Identification (PI
code)
^•The PIcodetellstheradiowhichstationis
^currentlybeingreceived- e.g.NDR2.
• Programme Service Name (PS
code)
The PScodecontainsthestationname,
whichisthenshowninthedisplay.
Some stationsalsotransmitrunningadver-
tising text along with thestationname.Itis
possible tosetwhetherornotthisrunning
text shouldbeshownornotbyusingthe
"Name FIXA/AR" function.
• Alternative Frequencies
(AF code)
Since therangeofFMradiowavesisquite
limited,stationsbroadcastfromseveral
transmittersonvariousfrequencies.TheAF
code providestheradio with a listoffre-
quencies onwhichthestationbroadcasts.
The radioisthusabletotunetothefre-
quency with thebestreception.
The radioswitchesfromoncefrequencyto
anothervirtuallyinaudibly,andthestation
nameshowninthedisplayremainsun-
changed.
A practical example:
On a trip ontheAutobahnfromFlensburgto
GottingenyouwouldliketolistentoNDR2.
All youhavetodoistunetothisstationat
thebeginningofyourtrip.Thestationname
-"NDR2"- lightsupinthedisplay.
Duringyourentiretrip,yourRDSradio
searches foralternativefrequenciesforthe
selected stationand,whennecessary,
tunestothemautomaticallyandvirtuallyin-
audibly.
•
OPERATION
15
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
• Traffic programme (TP Code)
The TPcodeinformstheradiowhena traffic
news stationisbeingreceived.
• Traffic announcement (TA Code)
The radio uses theTAcodetorecognizea
trafficnewsannouncement.Iftheradiois
mutedorincassettemode,theradioauto-
maticallyswitchestotrafficnewsan-
nouncementsataneasilyaudiblevolume.
InEONmode-seenextpoint-theTAcode
ofa non-TPstationreferstheradiotoa TP
stationofthesamenetworkcurrently
broadcastinganannouncement.
•EON(Enhanced information |
concerning Other Networks)
EON isan RDS functionwhichensures that
all trafficnewsannouncementsfroma par-
ticularbroadcastingcompanyareplayed.
Larger broadcastingcompanies,e.g.NDR
oftenbroadcastdifferentprogrammes sim-
ultaneously- e.g.NDR1,NDR2,Radio3
etc.
Regardless ofwhichstationiscurrently
beinglistenedto,allTPannouncementsof
theotherprogrammesofthebroadcasting
company areplayed.|*
Example
The radioiscurrentlytunedtoRadio3.Ifa
TP announcementismadeon NDR2, the
radiowillautomaticallychangefrequencies
and the NDR2 announcementwillbe
played. Duringthisprocesstheletters
"EON" appearinthedisplay.
Attheendoftheannouncementtheradio
switches backtotheoriginalprogramme
Radio 3.
•Music/Speech switch (MS code)
Duringa speechprogramme,theradiowill
automaticallyswitchthefrequencyre-
sponse toincreasespeechclarity.
•Disaster announcements
(RDScodePTY31)g
Disaster announcementshavepriorityoveif
all otherfunctions.
16
OPERATION
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
L_L
1FM1 6
NDR
v..-
-Stationbuttons
Amaximumof30stationscanbestoredon
the 6 stationbuttons andthe different
memorylevels.
FM1 / FM2 = 6 stationseach,
AM1 / AM2 = 6 stationseach,
TP = 6 stations.
"FM2"signifiesthatyouareonthesecond
memorylevel.Youcanswitchbetweenthe
memorylevels by pressingtheFM or AM
button(4).
Manuallystoring
•Selectdesiredwaveband(3,4).
•Tuneradio to desiredstation(12).
•Pressthebuttononwhichthestation is
fcto bestoredandholduntiltheprogramme
ismutedanda signalisemitted.Thestation
is nowstored.Thenumber of thestation
buttonappearsinthedisplay-seePoint19.
Note
Pleaseensurethatthename of thestation
isshowninthedisplaywhenstoring.Other-
wiseanyrunningtextbeingdisplayed,and
notthestationname,willbe'storedalong
withthestationdata.
I
JFMI G NDR
•
r <§~ r <§~
|BR-213C |
10-Detachablecontrolpanel*
This is part of theanti-theftsystemasthe
radiocannotfunctionwithout the control
panel.
Ithasthesamefunctionalityasthestation
buttonsinallotherpoints(9).
Neverleavethecontrolpanelonthe
unitwhenyouleavethevehicle!
Removing
Toremove the detachablecontrolpanel
presstherelease(seepoint7)slightlytothe
left.
Thecontrolpanelwillfallslightlyforwards
andcannowberemoved.
Inserting
Carefullyplace the controlpanelinto the
radiohousingwiththerightsidefirst.Then
presstheleftside of thecontrolpanel in
until it canbeclearlybeheard to engage.
Ifthecontrolpanel is not installed or has
beenincorrectlyinserted the words
"FRONTMISSING"willappear in thedis-
play.
Ifthis is thecase,repeattheinsertionpro-
cedureasdetailedabove.
OPERATION
17
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans

RADIO BETA
in
1i .-a A-
11 -Manual tuning using rocker
switch
Radio operation
The stationscanbeselectedmanuallyusing
thisswitch.
• Press onesideoftherockerswitch:
The letters"MAN"andthecurrentfre-
quency appearinthedisplay.
• Press buttonbriefly:
Tuningchangesinsinglesteps(100kHzfor
FM, 9 kHzforAM).
•Holdbuttondown:
Tuningchangesrapidly.Theradioismuted
so longasthebuttoniskeptpressed.
Note (onlyforTPandFM)
When usingmanualtuningbyfrequency,al-
ternativefrequenciesarenotautomatically
selected andthestationnameisnotdis-
played.
CD operation
The rockerswitchcanbeusedtoselect
trackswhentheCDplayerisbeingused.
12-AS button
IntheASmodeitispossibletoautomati-
cally storeRDSstations with thestrongest
signals ina userfriendlyfashion.
Using theASfunctionitispossibletostore
6stationsontheAM2,FM2andTPwave-
lengths,ortouseall30memoryplaces.
Automatic storing
Storing 6 stations
•Selectthewavelength(AM2,FM2or
TP).
• Press theASbuttonforapproximately2
seconds."STORE" appearsinthedisplay.
The 6 RDSstations with thestrongest sig-
nals ontheFM2 wavelengthareautomati-
cally stored.
Storing 30 stations
• Press theASbuttonforlongerthan10
seconds. "FM-AM STORE 30"appearsin
thedisplay.The30RDSstations with the
strongestsignalsontheFM1,FM2,AM1,
AM2 andTPwavelengthshavenowbeen
stored.
•Oncethestoringprocessiscompleted,
theradioautomaticallytunestothestation
with thestrongestsignal.
•Thestationsstoredcannowbeselected^
using thestationbuttons.Q
18
OPERATION
www.westfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Campervans
