Volumair Eole T5 + HV460 User manual

EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : [phone] – Fax : [phone]
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
Eole T5 + HV460
User manual
Edition of 12/05/2020

User manual - Eole T5 + HV460 202005-418-ENGP2
You just acquired one of our
machines and all the team
of Europe Projection thanks
you for the condence
you have granted us.
Manufacturer of professional
equipments for paint and
llers, we have put our
know-how for 25 years
at the service of the
users of our machines.
Our technical & commercial
team is at your disposal
for any further information
you may need about the
machine you just acquired.
EUROPE PROJECTION
228, avenue Olivier Perroy
13790 ROUSSET
Tél : [phone]
Fax : [phone]
SUMMARY
1. USER MANUAL............................................................. p. 3
1.1. Importance of the manual .........................................p. 3
1.2. Receivers of the manual............................................p. 3
2. WARNING .................................................................... p. 4
2.1. Safety .....................................................................p. 4
2.2. Electric connection ...................................................p. 6
2.3. End-of-life of the product ..........................................p. 6
3. YOUR MACHINE ........................................................... p. 7
3.1. Description..............................................................p. 7
3.2. Technical characteristics ...........................................p. 7
3.3. Identication of the spray-gun components .................p. 8
3.4. Identication of the turbine components .....................p. 9
4. USE OF THE MACHINE ................................................. p.10
4.1. Prerequisites............................................................p.10
4.2. Atomization.............................................................p.11

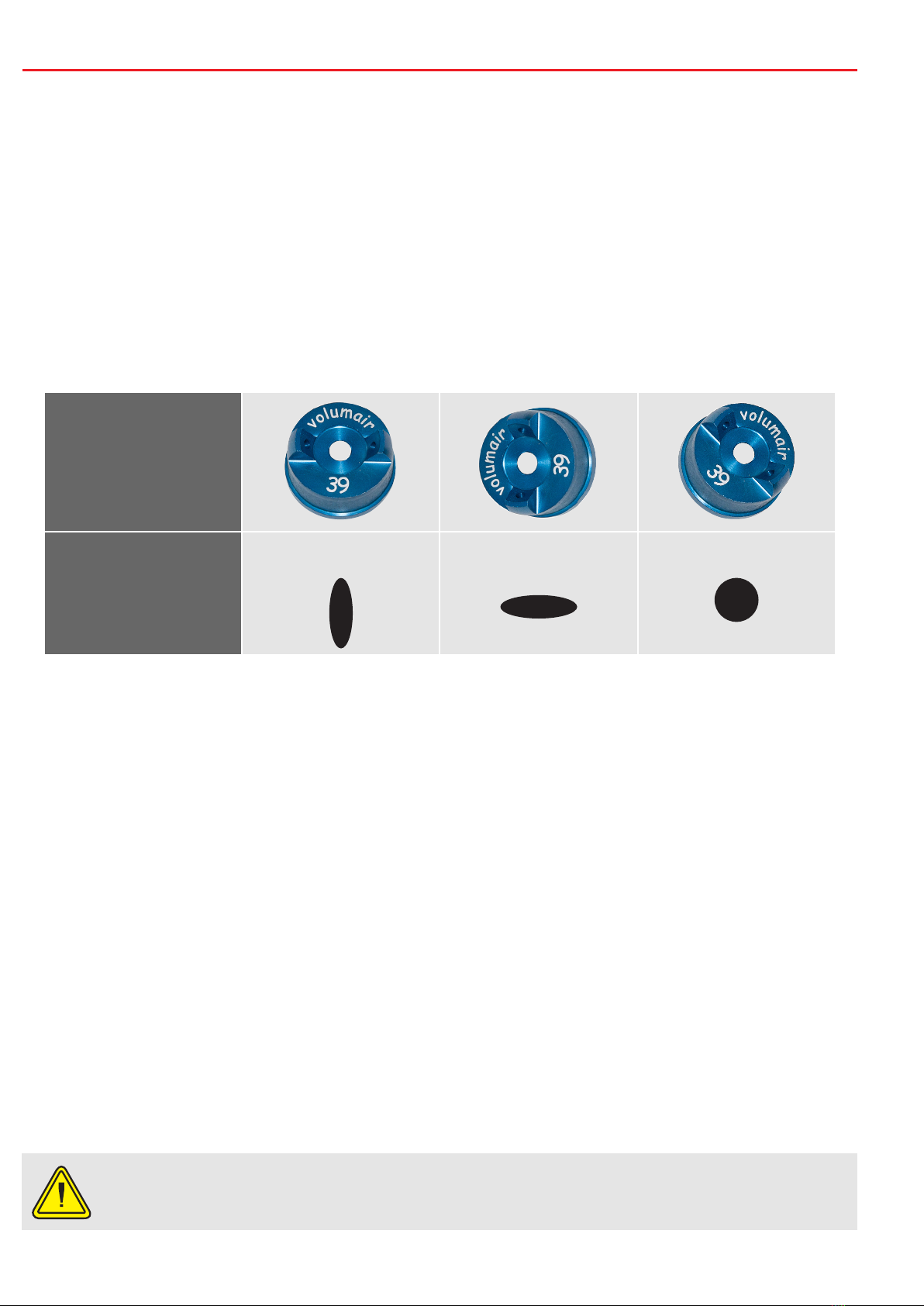

4.3. Spray setting ...........................................................p.12
4.4. Setting up of the extension pole .................................p.12
4.5. Change of the atomization kit ....................................p.12
5. CLEANING AND MAINTENANCE .................................... p.13
6. DECLARATION OF CONFORMITY ................................... p.14
7. WARRANTY CONDITIONS.............................................. p.15

202005-418-ENG User manual - Eole T5 + HV460 P3
1. USER MANUAL
1.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up, cleaning
and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until the
nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on page
4 for a copy at any moment.
1.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - Eole T5 + HV460 202005-418-ENGP4
2. WARNING
2.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions indicated in
this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this manual
before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air ow
is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay attention
to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial number.
• For any replacement of parts, only use genuine parts.
• Do not modify the machine.
• Do not cut or dismantle the protection grids.
• Do not open the electric box.

202005-418-ENG User manual - Eole T5 + HV460 P5
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.
2. WARNING (continued)
2.1. SAFETY (continued)
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children and
animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.

User manual - Eole T5 + HV460 202005-418-ENGP6
2. WARNING (continued)
2.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug with a differential circuit
breaker.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
GROUND CONNECTOR
All the machines must be connected to the ground when they work to protect the operator from electric
shocks. Our machines are all equipped with standardized connection plugs.
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
During any intervention on the machine, make sure that the ground is well reconnected.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is sufcient to support the machine when it is
working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
2.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake to
process the used EEEs according to the following provisions: applicable only to products on the
market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products of other
brands sold by our company (upon presentation of the corresponding invoices), products that
operate using electrical energy (for example, thermal washers or compressors do not fall into this
category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points in
Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees and
directed to the most appropriate processing channels.
For any further information, please contact our hotline [phone] or [e-mail].

202005-418-ENG User manual - Eole T5 + HV460 P7
3. YOUR MACHINE
3.1. DESCRIPTION
Powerful, easy to use, the EOLE T5 turbine is ideal for all painting and decorating tasks.
APPLICATIONS
Allows a large number of products to be applied (lacquers, varnishes, primers, in aqueous phase or in
solvent phase ...).
3.2. TECHNICAL CHARACTERISTICS
TURBINE
Stages 5
Pressure 0,67 bar
Air ow-rate adjustment yes
Power 1700 W
Electrical supply 230 V / 16 A / 50 & 60 Hz
Hose length 7,5 m
Dimensions (l x w x h) 37 x 35 x 86 cm
Weight 19 kg
Noise level 89 Lwa
SPRAY-GUN
Product ow-rate adjustment yes
Jet width adjustment yes
Air pressure adjustment yes
Bowl capacity 1 L
Dimensions (L x w x h) 18 x 11 x 29 cm
Weight 0,83 kg
Do not use products that are too heavy (see viscosity tables 5.2.).

F
A
G
E
D
C
B
F1 F2
F3
User manual - Eole T5 + HV460 202005-418-ENGP8
3. YOUR MACHINE (continued)
3.3. IDENTIFICATION OF THE SPRAY-GUN COMPONENTS
ANozzle ring
B1 litre bowl
CTrigger
DAir inlet coupling
EProduct ow-rate adjustment thumbwheel
FAtomization kit
F1 Diffuser head
F2 Jet nozzle
F3 Needle
GAir ow-rate adjustment thumbwheel

H
I
J K
L
M
N
202005-418-ENG User manual - Eole T5 + HV460 P9
3. YOUR MACHINE (continued)
3.4. IDENTIFICATION OF THE TURBINE COMPONENTS
HVentilation lter / Bowl lling support
IAir outlet coupling
JStarting switch
KPotentiometer
LThermal circuit breaker
MElectrical supply cable
NAir lter

User manual - Eole T5 + HV460 202005-418-ENGP10
4. USE OF THE MACHINE
4.1. PREREQUISITES
• The electric connection has to be 230 V - 16 A - 50 or 60 Hz.
• Be careful to only use paints which have not dried and which do not contain dry particles (otherwise,
lter the paint with a strainer).
• When using a chlorinated product, it is imperative to dilute the product (5% of pure product maximum).
• Before use, verify the air lter foam (N). Replace it if it is used or missing by loosening the plastic cover.
• Choose the ideal needle kit depending on the paint which will be used. To change the nozzle, loosen
the ring (A).
• The turbine is equipped with a thermal circuit breaker (L) which stops the motor when it reaches a
temperature which is too high. If the turbine fuse has blown, verify that the electrical connection is
correct and that the lters (H) and (N) are not clogged up, then press the (L) button to reset the circuit
breaker.
• The EOLE T5 + HV460 set can be used to spray bactericidal products (bleach, etc.). In this case it is
imperative to respect the following rules:
• Use the appropriate PPE to avoid any contact of the product with the skin, eyes and respiratory tract.
• Do not spray in the presence of people or animals.
• Wait for objects and surfaces to dry completely before handling.
• Absolutely respect the manufacturer’s recommendations for use (dilution, handling, etc.).
• The product must always be diluted before lling the bowl (maximum concentration of pure
product 5%).
• Never spray pure products.
• Once the work is nished, rinse the bowl and gun thoroughly with water to avoid damage to the
metal parts.
The spraying of potentially dangerous products remains the sole responsibility of the users.
Choice of the atomization kit
• The spray-gun can be equipped with 6 different jet nozzles.
• Choosing the right atomization kit is essential to obtain a perfect nish. This choice has to be made
according to the work to be done, the kind of paint, the dimensions of the objects and surfaces to be
covered (see table below).
Nozzle Ø Work to be made Viscosity Product to be used
0,80 mm Finishing jobs, low output, small areas,
decoration, renishing, shadow, stain, etc... 15 seconds Light, thin, chromate products, etc...
1,30 mm
All kind of varnish jobs, house-hold
appliances, furniture, car bodywork,
aviation, etc...
26 seconds
All products with normal dilution, lac-
quer, varnish, oil based, cellulosic, polyu-
rethane, etc...
1,80 mm For usual jobs, high output, large areas
+30
seconds
Bottom layer, primer, oil based paints,
dispersion, etc...
2,20 mm Thick layer, high output, large areas,
speckled, decorative ef-fects, building,
insulation, etc...
Glues, heavy products, minium, gelcoat,
oilbased varnish, etc...
2,40 mm
2,60 mm
Before each use, atomize some water before using the paint to be sprayed.
Too high a concentration of chlorinated product can lead to corrosion of the gun.

202005-418-ENG User manual - Eole T5 + HV460 P11
4. USE OF THE MACHINE (continued)
4.2. ATOMIZATION
1. Prepare the surface to be painted (sanding, cleaning, etc...).
2. Fill the bowl with paint (around 3/4 of the bowl). For more ease, put the bowl onto the (H) support.
3. Mount the spray-gun body onto the spray-gun.
4. Connect the hose on the (I) coupling on the turbine side and the (D) coupling on the spray-gun side.
5. Connect the turbine electrically and press the switch (J).
6. For an optimal atomization, hold the spray-gun as horizontal a possible. The paint jet has to be
perpendicular to the surface to be painted, with a distance of about 20 cm.
7. Proceed by crossed sections, horizontal and vertical, directing the diffuser head as needed.
8. Move the spray-gun with an uniform movement and a regular speed. Release the trigger at the end
of each section.
9. To avoid bleeding, press the trigger only after having begun the movement of the spray-gun.
10. Do not try to cover everything in one layer, prefer applying a second one.
During utlization, use the potentiometer (K) to increase or decrease the air ow-rate into the
turbine.
So that the paint is at the ideal viscosity, use the viscosimeter delivered with the turbine.
Dilute a part of the paint with the appropriate thinner.
Fill the viscosimeter to the top and let the liquid ow and monitor the time it takes until the trickle
of paint becomes discontinuous.
Check to see if the time corresponds to the indications in the table below:
- if the time is longer, increase the dilution
- if the time is shorter, add more paint
BUILDING PAINT INDUSTRIAL PAINT
PRODUCTS TIME PRODUCTS TIME
Oil paint 25 to 30 sec. Hammered nish 30 to 50 sec.
Vinyl paint 30 to 35 sec. Anti-rust 25 to 33 sec.
Acrylic paint 30 to 35 sec. Lacquer, polyurethane 25 to 30 sec.
Pliolite 35 to 40 sec. Lacquer, synthetic 22 to 27 sec.
Lacquer, brilliant, satin 25 to 27 sec. Varnish, synthetic 20 to 22 sec.
Mat ceiling paint 25 to 30 sec. Cellulosic 18 to 22 sec.
Anti-rust 25 to 33 sec. Chromate and Wash-primer 18 to 22 sec.
Impression 20 to 25 sec. Metallised 18 to 20 sec.
If the movement is too rapid, the risk of a paint lack will be important. If, otherwise, the
movement is too slow, bleeding may occur.

User manual - Eole T5 + HV460 202005-418-ENGP12
4. USE OF THE MACHINE (continued)
4.3. SPRAY SETTING
To increase or decrease the product ow-rate, use the wheel (E) at the back of the spray-gun:
- screw to decrease the ow-rate
- unscrew to increase the ow-rate
To increase or decrease the jet width, use the ring (A):
- tighten to obtain a wider jet
- unscrew to obtain a more narrow jet
To obtain differents jets, direct the diffuser head as indicated below:
Head position
Spray render
Vertical at spray Horizontal at spray Round spray
4.4. SETTING UP OF THE EXTENSION POLE
• The extension pole takes the place of the diffuser head and the jet nozzle.
• Dismantle the ring (A).
• Dismantle the jet nozzle (F2).
• Mount the 1,5 mm needle.
• Be sure the joint is well placed.
• Mount the extension pole with the ring (A).
• Block the ring.
4.5. CHANGE OF THE ATOMIZATION KIT
• Remove the ring (A) and the diffuser head (F1).
• Unscrew the setting wheel (E) and remove the spring.
• Press the trigger, the needle (F3) comes out easily from its housing.
• Unscrew the jet nozzle using the key delivered with the spray-gun.
• Reassemble the new nozzle jet and screw properly to avoid leaks.
• Reassemble the spray-gun in the reverse order of the disassembly, with the new diffuser head.
Changing of the atomization kit, verify that the jet nozzle and the needle have the same
diameter.

202005-418-ENG User manual - Eole T5 + HV460 P13
5. CLEANING AND MAINTENANCE
Spray-gun cleaning
• Empty the product remaining into the bowl.
• Clean the insde and the outside of the bowl with help of a paintbrush.
• Fill the bowl with water and spray for circulating it. The product passages will so be cleaned.
In case of a prolonged standstill or every week
• Dismantle and clean the atomizing kit (F)
• Clean the inside of the spray-gun with little pins and solvant, as well as the tubes
• Oil the moving parts of the spray-gun with a very uid oil
• Grease with a consistent grease every thread pitch, the front side of the needle nozzle, the 2 springs and
the centring nut which slides into the back plug
• Verify and tighten the nut gland if needed
• Loosen the plastic cover of the ventilation lter (H), remove the lter and blast it with help of a pressure
cleaner.
• Unscrew the plastic cover of the air lter (N), remove the lter and blast it with help of a pressure
cleaner.
Disconnect the plug of the machine from the mains voltage before any intervention.
The direct projection of water under pressure onto the control panel has to be stopped at
the risk of water inltration into the electric box. Proceed by simply cleaning with a humid
sponge.

User manual - Eole T5 + HV460 202005-418-ENGP14
6. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
228, avenue Olivier Perroy
13790 ROUSSET
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : VOLUMAIR
Type : Low Pressure group
Model : EOLE T5 + HV460
COMPLIES WITH THE ARTICLE:
• the R.233-73 article of the Labour Code
THE DIRECTIVES :
• Machines 2006/42/CE
• Low voltage 2014/35/UE
• CEM 2014/30/UE
• ROHS 2011/65/UE
• Noise emissions 2005/88/CE
AND WITH THE STANDARDS:
• NF EN ISO 12100
• NF EN 60204-1
• NF EN ISO 13857
ROUSSET, JANUARY 20th 2020
Patrick BOREL
President
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510

202005-418-ENG User manual - Eole T5 + HV460 P15
7. WARRANTY CONDITIONS
Each product is delivered inspected and tested.
We exclude any warranty for visible defects for which the customer did not claim within 48 hours.
The equipments sold are covered by the warranty during the period dened by the manufacturer from
the date of purchase, the date on the original proof of purchase being authentic and under the conditions
dened by the manufacturer.
This warranty covers any equipment against any manufacturing or material defect of for normal use and
service. Insofar as the customer is presumed to be a professional of the same specialty, the guarantee
covers only the lack of realization of the equipment rendering it unt for its use not likely to be detected by
a professional buyer.
The defects or deteriorations caused by natural wear, external accident or a modication, use, storage or
treatment of equipments not planned by the manufacturer, nor specied by ourselves, are excluded from
any warranty.
Are expressly excluded from the warranty the defects coming from: a bad use, the application of abrasive
or corrosive products, an inappropriate installation, the negligence, an insufcient maintenance or cleaning
chemical, electrochemical or electric inuences, any change in the normal process of use.
The following wearing parts are not covered by the warranty: rotors, stators, driving shafts, connecting rods,
seals, cleaning balls, spray guns, lance, nozzle, hose, needle kits, cylinders, piston rods, prime/spray valve
assy, seal kits, membranes, suction and delivery valves, carding machine vanes, lters, oils.
The warranty also excludes the equipments: on which the serial number was erased or made illegible, on
which unauthorized people made attempts of repair which were totally or partially dismantled.
Defective equipment will be removed by us. Any shipment of equipment by the customer will be at its own
expense. The guarantee will be subject to the presentation of the purchase invoice. We will then be able to
perform an equipment analysis to determine if the defect is covered by the warranty.
If the defective equipment is covered by the warranty, it will be repaired or replaced free of charge. Repaired
equipment (under warranty) will be delivered to the customer free of charge.
If the defective equipment is not covered by the warranty, we will issue a quote for the repair that we will
submit to the customer’s agreement. The costs of removal and shipping of equipment not covered by the
warranty will be charged to the customer, whether or not the latter accepts the repair estimate.
Except as otherwise required by law, this warranty is exclusive of all other warranties, including the statutory
warranty of hidden defects.
In case of intervention of our services on a breakdown caused by the customer or an outage excluded in the
conditions referred to above, the costs of repair and transport will be billed to the customer.
We exclude all liability for indirect damages suffered by the customer, such as, but not limited to, loss of
income, turnover, loss of prots, loss of image, of any kind whatever.
In all cases, our liability shall be limited to the amount paid by the customer for non-compliant equipment.
Any action of the customer against us relating to the guarantee of the equipments will be prescribed within
the period of 1 year as from the day of the discovery of the defect. It is up to the customer to prove the day
of this discovery.
Our equipments are covered by a warranty (parts and labour) of 12 months following the purchase.
The duration of this warranty can be extended by 6 months by completing the warranty extension
form within 4 weeks after purchasing on our website www.euromair.com (section Warranty).

EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : [phone] – Fax : [phone]
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
User manual - Eole T5 + HV460 202005-418-ENGP16
