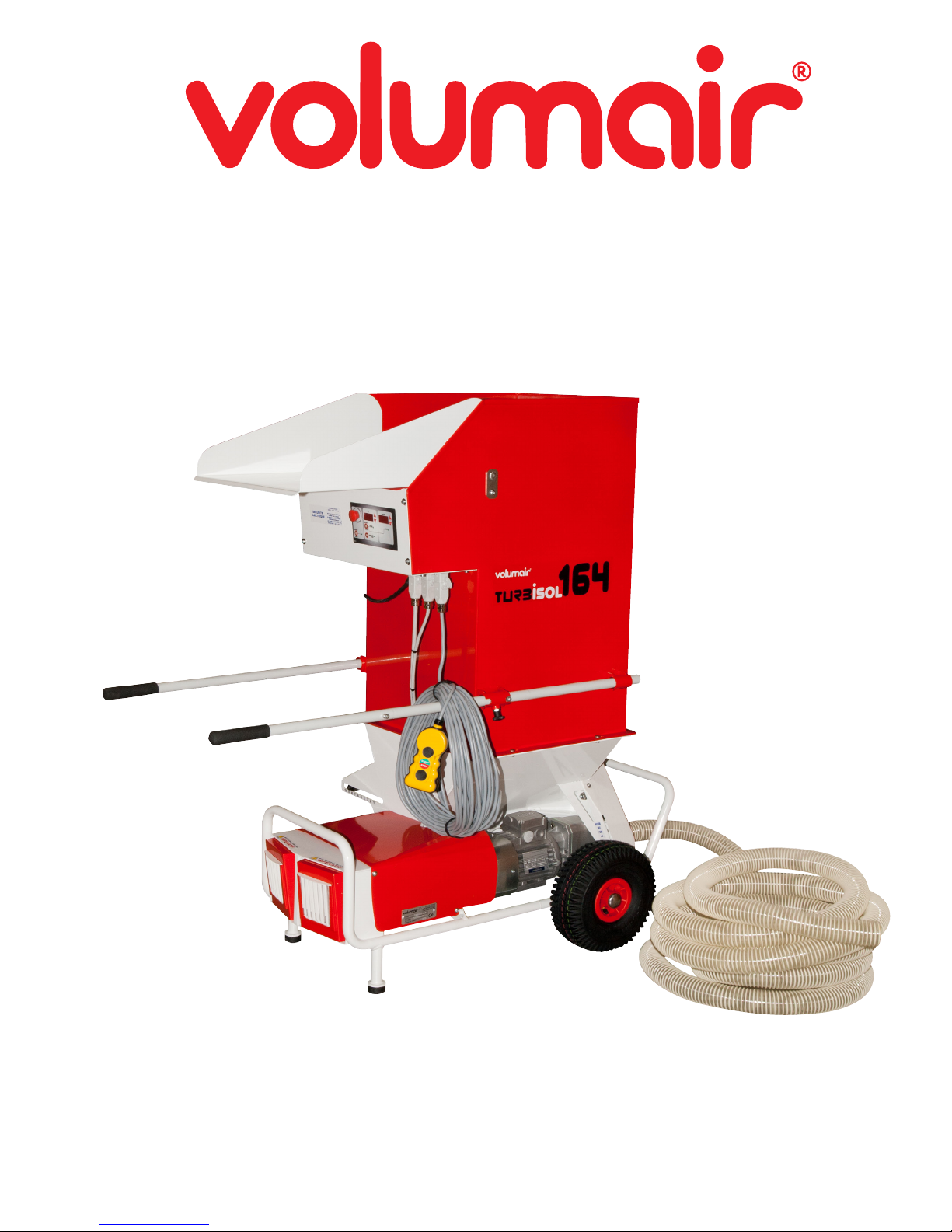

TURBISOL 164/2
Ref. 30865

User manual - TURBISOL 164/2 201610-186-ENG
P2

201610-186-ENG User manual - TURBISOL 164/2
P3
SUMMARY
1. INTRODUCTION...........................................................p. 4
2. USER MANUAL ...........................................................p. 5
2.1. Importance of the manual .................................................p. 5
2.2. Receivers of the manual ..................................................p. 5
3. WARNING.................................................................p. 6
3.1. Safety ...................................................................p. 6
3.2. Electric connection .......................................................p. 8
3.3. End-of-life of the product ..................................................p. 8
4. YOUR MACHINE ..........................................................p. 9
4.1. Description ..............................................................p. 9
4.2. Technical characteristics ..................................................p. 9
4.3. Identication of the components of the machine .............................p.10
5. USE OF THE MACHINE....................................................p.12
5.1. Prerequisites.............................................................p.12
5.2. Starting up...............................................................p.12
6. MAINTENANCE ...........................................................p.13
6.1. Error codes ..............................................................p.13
6.2. Servicing ................................................................p.13
7. DECLARATION OF CONFORMITY .........................................p.15
8. WARRANTY...............................................................p.17
8.1. Warranty conditions ......................................................p.17
8.2. Warranty certicate .......................................................p.19

User manual - TURBISOL 164/2 201610-186-ENG
P4
1. INTRODUCTION
You just acquired a TURBISOL 164/2 cotton wadding sprayer and all the team of Europe Projection
thanks you for the condence you have granted us.
Manufacturer of professional equipments for paint and llers, we have put our know-how for 20 years
at the service of the users of our machines.
Our technical and commercial team is at your disposal for any further information you may need about
the machine you just acquired.
EUROPE PROJECTION
Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

201610-186-ENG User manual - TURBISOL 164/2
P5
2. USER MANUAL
2.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until
the nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on
page 4 for a copy at any moment.
2.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - TURBISOL 164/2 201610-186-ENG
P6P6
3. WARNING
3.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air
ow is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial
number.
• For any replacement of parts, only use genuine parts.

201610-186-ENG User manual - TURBISOL 164/2
P7P7
3. WARNING (continued)
3.1. SAFETY (continued)
• Do not modify the machine.
• Do not cut or dismantle the protection grids.
• Do not open the electric box.
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children
and animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
HOSES
• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.
• Do not walk on the hoses, do not bend them.
• Do not use the hoses to pull the machine.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
• After every use, necessarily grease the pump with a mixture of water + storage liquid to avoid it
blocking up. The storage of a not greased pump can damage it seriously.
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.

User manual - TURBISOL 164/2 201610-186-ENG
P8
3. WARNING (continued)
3.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug with a differential circuit
breaker.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
GROUND CONNECTOR
All the machines must be connected to the ground when they work to protect the operator from electric
shocks. Our machines are all equipped with standardized connection plugs.
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
During any intervention on the machine, make sure that the ground is well reconnected.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is sufcient to support the machine when it
is working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
3.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake
to process the used EEEs according to the following provisions: applicable only to products on
the market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products
of other brands sold by our company (upon presentation of the corresponding invoices),
products that operate using electrical energy (for example, thermal washers or compressors
do not fall into this category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points
in Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees
and directed to the most appropriate processing channels.
For any further information, please contact our hotline to [e-mail] or
04 42 29 08 96.

201610-186-ENG User manual - TURBISOL 164/2
P9
4. YOUR MACHINE
4.1. DESCRIPTION
For application of rock wool, cotton wadding, reproong products, hemp, glass wool for thermal and
acoustic insulation of roof spaces, ceilings, walls, etc.
The TURBISOL 164/2 is equipped with a reinforced tank and two turbines.
Loading dimensions of the hopper:
Width: 45 cm
Do not use water or moistened cotton wadding at the risk of clogging the machine.
4.2. TECHNICAL CHARACTERISTICS
Electrical supply 230 V / 50 and 60 Hz
Maximum current 16 A
Motor power 0,75 kW
Transmission by chain
Turbines 5000 L/min - 2 x 1400 W
Electronic control yes
Pressure 0,25 bar
Flow rate for cotton wadding 0 to 50 bags/h
Tank capacity 220 L
Suction turbine lter 2
Cooling turbine lter 1
Product hose length 25 m
Product outlet diameter 50 mm
Inatable tyres Ø 300
Wire-guided remote control 25 m - start/stop
Loading height 122 cm
Dimensions (L x w x h) 116 x 67 x 151 cm
Weight 116 kg
Noise level 100 Lwa

User manual - TURBISOL 164/2 201610-186-ENG
P10
4. YOUR MACHINE (continued)

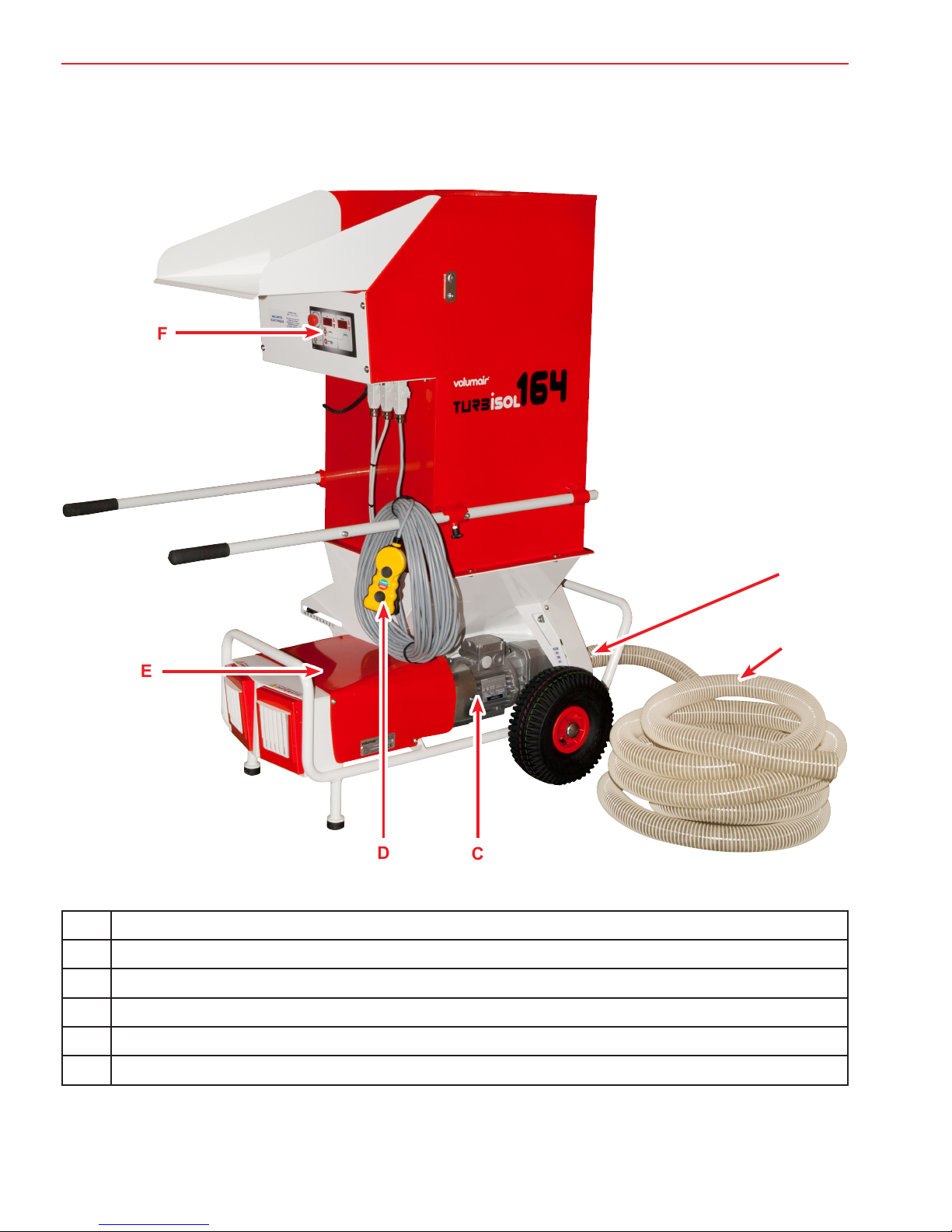

4.3. IDENTIFICATION OF THE COMPONENTS OF THE MACHINE
AProduct hose
BProduct outlet
CGeared motor
DRemote control
ETurbines
FControl panel (see details on the next page)
The complete list of the components of the machine is available on our website :
www.euromair.com
F
A
C
D
B
E

201610-186-ENG User manual - TURBISOL 164/2
P11
4. YOUR MACHINE (continued)

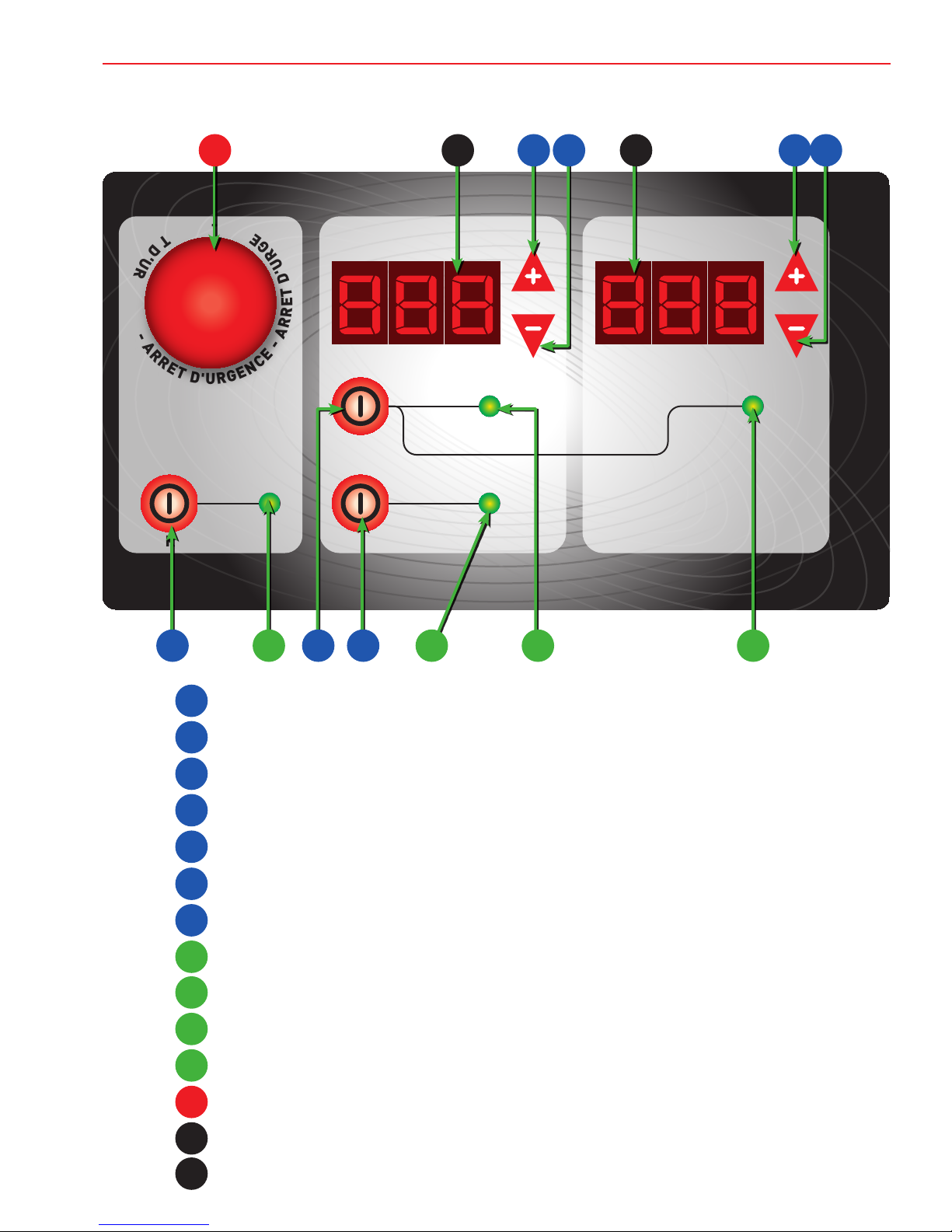

4.3. IDENTIFICATION OF THE COMPONENTS OF THE MACHINE (continued)
ON / OFF : Start / Stop of the machine
DÉPART / STOP : Start / Stop of the working cycle
SOUFFLAGE SEUL : Start of the turbines alone
+ : increase the turbines speed
- : decrease the turbines speed
+ : increase the carding motor speed
- : decrease the carding motor speed
Light power on
Light on : the turbines are running
Light on : the motor is running
Light on : the machine is running with the turbines only
Emergency stop
Shows the setting of the turbines speed in %
Shows the setting of the carding motor speed in %
AU
1
2
3
4
6
5
7
L2
L1
L3
L4
G
CARDAGE
SOUFFLAGE
SEUL
MOTEURTURBINE
DÉPART
STOP
AIR
A
R
R
E
T
D
'
U
R
G
E
N
C
E
-
A
R
R
E
T
D
'
U
R
G
E
N
C
E
-
A
R
R
E
T
D
'
U
R
G
E
N
C
E
-
MARCHE
ARRET
13013
1
AU G H4 65 7
32 L2L1 L4 L3
H

User manual - TURBISOL 164/2 201610-186-ENG
P12
5. USE OF THE MACHINE
5.1. PREREQUISITES
• The electric connection has to be 230 V - 16 A - 50 or 60 Hz with a 3 x 2,5 mm cable reel of 40m
maximum, completely unreeled.
In case of a dysfunction of the machine, one 3 second push on the "ON/OFF" (1) will
allow you to verify that the power supply is over 210V.
5.2. STARTING UP
1. Once the machine has been connected, the machine is in the stop mode, the display (G) shows
"OFF".
2. One push of the "ON/OFF" button (1), the display (G) shows the set value of the turbines speed in
%, the warning light (L1) lights up, the machine is ready.
3. Press the "DÉPART/STOP" button (2), the turbines start. The light (L2) lights up and the light (L3)
ashes.
4. After 6 seconds, the carding motor starts up and the light (L3) remains lighted up.
5. Let the machine run on empty for about 30 seconds to verify its good functionning.
6. The machine is ready for work. Place the bundle of product to spray and make it fall down into the
tank.
7. Use the remote control to start or stop the running of the machine.
8. To modify the product ow-rate, increase or decrease the speed of the carding motor with help of
the (6) and (7) buttons.
9. In "SOUFFLAGE SEUL" mode (light (L4) lighted up), the carding motor does not run.
10.Once the work is done, press the "DÉPART/STOP" button to stop the running. The carding motor
stops (the light (L3) lights off). After 6 seconds the turbines also stop and the light (L2) lights off.

201610-186-ENG User manual - TURBISOL 164/2
P13
6. MAINTENANCE
6.1. ERROR CODES
The different error codes show up on the display (G).
CODE DEFINITION TO DO
No display. Connect the plug, verify the power supply (230V), verify the fuse on
the electric box.
Emergency stop
pressed.
Unhook the emergency stop button (AU).
Machine is in OFF
mode.
Switch on the machine by pressing on the button (1).
Default control
engine.
Turn the machine to "OFF" for one minute, then start it up again.
If the problem persists or if in doubt about the correct working of the machine, do not try to repair the
machine yourself or to dismantle it.
Contact an authorized After-Sale Service or our hotline on : [phone].
6.2. SERVICING
After every use :
• let the machine run until all the product has been evacuated of the tank.
• put the machine in "SOUFFLAGE SEUL" mode (button (3)) to evacuate the last remains of
product from the hose.
• clean the air lter of product propulsion (rectangular lter). The clogging of this lter affects the
machine efciency.
• clean the air lter of the turbines cooling (round foam lter). The clogging of this lter can
overheat the turbines and damage it.
In case of an intensive use of the machine, these lters shall be cleaned up more
regularly.
Stop the machine and clean the lters, then restart working.

User manual - TURBISOL 164/2 201610-186-ENG
P14

201610-186-ENG User manual - TURBISOL 164/2
P15
7. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
Z.I Rousset Parc Club
343 bd Francis Perrin
13106 ROUSSET CEDEX
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : VOLUMAIR
Type : Cotton wadding sprayer
Model : TURBISOL 164/2
COMPLIES WITH:
• the R.233-73 article of the Labour Code
THE DIRECTIVES :
• Machines 2006/42/CE
• Low voltage 2014/35/UE
• CEM 2014/30/UE
• ROHS 2011/65/UE
• Noise emissions 2005/88/CE
AND WITH THE STANDARDS:
• NF EN ISO 12100
• NF EN 60204-1
• NF EN ISO 13857
ROUSSET, APRIL 20th 2016
Patrick BOREL
President
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B

User manual - TURBISOL 164/2 201610-186-ENG
P16

201610-186-ENG User manual - TURBISOL 164/2
P17
8. WARRANTY
8.1. WARRANTY CONDITIONS
• The manufacturer guarentees the products in case of a defect in design or manufacture for a period
of 12 months from the date of invoice.
• The wearing parts are excluded from the warranty.
• Any warranty intervention must be exclusively performed by the manufacturer or an authorized
After-Sale Services.
• The shipping of any product to the manufacturer, for whatever the type of warranty service, is
subject to its acceptance.
• The warranty covers the free of charge repair or the replacement of the defective components
identied by our technicians.
• The warranty is void in case of damages caused by an accident, resulting from negligence, an
incorrect use or installation, improper or not in accordance with the warnings contained in the user
manual.
• The warranty is also void in case of modication or repairs performed by unauthorized staff.
• The warranty excludes any type of compensation in case of damage to persons or problems caused
by incorrect or inappropriate use.
•
This warranty will be applied only to buyers who have complied with the contracual and administrative
standards and will be able to present a specic documentation mentioning the date of purchase.
• This is the only valid warranty recognized by the manufacturer. No one is allowed to deliver another
one, oral or written, or modify its terms.
All our terms of sales and shipping are available on our general catalogue of the ongoing
year and also on our website www.euromair.com.

User manual - TURBISOL 164/2 201610-186-ENG
P18

201610-186-ENG User manual - TURBISOL 164/2
P19
8. WARRANTY (continued)
8.2. CERTIFICATE OF WARRANTY
IT IS COMPULSARY TO RETURN THIS DOCUMENT DULY COMPLETED
BY E-MAIL : [e-mail] OR BY FAX : [phone]
IMPERATIVE
The manual must be provided to the user of the equipment.
It must be read before starting up the machine.
For any intervention under warranty, the purchase invoice must be presented.
WARRANTY
Each product is delivered inspected and tested.
Moreover, it is guaranteed for 12 months from the date of purchase.
This guarantee only applies if the buyer respects the safety regulations, contractual and administrative
standards and if the use was in conformity with the instructions present in the user manual.
Based on this warranty, the manufacturer will repair or replace free of charge any part that can deteriorate
itself or be defective during this period.
The "nal judgment" rests solely with our After-Sale Service technicians.
The guarantee does not cover parts which, because of their specic use, are subject to wear and tear.
If the identied defects could not be attributed to our liability, costs will be charged to the buyer.
MODEL : TURBISOL 164/2 cotton wadding sprayer
SERIAL NUMBER :
DELIVERY NUMBER :
Rousset, dated
Signature of the dealer Signature of the nal user Stamp of the nal user
Distributed by : EUROMAIR DISTRIBUTION
Z .I. Rousset Parc Club, 343 boulevard Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B

User manual - TURBISOL 164/2 201610-186-ENG
P20
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset sur Arc Cedex
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
