Volumair EOLE T1 User manual

EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
Edition of 20/06/2019
USER MANUAL
EOLE T1
Ref. 30945

User manual - EOLE T1 201906-383-ENGP2

201906-383-ENG User manual - EOLE T1 P3
SUMMARY
1. INTRODUCTION...........................................................p. 4
2. USER MANUAL ...........................................................p. 5
2.1. Importance of the manual .................................................p. 5
2.2. Receivers of the manual ..................................................p. 5
3. WARNING.................................................................p. 6
3.1. Safety ...................................................................p. 6
3.2. Electric connection .......................................................p. 8
3.3. End-of-life of the product ..................................................p. 8
4. YOUR MACHINE ..........................................................p. 9
4.1. Description ..............................................................p. 9
4.2. Technical characteristics ..................................................p. 9
4.3. Identication of the components ...........................................p.10
5. USE OF THE MACHINE....................................................p.11
5.1. Prerequisites.............................................................p.11
5.2. Atomization ..............................................................p.12
5.3. Spray setting.............................................................p.12
6. MAINTENANCE ...........................................................p.13
7. DECLARATION OF CONFORMITY .........................................p.15
8. WARRANTY...............................................................p.17
8.1. Warranty conditions ......................................................p.17
8.2. Warranty certicate .......................................................p.19

User manual - EOLE T1 201906-383-ENGP4
1. INTRODUCTION
You just acquired an EOLE T1 turbine and all the team of Europe Projection thanks you for the
condence you have granted us.
Manufacturer of professional equipments for paint and llers, we have put our know-how for 20 years
at the service of the users of our machines.
Our technical and commercial team is at your disposal for any further information you may need about
the machine you just acquired.
EUROPE PROJECTION
228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

201906-383-ENG User manual - EOLE T1 P5
2. USER MANUAL
2.1. IMPORTANCE OF THE MANUAL
This manual is a key part for the use of your machine. It summarizes the procedures of starting-up,
cleaning and maintenance of the device and also the safety instructions you need to observe.
Read carefully all the working and safety instructions and the warnings included in this manual before
starting your machine.
Most of the accidents are caused by the non-compliance of the safety standards and rules.
This manual must be kept near the machine, within reach of the user and held in good condition until
the nal destruction of the machine.
In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on
page 4 for a copy at any moment.
2.2. RECEIVERS OF THE MANUAL
This manual is intended to any staff which will manipulate the machine :
- people in charge of the transport of the machine
- people in charge of the use of the machine
- people in charge of the cleaning and maintenance of the machine
- people in charge of the nal destruction of the machine

User manual - EOLE T1 201906-383-ENGP6P6
3. WARNING
3.1. SAFETY
Using the machine in an incorrect way or in non-compliance of the safety instructions
indicated in this manual can cause death or serious injuries.
Read carefully all the working and safety instructions and the warnings contained in this
manual before starting your machine.
• Respect all the safety standards before running the equipment.
• Use the equipment only for the applications specied in the manual.
• Always remain alert when using the equipment.
• Transport the machine using the handles or the appropriate grips.
• During the breaks, disconnect electrically the machine.
• Run the equipment to its nominal voltage.
• Let at least 50 cm of free space between the equipment and any obstacle so that the air
ow is not blocked.
• Know how to quickly stop the equipment in case of necessity.
• Never use the equipment while it is running abnormally or it is defective.
• Do not direct a water jet or ammable liquid on the machine.
• Never direct an air jet or product jet on a person or an animal.
• Do not touch warm surfaces of the equipment.
• Always wear adequate body protections (glasses, gloves, overall and mask) and pay
attention to long hair.
• Never touch moving parts.
• Do not insert any object or the hands inside the protection grids to avoid any accident or
damage to the machine.
• For any outside job, only use appropriate extension cords.
• Maintain the equipment carefully and clean it properly after every use.
• Disconnect the equipment before any intervention.
• Avoid absolutely to unscrew any connection while the machine is under pressure.
• Check the damaged parts.
• Do not clean the plastic parts with solvant.
• In case of damage of the electric cable or the plug, do not run the machine and contact a
licensed After-Sale Service to put genuine parts instead of the defective ones.
• In case of needed After-Sale Service, always specify the machine model and its serial
number.
• For any replacement of parts, only use genuine parts.

201906-383-ENG User manual - EOLE T1 P7P7
3. WARNING (continued)
3.1. SAFETY (continued)
• Do not modify the machine.
• Do not cut or dismantle the protection grids.
• Do not open the electric box.
WORKSPACE
• Maintain the workspace clean and clear.
• Ambient operating temperature must be from 5°C and 35°C.
• Do not use the equipment in a potentially explosive area.
• Do not place any potentially inammable objects in close proximity to the machine.
• Take away every not qualied person from the working area of the machine, as well as children
and animals.
• In case of installation of the machine on scaffolding or a plan above ground level, attach the machine
to avoid any fall while operating.
• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.
STORAGE
• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.
IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL
MODIFICATION WITHOUT ADVANCED NOTICE.

User manual - EOLE T1 201906-383-ENGP8
3. WARNING (continued)
3.2. ELECTRIC CONNECTION
The electric connection of the machine must be on a 16A - 230V plug.
Before any intervention on the machine, make sure that every energy supply is cut (air and
electricity).
Electric connection must be made by a qualied technician. It is fobidden to modify or dismantle the
machine, especially the electric box.
Repairs must be made by an authorized center or our After-sale Service.
EXTENSION CORDS
During the use of an extension cord, make sure that it is not crushed or damaged and that it contains a
ground. Check that the section of the used extension cord is sufcient to support the machine when it
is working. A too thin extension cord can cause voltage drops or overheating of the machine.
In case of use of a cable reel, it is imperative to unwind it entirely, otherwise, the equipment can be
damaged. The section must be proportional to the length of the cord.
3.3. END OF LIFE OF THE PRODUCT
At its end-of-life, the machine must not be eliminated with the other household waste. The
uncontrolled elimination of waste can harm the environment or human health. Individuals are
invited to contact the distributor which sold them the product or to inquire with their city hall
to know where and how to get rid of the product so it can be recycled while respecting the
environment.
Under the regulation of Waste of Electrical and Electronic Equipments (WEEE), we undertake
to process the used EEEs according to the following provisions: applicable only to products on
the market since 08/13/05, under the brands EUROPE PROJECTION or VOLUMAIR, products
of other brands sold by our company (upon presentation of the corresponding invoices),
products that operate using electrical energy (for example, thermal washers or compressors
do not fall into this category).
Treatment modality
WEEE returns collected by our clients/distributors at their own expense to our collection points
in Antony (92) or Rousset sur Arc (13). Upon receipt, the products are sorted by our employees
and directed to the most appropriate processing channels.
For any further information, contact our hotline [phone] or [e-mail].

201906-383-ENG User manual - EOLE T1 P9
4. YOUR MACHINE
4.1. DESCRIPTION
The smallest turbine on the market.
Manoeuvrable, light, easy to use, it is ideal for small jobs. Versatile, it allows all types of product to be
applied: lacquers, varnishes, multi-coloured products, etc.
Do not use products which are too heavy (see tables page 11).
4.2. TECHNICAL CHARACTERISTICS
TURBINE
Stages 1
Pressure 0,2 bar
Air ow-rate 1450 L/min
Air ow-rate adjustment no
Power 175 W
Electrical supply 230 V / 0,8 A / 50 and 60 Hz
Noise level 89 Lwa
SPRAY-GUN
Product ow-rate adjustment yes
Jet width adjustment no
Air pressure adjustment no
Bowl capacity 1 L
Dimensions (L x w x h) 22 x 12 x 36 cm
Weight 1,8 kg
Delivered with
- 1 turbine spray-gun equipped with a ø
1.5 mm nozzle
- 1 viscosimeter
- 1 cleaning brush
- 1 unplugging brush
- 1 multi-use wrench

User manual - EOLE T1 201906-383-ENGP10
4. YOUR MACHINE (continued)

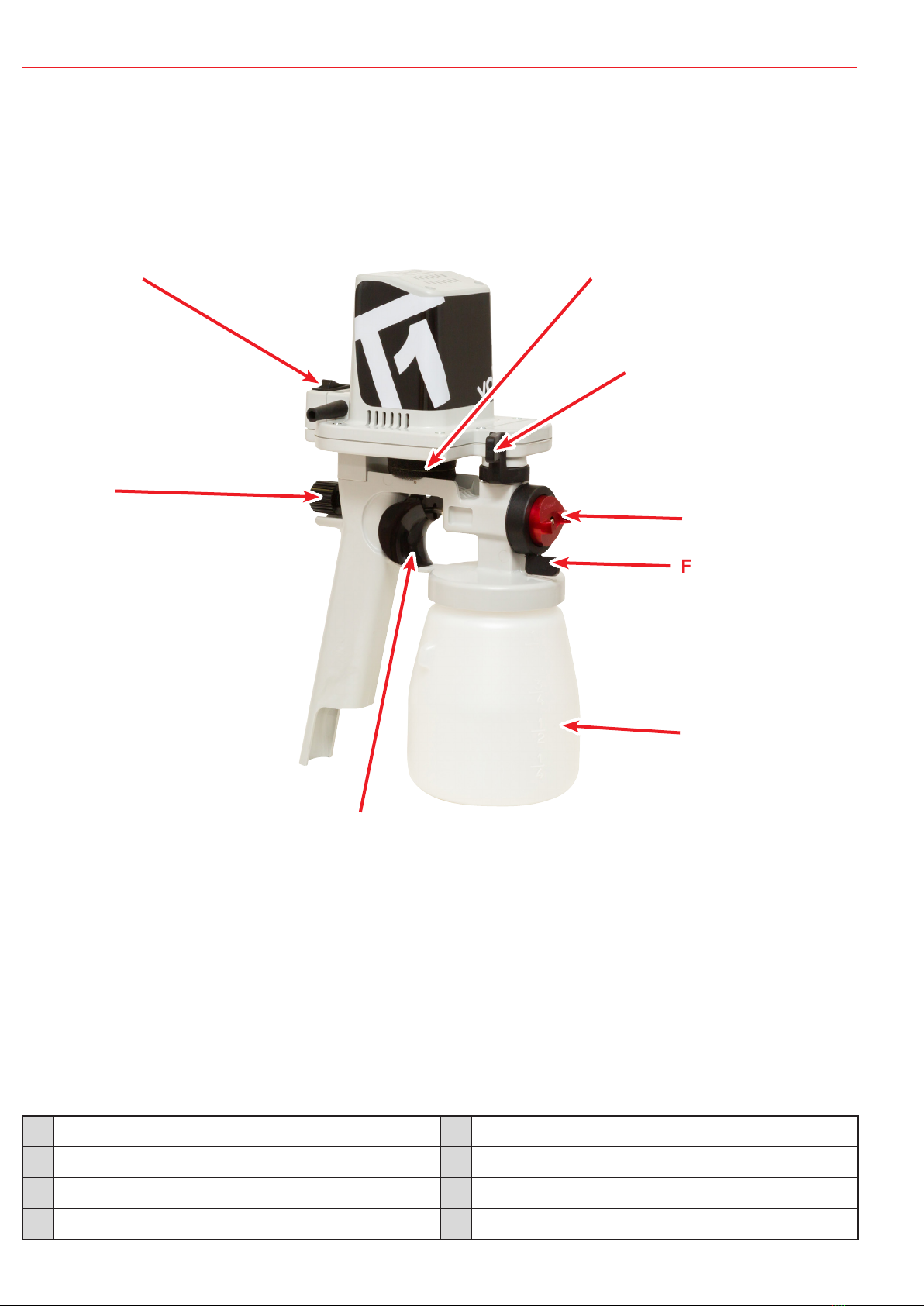

4.3. IDENTIFICATION OF THE COMPONENTS
ASwitch ENozzle
BFlow-rate adjustment wheel FNozzle tightening ring
CTrigger GBowl
DTurbine tightening ring HAir lter foam
A
B
C
G
F
E
D
H

201906-383-ENG User manual - EOLE T1 P11
5. USE OF THE MACHINE
5.1. PREREQUISITES
• The electric connection has to be 230 V - 16 A - 50 or 60 Hz.
• Be careful to only use paints which have not dried and which do not contain dry particles (otherwise,
lter the paint with a strainer).
• Before use, verify the air lter foam (H). Replace it if it is used or missing by loosening the ring (D).
• Choose the ideal needle kit depending on the paint which will be used. To change the nozzle,
loosen the ring (F)
So that the paint is at the ideal viscosity, use the viscosimeter delivered with the
turbine.
1. Dilute a part of the paint with the appropriate thinner.
2. Fill the viscosimeter to the top and allow the liquid to ow and monitor the time it takes
until the trickle of paint becomes discontinuous.
3. Check to see if the time corresponds to the indications in the table below:
- if the time is longer, increase the dilution
- if the time is less, add more paint
BUILDING PAINT INDUSTRIAL PAINT
PRODUCTS TIME PRODUCTS TIME
Oil paint 25 à 30 sec. Hammered nish 30 à 50 sec.
Vinyl paint 30 à 35 sec. Anti-rust 25 à 33 sec.
Acrylic paint 30 à 35 sec. Lacquer, polyurethane 25 à 30 sec.
Pliolite 35 à 40 sec. Lacquer, synthetic 22 à 27 sec.
Lacquer, brilliant, satin 25 à 27 sec. Varnish, synthetic 20 à 22 sec.
Mat ceiling paint 25 à 30 sec. Cellulosic 18 à 22 sec.
Anti-rust 25 à 33 sec. Chromate and Wash-primer 18 à 22 sec.
Impression 20 à 25 sec. Metallised 18 à 20 sec.

User manual - EOLE T1 201906-383-ENGP12
5. UE OF THE MACHINE (continued)
5.2. ATOMIZATION
• Prepare the surface to be painted (sanding, cleaning, etc...).
• Fill the bowl with paint (around 3/4 of the bowl).
• Connect the turbine electrically and press the switch (A).
• For an optimal atomization, hold the spray-gun as horizontal a possible. The paint jet has to be
perpendicular to the surface to be painted, with a distance of about 20 cm.
• Proceed by crossed sections, horizontal and vertical, directing the diffuser head as needed.
• Move the spray-gun with an uniform movement and a regular speed. Release the trigger at the end
of each section.
If the movement is too rapid, the risk of paint lack will be important. If, otherwise, the
movement is too slow, bleeding may occur.
• To avoid bleeding, press the trigger only after having begun the movement of the spray-gun.
• Do not try to cover everything in one layer, prefer applying a second one.

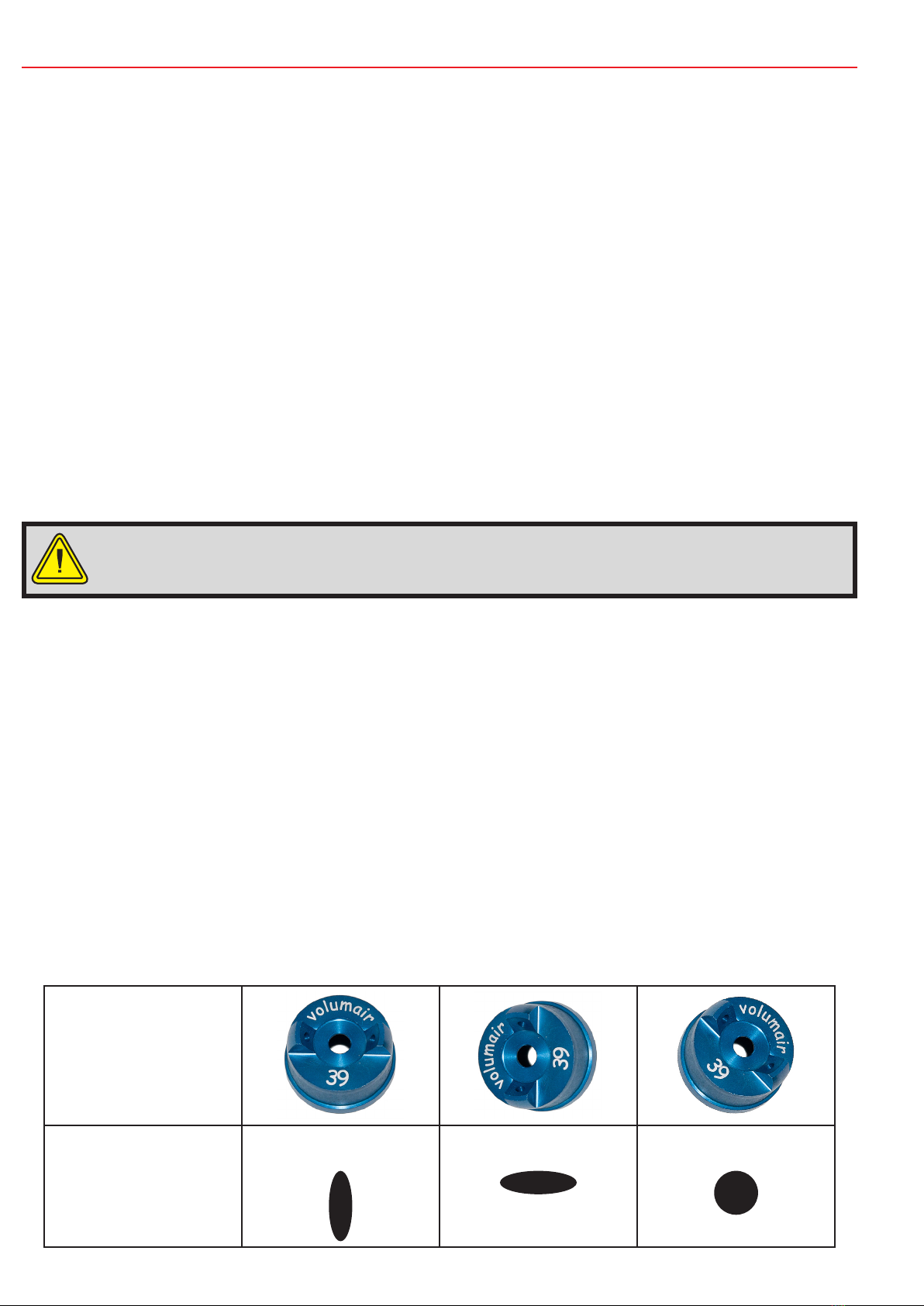

5.3. SPRAY SETTING
To increase or decrease the product ow-rate, use the wheel (B) at the back of the spray-gun:
- screw to decrease the ow-rate
- unscrew to increase the ow-rate
To obtain differents jets, direct the diffuser head as indicated below:
Head position
Spray render
Vertical at spray Horizontal at spray Round spray

201906-383-ENG User manual - EOLE T1 P13
6. MAINTENANCE
Disconnect the plug of the machine from the mains voltage before any intervention.
In case of a prolonged standstill or every week :
• dismantle and clean the atomizing kit (air head, nozzle, needle)
• clean the inside of the spray-gun with little pins and solvant, as well as the tubes
• oil the moving parts of the spray-gun with a very uid oil
• grease with a consistent grease every thread pitch, the front side of the needle nozzle, the 2 springs
and the centring nut which slides into the back plug
• verify and tighten the nut gland if needed
The direct projection of water under pressure onto the control panel has to be
stopped at the risk of water inltration into the electric box. Proceed by simply
cleaning with a humid sponge.

User manual - EOLE T1 201906-383-ENGP14

201906-383-ENG User manual - EOLE T1 P15
7. DECLARATION OF CONFORMITY
THE MANUFACTURER : EUROPE PROJECTION
228, avenue Olivier Perroy
13790 ROUSSET
DECLARES THAT THE EQUIPMENT DESIGNATED BELOW :
Trademark : VOLUMAIR
Type : HLVP turbine
Model : EOLE T1
COMPLIES WITH THE ARTICLE:
• the R.233-73 article of the Labour Code
THE DIRECTIVES :
• Machines 2006/42/CE
• Low voltage 2014/35/UE
• CEM 2014/30/UE
• ROHS 2011/65/UE
AND WITH THE STANDARDS:
• NF EN ISO 12100
• NF EN 60204-1
• NF EN ISO 13857
ROUSSET, FEBRUARY 16th 2019
Patrick BOREL
President
Distributed by : EUROMAIR DISTRIBUTION
228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

User manual - EOLE T1 201906-383-ENGP16

201906-383-ENG User manual - EOLE T1 P17
8. WARRANTY
8.1. WARRANTY CONDITIONS
Each product is delivered inspected and tested.
We exclude any warranty for visible defects for which the customer did not claim within 48 hours.
The sold equipments are covered by the warranty for the period dened by the manufacturer from the
purchase date, onwards the date on the original proof of purchase being valid.
This warranty covers any equipment against any manufacturing or material defect for normal use and
service.
The defects or deteriorations caused by natural wear, external accidents or a modication, use, storage
or treatment of equipments not planned by the manufacturer, nor specied by ourselves, are excluded
from any warranty.
Are expressly excluded from the warranty the defects coming from:
- a bad use
- the application of abrasive or corrosive products
- an inappropriate installation
- negligence
- an insufcient maintenance or cleaning
- chemical, electrochemical or electric inuences
- any change in the normal process of use
The following wearing parts are not covered by the warranty:
- rotors, stators, driving shafts, connecting rods, seals, cleaning balls
- spray guns, lance, nozzle, hose, needle kits
- cylinders, piston rods, prime/spray valve assy, seal kits, membranes, suction and delivery valves
- carding machine vanes
- lters, oils
The warranty also excludes the equipments:
- on which the serial number was erased or made illegible
- on which unauthorized people made attempts of repair
- which were totally or partially dismantled
Our equipments are covered by a warranty (parts and labour) of 12 months following the purchase.
The duration of this warranty can be extended by 6 months by completing the warranty extension form
on our website within 4 weeks after purchasing: www.euromair.com (section «Warranty»)
The defective equipments must be sent at the customer’s charge in the place we shall have specied
him. The warranty will be subject to the presentation of the invoice. Then we will be able to proceed,
free of charge, to the repair of the defective equipment.
The equipments repaired (under warranty) will be shipped free of charge to the customer during the
rst year of warranty.
Beyond this date, the transport of the repaired equipment will be chargeable to the customer.
In case of intervention of our services on a breakdown caused by the customer or a breakdown excluded
in the above-mentioned conditions, the costs of repair and transport will be charged to the customer.
We exclude any responsibility for any consequential damages suffered by the customer, such as, but
this without restriction, the losses of income, turnovers, loss of image, of whatever nature.
In any case, our responsibility will be limited to the amount paid by the customer for the defective
equipments.
Any action of the customer against us relative to the warranty of the equipments will be prescribed to
the deadline of 1 year from the day of the discovery of the cause of the action.

User manual - EOLE T1 201906-383-ENGP18

201906-383-ENG User manual - EOLE T1 P19
8. WARRANTY (continued)
8.2. CERTIFICATE OF WARRANTY
IT IS COMPULSARY TO RETURN THIS DOCUMENT DULY COMPLETED
BY E-MAIL : [e-mail] OR BY FAX : [phone]
IMPERATIVE
The manual must be provided to the user of the equipment.
It must be read before starting up the machine.
For any intervention under warranty, the purchase invoice must be presented.
WARRANTY
Each product is delivered inspected and tested.
Moreover, it is guaranteed for 24 months from the date of purchase.
This guarantee only applies if the buyer respects the safety regulations, contractual and administrative
standards and if the use was in conformity with the instructions present in the user manual.
Based on this warranty, the manufacturer will repair or replace free of charge any part that can deteriorate
itself or be defective during this period.
The "nal judgment" rests solely with our After-Sale Service technicians.
The guarantee does not cover parts which, because of their specic use, are subject to wear and tear.
If the identied defects could not be attributed to our liability, costs will be charged to the buyer.
MODEL : HVLP turbine EOLE T1
SERIAL NUMBER :
DELIVERY NUMBER :
Rousset, dated
Signature of the dealer Signature of the nal user Stamp of the nal user
Distributed by : EUROMAIR DISTRIBUTION
228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

User manual - EOLE T1 201906-383-ENGP20
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET
Tél : [phone] – Fax : [phone]
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
