Volvo XC60 2011 Quick start guide

WIRING DIAGRAM 2011
VOLVO XC60
TP 39181202

© Volvo Car Corporation
Vehicles with SRS (Airbag)/SIPS bag/
IC (Inflatable Curtain)
Warning!
Extra caution must be exercised when working on vehicles equipped with SRS/SIPS bag/IC
in order to avoid:
1. Personal injuries when performing repair work.
2. Damage or malfunction of the SRS/SIPS bag/IC system.
Work involving the SRS/SIPS bag/IC systems or other components in the vehicle that may
affect the SRS/SIPS bag/IC systems must always be performed by an authorized Volvo
workshop.
In case of doubt, consult the SRS and SIPS bag/IC service manual.
Is the vehicle equipped with SRS/SIPS bag/IC?
Vehicles with SRS are most easily recognized by the letters SRS in the center of the steering
wheel. If the vehicle also has a passenger side airbag, the letters SRS are stamped on the
dashboard above the glove compartment. SRS vehicles from 1993 and onward also have
explosive seat belt tensioners. SIPS bags are only installed on SRS vehicles from 1995 and
onward. SIPS bag decals are located on the windshield and seat compartment. Vehicles with
IC can be recognized by the letters IC on the C/D panel (4 door) or the B panel (5 door).
General recommendations
• Be especially careful when working on or around SRS, SIPS, and IC components.
• Make sure that no wires are pinched, frayed, or pierced.
• Never install accessories by the sensors.
• Where applicable, work on the steering wheel, steering shaft, or steering gear must be done
in accordance with the methods in the SRS section of VIDA.
• Certain components of the aforementioned systems must be grounded while working. Read
the appropriate sections in VIDA.
• Install no accessories in the areas between the A and B-posts, the B and C-posts, and the C
and D-posts.
Test terminal
Data link connector in the passenger compartment.
Changes introduced up to May 2010
Any changes made to the vehicles after this date are not included in the manual. If necessary
refer to service bulletins.
Volvo models are sold in versions adapted for different markets. These adaptations depend
on factors such as legal requirements, taxation, and market demands.
This manual may therefore include illustrations and text that do not apply to the vehicles in
your country.
Ordering:
Electronic Wiring Diagrams (EWDs) can be ordered from the Technical Information Shop
(TIS) at www.volvocarstechinfo.ford.com/vss
We reserve the right to make modifications.

TP39181202 XC60 2011 3
Vehicles with SRS (Airbag)/SIPS bag/
IC (Inflatable Curtain)..................................................... 2
Explanations .................................................................. 6
Abbreviations................................................................. 6

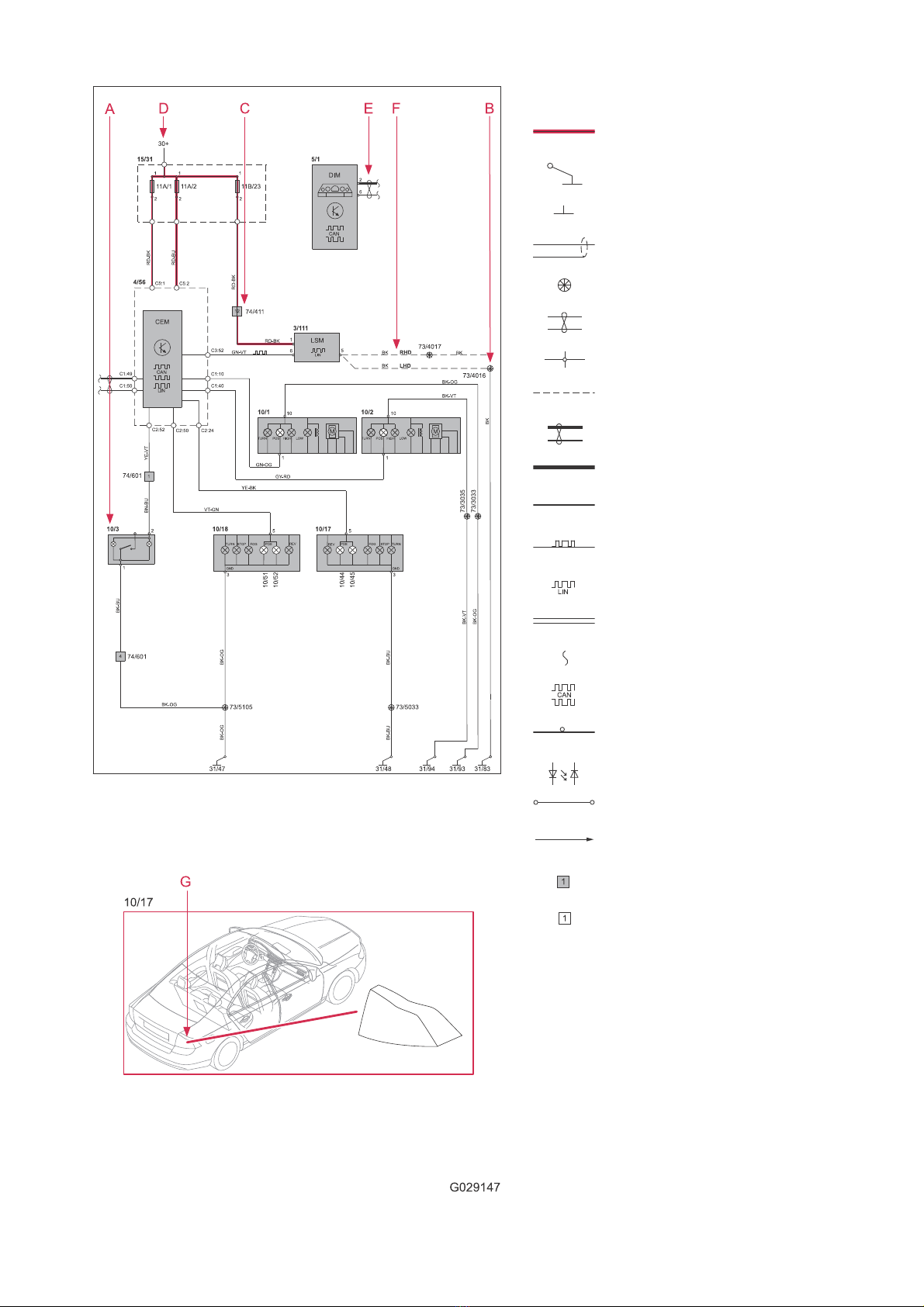

How to use the wiring diagrams 1:2............................... 7

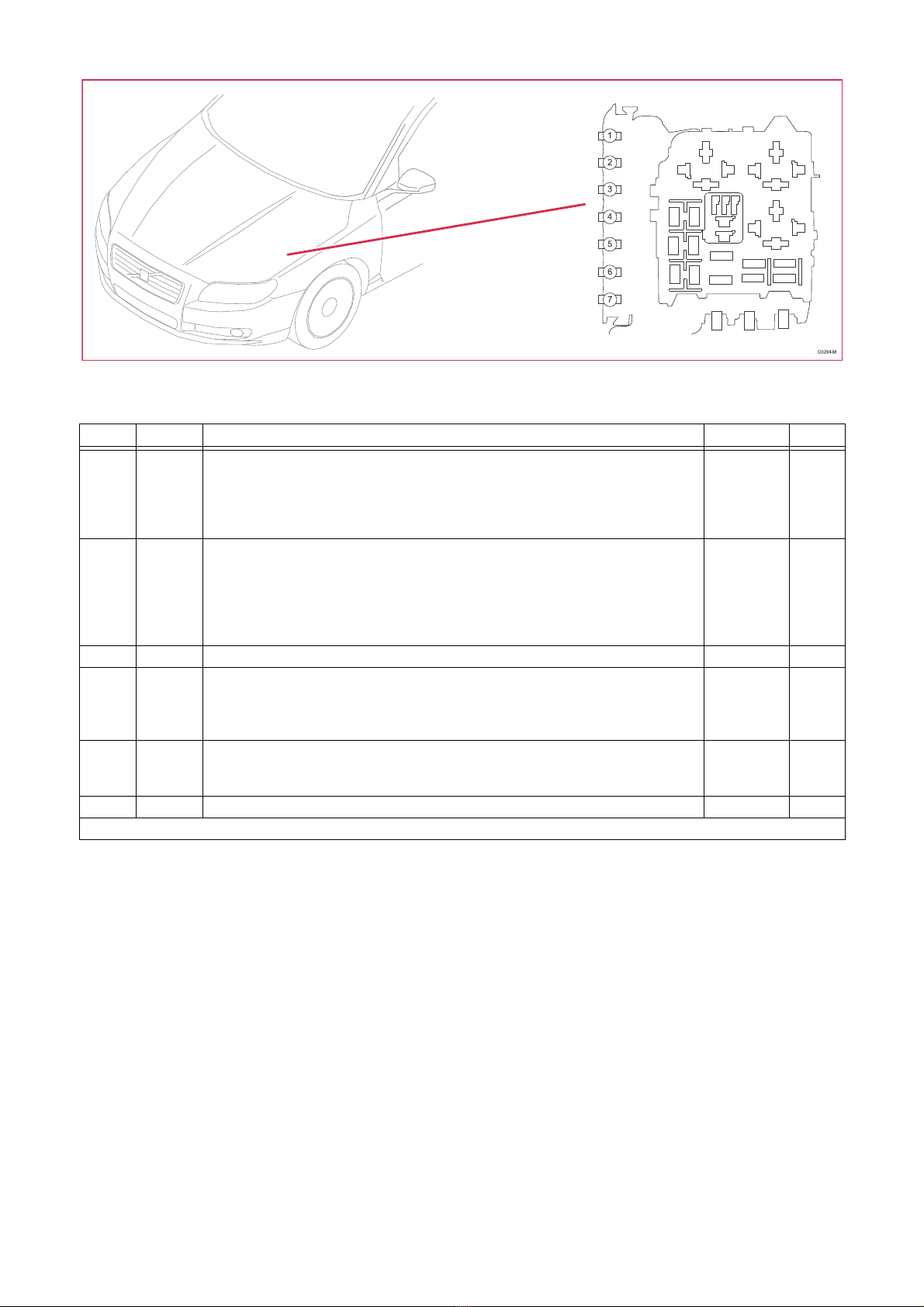

Overview, Electrical center and Cold zone in engine
compartment.................................................................. 9
Overview, Distribution box in cargo compartment ....... 10
Overview, Distribution box in passenger compartment 11
Fuses

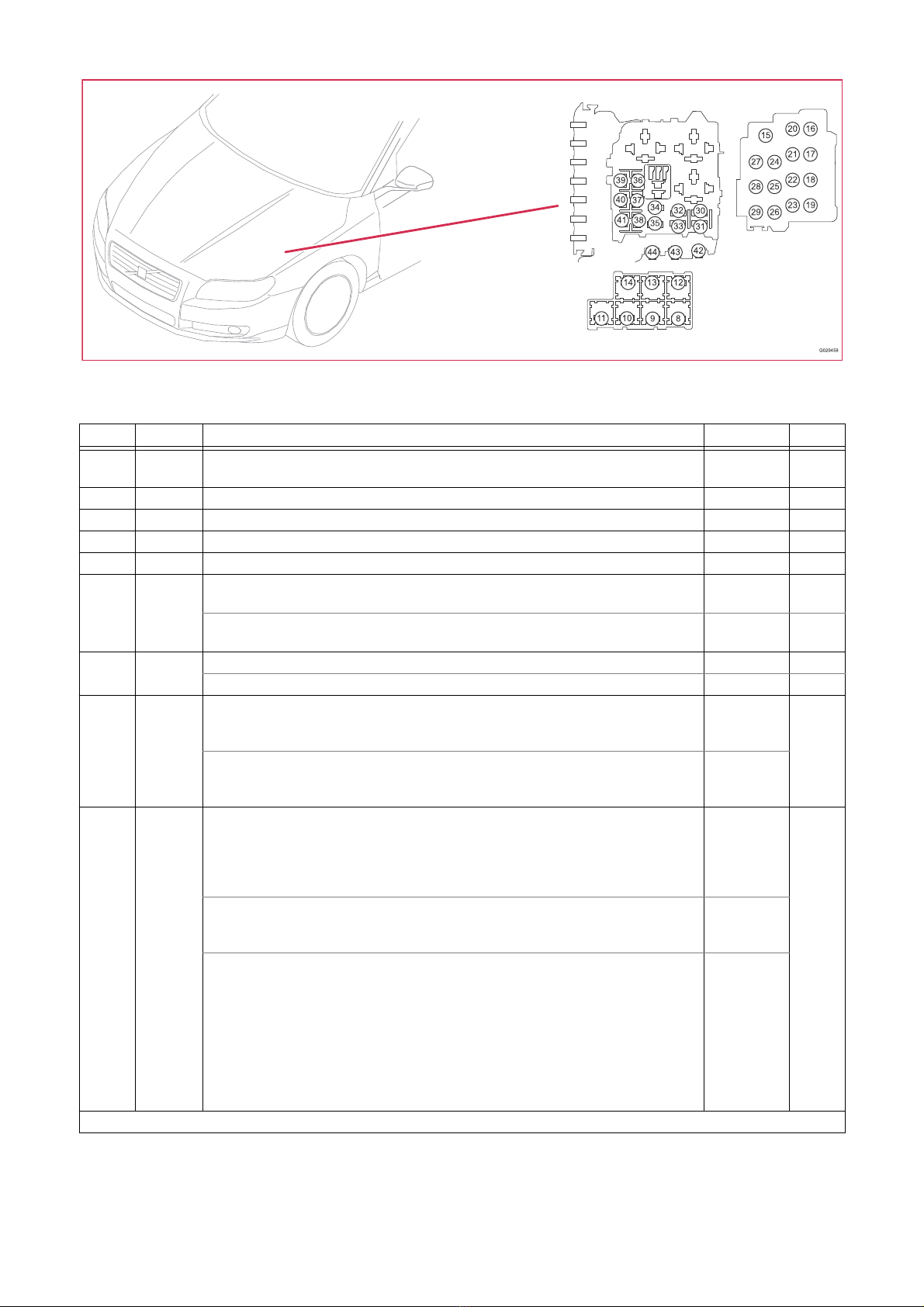

Distribution box in engine compartment F1-F7............. 12
Distribution box in engine compartment F8-F29........... 13
Distribution box in engine compartment F30-F38......... 14
Engine compartment electrical center F39-F44............ 15
Central Electronic Module (CEM) F1 - F13................... 16
Central Electronic Module (CEM) F14 - F24................. 17
Distribution box in passenger compartment F1 - F19... 18
Distribution box in passenger compartment F21 - F30. 19
Distribution box in cargo compartment FA1-FA11........ 20
Battery PF1-PF2........................................................... 21
Relays
Relays in the engine compartment R1-R8................... 22
Relays in the engine compartment R10-R13............... 23
Relays in passenger and cargo compartments ........... 24
Ground connections
Overview...................................................................... 25
31/1 - 31/7 ................................................................... 26
31/10 - 31/15 continues ............................................... 27
31/15 - 31/68 ............................................................... 28
31/83 - 31/89 ............................................................... 29
31/90 - 31/XX10........................................................... 30
31/XX14 - 31/TRM....................................................... 31
Control modules
Overview locations....................................................... 32
Overview designations................................................. 33
Central Electronic Module (CEM) 1:3 .......................... 34
Data communication high speed CAN......................... 37
Data communication intermediate speed CAN, LHD... 38
Data communication intermediate speed CAN, RHD .. 39
Data communication Local CAN.................................. 40
Data communication MOST......................................... 41
Data communication, LIN 1:2 ...................................... 42
Steering Wheel Module (SWM) ................................... 44
Group 23 Fuel system
Engine management system, 5-Cyl.
Diesel EURO5 1:3........................................................ 45
Engine management system, 4-Cyl. Turbo 1:2............ 48
Engine management system 6-Cyl. 1:2....................... 50
Engine management system 6-Cyl. B6324S4 1:2 ....... 52
Engine management system, 6-Cyl. Turbo 1:2............ 54
Emission control 4-Cyl. Turbo...................................... 56
Emission control 6-Cyl. ................................................ 57
Group 26 Cooling system
Cooling fan 4-Cyl. Turbo.............................................. 58
Cooling fan 5-Cyl. Diesel EURO5 ................................ 59
Cooling fan 6-Cyl. ........................................................ 60
Group 27 Engine controls
Cruise control 4-Cyl. Turbo ...........................................61
Cruise control 5-Cyl. Diesel ..........................................62
Cruise control 6-Cyl. .....................................................63
Group 32 Alternator and voltage regulator
Power supply 4-Cyl. Turbo........................................... 64
Power supply 5-Cyl.&6-Cyl. ......................................... 65
Group 33 Starting system
Starting system 4-Cyl. Turbo ....................................... 66
Starting system, 5-Cyl. & 6-Cyl.................................... 67
Group 35 Lighting
High and low beam ...................................................... 68
High and low beam (Dual Xenon) ................................ 69
Beam length adjustment, manual ................................ 70
Running/Parking light, Tail lights.................................. 71
Running/Parking light, Tail lights (Dual Xenon) ........... 72
Fog lights ..................................................................... 73
Brake lights .................................................................. 74
Reversing lights ........................................................... 75
Follow-me-home lighting LHD...................................... 76
Follow-me-home lighting RHD..................................... 77
Interior lighting, LHD 1:2 .............................................. 78
Interior lighting, RHD 1:2.............................................. 80
Active headlight ........................................................... 82
Lighting in door sill trims .............................................. 83
Auxiliary lights.............................................................. 84
Table of Contents 1:3

TP39181202 XC60 2011 4
Group 36 Additional electrical equipment
Rain sensor.................................................................. 85
Direction indicator and hazard warning flashers LHD . 86
Direction indicator and hazard warning flashers RHD . 87
Wiper/Washer windshield ............................................ 88
Washer headlights....................................................... 89
Wiper/Washer rear window.......................................... 90
Horn ........................................................................ 91
Keyless vehicle 1:2 ...................................................... 92
Anti-theft alarm ............................................................ 94
Parking assistance....................................................... 95
Collision warning with power brake booster ................ 96
Tire pressure monitoring system (TPMS) .................... 97
Alcohol lock.................................................................. 98
Group 37 Wiring and fuses
Diagnostics system...................................................... 99
Outlet 12 V................................................................. 100
Cable harness towbar/tow hitch 4-pin ....................... 101
Cable harness towbar/tow hitch 7-pin........................ 102
Cable harness towbar/tow hitch 13-pin...................... 103
USB unit (AUU).......................................................... 104
Group 38 Instruments
Seat belt reminder ..................................................... 105
Driver information module.......................................... 106
Group 39 Other
Audio High/Premium 1:3............................................ 107
Audio 1:2 ................................................................... 110
Cellular phone 1:2...................................................... 112
DAB Radio................................................................. 114
Multimedia monitor with DVD, Dual Screen............... 115
Telephone system Bluetooth ..................................... 116
Bluetooth Handsfree.................................................. 117
Multimedia & Traffic information ................................ 118
Satellite radio............................................................. 119
Parking camera.......................................................... 120
Parking camera rear .................................................. 121
Traffic information LHD, China .................................. 122
Traffic information RHD, Japan ................................. 123
Navigation system, Portable ...................................... 124
Group 43 Transmission
Automatic transmission TF-80SC .............................. 125
Transmission M66...................................................... 126
Automatic transmission MPS6................................... 127
Differential electronic module (DEM) ......................... 128
Group 55 Parking brake
Electric parking brake ................................................ 129
Group 59 Brake system
Brake control system & DSTC ................................... 130
Group 64 Steering
Speed dependent power steering .............................. 131
Group 76 Shock absorbers
Four-C ...................................................................... 132
Group 83 Doors and openings
Central locking front doors LHD................................. 133
Central locking front doors RHD ................................ 134
Central locking rear doors.......................................... 135
Central locking tailgate............................................... 136
Signal receiver central locking ................................... 137
Central locking fuel filler flap...................................... 138
Power windows front doors LHD................................ 139
Power windows front doors RHD ............................... 140
Power windows rear doors......................................... 141
Power sunroof............................................................ 142
Group 84 Exterior decorative elements, etc.
Power door mirrors LHD ............................................ 143
Power door mirrors RHD............................................ 144
Heated door mirrors LHD........................................... 145
Heated door mirrors RHD .......................................... 146
Blind spot information system LHD............................ 147
Blind spot information system RHD ........................... 148
Heated rear window................................................... 149
Table of Contents 2:3

TP39181202 XC60 2011 5
Group 85 Interior equipment
Power driver’s seat with memory function, LHD ........ 150
Power driver’s seat with memory function, RHD ....... 151
Power passenger seat, LHD...................................... 152
Power passenger seat, RHD ..................................... 153
Heated front seats ..................................................... 154
Heated rear seat........................................................ 155
Group 87 Climate control system
Climate control system, 4-Cyl. 1:2............................. 156
Climate control system 5-Cyl. & 6-Cyl. 1:2 ................ 158
Climate control system PTC-elements ...................... 160
Parking heater, auxiliary heater ................................. 161
Parking heater, remote start ...................................... 162
Group 88 Internal equipment
Rear-view mirror with automatic dimming.................. 163
Supplemental restraint system 1:2 ............................ 164
Remote control opener garage door.......................... 166
Connectors .............................................. 167
Branching points .....................................201
Cable harness routing in vehicle
Harness engine 4-Cyl. Turbo...................................... 218
Engine harness, 6-Cyl.................................................218
Harness engine, 6-Cyl. Turbo .....................................219
Harness engine, Diesel 2.0l ........................................219
Harness engine, Diesel 2.4l ........................................220
Engine compartment harness.....................................221
Dashboard harness, LHD ...........................................222
Harness Dashboard, RHD ..........................................223
Floor Harness, LHD ....................................................224
Floor Harness, RHD....................................................225
Harness infotainment, LHD.........................................226
Harness infotainment, RHD ........................................227
Roof harness ..............................................................228
Center console harness..............................................228
Tunnel harness ...........................................................229
Harness front door, left ...............................................230
Harness front door, right .............................................230
Harness rear door, left ................................................231
Harness rear door, right..............................................231
Tailgate harness .........................................................232
Harnesses rear axle....................................................232
Component illustrations ..........................233
Index 1:2 ....................................................287
List of components 1:6
Table of Contents 3:3

TP39181202 XC60 2011 6
Explanations
Abbreviations
Groups
Group 23 = Fuel system
Group 26 = Cooling system
Group 27 = Engine controls
Group 32 = Alternator and voltage regulator
Group 33 = Starting system
Group 35 = Lighting
Group 36 = Additional electrical equipment
Group 37 = Wiring and fuses
Group 38 = Instruments
Group 39 = Other
Group 43 = Transmission
Group 55 = Parking brake
Group 59 = Brake system
Group 64 = Steering
Group 76 = Shock absorbers
Group 83 = Doors and openings
Group 84 = Exterior decorative elements, etc.
Group 85 = Interior equipment
Group 87 = Climate control system
Group 88 = Internal equipment
Ignition switch symbols
X = Accessories (audio position)
S = Powered upon insertion of key
15 = Contact remains connected during
start
15l = Contact is broken while starting
30 = Constant power from the battery
50 = Start
Countries/Markets
A = Austria
AUS = Australia
B = Belgium
CDN = Canada
CH = Switzerland
D = Germany
DK = Denmark
E=Spain
EU/OS = Markets outside USA and Canada
FIN = Finland
GB = Great Britain
ISR = Israel
J = Japan
KOR = Korea
N=Norway
NL = Netherlands
S = Sweden
USA = United States of America
WEU = Western Europe
Other
ACC = Adaptive Cruise Control
Ag = Silver plated
Au = Gold plated
AUTO = Automatic transmission
BLIS = Blind spot information system
CAN = CAN communication
DPY = Display
ECC = Electronic climate control system
ETA = Throttle unit
EXC = Exclusive
GDL = Gas discharge lamp
HS = High speed data bus
KEYLESS = Keyless vehicle
IR = Infrared sensor
LIN = LIN communication
LH = Left-hand side
LHD = Left-hand drive
MAN = Manual transmission
MEMORY = Memory driver’s seat
MIRCAM = Parking camera in rear-view mirror
MS = Midspeed data bus
MMS = Mass Movement Sensor
PANROOF = Panoramic roof
PETROL = Gasoline
RH = Right-hand side
RHD = Right-hand drive
RTI = Road Traffic Information
SCR = Screened
SRS = Airbag
T = Turbocharged engine
W/O = Without
2WD = Two-wheel drive
4CYL, I4 = 4-cylinder engine
5CYL, I5 = 5-cylinder engine
6CYL, I6 = 6-cylinder engine
Colors
BK, SB = Black
BN = Brown
BU, BL = Blue
GN = Green
GY, GR = Gray
LGN = Light Green
NL = Natural
OG, OR = Orange
PK, P = Pink
RD, R = Red
VT, VO = Violet
WH, W = White
YE, Y = Yellow

TP39181202 XC60 2011 7
The descriptions below apply in general
to all wiring diagram manuals, although
not all sections are necessarily con-
tained in this manual.
The systems are shown in non-active
status. i.e. with "key removed" and when
the doors, hatches and hood are closed.
How to use the wiring diagrams 1:2
A. Component designation
Every component has a component designation that
consists of two parts.
The first part is a type number that describes the
type of component in question, for example 3/xx.
The second part of the designation is a serial num-
ber, e.g. x/2.
Together, this constitutes a component designation,
e.g. 3/2.
At the end of the manual is a list of components,
where, with the help of the component designation,
you can read off the name of the component, for
example, 3/2 = light switch.
List of type numbers
The list shows which type of component that respec-
tive type numbers refer to, for example, 3/x = switch,
6/x = electric motor, etc.
1 Battery
2Relay
3 Switch
4 Control module
5 Driver information module
6 Electric motor
7Sensor
8 Actuator
9 Heating element
10 Light
11 Fuse
15 Electrical distribution rail/box
16 Audio
17 Service/diagnostics
18 Contact reel
19 Meter
20 Ignition component/shunt
27 Optics
31 Ground connection
73 Branching point
74 Connector
B. Branching points
The wiring diagrams contain numbered branching
points, for example 73/5035.
This manual contains a section with a list of branch-
ing points. This list shows all the components that
are connected to each branching point.
The location of the branching points is shown in the
"Cable harness routing in vehicle" section.
C. Connectors
Connectors provide a bridge between two cable har-
nesses and are described in the "Connectors" sec-
tion.
D. Electrical distribution
Operation of the fuses and relays is shown in the
"Electrical distribution" section.
E. Data communication
Today’s cars contain CAN, LIN and MOST networks
that transfer information. Connections to these net-
works are not shown in their entirety in the respec-
tive wiring diagram. Complete information on CAN,
LIN and MOST communication is found in the sec-
tion "Control modules".
F. Abbreviations
A number of different abbreviations are used in the
manual. These are explained in the section "Abbre-
viations".
G. Component location
The end of the manual contains a section that
describes component appearance and location in
numerical order.

TP39181202 XC60 2011 8
How to use the wiring diagrams 2:2
List of symbols
= System voltage
= Ground connection via wiring
= Ground connection in compo-
nent/chassis
= Screened wire
= Junction point
= Twisted cable
= Electrical connection
= Variant
= CAN communication
= CAN high data signal (CAN H)
= CAN low data signal (CAN L)
= LIN communication
= LIN communication
= DIN cable, coaxial cable, etc.
= Data communication
= CAN communication
= MOST communication
= MOST communication
= Connection with distribution box
= Further connection to...
= Connector between cable har-
nesses
= Connector connected in compo-
nent

TP39181202 XC60 2011 9
Electrical distribution 1:3
Overview, Electrical center and Cold zone in engine compartment
15/31 15/33
11B/36
21
11B/37
21
11B/38
21
11B/41 11B/18 12
11B/16 12
11B/17
73/3068
73/3085 12
11B/19 12
11B/20 12
11B/21 12
11B/22 12
11B/23 12
11B/28 12
11B/29 12
RD-VT
RD-VT
YE-GN
YE-GN
RD-VT
RD
RD
RD
RD
GY-BK
RD
RD
GN-VT
RD-BK
RD_BU
RD-GN
RD-GY
RD-BN 15/36
15/36
15/32
4/56C5:2
4/56C5:1
RD
RD
RD
RD
RD
RD
4/46B:16
6 CYL
RD
RD
RD
RD
RD
RD
RD
RD
GY-VT
GY-VT
GY-VT
GY-VT
RD
RD-BK
RD
11B/27 12
11A/1
11A/2
11A/3
11A/4
11A/5
11A/6
12
11A/7
12
12
12
12
12
12
21
11B/40
21
11B/39
21
11A/43
21
11A/42
21
11A/44
21
11B/33
21
11B/32
21
11B/31
21
11B/30
21
11B/35
21
11B/34
21
21
3
52/22
R13
R10
2
1
35
2/31
R8
21
3
52/32
21
3
52/17
R2
21
3
52/35
R12
11B/13
11B/11
11B/9
11B/12
11B/10
12
11B/14 12
12
12
12
12
11B/8 12
73/3076
6/25
31
M
ACM
30
C1:1
6/26
B+
31
G
C1:1
12V BK
31/3
1/1
PF1 PF2
2
1
1
2
LIN
21
3
52/182
R1
9/42
4/56C1:45
4/56C1:65
73/3041
73/3138
RD
RD-VT
RD
2/142 R11
5 Cyl. Diesel
2/133 R11
4 Cyl. T
4 Cyl. T &
4 Cyl. T
4 Cyl. T
5 Cyl. D
5 Cyl. D
BU-OG
GN-OG
GN-OG
BU-OG
YE-GN
74/301
16
G042211

TP39181202 XC60 2011 10
Electrical distribution 2:3
Overview, Distribution box in cargo compartment
11D/A7
21
11D/A6
21
11D/A5
21
11D/A8
21
11D/A3
21
11D/A2
21
11D/A1
21
11D/A4
21
11D/A10
21
11D/A9
21
11D/A11
21
11D/A12
21
21
3
5
2/82
15/32
RA2
21
3
5
A
RA1
RD-GN
RD-GN
RD-GN
RD-GN
RD-VT
RD-VT
73/5075
2/16
15/31
11A/3
12
3
74/504B
RD-GN
15/31
2
30+
2
G042220

TP39181202 XC60 2011 11
2
1
35
4
R2
R1
2/88
2
1
35
4
R3
2
1
3
5
R4
2/193
21
3
5
11C/3 12
11C/2 12
11C/1 12
11C/4 12
11C/7 12
11C/6 12
11C/5 12
11C/8 12
11C/10 12
11C/9 12
11C/11 12
11C/14 12
11C/13 12
11C/12 12
11C/15 12
11C/18 12
11C/17 12
11C/19 12
11C/25 12
11C/24 12
11C/23 12
11C/22 12
11C/21 12
11C/16 12
11C/20 12
11C/27
12
11C/26
12
12
11C/28
12
11C/29
12
11C/30
RD
RD
RD
RD
RD
73/5117
15/36
15/31
11A/5
12
11A/4
12
30+
RD-BN
RD-GY
G042227
Electrical distribution 3:3
Overview, Distribution box in passenger compartment

TP39181202 XC60 2011 12
Fuses
Distribution box in engine compartment F1-F7
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F1 11A/1 4/56 Central electronic module (CEM)
F7 Fuse in the Central Electronic Module (CEM)
F9-F11 Fuses in the Central Electronic Module (CEM)
F21 Fuse in the Central Electronic Module (CEM)
F23 Fuse in the Central Electronic Module (CEM)
-
relay in CEM
relay in CEM
relay in CEM
relay in CEM
50
F2 11A/2 4/56 Central electronic module (CEM)
F3-F6 Fuses in the Central Electronic Module (CEM)
F8 Fuse in the Central Electronic Module (CEM)
F13-F16 Fuses in the Central Electronic Module (CEM)
F22 Fuse in the Central Electronic Module (CEM)
F24 Fuses in the Central Electronic Module (CEM)
-
relay in CEM
relay in CEM
-
-
-
50
F3 11A/3 11D/A1-11D/A11 Fuses in distribution box cargo compartment - 60
F4 11A/4 2/193 Relay, comfort functions
11C/1-11C/15 Fuses in distribution box passenger compartment
11C/21-11C/22 Fuses in distribution box passenger compartment
11D/A5 Fuses in distribution box cargo compartment
-
-
2/193
-
60
F5 11A/5 2/88 Relay, 15-feed
11C/23-11C/25 Fuses in distribution box passenger compartment
11C/26-11C/30 Fuses in distribution box passenger compartment
-
2/88
-
60
F7 11A/7 9/42 PTC-element - 100
continues

TP39181202 XC60 2011 13
Fuses
Distribution box in engine compartment F8-F29
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F8 11B/8 2/182 Relay, headlight washer motor
6/104 Washer motor headlights
-
2/182
20
F9 11B/9 6/1 Wiper motor module (WMM) - 30
F10 11B/10 4/7 Combustion preheater module (CPM)
4/106 Control module, remote parking heater start
-
-
25
F11 11B/11 4/31 Fan control module
6/28 Motor, passenger compartment fan
-
-
40
F13 11B/13 4/16 Brake control module (BCM), pump - 40
F14 11B/14 4/16 Brake control module (BCM), valves - 20
F16 11B/16 4/118 Headlamp Control Module (HCM)
10/1 Lamp housing, front left
10/2 Lamp housing, front right
-
-
-
10
F17 11B/17 4/56 Central electronic module (CEM)
F18-F20 Fuses in the Central Electronic Module (CEM)
-20
F18 11B/18 4/16 Brake control module (BCM) - 5
F19 11B/19 4/99 Electronic power steering control module
6/164 Electrical power steering module (EPS)
-
-
5
F20 11B/20 4/9 Supplemental restraint system module (SRS)
4/28 Transmission control module (TCM)
4/46 Engine control module (ECM)
-
-
-
10
F21 11B/21 9/43 Heated windshield washer nozzle, left
9/44 Heated windshield washer nozzle, right
-
-
10
F22 11B/22 2/133 Relay vacuum pump - 5
F23 11B/23 3/111 Light switch module (LSM) - 5
F27 11B/27 2/31 Relay, 15-feed - 5
F28 11B/28 2/64 Relay auxiliary lights
10/65 Auxiliary lights, front right
10/69 Auxiliary lights, front left
-
2/64
2/64
20
F29 11B/29 2/17 Relay, horn
16/10 Horn 1
16/11 Horn 2
-
2/17
-
15
continues

TP39181202 XC60 2011 14
Fuses
Distribution box in engine compartment F30-F38
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F30 11B/30 2/32 Main relay, engine management system
4/46 Engine control module (ECM)
-
-
10
F31 11B/31 4/28 Transmission control module (TCM) - 15
F32 11B/32 8/3 Electromagnetic clutch, climate control system 2/22 15
F33 11B/33 2/22 Relay, climate control system - 5
F34 11B/34 6/25 Starter motor 2/35 30
F35 11B/35 4/109 Glow plug control module, 5-Cyl. Diesel
20/3-6 Spark plug with ignition coil, 4-Cyl. Turbo
-10
20/3-8 Spark plug with ignition coil, 6-Cyl.
20/16 Capacitor, 6-Cyl.
-
-
20
F36 11B/36 4/46 Engine control module (ECM), 5-Cyl. Diesel - 15
4/46 Engine control module (ECM), 4-Cyl. Turbo & 6-Cyl. - 10
F37 11B/37 7/17 Mass air flow sensor MAF, 5-Cyl. Diesel
8/98 Control valve fuel pressure, 5-Cyl. Diesel
8/111 Control valve fuel flow, 5-Cyl. Diesel
-
-
-
15
4/46 Engine control module (ECM), 6-Cyl.
7/17 Mass air flow sensor MAF, 6-Cyl.
8/6-11 Injection valves, 6-Cyl.
-
-
-
F38 11B/38 7/17 Mass air flow sensor MAF, 4-Cyl. Turbo
8/18 EVAP valve, 4-Cyl. Turbo
8/19 Solenoid, variable valve timing, intake, 4-Cyl. Turbo
8/28 Turbocharger control valve, 4-Cyl. Turbo
8/81 Solenoid, variable valve timing, exhaust, 4-Cyl. Turbo
-
-
-
-
10
7/35 Oil level sensor, 5-Cyl. Diesel
8/3 Electromagnetic clutch, climate control system, 5-Cyl. Diesel
8/113 Bypass valve, EGR cooling, 5-Cyl. Diesel
-
-
-
4/46 Engine control module (ECM), 6-Cyl.
6/139 Upper actuator motor intake manifold, 6-Cyl. W/O Turbo.
6/140 Lower actuator motor intake manifold, 6-Cyl. W/O Turbo.
8/3 Electromagnetic clutch, climate control system, 6-Cyl.
8/28 Turbocharger control valve, 6-Cyl. Turbo
8/68 Relief valve, 6-Cyl. Turbo
8/117 Solenoid, variable valve timing, intake, 6-Cyl.
8/125 Solenoid cam profile front, 6-Cyl. W/O Turbo
8/126 Solenoid cam profile rear, 6-Cyl. W/O Turbo
-
-
-
-
-
-
-
-
-
continues

TP39181202 XC60 2011 15
Fuses
Engine compartment electrical center F39-F44
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F39 11B/39 7/15 Front heated oxygen sensor, 4-Cyl. Turbo
7/82 Rear heated oxygen sensor bank 1, 4-Cyl. Turbo
-
-
10
7/15 Front heated oxygen sensor, 5-Cyl. Diesel -
7/15 Front heated oxygen sensor, bank 1, 6-Cyl.
7/82 Rear heated oxygen sensor, bank 1, 6-Cyl.
7/103 Front heated oxygen sensor, bank 2 6-Cyl. W/O Turbo
7/104 Rear heated oxygen sensor, bank 2 6-Cyl. W/O Turbo
8/18 EVAP valve, 6-Cyl.
-
-
-
-
-
15
F40 11B/40 2/142 Relay pre-heater fuel filter, 5-Cyl. Diesel
6/114 Vacuum pump, 4-Cyl. Turbo
9/38 Heated fuel filter, 5-Cyl. Diesel
-
2/142
2/142
20
F41 11B/41 6/67 Pump, fuel leakage control 6-Cyl.
7/200 Sensor coolant temperature
9/32 PTC resistor crankcase ventilation, 5-Cyl. Diesel
-
-
-
5
F42 11A/42 20/22-26 Glow plug, 5-Cyl. Diesel 4/109 70
F43 11A/43 4/71 Control module cooling fan 4-Cyl. Turbo - 60
4/71 Cooling fan control module, 5-Cyl. Diesel & 6-Cyl. - 80
F44 11A/44 6/164 Electrical power steering module (EPS) - 100

TP39181202 XC60 2011 16
Fuses
Central Electronic Module (CEM) F1 - F13
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F1 2/16 Relay, rear window wiper
6/32 Rear window wiper motor
-
2/16
15
F3 3/27 Switch unit, power passenger seat
3/176 Power window switches, driver’s door
3/291 Tailgate closing switch
4/52 Power seat module (PSM)
4/76 Remote control opener garage door
10/25 Ceiling light cargo compartment
10/29 Glove compartment lighting
10/125 Left-hand front courtesy lighting
10/126 Right-hand front courtesy lighting
17/45 Alcolock outlet
26/6 Converter/control module, sill moldings, driver’s side
26/7 Converter/control module, sill moldings, passenger side
26/8 Alcolock charging cradle
-
-
-
-
-
-
-
-
-
-
-
-
-
7.5
F4 5/1 Driver Information module (DIM) - 5
F5 4/80 Forward Sensing Module (FSM)
7/203 Forward-aimed radar (FLR)
-
-
10
F6 7/149 Rain sensor module (RSM)
10/22 Ceiling light
10/114 Vanity mirror lighting, left
10/115 Vanity mirror lighting, right
10/150A Rear reading light
10/150B Rear reading light
-
-
-
-
-
-
7.5
F7 3/4 Steering wheel switch left (SWSL)
3/131 Steering wheel switch right (SWSR)
3/130
3/130
7.5
F8 6/37 Lock motor, fuel filler flap - 10
F9 6/127 Washer motor - 15
F10 6/127 Washer motor - 15
F13 4/83 Control module fuel pump
6/33 Fuel pump
-
4/83
20
continues

TP39181202 XC60 2011 17
Fuses
Central Electronic Module (CEM) F14 - F24
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F14 4/6 Climate control module (CCM)
7/122 Mass movement sensor module (MMS), front
-
-
5
F15 4/102 Steering column lock module (SCL) - 15
F16 16/35 Siren control module (SCM)
17/13 Data link connector
-
-
5
F18 4/9 Supplemental restraint system module (SRS)
4/125 Closing velocity module (CVM)
7/93 Occupant weight sensor (OWS)
-
-
-
10
F19 4/80 Forward Sensing Module (FSM)
7/203 Forward-aimed radar (FLR)
-
-
5
F20 3/65 Switch, heated rear seat
7/51 Accelerator pedal sensor
8/48 Auto-dimming rearview mirror
9/42 PTC-element
-
-
-
-
7.5
F21 3/281 Infotainment control module (ICM)
4/124 Accessory USB unit (AUU)
16/1 Integrated Audio Module (IAM)
16/159 Control module, cellular phone handsfree
-
-
-
-
15
F22 3/9 Contact brake light - 5
F23 4/33 Sun roof module (SRM) - 20
F24 3/132 Start control module (SCU) - 5

TP39181202 XC60 2011 18
Fuses
Distribution box in passenger compartment F1 - F19
15/36 Distribution box in passenger compartment
No. No. Fuse function via A
F1 11C/1 11C/17-19 Fuses in distribution box passenger compartment
16/79 Subwoofer module (SUB)
16/105 Audio module (AUD)
-
-
-
40
F7 11C/7 17/19 12 V outlet, cargo compartment - 15
F8 11C/8 3/126 Driver door module (DDM) - 25
F9 11C/9 3/127 Passenger door module (PDM) - 25
F10 11C/10 3/129 Right rear door module (RDM) - 25
F11 11C/11 3/128 Left rear door module (LDM) - 25
F12 11C/12 4/93 Keyless vehicle module (KVM) - 20
F13 11C/13 3/26 Switch unit, power driver’s seat
4/52 Power seat module (PSM)
-
-
20
F14 11C/14 3/27 Switch unit, power passenger seat - 20
F17 11C/17 16/45 Road traffic information module (RTI)
16/46 RTI Display
16/46 High Level Display Front (HLDF)
16/108 Multimedia module (MMM)
16/145 Remote Digital Audio Receiver (RDAR)
16/162 Digital Audio Broadcast Module (DABM)
-
16/45
-
-
-
-
10
F18 11C/18 3/281 Infotainment control module (ICM)
4/124 Accessory USB unit (AUU)
16/1 Integrated Audio Module (IAM)
16/159 Control module, cellular phone handsfree
-
-
-
-
15
F19 11C/19 16/60 Phone module (PHM)
16/147 Bluetooth phone module (BPM)
-5
continues

TP39181202 XC60 2011 19
Fuses
Distribution box in passenger compartment F21 - F30
15/36 Distribution box in passenger compartment
No. No. Fuse function via A
F21 11C/21 4/33 Panoramic roof control module
6/48 Damper motor module (DMM), recirculation
6/95 Damper motor module (DMM), temperature, left-hand side
6/96 Damper motor module (DMM), temperature, right-hand side
6/102 Damper motor module (DMM), defroster
6/103 Damper motor module (DMM), floor/ventilation
7/159 Air quality sensor (AQS)
10/22 Ceiling light
16/159 Control module, cellular phone handsfree
-
-
-
-
-
-
-
4/56
-
5
F22 11C/22 9/1 Outlet 12V front
9/25 Outlet 12V rear
16/45 Navigation system & Traffic information, portable
-
-
-
15
F23 11C/23 9/13 Seat heating module (SHM), passenger side - 15
F24 11C/24 9/12 Seat heating module (SHM), driver’s side - 15
F26 11C/26 9/15 Control module, rear right seat heater - 15
F27 11C/27 9/14 Control module, rear left seat heater - 15
F28 11C/28 4/86 Parking Assistance Module (PAM)
4/110 Trailer module (TRM)
4/120 Parking Assistance Camera (PAC)
-5
F29 11C/29 4/82 Differential electronic module (DEM) - 10
F30 11C/30 4/84 Suspension module (SUM) - 10

TP39181202 XC60 2011 20
Fuses
Distribution box in cargo compartment FA1-FA11
15/32 Distribution box in cargo compartment
No. No. Fuse function via A
FA1 11D/A1 4/115 Park Brake Module (PBM) - 30
FA2 11D/A2 4/115 Park Brake Module (PBM) - 30
FA3 11D/A3 2/82 Relay, heated rear window
9/2 Heated rear window
-
2/82
30
FA4 11D/A4 17/39 13-pin outlet, cable harness towbar/tow hitch - 15
FA5 11D/A5 4/116 Power Operated Tailgate Module (POT) - 30
FA11 11D/A11 4/110 Trailer module (TRM) - 40
