VÄLKOMMEN!
This Quick Guide describes a selection of the functions in your new XC90. The Owner's Manual in the centre display contains
comprehensive information about your Volvo. The glovebox contains an extract from the Owner's Manual that summarises important and
practical information.
The Owner's Manual is also available as an app for smartphones and tablets as well as at support.volvocars.com. The support page is
available for most markets and contains further information and help regarding your XC90.
Options are marked with an asterisk *.

01. GETTING STARTED
Here you will find information that will help you familiarise yourself with some of your Volvo's basic functions. Among other things,
you can read about the remote control key, the car's three displays, how to start and turn off the engine as well as how to open
and close the tailgate. There is also information on how to control and adjust seats and climates.
02. DRIVING AND DRIVER SUPPORT
Here you will find information about drive modes, cruise control, the Start/Stop function and different driver support systems in the
car such as Park Assist Pilot (PAP)*, Blind Spot Information (BLIS)* and City Safety.
03. INSTRUMENTS AND CONTROLS
Here you will find information about how to control lights and wipers as well as how to use the trip computer and voice control.
04. CONNECTION, ENTERTAINMENT AND SUPPORT
From your Volvo you can connect to the outside world and get access to information, entertainment and support. This section
contains information on how to connect telephones to your Volvo, connect to the internet and use apps.
05. SPECIAL TEXTS
Warning, important and note texts, which must be read.

One press locks doors and tailgate and arms the alarm1.
A long press closes the panoramic roof* and all side windows
simultaneously.
One press unlocks doors and tailgate and disarms the alarm.
A long press opens all side windows simultaneously.
One press unlocks and disarms the alarm for the tailgate only.

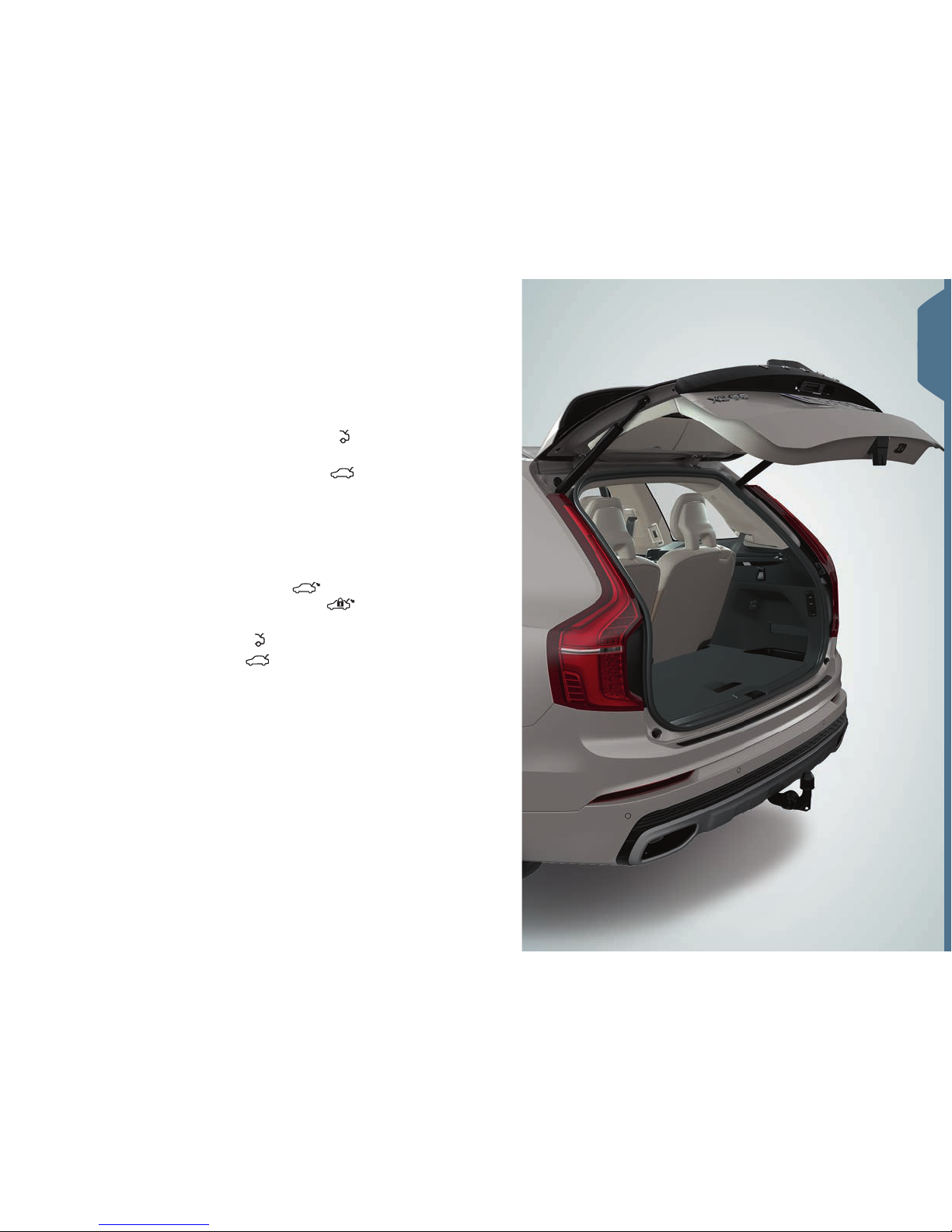

A long press opens or closes the power operated* tailgate.

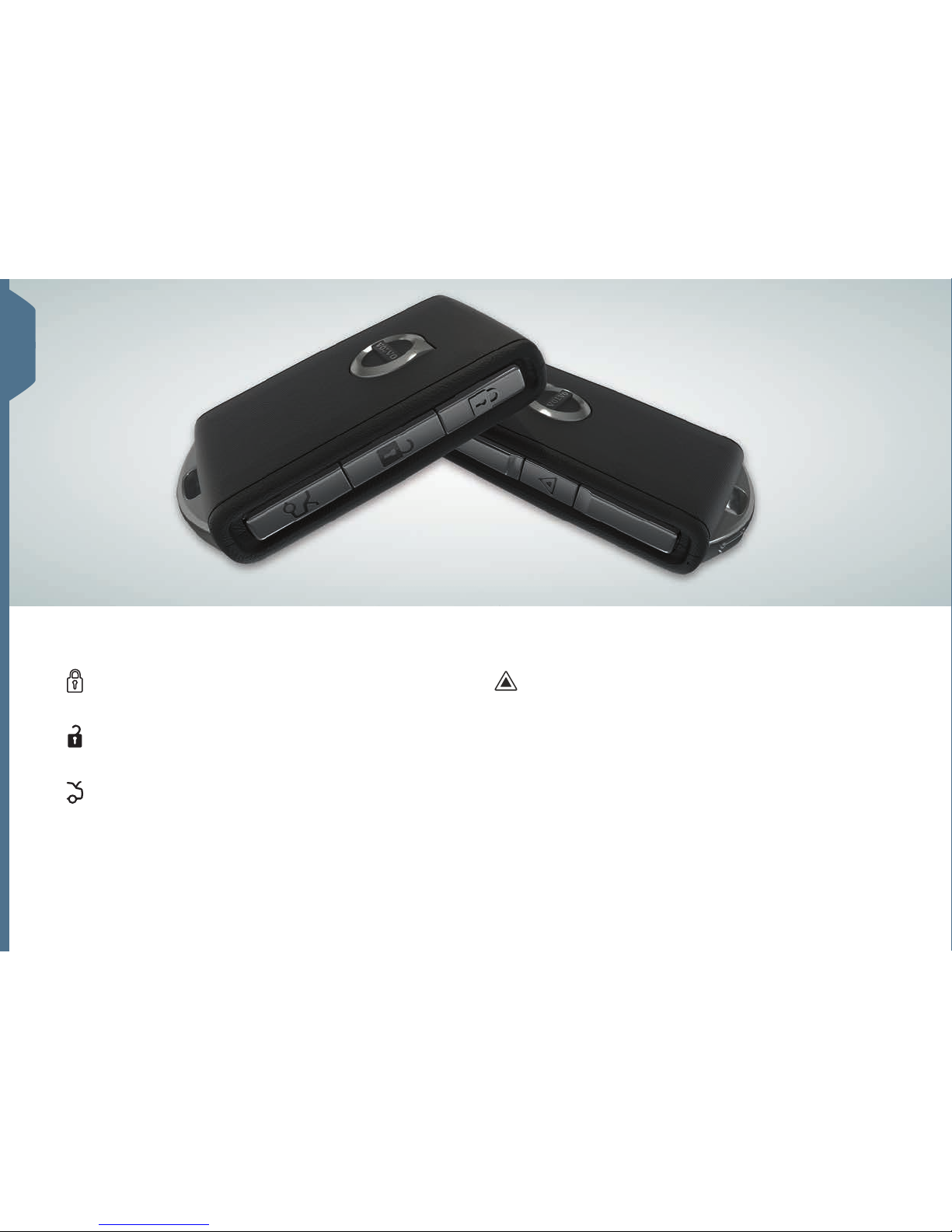

REMOTE CONTROL KEY BUTTONS
1Option in certain markets.
The panic function is used in an emergency to attract atten-
tion. A long press of at least 3 seconds or double-press within
3 seconds activates the direction indicators and horn. The
function is deactivated automatically after about 3 minutes or
immediately by pressing the same button.
01

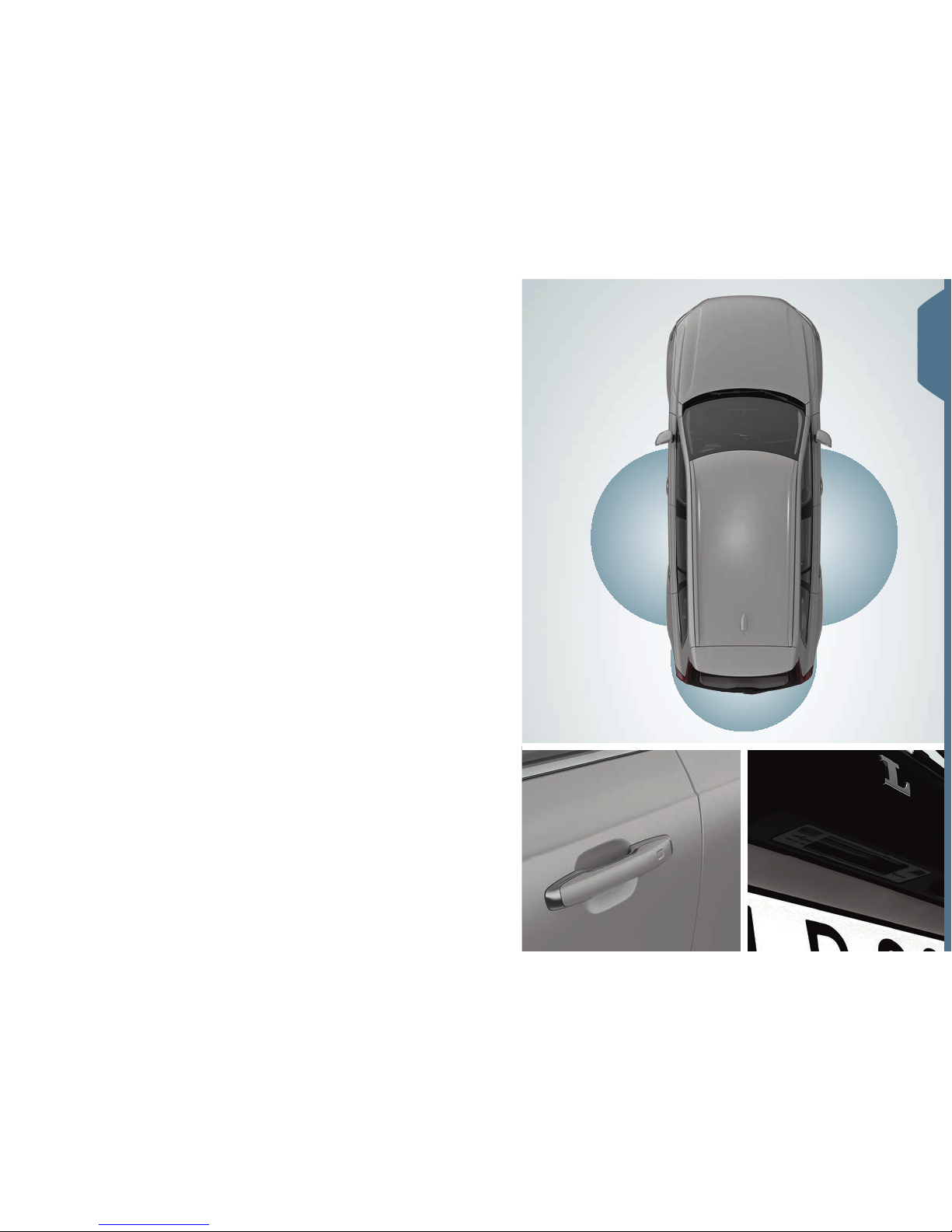

USING KEYLESS LOCKING/UNLOCKING*
You simply need to have the remote control key with you in a pocket,
for example, in order to lock or unlock the car. The remote control
key must be within a semicircular area of radius approx. 1.5 metres
from the car's door handle or approx. 1 metre from the tailgate (see
illustration).
Unlock and disarm the alarm
1. Grasp a door handle or press the rubberised pressure plate beneath
the tailgate handle to unlock the car. Unlocking is complete when
the car's hazard warning flashers flash twice and the lock indicator
in the windscreen extinguishes.
2. Open a door or the tailgate.
Lock and arm the alarm
1. Close all doors. The tailgate can be open during locking with the
side door handles.
2. Touch the marked surface on the external door handle or depress
the lock button beneath the tailgate before it closes. Locking is
complete when the car's hazard warning flashers flash once and the
lock indicator in the windscreen starts flashing.
01

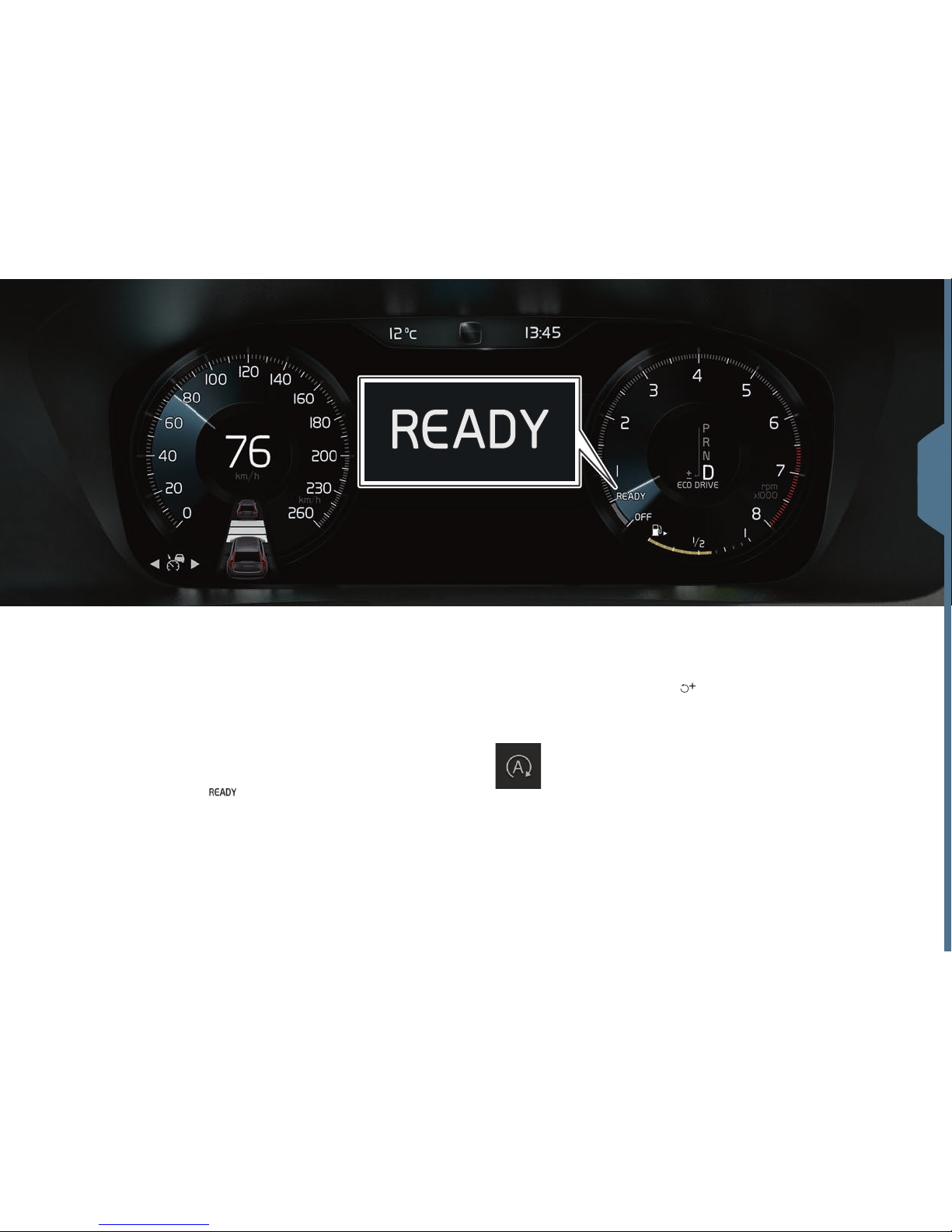

STARTING AND SWITCHING OFF THE ENGINE
The remote control key is not physically used upon start-up as the
standard version of the car is equipped with keyless start (Passive
Start). Store the key in the front part of the passenger compartment
during a keyless start. With keyless locking/unlocking (Passive Entry*)
it is enough that the key is somewhere in the car in order for the
engine to be started.
Starting
1. Depress the brake pedal.
2. Turn the ignition dial to START and release it. The control automati-
cally returns to its starting position.
Switching off
1. Move the gear selector to position P.
2. Turn the ignition dial to STOP and release it. The control automati-
cally returns to its starting position.
01

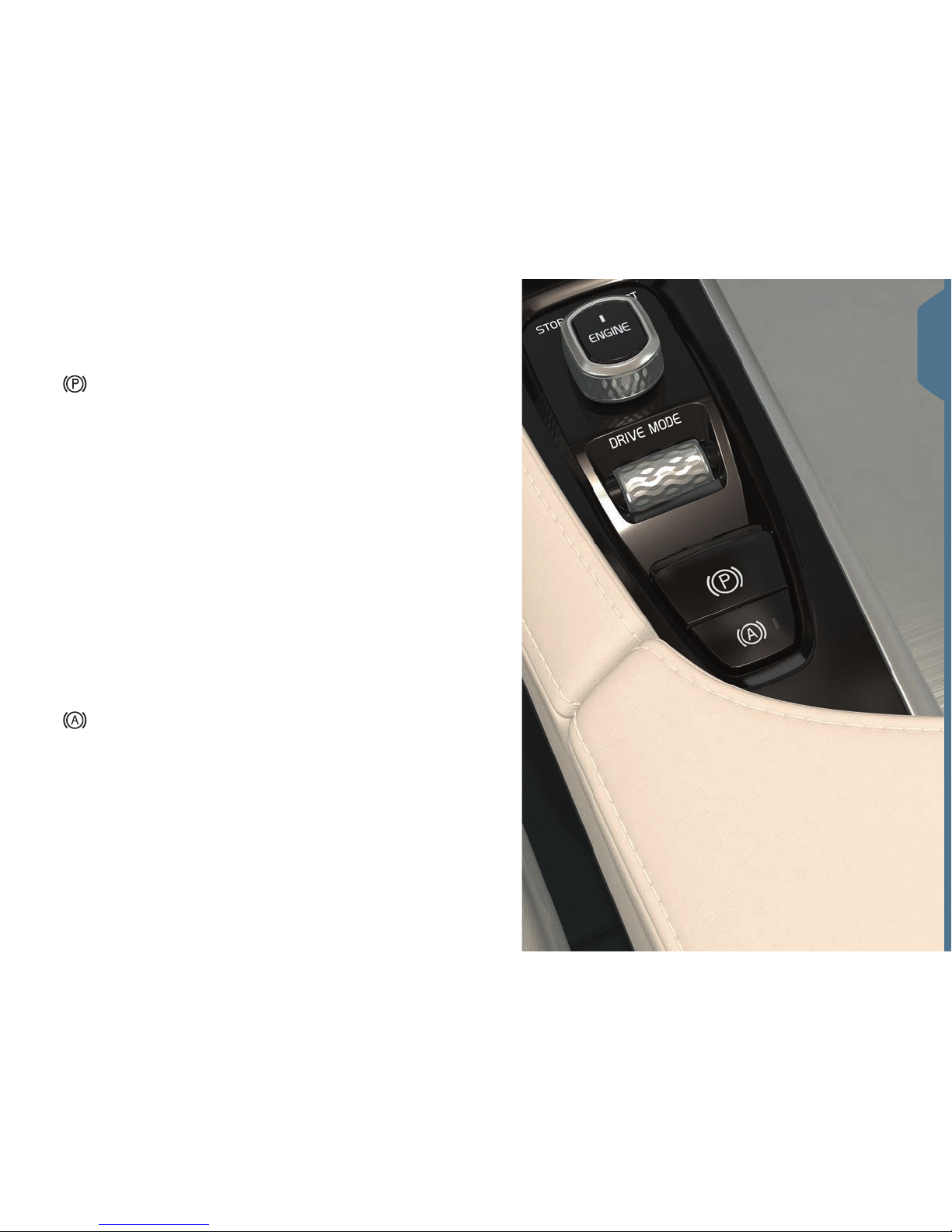

USE THE PARKING BRAKE
Activate the parking brake
1. With the gear selector in position P, depress the
brake pedal.
2. Pull the parking brake control in the tunnel console upward.
A symbol in the driver display illuminates when the parking
brake is activated.
Releasing manually
1. Depress the brake pedal.
2. Press the parking brake control down. The symbol in the
driver display extinguishes when the parking brake has
been released.
Disengage automatically
1. Put the seatbelt on.
2. Start the engine and depress the brake pedal.
3. Move the gear selector to position Dor Rand depress the
accelerator pedal. The symbol in the driver display extin-
guishes when the parking brake has been released.
Using the "Automatic braking when stationary" function (Auto
Hold), the driver can release the brake pedal while maintaining
braking effect when the car has stopped at e.g. traffic lights.
When the accelerator pedal is depressed again, the brakes
are released. The function works on all types of gradient.
– Press the button on the tunnel console to activate. The
function is activated until it is deactivated by pressing the
same button.
01

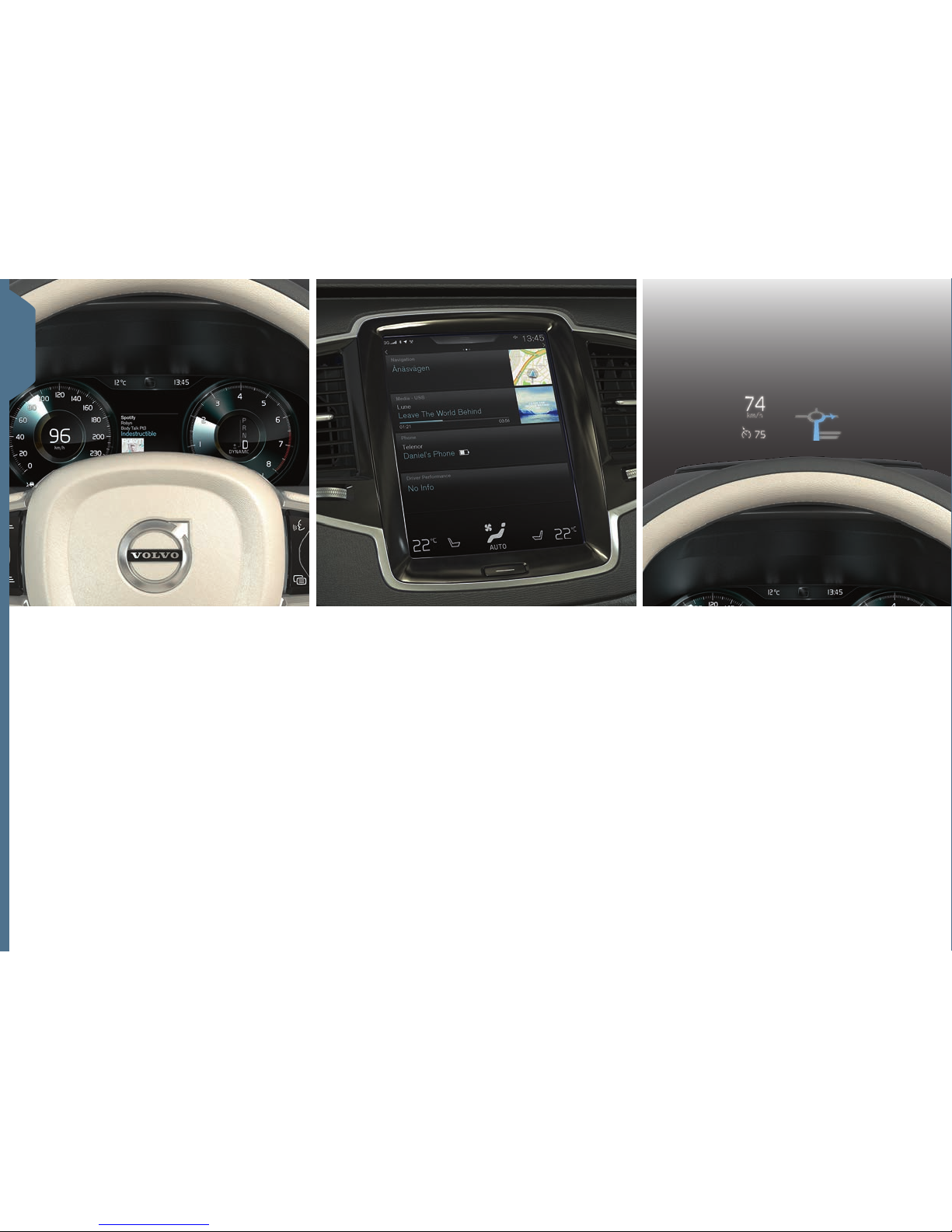

THE CAR'S THREE DISPLAYS
Driver display
The driver display shows information about
the car and driving. It contains gauges,
indicators and indicator and warning symbols.
Located on the left, amongst other things,
are speedometer and trip meter. In the centre
there is the option to show the clock, media
player and navigation map*, amongst other
things. Located on the right, amongst other
things, are tachometer, selected drive mode
and the app menu, which is activated using
the steering wheel's right-hand keypad.
Centre display
Many of the car's main functions are
controlled from the centre display. For
example, the climate control system, media
system and system updates.
Head-up-display*
The head-up display shows, for example,
traffic warnings, information about speed and
navigation*. The information is displayed in
the windscreen and can be managed without
the driver having to take their eyes off the
road. The head-up display's brightness and
height can be adjusted using the steering
wheel's right-hand keypad and from the
centre display. The head-up-display is activat-
ed from the function view.
01

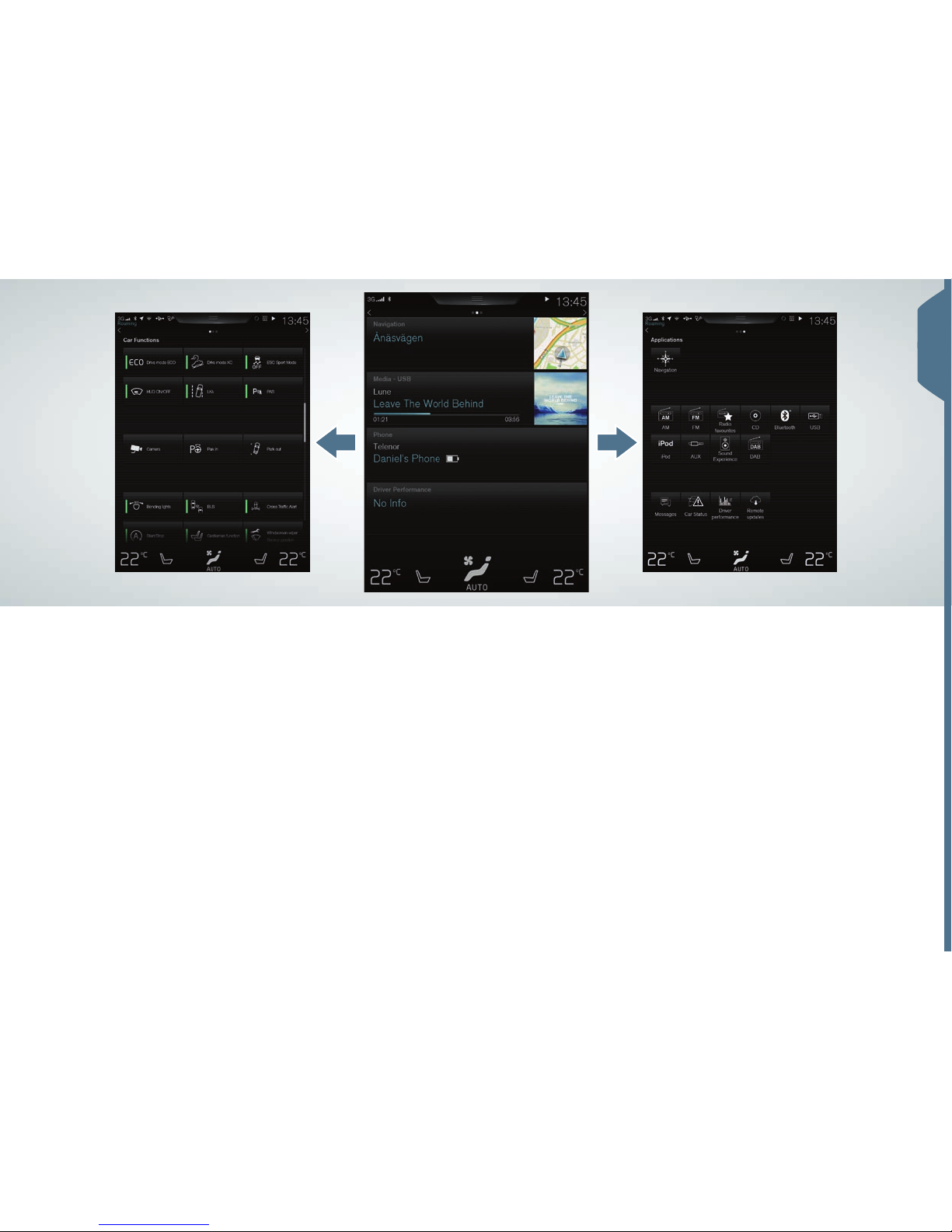

NAVIGATING IN THE CENTRE DISPLAY
Function view
Swipe from left to right2across the screen
in order to access the function view. From
here you can activate/deactivate different car
functions, e.g. Head-up display*. They are
activated/deactivated with a single tap. Some
functions open in a separate window.
Go back in the menu structure by pressing
the physical home button under the screen.
Application view
Swipe from right to left2across the screen
to access the application view with the car's
different applications (apps), e.g. FM-Radio
and CD*. Tap on an app to open it.
Press the physical home button under the
screen to go back to the home view.
Home view
Home view is the initial view that is shown
when the screen is turned on. It contains
sub-views; Navigation, Media, Phone and an
extra sub-view for other functions.
An app/function selected from the app/func-
tion view starts in the corresponding subview
in the home view. E.g. FM radio starts in the
Media subview.
Tap on a subview to expand it. In expanded
mode, the subviews show more information
about the function/app.
2Applies to left-hand drive cars. For right-hand drive cars - swipe
in the opposite direction.
01

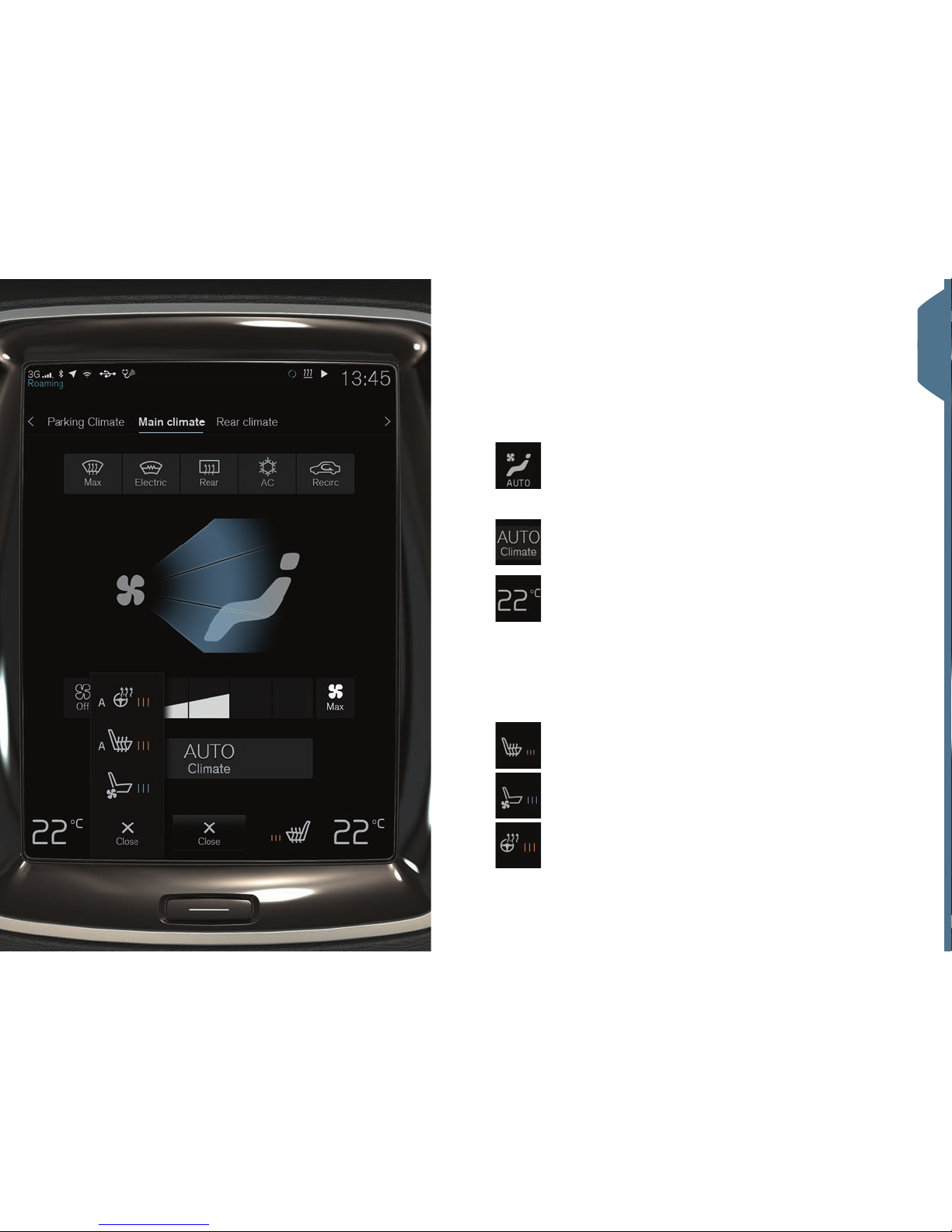

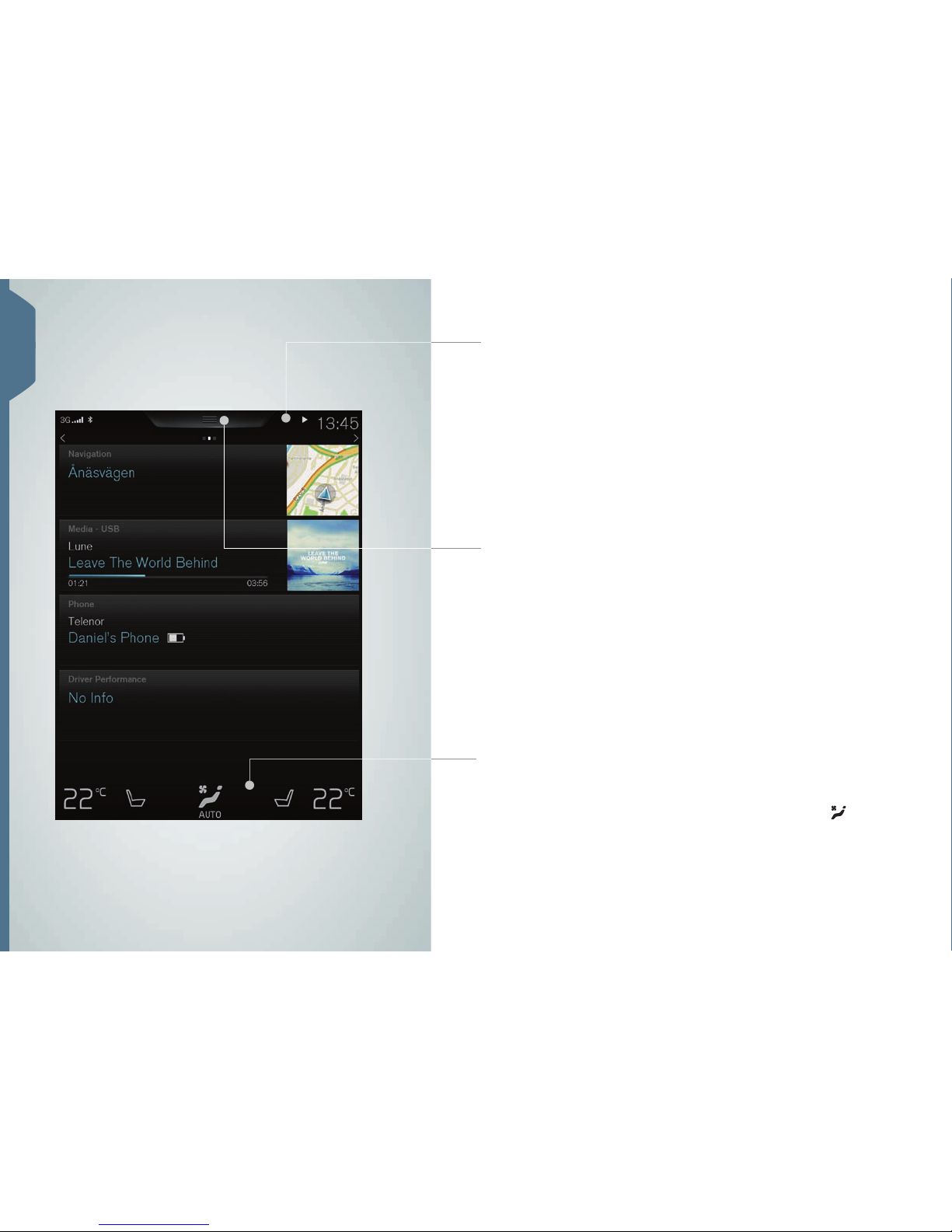

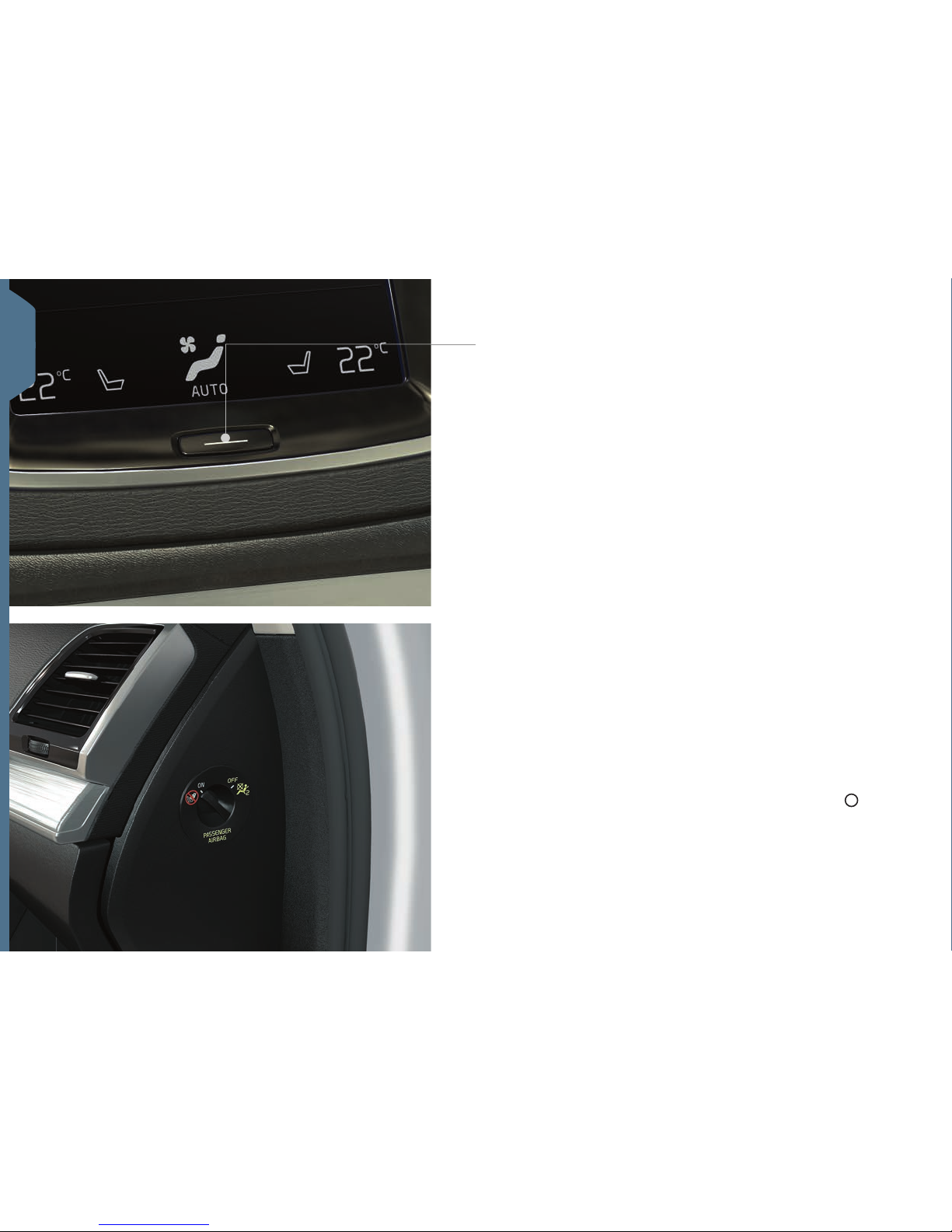

Climate row
The climate row is always visible at the bottom of the screen. There,
the most common climate settings can be made directly, such as
settings for temperature, seat heating and fan level. Tap on at
the bottom of the screen to open the climate view with more setting
options.
Status bar
The activities in the car are shown in the status bar, at the top of the
screen. Located on the left is network/connection information; and
media-related information, the time and background activity indicator
are shown on the right.
Top view
There is a tab in the centre of the status bar, at the top of the screen
to access the top view. Open it by tapping on the tab or by dragging/
swiping from top to bottom across the screen. Settings, Owner's
manual, Driver profile and the car's saved messages are accessed
from the top view.
01

SETTING THE POWER* FRONT SEAT
Adjust the backrest rake by adjusting the control forward/backward.
Settings for side support, lumbar support and seat cushion extension
are linked to the multi-function control*.
1. Activate seat settings by turning the control up/down. The seat
settings view opens in the centre display.
2. Select the desired function in the centre display by turning the multi-
function control up/down.
3. Change setting by pressing the desired control direction.
Certain settings can also be selected by tapping directly on the centre
display.
Raise/lower the seat by means of adjusting the rear section of the
control up/down. Move the seat forward/backward by adjusting the
control forward/backward.
Raise/lower the seat cushion front edge by means of adjusting the
front section of the control up/down.
Change the lumbar support by pressing the button up/down/forward/
backward.
01

The memory function's keypad is either on one or both doors.
Store setting
1. Set the seat, door mirrors and head-up display* to the desired
position.
2. Press the Mbutton and release to store settings. The light indicator
in the button illuminates.
3. Within three seconds, depress the memory button 1, 2or 3. When
the position is stored in the selected memory button, an acoustic
signal sounds and the light indicator in the Mbutton extinguishes.
Settings for seats, door mirrors and head-up display can also be stored
in driver profiles. The driver profiles can be connected to different
remote control keys.
Using stored setting
With the door open: Press one of the memory buttons and release.
With closed door: Hold one of the memory buttons in until the stored
position is reached.
USING THE MEMORY FUNCTION* IN THE FRONT SEAT
01

Ensure that backrests with head restraints do not come into contact
with the backs of the seats in front when folding. The front and rear
seats may need adjusting in order for the backrests to be folded.
Second row of seats' centre seat
1. Fold the head restraint down manually by pressing the centrally
located button between the backrest and head restraint. At the
same time, push the head restraint down.
2. Pull the belt in the centre seat up/forward whilst folding.
Second row of seats' outer seats
– Pull the handle on the side of the outer seats upward whilst folding.
The head restraint folds automatically.
Third row of seats*
– Pull the handle on the top of the backrest upward/forward. Fold the
backrest forward. The head restraint folds automatically
The seats in both rows are folded up in reverse order. The head
restraints are folded up manually.
FOLD THE BACKRESTS DOWN IN THE REAR SEATS
01

ENTRY/EXIT TO/FROM THE THIRD ROW OF
SEATS*
1. On the second seat row's outer seats, pull the handle on the top of
the seat backs upward/forward.
2. Fold the seat backs forward and slide the whole seat forward.
Raise the seat to the upright position by first sliding back the seat and
then raising the backrest.
BETTER AIR QUALITY IN THE PASSENGER
COMPARTMENT WITH IAQS*
The air quality system IAQS is a part of the Clean Zone Interior
Package* and is a fully automatic system that cleans the air in the
passenger compartment from contaminants such as particles, hydro-
carbons, nitrous oxides and ground-level ozone.
1. Tap on Settings in the top view in the centre display.
2. Tap on Climate.
3. Select Air quality sensor to activate/deactivate the air quality
sensor.
01

CONTROLLING THE CAR'S CLIMATE
The climate control functions for the front and rear* areas of the
passenger compartment are controlled from the centre display and by
physical buttons in the centre console. Certain information about the
climate is always shown at the bottom of the screen in the climate row.
The button used to access climate view is shown in the
middle at the bottom of the screen. The graphic on the
button shows activated climate settings. Open climate view
by pressing the button and the view illustrated is shown.
Tap on AUTO in the climate view to activate/deactivate
auto-regulation of air distribution, amongst other things.
Temperature controls for the driver and passenger sides.
Tap the left or right side's temperature icon and select the
desired temperature. The controls are always shown at
the bottom of the screen and can be adjusted even when
climate view is not open.
To synchronise the temperature for all zones with the
temperature on the driver's side - tap on the temperature
icon on the driver's side and on Synchronise temperature.
Controls for heated* and ventilated* driver and front
passenger seat, as well as heated steering wheel*. Tap on
the icon for the seat or steering wheel icon on the left or
right-hand sides to open the control for steering wheel or
seat. Repeatedly tap on the corresponding icon to select
the desired position.
01

ACTIVATING/DEACTIVATING
THE PASSENGER AIRBAG*
The switch for the passenger airbag is located on the end face of the
instrument panel on the passenger side and can be accessed when
the door is open.
1. Pull the switch outward and turn to ON/OFF in order to
activate/deactivate the airbag.
2. Confirm the message about activation/deactivation in the driver
display by pressing the right-hand steering wheel keypad's
button. A text message and warning symbol in the roof console
indicate that the airbag for the front passenger seat is
activated/deactivated.
CLEANING THE CENTRE DISPLAY
The centre display turns on automatically when the driver's door is
opened. Switch the screen off when it is to be cleaned.
1. Give a long press on the home button.
2. Wipe the screen clean with the cleaning cloth supplied or microfibre
cloth of equivalent quality. Wipe clean using small circular move-
ments. If necessary, lightly moisten the cleaning cloth.
3. Activate the screen with a brief press on the home button.
The centre display turns off automatically when the engine is off and
the driver's door is opened.
01

OPENING AND CLOSING THE POWER
OPERATED* TAILGATE
Options for opening
• Press and gently pull the tailgate handle upwards.
• Give a long press on the remote control key's button until the
tailgate starts to open.
• Give a long press on the instrument panel's button (next to
the steering wheel) until the tailgate starts to open.
• Make a smooth foot motion back and forth against the left part of
the rear bumper (the remote control key must be within range)*. An
audible signal is heard when opening is activated.
Options for closing
• Lower edge of the tailgate: Press the button for automatic
closure and unlocking of tailgate. Press the button for auto-
matic closure and locking.
• Press the remote control key's button.
• Press the instrument panel's button.
• Make a smooth foot motion back and forth against the left part of
the rear bumper (the remote control key must be within range)*. An
audible signal is heard when closing is activated.
01

SELECTING DRIVE MODE*
Select the most suitable drive mode for the current driving conditions.
Not all drive modes can be selected in all situations.
1. Press the drive mode control* DRIVE MODE in the tunnel console.
2. A pop-up window is opened in the centre display.
3. Roll the drive mode control up/down until the desired drive mode
is highlighted in the centre display, and press the control to select.
Drive mode can also be selected with a tap directly on the centre
display.
Selectable drive modes
COMFORT – the car's normal mode.
ECO – adapts the car for more energy efficient driving. This drive
mode can also be directly accessed from the centre display's function
view.
OFF ROAD – maximises the car's ability over difficult terrain and poor
roads.
DYNAMIC – the car becomes more sporty for more active driving.
INDIVIDUAL – drive mode for your own settings which can first be
activated in Settings in the top view in the centre display. Select
My Car > Individual drive mode.
02

This function pauses the engine temporarily when the car is stationary
and then starts it again automatically when the journey is resumed.
Start/Stop is activated every time the car is started.
Auto-stopping the engine
– Stop the car using the brake pedal and keep your foot on the pedal.
The brake pedal can be released when the "Automatic brake when
stationary" function (Auto Hold) is activated. The tachometer in the
driver display indicates when the engine is stopped automat-
ically. If drive mode Comfort or Eco is activated, the engine can
stop automatically before the car is completely stationary.
Options for auto-starting the engine
– Release the brake pedal. With Auto Hold activated the accelerator
pedal must be depressed.
– On a slope: Release the brake pedal and allow the car to roll. The
engine starts automatically after a slight increase in speed.
– When Adaptive cruise control* or Pilot Assist* is activated depress
the accelerator pedal or press the left-hand keypad on the
steering wheel.
Deactivating the function
– Press the Start/Stop button in the function view in the
centre display.
USING THE START/STOP FUNCTION
02

USING CRUISE CONTROL
Speed limiter*, Cruise control*, Adaptive cruise control (ACC)* and Pilot
Assist* are activated from the driver display. Use the left-hand steering
wheel keypad arrows and to scroll between the functions. When
the function is activated, the symbol in the driver display changes from
grey to white.
Speed limiter: Assists in not exceeding a selected maximum speed.
Activate by selecting in the driver display.
Cruise control: Assists in maintaining a constant speed. Activate by
selecting .
Adaptive cruise control: Helps to maintain a constant speed,
combined with a preset time gap to the vehicle in front. Activate by
selecting .
Press to start speed limiter/cruise control/adaptive cruise
control and store current speed, or to cancel speed limiter/
cruise control/adaptive cruise control.
Press to increase the stored speed. Short press increases the
speed by 5 km/h. Long press increases the speed incremen-
tally by 1 km/h. Or press to resume stored speed for speed
limiter/cruise control/adaptive cruise control.
Press to reduce the stored speed. A short press reduces the
speed by 5 km/h. Long press decreases the speed incremen-
tally by 1 km/h.
Pilot Assist: Assists at low speeds to navigate the car between the
lane side markings combined with keeping a preset time gap to the
vehicle in front. Activate by selecting .
Press to start/cancel Pilot Assist.
Press to shift from Pilot Assist to Adaptive cruise control.
Press to shift from Adaptive cruise control to Pilot Assist.
Press to reduce the distance to the vehicle ahead.
Press to increase the distance to the vehicle ahead.
02
