VOLVO MOTOR GRADERS
G930
MORE CARE. BUILT IN.
036-454 Q4 930 web specs R2.indd 2036-454 Q4 930 web specs R2.indd 2 5/9/07 12:02:00 PM5/9/07 12:02:00 PM

2
SPECIFICATIONS
G930
Base operating weight - approximate
Weights shown include full cab with ROPS, all operating fluids, operator and standard equipment.
Base - Total lb (kg) 34,830 (15 800)
On front wheels lb (kg) 10,360 (4 700)
On rear wheels lb (kg) 24,470 (11 100)
Maximum combined capacity lb (kg) 42,500 (19 280)
Maximum weight - front lb (kg) 16,700 (7 570)
Maximum weight - rear lb (kg) 31,400 (14 240)
Note that adding weight and attachments to the base grader may necessitate a tire upgrade as maximum weight capacity of tire may
be exceeded.
Productivity (Standard equipment)
Blade pull at base weight (0.9 traction co-efficient) lb (kg) 22,023 (9 990)
Blade pull at maximum base weight (0.9 traction co-efficient) lb (kg) 28,260 (12 816)
Blade down force capability lb (kg) 18,021 (8 188)
Blade down force is the maximum downward force which may be applied at the cutting edge.
Engine data
Model Volvo D7E
Ty p e Turbocharged, Aftercooled
No. of cylinders In Line 6
Bore & stroke in (mm) 4.25 x 5.12 (108 x 130)
Displacement cu in (l) 436 (7,2)
Engine complies to EPA Tier 3, EU Stage IIIA exhaust emission standards.
Electrical system 24 volt - 80 amp
(1920 watt) alternator
Batteries (two 12 volt) maintenance free 660 CCA 96 AH
Two 12 volt 1300 CCA (231 AH) batteries available optionally

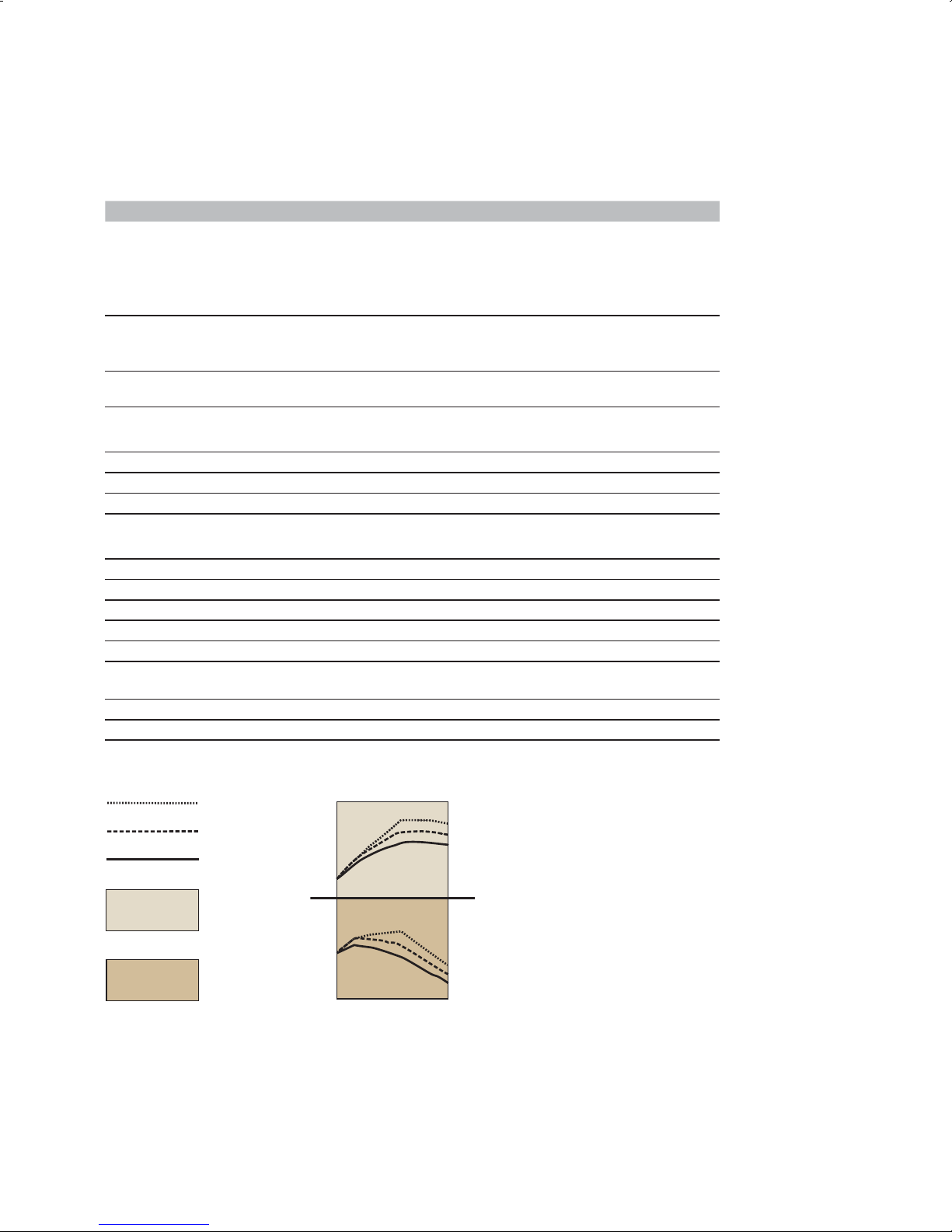

Engine performance curve
G930
Legend
High Range
Mid Range
Low Range
Engine Power
Engine Torque
2007.05
185 245
120 160
55 75
1200 900
800
700
500
400 300
800 1300 1800 2100
Net Torque (Nm) Net Power (kW)
Net Power (hp) Net Torque (lb.ft)
Engine Speed (rpm)
036-454 Q4 930 web specs R2.indd 3036-454 Q4 930 web specs R2.indd 3 5/9/07 12:02:37 PM5/9/07 12:02:37 PM

3
G930
3 Range engine power control
Low range power
Rated net brake horsepower @ 2100 RPM§hp (kW) 155 (115)
Torque lb.ft (N.m) 668 (906) @1200
Mid range power
Rated net brake horsepower @ 2100 RPM§hp (kW) 175 (130)
Torque lb.ft (N.m) 675 (915) @1400
High range power
Rated net brake horsepower @ 2100 RPM§hp (kW) 195 (145)
Maximum net horsepower @ 1800 RPM hp (kW) 204 (154)
Torque lb.ft (N.m) 684 (928) @1550
No engine derating required up to 9,800 ft (3 000 m) altitude. Rated net horsepower SAE J1349/ISO 9249.
§Rating is @ 2100 RPM except for EU which is rated @ 1900 RPM in low and mid ranges.
Transmission
Fully sequential, direct drive, Volvo powershift transmission. Engine cannot be started if transmission is in gear. Single lever electronic
transmission controller provides self-diagnostics and overspeed protection. Optional HTE1160 has automatic shifting and travel mode
as standard equipment.
Ground speeds at 2100 RPM with 14:00 tires.
Transmission Gear
Engine Power Range Volvo HTE840 Volvo HTE1160
Low F1, F2 R1 F1, F2, F3 R1, R2
Mid F3, F4, F5 R2, R3 F4, F5, F6, F7 R3, R4
High F6, F7, F8 R4 F8, F9, F10, F11 R5, R6
G930
Transmission model HTE840 HTE1160
Gear
F1 mph (km/h) 2.7 (4,3) 2.1 (3,3)
F2 mph (km/h) 3.7 (6,0) 2.7 (4,3)
F3 mph (km/h) 5.2 (8,4) 3.6 (5,8)
F4 mph (km/h) 7.3 (11,7) 4.7 (7,5)
F5 mph (km/h) 10.4 (16,6) 6.1 (9,8)
F6 mph (km/h) 14.5 (23,2) 7.9 (12,7)
F7 mph (km/h) 20.3 (32,5) 10.5 (16,8)
F8 mph (km/h) 28.4 (45,4) 14.0 (22,4)
F9 mph (km/h) 18.2 (29,0)
F10 mph (km/h) 23.8 (38,1)
F11 mph (km/h) 30.8 (49,3)
R1 mph (km/h) 2.6 (4,2) 2.1 (3,3)
R2 mph (km/h) 5.1 (8,2) 3.5 (5,7)
R3 mph (km/h) 10.2 (16,3) 6.0 (9,6)
R4 mph (km/h) 20.0 (32,0) 8.0 (12,8)
R5 mph (km/h) 13.8 (22,0)
R6 mph (km/h) 23.4 (37,5)
2007.05
036-454 Q4 930 web specs R2.indd 4036-454 Q4 930 web specs R2.indd 4 5/9/07 12:02:38 PM5/9/07 12:02:38 PM

4
G930
Tandems
Depth in (mm) 8.9 (226,5)
Height in (mm) 24.25 (616)
Thickness
inner wall in (mm) 1 (25)
outer wall in (mm) .78 (20)
Center distance in (mm) 61 (1 550)
Drive chain pitch in (mm) 2 (51)
Oscillation degrees ± 15º
Differential / Final drive
Model Volvo APR70
Planetary final reduction with an operator controlled wet multiple disc lock/unlock differential.
Wheels & tires (Standard equipment)
Tire size 14:00 x 24, G-2
Ply rating (PR) 12
Rim size in (mm) 9 (223) One piece rim
Bolt-on rims interchangeable between front and rear Yes
Front axle and articulation
Wheel lean degrees R & L 18º
Oscillation degrees up & down 16º
Ground clearance in (mm) 24 (610)
Minimum turning radius using front axle steering, articulation, wheel
lean and unlocked differential
ft (mm) 23'10" (7 265)
Steering arc degrees 50º
Frame articulation angle degrees 23º
Anti-drift lock valve ensures stable operation. Articulation lock standard.
Hydrostatic power steering of front wheels incorporating two steering cylinders. Meets SAE J1511 FEB. 94, ISO 5010:1992 with
optional secondary steering.
Brakes
Service Brakes: Foot operated
Fade resistant, hydraulically actuated, wet multiple disc service brakes located at the 4 tandem drive wheels are fully sealed and
maintenance free. System features crossover dual braking circuits for uniform braking on both sides of the grader. Includes reserve
power assist and operator warning system (visual and audible).
Parking Brake
Spring applied hydraulically released enclosed wet multiple disc type parking brake in final drive. Effective on all 4 tandem
drive wheels.
Transmission cannot be engaged with park brake on.
Braking systems comply to SAE J/EN ISO 3450:1996.
Volvo uses asbestos free brake components.
2007.05
036-454 Q4 930 web specs R2.indd 5036-454 Q4 930 web specs R2.indd 5 5/9/07 12:02:39 PM5/9/07 12:02:39 PM

5
G930
Frame
Front
Minimum dimensions of box section in (mm) 10.5 x 13.5 (265 x 340)
Plate thickness in (mm) .79 (20)
Vertical section modulus at arch cu in (cm3) 119 (1 950)
minimum cu in (cm3) 101 (1 663)
maximum cu in (cm3) 212 (3 474)
Rear
Minimum dimensions in (mm) 10 x 4 (254 x 100)
Plate thickness in (mm) .38 (9,6)
Optional first user lifetime warranty on frame, includes maintenance free articulation pins and bearings.
Moldboard
Standard moldboard with replaceable end bits in
(mm)
.87 x 25 x 12'
(22 x 635 x 3 658)
Moldboard material SAE 1050 high carbon steel
Edge: through hardened in (mm) 6 x 5/8 (152 x 16) boron steel
Bolt spacing in (mm) 6 (152)
Bolt size in (mm) 5/8 (16)
Slide rails supported by Duramide™ bearings
Moldboard range: Moveable Blade Control System
(Dimensions shown with 14:00 tires and standard moldboard) Left/Right
Reach outside tires - articulated frame in
(mm)
120/119.5
(3 048/3 035)
Reach outside tires - straight frame in
(mm)
80/79
(2 020/2 010)
Moldboard slide in
(mm)
26.5/26.5
(673/673)
Circle side shift in
(mm)
30.5/29.5
(775/749)
Maximum bank sloping angle, left - right degrees 90º/90º
Moldboard ground clearance in (mm) 17.5 (445)
Moldboard cutting depth in (mm) 31 (790)
Moldboard tilt range degrees forward
degrees back
47º
5º
Superior moldboard mobility permits steep ditch cutting angles and back sloping outside overall machine width.
2007.05
036-454 Q4 930 web specs R2.indd 6036-454 Q4 930 web specs R2.indd 6 5/9/07 12:02:40 PM5/9/07 12:02:40 PM

6
G930
Circle
Pitch diameter in (mm) 64 (1 626)
Thickness in (mm) 1.25 (32)
Adjustable guide shoes - standard / optional 3 / 5
Adjustable clamp plates - standard / optional 3 / 5
Upper circle wear plates - standard / optional 3 / 5
Circle to drawbar support is provided by Duramide™ wear plates and bearings at the clamp and guide shoes. Duramide™ prevents
metal-to-metal contact and provides maximum service life.
Circle drive
The Volvo dual gear Circle Drive System uses direct acting hydraulic power for exceptional turning and holding capability under
full load. Circle Drive System uses two hardened drive pinions and is protected against impact damage by an overload relief valve as
standard equipment.
Rotation degrees 360º
Drawbar
Dimensions of box section in (mm) 6.5 x 6.5 (165 x 165)
Plate thickness in (mm) 1 & .75 (25 & 19)
Cab & controls
Low profile cab with ROPS/FOPS
Interior height in (mm) 64 (1 620)
An optional full height cab is available with an inside height of 72.5" (1 837 mm).
All Volvo Grader cabs and canopies are designed to meet or exceed SAE J/ISO 3471-1:2004 and EN 13510:2000 ROPS
requirements and SAE J/pr EN ISO 3449:2002 Level 2 FOPS requirements.
The retractable seatbelt is 3" (76 mm) wide and meets SAE J386 NOV. 97 and EN ISO 6683:1999. Industry standardized control
lever arrangement.
Interior operator noise levels average 72 dB(A) per ISO 6394:1998 (enclosed cab).
Implement hydraulics
Circuit type: Closed center, load sense Proportional Demand Flow (PDF) Hydraulic System, with O-ring face seal hose connections.
Main implement pump type Axial piston type
Maximum pressure psi (Bar) 3,000 (207)
Output 2100 RPM gpm (lpm) 55 (208)
Stand by pressure psi (Bar) 350 (24)
Filtration
Large capacity, replaceable in-tank filter. Filters both system and re-fill oil. With low level and high temperature operator warning.
Hydraulic fan drive pump
Ty p e
Axial piston pump dedicated to the variable speed cooling fan. Reversible cooling fan optionally available.
2007.05
036-454 Q4 930 web specs R2.indd 7036-454 Q4 930 web specs R2.indd 7 5/9/07 12:02:40 PM5/9/07 12:02:40 PM

7
G930
Capacities
Fuel tank U.S. Gal. (l) 92 (348)
Transmission U.S. Gal. (l) 16 (61)
Final drive U.S. Gal. (l) 3.5 (13,2)
Tandems (each) U.S. Gal. (l) 26.4 (100)
Hydraulic oil tank U.S. Gal. (l) 24 (91)
Coolant antifreeze protection to -58º F (-50º C) approx U.S. Gal. (l) 8.2 (31)
Engine oil U.S. Gal. (l) 5.7 (21,5)
Attachments
(Optional unless otherwise stated as standard equipment)
Push Block lb (kg) 1,110 (504)
Ripper includes rear frame arch support and links lb (kg) 2,600 (1 175)
Mid Mount Scarifier lb (kg) 1,900 (850)
Front Mount Scarifier lb (kg) 1,552 (704)
Dozer: 8' (2,4 m) lb (kg) 2,300 (1 045)
9' (2,7 m) lb (kg) 2,360 (1 070)
Dimensions
All dimensions are approximate. A in (mm) 352 (8 930)
Bin(mm) 105 (2 675)
Cin (mm) 247 (6 280)
D in (mm) 82 (2 076)
E in (mm) 100 (2 537)
Fin (mm) 127 (3 225)
A = Overall length
B = Bladebase per ISO 7134
C = Wheelbase
D = Width - Front tire center lines
E = Width - Outside tires
F = Overall height with Low Profile Cab
Add 8.5" (217 mm) for full height cab
Legend
2007.05
A
C
B
F
D
E
036-454 Q4 930 web specs R2.indd 8036-454 Q4 930 web specs R2.indd 8 5/9/07 12:02:41 PM5/9/07 12:02:41 PM

8
STANDARD FEATURES / OPTIONAL EQUIPMENT
Model (S - Standard / O - Optional) G930 G940 G946 G960 G970 G976 G990
Powertrain
Volvo engines meets off-road Tier 3 / Stage IIIA emission criteria - 3 power curves S S S S S S S
Rear axle, operator controlled, lock/unlock differential with planetary final reduction S S S S S S S
4 wheel wet disc braking system with crossover dual circuits and reserve power assist S S S S S S S
Spring applied wet multiple disc park brake with operator warning alarm and indicator S S S S S S S
Electronic hand throttle with RPM hold and resume functions S S S S S S S
Operator controlled Power/Speed engine mode S S S S S S S
Direct drive, power shift Volvo HTE840 transmission with 8 forward and 4 reverse gears S S S S S S S
Transmission guard SSSSSSS
Single transmission control lever, with electronic over speed protection, advanced memory
shift and park position lockout SSSSSSS
Transmission Autoshift and Travel functions O O O O O O O
Direct Forward to Reverse shuttle shift capability without using the Inching pedal S S S S S S S
Volvo HTE1160 Transmission - 11 speeds forward 6 speeds reverse includes
Autoshift and travel functions OOOOOOO
Reversible cooling fan - manual or automatic modes O O O O O O O
Automatic engine protection lowers engine torque and speed if critical conditions occur SSSSSSS
Electrical
Cab mounted headlights with dimmer switch S S S S S S S
Lights; backup, tail, stop and directional S S S S S S S
Backup alarm 112 dB(A) SSSSSSS
Moldboards work lights - 2 or 4 O O O O O O O
Rear work lights - 2 or 4 O O O O O O O
Corner cab work lights - left or right - 2 O O O O O O O
Maintenance free batteries S S S S S S S
110 amp (2460 watt) alternator OOOOOOO
24 volt to 12 volt converter - 30 or 60 amp (600 or 1440 watt) with power point OOOOOOO
Productivity
7 position Blade Control System for optimum blade mobility S S S S S S S
Twin gear direct drive circle turn system with impact protection S S S S S S S
Duramide™ wear strips prevent metal-to-metal contact for maximum service life S S S S S S S
Heavy duty circle support system O O O O O O S
Hinged cooling module fan door for easy trash clean out S S S S S S S
Ground level fueling SSSSSSS
Lockable tool box with storage space for scarifier shanks S S S S S S S
Moldboards: 12' x 25" x 7/8" (3 658 x 635 x 22 mm) S S S S
13' x 25" x 7/8" (3 962 x 635 x 22 mm) O O O O
14' x 25" x 7/8" (4 267 x 635 x 22 mm) O O O O
12' x 29" x 1" (3 658 x 737 x 25 mm) S S
13' x 29" x 1" (3 962 x 737 x 25 mm) O O
14' x 29" x 1" (4 267 x 737 x 25 mm) OO
14' x 31" x 1" (4 267 x 787 x 25 mm) S
16' x 31" x 1" (4 877 x 787 x 25 mm) O
Moldboard extensions RIGHT or LEFT - 2' (610 mm) O O O O O O O
Moldboard edges - carbide 3/4" x 5" (19 x 127 mm) or 1" x 8" (25 x 203 mm) harden steel O O O O O O O
Brackets for Automatic Blade Control System installation O O O O O O O
Metallic lower moldboard slide bearing OOOOOOS
Tires
Consult your Volvo dealer for full offering
Tires: 14:00 X 24 - G2 S S S S S S
17:5 x 25, 12 PR, G-2 O O O O O O
16:00 X 24 OO S
20:5 X 25 OO
2007.05
036-454 Q4 930 web specs R2.indd 9036-454 Q4 930 web specs R2.indd 9 5/9/07 12:02:42 PM5/9/07 12:02:42 PM

9
2007.05
Model (S - Standard / O - Optional) G930 G940 G946 G960 G970 G976 G990
Hydraulics
Proportional Demand Flow hydraulic system with short throw, low effort control levers S S SSSSS
10sectionhydrauliccontrolvalve-includestwosparesectionswithlevers SSSSSSS
Circleturnrelieflocatedintegralwithmainmanifold SSSSSSS
Hydraulic oil level monitor via Contronics S S SSSSS
Blade Lift Float Control, independent right and left detent style O O O O O O O
Front attachment float control, detent style, independent of other float valves O O O O O O O
Several remote valve locations for attachments O O O O O O O
Secondary steering (power assisted) O O O O O O O
Operator Cab
Illuminated entry when cab doors are opened - enclosed cab only S S SSSSS
Adjustable steering control pedestal with tilt head for maximum operator comfort S S SSSSS
Gauges include: coolant temperature, engine oil pressure, fuel level, hourmeter,
articulation angle indicator SSSSSSS
Multi-function Volvo Contronic Monitoring System with visual and audible warnings S S SSSSS
Deluxe, cloth covered, fully adjustable suspension seat when grader is equipped with
an enclosed cab - 3" (75 mm) retractable seatbelt SSSSSSS
Deluxe air suspension, cloth covered, fully adjustable suspension seat -
3" (75 mm) retractable seatbelt OOOOOOO
Left and right outside dual rear view mirrors S S SSSSS
Fold-away left and right outside dual rear view mirrors O O O O O O O
Dual interior rear view mirrors S S SSSSS
Enclosed Low Profile Cab with ROPS and FOPS – left and right cab door with steps S S SSSSS
Enclosed High Profile Cab with ROPS and FOPS – left and right cab door with steps O O O O O O O
Low Profile canopy shell (SPLIT) with ROPS – left and right entry with steps O O O O
Cab heater - 50,000 BTU with cab pressurizer and replaceable filters, 10 outlets S S SSSSS
Air conditioner - 35,000 BTU • HFC-134a (non-CFC refrigerant) with cab heater O O O O O O O
Defroster fan with multiple outlets O O O O O O O
Radio/CD player with 4 speakers O O O O O O O
Single arm front cab wiper and washer, enclosed cab S S SSSSS
Single arm wiper and washer - rear window O O O O O O O
Single arm wiper and washer - lower windows front left & right O O O O O O O
Dual arm front windshield, increased coverage, Low Profile Cab only O O O O O O O
Intermittent wipers on all wipers ordered O O O O O O O
Window - lower front - opening O O O O O O O
Window - left/right side - opening sliders with multiple position openings O O O O O O O
Lower cab shield, encloses bottom of cab to frame O O O O O O O
Attachments
Fenders front or rear OOOOOO
Dozer Blade: 8' (2.5 m) O O O O
9' (2.7 m) O O O O O O O
10' (3.0 m) OOO
Front Mounted Scarifier with 5 scarifier teeth O O O O O O
Mid Mount Scarifier with 5 scarifier teeth O O O O
Push Block OOOOOOO
Ripper/Scarifier, rear with 3 ripper shanks O O O O O O O
Other
PaintedhighglossVolvoyellowandgrey SSSSSSS
First user lifetime frame warranty – includes articulation pins and bearings O O O O O O O
Paint - custom colors OOOOOOO
Low ambient fluids for extreme cold conditions below -14º F (-10º C) O O O O O O O
Tool kit OOOOOOO
Sound reduction packages (Standard in EU markets) O O O O O O O
Rear licence plate bracket O O O O O O O
Air compressor - engine driven with tank O O O O O O O
Volvo CareTrack – remote monitoring system O O O O O O O
Partial listing of available options. Certain features may be standard or not available within specific market.
Consult your Volvo Motor Grader distributor for more information.
036-454 Q4 930 web specs R2.indd 10036-454 Q4 930 web specs R2.indd 10 5/9/07 12:02:43 PM5/9/07 12:02:43 PM

Volvo Construction Equipment is different. It’s designed, built
and supported in a different way. That difference comes from
an engineering heritage of over 170 years. A heritage of
thinking first about the people who actually use the machines.
About how to help them be safer, more comfortable, more
productive. About the environment we all share. The result
of that thinking is a growing range of machines and a global
support network dedicated to helping you do more. People
around the world are proud to use Volvo. And we’re proud
of what makes Volvo different – More care. Built in.
All products are not available in all markets. Under our policy of continuous improvement, we reserve the right to change
specifications and design without prior notice. The illustrations do not necessarily show the standard version of the machine.
Ref. No. VOE22B1002263 US/English
Printed in pdf 2007.05 GRD
Volvo, Goderich
036-454 Q4 930 web specs R2.indd 1036-454 Q4 930 web specs R2.indd 1 5/9/07 12:01:45 PM5/9/07 12:01:45 PM
