VonHaus 3500215 User manual
A5P | 01
3500215
Please read all instructions carefully before use and
retain for future reference.
INTENDED USE Only operate the product for its
intended purpose and within the parameters specied
in this manual.
This product is for domestic use only.
Ensure the product rating matches the power outlet.
Use with RCD protected power supply only. Only use for
charging compatible electric vehicles.
This product is not intended for use by persons with
reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless supervised or
given appropriate instruction concerning the product ’s
use by a person responsible for their safety.
Never use a domestic multi socket extension lead when
charging your electric vehicle unless otherwise stated by
the car manufacturer charging instructions.
ALWAYS use this product in conjunction with Vehicle
charging instructions. Ensure you frequently check your
charging cable for wear and tear and replace it if any
damage is evident. Do not use if any part of the equip-
ment is damaged.
If you are charging from a 13A mains socket in your
home, ensure the wiring in your property has been
checked prior to doing so. Old wiring may not be able
to cope with the demand from charging your vehicle
overnight and risk a re in your property.
Before using the charger, read all instructions, labels and
cautionary markings on the charger.
DANGER Do not use the charger if it has been subject-
ed to a heavy knock, dropped, or otherwise damaged
in any way. Take the charger to an authorised service
centre for it to be checked and repaired.
DANGER Risk of Electrical shock or burn. The device
contains no user serviceable parts. Please do not leave
until the control box is in charging status.
Do not attempt to disassemble the charger by opening
or removing covers.
To reduce risk of damage to the electric plug and cord,
pull by the plug rather than the cord when disconnecting
the charger.
Do not drop the communications box.
Do not place the charger inside the vehicle or any other
conned space whilst charging.
A Short-circuit protective device (MCB) should be used
before the Charger input.
GENERAL PRECAUTION
Before use ensure the charger is free from any abnormal
conditions, such as laceration, rust, rupture or breakage
of charging ports, cables, control boxes, wires, and plug
surfaces.
Do not use this charger if the socket is damaged, rust-
ed, cracked or loosely connected.
Do not use the charger if it has become dirty or has
become wet.
Do not allow to be used as a toy. Children should be
supervised to ensure they do not play with the product.
If the product is not functioning properly, has been
dropped, damaged, left outdoors, or immersed in liquid,
do not use, contact DOMU Brands Customer Services.
Do not use the product if any parts appear to be faulty,
missing or damaged.
Ensure all parts are securely attached before use.
Never soak or immerse electrical components and or a
component that has a plug attached.
Make sure that the cord is located so that it will not be
stepped on, tripped over, or otherwise subjected to
damage or stress.
Remove the plug from the mains socket before carrying
out any adjustment or maintenance.
Always store the product in a dry place.
If the power cord is damaged, it must be replaced by a
qualied service technician.
Clean the product by rubbing it with a clean cloth and
blow it clean using low-pressure compressed air is
recommended.
Ensure you have all the pieces listed. If you are missing
any components, contact our customer services
department at
if any components are missing.
TECHNICAL SPECIFICATION
Input: 110V-250V 10A
Charging Output: 110V - 250V 10A
Ingress protection Rating: IP54
Rated Current: 10A
Rated Voltage: 110-250V 10A
Resitance Voltage: 2000V
Insulation Resitance: >1000M
Contact Resitance Less than 0.5m
Insertion and Extraction force 80N<F<100N
Fire Rating: UL984 V-0
Operating Tempreture: -30 to 50°C
Cable Specication: 3 x 2.5mm2 / 6mm2
A5P | 01
COMPONENTS

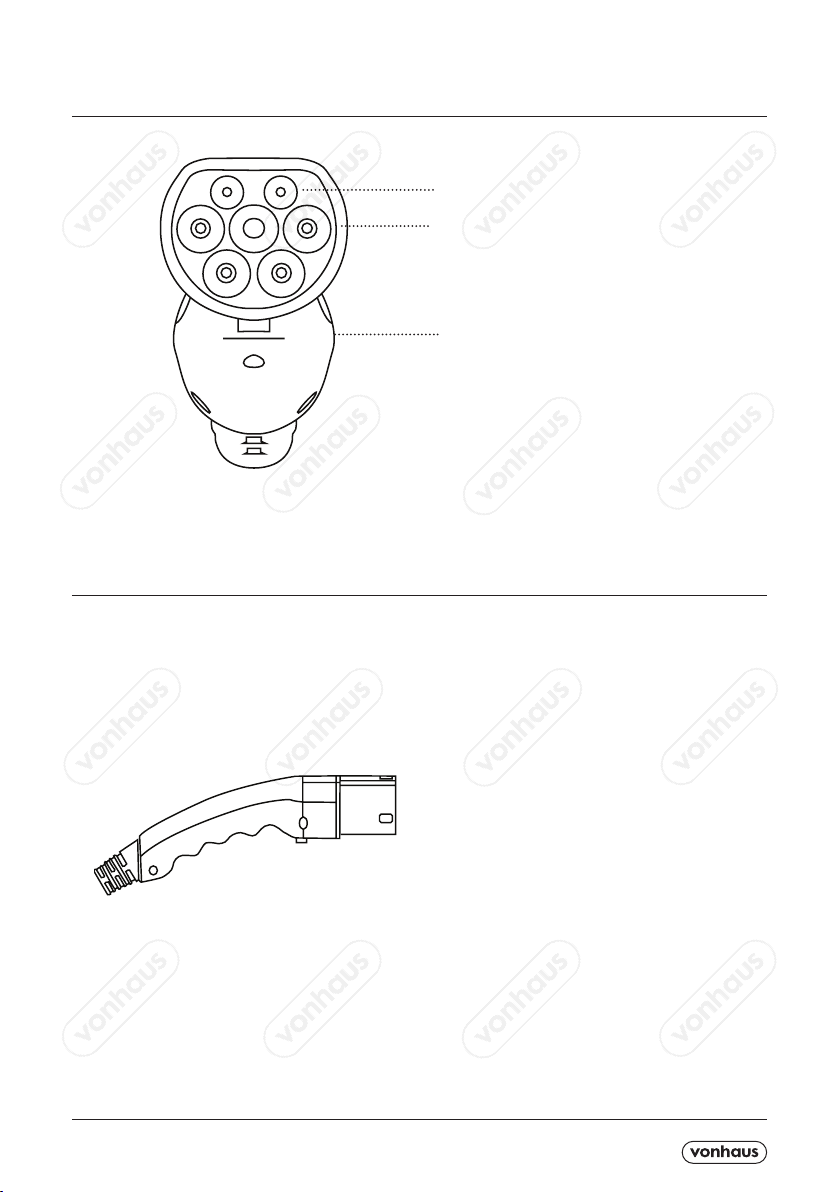

Type 2 connection is widely used for European vehicles.
It has a round housing, which is attened on one side for
correct orientation.
It uses a seven pin-and-sleeve contact for up to four AC
conductors.
A protective conductor and two signal pins are used
for the control pilot function (according to IEC 61851-1
Annex A) and for simultaneous proximity detection and
current coding (according to IEC 61851-1 Annex B.
When connected, it is held into place by the locking
mechanism, which is attached to the unit. The same
concept is used by the socket-outlet to hold the plug in
place.
The plug has 4 pins to carry power.
2 pins for safety ground and 2 for communication
The plug has no latch, but the vehicle has a locking pin
that locks the plug into place. This means that only
the Vehicle owner can unplug the car charging
cable
7 pin plug
A5P | 01
OPERATION
To begin charging
1. Take the charging cable and insert the plug into a
suitable power supply outlet.
2. Remove the protective cap and fully insert the
charging connector into the charging port ensuring the
connector is secure.
3. The charger will automatcaily begin charging the red
LED will be illumanted and the green LED will ash.
NOTE: If charging does not begin automatically and the
LED sequence is not as indicated as above refer to the
Staus LED Meaning.
LED State Fault Yellow State Green Charge Red
Ready O On O
EV Connector O Slow Flash O
CP Error O Fast Flash O
Charging O Pulsing On
Charge Complete O O O
Fault Flash On O
STATUS LED MEANING
To end charging
1. Disconnect the plug from the power supply outlet.
2. Disconnect the charging connector from the
vehicle.
3. Close the proctecvtive cover on the vheicle, and place
the protective cap onto the charging connector.
0.000KWh
00:00:00
0.0A 0.00KW
230V
24ºc
Tempreture
Electricity Consumption
Power
Constant Current
Charging Time
Rated Current
Voltage
Display Screen
A5P | 01
DISPOSAL INFORMATION Please recycle where facil-
ities exist. Check with your local authority for recycling
advice.
CUSTOMER SERVICE If you are having diculty using
this product and require support, please contact
WARRANTY To register your product and nd out if you
qualify for a free extended warranty please go to
www.vonhaus.com/warranty. Please retain a proof of
purchase receipt or statement as proof of the purchase
date. The warranty only applies if the product is used
solely in the manner indicated in the warnings page of
this manual, and all other instructions have been followed
accurately. Any abuse of the product or the manner in
which it is used will invalidate the warranty. Returned
goods will not be accepted unless re-packaged in its
original packaging and accompanied by a relevant and
completed returns form. This does not aect your stat-
utory rights. No rights are given under this warranty to a
person acquiring the appliance second-hand or for com-
mercial or communal use.
COPYRIGHT All material in this instruction manual are
copyrighted by DOMU Brands.Any unauthorised use
may violate worldwide copyright, trademark, and other
laws.
THANK YOU
Thank you for purchasing your product /appliance.
Should you require further assistance with your pur-
chase, you can contact us at
VonHaus is a registered trademark of DOMU Brands
Ltd. Made in China for DOMU Brands. M24 2RW.
