Vortex VST HP Series User manual

Gas / Liquid sampling tool
High pressure, manually operated.
Version 2.2

VERSION SECTION ISSUE DATE AUTHOR DESCRIPTION OF UPDATE
1.0 21 March 2017 JG First Edition
Vortex Dredge - Mini Gas Sampling Tool - Version 2.2 2
Document name:
VOR-GST-MAN:VER 1.0
VST-XX-HP
Vortex gas sample tool manual version 1.0
VORTEX International Ltd
27 Parrs Road RD1
New Plymouth 4371
New Zealand
Ph/Fax + 64 6 7538102
Mobile + 64 (0) 276 88 53 72
http://www.vortexdredge.com

CONTENTS Page
1 INTRODUCTION 4
1.1 Reference Documents 4
1.2 Abbreviations 4
1.3 Contacts 4
2 SAFETY 5
2.1 Overview 5
2.2 Risk Assessment 5
2.3 Mechanical 5
3 TECHNICAL SPECIFICATIONS 7
3.1 Description 6
3.2 Schematic 7
3.3 Component particulars 8
4 OPERATIONAL PROCEDURES
4.1 Pre-dive Checks tool visual check 9,10,11,12,13,14
4.2 Pulling a vacuum 15
4.3 Changing bottles 16
4.4 Pre dive checks, in water operation 17,18
4.5 Post Dive Checks 19
4.6 Cleaning tool and bottles 20
5 MAINTENANCE & STORAGE 22
5.1 Standard Procedures 22
5.2 Replacement Procedures 22
6 Appendix and references
6.1 Tool dimensions and weights 23
6.2 Inventory 24
6.3 Bottle part numbers 25
Appendix III. Suppliers specifications sheets 26-31
CONTACTS 32
3
Vortex Dredge - Mini Gas Sampling Tool - Version 2.2

1.INTRODUCTION
The vortex High pressure Gas Sampling tool is designed to capture gas and liquid samples in a
subsea environment and recover said samples to the surface in a high pressure state of no more
than 1800psi (124bar) by means of an electro mechanical operated syringe to ingest sample then
purge sample into a sample bottle after recovery to surface.
This tool is designed to be deployed from the surface with the bottle bled of air and a vacuum
entrained in the system. Sample filling relies on the entrained vacuum and ambient water
pressure filling the bottle when the main isolation valve is operated.
1.1 Reference Documents
See Appendix and references section at the end of this document for certificates and
manufacturers data.
1.2 Abbreviations
PSI: Pounds per Square Inch
PPE: Personnel protective equipment
JHA: Job Hazard Analysis
VST: Vortex Sample Tool
HP: High Pressure
1.3 Contacts
For Technical queries, Comments and Feedback contact Vortex Dredge: [email protected]
4
Vortex Dredge - Mini Gas Sampling Tool - Version 2.2

2. SAFETY
2.1 Overview
All local HSE procedures must be followed. Use of PPE should follow guidelines outlined with
handling of potential sample. For example hazardous gas samples should have PPE appropriate
to mitigate dangers associated with that gas. Safety glasses should be considered minimum
requirement irrespective of potential sample. Your safety is your responsibility. Think and plan
ahead accordingly.
2.2 Risk Assessment
Consult with local HSE and installation operators to identify best practice steps needed for safe
operations. Identify if the task been done and implement lessons learned. JHA, permitting and
toolbox talks should preclude all operations.
2.4 Mechanical
Ensure all fittings and fasteners are secure. Check general condition of tool against images in
manual for anything which may indicate potential operational issues.
•Remember, your safety is your responsibility. Think and plan ahead
accordingly. If in doubt, please ask.
5
Vortex Dredge - Mini Gas Sampling Tool - Version 2.2

3. TECHNICAL SPECIFICATIONS
3.1 Description
To “Suck” the sample into the syringe the operator will function the main isolation valve to open
the circuit to ambient pressure and ‘draw’ the sample into the bottle.
To entrap the sample in the sample bottle the operator will function the main isolation valve
closed to seal the circuit and entrap the sample in the sample bottle.
6
Vortex Dredge - Mini Gas Sampling Tool - Version 2.2

7
3. TECHNICAL SPECIFICATIONS
3.2 Description: Schematic
Vortex Dredge - Mini Gas Sampling Tool - Version 2.2
Exhaust relief valve set
to 1800psi (124bar)
0 to 3000 psi
gauge
Sample bleed
valve / vacuum
pull port
Secondary
isolation valve

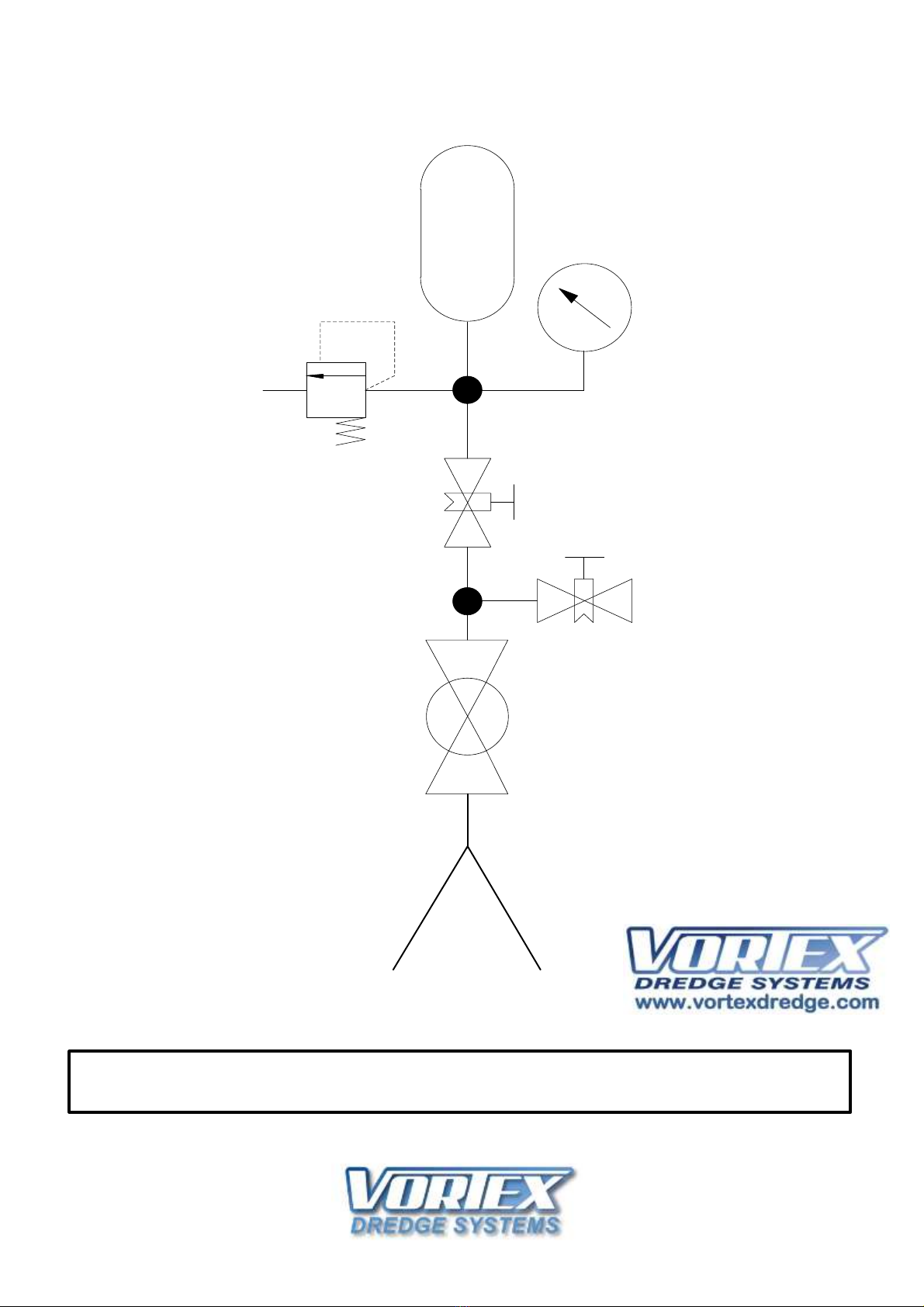

Vortex VST-XX-HP sample tool schematic
Main isolation
valve
Inlet funnel
Sample bottle

8
3. TECHNICAL SPECIFICATIONS
3.3 Component particulars
•Complete tool Weight empty in air = 107 lb (40kg)
•Complete tool Weight empty in fresh water = 61 lb (28 kg)
•Containment bottle volume = 0.264 gallon (1.0 litre)
•Main relief valve setting as of 1 May 2013 = 1800psi (124 bar)
•Complete tool dimensions = 44 inch (1140 mm) long x 7 inch (180 mm) diameter
•Main relief valve working range = 0 to 3000 psi (206 bar)
•Main isolation valve rated to 10,000 psi (689 bar)
•Secondary isolation vale rated to 3000 psi (206 bar)
•Sample bleed off valve rated to 3000 psi (206 bar)
•Pressure gauge = 0 to 3000 psi (206 bar)
•Standard funnel diameter =- 6 inch (150mm) Capacity = 780ml (0.82 quart).
•Extra funnel diameter =- 10 inch (254mm) Capacity = 6 litre (6.3 quart).
•Depth rating = 2054 mtr. 6741 foot seawater with 1800psi rated bottles.
•Deeper rated and different sized bottles available on request.
•
Vortex Dredge - Mini Gas Sampling Tool - Version 2.2

9
4. OPERATION PROCEDURES
4.1 Pre Dive Checks tool visual check
Vortex Dredge - Mini Gas Sampling Tool - Version 2.2

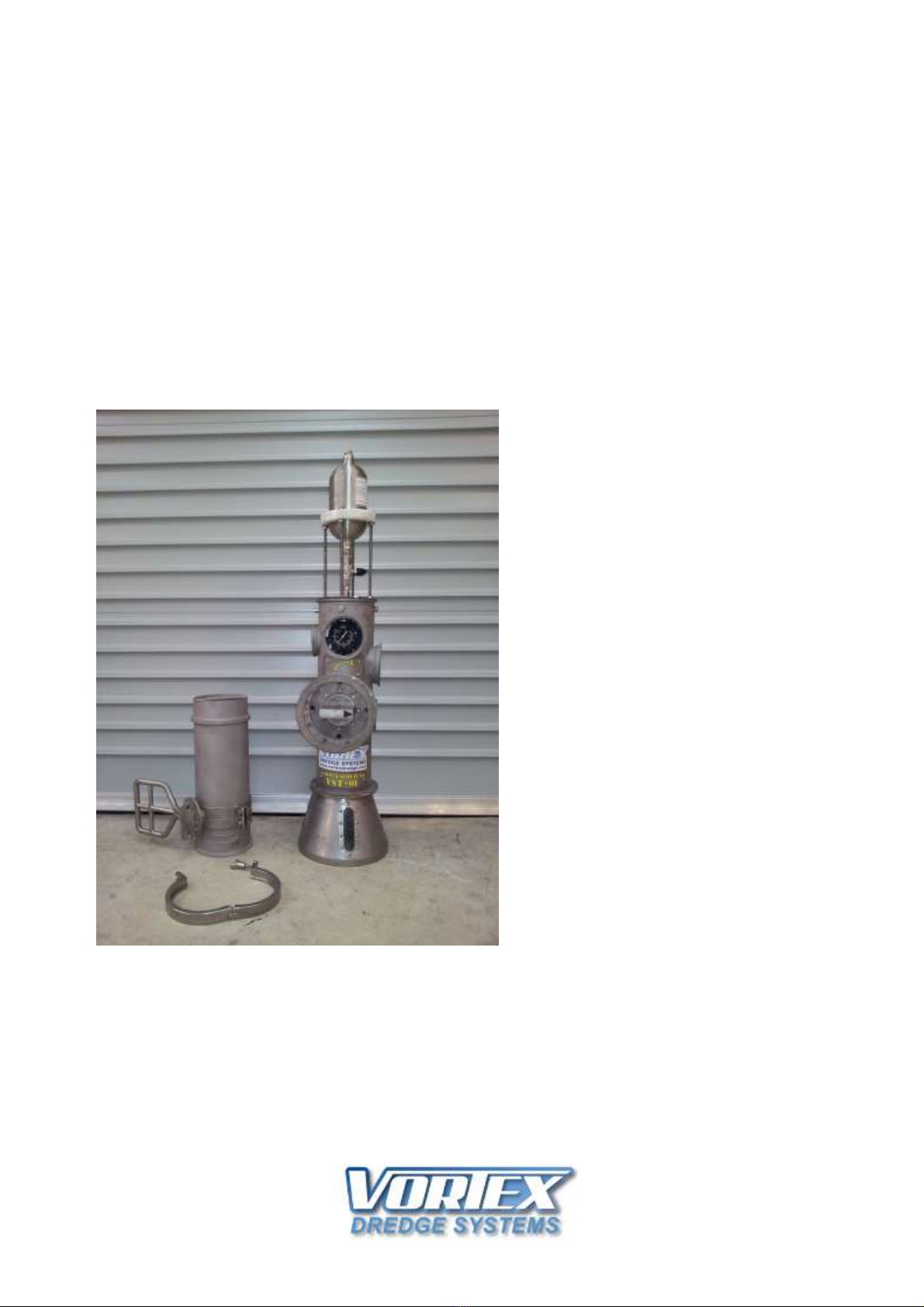

Tool complete and ready to deploy.
Access sample bottles within seconds via
one, heavy duty clamp.

10
4. OPERATION PROCEDURES
4.1 Pre Dive Checks tool visual check
Vortex Dredge - Mini Gas Sampling Tool - Version 2.2

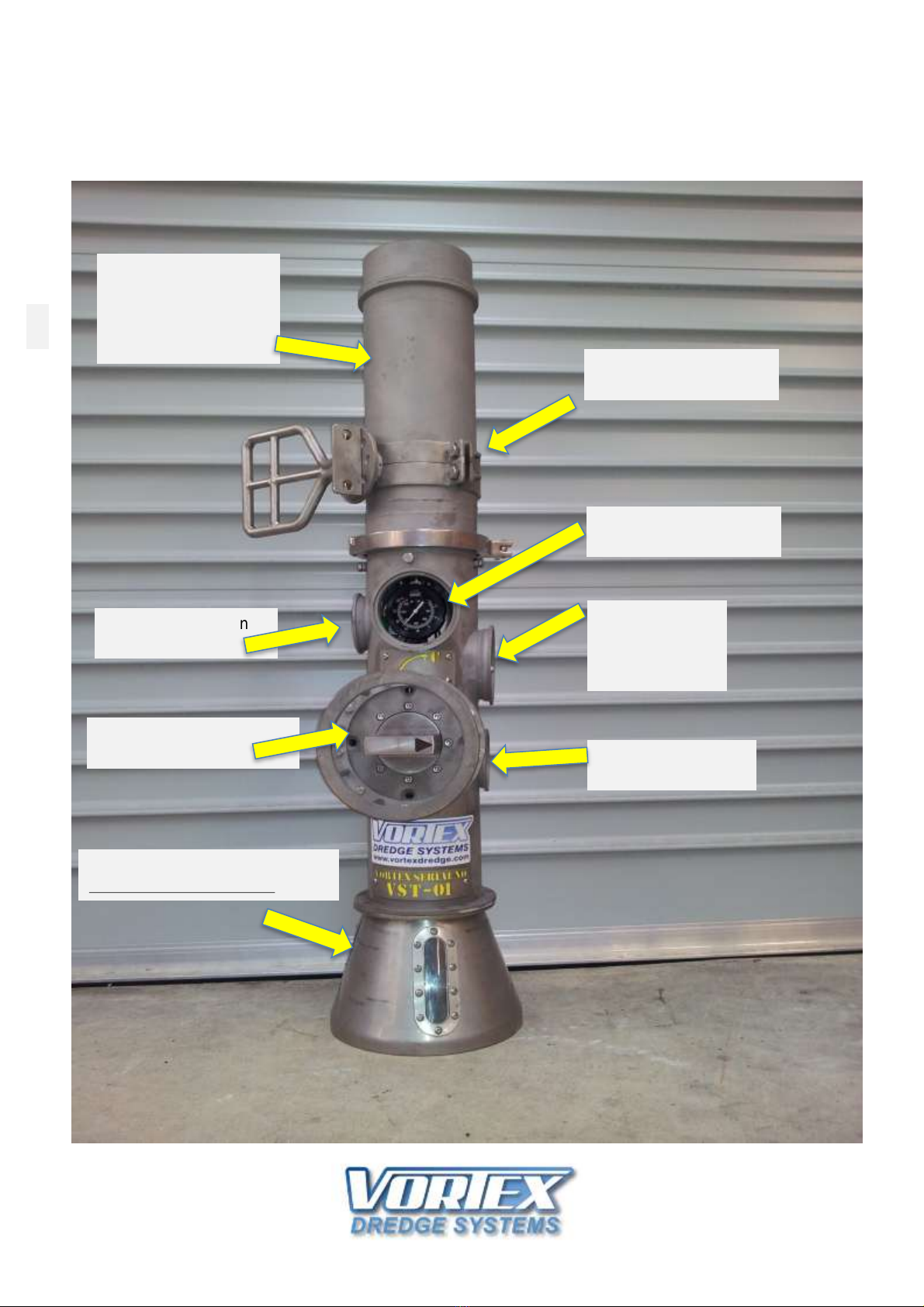

ROV friendly Main
isolation valve.

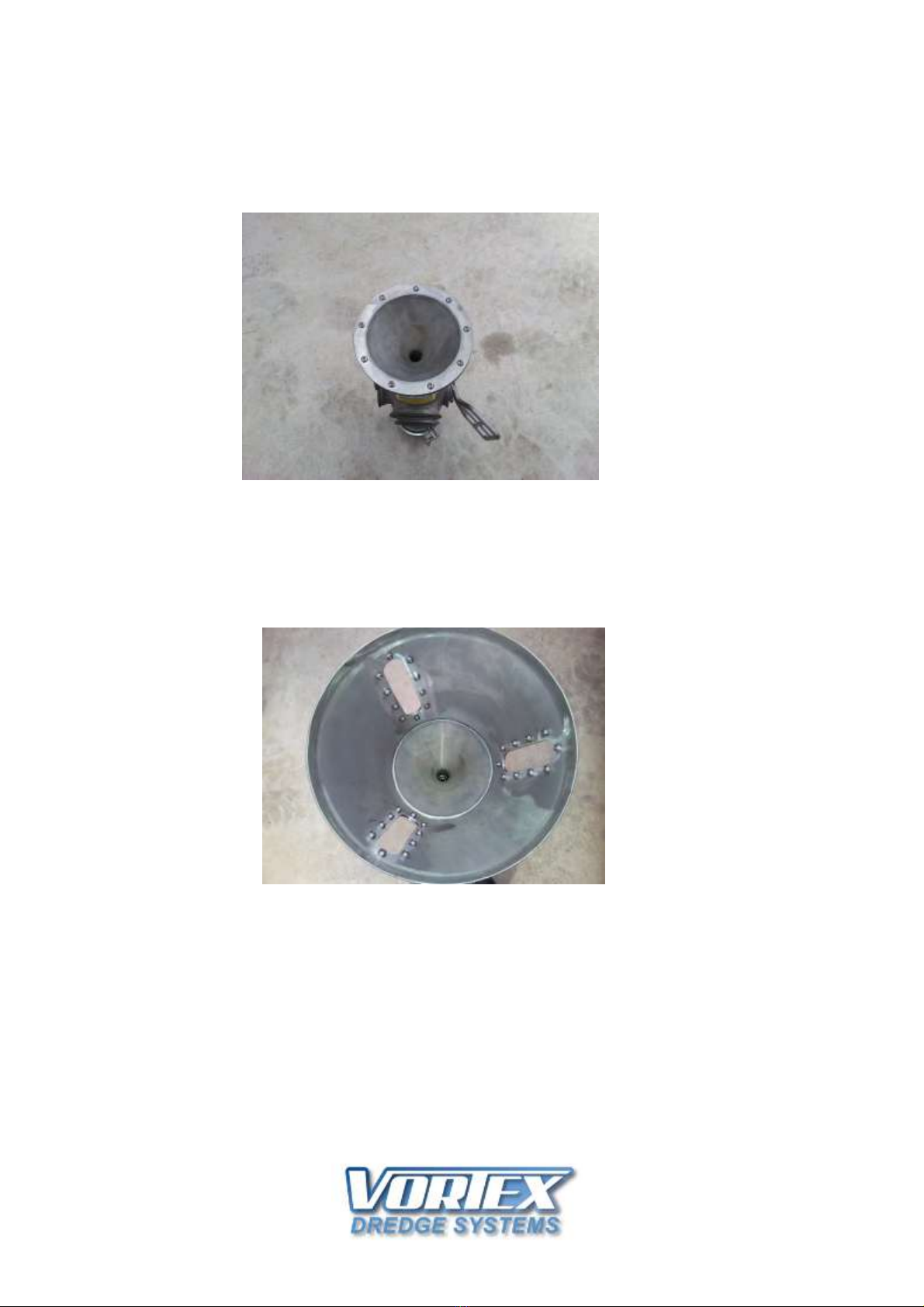

Small sample intake funnel.
Remove when servicing.
Sample containment
bottle and all valves
mounted in stainless
steel anti - impact
safety housing
Secondary isolation
valve.
Multi orientation ROV
handle
Contained sample
pressure.
Sample bleed
off valve/
vacuum pull
port.
Maintenance
access port.
