VOSS XD 3900 User manual

GB Manual

CONTENT
1. INTRODUCTION
1.1 FEATURES OF YOUR DETECTOR

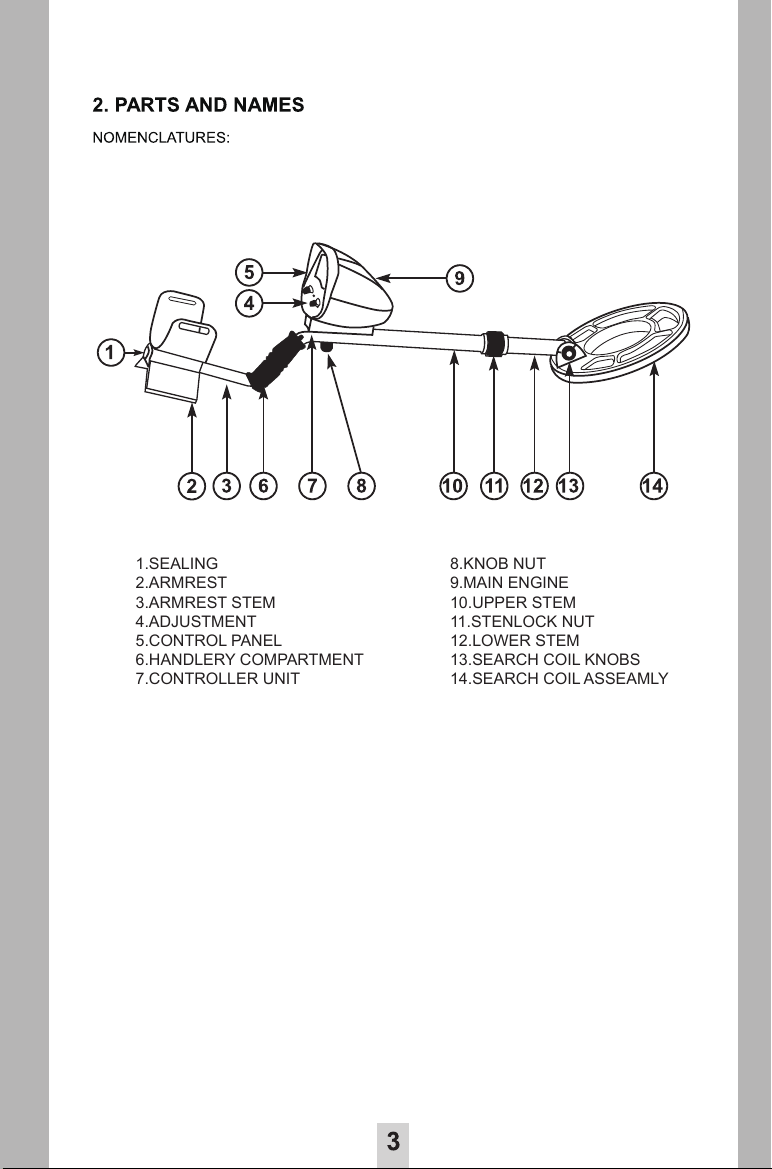

2. PARTS AND NAMES
3. PREPARATION
3.1 ASSEMBLING THE DETECTOR
3.2 INSTALLING BATTERIES
3.3 LOW BATTERY ALARM
3.4 USING A HEADPHONE
4. FUNCTIONS AND INDICATORS
4.1 VIEW METER
4.2 DISC
4.3 SENC
4.4 MODE SWITCH
4.5 TARGET
5. OPERATION
5.1 ALL
5.2 DISC
5.3 TARGET
5.4 SEARCHING COIL SWEEPING
5.5 METAL DETECTOR OPERATORS ETHICS
5.6 PLACES WHERE YOU CAN USE YOUR METAL DETECTOR
6. MAINTENANCE

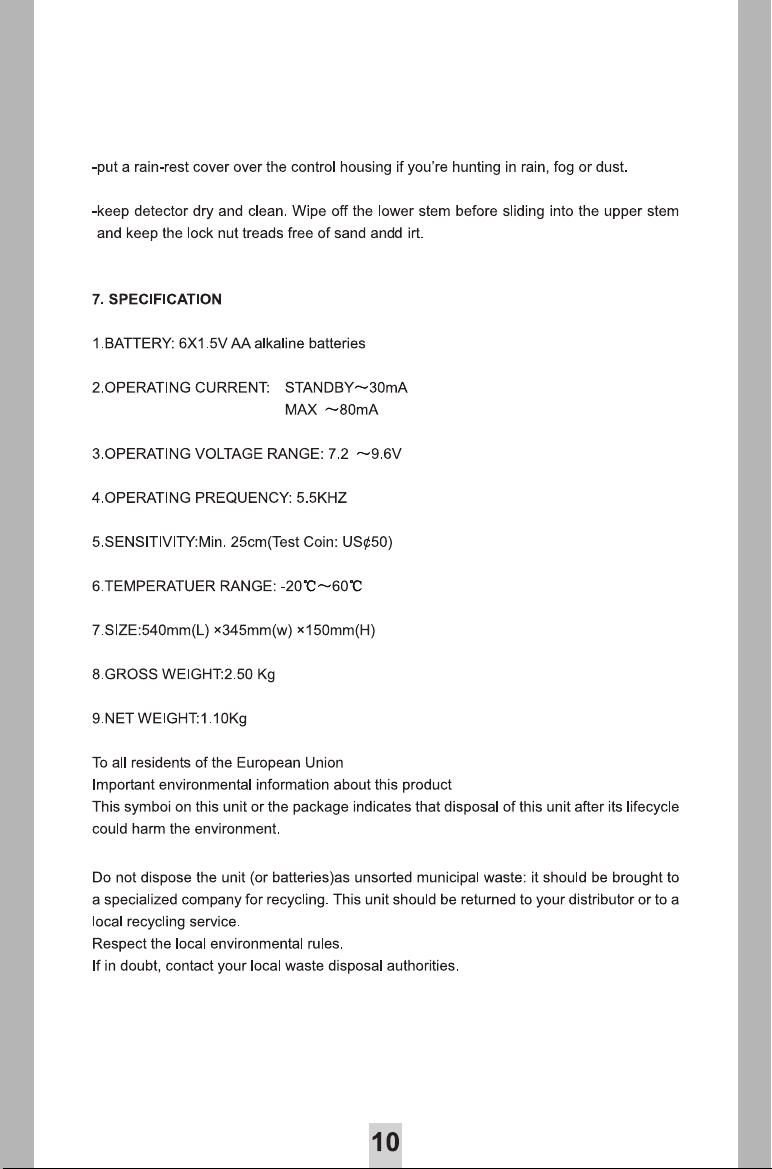

7. SPECIFICATION

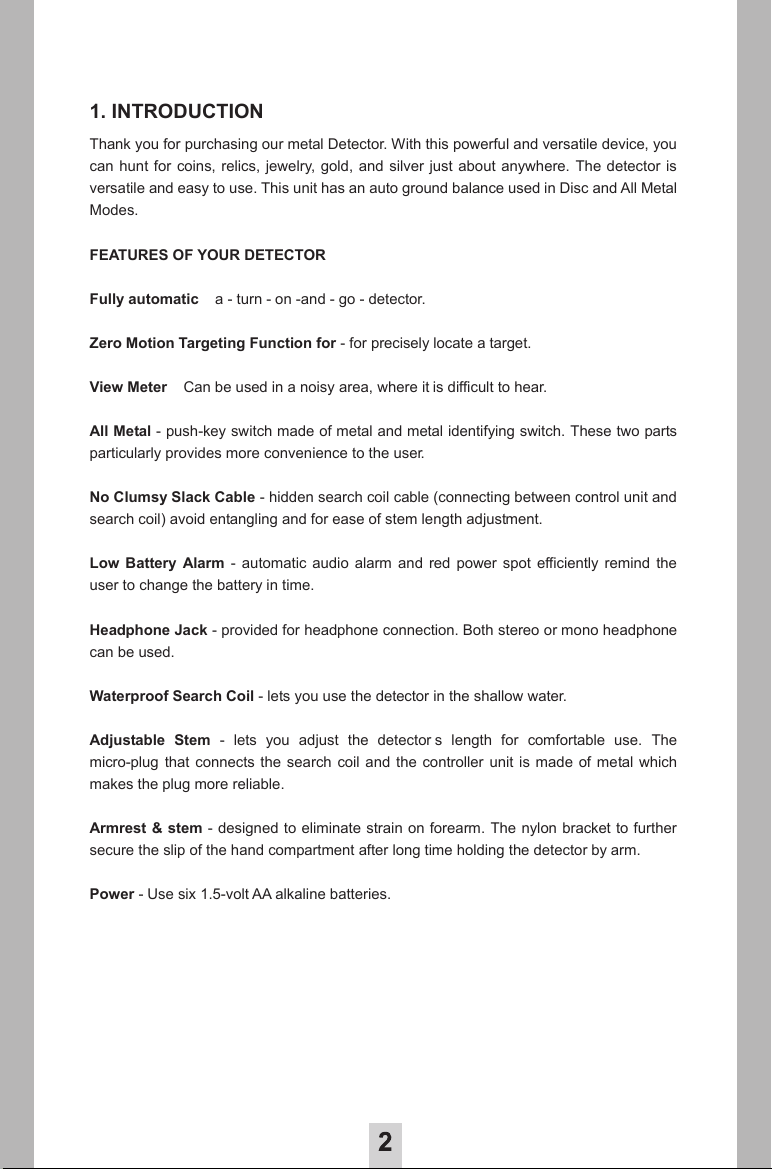

1. INTRODUCTION
Thank you for purchasing our metal Detector. With this powerful and versatile device, you
can hunt for coins, relics, jewelry, gold, and silver just about anywhere. The detector is
versatile and easy to use. This unit has an auto ground balance used in Disc and All Metal
Modes.
FEATURES OF YOUR DETECTOR
Fully automatic a - turn - on -and - go - detector.
Zero Motion Targeting Function for - for precisely locate a target.
View Meter Can be used in a noisy area, where it is difficult to hear.
All Metal - push-key switch made of metal and metal identifying switch. These two parts
particularly provides more convenience to the user.
No Clumsy Slack Cable - hidden search coil cable (connecting between control unit and
search coil) avoid entangling and for ease of stem length adjustment.
Low Battery Alarm - automatic audio alarm and red power spot efficiently remind the
user to change the battery in time.
Headphone Jack - provided for headphone connection. Both stereo or mono headphone
can be used.
Waterproof Search Coil- lets you use the detector in the shallow water.
Adjustable Stem- lets you adjust the detector s length for comfortable use. The
micro-plug that connects the search coil and the controller unit is made of metal which
makes the plug more reliable.
Armrest & stem -designed to eliminate strain on forearm. The nylon bracket to further
secure the slip of the hand compartment after long time holding the detector by arm.
Power - Use six 1.5-volt AA alkaline batteries.

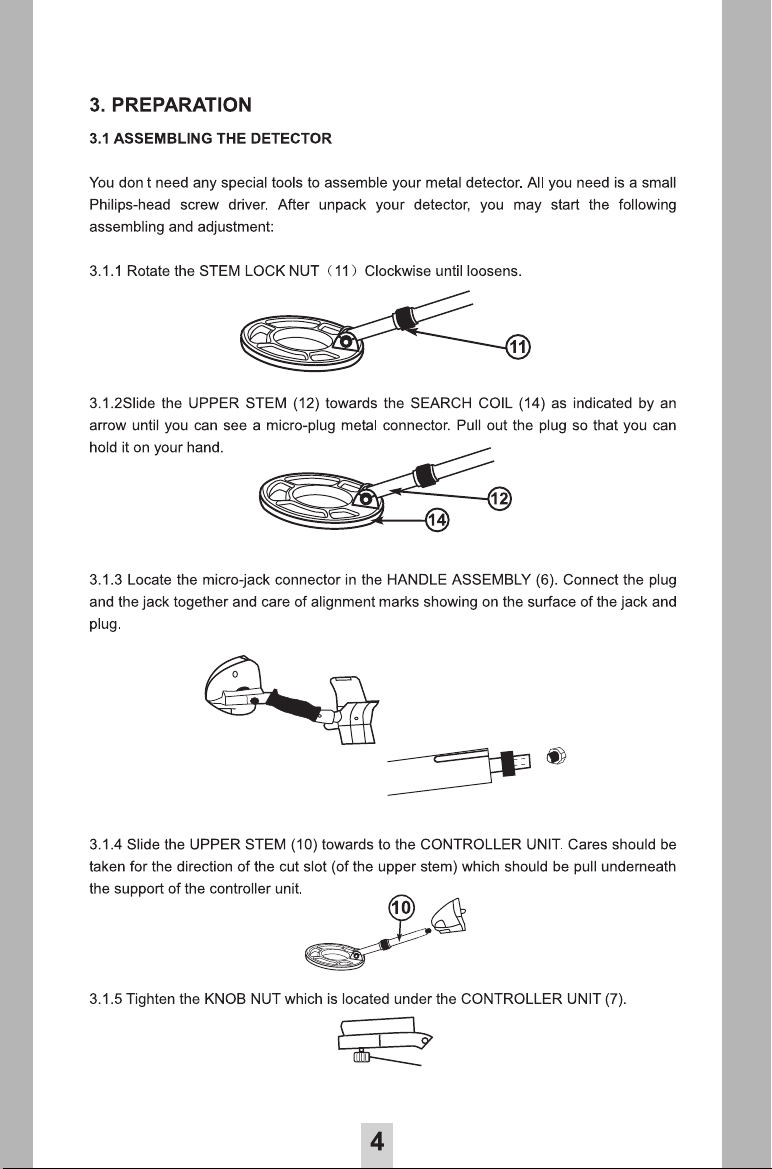

1.SEALING
2.ARMREST
3.ARMREST STEM
4.ADJUSTMENT
5.CONTROL PANEL
6.HANDLERY COMPARTMENT
7.CONTROLLER UNIT
8.KNOB NUT
9.MAIN ENGINE
10.UPPER STEM
11.STENLOCK NUT
12.LOWER STEM
13.SEARCH COIL KNOBS
14.SEARCH COIL ASSEAMLY

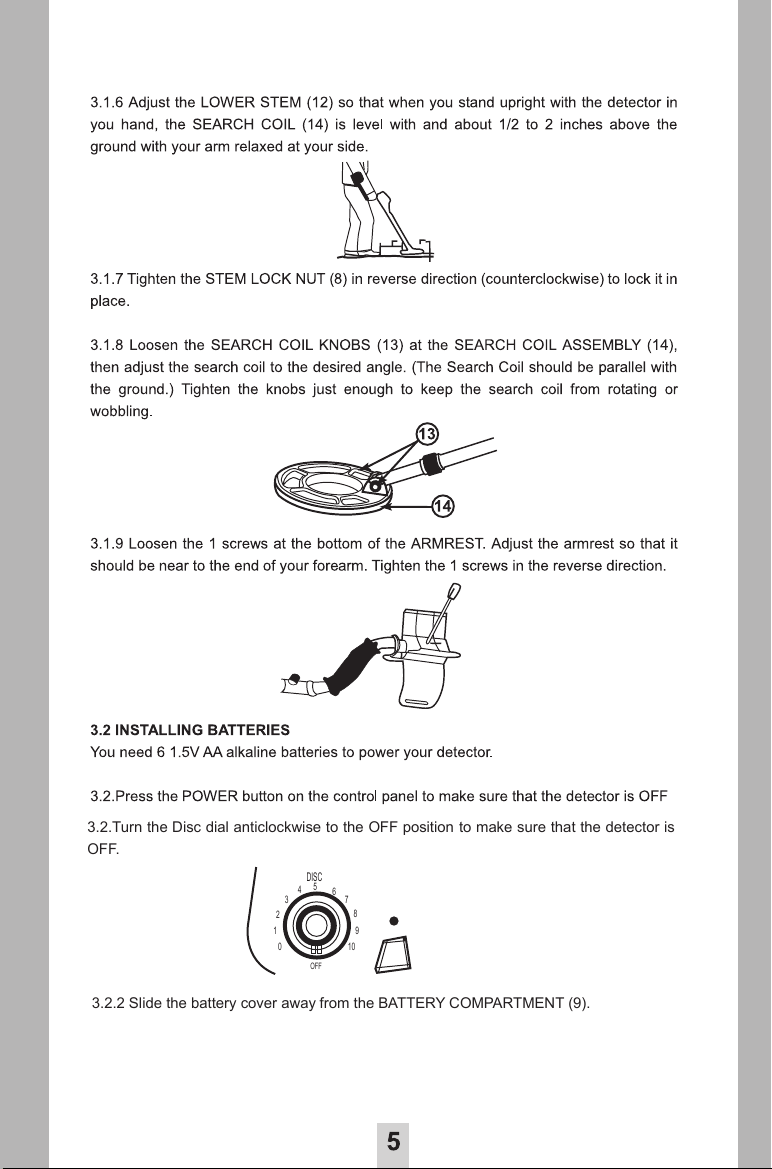

3.2.Turn the Disc dial anticlockwise to the OFF position to make sure that the detector is
OFF.
3.2.2 Slide the battery cover away from the BATTERY COMPARTMENT (9).
DISC
0
1
2
3
4567
8
9
10
OFF

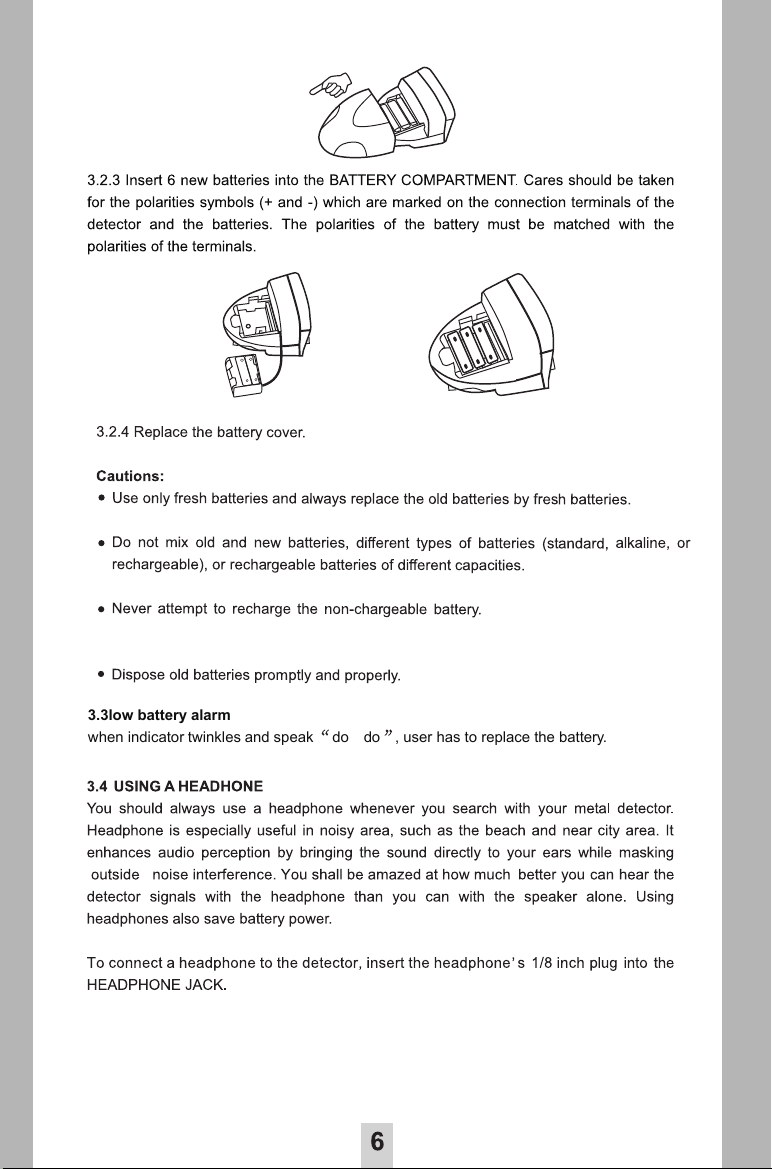

3.3low battery alarm
when indicator twinkles and speak do do , user has to replace the battery.

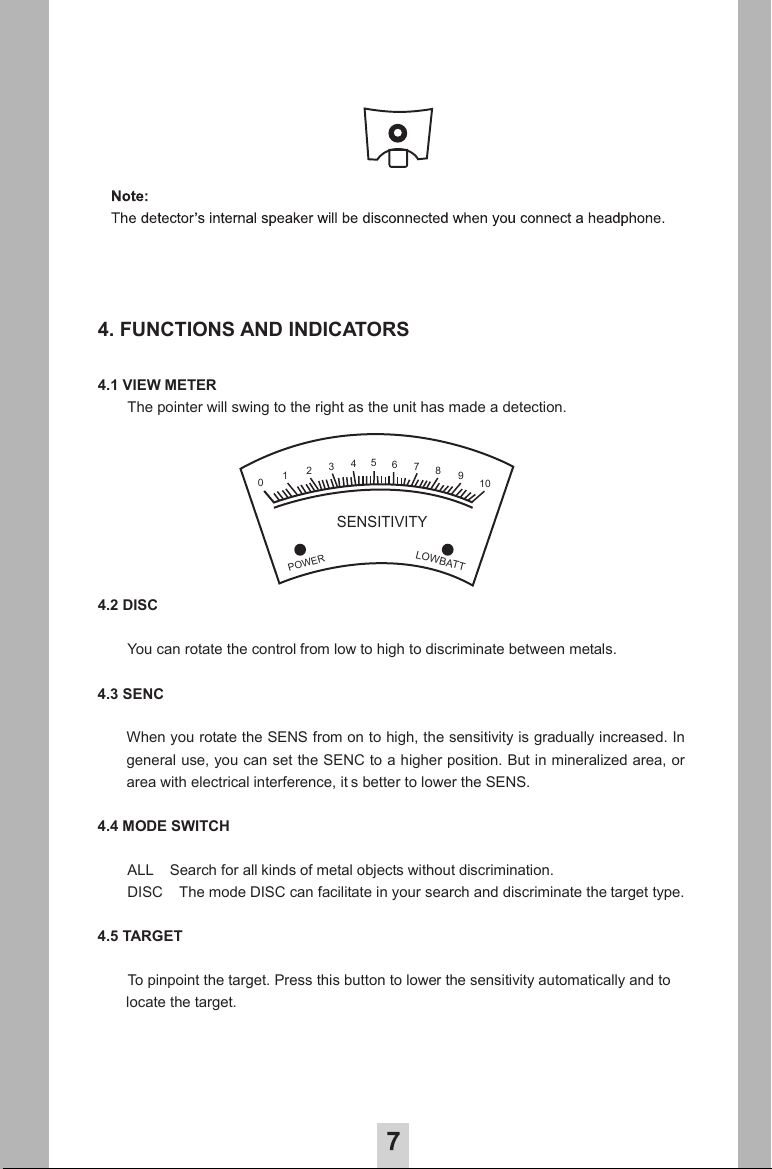

4. FUNCTIONS AND INDICATORS
4.1 VIEW METER
The pointer will swing to the right as the unit has made a detection.
4.2 DISC
You can rotate the control from low to high to discriminate between metals.
4.3 SENC
When you rotate the SENS from on to high, the sensitivity is gradually increased. In
general use, you can set the SENC to a higher position. But in mineralized area, or
area with electrical interference, it s better to lower the SENS.
4.4 MODE SWITCH
ALL Search for all kinds of metal objects without discrimination.
DISC The mode DISC can facilitate in your search and discriminate the target type.
4.5 TARGET
To pinpoint the target. Press this button to lower the sensitivity automatically and to
locate the target.
0110
9
8
7
6
5
4
3
2
SENSITIVITY
POWER
LOWBATT

Correct Wrong
Y
of
to
pi
yo
yo

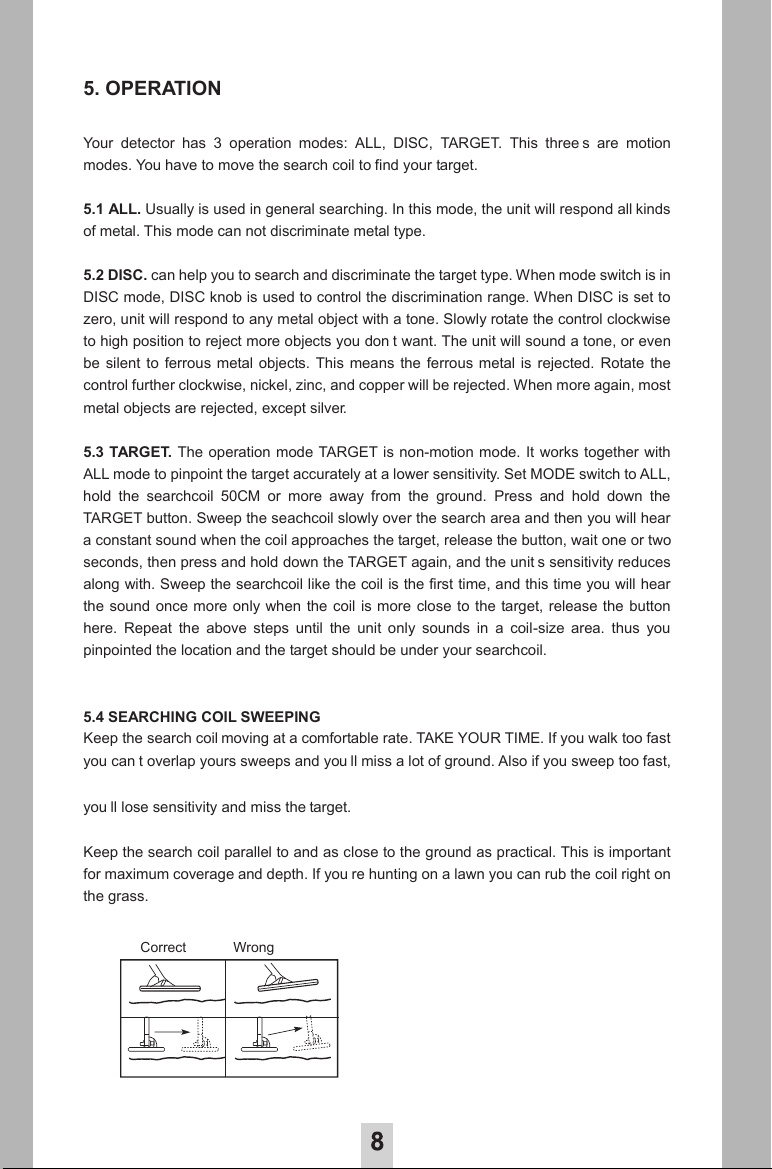

5. OPERATION
our detector has 3 operation modes: ALL, DISC, TARGET. This three s are motion
modes. You have tomove the search coil to find your target.
5.1 ALL. Usually is used in general searching. In this mode, the unit will respond all kinds
metal. This mode can not discriminate metal type.
5.2 DISC. can help you to search and discriminate the target type. When mode switch is in
DISC mode, DISC knob is used to control the discrimination range. When DISC is set to
zero, unit will respond to any metal object with a tone. Slowly rotate the control clockwise
high position to reject more objects you don t want. The unit will sound a tone, or even
be silent to ferrous metal objects. This means the ferrous metal is rejected. Rotate the
control further clockwise, nickel, zinc, and copper will be rejected. When more again, most
metal objects are rejected, except silver.
5.3 TARGET. The operation mode TARGET is non-motion mode. It works together with
ALL mode to pinpoint the target accurately at a lower sensitivity. Set MODE switch to ALL,
hold the searchcoil 50CM or more away from the ground. Press and hold down the
TARGET button. Sweep the seachcoil slowly over the search area and then you will hear
a constant sound when the coil approaches the target, release the button, wait one or two
seconds, then press and hold down the TARGET again, and the unit s sensitivity reduces
along with. Sweep the searchcoil like the coil is the first time, and this time you will hear
the sound once more only when the coil is more close to the target, release the button
here. Repeat the above steps until the unit only sounds in a coil-size area. thus you
npointed the location and the targetshould be under your searchcoil.

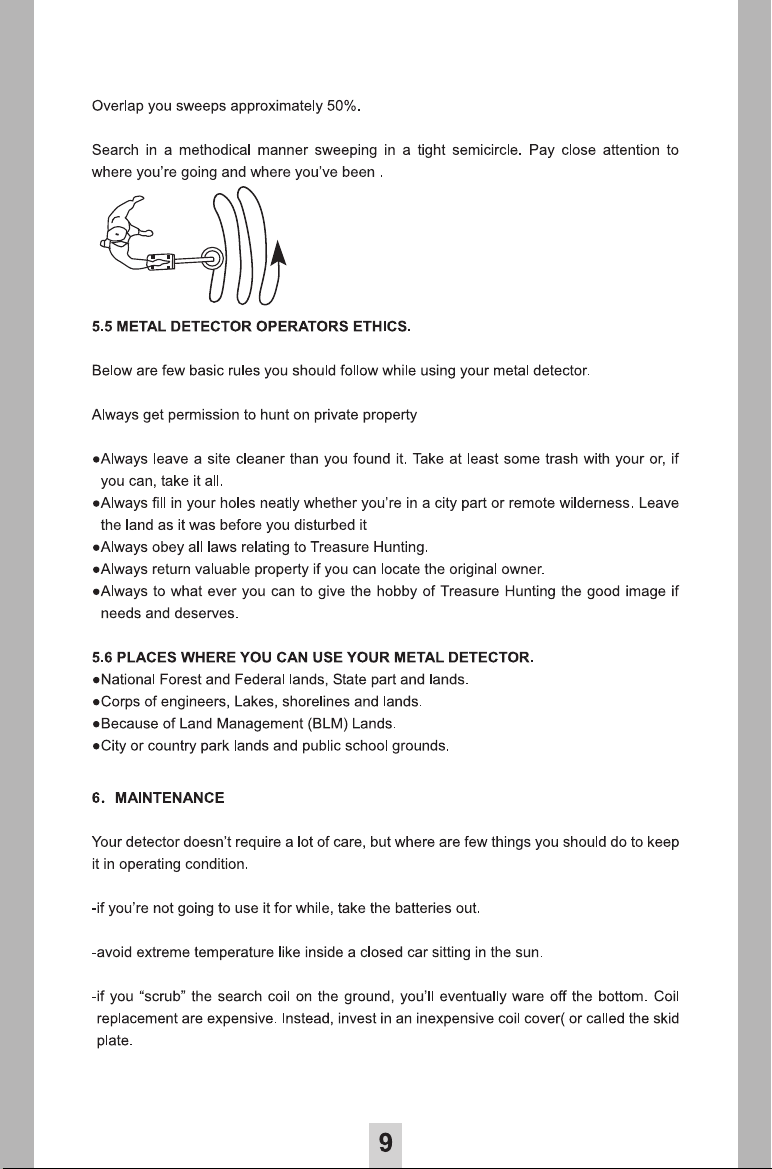

5.4 SEARCHING COIL SWEEPING
Keep the search coil moving at a comfortable rate. TAKE YOUR TIME. If you walk too fast
u can t overlapyours sweeps andyou ll miss a lot of ground. Also if you sweep too fast,
u ll lose sensitivity and miss the target.
Keep the search coil parallel to and as close to the ground as practical. This is important
for maximum coverage and depth. If you re hunting on a lawn you can rub the coil right on
the grass.
