VOVO IMUNSEN User manual

Imunsen Air Purifier Manual

Dear CustomerThank you for purchasing Imunsen Air Purifier. Please read carefully through the user manual for safe and proper use. This manual also contains details of the warranty. After reading through the manual, please write down the date and location of your purchase, as well as the copy of the invoice. Please keep it safe for any assistance.

Product IntroductionUser GuideMaintenance Precautions SpecificationsPackage Contents Part Names 0405Precautions 03Product ConnectionUsage LocationProduct FeaturesCypress Oil Capsule Usage06080911Managing the product Cypress Wood FilterWarranty PeriodProduct Specifications FAQContact Us Warranty 2
Table of Contents 13141516171819

Precautions Precautions 3
When transporting the product, please make sure the device is turned off and unplugged.Use it after properly attaching the body's upper and bottom part.Make sure the purifier inlet surface is at least 10cm(4") away from the wall.Severe pressure or bending the power cord could cause damage. Do not pull the power cord with pressure when plugging. Do not use inadequate or non-certified power adaptors.Do not temporarily replace the power cord with inadequate or non-certified power adaptors.User must hold the head of the power cord when connecting. When transporting or cleaning the device, please make sure to turn the power off and unplug the product beforehand.Immediately stop the purifier if it releases unusual odor and irregular wind, or if it behaves oddly.Do not cover the air inlet area with obstacles or finger.Please make sure to constantly open the window when used with a heating device to prevent carbon monoxide poisoning.Do not use the purifier in humid locations such as bathrooms.Transportation InstallationPower CautionPower CordIn UsageRegulations

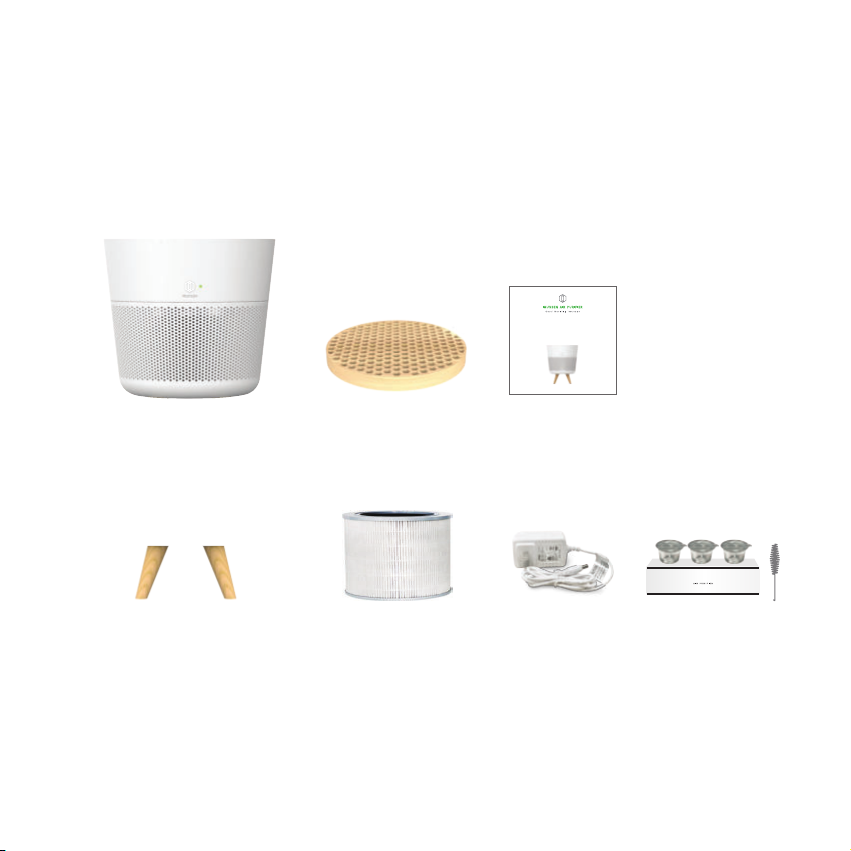

Product IntroductionPackage Contents Cypress Wood Filter Circular FilterPower CordManual, Warranty이문센�소형�공기청정기�설명서4Diffuser,Detaching Hook(Option)Cypress Oil Capsule
Main BodyLegs (4)

Product IntroductionPart names FrontTopAir Inlet5Auto ModeCyclone ModeHigh ModeLow ModeAmbient Light Sensor
Sleep/Eco Mode
PowerCypress Oil Capsule(Option)

User Guide Product connection1. Remove the vinyl cover from the main body.62. Remove the filter by lifting the top part of the purifier and remove the protective cover from the filter.3. Insert the filter into the base and attach the top part of the purifier on the base.※ CautionsPlease make sure to line up the arrows when attaching the top part to the base.

Product connection7

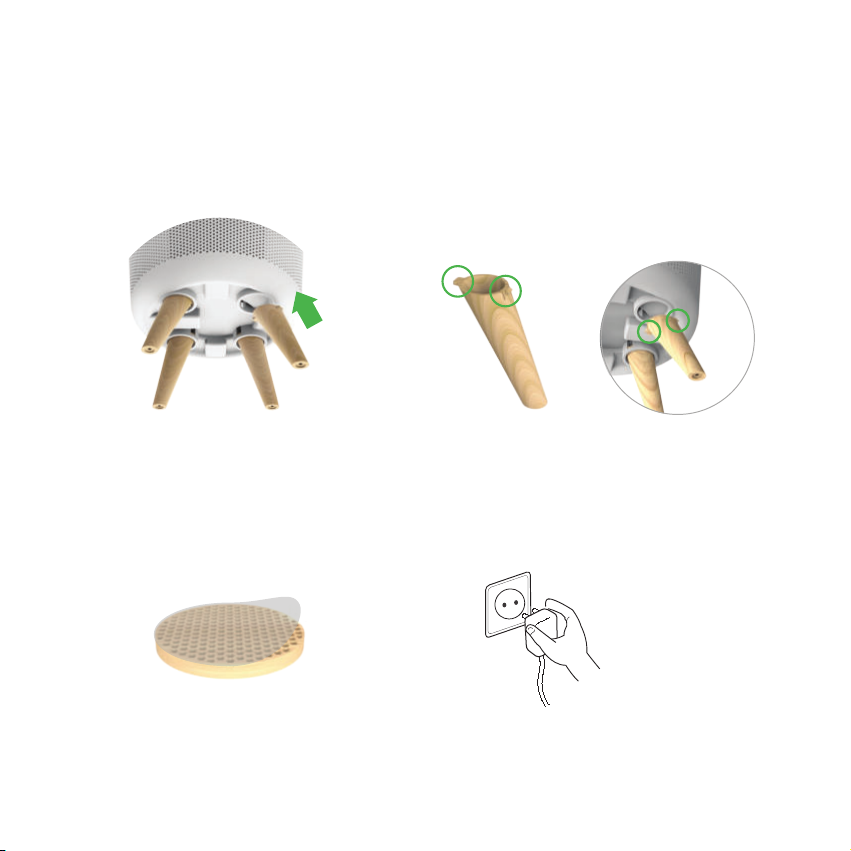

User Guide 5. Remove the vinyl from the Cypress Wood Filter and assemble it to the main body.6. Connect the power cord to a power outlet. ※ Cautions
Do not touch with the wet hand.
4. Attach the product leg to the main body.12< Leg Structure >< Where to Attach >※ CautionPlease make sure to attach the first hook(1) to the main body and push the second hook(2) until you hear the clicking sound. 12

Do not place the product on uneven surfaces. Make sure to check if the intake holes are clean and in open space.
Indoor Usage
8

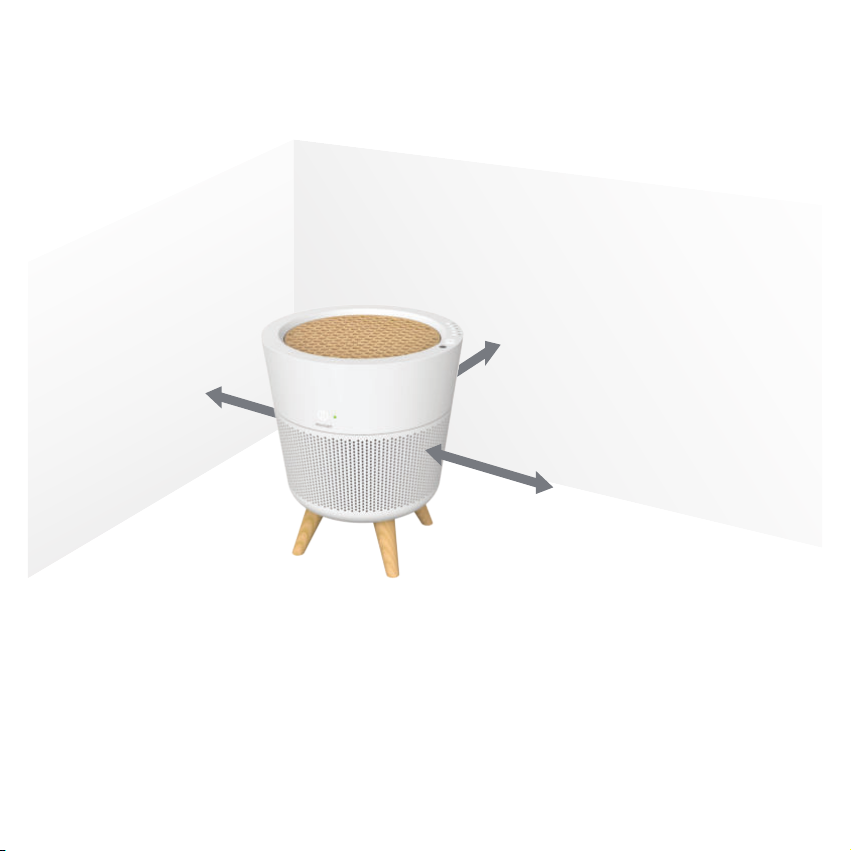

Usage locationUser Guide Minimum 10cm (4”)Minimum 10cm (4”)Minimum 10cm (4”)

Product features9
User Guide
PowerSleep & Eco ModeLow ModeHigh ModeTurbo ModeAuto modeAmbient light sensor
(For Auto mode only)Quickly and efficiently purifies the air with full power of motor fan. It is most effective during cleaning, cooking, and ventilating the room.Turbo mode automatically switches to Auto mode after 3 minutes.Power saving mode is recommended to use when you go to sleep. It will reduce the fan speed when this mode is active, which is suitable when sleeping.Operated by selection in manual mode. High mode can give you the fresh air more quickly than low mode.Normally low mode operates when the air quality is good.Operates automatically depending on the air quality. Automatically change the fan speed according to the air quality, thanks to the dust sensor situated at the back of the purifier.Turning on and off the power.Press & hold the power button for 2 seconds to turn ON/OFF the device. When powered on, the device will start in the previously used mode.Automatically changes mode based on the brightness of the room. Automatically operates the night mode when in dark areas, and returns to auto mode once the area brightens up.

GoodNormalBad
Filter replacement indicator
The LED logo will blink for 5 seconds with a buzz when you turn on the device, indicating the filter need to be replaced.After you have replaced the filter, press & hold the power button for 3 seconds to reset the filter replacement indicator.
※ Reset filter indicator
Product featuresUser Guide LED Light & LED Indicator
LED Logo can provide ambient lighting effects to the user and the LED indicator shows the air quality in 3 different colors.
10

11

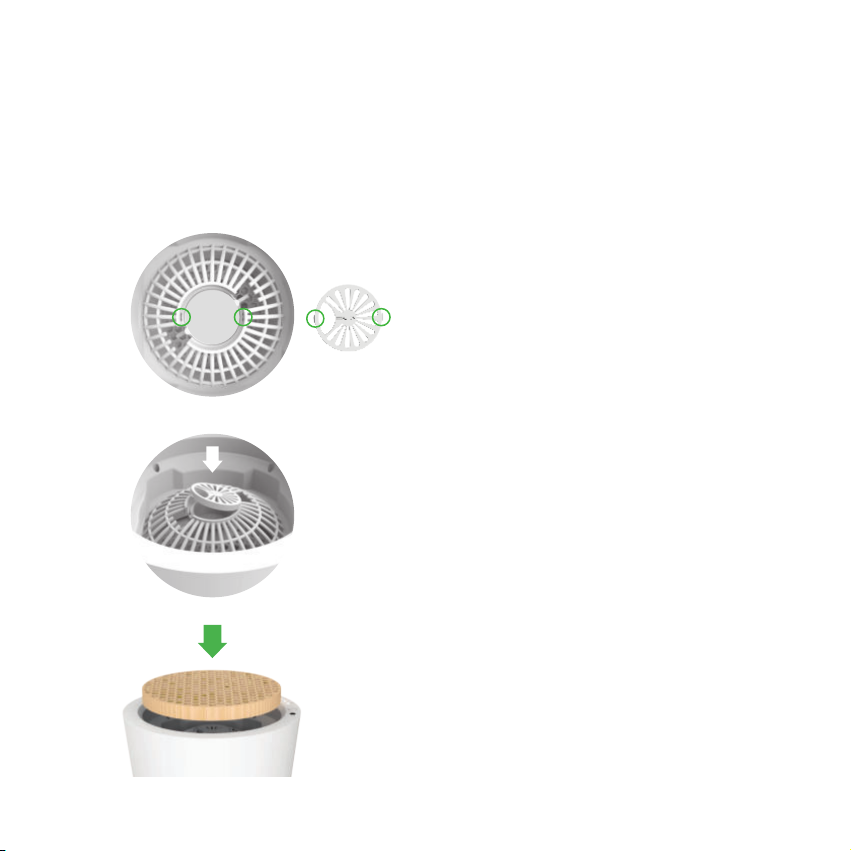

User Guide Cypress Oil Capsule Usage (Option)Cypress Oil Capsulematerial : 100% Pure Cypress Essential Oil (100% Extracted from cypress wood, Chemical-free)Country of Origin: South Korea3. Remove the protective cover from the capsule.※ Do not poke the cover with sharp object asit contains the Cypress oil.(1) Remove the protective cover.(2) Do not remove the transparent film. (Otherwise Cypress oil could spill.)1. After turning off the product, use the detaching hook(accessory) to open the Cypress Wood filter.2. Detach the product by using your finger between the hole from the capsule cover.

User Guide Cypress Oil Capsule Usage (Option)4. Check the two hole to properly attach the product cover.5. Attach the cover to the product on the one side first and then push to finish the other side.6. Assemble the Cypress Wood filter to the main body before turning on the product.12
Cypress Oil Capsulematerial : 100% Pure Cypress Essential Oil (100% Extracted from cypress wood, Chemical-free)Country of Origin: South Korea

Maintenance Managing the product Cleaning the exteriorCleaning the filter
Do not use water to clean the filter. It will decrease the filters lifespan. 1. Remove the filter from the main body.2. Use a Vacuum cleaner to remove larger dust from the pre-filter. 1.Use a Vacuum cleaner to remove dust from the air intake and air outlet.
13
Circular filter is recommended to be replaced every year.Cypress filter is recommended to be replaced every two years.

Maintenance Cypress Wood Filter14
After a period of use, even if the scent is minimal, the effect of cypress wood remains.· Wood may change color or shape when exposed to sunlight, thus recommended to use under shade.· Please be cautious of usage in humid places, as the wood filter is very sensitive to humidity.· Please do not place heavy items on top of the purifier. · If the cypress wood filter is in contact with water, the product may contract or expand.
Following conditions are not defective and cannot be replaced.
Products made from tree wood may contain knots.The cypress wood filter might contain scratches or dents, but is not defected as is naturally caused during production.The wood color or pattern may be different to the image due to the nature of wood.Cypress wood naturally inhales water during summer and expand, as well as naturally exert water to shrink.Due to the above reason, the filter will naturally repeat contraction and expansion, then settle down.As time passes, the wood may change in size to about 5 mm, but is a natural occurrence.

Maintenance Warranty period15
Warranty
1 year from date of purchase.
Note : For safe transportation of the purifier, please keep its original packaging for about a month from purchase. For more detail about the warranty, please refer to page 18 of this manual.
Non-warranty
1. Unauthorized repairs, misuse, collisions, inadvertent misuse, liquid inflows, modifications, disassembly, use of third party components, or destruction, or alteration of labels and device number anti counterfeiting markings.2. After the warranty time is over.3. Damage caused by misusage.Please register your product at WWW.VOVOUSA.COM to receive full warranty benefits.

Specifications Product specifications16
Product nameSizeCoverage areaWeightVoltagePowerCableColorDiffuserFilter (Lifespan)CertificationCountry of OriginM-002W / R / B , M-002DW / DR / DB (Diffuser)7.9 x 7.9 x 9.4 inches (200mm x 200mm x 240mm)177sq.ft (16.5㎡)2.2lb (1kg) Filter included DC 12V 2A24WDC : 1.5m (4.9ft) White / Red / Black OptionalPre-Filter+H13 True HEPA Filter+Deodorization Carbon Filter(1year)+Cypress Wood FilterKC , ETL, FCC, CE, RoHS,CB, PSE, GBKorea

Specifications FAQ·The power does not turn on. ·Did you press the power button right after connecting to the power adaptor?·Is the power plug plugged in correctly?·Is the front indicator correctly displaying?·Is the filter cover correctly assembled?·Is the cypress Wood Filter assembled correctly?·Please allow the device some time after pluging the power to opearate. ·Please connect the power plug to an outlet ·Please press the power button accurately to operate. ·The product has a safety switch. It will not turn on unless it is properly assembled. ·There is no airflow·The airflow is weaker than first purchased.·Did you remove the vinyl from the filter when first purchased?·Is the filter properly assembled?·Is the filter contaminated? (The contamination of the filter affects the airflow)·The filter is packed in a vinyl filter when first purchased. Please make sure to remove the vinyl cover before usage.·Please make sure the filter is properly assembled.·Please clean the filter. SymptomsConditions to checkSolutions·The intake hole smells bad.·Has the product been in use where people smoke or cook food with a lot of smoke?·Was the product recently used at a different location and was relocated?·The filter absorbs the surrounding smell. Thus the smell may temporarily stay and trasport with the product, but will eventually dissapear.·The product may still contain smells from the previous location. ·What is the filter replacement period?·Hepa filter approx. 1 year, ·Cypress wood filter approx. 2 years.·Please check the first day the filter was used. ·The filter may loose its scent, but the effects of the cypress wood remains unchanged for 2 years.·If you wish to bring back the cypress scent, please purchase the cypress oil capsule and insert it into the purifier.· The cypress Wood Filter does not have a scent anymore. ·Cypress Wood Filter is humidity (water) and temperature sensitive. ·Please refer to page 13 for more information. · Cypress Wood Filter 's shape chaged. 17

Imunsen Customer Service Center (product inquiries, product pruchase)
Hours of operation: 9:00~18:00 (exculdes weekends and holidays)
A/S Repair Center (A/S reservations)
Hours of operation: 9:00~17:00 (exculdes weekends and holidays)Product inquries: 1-888-601-0177A/S Repair Center 1-888-601-0177
VOVO USA homepage www.vovousa.com
Product specifications Contact Us 18

Imunsen air purifier warranty 19
Warranty Content Model Year Month Day1 year from date of purchase M - 002WM - 002RM - 002BM - 002DWM - 002DRM - 002DBSerial No.Date of Purchase Warranty Period Customer address Customer name Phone number Notes 1. Please contact us if you have any issues with the product or defect within the warranty period.2. Even during the warranty period, repairs will be charged if:- If the customer loses the warranty.- If the warranty does not correctly display the purchase date, nor the copy of a invoice.- Damage caused by the customer.- Damage caused by natural disasters such as fire, gas, electricity defect, and more.- Damage caused by misplacement or assemble.- Cost for engineer visit. - Cartridge, filter, or accessory defect. 3. Please note that all parts removed for repair will be taken by our team.4. This warranty will not be reissued. Thank you for your understanding.
