Read this booklet thoroughly before using and save it for future reference
GBR
INSTRUCTION MANUAL
FT - 5410

1
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed,
including the following:
1. Read all instructions.
2. Do not touch hot surface. Use handles or knobs.
3. To protect against electric shock do not immerse cord, plugs, or housing in water or
other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool down before
putting on or taking off parts, and before cleaning the appliance.
6. Do not put the appliance on a soft working surface or a desktop covered with table
cloth, make sure the appliance is working on a rigid surface.
7. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions, or has been damaged in any manner. Return appliance to the nearest
authorized service facility for examination, repair or adjustment.
8. The use of attachments not recommended by the appliance manufacturer may cause
injuries.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not use this appliance when missing oil reservoir,oil and any other materials, or
the oil is not enough.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving fryer containing hot oil.
13. Make sure handles are properly assembled to basket and locked in place. See detailed
assembly instructions.
14. Before use, always ensure that the oil reservoir is positioned correctly.
15. Never connect the fryer to the electricity supply without placing oil in the oil reservoir
first.

2
16. The oil in the oil reservoir will be still hot after it is switched off. Never attempt to
move your fryer until it is completely cool down, lift the oil reservoir using the
handles.
17. Though the detachable oil reservoir can be completely immersed in water and clean, it
must be thoroughly dried before next use to prevent electric shock.
18. Never overfill the fryer with oil. Fill only between the minimum and maximum levels,
as indicated inside the oil reservoir.
19. Do not add food with ice crystals or if it is wet to the hot oil.
20. This appliance is not intended for used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliances by a
person responsible for their safety.
21. Children should be supervised to ensure that they do not play with the appliance.
22. On completion of frying, always raise the basket and wait a few seconds to allow
steam pressure to subside.
23. Do not use appliance for other than intended use.
24. Do not use outdoors.
25. Store the appliance indoors to prevent electronic parts failure.
26. WARNING: Serious hot oil burns may result from a deep fryer being pulled off a
countertop. Do not allow the power cord to hang over the edge of a counter where it
may be grabbed by children or become entangled with the user.
27. The appliance is not intended to be operated by means of an external timer or a
separate remote-control system.
28. This appliance is intended to be used in household and similar applications such as:
–Staff kitchen areas in shops, offices and other working environments;
–Farm houses;
–By clients in hotels, motels and other residential type environments;
–Bed and breakfast type environments.
29. Save these instructions.

3
PRODUCT DESCRIPTION
CONTROL PANEL
The Temperature Control knob
The temperature control knob turns the deep fryer on and sets the desired temperature for
frying.
The Power Light
The power light illuminates when the deep fryer is on.
Ready light
Temperature
control knob
Power light
Housing
Housing handle
Frying basket
Control panel
Filter cover
Frying basket
handle
Oil reservoir
Viewing window
Deep fryer lid
Lid handle
Power
Ready
190
170
150 130
C
Filter cover
Control panel
Frying basket
Housing handle
Housing
Lid handle
Deep fryer lid
Viewing window
Oil reservoir
Frying basket
handle
Temperature control
knob
Power light
Ready light

4
The Ready Light
The ready light will cycle on and off several times during frying. This indicates that the
temperature is thermostatically maintained.
USING FOR THE FIRST TIME
1. Remove all the packaging materials, labels and/or stickers from the deep fryer.
WARNING:Do not plug in the deep fryer when the control panel is not installed in
the deep fryer body. Only plug in the deep fryer when the unit is fully assembled and
the heating element is immersed in oil.
WARNING: Do not immerse the control panel, cord or plug in water.
WARNING:This unit should not be used to boil water.
2. Lift the control panel with heating element out of its slots by pulling it up from the
bottom with one hand while holding the body of the deep fryer with your other hand.
3. Remove the oil reservoir from the body of the deep fryer.
3. Wash the oil reservoir and the frying basket with hot water, a nonabrasive sponge, and
dishwashing liquid or other non-poisonous detergent. Dry thoroughly before use.
NOTE: The oil reservoir, frying basket, frying basket handle, permanent filter and the
lid can be washed in warm soap water.
WARNING: Do not immerse the control panel, power cord, or plugs into liquid of any
kind.
ASSEMBLING THE DEEP FRYER
1. Place the oil reservoir into the deep fryer housing.

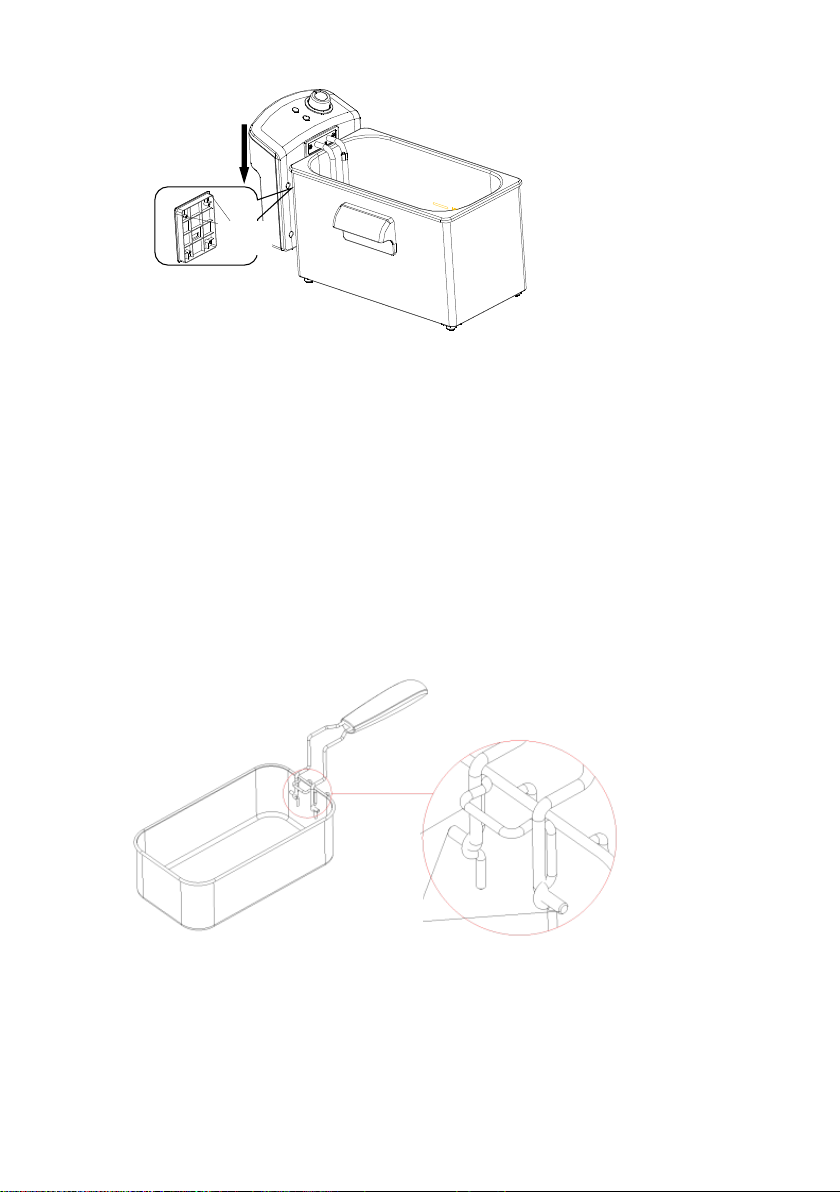

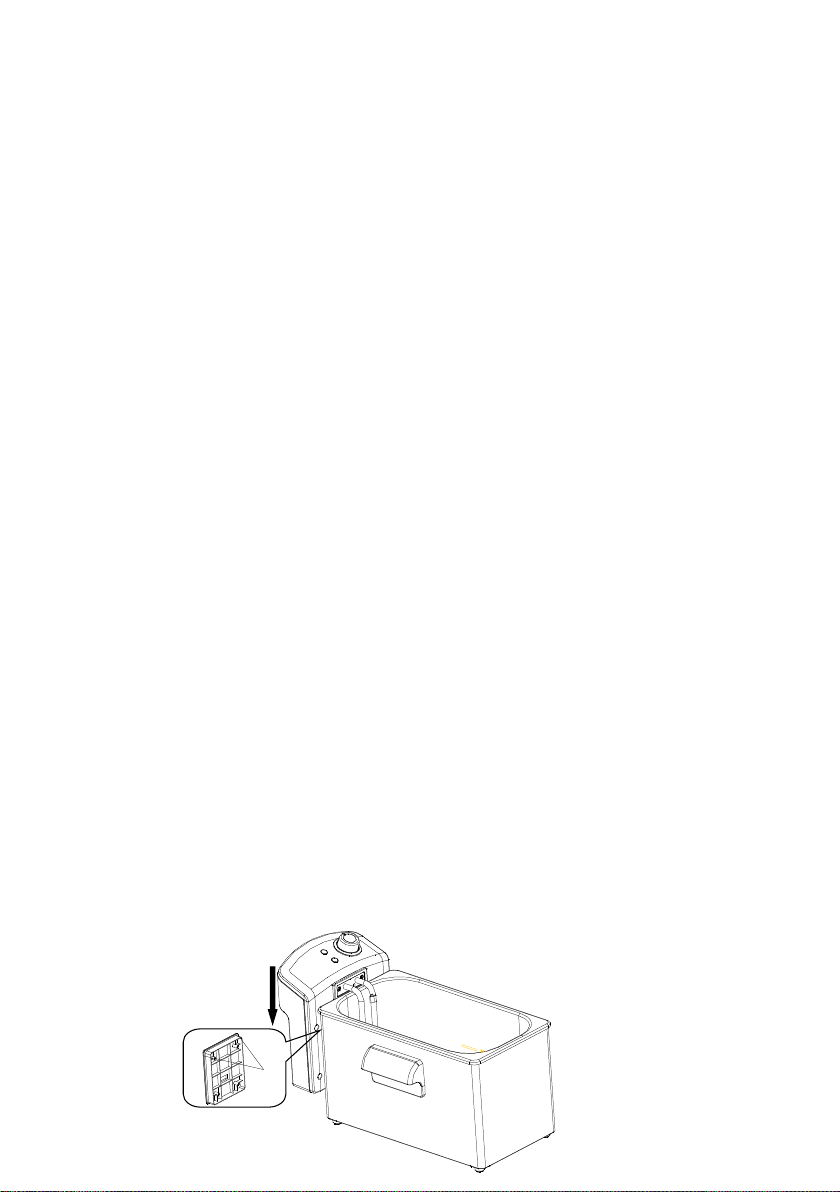

2. Insert the guide edges on the control panel into the guide rails mounted on the metal
body (Fig.1).
Fig.1
Slide
down
Guide
rails

5
3. Slide the guide edges down as far as they can go.
NOTE: The deep fryer has an automatic safety switch to ensure that the unit will not
operate unless the control panel has been inserted securely into the guide rails on the
body of the deep fryer.
4. Attach the fryer basket handle to the fryer basket by squeezing the handle bars together
and inserting them into the metal bracket on the basket. Make sure that the end of the
bars is inserted into the bracket holes. Lift the handle up to lock in place (Fig. 2).
Metal
bracket
Ends of bars
Fig.2
USING THE DEEP FRYER
WARNING: Never plug in the deep fryer before filling the oil reservoir with oil. Always
make sure that the control panel is securely in place in the housing of the deep fryer and
that the heating element is inside the oil in the oil reservoir before plugging in.
1. Pour cooking oil into the oil reservoir making sure that it is between the “Min” and
“Max” filling lines in the oil container. Do not under fill or overfill. The oil levels
must be maintained between the minimum (2.5 liters) and the maximum levels (3.5

6
liters) marked inside the oil container.
2. You can use blended vegetable oil, corn oil, or canola oil. Do not use olive oil,
margarine, lard or drippings. Never mix old and new oil together or different oils and
fat.
3. If you want to use solid fat, you must melt it firstly, the details refer to the section of
“TIPS FOR USING SOLID FAT”.
4. Place the cover onto the deep fryer.
5. Insert the plug into the electrical wall outlet. The power light will illuminate.
CAUTION: Never plug in the control panel when it is not assembled to the fryer body.
Do not immerse the control panel, power cord or plug in water or any other liquid.
6. Turn the temperature control knob to the desired temperature.
7. The ready light will illuminate when the set temperature is reached.
8. Do not fill the frying basket when it is immersed in the hot oil. Place the food in the
frying basket. Do not drop the food into the hot cooking oil. Do not overfill it and the
maximum load is 250g. For optimum results and shorter frying time, fry smaller
quantities.
WARNING: When frying frozen foods, remove the frying basket from the deep fryer
before filling because oil will spatter and cause burns.
CAUTION: When frying frozen foods such as French Fries, you should not exceed the
“Max” fill line on the fryer basket. Clean off any ice from frozen food prior to frying.
Failure to do so may cause fryer to overflow when food is placed in oil.
9. Immerse the frying basket into the oil reservoir carefully so that you do not splash the
oil.
10. Replace the deep fryer lid on the deep fryer while it is frying.
11. When the cooking period is over, Turn the temperature control to the “OFF” position
and remove the plug from the electrical wall outlet.
12. Carefully remove the deep fryer lid lifting it up away from you to allow the steam to
escape before removing the lid completely. Keep your face away from the top of the
appliance to avoid burns caused by escaping steam.
13. Lift up the frying basket by the handle and place it on the oil container to allow the oil

7
to drain.
14. Once the oil has drained from the frying basket, the basket may be lifted off and the
food served or placed in a dish.
WARNING: Always let the deep fryer cool completely (approximately 2 hours)
before cleaning or storing. Never carry or move the appliance with hot oil inside.
CAUTION: The metal surfaces of the deep fryer become hot during use. Do not
touch the sides of the appliance while it is use.
FRYING TIPS
1. Always use the frying basket to fry food.
2. Always close the lid during frying. Replace the lid carefully.
3. When the oil is pre-heated, the ready indicator light will come on indicating that the
desired temperature is reached.
4. Slowly lower the frying basket into the hot oil. Lowering the frying basket too quickly
can result in the oil overflowing and splashing.
5. It is normal for steam to escape through the sides of the lid while frying.
6. Avoid standing too close to the deep fryer while it is working.
7. Do not mix new and old oil together.
8. Replace oil regularly. In general, oil will be tainted fast when frying food containing a
lot of protein, (such as poultry, meat and fish). When oil is used mainly to fry potatoes
and is filtered after each use, it can be used up to 8 to 10 times, but do not use the same
oil for more than 6 months.
9. Always replace all oil as soon as it starts foaming when heated or when color becomes
dark or when it has a rancid smell or taste or becomes syrupy.
10. Make sure that the food to be fried is dry. Remove loose ice from frozen food before
frying.
11. To cook evenly, pieces should be the same size and thickness. Thicker pieces will
take longer to cook.
12. The following cooking times reflect only the approximate time needed to fry one
basket 1/2 full. The exact time may be different depending on actual quantity,

8
personal cooking preferences, size and thickness of pieces, etc.
TEMPERATURE SETTINGS
In general, use lower settings for delicate foods (vegetables, fish) and higher settings for
frozen foods, French Fries and chicken.
FOOD
COOKING TIME
TEMPERATURE
French fries
6-9 minutes
190℃
Fish fillets
3-5 minutes
150℃
Chicken fingers
6-8 minutes
170℃
Chicken pieces
13-20 minutes
170℃
Fried Zucchini
3 minutes
150℃
Fried mushrooms
3 minutes
150℃
Onion rings
3 minutes
150℃
Donuts
3-5 minutes
170℃
Apple Beignets
4 minutes
170℃
Shrimp
4-6 minutes
150℃
TIPS FOR USING SOLID FAT:
WARNING: Do not put solid shortening in the oil reservoir or the frying basket.
1. If using solid vegetable shortening, melt it first in a separate container and then very
carefully pour the melted fat into the oil reservoir.
2. Previously used solid vegetable shortening which has curdled and hardened in the oil
reservoir should be removed from the oil reservoir and melted in a separate pan before
reusing.
WARNING: If you try to melt the solidified fat in the oil reservoir, there is a risk of
hot melted fat suddenly sputtering from below through the solid top layer of fat.

9
Use only the following procedure
When melting solid fat in your deep fryer:
1. Make sure the fat is at room temperature. If the fat is cold, then there is a greater risk of
splashing.
2. Using a fork, carefully make some holes in the fat.
3. Make sure the lid is always securely closed while the fat is melting.
4. Set the temperature control knob to 150℃.
IMPORTANT: The power light will illuminate once plugging the power outlet. The
ready light will illuminate when the fat or oil in the reservoir has reached the selected
temperature.
FILTERING & CHANGING THE OIL
ATTENTION: Make sure the deep fryer is unplugged from the electrical socket and the
oil has cooled (approximately 2 hours) before changing the oil, or cleaning and storing
the deep fryer.
NOTE:The oil does not need to be changed after each use. In general, the oil will be
tainted rather quickly when frying food containing a lot of protein (such as poultry, meat
or fish). When oil is mainly used to fry potatoes and is filtered after each use, it can be
used 8 to 10 times. However, do not use the same oil for longer than 6 months.
To Filter the Oil:
1. Make sure the oil has cooled (approximately 2
hours) and then empty the oil from the oil reservoir
into another container or bottle. (Fig.3)
2. Wash and dry the oil reservoir and frying basket.
3. Refill the oil reservoir with the oil by pouring the
oil through a wire strainer or paper filter. (Fig. 4)
Fig.3
Fig.4

10
CLEANING INSTRUCTIONS
To ensure many years of service from your appliance, clean your deep fryer after every
use.
WARNING:Always remove the plug from the electrical wall outlet before cleaning.
Allow the deep fryer and the oil to cool completely (approximately 2 hours) before
cleaning.
1. Never immerse the control panel, cord or plug in water or any other liquid.
2. Do not place the control panel, cord or plug in the dishwasher.
3. Clean the control panel with a damp cloth only.
4. The oil reservoir, frying basket can be washed on the top rack of a dishwasher.
5. The deep fryer lid can be washed in warm soapy water. Do not put the body of thedeep
fryer in the liquid or dishwasher.
6. To clean the permanent filter, remove it from the cover and wash it in hot soapy water.
Rinse and dry well before re-inserting it into the deep fryer cover. Replace the filter
cover.
CAUTION:Do not clean the permanent filter in the dishwasher.
THE RESET FEATURE
Your deep fryer is equipped with a reset feature. If for some reason the deep fryer stops
heating, the reason may be that the reset switch has tripped.
To reset the deep fryer:
1. Unplug the appliance from the electrical wall outlet.
2. Let the appliance and the oil in the oil reservoir
cool completely.
3. After the appliance has cooled completely, lift the
control panel and using the tip of a ball point pen
or pencil, push the thermostat reset button that is
located on the inside of the control panel (Fig. 5)
4. Re-assemble the control panel to the housing of
the deep fryer and then you may resume frying.
Fig.5
Reset button
Reset button

11
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE
The fryer is
not operating
1. The control assembly is not
installed correctly.
2. The plug is not connected
to the electrical wall outlet.
3. The electrical outlet is not
energized.
4. The reset switch has
tripped.
1. Re-attach the control panel
assembly
2. Insert the plug into the electrical
wall outlet.
3. Reset circuit breaker or replace
fuse.
4. Turn the appliance off and let it
cool completely. Then remove the
control panel and press the
thermostat reset button.
Oil is spilling
out of the deep
fryer
1. Too much oil in the oil
reservoir.
2. The food basket if
overfilled.
3. Oil has been used too often
and is foaming.
1. Turn the deep fryer off. Let the
oil cool completely and remove
some of the excess oil.
2. Remove some of the food from
the basket.
3. Turn the deep fryer off. Let the
oil cool completely and refill the
oil reservoir with new oil.
Food is tasting
soggy or
greasy
1. Oil is not hot enough.
2. The food basket is
overfilled.
1. Adjust the temperature control
knob to appropriate temperature for
food being fried.
2. Remove some of the food from
the basket.
Food not
1. Food pieces too large.
1. Cut the food into smaller pieces.

12
cooked
completely
2. Cooking time too short.
3. Oil temperature too hot.
2. Continue frying and check the
process continually.
3. Lower the temperature of the oil
to allow the food to cook
completely.
The cooking
oil is foaming
or emitting
smoke
1. The oil has been used too
often.
1. Let the oil cool completely and
replace with new oil.
ENVIRONMENT FRIENDLY DISPOSAL
You can help protect the environment!
Please remember to respect the local
regulations: hand in the non-working
electrical equipments to an appropriate waste
disposal center.

Leggere attentamente le istruzioni prima dell’uso e salvare per riferimenti futuri
ITA
MANUALE DELL'UTENTE
FT - 5410

1
Quando si utilizzano gli apparecchi elettrici, è necessario seguire sempre le precauzioni di
base, come seguenti:
1. Leggere tutte le istruzioni.
2. Non toccare le superfici calde. Usa maniglie o manopole.
3. Per proteggere da incendi, scosse elettriche e lesioni alle persone, non immergere il cavo,
la spina o la base in acqua o altri liquidi.
4. Una stretta supervisione è necessaria quando l'apparecchio viene utilizzato da o vicino
ai bambini.
5. Scollegare l`apparecchio dalla presa quando non in uso e prima della pulizia. Lasciare
raffreddare l’apparecchio prima di mettere o togliere parti e prima di pulire l'apparecchio.
6. Non collocare l'apparecchio su una superficie di lavoro morbida o un tavolo coperto con
tovaglie, assicurarsi che l'apparecchio stia lavorando su una superficie rigida.
7. Non utilizzare l'apparecchio con un cavo o una spina danneggiati o dopo il
malfunzionamento dell'apparecchio o se è stato danneggiato in alcun modo. Portare
l'apparecchio al servizio autorizzato più vicino per controllarlo, ripararlo o regolarlo.
8. L'uso di accessori non raccomandati dal produttore dell'apparecchio può provocare
lesioni.
9. Non lasciare che il cavo penda oltre il bordo di un tavolo o di un bancone o che tocchi
una superficie calda.
10. Non utilizzare questo apparrecchio quando manca il serbatoio dell'olio, l'olio e qualsiasi
altro materiale, oppure l'olio non è sufficiente.
11. Non posizionare sopra o vicino a un bruciatore a gas o elettrico, o a un forno
riscaldato.
12. Usare estrema cautela quando si sposta la friggitrice contenente olio caldo.
13. Assicurarsi che le maniglie siano correttamente fissate al carrello e bloccate. Leggere
le istruzioni dettagliate per assemblare il dispositivo.
14. Assicurarsi sempre che il serbatoio dell'olio sia posizionato correttamente prima
dell'uso.
IMPORTANTI NORME DI SICUREZZA

2
15. Non collegare mai la friggitrice alla rete elettrica senza prima inserire olio nel serbatoio
dell'olio.
16. L'olio nel serbatoio dell'olio sarà ancora caldo dopo lo spegnimento. Non tentare mai
di muovere la friggitrice finché non sia completamente raffreddata.
17. Sebbene il serbatoio dell'olio rimovibile possa essere completamente immerso
nell'acqua e pulire, deve essere accuratamente asciugato prima dell'uso successivo per
evitare scosse elettriche.
18. Non riempire eccessivamente la friggitrice con olio. Riempire solo tra i livelli minimo
e massimo, come indicato all'interno del serbatoio dell'olio.
19. Non aggiungere cibo con cristalli di ghiaccio o il cibo umido nell'olio bollente.
20. Questo apparecchio non è destinato all'uso da parte di persone (compresi i bambini) con
ridotte capacità fisiche, sensoriali o mentali, o mancanza di esperienza e conoscenza, a
meno che non siano stati supervisionati o istruiti sull'uso degli apparecchi da una
persona responsabile della loro sicurezza.
21. I bambini devono essere sorvegliati per assicurarsi che non giochino con l'apparecchio.
22. Al termine della frittura, sollevare sempre il cestino e attendere alcuni secondi per
consentire alla pressione del vapore di diminuire.
23. Non utilizzare l'apparecchio per scopo diverso da quello previsto.
24. Non utilizzare l'apparecchio all'aperto.
25. Conservare l'apparecchio in casa per evitare guasti alle parti elettroniche.
26. AVVERTENZA: Gravi ustioni di olio bollente possono derivare da una friggitrice che
viene estratta dalla superfice di lavoro. Non lasciare che il cavo di alimentazione penda
oltre il bordo di una superfice di lavoro dove potrebbe essere afferrato dai bambini o
rimanere impigliato con l'utente.
27. L'apparecchio non è destinato ad essere utilizzato mediante un timer esterno o un
sistema di controllo remoto separato.
28. Questo apparecchio è destinato all'uso domestiche e applicazioni simili come:
- Aree di cucina per il personale in negozi, uffici e altri ambienti di lavoro;
- Case coloniche;

3
- In hotel, motel e altri ambienti residenziali;
- Ambienti di tipo bed and breakfast
29. Conservare queste istruzioni.
DESCRIZIONE DEL PRODOTTO
PANNELLO DI CONTROLLO
Manipola della regolazione di temperatura
La manipola della regolazione di temperatura accende la friggitrice e regola la temperatura
di frittura desiderata.
Indicatore di potenza
La spia di alimentazione si illumina quando la friggitrice è accesa.
Indicatore di prontezza
La spia dell’indicatore di prontezza si accende e si spegne più volte durante la frittura.
Ready light
Temperature
control knob
Power light
Housing
Housing handle
Frying basket
Control panel
Filter cover
Frying basket
handle
Oil reservoir
Viewing window
Deep fryer lid
Lid handle
Power
Ready
190
170
150 130
C
Coperchio del filtro
Pannello di controllo
Cestello per frittura
Maniglia del corpo
Corpo
Maniglia sul coperchio
Coperchio di frittatrice
Finestra da controllare
Serbatoio dell’olio
Maniglia del cestello
Manipola della
regolazione di
temperatura
Indicatore di potenza
Indicatore di prontezza
Questo dimostra che la temperatura viene mantenuta termostaticamente.

4
PRIMO UTILIZZO DELL’APPARECCHIO
1. Rimuovere la confezione completa, le etichette e/o gli adesivi dalla friggitrice.
AVVERTENZA: Non collegare la friggitrice quando il pannello di controllo non è
installato nel corpo della friggitrice. Accendere la friggitrice solo quando l’apparecchio
è completamente assemblato e l'elemento riscaldante è immerso nell'olio.
AVVERTENZA: Non immergere il pannello di controllo, il cavo o la spina nell'acqua.
AVVERTENZA: Questo apparecchio non deve essere utilizzato per riscaldare l'acqua.
2. Sollevare il pannello di controllo con l'elemento riscaldante dal vassoio sollevandoli con
una mano dal fondo mentre si tiene il corpo della friggitrice con l'altra mano.
3. Rimuovere il serbatoio dell'olio dal corpo della friggitrice.
4. Lavare il serbatoio dell'olio e il cestello per frittura con l'acqua calda, la spugna non
abrasiva e il detersivo per lavaggio o un altro detersivo non tossico. Asciugare bene
prima dell'uso.
NOTA: Il serbatoio dell'olio, il cestello, la maniglia del cestello, il filtro permanente e il
coperchio possono essere lavati in acqua tiepida con sapone.
AVVERTENZA: Non immergere il pannello di controllo, il cavo di alimentazione o la
spina in qualsiasi tipo di liquido.
ASSEMBLARE LA FRIGGITRICE
1. Mettere il serbatoio dell’olio nel corpo della friggitrice.
2. Posizionare i bordi della guida sul pannello di controllo nelle guide montate
sull'involucro metallico (Fig.1).

5
3. Spingere i bordi delle guide fino in fondo.
NOTA: La friggitrice è dotata di un interruttore automatico di sicurezza per garantire
che il dispositivo non funzioni se il pannello di controllo non è inserito saldamente nelle
guide sul corpo della friggitrice.
4. Attaccare la maniglia della friggitrice al cestello della friggitrice premendo
contemporaneamente le maniglie e inserendole nella alloggio metallico sul cestello.
Assicurarsi che la fine delle barre siano inseriti dell’alloggio. Sollevare la maniglia verso
l'alto per tenerlo bloccato (Figura 2).
Figura 2
Fig.1
Guide
rails
Guide
Fini delle barre
Tirare
giù
Alloggio
metallico
