Vox Valvetronix ToneLab SE User manual

Owner's Manual
E1

ii
Precautions
Location
Using the unit in the following locations can result in a malfunction.
• In direct sunlight
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
• Locations of excessive vibration
• Close to magnetic fields
Power supply
Please connect the designated AC/AC power supply to an AC outlet of the correct voltage.
Do not connect it to an AC outlet of voltage other than that for which your unit is intended.
Interference with other electrical devices
Radios and televisions nearby may experience reception interference. Operate this unit at a
suitable distance from radios and televisions.
Handling
To avoid breakage, do not apply excessive force to the switches or controls.
Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such
as benzene or thinner, cleaning compounds or flammable polishes.
Keep this manual
After reading this manual, please keep it for later reference.
Keeping foreign matter out of your equipment
Never set any container with liquid on this equipment. If liquid gets into the equipment, it
could cause a breakdown, fire, or electrical shock.
Be careful not to let metal objects get into the equipment. If something does slip into the
equipment, unplug the AC/AC power supply from the wall outlet. Then contact your nearest
Korg dealer or the store where the equipment was purchased.
THE FCC REGULATION WARNING (for U.S.A.)
This equipment has been tested and found to comply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Unauthorized changes or modification to this system can void the user’s authority to operate this
equipment.

iii
Data Handling
Incorrect operation or malfunction may cause the contents of memory to be lost, so we recom-
mend that you save important data on a floppy disk or other media source. Please be aware that
Korg will accept no responsibility for any damages which may result from loss of data.
*AUnited States patent has been obtained for Valve Reactor technology. Patents are pending
in other countries. (As of March 2003)
*Company names, product names, and names of formats etc. are the trademarks or registered
trademarks of their respective owners.
CE mark for European Harmonized Standards
CE mark which is attached to our company’s products of AC mains operated apparatus until Decem-
ber 31, 1996 means it conforms to EMC Directive (89/336/EEC) and CE mark Directive (93/68/EEC).
And, CE mark which is attached after January 1, 1997 means it conforms to EMC Directive (89/336/
EEC), CE mark Directive (93/68/EEC) and Low Voltage Directive (73/23/EEC).
Also, CE mark which is attached to our company’s products of Battery operated apparatus means it
conforms to EMC Directive (89/336/EEC) and CE mark Directive (93/68/EEC).
IMPORTANT NOTICE TO CONSUMERS
This product has been manufactured according to strict specifications and voltage requirements that
are applicable in the country in which it is intended that this product should be used. If you have pur-
chased this product via the internet, through mail order, and/or via a telephone sale, you must verify
that this product is intended to be used in the country in which you reside.
WARNING: Use of this product in any country other than that for which it is intended could be dan-
gerous and could invalidate the manufacturer's or distributor's warranty.
Please also retain your receipt as proof of purchase otherwise your product may be disqualified from
the manufacturer's or distributor's warranty.

iv
Quick Start
A G
UIDE FOR THOSE WHO WANT TO
P
LAY
G
UITAR
F
IRST
,
A
ND
R
EAD THE
M
ANUAL
L
ATER
!
ep, we know. You’d rather be playing guitar than reading this manual. Who
wouldn’t? I know I would so here’s a “Quick Start” to get you up and run-
ning without delay (pun intended)
First we’ll get started by trying out ToneLabSEs programs and then we’ll
explain how to use the various controls and knobs to create your own sounds.
Right. Once you’ve gotten the urge to play out of your system, you should
really give this manual a chance - it’s been written by a fellow guitar fanatic and is
full of useful tips and info that’ll give you much more detail about ToneLabSE than
what’s in the “Quick Start.”
Ok, ok we’re almost done here. I just want to recommend to you that you
fold out the inside back cover of this manual. Go ahead, I’ll wait.
Good. The reason you should do this is so you can see the pictures of the
Top and Rear panels whilst we talk. There, now plug in and play!!!!
S ETUP
1. If you’re connecting ToneLabSE to a mixer or recorder, connect OUTPUT jacks
L/MONO and R (11.4) to the input jacks of your mixer or recorder. If you’re lis-
tening through headphones, connect your headphones to the PHONES jack
(11.5).
If you’re connecting ToneLabSE to a guitar amp(s) connect OUTPUT jacks L/
MONO and R to the input jacks of your guitar amp(s).
NOTE: If you’re connecting ToneLabSE to something that only has a mono input,
just use the L/MONO jack.
HINT: Rear panel area (at the end of this manual) shows an illustration of this.
2. Turn the LEVEL knob (11.3) on the rear panel of ToneLabSE all the way to the
left (as viewed from the rear), setting the volume to 0.
3. Plug the supplied AC/AC power supply into ToneLabSE’s rear panel AC9V
power inlet (10.2), and plug the power supply into an AC wall socket.
4. Plug your guitar into the rear panel INPUT jack (11.1).
5. Before you turn ToneLabSE on, lower the volume of your amp or mixer so you
don’t hear any potentially speaker-damaging pops or buzzes. Then turn on the
STANDBY switch (10.1) to power up ToneLabSE.
6. If you’ve connected ToneLabSE to a mixer or recorder, press the GLOBAL
switch (3.4) to select the OUT SEL menu, and use the value knob [6] or the
▲ ,
Y
9

v
▼ buttons to select “Ln” (LINE). If you’ve connected ToneLabSE to your guitar
amp, set this to “AP” (AMP).
7. Turn up the volume controls of your amp or mixer, and ToneLabSE’s rear panel
LEVEL knob (11.3) to adjust the volume.
NOTE: You won’t hear sound for several seconds while the valve (a.k.a. “vacuum
tube” if you live on the west side of the Atlantic) warms up. This isn’t a malfunction
– it’s a real analogue valve!
L
ISTEN TO THE
P
ROGRAMS
8. Use the BANK UP, DOWN buttons (6.1) to select a bank 1–24.
Notice that the number in the bank display (5.1) blinks and changes.
HINT: ToneLabSE has 96 programs, organized into 24 banks with four programs in
each bank (24 x 4 = 96). When shipped from the factory, banks 1–8 contain 32 pro-
grams. (The programs in banks 1-8, 9-16 and 17-24 are identical to each other)
Program Select mode lets you select these programs. There’s also an effect ON/
OFF mode that lets you turn individual effects on/off.
HINT: For an illustration, look at “Bank/Program/Channel/Select/Display Sec-
tion” in the diagram at the end of this manual.
9. Use the program select 1–4 pedals (6.2) to select a program.
The program LED you selected will light, and the number in the bank display
will also change and stay lit. Go ahead and play your guitar.
For example if you want to select program 3-1 (bank 3, program 1), press the
BANK UP or DOWN pedal to make the bank display read “3,” and then press
the program select 1 pedal to make the LED light.
If you’re selecting a program in the same bank, simply press a program select
1–4 pedal. If you want to select a program from a different bank, you’ll need to
perform steps 8 and 9 in that order.
NOTE: If you can’t select a program, you’re probably not in Program Select mode.
Get back into Program Select mode as described in “Program Select mode” (p.16).
HINT: The preset programs cover an amazing range of sounds; fat hi-gain lead
sounds, nostalgic clean sounds that work best with your rhythm (neck) pickup,
aggressive modern crunch sounds for heavy riffing with your lead (bridge) pickup,
and much more. P.68 has a list of the preset programs.
10. The two expression pedals are assigned to control the most appropriate
parameters for each program, such as wah, volume, delay, reverb input level,
or other effect parameter. The CONTROL switch is assigned functions such as
TAP tempo input of the delay time.
11. By pressing the A/B Ch switch you can instantly switch between 2 sets of amp
and cabinet models within each program.
12. By pressing the FX ON/OFF (TUNER) switch you can switch to Effect On/Off
mode. Effect On/Off mode lets you switch each effect on/off just like you were
using a set of stomp boxes. Program select 1–4 will switch pedal, modulation,
delay, and reverb on/off respectively, and the BANK DOWN pedal will bypass
the insert effect.
3

vi
S
WITCHING EFFECTS ON
/
OFF
13. The model select buttons will be lit (ON) or dark (OFF) to indicate the on/off
state of each effect. If you press a button that is dark or turn the model selec-
tor, the effect will turn on and the model select button will blink. If you press a
button that is blinking, the effect will turn off and the button will go dark.
C
REATE YOUR OWN
S
OUNDS
14. To adjust the sound of the AMP model, use the AMP selector to select one of
the sixteen amp models. Then you can simply adjust the sound pretty much in
the same way as if you were really using the actual model of guitar amp you
selected.
Adjust the GAIN value knob 1, TREBLE value knob 3, MIDDLE value knob 4,
BASS value knob 5, and the VR GAIN value knob 2 (which corresponds to the
MASTER) as you like. To get the most accurate vintage tube amp distortion,
raise the VR GAIN as high as possible. The CH VOLUME value knob 6 lets you
adjust the volume while retaining the overall sound including the distortion pro-
duced by the Valve Reactor.
If you press the PRES-NR button, you can then use value knob 3 to adjust
PRESENCE and value knob 4 to adjust the NR (Noise Reduction) effect.
When you use the AMP MODEL and CABINET MODEL selectors, a different
type of guitar amp will appear before your very eyes – or, should we say, ears!
ToneLabSE holds in its memory two combinations of amp and cabinet models
for each program, and you can use the A/B ch pedal to switch instantly
between these.
HINT: P. 34 lists recommended combinations of amp and cabinet models but others
are fine too.
HINT: If you want to replicate the sound of the original amp, set [VR GAIN] to the
maximum setting on vintage-type models that do not have a master volume control
(i.e., AC15, AC15TB, AC30, AC30TB, UK BLUES, UK 68P, BLACK 2x12, TWEED
1x12, and TWEED 4x10). For modern-type amps that have a master volume con-
trol, adjust [VR GAIN] in the same way that you would on the original amp. When
the [VR GAIN] setting is low, preamp-type distortion will occur. As you raise the [VR
GAIN] setting, the pre-amp will begin loading the Valve Reactor to cause clipping,
and the warmth and distortion of the Valve Reactor will be added.
HINT: For an illustration, look at area in the top panel diagram at the end of this
manual.
1

vii
15. ToneLabSE provides a PEDAL effect that is placed before the amp, and MOD-
ULATION, DELAY, and REVERB effects that are placed after the cabinet.
For example if you want use the PEDAL effect TREBLE BOOST, turn the
PEDAL selector to select TREBLE BOOST. The PEDAL parameter LED of the
edit section will blink, indicating the parameter line (the region listing the
parameter names). Also, the LEDs below the value knobs will light, indicating
the location of the knobs that you can use to control TREBLE BOOST. Now
turn value knobs 1, 2, and 3 to adjust DRIVE, LEVEL, and TONE respectively.
You can edit other effects using the same procedure.
HINT: Some effect settings may cause unwanted distortion (if there is such a
thing!!). If this happens, lower the CH VOLUME.
HINT: For an illustration, look at area in the top panel diagram at the end of this
manual.
2

viii
Table of Contents
Quick Start................................................................................................... iv
Setup....................................................................................................................... iv
Listen to the Programs.............................................................................................v
Switching effects on/off........................................................................................... vi
Create your own Sounds ........................................................................................ vi
Introduction ................................................................................................. 1
Main Features..........................................................................................................1
Valve Reactor Technology.......................................................................................2
An overview of ToneLabSE .....................................................................................4
Signal Route .....................................................................................................4
Modes ...............................................................................................................4
Amp and effect settings (Edit)...........................................................................4
Realtime expression and control pedals..........................................................4
Saving a program .............................................................................................4
MIDI and output destination settings ................................................................4
A Guitarist’s Guided Panel Tour ................................................................. 5
The Top Panel .........................................................................................................5
Model select section ........................................................................................5
Edit section ......................................................................................................7
Chain/Global/Rename/Write/Exit/Display section............................................8
Control Setup section ......................................................................................9
Bank display/Tuner display..............................................................................9
Bank/Program/Channel/Select section ............................................................9
FX ON/OFF Switch ........................................................................................10
Effect control section .....................................................................................10
Valve..............................................................................................................10
Rear panel .............................................................................................................11
Power supply .................................................................................................11
Inputs and Outputs ........................................................................................11
MIDI ...............................................................................................................11
Setup...........................................................................................................13
Output settings.......................................................................................................13
Basic connections..................................................................................................13
Using ToneLabSE with a mixer or recorder...........................................................14
Example of connections to a mixer or recorder ..............................................14
Using ToneLabSE with a guitar amp(s) .................................................................15
Example of connection to a guitar amp (or amps) ..........................................15
Using ToneLabSE with a MIDI device or computer ...............................................15
Playing ToneLabSE.................................................................................... 16

ix
Program Select mode ............................................................................................16
Selecting a program........................................................................................16
Effect On/Off mode ................................................................................................16
Switching effects on/off...................................................................................17
A/B Channel Hold ...........................................................................................17
Activating or deactivating the Key Lock function....................................................18
Activating the Key Lock function.....................................................................18
Deactivating the Key Lock function.................................................................18
Creating and Storing your own Programs...............................................19
Creating your own Program...................................................................................19
Changing the connection order of the effects (CHAIN)..........................................21
Naming a program .................................................................................................21
Storing a program ..................................................................................................22
Restoring a setting to its original value (Original Value) ........................................22
Explanations of the Amp, Cabinet and Effect Types............................... 23
A. AMP Models ......................................................................................................23
B. CABINET Models ..............................................................................................32
WHAT GOES WITH WHAT? ..........................................................................34
C. PEDAL Effects...................................................................................................35
D. MOD (Modulation) effects .................................................................................39
E. DELAY effects ...................................................................................................45
F. REVERB effects ................................................................................................48
Tuner (Bypass, Mute)................................................................................. 51
Tuning procedure...................................................................................................51
Calibrating the tuner...............................................................................................52
Using the expression pedals.....................................................................53
Expression pedal settings......................................................................................53
Expression Target Quick Assign.....................................................................53
Setting the Expression Target ........................................................................54
Expression pedal control initialization settings ...............................................55
Control switch settings...........................................................................................56
Switching each effect on/off............................................................................56
Using TAP TEMPO to set a parameter...........................................................56
FACTOR value knob 2 setting ........................................................................56
Effect control...................................................................................................57
Adjusting the sensitivity of the pedals....................................................................57
Expression pedal 1 .........................................................................................57
Expression pedal 2 .........................................................................................58
Control via MIDI......................................................................................... 59
Connecting a MIDI Device or Computer ................................................................59
Setting the MIDI Channel (GLOBAL “MIDI CH”)....................................................60

x
Program Change (GLOBAL “PCHG OUT”) ...........................................................60
Control Change (GLOBAL “CCHG I/O”) ................................................................60
Parameter Change (GLOBAL “SYEX OUT”) .........................................................61
Backing up and Restoring Program Data (GLOBAL “DUMP CUR,” DUMP ALL”).62
Backing Up .....................................................................................................62
Restoring ........................................................................................................63
Restoring the Factory Preset Programs...................................................64
Troubleshooting........................................................................................65
Specifications............................................................................................. 67
Program list................................................................................................ 68
Index ...........................................................................................................69

IntroductionPanel TourSetupPlayingCreating
and Storing
1
Introduction
WELCOME ABOARD!
any thanks for adding the VOX Valvetronix ToneLabSE to your sonic
arsenal. We’re sure it’ll give you countless hours of great guitar tones that
will feel as good as they sound!
To maximize your chances of enjoying a long and happy relationship with
your ToneLabSE, please read this manual at least once, and (as they say), “use
the product as directed.” Keep the manual for future reference after you’ve read it;
you’ll want to re-read it later at some point to pick up cool tips you may have
missed the first time around.
MAIN FEATURES
•ToneLabSE features Valve Reactor technology that switches between Class A
and Class AB power amp circuits with an actual 12AX7 (ECC 83) miniature tri-
ode valve (vacuum tube) to create the sound of an actual tube power amp,
delivering the response and tone of classic amps.
•ToneLabSE uses sophisticated modeling technology to create classic amp, cab-
inet, and effect sounds.You can choose from sixteen amp types that include
classic vintage amps and expensive high-end valve amps, and eleven different
cabinet types. By combining amp types and cabinet types you can create an
amazing range of sounds, many of which have never been heard before.
• Since high-quality effects are built in, ToneLabSE is all you need to create a
completely finished sound. Sixteen types of pedal effects are placed before the
amp, and after the cabinet are eleven types of modulation, eleven types of
delay, and eleven types of reverb. You can choose one type for each effect, and
use these four effects simultaneously plus Noise Reduction.
•You can store all of your own amp settings and effect model settings as a “pro-
gram” in one of 96 program memories. ToneLabSE comes with 32 preset pro-
grams for instant gratification.
• Manual Mode lets you use ToneLabSE just like conventional amps and effects.
The sound will be exactly as specified by the physical positions of the amp sec-
tion knobs. In other words...what you see is what you get!
•For convenient tuning, an Auto Chromatic Tuner is built-in.
• There are two expression pedals that you can use as a wah pedal, volume
pedal, or to control a variety of effect parameters – a great feature for live perfor-
mance.
• There’s a Quick Assign function that makes it easy to assign parameters to the
expression pedal.
•ToneLabSE provides control switches that let you do things like set the delay
time via TAP TEMPO, switch insert effects on/off, or switch the speed of a rotary
speaker ... again, must-have features for live performance.
M

2
•You can use the effect insert jacks to connect an external effect processor or
stompbox.
•With MIDI IN and OUT connectors, ToneLabSE gives you plenty of potential for
expanding your system.
•ToneLabSE Sound Editor is an editor/librarian software that lets you visually edit
ToneLabSE’s numerous parameters, and save and manage programs.
To obtain the “ToneLabSE Sound Editor,” please contact the VOX distributor in
your country or download the latest version from:
“http://www.voxamps.co.uk” or “http://www.valvetronix.com/”
To find your local Distributor go to:
“http://www.voxamps.co.uk/dealers/worldwid.htm”
VALVE REACTOR TECHNOLOGY
THE POWER (AMP) AND THE GLORY!
alve Reactor technology was first used on the critically acclaimed VOX
AD60/120VT Valvetronix amps.
The Valve Reactor circuitry in ToneLabSE however has been tuned-up
especially for live performance.
Since conventional modeling effects for line recording are not used directly
with a speaker, they do not include a power amp circuit, output transformer, or
speaker. In other words, they only have a preamp circuit.
A real valve amp sound, however, is produced not just by the preamp, but also by
the tone and distortion of the power amp, and by the constant changes in imped-
ance that are created by the power amp driving the speakers. ToneLabSE con-
tains an actual low-wattage valve power amp circuit, a virtual output transformer
(patent applied for) that uses solid-state components to simulate an output trans-
former, and a dummy speaker circuit that simulates the varying impedance of a
real speaker. This means that although it’s low-power, ToneLabSE has the same
circuit structure of an actual all-valve amp.
While much of the tone creation and shaping carried out is done in the digital
domain, its Valve Reactor power amp is 100% analogue. The resulting journey your
guitar’s signal takes through the analogue world of the power stage plays a major
role in providing the all-important feel and tone of the original amps we modelled.

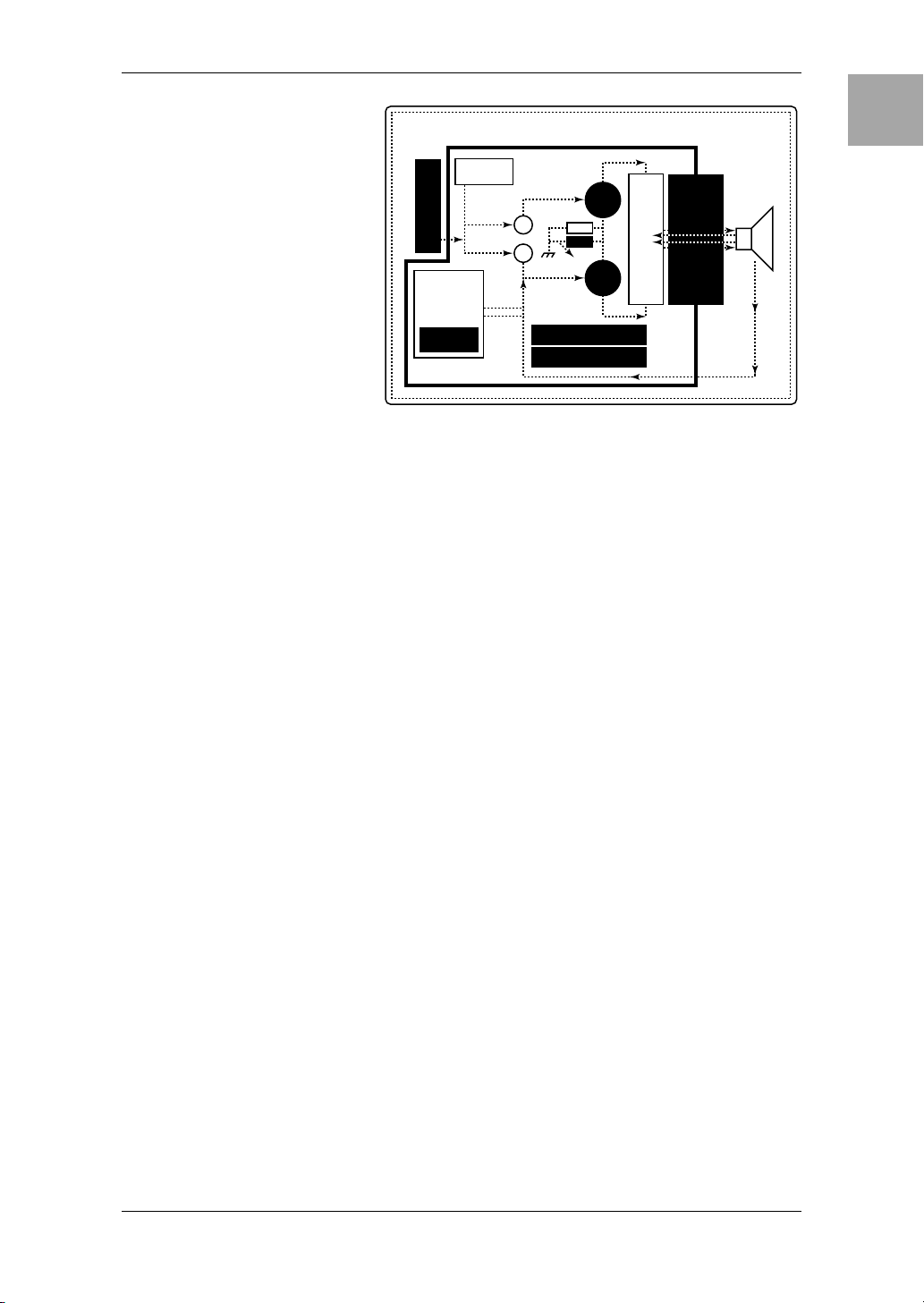

The Valve Reactor power stage is, to all intents and purposes, a bona fide valve
(tube) push-pull power amplifier, but in miniature. It utilizes a 12AX7 (ECC83) valve
(a dual triode device - meaning “two valves in one”) and is equipped with an output
transformer, like a “real” valve amp.
The power amp output of ToneLabSE’s Valve Reactor is designed to “read” the con-
stantly changing impedance curve of the dummy speaker circuit system and feed this
information back to the virtual output transformer – just like real valve amplifiers do.
This information permits the behavior of the valve stage of the amp to vary with the
speaker load (impedance), which is another important part of “real world” valve tone.
V

IntroductionPanel TourSetupPlayingCreating
and Storing
3
Apart from the vital
valve tone this ingenious
power amp design provides, it
also allows us to replicate var-
ious “circuit characteristics”
that are unique to the all-valve
power stages of the amps
we’ve modelled. These “char-
acteristics” include: Class A or
Class AB operation, Presence
and Resonance (low end)
control circuitry (both found in
the negative feedback circuit
that some, but not all, valve
power amps have). Being able
to match such vital characteristics helps ensure that each and every one of our
models is as tonally authentic as possible - as opposed to the usual “close but defi-
nitely no cigar” norm of digital modeling. And just so you know, this patented in
USA power amp technology is unique to VOX Valvetronix.
VOX VALVE REACTOR
FEEDBACK
CIRCUIT
(WITH OR W/O
PRESENCE &
RESONANCE)
REACTOR
AMP
USING
CONSTANT
CURRENT &
REACTIVE
FEEDBACK
MODEL
DEPENDENT
12AX7 (DUAL TRIODE)
PUSH–PULL OUTPUT
PREAMP
VIRTUAL OUTPUT
TRANSFORMER
CLASS A OR AB
MODEL DEPENDENT
PHASE
INVERTER
DUMMY
SPEAKER
12AX7
(ECC83)
12AX7
(ECC83)
BIAS
BIAS

4
ANOVERVIEW OF TONELABSE
Let’s talk about how ToneLabSE is structured.
SIGNAL ROUTE
When you plug into ToneLabSE the signal passes through the following stages.
You might want to glance at the explanations in “A Guitarist’s Guided Panel
Tour” (p.5) while you read this section.
MODES
ToneLabSE has a Program Select mode (where you can switch programs) and
an Effect On/Off mode (where you can switch individual effects on/off). To
switch between these modes, simply press the FX ON/OFF pedal which can
be done even while you are performing.
AMP AND EFFECT SETTINGS (EDIT)
The six model selectors, six value knobs, and various buttons let you edit the
amp and effect settings directly and intuitively. You can use the CHAIN switch
to change the order in which the modulation, delay, and reverb effects are con-
nected. For the amp and cabinet model, you can make settings for two chan-
nels (A and B) and switch between them while you perform.
REALTIME EXPRESSION AND CONTROL PEDALS
You can use the expression pedal and control pedal to control wah, volume, or
effect parameters with your feet. Use the EXPRESSION button or the CON-
TROL button to specify the parameter that will be controlled by the corre-
sponding pedal.
SAVING APROGRAM
By using the WRITE button, all settings you make can be saved as a “program.”
When doing so, you should use the RENAME button to give the program a new
name. Once you’ve saved a program, you can use the program select pedals to
recall it instantly (in Program Select mode).
MIDI AND OUTPUT DESTINATION SETTINGS
The GLOBAL button lets you make MIDI-related settings and specify the destina-
tion to which ToneLabSE is connected. The settings you make here are automat-
ically saved within ToneLabSE so there’s no need to perform the WRITE
operation.
AMP MODEL
16 TYPE
GAIN
VALVE REACTOR
CLASS A
CLASS AB
POWER AMP
CABINET
MODEL
10 TYPE
VR GAIN
PRE AMP
CH
VOLUME
PEDAL
EFFECT
INSERT
EFFECT
AMP MODEL
16 TYPE
GAIN
VALVE REACTOR
CLASS A
CLASS AB
POWER AMP
OUTPUT
SELECT
CABINET
MODEL
11 TYPE
VR GAIN
PRE AMP
CH
VOLUME VOLUME
PEDAL
MODULATION
DELAY
REVERB
EFFECT
A ch
B ch
A ch
B ch

IntroductionPanel TourSetupPlayingCreating
and Storing
5
A Guitarist’s Guided Panel Tour
Here we’re going to learn about the buttons and other controls on ToneLabSE’s
top and rear panel.
HINT: The inside back cover of this manual folds out to reveal a big picture of
ToneLabSE’s top panel, rear panel, and display. Leave this folded out as you con-
tinue reading so you’ll be able to see the panel diagram while you read about each
section.
THE TOP PANEL
MODEL SELECT SECTION
Here you can select the model of amp, cabinet and effect models.
1.1 MODEL select buttons
Use these when selecting the effect category you want to edit with value knobs
1–6, and when switching effects on/off. If an effect you’re using is ON it will be
lit (or blinking during editing), and if OFF it will be dark.
Press a button once and its LED will blink; now you can use value knobs 1–6 to
edit the parameters of that effect.
If you want turn off an effect that is currently on, press the model select button
for the appropriate effect once (it blinks), and then press that model switch but-
ton once again to turn it off (dark); the name display will indicate [--OFF--].
The pedal effect is placed in front of the amp model and the modulation, delay,
and reverb are placed after the cabinet model.
NOTE: While the cabinet model select button is blinking, you can use the value
knobs to adjust the parameters of the amp model.
NOTE: The amp and cabinet model select buttons will change color depending on
the channel you select; they will be lit (or blinking) green when channel A is
selected, and red when channel B is selected.
NOTE: The reason that modulation, delay, and reverb effects are placed after the
amp — rather than before it as a “stompbox” would be — is that they sound better
and more realistic. For example, REVERB emulates the sound created by a room
or hall. So, logic dictates that if we’re going to add it to our sound, the closer to the
end of the signal chain we put it, the more “real” and natural it’s going to sound. The
same is true for DELAY and MODULATION effects — they’re going to sound more
natural if added near the end of your signal path, not at its beginning. Also, if you’re
using a crunch or high gain lead sound then it makes much more sense to add
effects like ROTARY, ROOM (reverb), or DELAY after it’s been distorted, rather
than before.
1.2 INSERT button
Use this to switch the insert effect on/off. This will be lit if the signal input/output
to the external effect is ON, or dark if it is OFF. The external effect is placed
before the pedal effect.
1

6
1.3 PRES-NR (Presence/Noise Reduction) button
Use this to change the presence and noise reduction settings of the amp.
While this button is blinking, you can use value knob [3] to adjust the presence,
and value knob [4] to adjust the noise reduction. This will light (blink) green
when channel A is selected, or red when channel B is selected.
1.4 PEDAL selector
This lets you select one of the sixteen pedal effect models ToneLabSE offers.
When you turn the PEDAL selector, the PEDAL select button will blink, and you
can use value knobs 1–6 to adjust the pedal effect parameters. (For an expla-
nation of each effect, refer to p.35–.) As stated before, pedal effects are con-
nected before the amp.
NOTE: The parameters will be initialized when you switch effect types.
1.5 AMP MODEL selector
This lets you select from sixteen types of classic amp models, including the
legendary VOX AC30TBX. (For details, see p.23.) When you turn the AMP
MODEL selector, the AMP MODEL select button will blink, and you can use
value knobs 1–6 to adjust its parameters.
The operating mode of the preamp and power amp, the response of the tone
controls, and their placement within the circuit will change depending on the
type of amp you select here, precisely replicating the exact gain and tonal
character of the original amp. The all-important power amp stage (class A or
AB) and negative-feedback circuit (or lack thereof) are also carefully simulated.
1.6 CABINET MODEL selector
This selects one of eleven cabinet models that replicate the shape and size of
the cabinet and the type and number of its speakers. (For details, refer to
p.32.) When you turn the CABINET MODEL selector, the CABINET MODEL
select button will blink.
NOTE: While the CABINET MODEL select button is blinking, you can use the value
knobs to adjust its parameters.
1.7 MODULATION selector
This selects one of eleven modulation effect models. When you turn the MOD-
ULATION selector, the MODULATION select button will blink, and you can use
value knobs 1–6 to adjust the parameters of the modulation effect. (For details
on each effect, refer to p.39–.)
NOTE: The parameters will be initialized when you switch effect types.
1.8 DELAY selector
This selects one of eleven delay effect models. When you turn the DELAY
selector, the DELAY select button will blink, and you can use value knobs 1–6
to adjust the parameters of the delay effect. (For details on each effect, refer to
p.45–.)
NOTE: The parameters will be initialized when you switch effect types.

IntroductionPanel TourSetupPlayingCreating
and Storing
7
1.9 REVERB selector
This selects one of eleven reverb effect models. When you turn the REVERB
selector, the REVERB select button will blink, and you can use value knobs 1–
6 to adjust the parameters of the reverb effect. (For details on each effect, refer
to p.48–.)
NOTE: The parameters will be initialized when you switch effect types.
EDIT SECTION
2.1 Edit category LEDs
One of the LEDs will blink to indicate the category of effect you are currently
editing.
When adjusting the parameters, an LED will blink to indicate the line of param-
eter names that you are adjusting.
2.2 Value knobs 1–6
Use these to adjust the parameters of the effects or amp model. Your adjust-
ments will modify the effect whose MODEL select button you pressed (i.e., the
button that is blinking). The LEDs below the knobs will light to indicate the
knobs that are available.
For details on the parameter controlled by each knob, refer to p.35–. (From the
left, we refer to these as value knobs 1–6.)
When the EXPRESSION button or CONTROL button is blinking, these knobs
adjust the corresponding functions.
When you are making RENAME or GLOBAL settings, or when executing the
WRITE operation, you can use value knob 6 to change values.
2

8
CHAIN/GLOBAL/RENAME/WRITE/EXIT/DISPLAY SECTION
This area displays the name of the program, and the name and value of the
parameter you are editing in the amp or effect section. Use RENAME to edit the
name of the program, and WRITE to save the program.
CHAIN lets you change the connection order of the modulation, delay, and reverb
effects. GLOBAL lets you make MIDI and output settings.
3.1 ▲, ▼buttons
Use these to edit the value of parameters.
3.2 √√
√√, ®® ®® buttons
Use these to select the parameter you want to edit, or to edit the program
name.
3.3 CHAIN button
Use this to change the connection order of the modulation, delay, and reverb
effects. Use value knob 6 or the ▲, ▼buttons to edit the value.
3.4 GLOBAL button
Use this to make settings related to MIDI or to ToneLabSE’s audio output.
Press the GLOBAL button and use the √√
√√, ®® ®® buttons to move through the
menu items in the order shown below. After you have selected a menu item,
use value knob 6 or the ▲, ▼buttons to adjust the value.
3.5 RENAME button
Use this to change the program name (p.21).
Use the √√
√√, ®® ®® buttons to move between spaces (characters) in the display, and
use value knob 6 or the
▲ , ▼ buttons to change the character at that space.
3.6 WRITE button
Use this when you want to save the settings you’ve created (p.22).
3.7 EXIT button
Use this to abort a program-write operation or to cancel a GLOBAL setting.
By pressing and holding this button for a longer time, you can activate/cancel
the Key Lock function, which disables operation of the buttons, selectors, and
knobs (p.18).
OUT SEL: Specifies the output destination (p.13)
CH HOLD: Specifies whether the channel (A/B) selection will be
maintained when you switch programs
(p.17)
MIDI CH: Specifies the MIDI channel (p.59)
PCHG OUT: Specifies the program change message output setting (p.60)
CCHG I/O: Specifies the control change message input/output setting(p.60)
SYEX OUT: Specifies the system exclusive message output setting (p.61)
DUMP CUR: Dumps the current program data from the MIDI OUT con-
nector
(p.62)
DUMP ALL: Dumps all of ToneLabSE’s data from the MIDI OUT con-
nector
(p.62)
3

IntroductionPanel TourSetupPlayingCreating
and Storing
9
3.8 Name display
Displays program names, effect names, or parameter names.
3.9 Valve icon
Indicates the number and type of power valve – a.k.a. “vacuum tube” – used in
the original amp that is being modeled.
3.10 Value display
Indicates the value of the parameter you are editing.
If the displayed parameter value matches the original value (i.e., the value
saved in the program), the ORIG (original value) icon will appear.
If you have edited any parameter of the program, the EDIT icon will appear.
CONTROL SETUP SECTION
4.1 CONTROL pedal setting button
Use this to make control pedal settings. While this button is blinking, you can
use value knobs 1–2 to edit the control pedal settings.
4.2 EXPRESSION pedal setting button
Use this to make expression pedal settings. While this button is blinking, you
can use value knobs 1–6 to edit the expression pedal settings.
If this is lit while you’re editing, the expression pedal Quick Assign function is
available.
HINT(Quick Assign): If the expression pedal setting button is lit while you are edit-
ing an effect, you can use the expression pedal Quick Assign function. To assign
the parameter shown in the name display to expression pedal 1, simply press and
hold the expression pedal setting button for one second. If you want to assign the
parameter to expression pedal 2, press and hold the control pedal setting button for
one second. When the assignment is completed, the name display will indicate
COMPLETE.
BANK DISPLAY/TUNER DISPLAY
5.1 Bank display
Indicates the bank number. If the tuner is operating, this indicates the note
name. (p.51)
5.2 Tuner display
If the tuner is on, this displays the pitch you are playing. (p.51)
BANK/PROGRAM/CHANNEL/SELECT SECTION
6.1 BANK UP/DOWN pedals
In Program Select mode, press BANK UP to increment the bank by one, or
BANK DOWN to decrement it by one. In Effect On/Off mode, you can use the
BANK DOWN pedal to switch INSERT (the external effect) on/off.
6.2 Program select pedals, Program LEDs
Use these to select programs.The program LED at the upper left of each pedal
will light accordingly.
4
5
6

10
In Effect On/Off mode, these switches individually switch the Pedal, Modula-
tion, Delay, and Reverb effects on/off.
6.3 A/B ch channel select pedal, Channel LEDs
Use this to change channels within the currently selected program. The chan-
nel LEDs located above the pedal will light accordingly (green when channel A
is selected, red when channel B is selected).
FX ON/OFF SWITCH
Press this switch when you want to switch to Effect On/Off mode and the LED
at the upper left of the pedal will light.
In Effect On/Off mode you can use the program select pedals to individually
switch the Pedal, Modulation, Delay, and Reverb effects on/off.
If you press and hold this switch for 0.5 seconds or longer, the output will be
bypassed. If you press and hold this pedal for one second or longer, the output
will be muted. The tuner will operate when ToneLabSE is bypassed or muted.
To cancel bypass or mute (Tuner), press this switch once again.
EFFECT CONTROL SECTION
8.1 CONTROL (Control switch)
This pedal controls the effect function specified by the Control switch setting.
8.2 EXP1, EXP2 (Expression pedal 1, Expression pedal 2)
These pedals control the effect parameter you assigned as the expression
pedal setting; e.g., volume, wah, or other effect parameter. Pressing down
firmly on an expression pedal will activate a switch underneath the pedal, let-
ting you turn the assigned effect on/off (except when you’ve assigned volume
or an amp parameter).
VALVE
9.1 Valve window
ToneLabSE contains a 12AX7 (ECC83) valve (“vacuum tube”).
NOTE: The valve cover and or valve may break if it’s subjected to impact. If the
valve cover breaks, please have it replaced; leaving a damaged cover may lead to
the valve itself to become damaged.
7
8
9
