Voxx Movies To Go MTG10UHD User manual

MTG10UHD/MTG13UHD
10.1” /13.3” Overhead LCD Monitor
With Built-In DVD Player
Owner's Manual
All manuals and user guides at all-guides.com
all-guides.com

All manuals and user guides at all-guides.com

Warnings
Do not use any solvents or cleaning materials when cleaning the video monitor.
Do not use any abrasive cleaners, they may scratch the screen.
Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest position.
Remember to leave the dome light switch in the off or auto positions when the vehicle
is unattended, as the dome lights, if left on, can drain
the vehicle's battery.
Do not put pressure on the screen.
Caution children to avoid touching or scratching the screen, as it may become dirty or
damaged.
Patented: Refer to www.voxxintl.com/patents
All manuals and user guides at all-guides.com

Congratulations
Safety Precaution
Congratulations on your purchase of DVD Player with drop-down video / monitor.
The MTG10UHD/MTG13UHD has been designed to provide passengers with unlimited
content options delivering smiles for many miles. Please read the directions that follow
to familiarize yourself with the product to ensure that you obtain the best results from
your equipment.
Note: Installation options vary, see the individual owner’s manuals for each component
in your system to obtain a full understanding of each component’s operation.
For safety reasons, when changing video media, it is recommended that the vehicle
is not in motion, and that you do not allow children to unfasten seat belts to change
video media or make any adjustments to the system. System adjustments can be
accomplished using the remote control, while seat belts remain fastened. Enjoy your
entertainment system but remember the safety of all passengers remains the number
one priority.
All manuals and user guides at all-guides.com

5

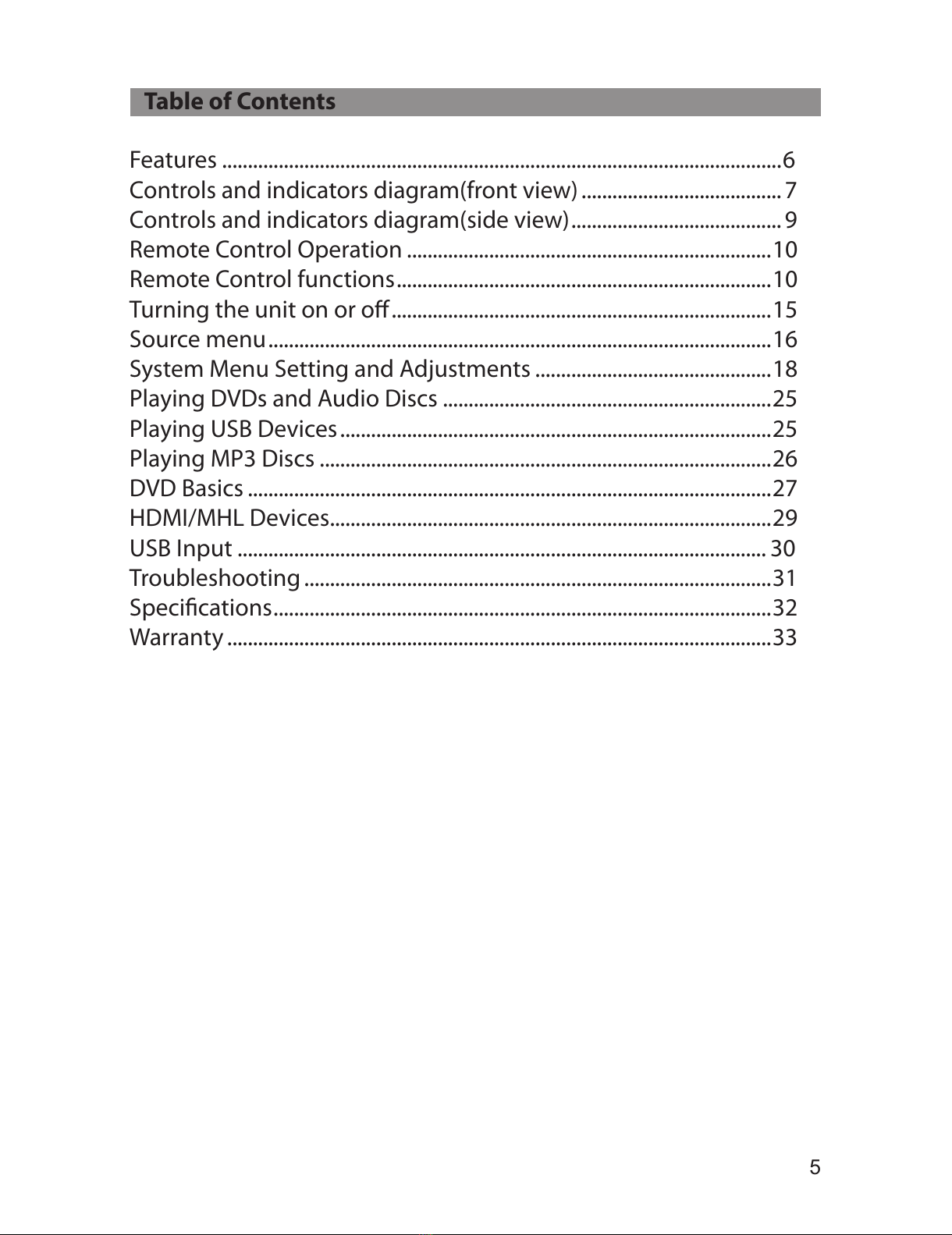

Table of Contents
Features .............................................................................................................6
Controls and indicators diagram(front view)....................................... 7
Controls and indicators diagram(side view)......................................... 9
Remote Control Operation .......................................................................10
Remote Control functions.........................................................................10
Turning the unit on or off..........................................................................15
Source menu..................................................................................................16
System Menu Setting and Adjustments ..............................................18
Playing DVDs and Audio Discs ................................................................25
Playing USB Devices....................................................................................25
Playing MP3 Discs ........................................................................................26
DVD Basics ......................................................................................................27
HDMI/MHL Devices......................................................................................29
USB Input ....................................................................................................... 30
Troubleshooting ...........................................................................................31
Specifications.................................................................................................32
Warranty ..........................................................................................................33
All manuals and user guides at all-guides.com

6

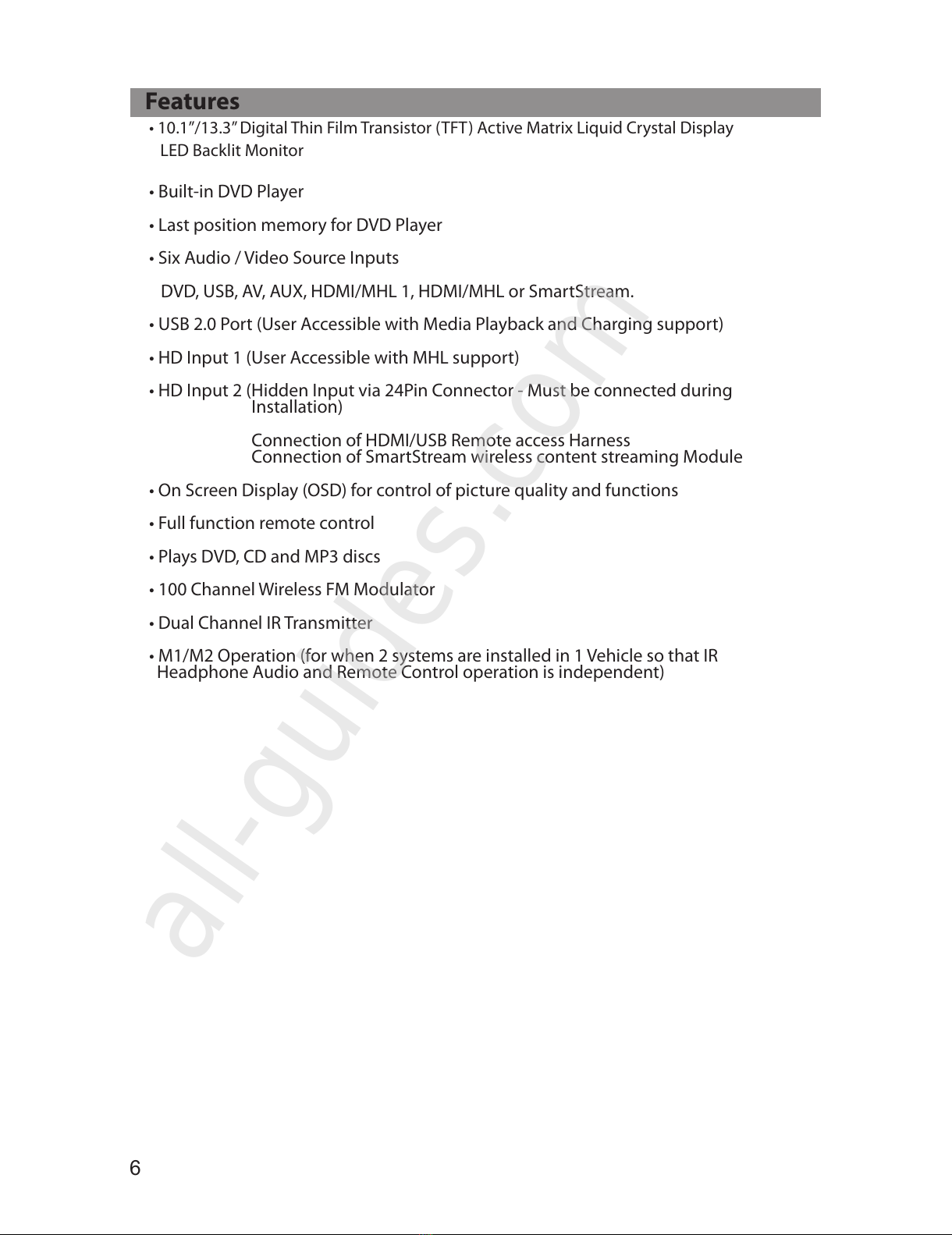

• 10.1”/13.3” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display
LED Backlit Monitor
• Built-in DVD Player
• Last position memory for DVD Player
• Six Audio / Video Source Inputs
DVD, USB, AV, AUX, HDMI/MHL 1, HDMI/MHL or SmartStream.
• USB 2.0 Port (User Accessible with Media Playback and Charging support)
• HD Input 1 (User Accessible with MHL support)
• HD Input 2 (Hidden Input via 24Pin Connector - Must be connected during
Installation)
Connection of HDMI/USB Remote access Harness
Connection of SmartStream wireless content streaming Module
• On Screen Display (OSD) for control of picture quality and functions
• Full function remote control
• Plays DVD, CD and MP3 discs
• 100 Channel Wireless FM Modulator
• Dual Channel IR Transmitter
• M1/M2 Operation (for when 2 systems are installed in 1 Vehicle so that IR
Headphone Audio and Remote Control operation is independent)
Features
All manuals and user guides at all-guides.com
all-guides.com

7
Controls and indicators diagram (front view)
1. POWER/SOURCE ( ) Button
This button is used to turn the system on/off and to selcet the source .
2. Play/Pause (u/II ) Button
This button is used to start playback of a disc or pause a disc.
3. DOWN / Previous ( ) Button
Short press to select the source mode and system menu pages.
Long press to select previous chapter or track during play the DVD.
4. MENU Select Button
This button is used to display and select options on the system menu.
5. UP/NEXT( ) Button
Short press to select the source mode and system menu pages.
Long press to select next chapter or track during play the DVD.
All manuals and user guides at all-guides.com

8
Controls and indicators diagram (front view)-Continued
6. STOP (n) Button
-Press the STOP button once: Stops playback.
-Pressing the PLAY button again will resume normal playback from where movie was
stopped.
-Press the STOP button twice and then press the PLAY button to start playback from the
beginning of the DVD.
7. EJECT ( )Button
This button is used for ejecting a disc from the disc compartment.
8. Dome Lights
Provide additional interior illumination.
9. Infrared Transmitter/Remote Sensor
IR Transmitter: is used to broadcast audio signal to wireless IR headphones.
IR Sensor: is used to receive signals from the remote control.
10. Screen Release
Push this button to release the screen from the locked position.
11. Ventilation Openings
12. LCD O Switch
Used to turn off the LCD backlight when the LCD is in the closed position.
13. LCD Panel
All manuals and user guides at all-guides.com

9

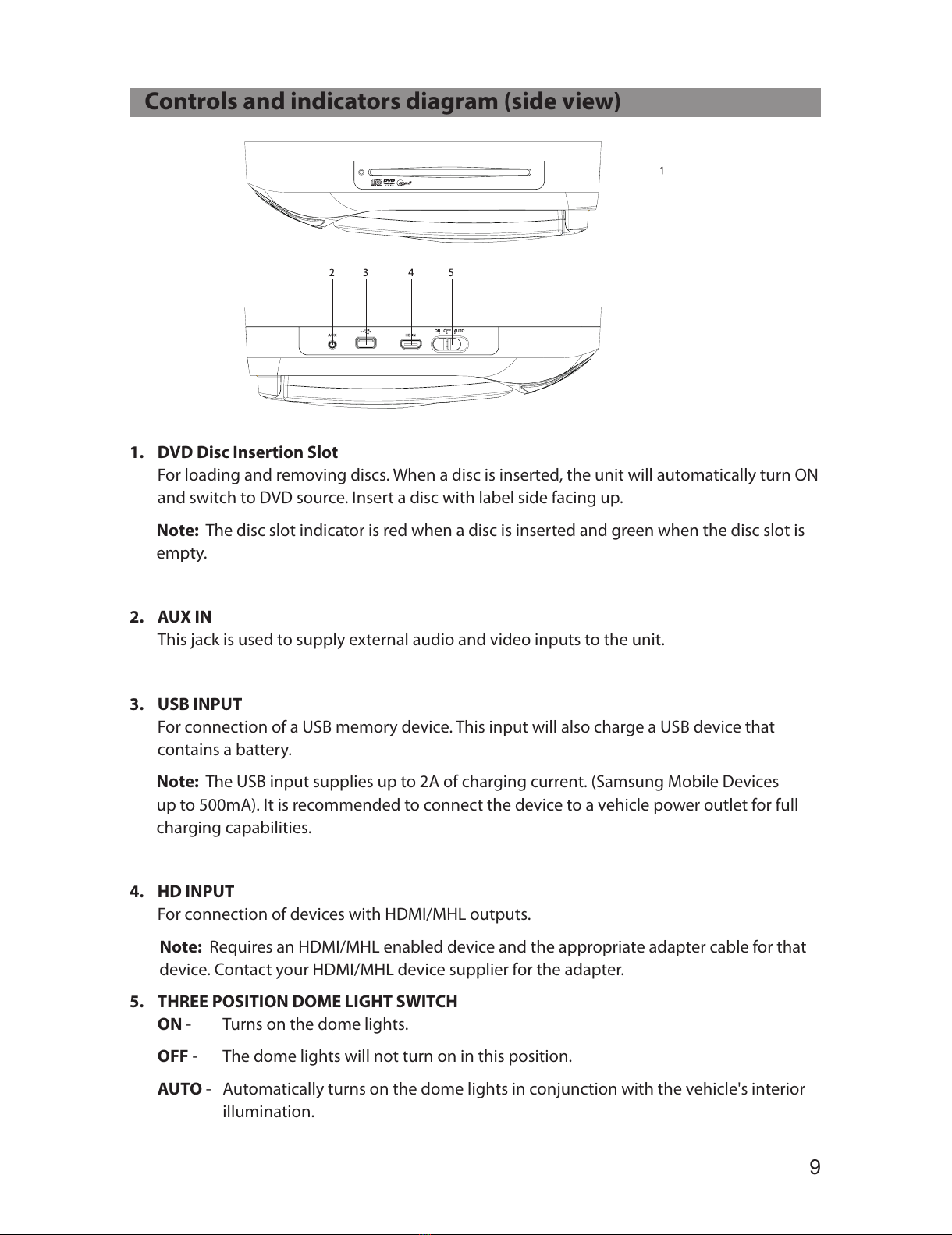

1. DVD Disc Insertion Slot
For loading and removing discs. When a disc is inserted, the unit will automatically turn ON
and switch to DVD source. Insert a disc with label side facing up.
Note: The disc slot indicator is red when a disc is inserted and green when the disc slot is
empty.
2. AUX IN
This jack is used to supply external audio and video inputs to the unit.
3. USB INPUT
For connection of a USB memory device. This input will also charge a USB device that
contains a battery.
Note: The USB input supplies up to 2A of charging current. (Samsung Mobile Devices
up to 500mA). It is recommended to connect the device to a vehicle power outlet for full
charging capabilities.
4. HD INPUT
For connection of devices with HDMI/MHL outputs.
Note: Requires an HDMI/MHL enabled device and the appropriate adapter cable for that
device. Contact your HDMI/MHL device supplier for the adapter.
5. THREE POSITION DOME LIGHT SWITCH
ON - Turns on the dome lights.
OFF - The dome lights will not turn on in this position.
AUTO - Automatically turns on the dome lights in conjunction with the vehicle's interior
illumination.
Controls and indicators diagram (side view)
All manuals and user guides at all-guides.com

10

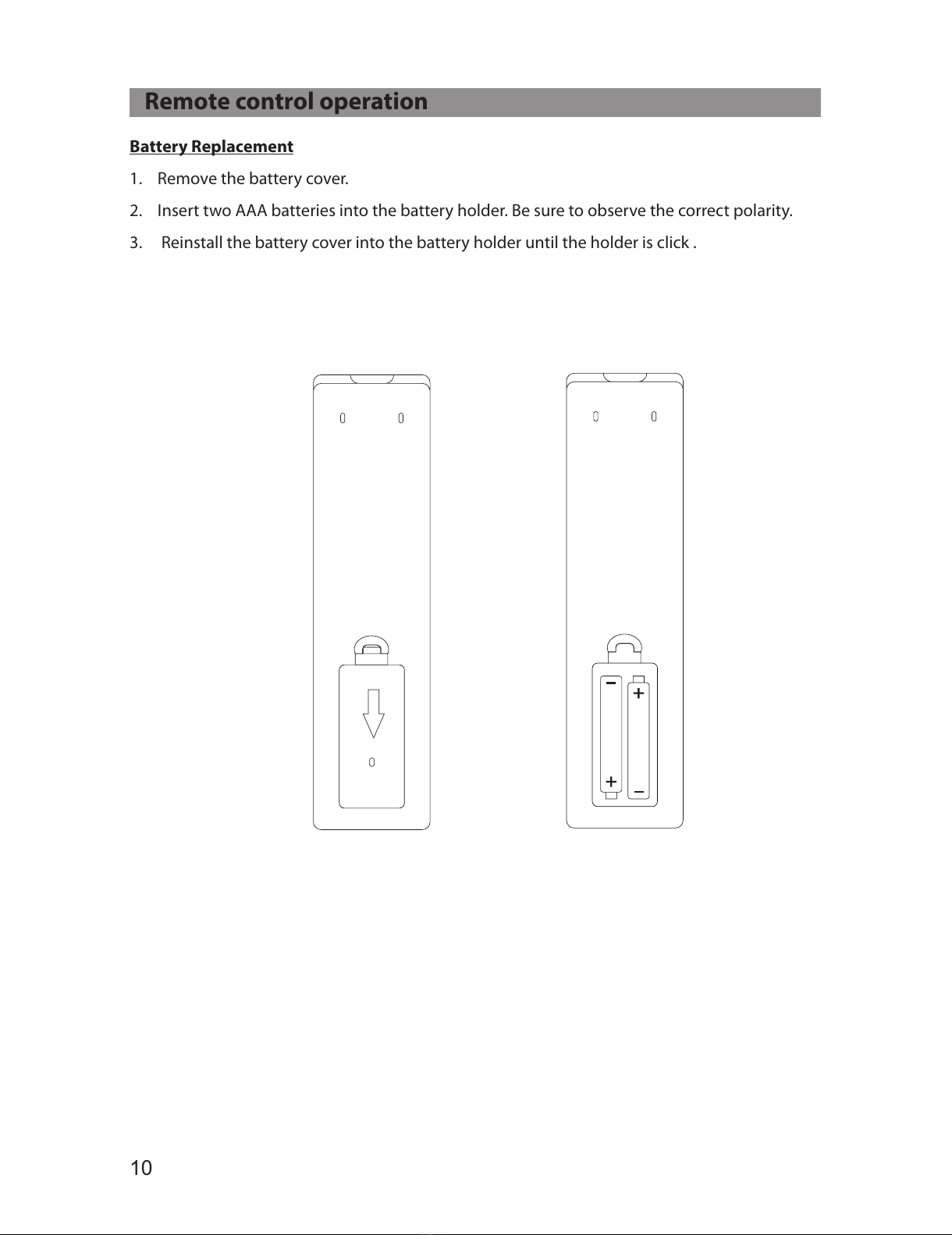

Battery Replacement
1. Remove the battery cover.
2. Insert two AAA batteries into the battery holder. Be sure to observe the correct polarity.
3. Reinstall the battery cover into the battery holder until the holder is click .
Remote control operation
All manuals and user guides at all-guides.com
