Voyager PADIN2 Service manual

PADIN2 Video System
Owner’s and
Installation Manual
Audiovox Specialized Applications
23319 Cooper Dr.
Elkhart, IN 46514
219-264-3135
Features:
-Audio in/out connectors
-Full metal chassis
-Two microphone input capability
with
individual gain controls
-Internal and external paging
capacity
-Designed to “trigger” monitors “on”
when VCP mode is selected

Table of Contents
Page Number
Contents and System Components 1
Installation Guide 2-3
Front PADIN2 Features 4
Rear PADIN2 Features 5
PADIN2 Harness Details 6
Front Monitor Features 7
Rear Monitor Features 8
Wire Color Code and Function 9
Bus Harness Layout 10
Monitor Installation Diagram 11
Exploded Monitor Installation View 12
Speaker Connections 13
Optional Video Cassette Mount 14
VCP Rear Connections 15
Troubleshooting Guide 16
PADIN2 Wall or Console Installation 17
PADIN2 and Monitor Electrical and Dimensional Specifications 18
System Components
PADIN2
Wiring Harnesses
Microphone
1

Installation Guide
Wiring Precautions
1) To prevent battery discharge or component damage:
a) Connect the monitors to 12VDC or 24VDC “Ignition Hot Only”
b) Connect PA/Video Cassette Player and Radio to 12V “Ignition Hot Only”
c) All monitors have a “trigger” lead (18G Blue/White in monitor pigtail), which is
connected to PA.
2) Harness Installation
a) For ease of installation, route all cables with vehicle OEM harness.
This will reduce the risk of damage to the wiring system.
b) Route enclosed harness as indicated in Figure 8. This harness
provides individual electrical drops for connection to Power, VCP,
Front Radio, PA, and Monitor#1.
c) The installer is responsible for routing the Monitor power, Monitor
Trigger, Speakers, Video in/out wires to each location determined by
installer/customer.
NOTE: We recommend that the installer make the appropriate video connections
with the supplied Video Cable. This cable has been specifically chosen for this
application. When connecting speakers to this system, please use the attached
diagram (Fig. 11). Be sure 4Ωimpedance load is supplied to the PA. This will
provide maximum sound pressure level and appropriate signal loading for the
PA.
3) Radio Installation
a) Install radio per packaged instructions.
b) Connect LR+ and RR+ of radio per the following color description:
1. Yellow/Red from harness to RR+ of radio
2. Yellow from harness to LR+ of radio
NOTE: Negative connections are not required on the input.
4) VCP Installation
a) VCP can be mounted in the following methods:
1. Obtain ASA “soft mounting kit” P/N 1401250. (Fig. 12)
2. Double side tape, minimum thickness 0.187” dual lock Velcro applied to
bottom of VCP.
b) Connect the Video out (yellow terminal) to male RCA connector
(color coded yellow).
c) Connect the Audio out (white terminal) to male RCA connector
(color coded white).
d) Connect the 2.1mm DC jack to power input of VCP. Be sure this
line is infused with an in-line 3-Amp Blade or Glass Fuse.
5) PA Installation
The PA should be mounted in a DIN sized opening on the vehicle’s dash. This
location will allow the driver access to controls.
6) MIC Installation
a) MIC extension plugs into the back of the PADIN2 unit.
b) MIC itself plugs into MIC extension cable.
c) Adjust MIC gain controls to user preference.
7) Monitor Installation (Fig. 10)
a) Locate position of monitor(s). Determine rotation and tilt of monitor prior to
drilling holes.
b) After mounting holes are located, drill four 7/16” holes.
c) Depending on the construction of the luggage rack, two mounting plates may be
required to support monitor assembly. (Fig. 9 & 10)
2

Installation Guide (cont.)
d) Depending on the angle of the luggage rack, a 10° wedge base may be required
to keep monitors parallel to the floor. (Fig. 10)
e) Drop four 5/16” grade 8 mounting bolts through mounting holes. (from top of
luggage rack down)
f) Place a mounting plate washer, lock washer, and nut on bolt and tighten to 100
In.lbs. This will provide monitor with a solid mounting base.
g) Place a nut, lock washer, and washer on bolt prior to putting mounting bracket in
place. This will aid in setting the optimal viewing angle.
h) If required, place the wedge base in position. Place mounting bracket in position
and assemble washer, lock washer, and nut to hold bracket in position.
i) Slide monitor into position and hand tighten two ¼-20x1” bolts to hold monitor in
position. Adjust hardware combination to achieve optimal viewing position.
(Fig.10)
j) Connect video in/out (6-pin connector) and power (4-pin pigtail). Cut looped
wire. Splice two 14G orange from harness to one 14G orange from pigtail,
connect two 14G black from harness to one 14G black from pigtail, connect two
18G blue/white from harness to 18G blue/white of pigtail.
k) Install remaining ¼-20 grade 8 bolts and tighten all four to 100 in. lbs.
l) Clean four tabs of mounting bracket with a 70% solution of isopropyl alcohol.
m) Place two 1” x 1” and 1” x 2’ pads of “dual lock” velcro on mounting bracket. (Fig.
10)
n) Place padded shroud over monitor assembly and locate position of mating velcro
pad. If a 10° wedge base is used, be sure shroud is flush to all edges prior to
attaching velcro.
o) Clean internal surface of padded shroud with 70% isopropyl alcohol.
p) Place two 1” x 1” and 1” x 2” pads of “dual lock” velcro on padded shroud (as
located in step n) above.
q) If necessary place 10° wedge base over monitor/bracket assembly and push four
pads of velcro together, being sure all four pads are fully engaged with pads on
monitor.
r) Repeat above steps for each additional monitor location.
Figure 1 3
MIC (-) Black
PTT Red
Microphone Pin View
MIC (+) White
PTT Green SWITCHCRAFT A4F
CONNECTOR

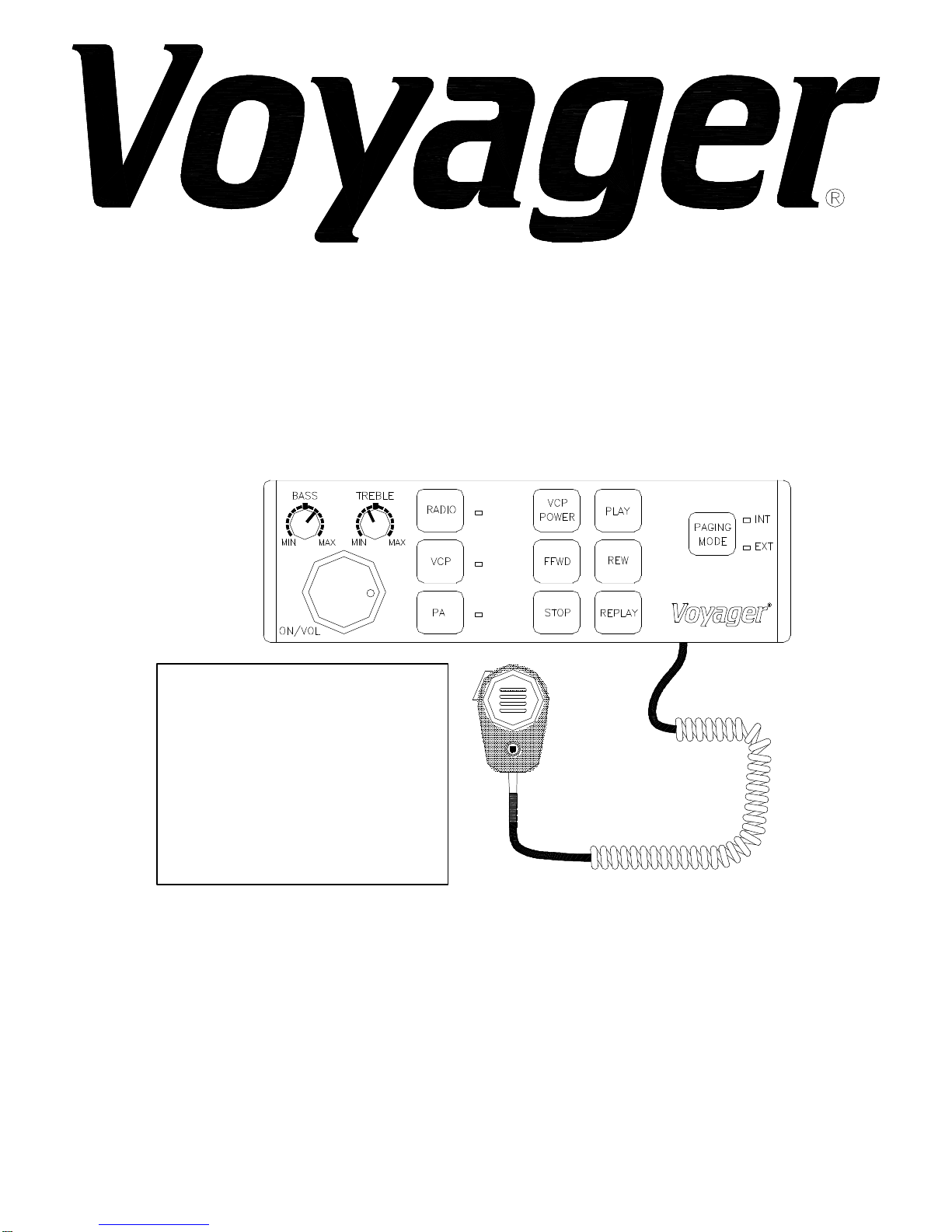

Front PADIN2 Features
Figure 2
1) Bass Control Knob- Turn knob clockwise to increase bass and counterclockwise to
decrease bass.
2) On/Off Knob- This knob turns the PADIN2 on and off.
3) Treble Control Knob- Turn knob clockwise to increase treble and counterclockwise
to decrease treble.
4) Radio- Pressing this button switches between PADIN2 and radio.
5) VCP- This button switches the PADIN2 to VCP and also triggers the monitor.
Indicator light will be lit when this function is selected.
6) PA- This button switches the PADIN2 to the PA/MIC system. The indicator light will
be lit when this function is chosen.
7) Paging Mode- This button is used to page over the PA system. The indicator light
will be on when this button is depressed. An additional push of this button will toggle
back and forth between the internal and external paging system.
VCP Controls
NOTE: For these controls to function, the IR repeater/emitter must be
installed over the IR window on the VCP.
8) FFWD- This button fast forwards the tape in the VCP.
9) Play- This button starts the tape playing in the VCP.
10) VCP Power- This button powers the VCP on and off.
11) Stop- This button stops the tape when it is in “play” or another mode.
12) REW- This button will rewind the tape when it is in “play” or “stop” mode.
13) Replay- This button will stop the tape and rewind back to the beginning of the tape
and resume play mode.
Figure 3 4
Microphone Cable Adapter
Switchcraft D4M Connector Philmore T609CB Connector

Rear PADIN2 Features
Figure 4
1) MIC Gain- These controls are accessed through the control in rear. The
potentiometer marked GAIN1 sets the level for the MIC jack, and GAIN2 sets
the level for the second MIC jack. These adjustments will be required to
match audio levels of the other sources.
To adjust:
a) Turn the PADIN2 to the “on” position and turn the volume control to half
volume and select Video or Radio on the source select control.
b) Be sure the video or radio source is operational to obtain a reference
level.
c) Connect the hand-held MIC to rear panel.
d) Key the microphone and adjust level to existing audio level produced
by the selected source. Clockwise increases the audio level and
counterclockwise will decrease the level.
2 & 3) Microphone 1 and 2- Microphone input plus adapter will allow operater to
use most available microphones, the appropriate Gain control
potentiometer must be preset per the above instructiions. See Fig. 1 for
microphone and pinout.
4) Speaker Out- This connection goes to both right and left internal and external
speakers. See Fig. 11 for speaker connections
5) Mounting Lugs- Used to level out the radio when mounting.
6) Power- Connector (Amp P/N 172167-1) mates to Amp 171637-1. See wire
color Code and harness layout . (Table 1 and Figure 8)
7) Audio In- Supplies audio from VCP, monitor and radio. 5
1
234 5 6 7
L Int. Spkr (-)
L Int. Spkr (+)
IR (+)
IR (-)
Ext. Spkr (+)
R Int. Spkr (+)Ext. Spkr (-)
R Int. Spkr (-)
+12V
Audio From VCP (+)
Radio Input R (+)
Radio Input L(+)
Monitor Trigger
Ground
Audio From VCP (-)

PADIN2 Harness Details
Figure 5
6
Audio Input Harness
Power Monitor Trigger Out Harness
Speaker Out Harness
IR Harness
IR LED: Clean the IR Receiver
window on the front of the VCP,
remove adhesive backing and
apply IR LED to IR window on
the face of the VCP.
Connects to monitor power control in

Front Monitor Details
Figure 6
1) Power Indicator-
a) Will illuminate bright red when monitor is triggered “on” by the PA
system.
b) Will illuminate dim red when monitor is triggered “off” by the PA
system.
7
1

Rear Monitor Features
Figure 7
Monitor Operating Controls
1) Picture Selector-
a) “Press” left most button to trigger “On screen display.” Order of
control: Contrast, Brightness, Tint and Color.
b) Use the “+” and “-“ buttons to increase or decrease the setting to
achieve the uniformity of each monitor in your application.
2) Video Input/Output Connector-
a) Mating Connector: Amp P/N 172168-1, Mating terminal: Amp P/N
171637-1.
b) See Table 1 and Figure 8 for customer insertion view and harness
color code.
3) Monitor Power Control-
a) Mating connector: Amp P/N 172167-1, mating terminal: Amp P/N
171637-1.
b) See Table 1 and Figure 8 for customer insertion view and
harness color code.
4) Monitor Fuse-
*Replacement fuse should be a 5 Amp automotive glass fuse* Do
not replace with a higher or lower rated fuse. An over rated fuse will
allow excessive current draw to damage the monitor. An under
rated fuse will fail during power up or cause heat damage to the fuse
holder or monitor (depending on the rating of the fuse). 8
1
Chassis Ground
Trigger From PA 12V
Video Out (-)
Video In (+) 4
3
Video In (-)
2Video Out (+) 12-24VDC

Wire Color Code and Function
Number Function Wire Color/ gauge
1PA- Video / Audio
Switching and
Volume control
18G Blue/White 12VDC Out
14G Red +12VDC
14G Black Chassis Gnd
18G Green Rt Speaker (+)
18G Green/Black Rt Speaker (–)
18G Gray Lt Speaker (+)
18G Gray/Black Lt Speaker (-)
18G Pink Ext. Speaker (+)
18G Pink/Black Ext. Speaker (-)
18G 2-Shieled cable VCP Audio Out
2Front radio
Lt. Rear (+)
Rt. Rear (+)
18G Yellow Lt. Rear (+)
18G Yellow/ Red Rt. Rear (+)
3VCP 16G Red 12VDC
16G Black Chassis Gnd
18G Shielded Audio cable
18G Shielded Video cable
4Input Power/
Ground 16G Red 12VDC
16G Black Chassis Ground
16G Orange 24VDC
5Monitor 16G Orange 12 to 24VDC
16G Black Chassis Gnd
18G Shielded Video cable (from VCP)
18G Shielded Video cable (to 2nd, 3rd, 4th, etc.)
6External Speaker 18G Pink Speaker (+)
18G Pink/ Black Speaker (-)
7Passenger Side
Speaker 18G Green Speaker (+)
18G Green/ Black Speaker (-)
8Driver Side
Speaker 18G Gray Speaker (+)
18G Gray/ Black Speaker (-)
Table 1
9

Harness Layout
Figure 8
10
1
2
4
3
5
7
6
78
5
8
7
5
8
5
8
7
1
Optional PA location

Monitor Installation Diagram
Figure 9 11
MONITOR PIGTAIL
VIDEO OUT
VIDEO IN
CHASSIS GND
12-24VDC
MOUNITNG BRACKET W/BOLTS
1/4X20 BOLT GRADE 8
ON FRONT AND BACK
1" x 2" VELCRO STRIPS VINYL WRAPPED SHROUD
TRIGGER
1" x 1" VELCRO STRIPS ON 2-SIDES
HARNESS 5/16 x 18 UNC GRADE 8
CARRIAGE BOLTS
9" MONITOR
COMPRESSION PLATES (OPTIONAL)
LUGGAGE RACK
WEDGE BASE
4 PLACES
PASSENGER SIDEDRIVER SIDE

Exploded Monitor Installation View
Figure 10
12
Monitor (P/N BV0901)
10° Wedge Base (Optional)
(4) - 1/4X20X1 Grade 8
(2) - 1 X 2 Dual Lock
(2) - 1X1 Dual Lock
Compression (Crush) Plate
(4) - 5/16x18 UNC Grade 8
(12) - 5/16X18 Grade 8
Compression (Crush) Plate
(2) - 1X1 Dual Lock
Velcro Tape (P/N 8001508)
(2) - 1 X 2 Dual Lock Velcro Tape
Shroud (P/N RPVBSH91)
Carriage Bolts (P/N 8001500)
(Optional) (P/N 1400003)
(Optional) (P/N 1400003)
Velcro Tape (P/N 8001508)
Velcro Tape (P/N 8001508)
Bolts (P/N 8001501) and
Nuts (P/N 8001030),
Washers (P/N 8001503)
Washers (P/N 8001502)
Lockwashers (P/N 8001504)
(P/N 1400150)
(P/N 8001508)

Speaker Connections
To obtain optimum sound pressure level, and compatible load, please use the
speaker connection methods illustrated.
Figure 11 13
DRIVER SIDE SPKR
DRIVER SIDE SPKR
18 GRY (+)
PASS. SIDE SPKR
18 GRN/BLK (-)
18 GRY (+)
DRIVER SIDE SPKR
18 GRY/BLK(-)
18 GRN(+)
DRIVER SIDE SPKR
18 GRY/BLK(-)
18 GRY/BLK(-)
18 GRY (+)
18 GRN/BLK (-)
PASS. SIDE SPKR
18 GRN(+)
18 GRY/BLK(-)
18 GRY (+)
18 GRN/BLK (-)
18 GRN(+)
PASS. SIDE SPKR
18 GRN/BLK (-)
PASS. SIDE SPKR
18 GRN(+)
4Ωor 8Ω
4 Ohm only
4 Ohm only
4Ω or 8Ω

Optional Video Cassette Mount
P/N 1401250
Figure 12
14
(2) Clamp Brackets
(1) Mounting Base With 1" Foam
Video Cassette Player
With 1" Foam

Rear VCP Connections
Figure 13
1) Fuse- 2 Amp Fuse Used
2) Antenna In- External antenna hook-up
3) Video Out- To Monitor or Video
4) Audio Out- To Moinitor or Video
5) RF Out- Channel 3 or 4 output to Monitor
6) Channel Select- Selects setting for channel 3 or 4 selection, depends on
area you live in.
7) Power In- Dual input for connection to barrel connector
8) DC 12V- Dual input for connection to 4-pin connector
Front VCP Features
Figure 14
1) Power- This button powers the VCP “on” and “off”.
2) Stop/ Eject- This button stops the tape and a second push ejects the VCP
tape.
3) REW- This button rewinds the tape from either “play” or “stop”.
4) Play- This button sets the tape into play mode.
5) FFWD- This button fast forwards the tape from either “play” or “stop”.
6) CST- This light indicates whether a tape is present in the VCP.
7) DEW- This light indicates moisture present in VCP due to weather conditions.
8) Remote Sensor- This picks up the IR signal from the remote.
15

Troubleshooting
Symptom Cause Possible Solution
PA will not power up No 12V power to the PA Check for front panel fuse.
Check for 12V power to PA
PA not turned on
Monitors will not power up No 12-24V power to
monitors
No 12V trigger voltage from
PA to monitor
Check monitor 5-Amp fuse
Check for 12V to 24V power at
monitor pigtail
Check that PA is set to VIDEO
mode
Check that PA has 12V power
Video screens have
interference Poor connections
Bad VHS tape
Dirty heads on VCP
Check crimp connections at monitor
Try new VHS tape
Clean VCP heads
No audio from speakers Speakers not connected
Volume on PA turned down
Measure resistance between gray
and gray/black wires (should be
between 2-16Ω)
Measure resistance between green
and green/black wires (should be
between 2-16Ω)
Turn volume control up and check
audio from VCP to PA and radio to
PA
VCP will not power up No 12V power to VCP Check VCP 3-amp fuse
Check for 12V at VCP power
connector
No audio when MIC is
keyed (other sources OK) MIC volume control turned
down
MIC defective
PA defective
Turn MIC volume up
Adjust MIC GAIN controls up
(located behind recessed holes on
front panel of PA)
Adjust PA master volume up
Replace MIC
Replace PA
VCP audio has alternator
whine or hum
Ground loop between PA
and VCP Install NF-20 isolation transformer
on audio output of VCP
Radio has alternator whine
or hum Power source “dirty”
PA has poor ground
connection
Install NF-12 noise filter on power
leads of PA
Ensure that PA is securely grounded
to metal frame of chassis, free from
paint, oil, dirt, etc.
16

PA Installation- Wall Mount
___________________________________________
PA Installation- Console Mount
17
(4) #10 Self-Tap Screws
Wall Mount Box
(4) #8 Self-Tap Screws
Lower Left Side
Of Driver's Seat
Wall Can Mounting Plate
P/N 1400002
(Use DIN Sleeve)
DIN Sleeve
PADIN2
Driver's Side
Cut Out
7 1/4" x 2 3/16"
Wall Can Mounting Plate
P/N 8014005
Console
(Use DIN Sleeve)
(4) #8 Self-Tap Screws
DIN Sleeve PADIN2

PA Electrical and Dimensional Specifications
Electrical measurements:
*Measurements made at Vcc=14.7VDC
Maximum Output Power: 4Ω, Internal 11.8V (35 Watts) per channel
Maximum Output Power: 4Ω, External 10.0V (25 Watts)
Output Power before clipping: 4Ω, Internal 8.8V (19.4 Watts) per channel
Output Power before clipping: 4Ω, External 7.5V (14.1 Watts)
Output Power, THD 10%: 4ΩInternal 9.5V (22.6 Watts) per channel
Output Power, THD 10%: 4ΩExternal 8.8V (19.4 Watts)
Signal / Noise Ratio, Input Floated 67.5dB
Crosstalk -53dB
Current Draw, 1/8 rated power all inputs:4Ω1.1 Amperes
Current Draw, (Quiescent) 0.40 Amperes
Dimensional:
Overall: Length: 8.75” X Height: 2.81” X Depth: 7.63”
Cut Out: 7.25” X 2.38”
Monitor Electrical and Dimensional Specifications
Input Voltage: 12 to 24VDC Switch Mode Power Supply
Power Consumption: 34 Watts
Dimensional:
Overall Height: 8.20” X Width: 10.25” X Depth: 11.84”
Weight: 30.0 lbs. (13.6 kg)
*Specifications are due to change without notice
18

Accessory List
Description Part Number Price
AVT-988 9” Color Television with Remote (12V) AVT988 $320.00
AVT-597 5” Color Television with Remote (12V) AVT597 $320.00
AVT-1498 13” Color Television with Remote (12V) AVT1498 $350.00
AVP-7000 Video Cassette Player (12V) AVP7000 $270.00
BPA-501-12 4 Amp Adapter for use with AVT-988 9”
and AVT-1498 13” Televisions 0891412 $45.00
AC2A- 2 Amp Adapter for use with AVT-597 5” TV
and AVP-7000 Video Cassette Player 0891436 $35.00
Unified Remote Control 0892325 $45.00
VAC-21- 12 Volt Corded Vacuum VAC21 $35.00
AVF-1 12 Volt Rechargeable Flashlight AVF1 $25.00
HP-175 Headphones with Pivoting Ear Cup HP175 $11.75
HP-275 Headphones with Volume Control on Cord HP275 $16.00
HP-375 Studio Quality Headphones HP375 $14.00
Unlike household electronics, all of our products have been specifically designed
and tested for the mobile environment and are only available through ASA. To
order any of these products, please contact Audiovox Specialized Applications at
www.entertainment-to-go.com or 800-688-3135.
*Prices subject to change
19
Table of contents
Other Voyager Car Video System manuals
Popular Car Video System manuals by other brands

Phonocar
Phonocar VM 156 Mounting instructions

JVC
JVC EXAD KW-AVX810 Installation & connection manual

Directed Video
Directed Video OHC100 Owner's installation guide

Chevrolet
Chevrolet MyLink installation instructions

Lectronix
Lectronix T8510 User operating instructions

Pyle
Pyle PYLE View Series PLTFT72 owner's manual

Boss Audio Systems
Boss Audio Systems BV9968BI user manual

Movies 2 go
Movies 2 go MTG10UHD owner's manual

Clarion
Clarion NX405 Quick start guide & installation manual

Panasonic
Panasonic CQVD7005U - IN-DASH DVD MONITOR Service manual

Planet Audio
Planet Audio PCPA975W user manual

Panasonic
Panasonic CY-VHD9401N installation instructions
