VOM-783 Features:
7" Monochrome Monitor
Three Cameras input
Brightness / Contrast / Volume
Day-night Controls
Audio output
Power / Stand-By Button
Illuminated Front Panel
Mirror / Normal selectable
OBSERVA1
lERVATIJ
Audiovox -Specialized Applications, l.l.c.
www.asaelectronics.com

VOM-783 OPERATIONS MANUAL

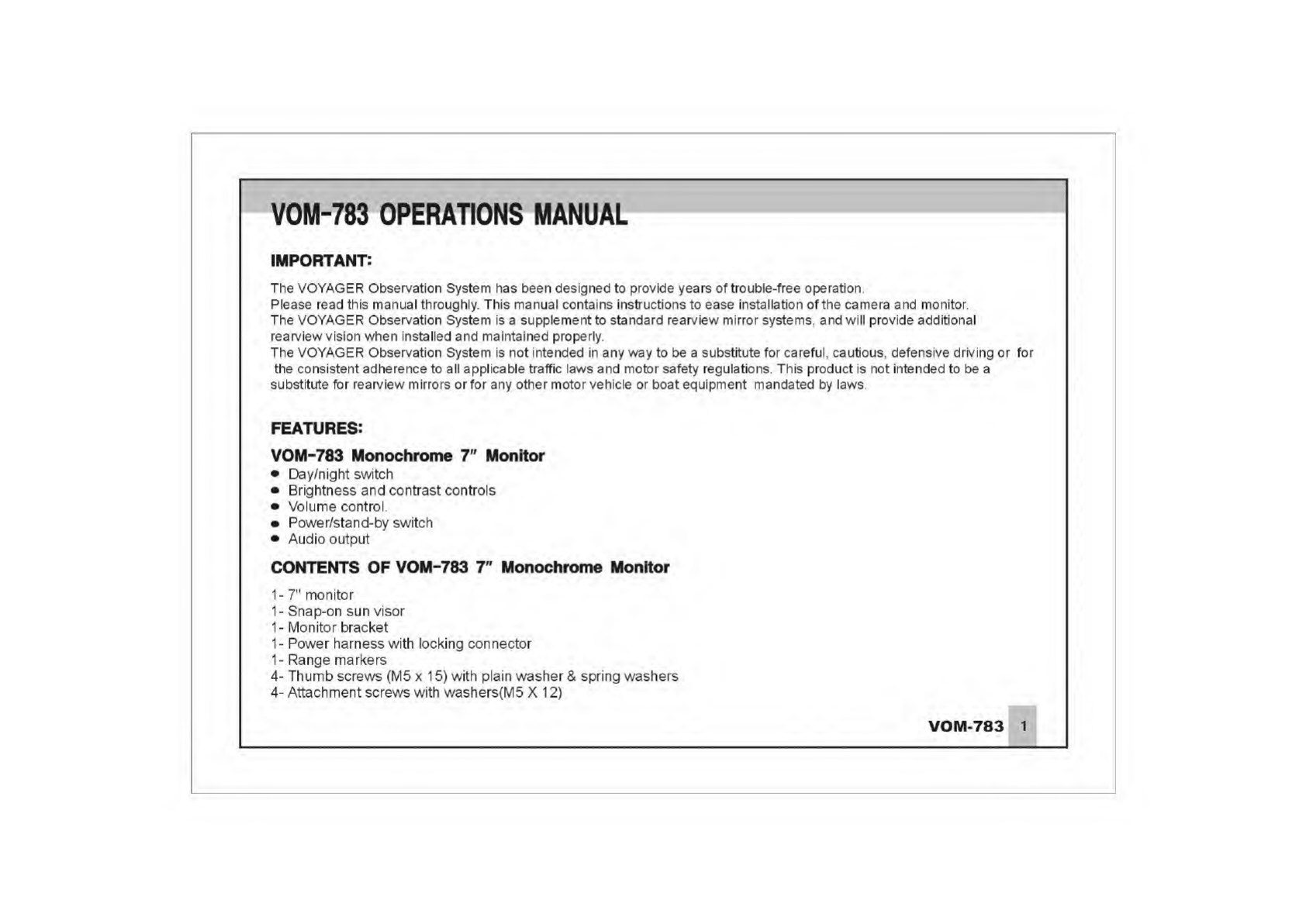

IMPORTANT:
The VOYAGER Observation System has been designed to provide years of trouble-free operation.
Please read this manual throughly. This manual contains instructions to ease installation of the camera and monitor.
The VOYAGER Observation System is a supplement to standard rearview mirror systems, and will provide additional
rearview vision when installed and maintained properly.
The VOYAGER Observation System is not intended in any way to be a substitute for careful, cautious, defensive driving or for
the consistent adherence to all applicable traffic laws and motor safety regulations. This product is not intended to be a
substitute for rearview mirrors or for any other motor vehicle or boat equipment mandated by laws.
FEATURES:
VOM-783 Monochrome 7" Monitor
• Day/night switch
• Brightness and contrast controls
• Volume control.
• Power/stand-by switch
• Audio output
CONTENTS OF VOM-783 7" Monochrome Monitor
1- 7" monitor
1- Snap-on sun visor
1- Monitor bracket
1- Power harness with locking connector
1- Range markers
4- Thumb screws (M5 x 15) with plain washer & spring washers
4- Attachment screws with washers(M5 X 12)
VOM-783 1

VOM-783 OPERATIONS MANUAL
VEC-65 Cable
1 - 20meter cable with waterproof connector.
(Not supplied)
Documents:
1 - Operations manual
BEFORE INSTALLATION:
1. This system operates from 10 volts DC to 32 volts DC , negative ground.
2. Please install this system according to the instructions in this manual.
3. DO NOT DISASSEMBLE THE CAMERA OR THE MONITOR.
Disassembling the camera will compromise the waterproof seal and this voids the Warranty.
4. Connect the system to a switched ignition power source. Connection to a non-switched battery power source will reduce
battery life.
** WARNING**
1. To prevent electrical shock, DO NOT OPEN THE MONITOR CASE. There are potentially lethal voltages inside the monitor ,
there are no serviceable parts inside, if evidence of tampering is detected, the warranty will be considered void.
2. Keep monitor away from leaking water, rain, moisture etc. It is not waterproof. Any moisture inside the monitor could cause
extensive damage.
2 Voyager

VOM-783 OPERATIONS MANUAL
INSTALLATION INSTRUCTIONS
VOM-783 MONITOR
1. Attach monitor inside vehicle in a location convenient to the driver (e.g. Center of dash, overhead or in dash).
Do not impede the operator's view of any vehicle controls or the view outside the vehicle.
2. Use a compression plate to attach the monitor bracket to the dash or overhead (See Fig. 1).
3. Adjust mounting angle of the monitor to allow driver to easily view the screen from all seat position (See Fig.2).
4. If necessary, snap sun visor into groove on front face of monitor. Press all (4) sides of the visor to snap it into place.
VEC-65 CABLE (Not supplied)
1. The camera-to-cable connection is waterproof. The cable-to-monitor connection is not waterproof.
Be sure to orient the cable properly. The cylindrical end attaches to the camera. The rectangular box end attaches to
the monitor.(See Fig.3)
2. Do not run the VEC-65 cable over sharp edges. Do not kink the cable.
Keep the cable away from hot and rotating parts.
3. Place all excess cable in convoluted tubing.
4. Tie the cable securely.
MAINTENANCE:
Remove dust and dirt with a damp soft cloth. Heavier dirt should be removed with a damp soft cloth
and mild detergent. Do not use strong cleaning agents containing gasoline, thinner, benzene or
alcohol. These substances may damage the exterior surface of the monitor.
VOM-783 3

VOM-783 OPERATIONS MANUAL

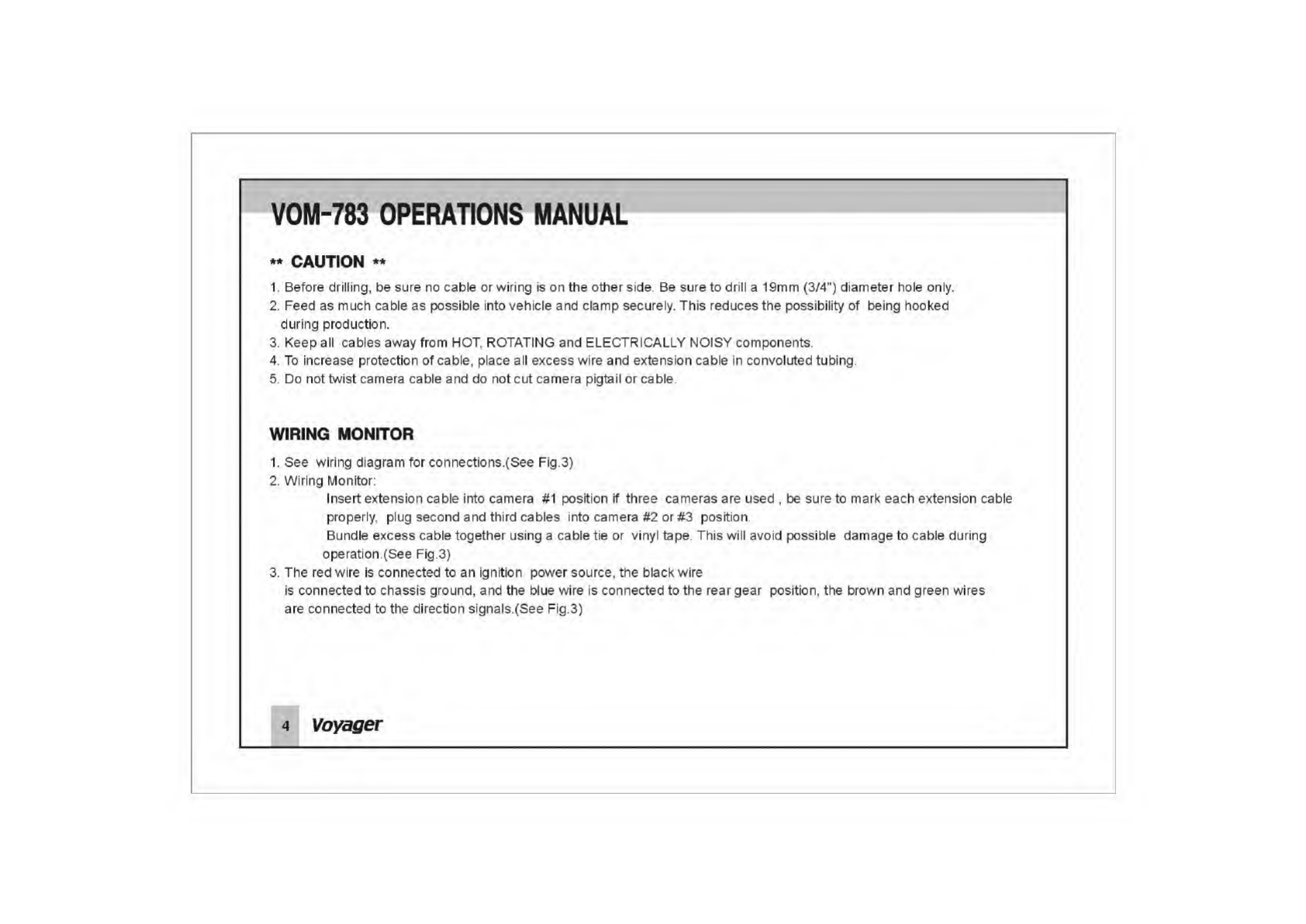

** CAUTION **
1. Before drilling, be sure no cable or wiring is on the other side. Be sure to drill a 19mm (3/4") diameter hole only.
2. Feed as much cable as possible into vehicle and clamp securely. This reduces the possibility of being hooked
during production.
3. Keep all cables away from HOT. ROTATING and ELECTRICALLY NOISY components.
4. To increase protection of cable, place all excess wire and extension cable in convoluted tubing.
5. Do not twist camera cable and do not cut camera pigtail or cable.
WIRING MONITOR
1. See wiring diagram for connections.(See Fig.3)
2. Wiring Monitor:
Insert extension cable into camera #1 position if three cameras are used , be sure to mark each extension cable
properly, plug second and third cables into camera #2 or #3 position.
Bundle excess cable together using a cable tie or vinyl tape. This will avoid possible damage to cable during
operation.(See Fig.3)
3. The red wire is connected to an ignition power source, the black wire
is connected to chassis ground, and the blue wire is connected to the rear gear position, the brown and green wires
are connected to the direction signals.(See Fig.3)
4 Voyager

VOM-783 OPERATIONS MANUAL

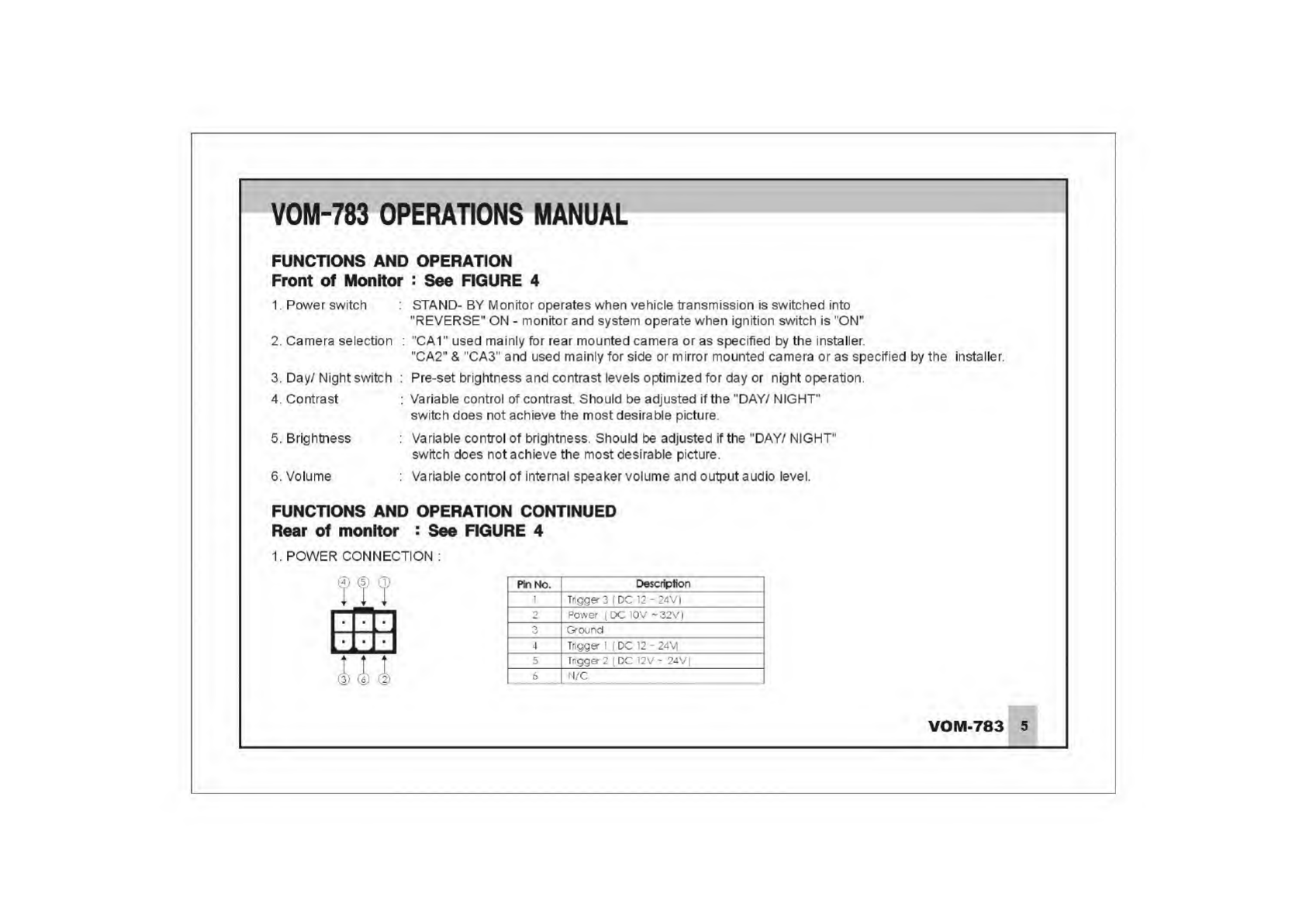

FUNCTIONS AND OPERATION
Front of Monitor : See FIGURE 4
1. Power switch : STAND- BY Monitor operates when vehicle transmission is switched into
"REVERSE" ON - monitor and system operate when ignition switch is "ON"
2. Camera selection : "CA1" used mainly for rear mounted camera or as specified by the installer.
"CA2" & "CA3" and used mainly for side or mirror mounted camera or as specified by the installer.
3. Day/ Night switch : Pre-set brightness and contrast levels optimized for day or night operation.
4. Contrast : Variable control of contrast. Should be adjusted if the "DAY/ NIGHT"
switch does not achieve the most desirable picture.
5. Brightness
6. Volume
Variable control of brightness. Should be adjusted if the "DAY/ NIGHT"
switch does not achieve the most desirable picture.
Variable control of internal speaker volume and output audio level.
FUNCTIONS AND OPERATION CONTINUED
Rear of monitor : See FIGURE 4
1. POWER CONNECTION :
Pin No.
Description
1
Trigger 3 ( DC 12 - 24V)
2
Power ( DC 10V ~ 32V)
3 Ground
4 Trigger 1 ( DC 12 - 24V)
5
Trigger2 (DC 12V' 24V|
6
N/C
VOM-783 5

VOM-783 OPERATIONS MANUAL
2. MIR/NOR OPTION
- When the switch is in MIR (Imposition, the picture will be reversed.
- When the switch is in NOR (|J )position, the picture will be normally displayed.
- Camera 1 & Camera 2 are operated individually.
3. AUDIO JACK
- Connects audio connector to an (option) external speaker.
4. CA1/CA2/CA3 INPUT JACK
- "CAT' used mainly for rear mounted camera or as specified by the installer.
- "CA2" & "CA3" used mainly for side or mirror mounted camera or as specified by the installer.
AFFIXING DISTANCE MARKERS TO THE MONITOR SCREEN
1. Clean monitor screen surface of fingerprints. Place distance indicators behind the vehicle at (3) feet, (6) feet and
(9) feet along the width of the vehicle.
These distances are measured from the rear bumper.(Refer to fig. 5)
2. Attach the markers to the monitor screen over the images of the distance indicators.
These markers represent distances of (3) feet, (6) feet and (9) feet from the back of the vehicle (See fig.5)
3. Affix the "STOP" marker on the monitor screen over the image of the rear bumper to locate the rear bumper.
4. The monitor screen is now "calibrated" for distances behind the vehicle of (3) feet, (6) feet and (9) feet.
6 Voyager

VOM-783 OPERATIONS MANUAL
TRIGGERING TIMING CHART
Trigger 1
Trigger 2
Trigger 3
Output
channel
* The monitor shows images of" CA2 " and " CA3 " during 2 seconds more after the triggering signals off.
* Trigger 1 signal does not have time delay.
* The monitor shows CA2's image when the Trigger 2 and Trigger 3 are inputted atthe same time.
* Trigger 1 precedes all others.
VOM-783 7

VOM-783 OPERATIONS MANUAL
FIGURE 1
8 Voyager

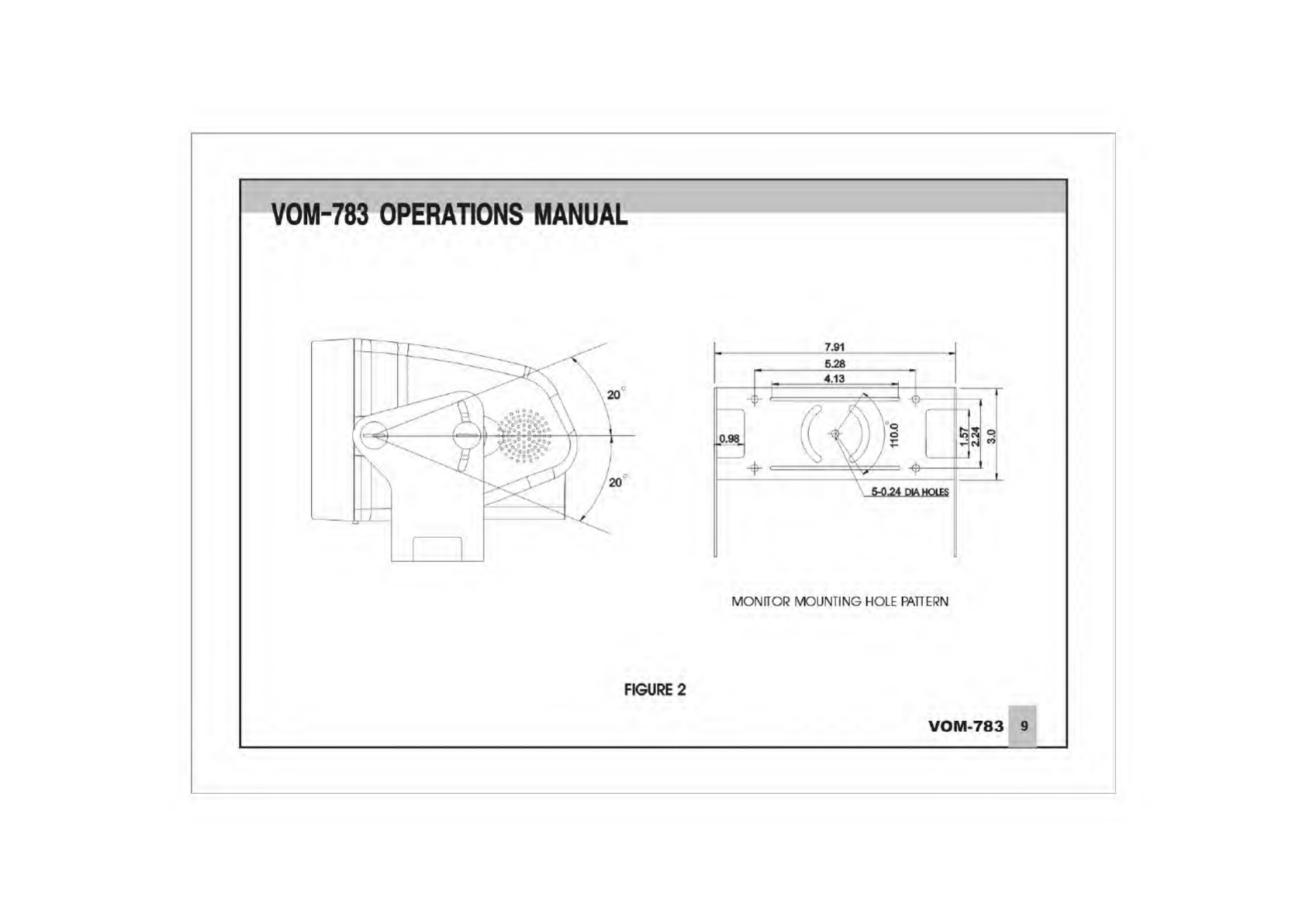

VOM-783 OPERATIONS MANUAL
WATERPROOF CAMERA CONNECTOR
TO MONITOR
CAMERA *1 INPUT
OMD
20METERS
0
GROMMET TO SEAL THOUGH VEHICLE EXTERIOR /
REAR OF MONITOR
RED(To Power
DC 12V or 24V)
BLK (Ground)
TRIGGER 1
TRIGGER 2
TRIGGER 3
CONNECTIONS
How to use the supplied
bracket holder
Caution
• Before making the connections, disconnect
the ground terminal of the car battery to avoid
short circuiting.
• The plugs should be fully inserted into the
connectors or jacks. A loose connection may
cause the unit to malfunction.
FIGURE 3
10 Voyager

VOM-783 OPERATIONS MANUAL

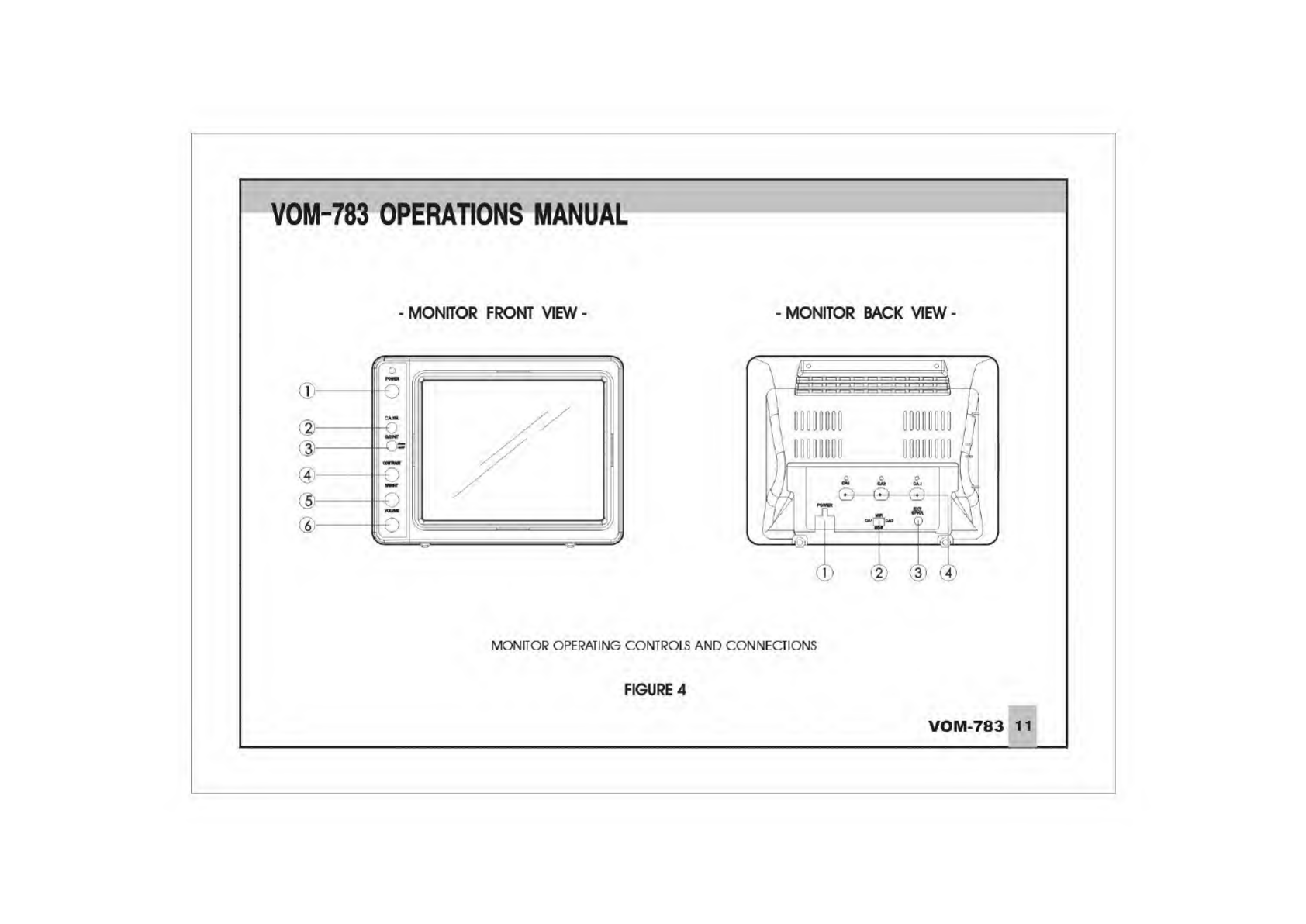

- MONITOR FRONT VIEW - - MONITOR BACK VIEW -
MONITOR OPERATING CONTROLS AND CONNECTIONS
FIGURE 4
VOM-783 11

VOM-783 OPERATIONS MANUAL
INDICATOR
WIDTH OF VEHICLE
FIGURE 5
12 Voyager
Cl •>
0 •)
0 © 0
2_V
C 2_!.)
© © ©
3_V
3 *
© © 0
" 4 ; 4 •)
© © ©
|
STOP
1
i
STOP
1
MARKERS EXAMPLE

VOM-783 OPERATIONS MANUAL
Operation Manual

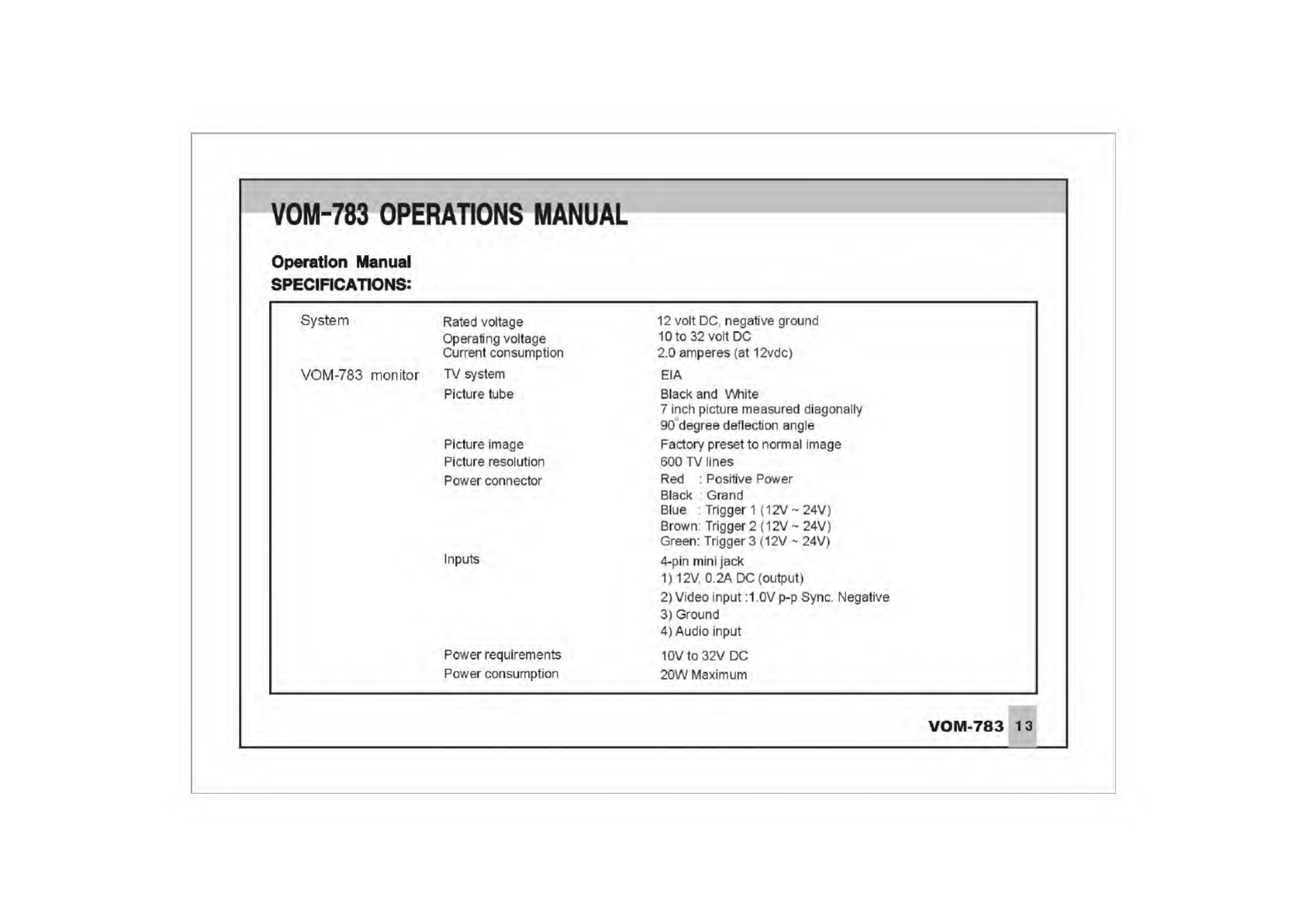

SPECIFICATIONS:
Rated voltage
Operating voltage
Current consumption
TV system
Picture tube
System
VOM-783 monitor
Picture image
Picture resolution
Power connector
Inputs
Power requirements
Power consumption
12 volt DC. negative ground
10 to 32 volt DC
2.0 amperes (at 12vdc)
EIA
Black and White
7 inch picture measured diagonally
90 degree deflection angle
Factory preset to normal image
600 TV lines
Red : Positive Power
Black : Grand
Blue : Trigger 1 (12V ~ 24V)
Brown: Trigger 2 (12V ~ 24V)
Green: Trigger 3 (12V - 24V)
4-pin mini jack
1) 12V, 0.2A DC (output)
2) Video input :1.0V p-p Sync. Negative
3) Ground
4) Audio input
10V to 32V DC
20W Maximum

VOM-783 OPERATIONS MANUAL
Operating Temperature Range -15 C to + 50 C (+5 F to +122 F)
Storage Temperature Range -25 C to + 85’C (-13 F to +185 F)
Dimensions
200(W) X 152(H) X 220(D) mm
7.9(W)X 6.0(H) X 8.7(D) Inch
Including projecting parts and controls
Weight Approx. 2.5Kg/5 lbs
Including mounting bracket
Accessories Supplied: A-
Mounting bracket 1EA
NUT 4EA
Machine screws 4EA
Tapping screws 4EA
Spring washers 4EA
Flat washers (12X5) 4EA
Flat washers (20X5) 4EA
B- Cable bracket 1EA
Machine screws 3 EA
C-
Handle screws 4EA
D-
Sun visor 1EA
Power cable
5 ft (1.5m)
DISCLAIMER: The use of the VOYAGER Observation system does not guarantee or promise that the user will not be in an
accident or otherwise not collide with an object.
The VOYAGER Observation system Is not intended in any way to be a substitute for careful and cautious driving or for
the consistent adherence to all applicable traffic laws and motor safety regulations.
This product is not intended to be a substitute for rearview mirrors or for any other motor vehicle or boat equipment mandated
by law.
14 Voyager
• Design And Specifications Are Subject To Change Without Notice.

WARRANTY
90 DAY / 12 MONTH LIMITED WARRANTY
AUDIOVOX SPECIALIZED APPLICATION, LLC (the Company) v/arrants to the original retail purchaser of this product that should
this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from
the date of original purchase, such defect(s) will be repaired or replaced (at the Company's option) without charge for parts and repair labor.
After the initial 90 day period and for a period of 12 months from the date of original purchase, the Company will supply at no charge a
replacement for any defective part(s), but will charge for the labor to repair the product.
To obtain repair or replacement within the terms of this warranty, the product is to be delivered with proof of warranty coverage
(e.g. dated bill of sale), specification of defect(s), transportation prepaid, to an approved warranty station, or the company at the address
shown below.
This warranty does not extend to the elimination of externally generated static or noise, to the correction of antenna problems, to costs
incurred for removal or reinstallation of the product, or to any damage to any tapes, speakers, accessories, or electrical systems.
This warranty dose not apply to any product or part thereof which, in the opinion of the Company, has been damaged through alteration,
improper installation, mishandling, misuse, neglect, accident, THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE, AND, IN NO EVENT, SHALL THE
COMPANTY S LIABLITY EXCEED THE PURCHASE PRICE PAID BY THE PURCHASER FOR THE PRODUCT.
This warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES. INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILTY, SHALL BE LIMITED TO THE DURATION OF THIS WARRANTY. ANY ACTION FOR
BREECH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE
BROUGHT WITHIN A PERIOD OF 30 DAYS FROM THE DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE
COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREECH OF THIS OR ANY OTHER
WARRANTY. EXPRESS OR IMPLIED. WHATSOEVER. No person or representative is authorized to assume for the Company
any liability other that expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential
damages so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have
other rights which vary from state to state.
AUDIOVOX SPECIALIZED APPLICATIONS, LLC
Visit us ol www.asaelectronics.com
MADE IN CHINA
