Vroom GH-120 User manual

Record information for future reference
Serial #__________________________________
Model #__________________________________
Date of purchase___________________________
Warning!
This manual must be read and understood before installation, adjustment, service or
maintenance is performed. This unit should be installed by a qualified technician.
Modification of this product can be extremely hazardous and could result in
personal injury or property damage. Instructions must stay with the unit.
Installation and
Operating Instructions
Vroom Garage Vac, manufactured under exclusive license by
InterVac Design Corp., is distributed and warranted by:
H-P Products, Inc. 512 W. Gorgas Street
Louisville Ohio 44641
800-822-8356  www.VroomYourGarage.com
Complete registration online at
www.cvacregistration.com
Model GH-120
For surface mounting
on wall or cabinet
Model GF-120
For recess/flush mounting
into a wall or cabinet
NOTE: The Serial Number is located on a yellow
label on the outside of the box and on the
side or back of the unit.

2
IMPORTANT SAFETY INSTRUCTIONS
Polarization Instructions for models with 120 volt cord only.
This appliance has a polarized plug (one blade is wider than the other). This plug will fit in
a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit, contact a qualified electrician to install a proper outlet. Do not change
the plug in any way.
Read all instructions carefully before using this vacuum.
When using an electrical vacuum cleaner, basic precautions should always be followed
including those listed below.
WARNING –TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
1. Unplug and disconnect power before servicing.
2. Do not use on wet surfaces.
3. Do not use without a filtration bag and filters in place.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
5. Use only as described in this manual. Use only the manufacturer’s recommended
attachments and dust bag.
6. Do not use with damaged cord or plug. If appliance is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, return it to an authorized
service center.
7. Do not put any object into openings. Do not use with any openings blocked. Keep
openings free of dust, lint, hair and anything that may reduce airflow. If the motor
filter becomes dirty, replace with a new filter or rinse in warm water –filter should be
completely dry before using.
8. Never drop or insert any object into any opening.
9. Turn off all controls before unplugging.
10. Do not pull or carry by cord, do not use cord as a handle, do not close a door on the
cord, or pull cord around sharp edges or corners. Do not run over cord. Keep cord
away from heated surfaces.
11. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
12. Keep hair, loose clothing, fingers and all parts of body away from openings and
moving parts.
13. Do not pick up anything that is burning or smoking, such as cigarettes, matches or
hot ashes.
14. Use extra care when cleaning on stairs.
15. Do not handle plug or appliance with wet hands.
16. Do not use to pick up flammable or combustible liquids such as gasoline or use in
areas where they may be present.
17. Do not place objects against the vacuum cleaner. Keep area clear.
18. Do not step on the hose or pull the hose forcibly.
19. Do not pick up large objects such as waste paper or cloth, which may clog the hose.
20. Do not install this vacuum in an area exposed to high temperatures.
21. Install this vacuum in a dry place.
22. Do not attempt to service the vacuum cleaner. Unit is sealed and cannot be opened
without damage to the unit. For service call your local authorized dealer.
If you should have any questions or experience a problem with your
Vroom Garage Vac, please contact your local authorized dealer.
SAVE THESE INSTRUCTIONS

3
Tool Caddy
#B051 Upholstery Tool
#7031-B
Crevice
Tool
#1141-B
Flexible
Crevice Tool
#8689
Paper Template
W600
(see page 12)
Hose Retainer #B052
2 Pieces Double-Sided
Tape Shaped to Fit Hose
Retainer (#B052)
7 #8 screws
3 dry-wall
anchors
Registration
Card
Dashboard
/Dusting
Brush
Suggested Tool
Placement in Caddy
Upholstery
Tool
Flexible
Crevice
Tool
Crevice
Tool
Specifications: 120 Volt, 11 Amp, 50/60Hz, 400 Airwatts, Weight 9 lbs.
Dashboard/
Dusting
Brush #8690
Items Included With Your Vroom Garage Vac
(Surface/Wall Mount)
Model GH-120
2 Filtration Bags
(5-Pack Replace-
ment Bags #Y08-5)
Bare Floor
Brush
#8314-B
8’ to 40' Stretch
Hose #80213
Wall Hanger
for Wand
#8855
Vroom Garage
Vac Unit
Adjustable
Aluminum Wand
#9099
1 red push
pin for dry
wall anchors
Washable Motor Filter
(already installed)
Washable Exhaust Filter
(already installed)

4
Mounting Instructions for Vroom Garage Vac Model GH-120
Surface Mounting to Wood or Block Wall
1. For maximum coverage, choose a wall or surface that is located close to the garage door
and has an electrical outlet close by.
2. Use the paper template from the back page of this manual and tape to the wall or surface –
use a level for alignment. The Vroom Garage Vac should be installed a minimum of
3″ (75mm) from the floor, leaving room for the exhausting air. Make sure to mark the
centers of the keyholes accurately with an awl or similar object. Carefully remove template
from the wall and place with this manual for future reference.
3. Attach four (4) of the #8 screws to the wall as marked on the template leaving the screw
heads 1/8″ (3.2mm) from the surface of the wall or use concrete anchors.
4. To ensure the screws are in the proper place, install the Vroom Garage Vac (without the
tool caddy attached) by aligning the keyholes on the back of the unit with the screw
heads on the wall. Push down on the
Vroom Garage Vac to secure it in place.
If the vacuum is loose you will need to
tighten the screws further.
5. Remove the Vroom Garage Vac from the
wall and attach the tool caddy by sliding the
“dove tails” on the bottom of the caddy into

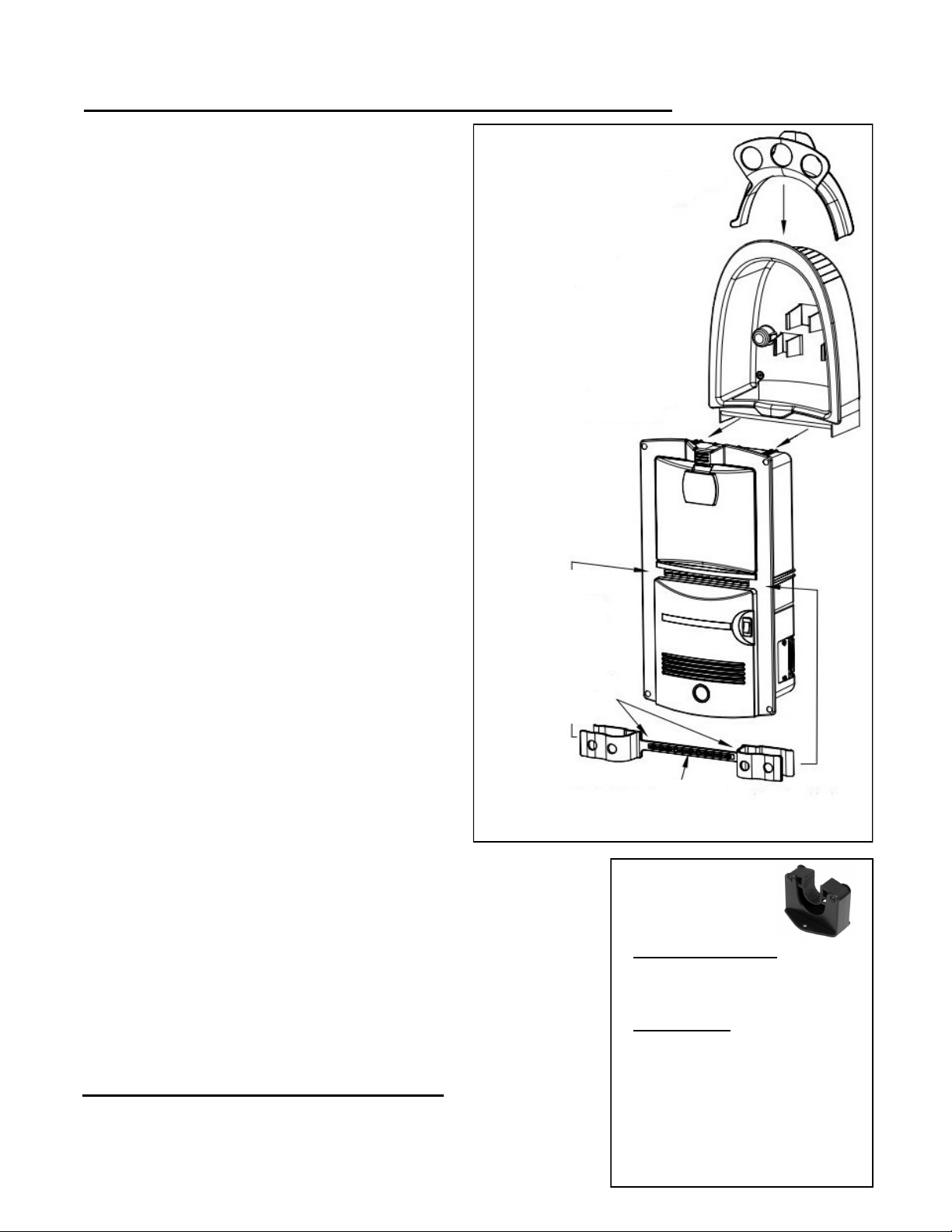

the grooves on top of the unit (Figure A).
You will hear a click when the pin on top of
the housing clicks into the corresponding
hole on the tool caddy. Install the Vroom
Garage Vac with the tool caddy onto the
screw heads as described in Step 4. If
needed, you can install another screw
through the top hole in the tool caddy.
6. Place the hose retainer on the front of the
Vroom Garage Vac by attaching first the
double sided tape to the retainer. Make
sure that the radii match the retainer
radii, and press on firmly.
NOTE: The hose retainer will fit onto the
front panel only if you can read the
“Warning” impression correctly (Figure A).
7. Check to be sure the filtration bag, motor
filter (located under the filter bag) and
exhaust filter (at bottom of unit where
air exhausts) are properly in place (see
page 9 & 10). NOTE: The motor filter
should be laying flat in all four corners.
To install the wand holder, see the next page.
Slide tool caddy
into dove tails
and push to
lock over pin.
Figure A
Model
GH-120
Different radii
Attach double
sided tape to
retainer and press
onto front panel
firmly. Match
tape with radii
of retainer.
The “Warning” has to be readable.
Hose Retainer will not fit upside down.

5
Mounting Instructions for Vroom Garage Vac Model GH-120
Surface Mounting to Drywall Surfaces (1/2″, 13mm, thick)
1. For maximum coverage, choose a wall or surface that is located close to the garage door
and has an electrical outlet close by.
2. Use the paper template from the back page of this instruction manual, and tape to the wall or
surface. Vroom Garage Vac must be installed a minimum of 3″ (75mm) from the floor for the
exhausting air. Align the template so that the 2 vertical center points of the template are
aligned over the centerline of a 2x4 stud behind the drywall for additional stability. Use a
level for alignment.
3. With an awl or similar pointed object, mark the center of the key holes accurately. Carefully
remove template from the wall and place with this manual for future reference.
4. Using a 3/32 drill bit, pre-drill all 4 holes.
5. Using a 5/16 drill bit to enlarge only the
2 holes which go through the drywall
without the stud support. These are the
holes that require 2 drywall anchors.
6. Squeeze the two arms of the plastic
anchor together and insert through the
hole. Very lightly hammer the anchor
flush with the drywall surface.
7. Insert the red key-pin and push firmly
to toggle the anchor open behind the
drywall. Remove red pin.
8. Attach all four #8 screws through the
marked keyholes. Keep the screw
heads 1/8″ from the wall surface.
Follow steps 4 - 7 from Page 4 to
complete installation.
• For wood surface use the
2 screws supplied with
the wand holder package.
• For dry-wall use two 1-1/2 long
screws from the fastener package.
NOTE: The wand holder should be
mounted against a wall stud for extra
strength.
Wand Holder Installation
MODEL GH-120
DIMENSIONS & FEATURES
(Surface Mounted with Electric Cord)
DOOR
(to access
filter bag and
motor filter)
INLET VALVE
COVER
(lift cover &
insert hose
here to use)
DOOR
LATCH
(push latch
upward to
open)
HOSE
RETAINER
(holds 8-to-40′
stretch hose
neatly in place)
2-PIECE
UPHOLSTERY
TOOL
DASHBOARD /
DUSTING
BRUSH
CREVICE
TOOL
FLEXIBLE
CREVICE
TOOL
ADJUSTABLE WAND, FLOOR BRUSH, WAND HOLDER
AND 40′STRETCH HOSE INCLUDED BUT NOT SHOWN
BUILT-IN
TOOL CADDY
ON / OFF
SWITCH
EXHAUSTING AIR
(location of exhaust filter)
