VStarcam CB73 User manual

1.IP Camera Connection
Please connect IP camera with power adapter, refer to the picture below. Start-up time
is about 1 minute.
Notes:IP/Network 2.4GHz Wi-Fi (Incompatible with 5GHz). If the router supports both bands,
please switch off 5GHz band. Set WPA2-PSK(AES)/ WPA-PSK(AES) as encryption.
2.App download & Account register
2.1. Download app
Scan below QR code to download app.
2.2 Sign up/login Eyecloud account

Launch the APP, and click the register,fill in user name and password,then click
submit.
Note: After you login, please go to “Me-Account & security-Bind Email”to bind your
account with your email address, for retrieving your forgotten password.
3. Add the camera to the APP
3.1 After logging in to the APP, click "Add Device" on the homepage or "+" in the
upper right corner,follow the APP instructions to complete the configuration and
addition of the camera.

3.2 Make sure the device has been reset by hearing the warning tone or indicator light
blue light flashing, then “tick” the tip after scan the QR code and click “Next”.
3.3 Turn up the mobile phone volume and get close to the device, then confirm your
WiFi account and password to start configuration.

3.4 The device UID, name and password will be shown when configuration finished,
click “add it” button to complete the configuration. Click “play” icon on the video,
then you can view real-time video.

4. Device sharing
If other users want to add this camera,he can access to the camera via the function
of“device sharing”.
Click on“device sharing”and enter the page of the “QR code sharing”.Other users can
open the downloaded Eye4 APP to scan the QR code and watch the live video.
Through the option of “user management”,all the user name added to the camera can
be seen,you can delete the shared users here.

5. Image/Sound settings
5.1 Change camera name
Click “settings” icon to camera settings interface, tap the icon beside camera’s name,
as shown below, then you can modify the name directly.
5.2 Night vision model
Click “image/sound settings”to enter the setting page.there are two night models
“automatic night vision" and " close" to choose from.
Automatic night vision: the camera automatically turns on/off the night vision mode
according to the light brightness level.
Off: Night Vision mode is not on.

5.3 Display time on the video
Click “setting” icon, and go to “Image/Sound Settings” to find “set time” option and
turn it on.
5.4 Brightness & contrast adjustment
Login the APP, click on “SETTINGS” icon, find “image/sound settings” option. To
adjust the brightness/contrast parameters, drag the dot on the brightness/contrast
slider.

5.5 Camera volume adjustment
The camera's microphone and speaker volume can be adjusted here. Tap this option to
bring up the microphone and loudspeaker volume slider, slide the dot to adjust it.
6. TF Card Recording Settings
6.1 If you need to use TF card recording, please insert the TF card into the TF card
slot of the camera, click "Settings" of the camera → find the ‘TF card record setting’
option, and you can see the status of TF card.

TF card recording mode can also be set here. There are modes of No recording, 24h
recording, Schedule recording and Motion recording.
If you need to record with sound, you can turn on the "Record Sound" option (Note:
this function is only supported for cameras with microphones).
Format: Click "Format" to format the TF card. After formatting, all files in the TF
card will be removed.
6.2 Schedule Recording
Choose “schedule recording”, set the time period you want to recording in “add
period” , and click “save” for keep the settings.

6.3 How to playback TF card video
To play back the TF card video, tap the TF card icon in the camera home page, select
the date and time period and click the video file to watch.
6.4 Download/deletion of TF card video files
TF card video download: click the video file to start watching, tap the download

arrow on the right of the video to download, the downloaded video file will be
automatically saved to the phone album.
TF card video deletion: Click "Edit" at the bottom right of the video playback,select
the video files and delete them.
7. AI & Alarm
When an AI-enabled camera is added to the APP, there will be AI options. Click
"AI+" in the lower left corner of the camera image on the home page to enter the AI
function page.

7.1 Motion detection alarm
This option includes motion detection and human detection. Click to turn on the alarm
function and enter the setting page of the alarm function.
Motion detection
Click to turn on the motion detection alarm, and the camera will trigger the alarm
when it detecting movement.

Detection sensitivity: Three levels of sensitivity are available. The higher the
sensitivity, the more sensitive the camera is to detect the movement.
Sound management: The alarm sound from the camera. Go to notification type to set
“push sound customization”, click it and choose the song you like.

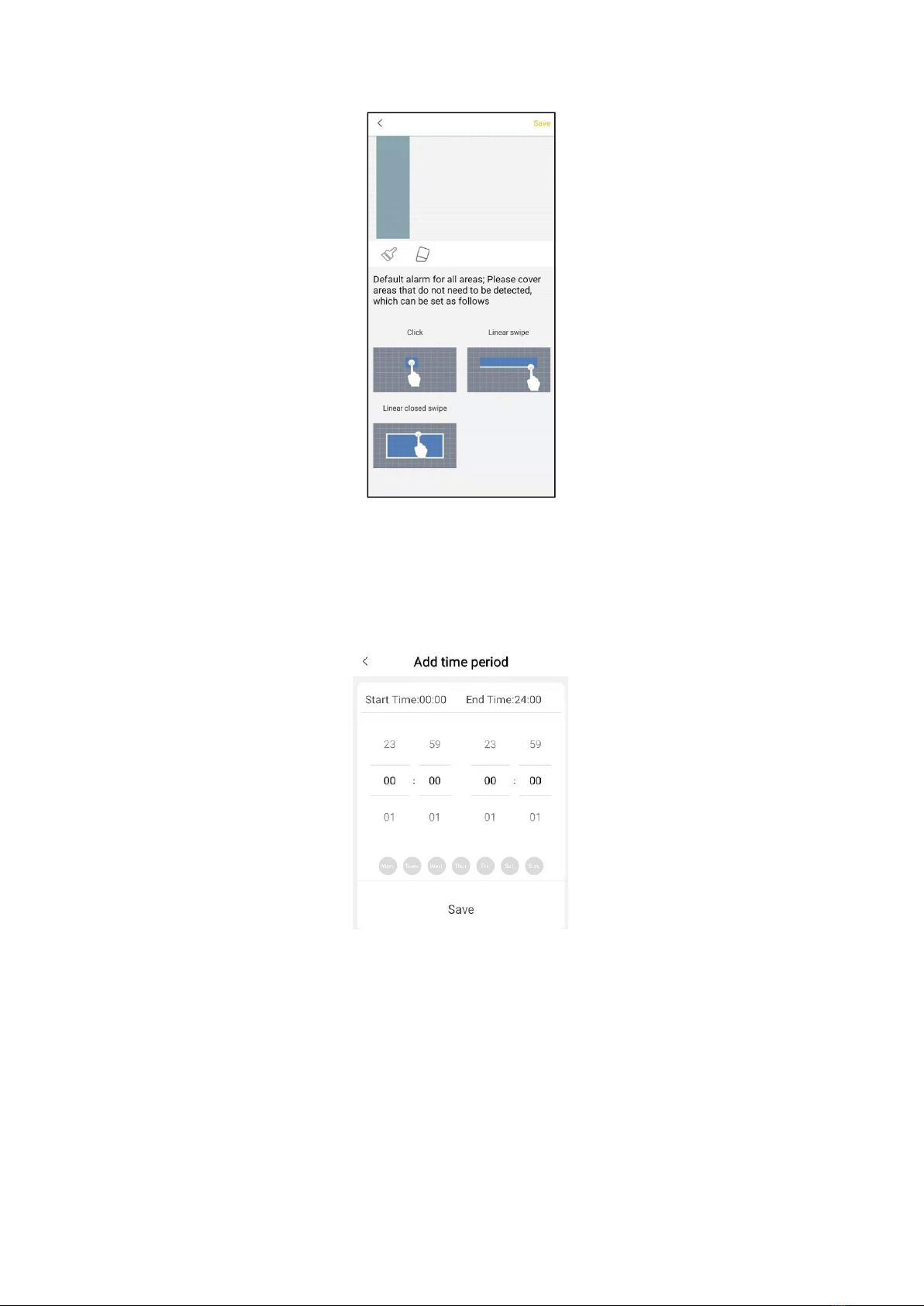

Detection area: Areas that do not need monitoring can be covered. Click "Detection
Area", and then cover the area that no need monitoring and click "Save". The area
covered will not be alarmed.

Add schedule：Can set the alarm detection period. Set the time and click "Save" to
save the setting.
Notification type ：Support client(mobile APP) notifications, push sound
customization and mail notifications.

Client notification After the client notification is enable, when the alarm is
triggered, the camera will push the alarm message to the mobile APP.
Push sound customization It’s the sound that will be emitted on the phone
when the alarm is triggered. You can choose the ‘Follow system (the alarm sound
is the notification sound in the "Settings" of the phone).
Mail notification After the alarm mailbox is set and activated, an alarm email
will be sent to the mailbox after the camera triggers the alarm
Human Detection
Turn on the human detection alarm, the camera will trigger the alarm when it detects a
person.
The settings details of the human detection alarm are the same as those of the motion
detection.
8. Check camera firmware version

Click “firmware” in the setting interface, so that the current firmware version can be
seen, latest version also.
9. Four screen viewing at the same time
1. Login the APP→Click the four-screen button at the top left corner to enter the
four-screen model(when there are extra cameras, you can slide left and right on
the screen to view them).

10.Image quality adjustment
1. Login the APP→click to watch camera→click the button at the lower right corner
in the live video to switch to the full-screen model→tap the screen →at the
meantime, the picture quality adjustment button will appear in the lower left
corner of the screen.
2. There are Smooth,Normal,High,Super HD from low to high to choose from. the
higher the picture quality,the more the network bandwidth it takes.
11.Turn on/off the indicator light
Turn on “hide the indicator light” button to close the blue light behind the camera
device.

12、Alarm message
To check the alarm message of mobile APP, open the APP and click "Message" in the
lower left corner of the home page to view.
12.1 How do I filter alarm message records
To filter the alarm message, please click the funnel icon in the upper right corner of
the message center to enter the filter page, check the corresponding message type and
camera, and screen the alarm message type of the camera you want to see.
12.2 How do I delete a message record(Only cameras that support dual authentication
and some special models support this feature)

For iPhone, swipe the message left to delete it. For Android phones, click on the
corresponding alarm message and select the delete icon in the upper right corner of
the message to delete the alarm message.
12.3 Mobile phone storage location of local recording
The local recording will be stored in the file SD card /DCIM/Eye4, you can find and
open the video recording in this content.
13.4 Mobile phone storage location of local picture
Click the “snapshot”button to take photos, and the local snapshot will be stored in the
file SD card/DCIM/Camera, you can find the snapshot there.
13. Change the APP language
You can change the APP language in your phone system’s language.
14.Check the camera current users.
Click “device sharing” and the user name using the shared camera will be
shown under the user management. At most 4 users can use the same
camera at the same time.

15. About
Log in the APP→ click "Me" → click "About" to view the current APP version and
update the APP.
