INSTALLATION &
OPERATION MANUAL
FORM 37466 (09-10)
ELECTRIC
COMBINATION OVEN
MODELS
CEM6U ML-138076
CEM10U ML-138077
CEM20U ML-138078
For additional information on Vulcan-Hart or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanequipment.com
VULCAN-HART
DIVISION OF ITW FOOD EQUIPMENT GROUP, LLC
WWW.VULCANEQUIPMENT.COM
3600 NORTH POINT BLVD.
BALTIMORE, MD 21222

— 2 —
ELECTRIC COMBI OVEN

— 3 —
ELECTRIC COMBI OVEN
TABLE OF CONTENTS
INSTALLATION, OPERATION AND CARE OF ELECTRIC COMBI OVEN ..................................5
GENERAL...................................................................................................................................5
UNPACKING ...............................................................................................................................5
INSTALLATION ...........................................................................................................................5
INSTALLATION CODES AND STANDARDS ...........................................................................5
COMBINATION OVEN STAND ASSEMBLY INSTRUCTIONS ................................................ 6
Unpacking .............................................................................................................................6
Assembly ..............................................................................................................................6
LOCATION ..................................................................................................................................7
LEVELING ...................................................................................................................................7
ELECTRICAL SPECIFICATIONS.............................................................................................. 7
Power Supply ....................................................................................................................... 8
Grounding .............................................................................................................................8
WATER REQUIREMENTS ........................................................................................................ 8
Water Treatment ..................................................................................................................8
Water Supply Connection....................................................................................................9
Filter System ........................................................................................................................ 9
Drain Connection .............................................................................................................. 10
VENT HOOD ........................................................................................................................... 10
BEFORE FIRST USE ............................................................................................................. 10
OPERATION ................................................................................................................................. 11
OPERATING CONTROLS LOCATION.................................................................................. 11
Optional Internal Product Probe ....................................................................................... 11
Oven Vent Valve ................................................................................................................ 12
Oven Convection Fan ....................................................................................................... 12
Cooking Selector Knob ..................................................................................................... 12
Warming - Rethermalization Mode .................................................................................. 13
Combined Cooking............................................................................................................ 13
Convection Cooking .......................................................................................................... 13
Steam Cooking .................................................................................................................. 14
Thermostat Controlled Steam Cooking ........................................................................... 14
Oven Temperature Display .............................................................................................. 14
Oven Temperature Button ................................................................................................ 15
Oven Temperature Selector Knob ................................................................................... 15
Oven Timer Button............................................................................................................ 15
Oven Timer Knob .............................................................................................................. 15
Humidity Control ................................................................................................................ 16
Oven Light Button ............................................................................................................. 16

— 4 —
ELECTRIC COMBI OVEN
TABLE OF CONTENTS (CONTINUED)
Fan Speed Selector .......................................................................................................... 16
Product Probe Temperature Selector Knob .................................................................... 17
Internal Product Temperature Probe Button ................................................................... 17
COOKING ................................................................................................................................18
Cooking with The Internal Product Probe ........................................................................ 18
Cook and Hold ................................................................................................................... 19
Displaying and Modifying Cooking Settings ..................................................................... 19
Cooking Settings ............................................................................................................... 19
CHANGE COOKING SETTINGS ............................................................................................ 20
Manually Lowering The Oven Temperature..................................................................... 20
Automatically Lowering Oven Temperature .................................................................. 20
DAILY SHUTDOWN ................................................................................................................ 20
EXTENDED SHUTDOWN ...................................................................................................... 20
CLEANING ..................................................................................................................................... 22
OVEN DRAINS ........................................................................................................................ 22
OVEN COMPARTMENT ......................................................................................................... 22
Daily ................................................................................................................................... 22
Weekly ............................................................................................................................... 22
DOOR GASKET ...................................................................................................................... 22
STAINLESS STEEL EQUIPMENT CARE AND CLEANING .................................................. 23
Recommended cleaners for specific situations ............................................................. 24
Review ............................................................................................................................... 24
MAINTENANCE ............................................................................................................................. 25
WATER TREATMENT SYSTEM ............................................................................................ 25
DOOR GASKET REPLACEMENT ......................................................................................... 25
OVEN LIGHT REPLACEMENT............................................................................................... 25
REMOVAL OF LIME SCALE DEPOSITS .............................................................................. 25
MESSAGES AND ALARMS .......................................................................................................... 26
MESSAGES ............................................................................................................................. 26
ALARMS................................................................................................................................... 26
TROUBLESHOOTING .................................................................................................................. 27
SERVICE AND PARTS INFORMATION ...................................................................................... 28

— 5 —
ELECTRIC COMBI OVEN
INSTALLATION, OPERATION AND CARE OF
ELECTRIC COMBI OVEN
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
GENERAL
Vulcan electric combination ovens are
produced with quality workmanship and
material. Proper installation, usage and
maintenance will result in many years of
satisfactory performance. It is suggested that
you thoroughly read this entire manual and
carefully follow all of the instructions provided.
It is a convection oven and a pressureless
steam oven combined into one. The steam is
generated inside the oven and circulated by a
fan. With the combined oven/steamer, three
cooking processes are available: Steam, hot
air, and combination. The combined oven
may be used to perform these types of cooking:
• Steam Cooking
• Baking
• Stewing
• Browning
• Grilling
• Braising
• Pre-Cooking
• Reheating
• Defrosting
Unpacking
Each oven is inspected before leaving the
factory. The transportation company assumes
full responsibility for safe delivery upon
acceptance of the shipment.
Immediately after delivery, unpack and check
for shipping damage. If the oven is damaged,
save the packing material and contact the
carrier immediately. There is a fifteen-day
limitation on filing freight damage claims with
the freight company. Freight damage is not
covered under warranty.
INSTALLATION
Before installing, verify that the electrical supply
agrees with the specifications on the data
plate located on the lower front corner of the
right side panel. If the supply and equipment
requirements do not agree, do not proceed
with the installation. Contact your dealer or
Vulcan-Hart immediately.
This oven is shipped pre-wired with one of
the following voltages: 208/60/3, 240/60/3 or
480/60/3 VAC.
INSTALLATION CODES AND
STANDARDS
In the United States of America, the oven must
be installed in accordance with:
1. State and local codes.
2. National Electrical Code, ANSI/NFPA-70
(latest edition). Copies may be obtained
from The National Fire Protection
Association, Batterymarch Park, Quincy,
MA 02269.
3. Vapor Removal from Cooking Equipment,
(NFPA-96,latestedition) availablefromNFPA.
In Canada, Vulcan-Hart ovens must be
installed in accordance with:
1. Local Codes
2. Canadian Electrical Code (CSA C22.2
No. 3, latest edition) available from the
Canadian Standards Association, 5060
Spectrum Way, Mississauga, Ontario,
Canada L4W 5N6

— 6 —
ELECTRIC COMBI OVEN
COMBINATION OVEN STAND
ASSEMBLY INSTRUCTIONS
Unpacking
Each Combination Oven Stand is inspected
before leaving the factory. The transportation
company assumes full responsibility for safe
delivery upon acceptance of the shipment.
Immediately after delivery unpack and check
for shipping damage. If the stand is damaged,
save the packing material and contact the
carrier immediately. There is a fifteen-day
limitation on filing freight damage claims with
the freight company. Freight damage is not
covered under warranty.
Assembly
NOTE: Discard washers from kit.
Follow these procedures to properly assemble
the Adjustable Combination Oven Stand.
1. Remove the adjustable feet from the
bottom of the stand.
Remove
adjustable
feet
Figure 1: Stand Foot Removal
2. Using the 10 mm Allen wrench, loosen but
do not remove the cap screw securing the
leg support to the stand base.
Allen Cap Screw
Figure 2: Allen Cap Screw Location
3. Push the leg onto the leg support and turn
the leg until the threaded holes are visible.
Insert the bolts and tighten them. Repeat
this step on each leg.
4. Once the legs are installed each leg must
be rotated so that the threaded holes, for
the tray support, face each other (front
and rear). These holes are used to mount
a tray support once the oven is installed on
the stand. The tray support will be installed
after the oven is installed on the stand. If
tray support is not used, insert the plastic
plugs into the four holes in the base.
Make sure
holes are
facing
each other
Align holes
FRONT
Figure 3: Leg with Threaded Holes
in Proper Position
5. Tighten the Allen Cap screws in the base
of each leg.
6. Reattach the adjustable feet. The stand is
now ready for oven installation.

— 7 —
ELECTRIC COMBI OVEN
7. Install tray support (if supplied) after oven
is installed onto stand. Use the four knurled
screws to secure the support to the legs.
FRONT
Figure 4: Assembled
Combination Oven Stand
LOCATION
Allow space for operating the oven. Do not
obstruct the ventilation port above the oven.
To provide ventilation access, allow 1" of
clearance on the left side of the oven and 21/2"
clearance on the rear side of the oven. A
minimum of 18" must be provided on the right
side of the oven for operation, cleaning and
service. An optional heat shield assembly is
required if the clearance is less than 18" on
the right side of the oven.
LEVELING
Position the oven in its final installed location.
Place a level on the horizontal area of the
cabinet. Adjust the feet to level the oven in
both the left-to-right and front-to-rear
directions.
ELECTRICAL SPECIFICATIONS
The data plate is located on the front lower
right side of the oven.
Model Voltage Amperage Kilowatts Phase
CEM6U 208 26 9.4 3
CEM6U 240 25 10.3 3
CEM6U 480 11 9.4 3
CEM10U 208 43 15.5 3
CEM10U 240 40 16.8 3
CEM10U 480 19 15.5 3
CEM20U 208 54 19.5 3
CEM20U 240 48 24.0 3
CEM20U 480 27 22.1 3
Electrical Specifications Chart

— 8 —
ELECTRIC COMBI OVEN
POWER SUPPLY
Connect the power supply as follows:
Electrical and grounding
connections must comply with applicable
portions of the National Electrical Code
and/or other local electrical codes.
Disconnect
the electrical power to the
machine and follow Lockout/
Tagout procedures.
1. Remove the right side panel from the oven.
The panel is held on by two screws on the
bottom and one screw on the top near the
back edge.
2. Wire to be sized per the National Electric
Code. Use copper wire rated for 125°C max.
3. Route the power supply cable through the
cable strain relief.
4. Connect the power supply cable to the
terminal block as shown on the label below
the terminal block.
5. Fasten the cable clamp firmly.
6. Reinstall the right side panel.
1234567
¥
L1
¥
L2
¥
L3
89 10
Power
Cord
Terminal Block
Wiring Label
PE
L1 L2 L3
L1 L2 L3 PE
Figure 5: Power Supply Cable Connection
Grounding
The oven must be properly grounded.
Connect the ground conductor to the
terminal block in the position indicated on
the terminal block label.
Plumbing connections must
comply with applicable sanitary, safety and
plumbing codes.
WATER REQUIREMENTS
Proper water quality can improve the taste of
the food prepared in the oven, reduce liming in
the oven cavity and extend equipment life.
Local water conditions vary from one location
to another. Ask your municipal water supplier
for details about your local water supply prior
to installation.
Presence of sediment, silica, excess chlorides or
other dissolved solids may lead to a
recommendation for alternate form(s) of water
treatment. Test the water with a TDS meter or the
test strip included with the oven. Other factors
affectingsteam generationare ironcontent, amount
of chlorination and dissolved gasses.
Water Treatment
A local water treatment specialist should be
consulted before installing steam generating
equipment. It is recommended that you have
your water tested.
Supply Pressure 20-60 psig
Hardness* Less than 3 grains
Silica Less than 13 ppm
Total Chlorine/ 0 ppm
Chloramine**
Chlorides*** Less than 30 ppm
PH Range 7 – 8
Undissolved Solids Less than 5 microns
* 17.1 ppm = 1 grain of hardness
** Total Chlorine of 4.0 ppm is the max limit for the
building water supply. A carbon block filter must still be
used to remove all Chlorine and Chloramines from the
water. Failure to do so will result in corrosion and rust in
the cooking cavity which is not covered under warranty.
*** If the Chlorides exceed 30 ppm and the oven is
used more than 8 hours during the day in steam or
combination mode the cavity will require rinsing every
8 hours. Failure to do so will result in corrosion and
rusting of the oven cavity and interior parts. RO water
treatment system can be installed to eliminate
chlorides from the water and reduce the hardness.

— 9 —
ELECTRIC COMBI OVEN
If the water supply fails to meet these
standards, it will be necessary to install a
water treatment system.
The use of strainers or filters will not remove
minerals from the water
Water Supply Connection
Connect the treated cold water supply line,
min of 3/8" ID, to the 3/4" garden hose inlet on
the underside of the Combi Oven. Connect
the untreated cold water supply line to the 3/4"
garden hose, also on the underside of the
Combi Oven. Refer to Figures 6 and 7.
9 10
Filtered
water
supply
Unfiltered
water
supply
Figure 6: Water Supply Connection
for CEM6U and CEM10U
1234567
¥
L1
¥
L2
¥
L3
89 10
PE
L1 L2 L3
L1 L2 L3 PE
Unfiltered Water
Connection
Filtered Water
Connection
Figure 7: Water Supply Connections
for CEM20U
A water filter system is required for the water
supply line going to the treated water inlet of your
Combi Oven. Follow the recommendations for
use and installation instructions shipped with
the water filter. If a water filter is not installed, the
Combi Oven warranty is limited.
NOTE: Failure to properly connect the water
lines will result in equipment failure
that is not covered under warranty.
A manual shutoff valve must be provided in a
convenient location near the Combi Oven.
Filter System
• In addition to filtration for the control of
solids, you must have a carbon block filter
installed and maintained. Carbon block
filters remove the chlorine and chloramines
disinfectants from the water. Chlorine/
chloramines will erode the oven cavity,
rack guides, racks, and internal
components, which is not covered under
warranty. Check with your local water
treatment specialist for proper sizing and
replacment intervals for the carbon block
cartridge.
• Water feed lines to the oven must be flushed
before final connection. Particles in the water
could clog tubing and components that
supply water for steam production and drain
cooling. If the water supply is not free of
sediment or cloudy after several minutes of
flushing, a sediment filter must be installed
before use.
• If you have purchased a water filter
system from Vulcan-Hart, please follow
the instructions provided with the filter
system. At the time of installation you
must register your Combi Oven at
www.vulcanhart.com/filterreg or use the
reply card supplied with your unit. You will
need to register your Combi Oven at each
filter change to insure your standard and
extended warranty is maintained.
Filter purchase invoices and maintenance
records must be provided with warranty claims.

— 10 —
ELECTRIC COMBI OVEN

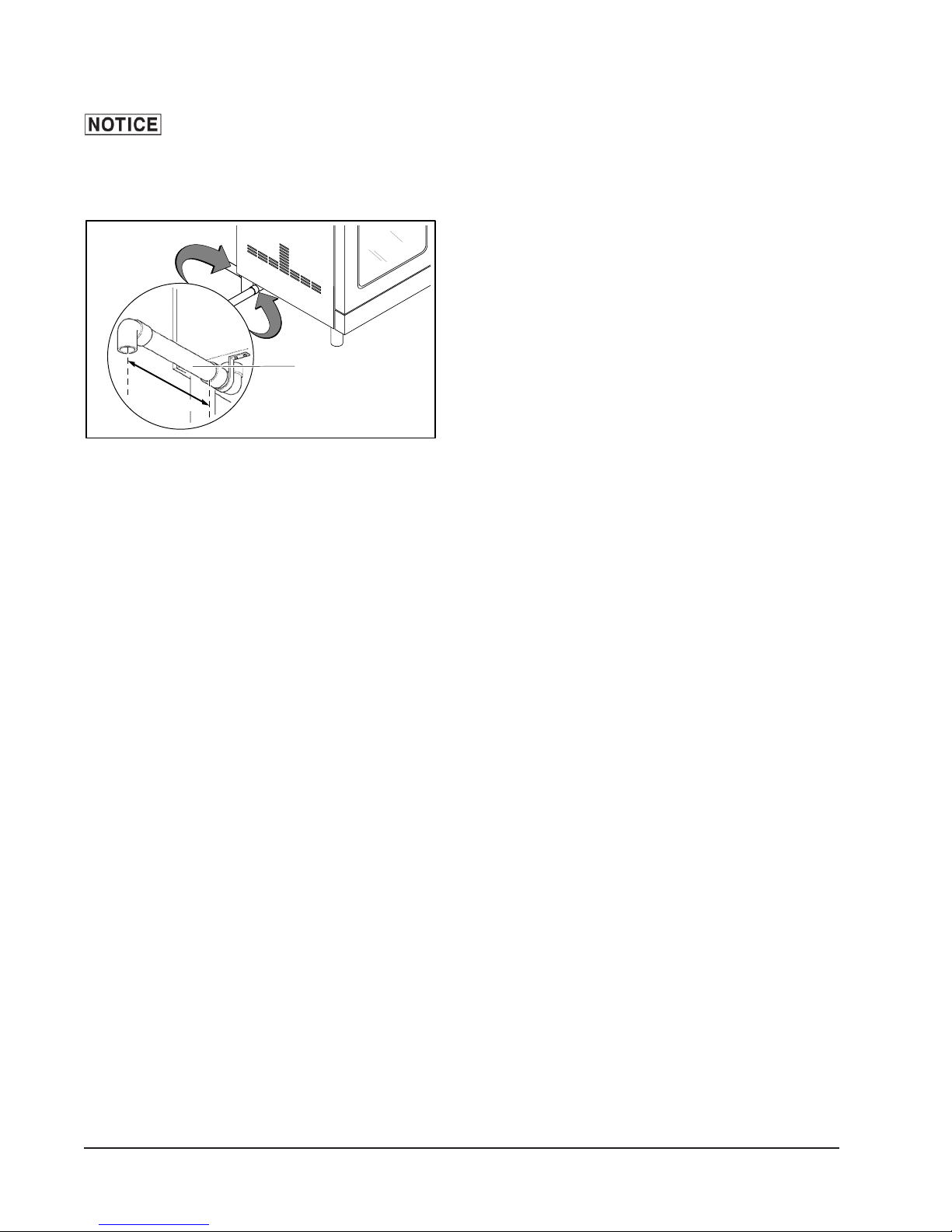

DRAIN CONNECTION
In order to avoid any backpressure
in the oven, do not make a solid connection to
any drain. Failure to do so can damage the
oven and will void the warranty.
12" (305 mm)
min.
Not supplied
OR
Figure 8: Drain Connection
The 1¼" NPT threaded fitting on the drain
outlet must be extended a minimum of 12"
(305 mm) – maximum of 72" (1829 mm)
away from the Comb Oven base, to an open
air gap type drain. Do not reduce the 1¼"
NPT drain piping throughout its length.
Provide a suitable floor sink with a minimum
depth of 12" (305 mm). The floor sink is NOT
to be directly under the oven and should be at
a distance so that steam vapors will not enter
the Combi Oven from underneath. The drain
should slope down away from the oven ¼" for
every foot of drain pipe length. The drain pipe
should be either iron or copper. DO NOT use
PVC pipe; PVC pipe may lose its rigidity or
glue may fail.
In order to avoid any back pressure in the
oven, do not connect solidly to any drain
connection.
VENT HOOD
Local codes may require the oven to be located
under an exhaust hood. Information on the
construction and installation of ventilating
hoods may be obtained from Vapor Removal
from Cooking Equipment, NFPA Standard No.
96 (latest edition).
BEFORE FIRST USE
Before using the oven for the first time, it must
be “burned in” to release any odors that might
result from heating the new surfaces in the
oven. Remove the racks and rack guides and
thoroughly clean in sink with soap and water.
Thoroughly clean with soap and water the
interior of the oven. Refer to cleaning
instructions in this manual. Operate the oven
at maximum thermostat setting for 45 minutes
in Convection Mode.
Make sure the hinged back of the oven cavity
is completely closed and the thumb screws
are secured properly.
Install the rack guides and racks.

— 11 —
ELECTRIC COMBI OVEN
The oven and its parts are
hot. Use care when operating, cleaning or
servicing the oven. The cooking
compartment contains live steam. Stay
clear while opening the door.

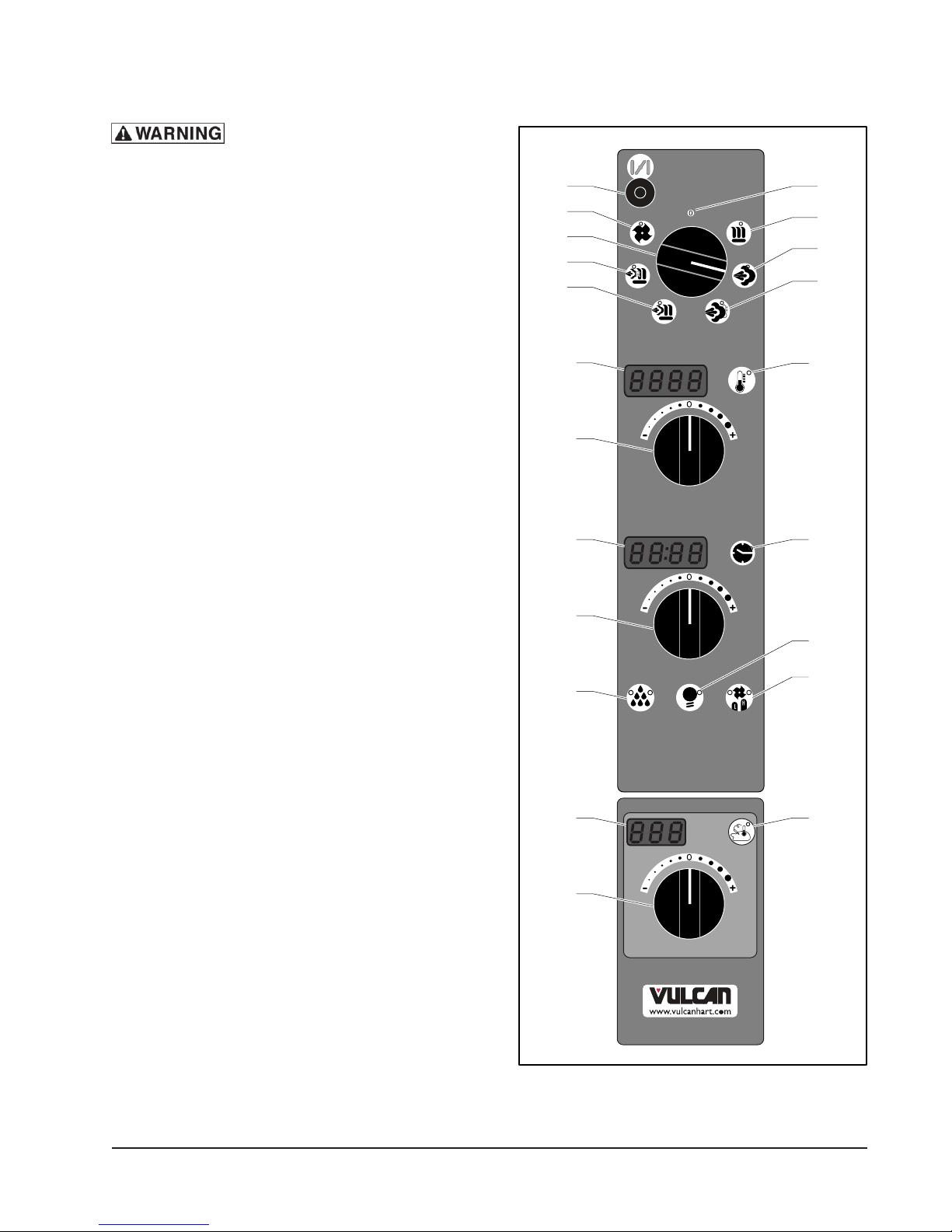

OPERATING CONTROLS LOCATION
The Control Panel consists of the following
controls, which are explained in the
OPERATING CONTROLS FUNCTION section
of this manual:
1. Oven Vent Valve
2. Oven Convection fan
3. Cooking Selector Knob
4. Warming - Rethermalization
5. Combination Cooking
6. Off
7. Convection Cooking
8. Steam Cooking
9. Thermostat Controlled Steam Cooking
10. Oven Temperature Display (LED)
11. Oven Temperature Adjustment Knob
12. Oven Temperature Button
13. Oven Time Display (LED)
14. Oven Time Adjustment Knob
15. Oven Timer Button
16. Humidity Control (Spritzer), (Humidity
Injector)
17. Oven Light Button
18. Fan Speed Selector Button (Full & Half
Speed)

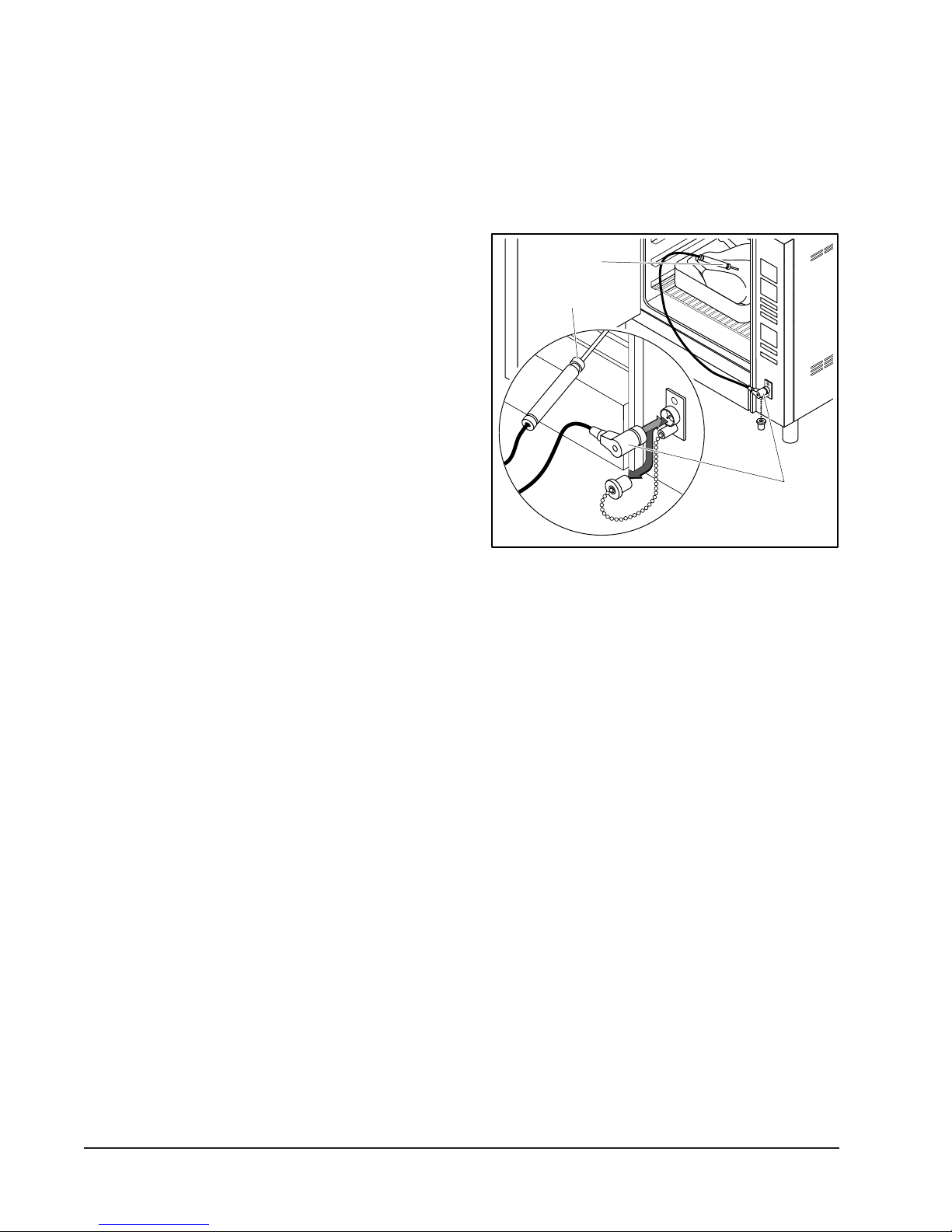

Optional Internal Product Probe
19.Internal Product Probe Temperature
Display (LED)
20.Internal Product Probe Temperature
Adjustment Knob
21. Internal Product Probe Button Control
panel.
OPERATION
6
7
8
9
12
15
17
18
21
2
3
4
5
10
11
13
14
19
20
1
16
Figure 9: Operating Control Location

— 12 —
ELECTRIC COMBI OVEN
Oven Vent Valve
The Oven Vent Valve opens or closes the Vent
to adjust the amount of steam venting from the
oven. Pull the Oven Vent Valve out to open it.
Push it in to close it.
Figure 10: Oven Vent Valve
Oven Convection Fan
When the Oven Convection Fan is on, the LED
will be illuminated. The Oven Convection Fan
can be used to rapidly lower the oven
temperature. The Oven Timer Adjustment Knob
must be set to continuous, or a specific time
must be set, and the door must be closed in
order for the Oven Convection Fan to operate.
For quicker cool down, press the Humidity
Control button twice. This injects approximately
5 gal/h of water into the oven, cooling it faster.
Figure 11: Oven Convection Fan

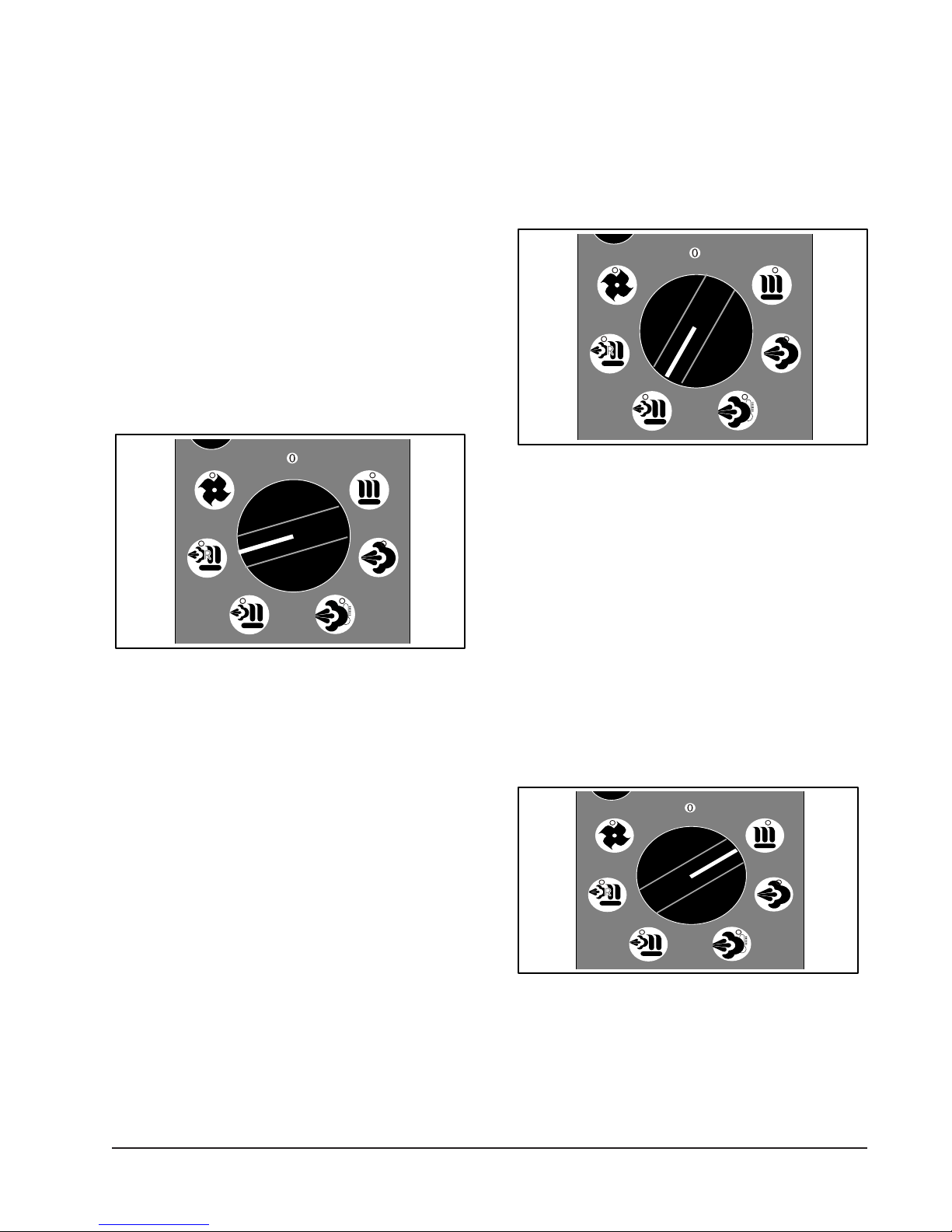

Cooking Selector Knob
The Cooking Selector Knob has seven
selectable positions corresponding to the
different cooking modes of the oven, or the off
position as shown. When a cooking mode is
selected, the respective LED light will flash
and after a few seconds, the control panel will
illuminate, indicating that the oven is prepared
for cooking.
NOTE: Select the desired cooking mode at
least ten minutes prior to cooking to
allow the oven to pre-heat and be
ready for cooking.
Figure 12: Cooking Selector Knob

— 13 —
ELECTRIC COMBI OVEN
Warming - Rethermalization Mode
Use the rethermalization mode to warm-up
(rethermalize) refrigerated foods. Warming is
accomplished in the combined mode at a
temperature range of 210°F (100°C) to 518°F
(270°C) on low speed.
Cold food shall not be added to the unit for
rethermalization while hot food is being held.
The Oven Timer Adjustment Knob must be
set to continuous, or a specific time must be
set, and the door must be closed in order for
the Oven Convection Fan to operate.
NOTE: It is recommended that the Vent Valve
remain open while warming food.
Figure 13: Warming - Rethermalization
Combined Cooking
The temperature range for combined cooking
is from 212°F (100°C) to 518°F (270°C). The
default value is 302°F (150°C). This cooking
method combines the benefits of steam and
convection. With combined cooking, cooking
time can be reduced from 5% to 50% even for
foods such as potatoes, carrots, etc. With
combined cooking it is possible to steam
foods and then glaze them to make them
crispy. Foods such as roasts, hams, etc.,
minimize their loss of weight and moisture.
Foods cook quickly and brown evenly while
keeping the product moist and flavorful.
The Oven Timer Adjustment Knob must be
set to continuous, or a specific time must be
set, and the door must be closed in order for
the Oven Convection Fan to operate.
Figure 14: Combined Cooking
Convection Cooking
For cooking temperatures ranging from 68°F
(20°C) to 518°F (270°C), hot air is evenly
distributed in the oven by a convection fan.
The default value is 302°F (150°C). This
method of cooking is ideal for baking, roasting,
toasting and grilling.
The Oven Timer Adjustment Knob must be
set to continuous, or a specific time must be
set, and the door must be closed in order for
the Oven Convection Fan to operate.
Figure 15: Convection Cooking

— 14 —
ELECTRIC COMBI OVEN

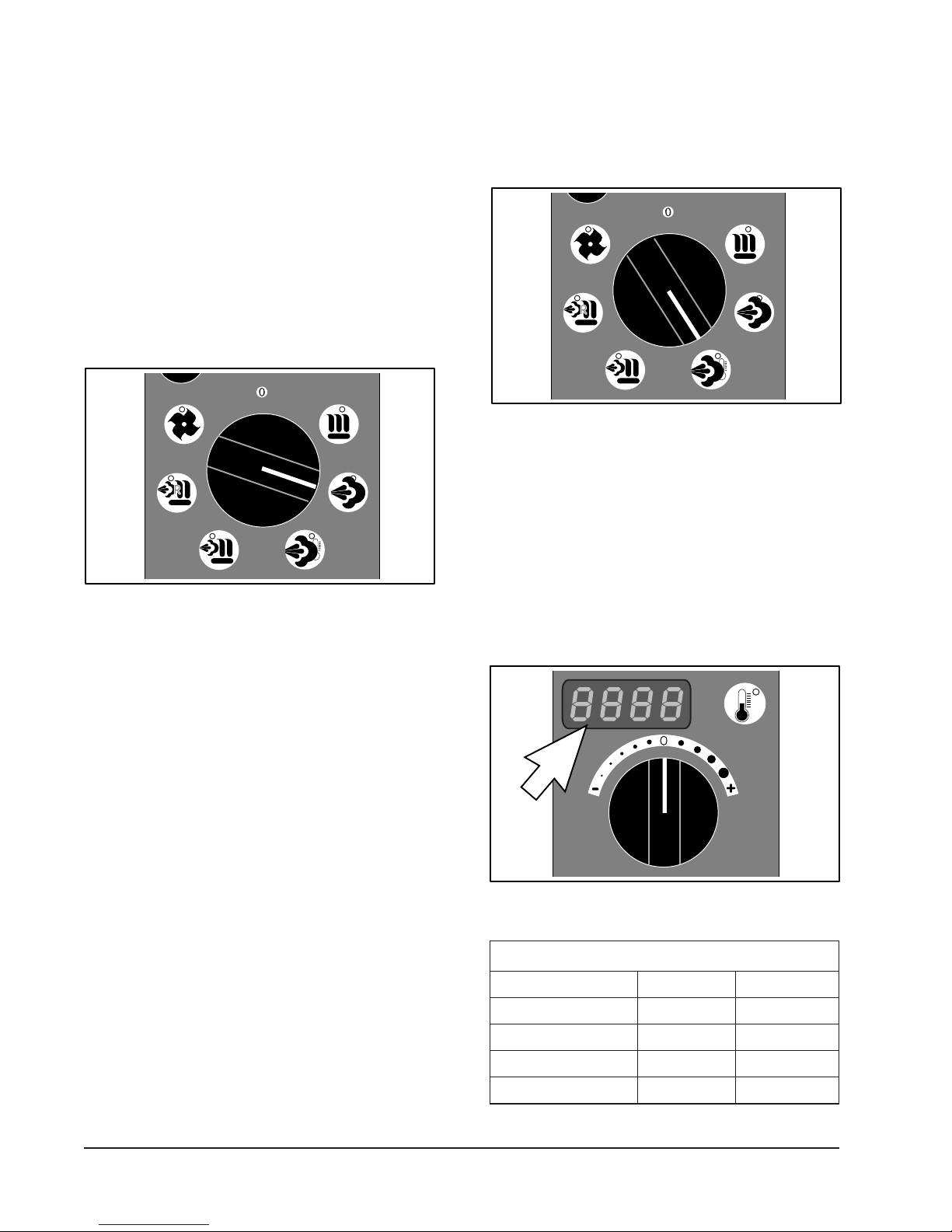

Steam Cooking
The main advantage of steaming is the
nutritional values are maintained. It is the
most efficient means of cooking and the food
does not lose its moisture. Steaming is
conducted at 212°F (100°C). In the steam
mode the convection fan does not start until
the oven reaches 176°F (80°C).
The Oven Timer Adjustment Knob must be
set to continuous, or a specific time must be
set, and the door must be closed in order for
the Oven Convection Fan to operate.
Figure 16: Steam Cooking
Thermostat Controlled Steam Cooking
The temperature range for thermostatically
controlled steam cooking is from 68°F (20°C)
to 210°F (99°C). This method of cooking is
ideal for foods that have already been
processed, portioned and vacuum packaged.
The main advantages of this method of cooking
are the ability to cook in batches, food is
preserved longer, there is minimal weight
loss and the nutritional values are maintained.
Adjustment Knob must be set to continuous,
or a specific time must be set, and the door
must be closed in order for the Oven
Convection fan to operate.
Figure 17: Thermostat Controlled
Steam Cooking
Oven Temperature Display
After selecting the desired cooking method,
the Oven Temperature Display will display the
default temperature. The default temperature
is 302°F (150°C) During cooking, the display
will indicate the set temperature of the oven.
Figure 18: Oven Temperature Display
Temperature Ranges
Mode °F °C
Steam 212°F 100°C
Rethermalization 210–518°F 100–270°C
Combined 212–518°F 100–270°C
Convection 68–518°F 20–270°C

— 15 —
ELECTRIC COMBI OVEN

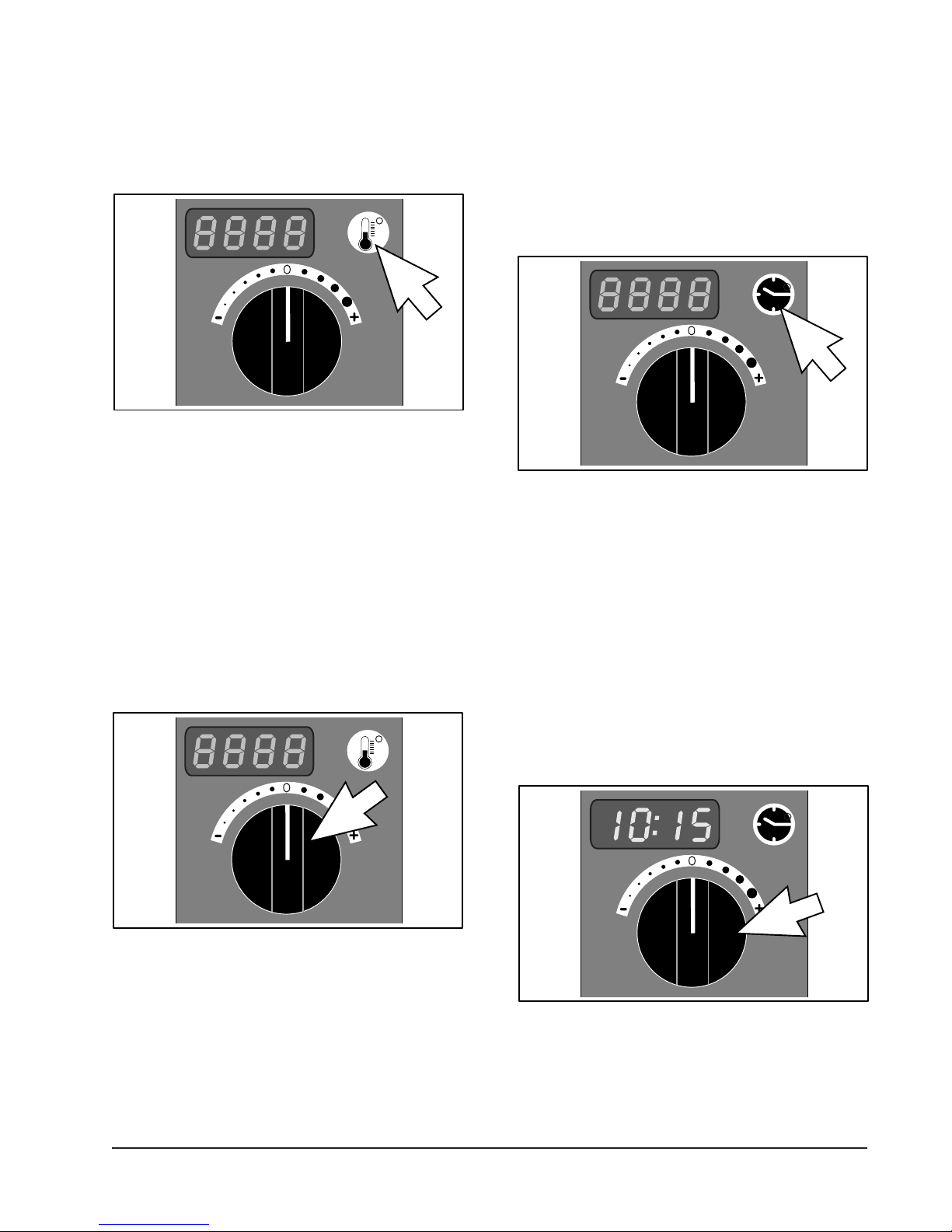

Oven Temperature Button
During a cooking cycle, press the Oven
Temperature Button to display current oven
temperature.
Figure 19: Oven Temperature Button
Oven Temperature Selector Knob
The Oven Temperature Selector Knob is used
to change the desired oven cooking
temperature. Press the Oven Temperature
Button, then turn the Oven Temperature
Selector Knob clockwise to increase or counter
clockwise to decrease setting. The Oven
Temperature Button must be pressed to
change the temperature during operation.
Figure 20: Oven Temperature
Selector Knob
Oven Timer Button
The Oven Timer button is used to change the
timer display and to silence the audible end of
the cook cycle alarm. During cooking, the
timer displays the remaining time. Pushing
the Oven Timer button toggles the display to
the oven set time.
Figure 21: Oven Timer Button
Oven Timer Adjustment Knob
The Oven Timer Adjustment Knob is used to
change the desired oven cooking time. To
adjust the time, turn the timer knob clockwise
to increase the time or counterclockwise to
decrease the time. The oven can also be
placed in continuous cooking mode by turning
the Oven Timer Adjustment Knob
counterclockwise until “Cont” displays.
Figure 22: Oven Timer Adjustment Knob

— 16 —
ELECTRIC COMBI OVEN

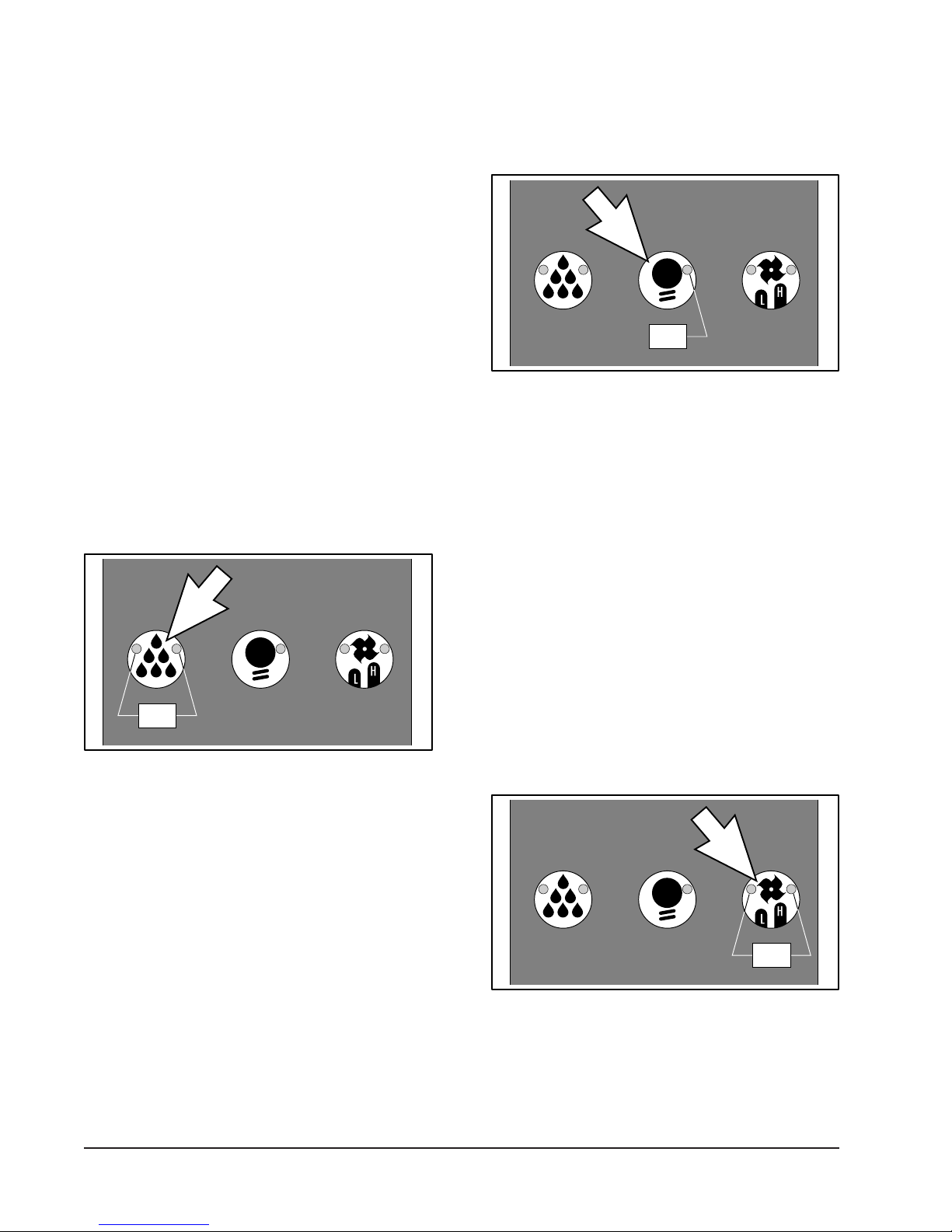

Humidity Control
The Humidity Control button controls the
level of moisture in the oven. This is essential
for cooking products with low moisture
content such as bread, biscuits, cakes and
soft items. The Humidity Control button is
also used to prevent roasts from burning or
losing their moisture. The Humidity Control
button has two positions. Pressing the
button once (the left LED will illuminate)
injects approximately 1 Gal/h (4 l/h) of water
into the oven while cooking. Pressing the
button again (the right LED will illuminate)
injects approximately 5 Gal/h (18 l/h) of
water into the oven while cooking. To turn
the Humidity Control off, press the button
again (both LED lights will extinguish).
NOTE: The humidity control button only works
in Convection Cooking and Oven
Convection Fan modes.
LED
Figure 23: Humidity Control
Oven Light Button
The Oven Light button turns the oven light on
or off when the oven is on.
LED
Figure 24: Oven Light
Fan Speed Selector
The Fan Speed Selector controls the speed of
the Oven Convection Fan. This makes it
possible to reduce the amount of air in the
oven for cooking delicate items that require
less airflow. The button has two positions;
Low speed and High speed. High is used for
fast cooking while Low is used for cooking
delicate items or for steaming. The LED lights
in the corner of the button correspond to the
fan speed selected. Pressing the button once
will select the Low Speed setting and the left
LED will be illuminated. Pressing the button
again will select the High Speed setting and
the right LED will be illuminated.
LED
Figure 25: Fan Speed Selector

— 17 —
ELECTRIC COMBI OVEN

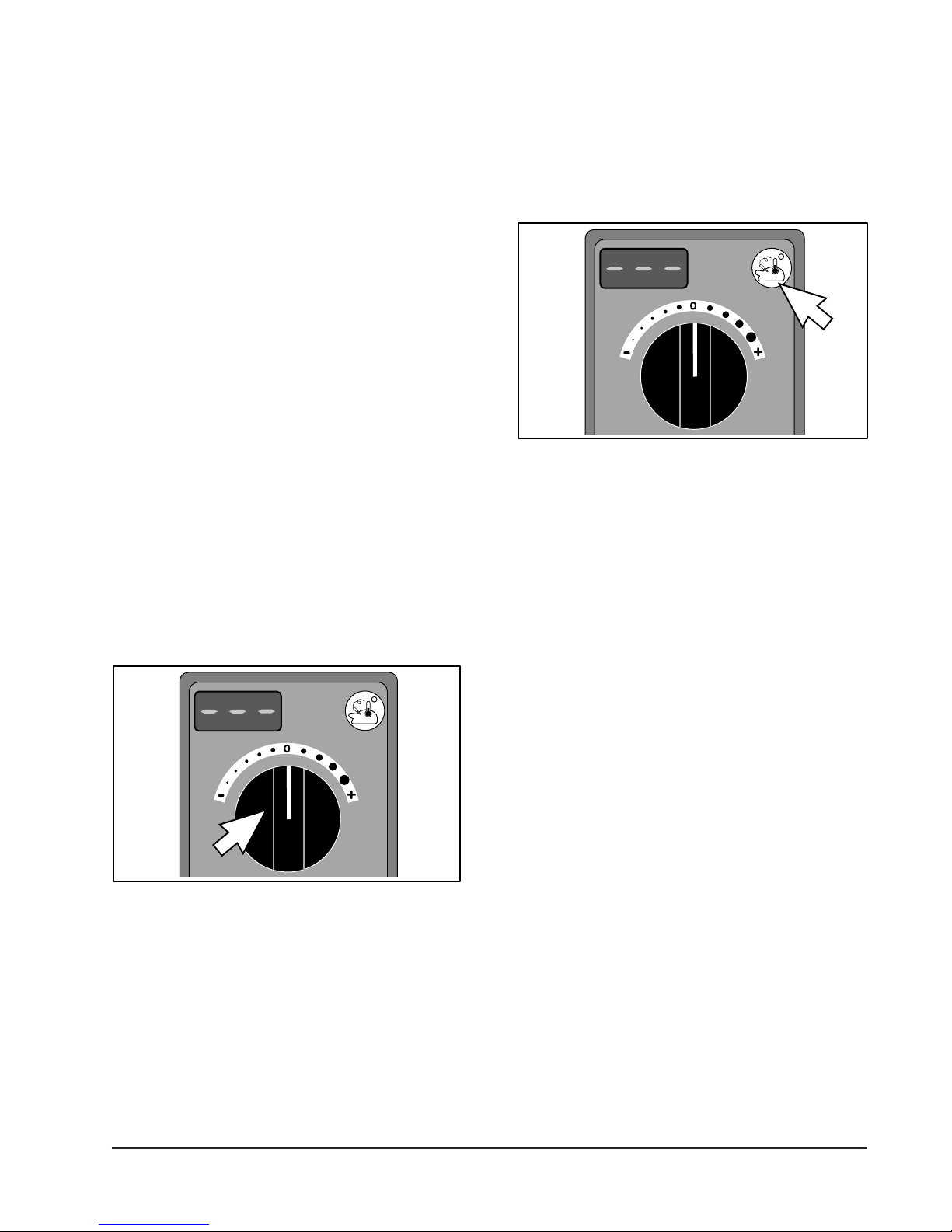

Internal Product Probe Temperature
Selector Knob
The optional Internal Product Probe that can
be attached to maintain specific internal
cooking temperatures. The temperature range
is from 68°F (20°C) to 210°F (99°C). For such
items as roast-beef, pâté, etc., the internal
cooking temperature is important to maintain.
By using the Internal Product Probe, the oven
will switch off when the desired internal cooking
temperature is reached. Setting the
temperature for the Internal Product Probe
disables the cook time timer. The Internal
Product Probe can be used with all the optional
cooking methods: steaming, convection
cooking, combined cooking. The internal
temperature guide for cooking with the Internal
Product Probe can be found on page 21.
The Internal Product Probe Temperature
Selector Knob controls the desired internal
cooking temperature sensed by the Internal
Product Probe. To adjust the desired internal
temperature, turn the selector knob clockwise
to increase the internal temperature or
counterclockwise to decrease the internal
temperature.
Figure 26: Internal Product Probe
Temperature Selector Knob (if Installed)
Internal Product Temperature
Probe Button
Press the Internal Product Temperature Probe
Button to display the current internal
temperature of the product being cooked.
Figure 27: Internal Product Temperature
Probe Button (if Installed)

— 18 —
ELECTRIC COMBI OVEN
COOKING
Make sure the hinged back of the oven cavity
is completely closed and the thumb screws
are secured properly.
To start up oven:
1. Select the desired cooking mode.
2. Select the desired cooking time by turning
the selector knob clockwise to the desired
time. The Oven Timer Adjustment Knob
must be set to continuous, or a specific
time must be set, and the door must be
closed in order for the Oven Convection
Fan to operate.
Turning the timer knob counterclockwise until
“Cont” displays will place the oven in
continuous cooking mode.
When the desired time is reached the oven will
stop, an audible alarm will sound for one (1)
minute and the display will change to “End”.
3. To cancel the audible alarm, press the
Timer Display button.
In order to set a new cooking time, the Timer
Display button must first be pressed.
4. To cancel continuous cooking, place the
Oven Timer Knob to zero or turn the
Cooking Selector Knob to 0.
In the 212°F (100°C) steam mode, the
convection fan will not come on until the oven
temperature reaches 176°F (80°C). This
allows the product to be cooked when the fan
is not on.
The oven is equipped with a cooling fan for the
internal components. It will start when the
oven is on and stop approximately ten (10)
minutes after the oven is turned off.
Cooking with the Internal Product
Temperature Probe
To cook using the Internal Product
Temperature Probe:
1. Insert the probe into the product to be
cooked. Place the tip of the probe in or
near the center of the product.
2. Place the product with probe in place, in or
near the center of the oven.
3. Remove the protective cap and insert the
probe electrical connector into the probe
connection on the oven as shown below
(Figure 28).
Probe
Electrical
Connector
Internal
Product
Temperature
Probe
Figure 28: Cooking with the
Internal Product Temperature Probe
4. Close the oven door.
5. Select the desired cooking method.
6. Push the Internal Product Temperature
Probe LED button. The button LED will
illuminate. The display will show a pre-set
temperature and the minute counter
display will be deactivated.
7. Select the desired internal cooking
temperature. After a few seconds, the
oven will begin cooking and the product
internal temperature will be displayed.
8. During the cooking cycle, the minute
counter will display the amount of elapsed
time.
9. Cooking will stop when the product internal
temperature reaches the desired set
temperature.
If the probe exceeds 212°F (100°C) “Ovl”
(Overtemp) will show in the display.
The oven will automatically enter the Cook
and Hold Mode when the desired product
internal temperature is reached.

— 19 —
ELECTRIC COMBI OVEN
If the Internal Product Temperature Probe is
hot at the start of the cooking cycle due to
oven pre-heating, the display will flash until
the actual temperature of the food is displayed
and then cooking will commence.
Cook and Hold
Cook and Hold is only available when using
the Internal Product Temperature Probe. At
the end of the cooking cycle, the product is
kept warm without its temperature falling below
158°F (70°C). The oven will maintain 158°F
(70°C) as long as the product is in the hold
mode. The display will flash “Hold” for ten (10)
minutes. If the oven is not switched off or the
product removed after ten (10) minutes, the
display will change to a steady “Hold”. The
Timer Display button can be pressed to see
how long the product has been in Hold mode.
To exit the Cook and Hold mode, turn the
Selector Knob to 0.
NOTE: If probe is removed without changing
the cooking mode alarm PGno will
display. When changing from probe to
time cooking, you must switch the
mode to time or PGnu will display.
DISPLAYING AND MODIFYING
COOKING SETTINGS

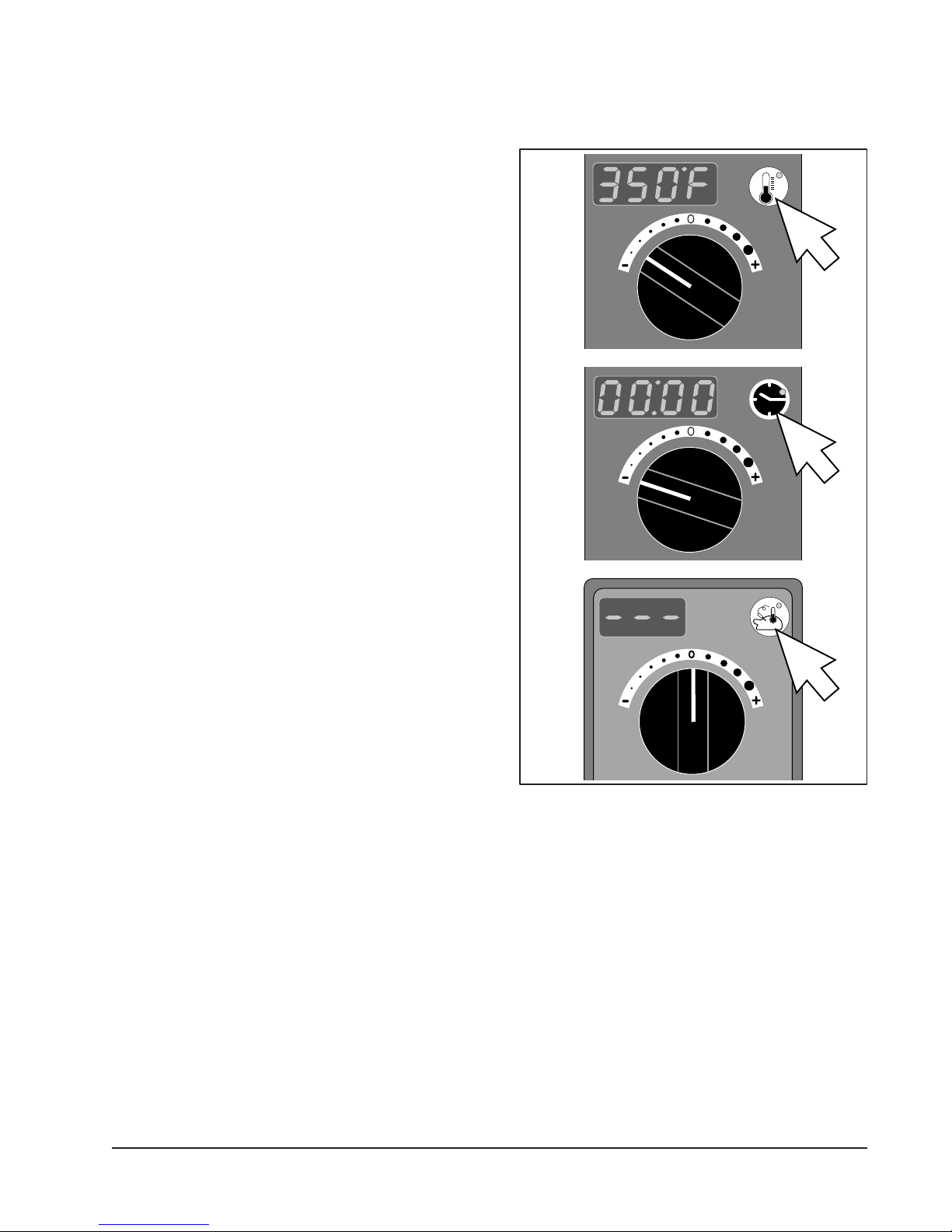

Figure 29: Cooking Settings
Cooking Settings
The setting can be changed at any time by
pressing one of the buttons displayed in Figure
29. When selected, the appropriate LED will
illuminate. The display will show either the
oven temperature, the set time or the Internal
Product Temperature Probe temperature.
After a few seconds, the LED will extinguish
and the display will change back to the
previous display.

— 20 —
ELECTRIC COMBI OVEN
Change Cooking Settings
To change either the set temperature, timer or
internal temperature while cooking:
1. Press the relevant button and the LED will
illuminate.
2. Turn the knob.
After a few seconds, the new parameter will
be accepted and the LED will extinguish.
Manually Lowering The Oven Temperature
To manually lower the oven temperature:
1. Close the oven door.
2. Turn selector knob to Oven Convection
Fan position and open vent.
3. Select the desired temperature.
4. The oven temperature will lower to the
desired temperature set.
Automatically Lowering Oven Temperature
If steaming or thermostatic steaming is
selected while the oven is still hot, water is
injected into the oven. This is so that the oven
temperature can be lowered quickly and
prevents food from being cooked at too high of
a temperature.
DAILY SHUTDOWN
1. Place the Selector Knob to 0 (OFF).
2. Clean the oven interior.
3. Leave door open.
EXTENDED SHUTDOWN
1. Perform DAILY SHUTDOWN procedure.
2. Turn off the circuit breakers.
3. Turn off the water supply.
4. Thoroughly clean the oven interior, door
seals, etc.
5. Leave door open.
