Vuly Den User manual

Den
MANUAL
Visit VulyPlay.com/Installation
for video instructions

2

Start here
ATTENTION!
Safety Information, Installation and usage instructions.
Read prior to installing and usage.
See VulyPlay.com/support for any updates to these instructions.
WARNING – IMPORTANT SAFETY INFORMATION!
Observing the following statements and warnings reduces the likelihood of serious or fatal injury:
• Minimum user age - 3 years.
• Maximum number of occupants - 1.
• Maximum weight for sleeping level: 120 kg
• 2 adults recommended for assembly.
• Ensure that the bed and climbing frame are installed according to instructions before use.
WARNING! Parental supervision at all times when using climbing frame
WARNING! Do not allow jumping on the mattress inside the Den. Could lead to head injury.
WARNING! Do not allow climbing or hanging from the telescopic poles. This may reduce
the strength of the pole.
WARNING! Do not allow any ropes, hooks or belts to be hung from Den as they may cause
a strangulation hazard.
WARNING! Instruct children not to use the equipment in a manner other than intended
WARNING! Do not place the Den directly under or near a ceiling fan as it may cause head
injury.
WARNING! Instruct Children to not jump from the climbing platform. This can cause serious
injury.
WARNING! Do not step or play on fabric canopy as it may lead to injury.
WARNING! Do not extend, collapse or manipulate product while in use.
YOU WILL NEED FOR ASSEMBLY!
• 8mm allen key
• 6mm allen key
• 5mm allen key
• Tape measure or ruler
Vuly Play
95 Ingleston Rd, Brisbane QLD 4154
AU: 1300 667 514
US: 1-800-467-1421
www.vulyplay.com
3

Care and maintenance
Improper maintenance or lack of care can lead to your product deteriorating earlier than ex-
pected and causing injury. Please follow these instructions to ensure that your product lasts for
as long as possible.
General care
• Retain this Manual.
• Inspect before use and check product weekly for loose components or defects.
• Before use, check climbing assembly is secure and fastened adequately.
• Replace any worn, deteriorated, defective or missing parts immediately and only through
Vuly.
• Tighten all hardware, including elements that secure to the product.
• Keep away objects that could damage textile components.
• Use only parts and accessories recommended by Vuly
• Hand wash textiles using cold water and hang to dry.
• Use two people to extend and collapse canopy feature.
• Clean dirty surfaces with warm soapy water and wipe dry.
4

4x Den Leg Tube (with foot) 2x Top Tube - Short

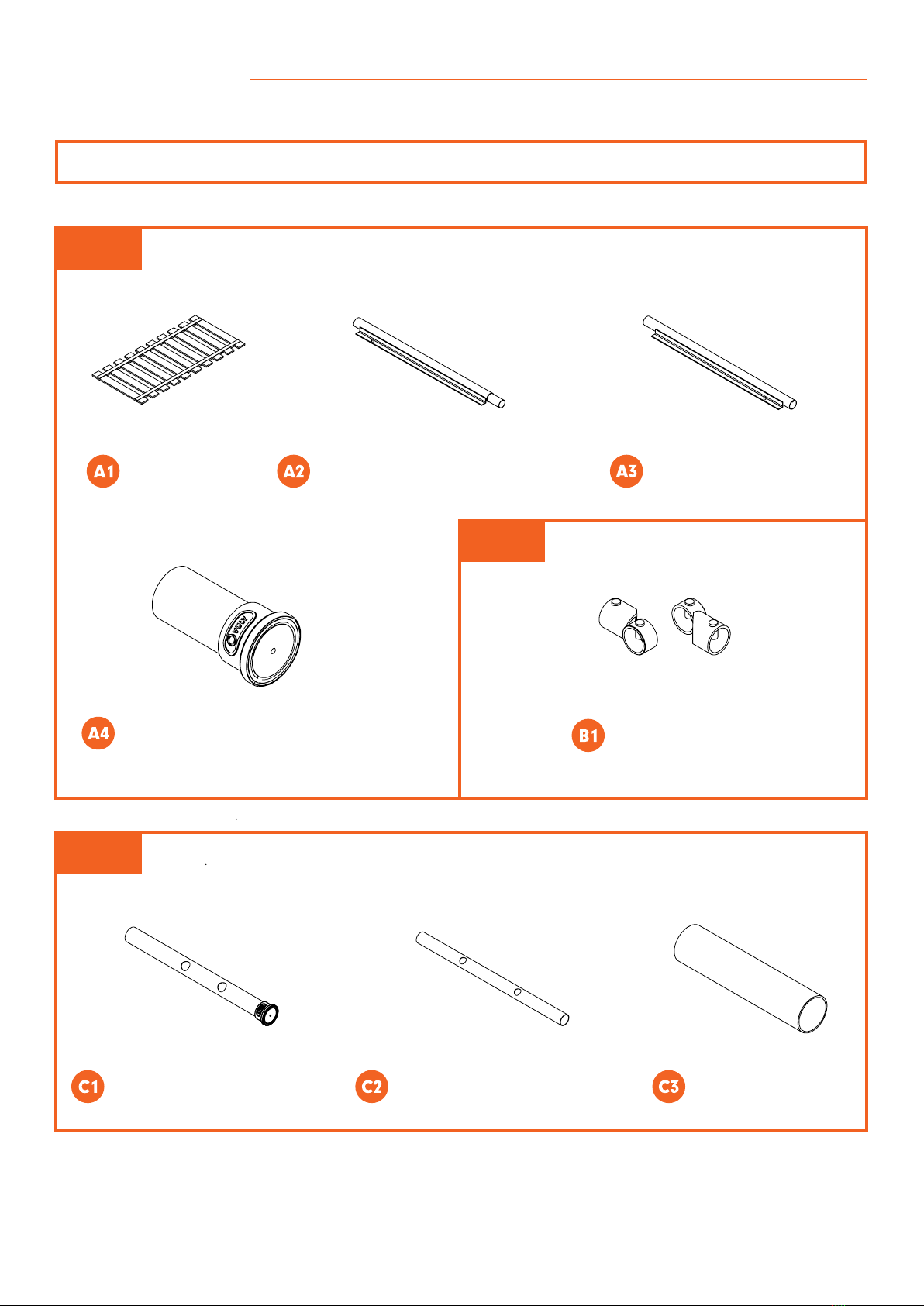

Parts Reference
5
REMOVE ALL PARTS FROM CARTONS AND LAY FLAT ON GROUND
BOX A
BOX B
BOX C
1x Bed Slat Set 2 x Bed Frame Tube A (Swaged) 2 x Bed Frame Tube B
16 x Angle Joiner
4x Den Climbing Frame Tube
1 x Frame Support Tube - Short

BOX D
6
2x Den Front Straight Tube
1x Front Top Tube 2 x Den Front Leg Tube
BOX C
1x Den Play Board
2x Den Guard Rail
1x Den Canvas 1x Den Top Tube - Long 1x Den Telescopic Inner Tube
1x Hardware Kit
6x T-Joiner 1x Cross Joiner 1x 4-Way Joiner
4x Plastic Board Sleeve
Allen keys
20x Locking bolts,
Spring washers & Washers
4x Cover bolts
1x Telescope bolt

BOX E

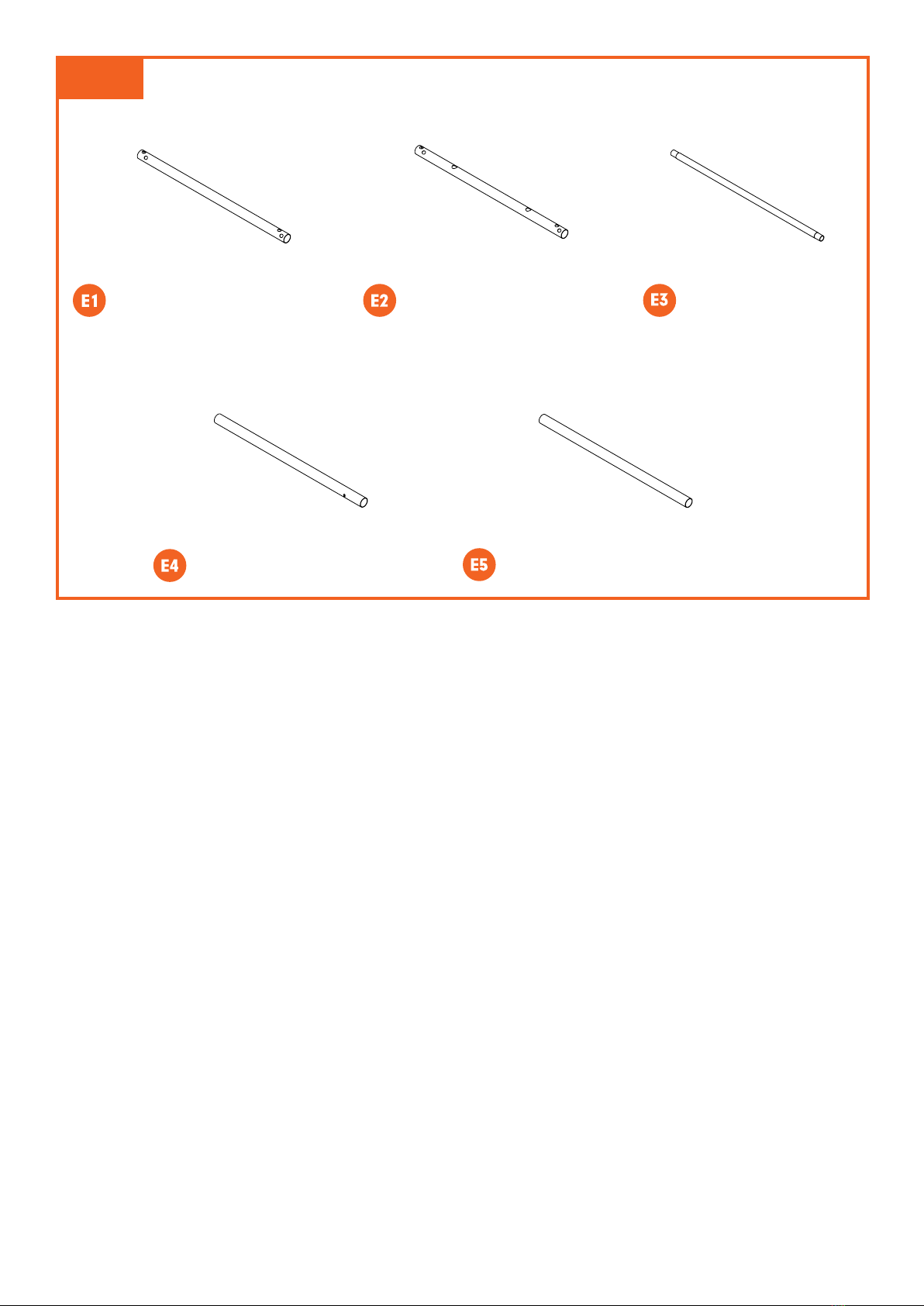

2x Large Climbing Bar Bottom 8x Den Climbing Bar
2x Large Climbing Bar Top
1x Den Telescopic Outer Tube 1x Den Frame Support Tube Long
7

8
STEP 1
PART 1: BED FRAME
1x
2x
2x
2x
• Join A2 to A3 and secure in place using T-Joiner (D7) grub screw
• Insert A4 all the way into bottom of T-joiner and secure in place using grub screw.
A2
A3
A4
D7
A2
A3
A3
A2
A4

9
STEP 2
2x
2x
2x
4x
4x
CHECK! Make sure bed rails are assembled as shown below.
• Slide T-Joiner down C1 until below lower hole and secure on tube.
• Assemble E3 bars into C1 tubes and fasten using M10 bolts, , spring washers and washers
• Repeat the steps for the other end of the bed frame.
2x
A2
A3
A3
A2
STEP 3
E3
C1
D7
M10 Bolt
Spring washers
& washers
E3
E3
C1
C1

10
STEP 4
STEP 5
1x
2x
MEASURE! Ensure each T-Joiner is 105mm from floor. The top of the joiners should be nearly
touching the bottom of E3 bars.
• Join bed ends to frame tubes and secure using grub screws.
105mm

11
STEP 6
STEP 7
1x

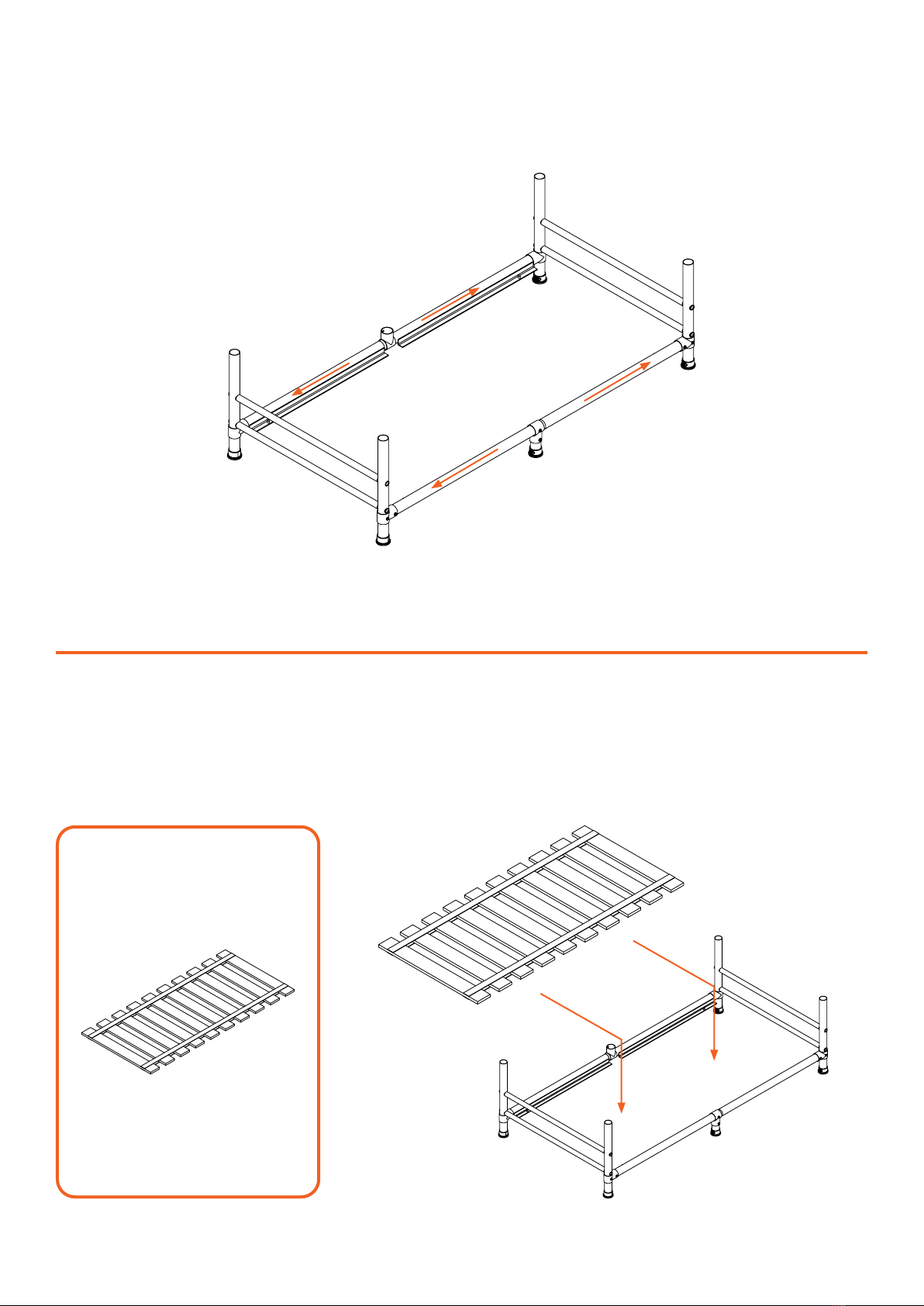

CHECK! Make sure bed frame is assembled as shown. And frame tubes shall be level to the floor.
• Take bed slat set (A1) and place into bed frame.
Level to the floor
Level to the floor
A1

12
STEP 8
PART 2:
CLIMBING FRAME
CHECK! Make sure bed slats are secured at each corner over locating pin.
Locating pin

13
STEP 10
STEP 9
4x
2x
2x

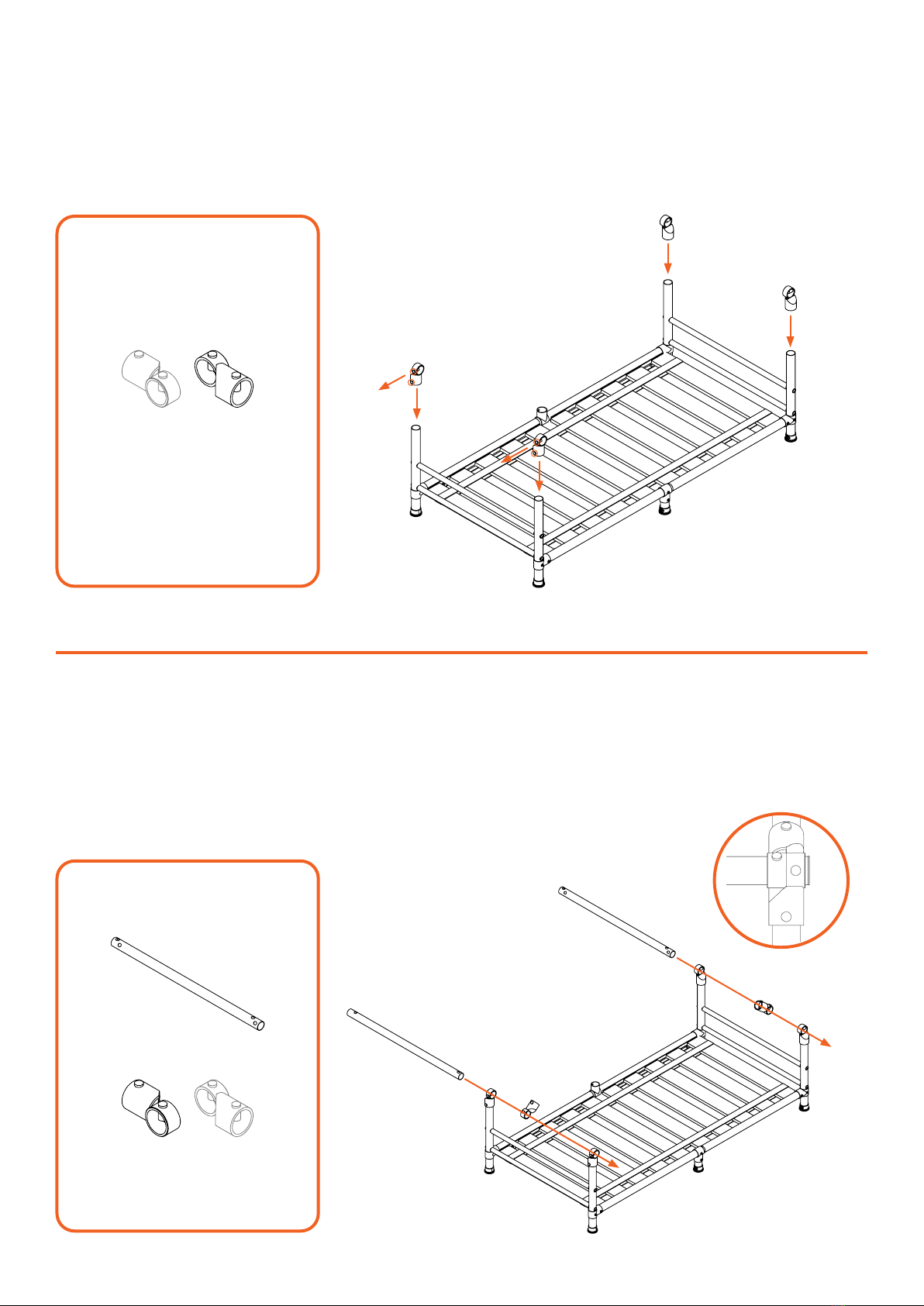

• Attach B1 joiners to C1 poles and make sure the grub screws are facing outwards.
• Do not tighten grub screws yet.
• Make sure two B1 joiners are assembled as shown below.
• On both ends, slide E1 pole through joiner and attach B1 joiner to the left side of the assembled B1
joiners in Step 9.
• Do not tighten grub screws yet.
• Make sure two B1 joiners are assembled as shown below.
B1
B1
B1
B1
B1
C1
C1
C1
C1
E1
B1
E1
E1
Facing
outwards

14
STEP 11
STEP 12
2x
1x
1x
• Attach remain of B1 joiners to E1 pole.
• Locate and align all holes and secure in place.
• Only tighten these B1 joiners that attached to C1 poles.
• Insert frame support tube (E5) into T-joiner.
• Attach 4-way joiner D9 and secure in place using grub screw. Do not fasten
yet.
B1
E1
E1
E5
D9
D9
E5
C1
C1
C1
C1

15
STEP 13
STEP 14
1x

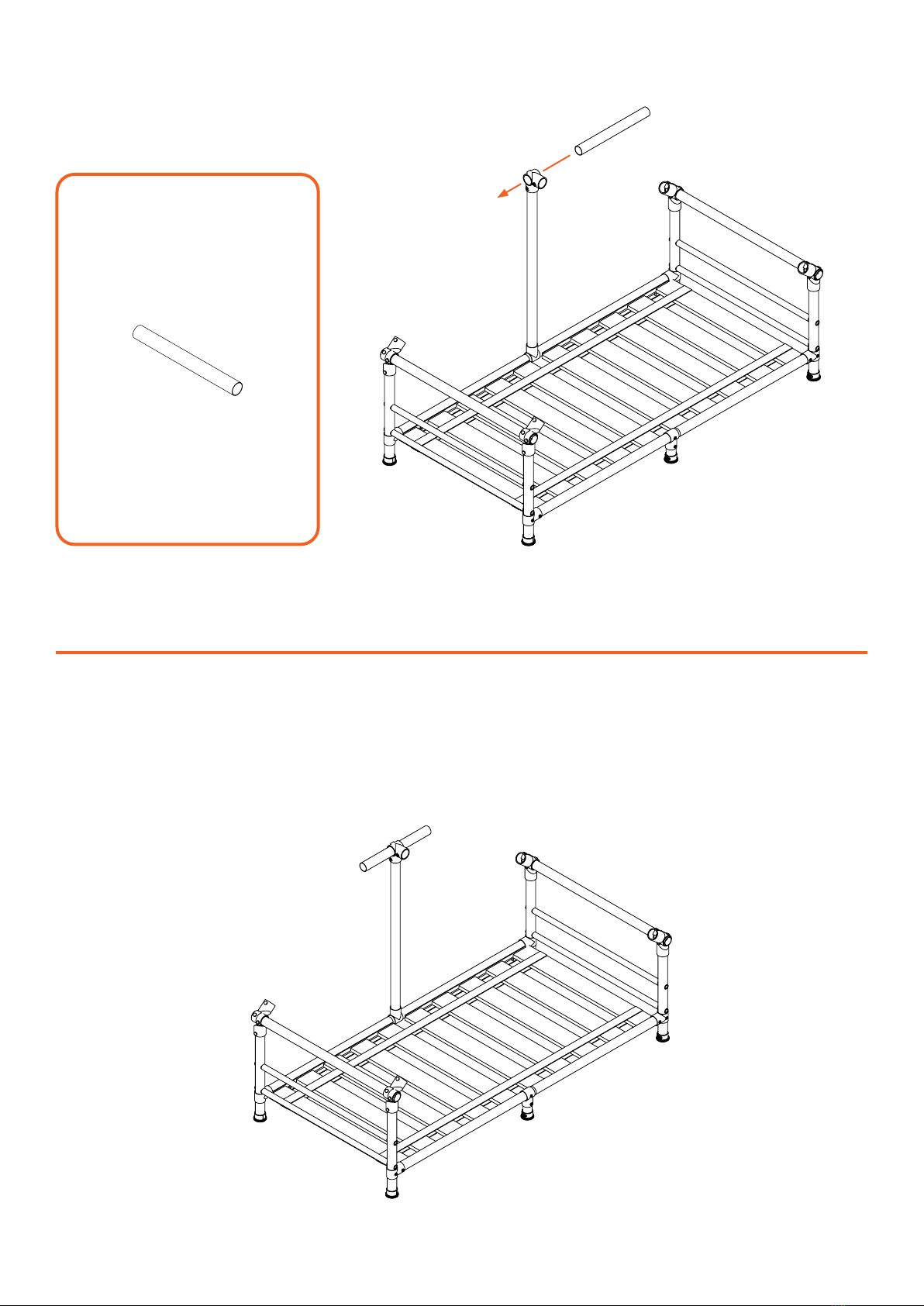

• Slide D5 pole through 4-way joiner.
• Align in centre of joiner, do not fasten yet.
CHECK! Make sure climbing frame is assembled thus far as shown.
D5
D5

16
STEP 16
STEP 15: CLIMBING BARS
2x
2x
4x
4x
2x

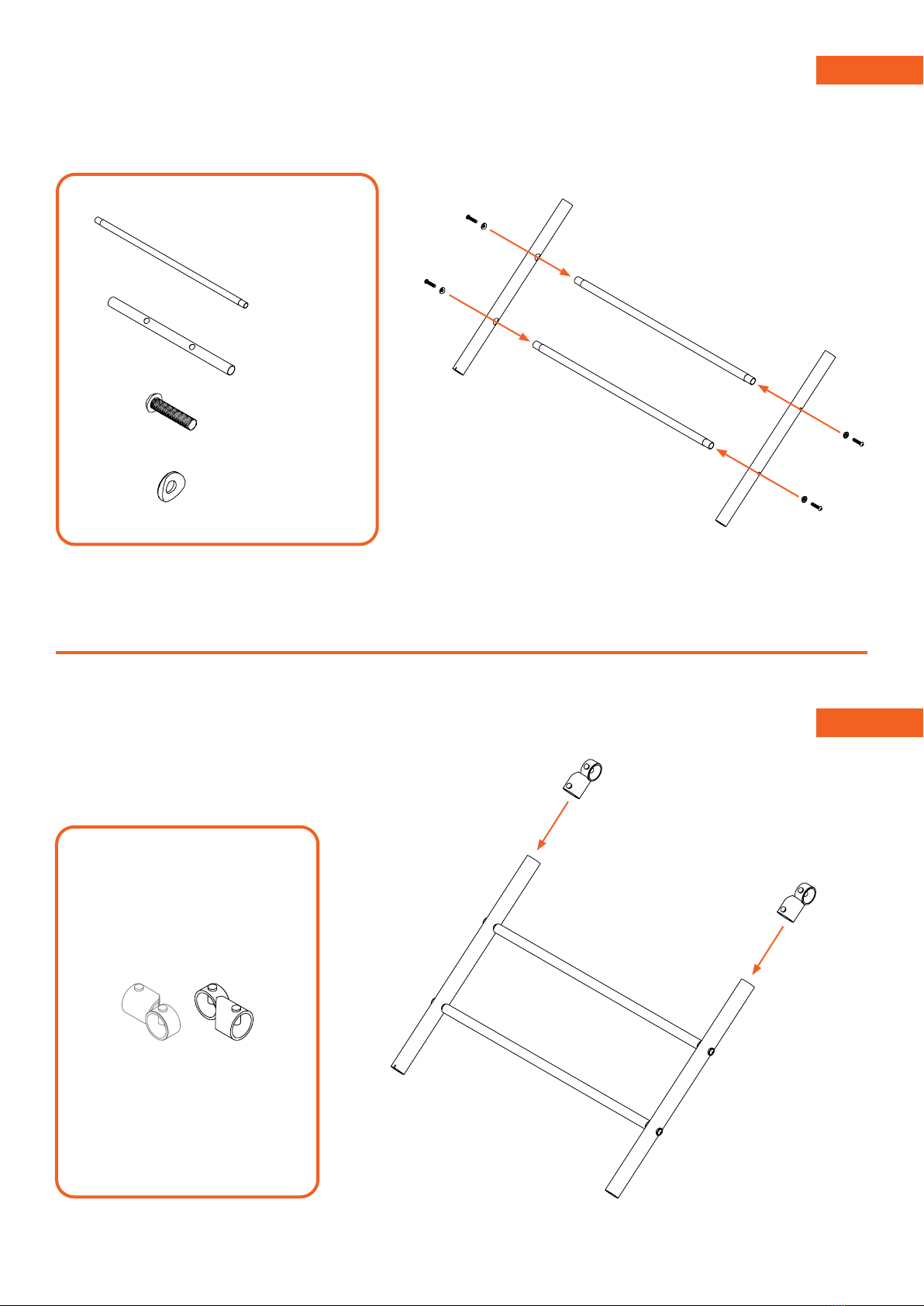

• Assemble E3 tube with C2 tube.
• Fasten using M10 locking bolts, spring washers, washers.
• Attach right side of B1 joiner to top of C2 tube.
• Do not tighten grub screws yet.
2x
2x
E3
M10 Bolt
Spring washers
& washers
C2
E3
E3
C2
C2
C2
C2
B1
B1
B1

17
STEP 17
STEP 18
2x
1x
• Slide E2 pole through joiner and attach left side of B1 joiner as shown.
• Locate and align all holes and secure in place by tightening all grub screws.
Repeat Step 15 to Step 17 to complete the other climbing bar assembly.
CHECK! Make sure climbing bar is assembled thus far as shown.
2x
2x
B1
E2
E2

18

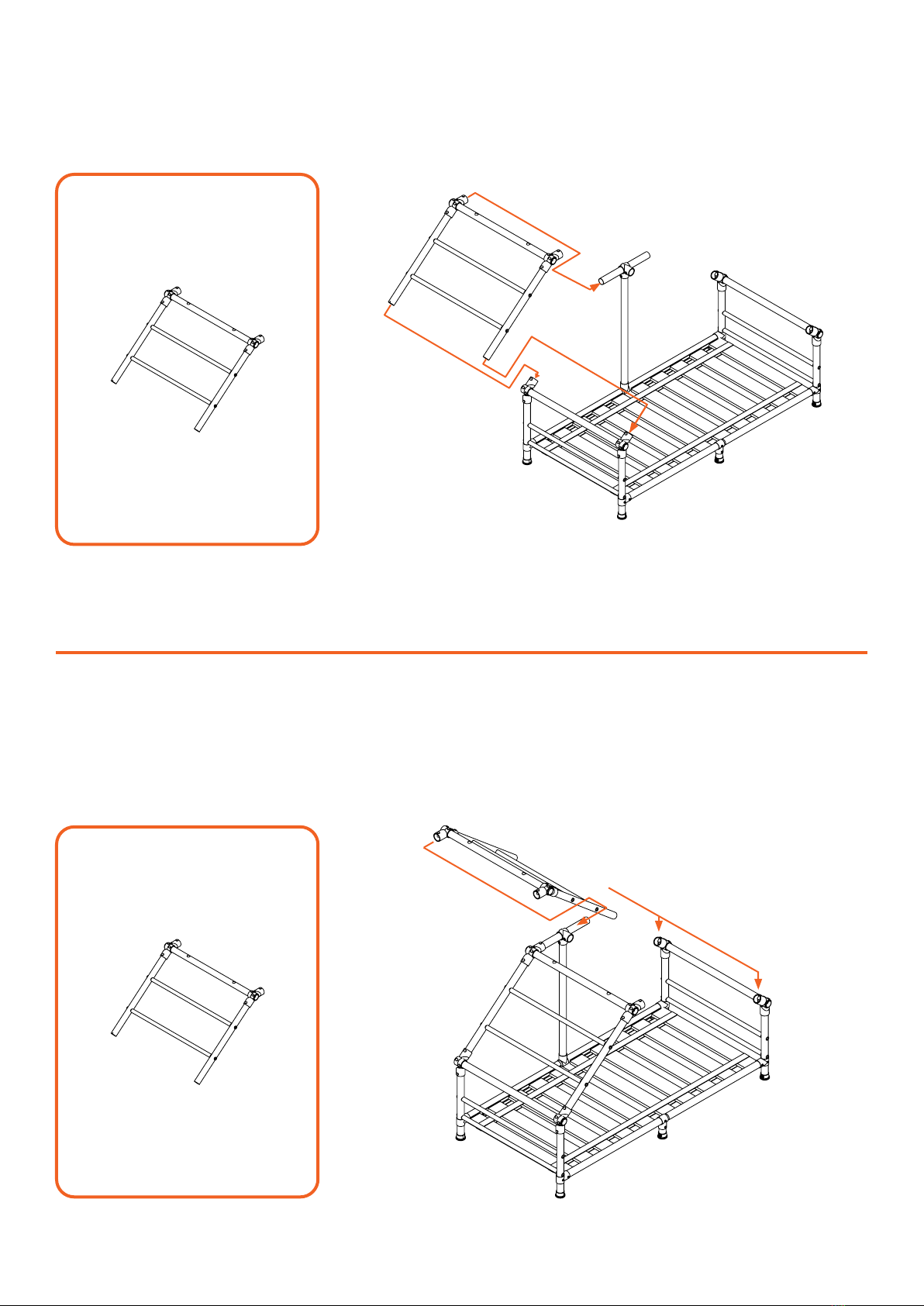

STEP 19: CLIMBING FRAME
STEP 20
1x
1x
• Attach first climbing bar asembly to climbing frame.
• Secure climbing bar assembly using grub screws. Do not fasten yet.
• Attach the second climbing bar asembly to climbing frame.
• Secure climbing bar assembly using grub screws and secure 4-way joiner. Do no fasten yet.

19

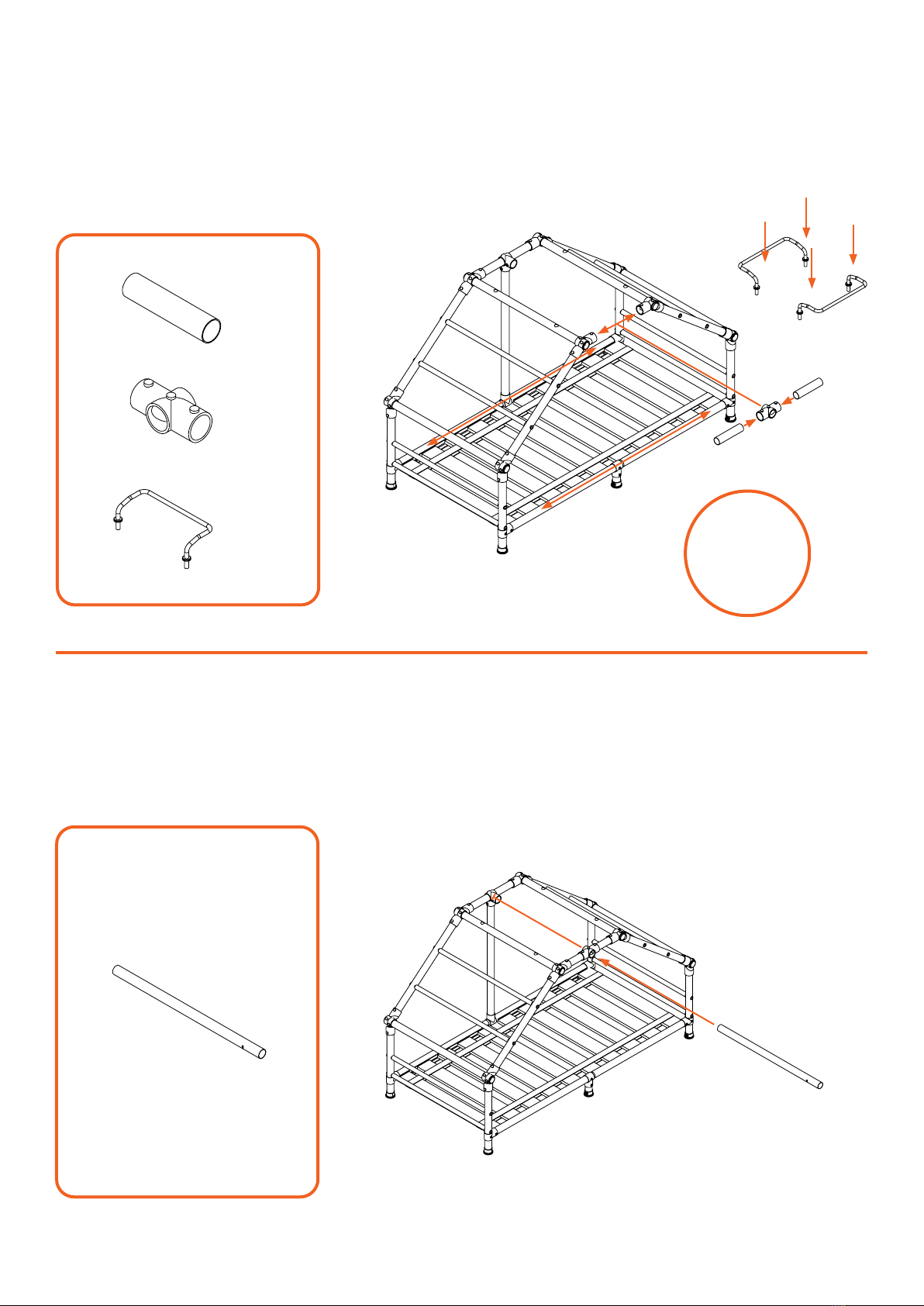

STEP 21
STEP 22
1x
2x
1x
• Attach both C3 poles to D8 joiner, do not tighten grub screws.
• Slide into climbing frame as shown, then use guard rail D1 to align top of frame.
• Double make sure frame tubes are still level to the floor and then tighten all grub screws.
• Remove guard rails after grub screws are tight.
• Slide telescopic outer tube (E4) into climbing frame until inserted into 4-way joiner
• Secure in place by tightening grub screws.
Remove guard
rails after grub
screws are
tight!
C3
D8 C3
C3
D8
E4 E4
D1
2x
D1
D1

20
STEP 23
STEP 24: END CLIMBING FRAME
1x

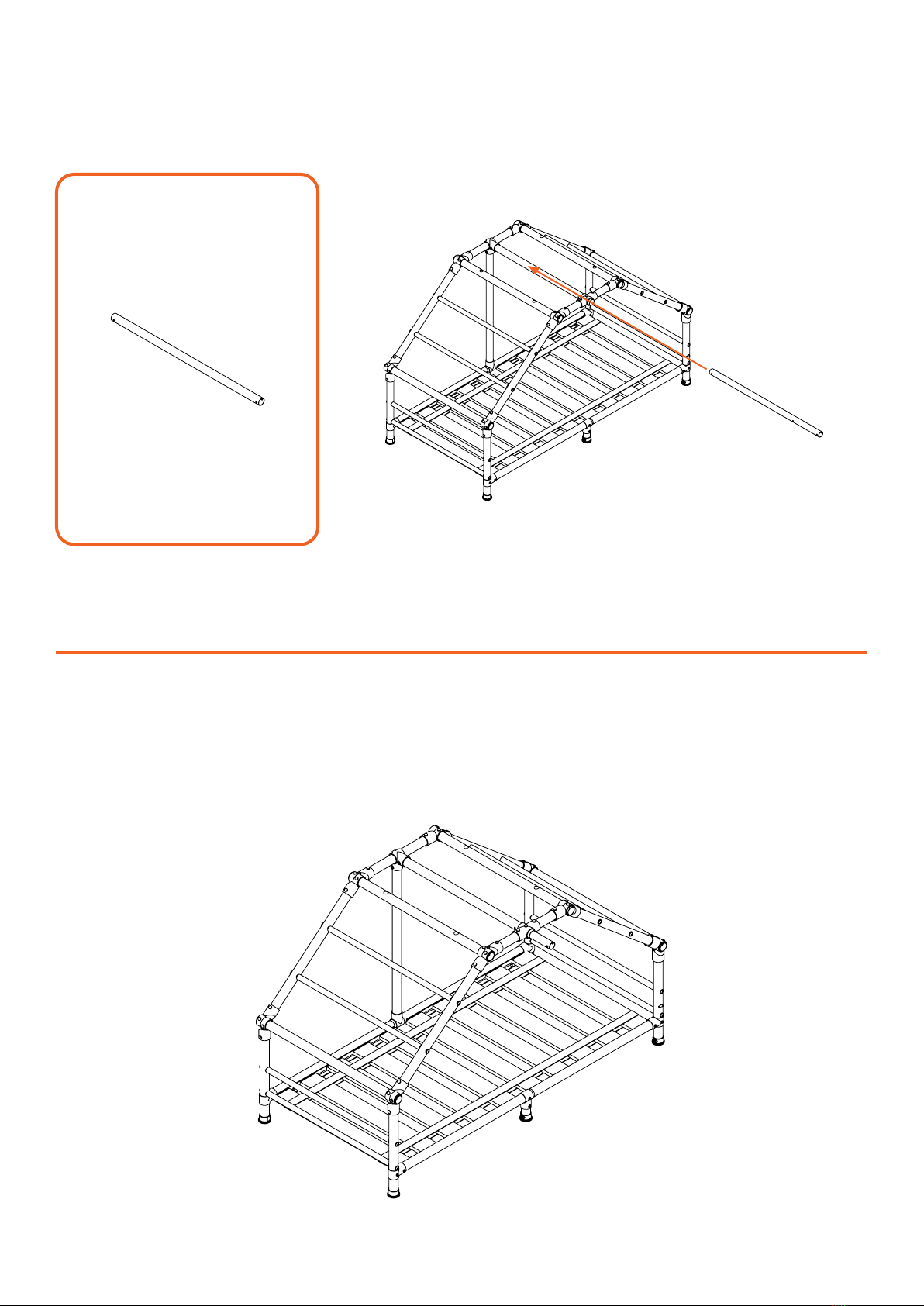

• Insert telescopic inner tube (D6) with the push pin first.
• Insert until only 150mm of tube remains exposed.
CHECK! Make sure climbing frame is assembled thus far as shown.
D6 D6
