ULT Freezer 1-1VWR International
Section 1 Installation and Start-up
Figures 1-1 and 1-2 show the front view of the freezer and indicate the
following freezer components:
• Control Panel - keypad, displays and indicators
• BUS (Optional Back Up System) panel
• Optional temperature recorder (7 day, one pen) or datalogger
• Key lock - keyed lid lock
Figure 1-1. Front View Models 5708, 5709
Figure 1-2. Front View Models 5712, 5715, 5720, 5721

1-2 ULT Freezer VWR International
Section 1
Installation and Start-up

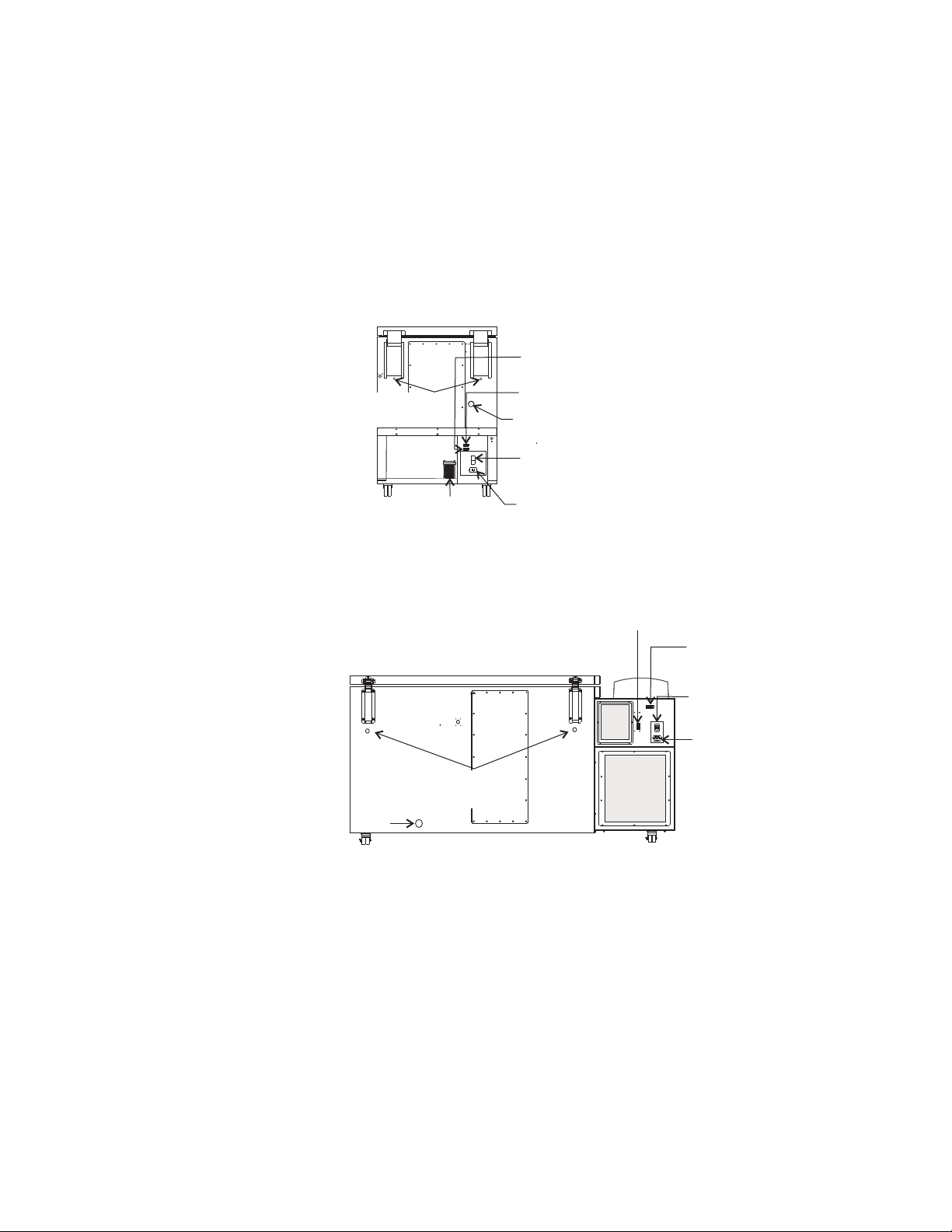

Figures 1-3 and 1-4 display the rear view of the freezer and indicate the
following freezer components:
• Remote alarm contacts.
• Power inlet for power cord connection.
• Optional BUS connections for probe and solenoid.
• Power Switch (mains disconnect).
Remote Alarm
Contacts
Optional BUS Connections
Power Inlet
Power Switch
(mains disconnect)
Threaded holes for
wall bumpers
Access
Port
Optional
BUS battery
I
O
Optional
BUS Connections
Remote Alarm Contacts
Power Switch
(mains disconnect)
Power Inlet
Threaded holes for
wall bumpers Access Port
Figure 1-3. Rear View Models 5708, 5709
Figure 1-4. Rear View Models 5712, 5715, 5720, 5721

ULT Freezer 1-3VWR International
Section 1
Installation and Start-up

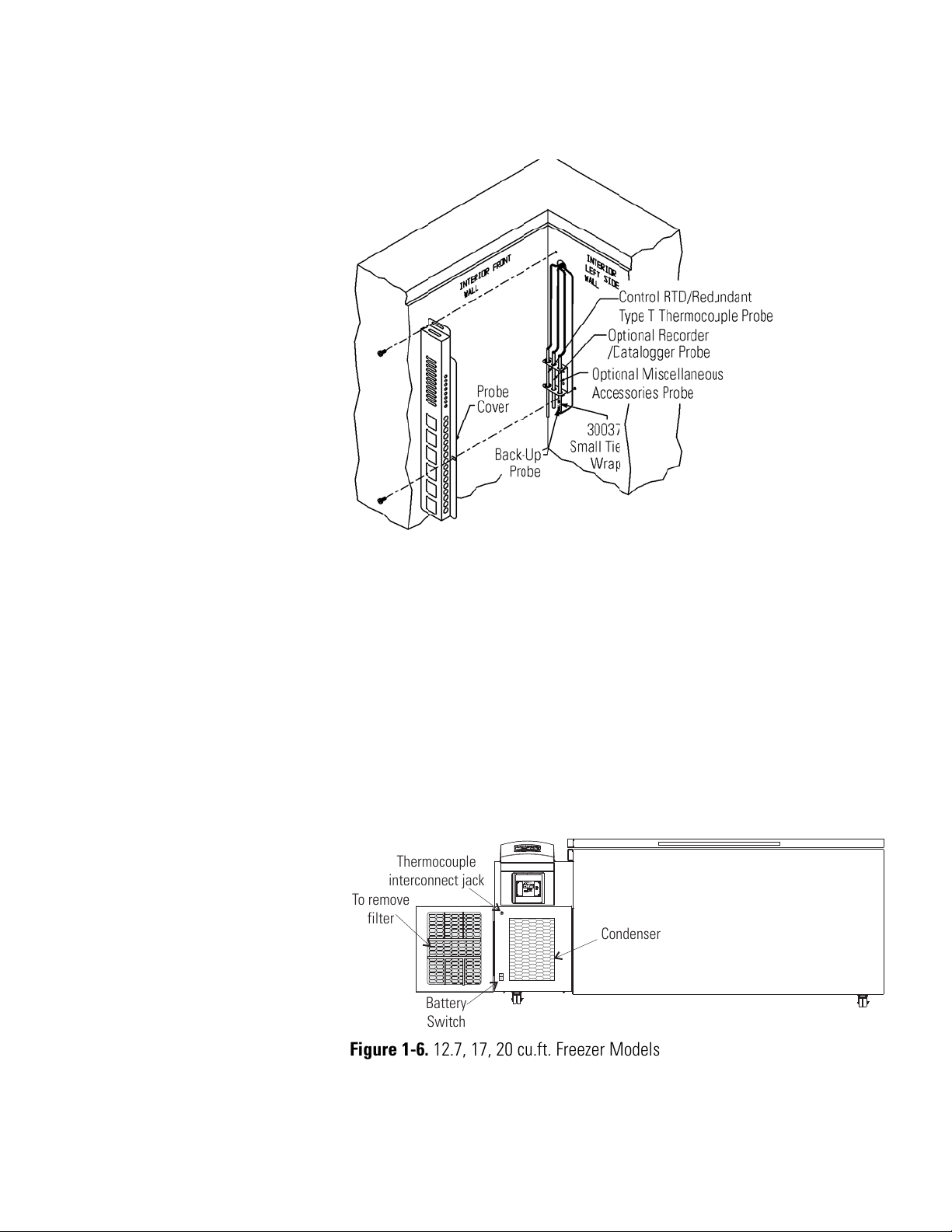

The probe cover houses the control, optional recorder, datalogger, 1535
alarm, or BUS probes.
Figures 1-6, 1-7, and 1-8 indicate the following components:
• Freezer filter location.
• Battery power switch (freezer and BUS).
• Thermocouple receptacle.
• Battery mounting bracket .
• Freezer and optional BUS battery.
Figure 1-5. Probe Cover
aaaaaaa
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
aaaaa
a
a
a
a
a
a
a
a
CF
%RH
Alarm
Sensor
To remove
filter
Thermocouple
interconnect jack
O
Battery
Switch
Condenser
Figure 1-6. 12.7, 17, 20 cu.ft. Freezer Models 5712, 5715, 5720, 5721

1-4 ULT Freezer VWR International
Section 1
Installation and Start-up
O
aaaaaaaa
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
aaaaaa
a
a
a
a
a
a
a
aa
O
System
battery
Battery
switch
Thermocouple
interconnect jack
To
remove filter
Figure 1-7. Freezer Left Side - Sidecar panel removed
Figure 1-8. 3 cu. ft. Freezers - Models 5708 and 5709

1. Temperature Display - Displays temperature in degrees Celsius.
2. Mode Select Switch - Used to select Run, Set Temperature, Set High
Alarm, Set Low Alarm, Calibrate, Backup.
3. Alarm Indicator - Light pulses on/off during an alarm condition of the
cabinet.
4. Mute - Silences the audible alarm.
5. Alarm Panel - Indicates the current alarm condition.
6. Up and Down Arrows - Increases or decreases values, toggles between
choices.
7. Enter - Stores the value into memory.
ULT Freezer 1-5VWR International
Section 1
Installation and Start-up
Temperature
Display
Mode
Key
Alarm
Indicator
Mute
Key
Alarm
Panel
Up and Down
Arrows
Enter key
Control Panel Keys,
Display, Indicators
Figure 1-9. Control Panel Keys, Display and Indicators

The Model 5700 Series freezer has five basic modes which allow freezer
setup and operation. Press the Mode key to scroll through the mode
selections.
Up Arrow: Increases or toggles the parameter value.
Enter: Must press Enter key to save to memory all
changed values.
Down Arrow: Decreases or toggles the parameter value.
Mute Key: Press to silence the audible alarm. See Section 4
for alarm ringback times.
Note If tipped more than 45°, allow the unit to set upright for 24 hours
before start up. s
To remove the freezer from the pallet, use a 7/16" wrench to remove all the
bolts securing the shipping bracket to the pallet.
Remove the shipping bracket. Remove the ramp boards from the pallet and
place the slotted end over the ramp brackets on the pallet. The support
blocks on the ramps will be facing down. Before moving the freezer, make
sure the casters are unlocked and moving freely. Align the caster with the
ramp boards. Use adequate personnel to roll the freezer off the pallet.
The freezer can be easily pushed to the desired approved location,
described in the following section. When the freezer is in position, set the
front caster brakes.
Note Do not move the freezer with the product load inside. s
Locate the freezer on a firm, level surface in an area with an ambient
temperature between 18°C and 32°C. Provide ample room to reach the
mains disconnect switch (power switch) located on the rear of the freezer.
Note For proper ventilation and airflow, a minimum clearance of 5” at the
rear and front and a clearance of 8” on the side of the freezer is required.
Allow adequate space for lid opening. If ambient increases above 36°C,
clearance at the rear of the cabinet must be increased to 8”. s
1-6 ULT Freezer VWR International
Section 1
Installation and Start-up
Operation of the
Keypad
Install Freezer
Choose Location

The parts bag, located inside the cabinet, contains the following parts.
Install the bolts into the pre-tapped holes on the back of the freezer. Install
a neoprene cap on each bolt. Refer to Figures 1-3 and 1-4 for the locations
of the pre-tapped holes.
See Figures 1-3 and 1-4 for the location of the remote alarm contacts. The
remote alarm connector is located in the parts bag provided with the
manual. It must be installed if connecting the freezer to an alarm system.
After installing the wiring from the alarm system to the connector, install
the connector to the freezer microboard and secure with the two screws
provided. The remote alarm provides a NO (normally open) output, a NC
normally closed) output and COM (common). The contacts will trip on a
power outage, high temperature alarm or low temperature alarm. They will
also trip on high stage, control probe and microboard failures. Figure 1-10
shows the remote contacts in alarm state.
ULT Freezer 1-7VWR International
Section 1
Installation and Start-up
Install Wall Bumpers
Quantity Stock # Description Purpose
2510016 1/4-20 x 5-1/2” Bolt Wall Bumper
2380520 Neoprene Cap Cap Protector
Remote Alarm Contacts
IMPORTANT USER INFORMATION
IMPORTANT USER INFORMATION
Caution! Stored product should be protected
by a redundant 24 hour/day monitoring
system with alarm capability. An interconnect
jack and thermocouple are installed
for centralized monitoring should on-board
system fail.
Figure 1-10. Remote Alarm Contacts

Insert the power cord into the power inlet module. Place the retaining
bracket (P/N 195763) over the connector. Tighten retaining screws to
secure.
Note See the serial tag on the side of the unit for electrical specifications or
refer to the electrical schematics in this manual. s
The freezer should be operated on a dedicated grounded service. Check the
voltage rating on the serial tag of the unit and compare it with the outlet
voltage. Then, with the power switch turned off, plug the line cord into
the wall outlet.
First, turn on the freezer power switch. Then open the lower front door by
grasping the bottom left corner. Locate the battery switch (Figures 1-3 and
1-4.) and turn it to Standby mode ( ). During initial freezer start-up, the
system battery may require charging and the Low Battery message may
appear in the message center.
Note Ensure the battery switch is turned to Standby mode ( ). The
rechargeable batteries require 36 hours to charge at initial start-up. A “Low
Battery” alarm may occur until the batteries are fully charged. Should a
power failure occur during the initial start-up period, the electronics will
have limited operation. s
1-8 ULT Freezer VWR International
Section 1
Installation and Start-up
Attach Power Cord
Figure 1-11. Power Cord Retaining Bracket
Connect Unit to Electrical
Power

With the freezer properly installed and connected to power, system set
points can be entered. The following set points can be entered in Settings
mode: Control temperature, high temperature alarm set point, low
temperature alarm set point, and (optional) BUS set point. Default settings
are shown below.
Note If the set point is changed and the low temperature and high
temperature alarms are set 10° from the set point, the alarm set points will
be adjusted automatically to maintain a distance of at least 10° from set
point. s
The freezer has an operating temperature range of -50°C to -86°C,
depending on ambient temperature. The freezer is shipped from the
factory with a temperature set point of -80°C. To change the operating
temperature set point:
1. Press the Mode key until the Set Temperature indicator lights.
2. Press the up/down arrow key until the desired temperature set point is
displayed.
3. Press Enter to save the set point.
4. Press the Mode key until the Run indicator lights for Run mode
If no keys are pressed, the freezer will automatically return to Run mode
after 5 minutes.
ULT Freezer 1-9VWR International
Section 1
Installation and Start-up
Control Set Point -80°C
High Temperature Alarm -70°C
Low temperature alarm -90°C
Optional BUS Set Point -60°C
Freezer Start-Up
Set Operating Temperature

The high temperature alarm activates an audible/visual warning when the
freezer chamber temperature has reached or exceeded the high temperature
alarm set point.
To set the high temperature alarm set point:
1. Press the Mode key until the Set High Alarm indicator lights.
2. Press the up or down arrow key until the desired high temperature
alarm set point is displayed.
3. Press Enter to save the setting.
4. Press the Mode key until the Run indicator lights for Run mode.
If no control keys are pressed, the freezer automatically returns to Run
mode after 5 minutes.
Note The high alarm set point must be set at least 5°C from the control
set point. s
Note At initial start-up, the high temperature alarm is disabled until the
cabinet reaches set point, or 12 hours elapse. s
The low temperature alarm activates an audible/visual warning when the
freezer chamber temperature has reached or decreased below the low
temperature alarm set point.
To set the low temperature alarm set point:
1. Press the Mode key until the Set Low Alarm indicator lights.
2. Press the up or down arrow key until the desired low temperature
alarm set point is displayed.
3. Press Enter to save the setting.
4. Press the Mode key until the Run indicator lights for Run mode.
If no control keys are pressed, the freezer will automatically return to Run
mode after 5 minutes.
Note The low alarm set point must be set at least 5°C from the control set
point. s
1-10 ULT Freezer VWR International
Section 1
Installation and Start-up
Set High Temperature
Alarm
Set Low Temperature
Alarm

Run mode is the default mode for the freezer. Run mode displays the
cabinet temperature on the temperature display under normal operating
conditions. In addition, the Run mode allows the high stage heat exchange
temperature to be displayed.
This information is scrolled by pressing the up or down arrow keys. The
display returns to the operating temperature in 10 seconds if no keys are
pressed.
ULT Freezer 1-11VWR International
Section 1
Installation and Start-up
Run Mode

ULT Freezer 2-1VWR International
Section 2 Calibrate
Once the freezer has stabilized, the control probe may need to be
calibrated. Calibration frequency is dependent on use, ambient conditions
and accuracy required. A good laboratory practice would require at least an
annual calibration check. On new installations, all parameters should be
checked after the stabilization period.
Before making any calibration or adjustments to the unit, it is imperative
that all reference instruments be properly calibrated.
Plug a type T thermocouple reader into the receptacle located inside the
lower door (see Figures 1-4 and 1-6). Compare the control temperature
set point to the temperature of the measuring device.
1. Press the Mode key until the Calibrate indicator lights.
2. Press up/down arrow to match the display to calibrated instrument.
3. Press Enter to store calibration.
4. Press the Mode key to return to Run mode.
Startup - Allow 12 hours for the temperature in the cabinet to stabilize
before proceeding.
Already Operating - Allow at least 2 hours after the display reaches set
point for temperature to stabilize before proceeding.
Note During calibration, the temperature display will not be available. s
If no keys are pressed for approximately 5 minutes while in calibration
mode, the system will reset to Run mode.
Calibrating the
Control Probe
Temperature Stabilization
Periods
