Vynco 88PBD450 User manual

INSTALLATION INSTRUCTIONS
AUCKLAND
9 Levene Place, Mount Wellington
PO Box 12 249, Penrose, Auckland 1061
New Zealand
P [phone]
VYNCO INDUSTRIES (NZ) LIMITED
CHRISTCHURCH
388 Tuam Street, Phillipstown, Christchurch, 8011
PO Box 9022, Tower Junction, Christchurch 8149
New Zealand
P [phone]
E [email protected]
VYNCO.CO.NZ

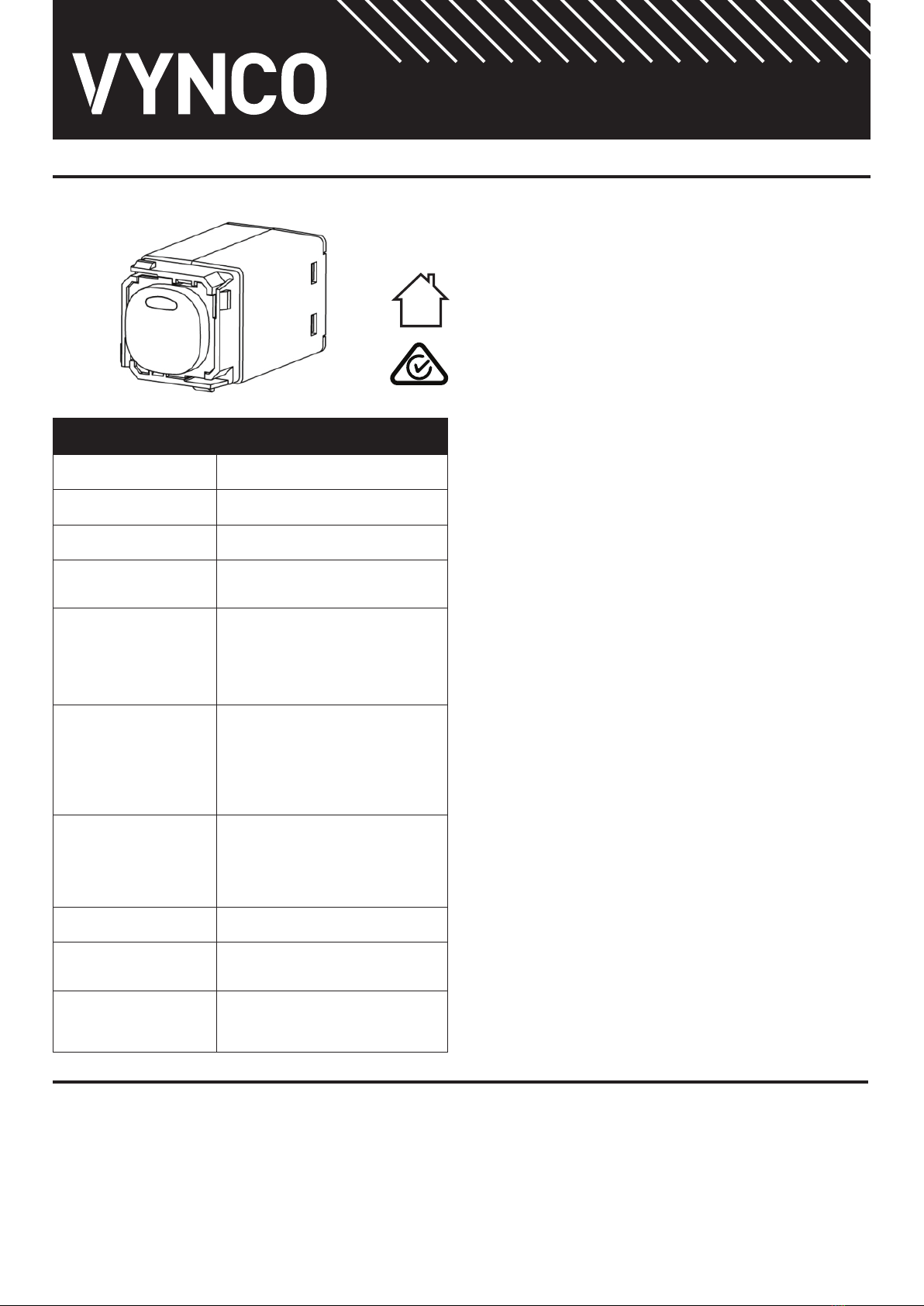

88PBD450 / 88PBD450B - PUSH BUTTON DIMMER
INSV0004
SAFETY
Always turn off the power at the circuit beaker
(MCB) to isolate the circuit before changing the
load. Not suitable for mixed loads – it is important
all the lamps on the circuit are the same type.
Not suitable for controlling motors of any size.
Suitable for two way switching. The status LED
will ash continually if a fault such as an overload
or over temperature occurs. The dimmer can be
manually reset by switching it off at the circuit
breaker and then on again.
The 88PBD450 is a solid state device, 240V will
be present at the load even when the dimmer is
switched off. The power must be switched off at the
circuit breaker (MCB) to isolate the circuit before
replacing faulty lighting loads or blown lamps.
This dimmer must be tted to a wall plate and
installed on a suitable enclosure (mounting block
or ush box). The input terminals and wires should
not be accessible when the product is being used.
This product complies in full with AS/NZS 3000.
This product should be installed by a suitably
qualied person in accordance with Australian
and New Zealand wiring rules.
WARRANTY
This product is covered by the standard 5 Year Vynco
Warranty - proof of purchase is required. Please
contact Vynco for details of returns procedure.
NOTE: This product contains NO user serviceable parts.
SPECIFICATIONS
Input Voltage 220 - 240V AC, 50Hz
Operation Temperature 0 to 60°C
Maximum Load Rating 450W
Over Temperature
Protection
Yes - manual restting.
Turn MCB off and on to reset
Restrike Feature
Yes - turns the load on to maximum
briey before dimming to the preset level.
Caution: If the restrike is OFF the load
may not turn on at very low levels.
Adjustable Minimum
Dimming Level
Yes – allows the minimum dimming
level to be set at a point that best suits
the load.
Only set to very low levels in
conjunction with the restrike feature.
Auto Select Load Suitability
Dimmable LED, incandescent, halogen,
electronic transformers, iron core
transformers, dimmable CFL.
Not suitable for motor loads.
Humidity 15-85% Non-Condensing
Switch Plate Compatibility Fits all common Vynco
and Clipsal wall plates
Complies With
AS/NZS CISPR15:2011
AS/NZS 60669.2.1:2003
SAA171862

INSTALLATION INSTRUCTIONS
VYNCO.CO.NZ
88PBD450 / 88PBD450B - PUSH BUTTON DIMMER

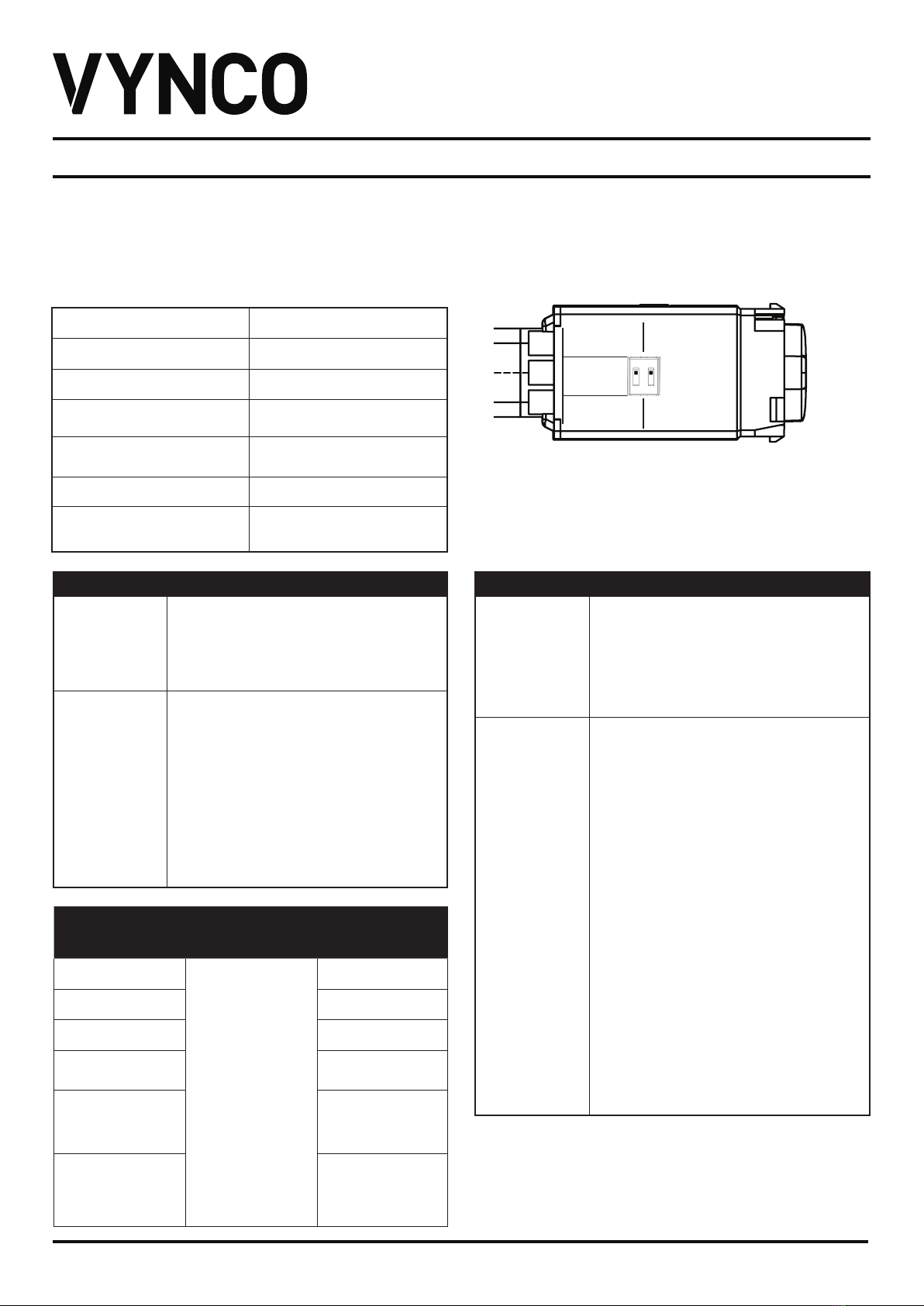

The dimmer has a blue status indicating LED.
The LED will indicate the following modes as
listed below.
Dimmer load is on LED will be ON - 1/2 Brightness
Dimmer load is off LED will be ON - 1/2 Brightness
No power to the dimmer LED will be OFF
2 Way circuit where dimmer
module is the slave LED will be OFF
Dimmer load at a maximum
or minimum LED will ash
Button is pressed LED will be maximum brightness
Dimmer is in fault mode –
Overload / Over temperature
LED will ash continuously until
the dimmer shuts down.
STATUS INDICATION
LOAD
ACTIVE
NEUTRAL
88PBD450 " 2-way switching "
REMOTE
LOAD
ACTIVE
MINIMUM
DIMMING
LEVEL
RESET
SET
RESTRIKE
OFF
RESTRIKE
ON
OPERATION
Short Button
Press
A quick press of the button will turn the dimmer
On or Off
When the dimmer is turned on it will restore the
brightness to the last dimmed level.
Long Button
Press
A long press of the button will ramp the
brightness up or down until the button is
released or the brightness maximum or
minimum is reached.
The ramp direction will change when the button
is released for at least 0.5 seconds and then held
down again.
The dimmer will automatically stop ramping
up or down when the maximum or minimum
point is reached. The LED ashes to indicate the
maximum or minimum point is reached.
RESTRIKE AND MINIMUM DIMMING SETTINGS
Restrike Switch
OFF – the dimmer turns on at last dimmed level.
Caution: if the restrike is OFF the load may not
turn on at very low levels
ON – turns the load on maximum brightness
briey before dimming to the last dimmed level.
Setting the
Minimum
Dimming Level
If the preset minimum dimming level is
acceptable leave the DIP switch to reset.
Reset is the recommended setting for most
applications.
For incandscent loads the restrike feature
should be left off and the minimum dimming
level left at reset.
If the preset dimming level is too high or too low
follow the following steps -
1. Turn the load on and dim to the desired
minimum level.
2. Turn off the dimmer (use the Push Button).
3. Set the DIP switch from rest to reset.
4. Turn the dimmer ON (use the Push Button).
The dimmer will now be set to the desired
minimum level.
To return the dimmer to the factory settings or
to set the minimum dimming level again turn the
DIP switch to reset.
CAUTION: adjusting the DIP switches should only
be carried out by electrically trained installers.
LOAD TYPE LOAD
TYPICAL MAXIMUM
LOADING PER
DIMMER
LED downlights
0W - 450W
Always derate the
dimmer’s capacity by
the power factor
when calculating
maximum load
450W
Incandescent 7 x 60W to 4 x 100W
Halogen 6 x 70W
50W Dichroic
GU10 240V 9 x 50W
50W Dichroic
12V iron core
transformer
5 x 50W
50W Dichroic
12V electronic
transformer
9 x 50W (pf 0.9)

INSTALLATION INSTRUCTIONS
VYNCO.CO.NZ
88PBD450 / 88PBD450B - PUSH BUTTON DIMMER

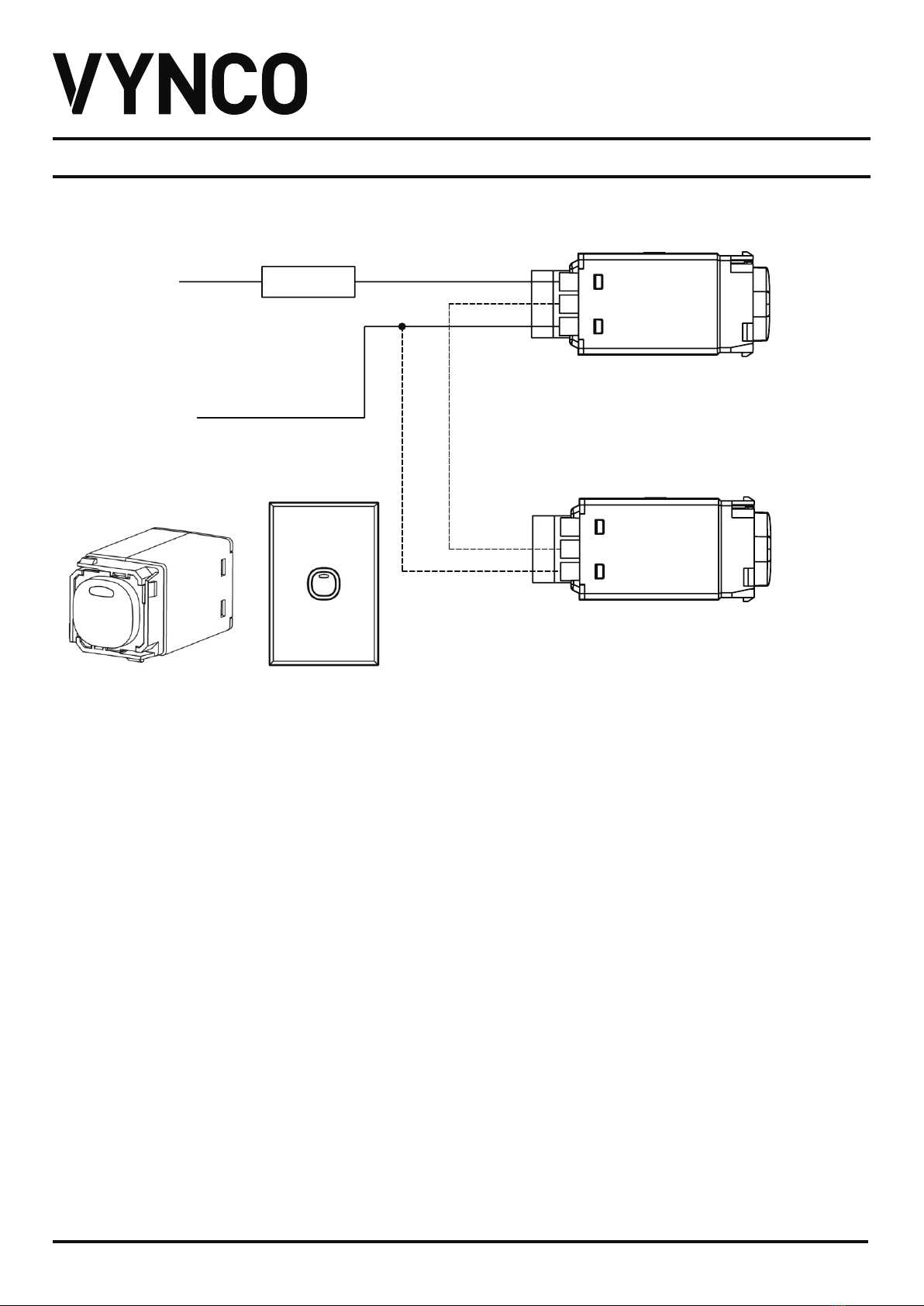

WIRING DIAGRAM
REMOTE
LOAD
ACTIVE
LOAD
ACTIVE
NEUTRAL
88PBD450
88PBD450 " 2-way switching "
REMOTE
LOAD
ACTIVE
