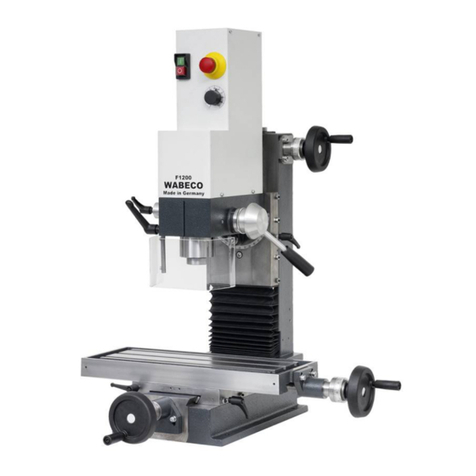

WABECO F1200 high speed User manual

Operating instructions
Milling machines
CNC milling machines
with dovetail guides
F1200 F1200 hs F1210 F1210 hs
F1200-C F1200-C hs F1210-C F1210-C hs
CC-F1200 CC-F1200 hs CC-F1210 CC-F1210 hs

2
Please read before putting into operation for the first time!
Every person that operates the machine, maintains or repairs it, must have read the operating
instructions, and in particular, the safety notes prior to putting the machine into operation.
Please store these documents for subsequent use
Original version in German/translation in English
Status at 09/2014
Dear Customer!
With the purchase of the WABECO machine you have decided in favour of a quality tool. This
machine has been manufactured with the greatest of care and subject to precise quality controls.
These operating instructions are designed to help your to use your new machine safely and correctly.
For this reason, we ask you to read the appropriate notes through attentively and to take care to
observe them.
After unpacking the tool, check whether any transportation damages have occurred. Complaints,
whatever their nature, should be communicated immediately. Subsequent claims cannot be
recognised.
For all queries and replacement part orders, please always specify the machine number (see type
plate).
Reprinting and reproductions of any kind, even extracts, require the written permission of
WABECO
Disposing of the machine
The transportation and protective packaging is made of the following materials:
■ Corrugated card
■ Polystyrene without Freon
■ Polyethylene foil
■ Timber as single-use pallet (untreated)
■ Euro pallet (multiple use packaging)
If you no longer need the items, or you do not want to reuse them, dispose of these items at the
officially recognised recycling points.
The machine is manufactured in such a way that 98% of the used materials that can be recycled, for
example, steel, cast iron, aluminium and only 2% are chemical materials, e.g. cable sleeves of
electrical cables, PCBs.
If you have any difficulties in disposing of these parts properly, we would be happy to help: with prior
agreement we will take back the machine in full and dispose of it. You must, however, cover the costs
of sending it to us.
wabeco-rs.de
Walter Blombach GmbH
42899 Remscheid, Germany
Am Blaffertsberg 13
Germany
Phone [phone]
Fax [phone]
Email [email protected]

3
Contents
Declaration of conformity for F1200 - F1200 hs - F1210 - F1210 hs 8
Declaration of conformity for F1200-C - F1200-C hs - F1210-C - F1210-C hs 9
Declaration of conformity for CC-F1200 - CC-F1200 hs - CC-F1210 - 10
CC-F1210 hs
1. Important safety notes 11
1.1 Intended use 11
1.2 Improper and incorrect use 11
1.3 Modifications to the machine 11
1.4 Safety regulations for proper use 11
1.5 Safety features 14
1.5.1 for all milling machines 14
1.5.2 for milling machines with CNC control assembly and CNC 14
1.5.3 for CNC milling machines 14
1.6 Explanations of the symbols 15
2. Delivery and set up 15
2.1 Transporting the machine 16
3. Putting into operation 17
3.1 for all milling machines 17
3.2 for all CNC milling machines 17
3.2.1 Setting up and connecting the control computer 17
4. Specifications regarding the machine 18
4.1 Identification of the model 18
4.2 Noise emission declaration F1200 - F1200 hs - F1210 - F1210 hs 18
4.2.1 Technical data for F1200 - F1200 hs 19
4.2.2 Dimensions of F1200 with 1.4 kW motor 20
4.2.3 Dimensions of F1200 hs with 2.0 kW motor 21
4.2.4 Technical data for F1210 - F1210 hs 22
4.2.5 Dimensions of F1210 with 1.4 kW motor 23
4.2.6 Dimensions of F1210 hs with 2.0 kW motor 24
4.3 Noise emission declaration 25
F1200-C - F1200-C hs - F1210-C - F1210-C hs
4.3.1 Technical data for F1200-C - F1200-C hs 26
4.3.2 Dimensions of F1200-C 27
4.3.3 Dimensions of F1200-C hs 28
4.3.4 Technical data for F1210-C - F1210-C hs 29
4.3.5 Dimensions of F1210-C 30
4.3.6 Dimensions of F1210-C hs 31

4
Contents
4.4 Noise emission declaration 32
CC-F1200 - CC-F1200 hs - CC-F1210 - CC-F1210 hs
4.4.1 Technical data for CC-F1200 - CC-F1200 hs 33
4.4.2 Dimensions of CC-F1200 34
4.4.3 Dimensions of CC-F1200 hs 35
4.4.4 Technical data for CC-F1210 - CC-F1210 hs 36
4.4.5 Dimensions of CC-F1210 37
4.4.6 Dimensions of CC-F1210 hs 38
4.5 Revolution setting 39
4.6 Electrical equipment 1.4 kW motor 39
4.7 Electrical equipment 2.0 kW motor 40
5. Achieving optimum results 40
and avoiding incorrect usage
6. Fitting and removing the tools 42
7. Installation and removal of collets 44
7.1 Installation 44
7.2 Removal 44
8. Swivelling the milling head 45
9. Drill stroke - depth stop 46
10. Feed motions of the x, y and z axes 47
11. Adjustment of the spindle nuts with trapezoidal-threaded spindle 49
11.1 x and y axes 49
11.2 z-axis 50
12. Adjustment of the dovetail guides 51
13. Maintenance 52
14. Lubrication of the machine 52
15. Operational faults and the elimination of such 54
16. Operating elements 57
16.1 Milling machines F1200 - F1210 with 1.4 kW motor 57
16.2 Milling machines F1200 hs - F1210 hs with 2.0 kW motor 58
16.3 Milling machines F1200-C - F1210-C with 1.4 kW motor 59
16.4 Milling machines F1200-C hs - F1210-C hs with 2.0 kW motor 60
16.5 CNC milling machines CC-F1200 - CC-F1210 with 1.4 kW motor 61
16.5.1 Switch cover on CNC operating console 62
16.6 CNC milling machines CC-F1200 hs - CC-F1210 hs with 2.0 kW motor 63
16.6.1 Switch cover on CNC operating console 64

5
Contents
17. Drawings and legends 65
17.1 Protective hood 65
17.2 Electronic hood with 1.4 kW motor 66
17.2.1 F1200 - F1210 - F1200-C - F1210-C 66
17.2.2 CC-F1200 - CC-F1210 68
17.3 Milling machine head with 1.4 kW motor 70
17.4 Milling machine head with 2.0 kW motor 72
17.5 Z-stand with vertical skid with trapezoidal-threaded spindle 76
17.6 Spindle z-axis with trapezoidal-threaded spindle 78
17.6.1 F1200 - F1200 hs - F1210 - F1210 hs 78
17.6.2 F1200-C - F1200-C hs - F1210-C - F1210-C hs - 80
CC-F1200 - CC-F1200 hs - CC-F1210 - CC-F1210 hs
17.7 Lateral drive for z-axis with trapezoidal-threaded spindle 82
17.8 Cross-slide support with trapezoidal-threaded spindle 84
17.9 Spindle x-axis with trapezoidal-threaded spindle 86
17.9.1 F1200 - F1200 hs - F1210 - F1210 hs 86
17.9.2 F1200-C - F1200-C hs - F1210-C - F1210-C hs - 88
CC-F1200 - CC-F1200 hs - CC-F1210 - CC-F1210 hs
17.10 Spindle y-axis with trapezoidal-threaded spindle 90
17.10.1 F1200 - F1200 hs - F1210 - F1210 hs 90
17.10.2 F1200-C - F1200-C hs - F1210-C - F1210-C hs - 92
CC-F1200 - CC-F1200 hs - CC-F1210 - CC-F1210 hs
17.11 Z-stand with vertical skid with ball screw spindle 94
17.12 Spindle z-axis with ball screw spindle 96
17.12.1 F1200 - F1200 hs - F1210 - F1210 hs 96
17.12.2 F1200-C - F1200-C hs - F1210-C - F1210-C hs - 98
CC-F1200 - CC-F1200 hs - CC-F1210- CC F1210 hs
17.13 Lateral drive for z-axis with ball screw spindle 100
17.14 Cross slide support with ball screw spindle 102
17.15 Spindle x-axis with ball screw spindle 104
17.15.1 F1200 - F1200 hs - F1210 - F1210 hs 104
17.15.2 F1200-C - F1200-C hs - F1210-C - F1210-C hs - 106
CC-F1200 - CC-F1200 hs - CC-F1210 - CC-F1210 hs
17.16 Spindle y-axis with ball screw spindle 108
17.16.1 F1200 - F1200 hs - F1210 - F1210 hs 108
17.16.2 F1200-C - F1200-C hs - F1210-C - F1210-C hs - 110
CC-F1200 - CC-F1200 hs - CC-F1210 - CC-F1210 hs

6
Contents
17.17 End switch for x-axis 112
17.17.1 F1200-C - F1200-C hs - F1210-C - F1210-C hs - 112
CC-F1200 - CC-F1200 hs - CC-F1210 - CC-F1210 hs
17.18 End switch for y-axis 112
17.18.1 F1200-C - F1200-C hs - F1210-C - F1210-C hs - 112
CC-F1200 - CC-F1200 hs - CC-F1210 - CC-F1210 hs
17.19 End switch for z-axis 113
17.19.1 F1200-C - F1200-C hs - F1210-C - F1210-C hs - 113
CC-F1200 - CC-F1200 hs - CC-F1210 - CC-F1210 hs
17.20 Operating console for 1.4 kW motor 114
17.21 Operating console for 2.0 kW motor 118
17.22 Bracket arm for operating console 122
17.23 Industrial monitor and folio keyboard 124
17.23.1 Industrial monitor and folio keyboard for 1.4 kW motor 126
17.23.2 Industrial monitor and folio keyboard for 2.0 kW motor 128
17.24 Bracket arm for operating console with industrial monitor and folio keyboard 130
18. Circuit diagram 131
18.1 for 1.4 kW motor 131
18.2 for 1.4 kW motor and safety cabin 132
18.3 Industrial monitor and folio keyboard for 1.4 kW motor 133
18.4 for 2.0 kW motor 134
18.5 for 2.0 kW motor and safety cabin 135
18.6 Industrial monitor and folio keyboard for 2.0 kW 136
18.7 Multiphase motor with end stop 137
18.8 NC rotary table 138
18.9 Legend for circuit diagrams 139
19. Coolant system (optional) 140
19.1 Setting up the coolant system 140
19.2 Mounting of the coolant system to the
tool machine cabinet (optional) 140
19.3 Mounting of the coolant return tray (optional) 141
19.4 Safety regulations for the handling of cooling lubricant 142
19.5 Filling the coolant system 142
19.6 Operating the coolant system without CNC control 143
19.7 Operating the coolant system with CNC control 143
19.8 Positioning the segmented coolant hose 144
19.9 Controlling the flow of coolant using the coolant shut-off valve 144
19.10 Drawing and legend 145

7
Contents
20. Safety cabin (optional) 146
20.1 Setting up the safety cabin 146
20.2 Mounting of the safety cabin to the
tool machine cabinet (optional) 146
20.3 Safety regulations for the handling of cooling lubricant 147
20.4 Filling the coolant system integrated in the safety cabin 147
20.5 Operating the coolant system with CNC control 147
20.6 Positioning the segmented coolant hose 147
20.7 Controlling the flow of coolant using the coolant shut-off valve 147
20.8 Drawing and legend 148
21. Holding bracket (optional) 149
21.1 Mounting the holding bracket to the milling machine 149
21.2 Inserting the drive into the holding bracket 150
21.3 Drawing and legend 150
22. NC rotary table (optional) 151
22.1 Clamping of work pieces on the NC rotary table 151
22.2 Swivelling the worm shaft in and out 151
22.3 Setting the axial play oft he NC rotary table 152
22.4 Removing the NC drive unit 153
22.5 Setting the axial play of the worm shaft 154
22.6 Setting the axial play of the eccentric tappet 154
22.7 Drawing and legend 155

8
Declaration of conformity
We hereby declare, in the name of the manufacturer
Walter Blombach GmbH
Werkzeug- und Maschinenfabrik
with headquarters in Remscheid and Neuerburg
D-42871 Remscheid Postfach 12 01 61 Telephone: [phone] Fax: [phone]
D-54673 Neuerburg WABECO Str. 1-10 Telephone: [phone] Fax: [phone]
that the following named
Universal boring and milling machine
Type:
F1200 - F1200 hs
F1210 - F1210 hs
in the serial version, meets the following relevant regulations
- EU Machine Directive 2006/42/EC
- EMC Directive 2004/108/EC
- EU Low Voltage Directive 2006/95/EC
In order to fulfil/implement the requirements of the directives named above, the already
published and applicable standards were drawn upon:
EN ISO 12100:2010
DIN EN 60204-1:2006
EN ISO 13128:2009
Proxy for the compilation of the technical documentation is the operational head of the
above named manufacturer, Mr Christoph Schneider.
D-54673 Neuerburg 2014
________________________________
Place and date of issue
Operational head Christoph Schneider

9
Declaration of conformity
We hereby declare, in the name of the manufacturer
Walter Blombach GmbH
Werkzeug- und Maschinenfabrik
with headquarters in Remscheid and Neuerburg
D-42871 Remscheid Postfach 12 01 61 Telephone: [phone] Fax: [phone]
D-54673 Neuerburg WABECO Str. 1-10 Telephone: [phone] Fax: [phone]
that the following named
CNC milling machine
Type:
F1200-C - F1200-C hs
F1210-C - F1210-C hs
in the serial version, meets the following relevant regulations
- EU Machine Directive 2006/42/EC
- EMC Directive 2004/108/EC
- EU Low Voltage Directive 2006/95/EC
In order to fulfil/implement the requirements of the directives named above, the already
published and applicable standards were drawn upon:
EN ISO 12100:2010
DIN EN 60204-1:2006
EN ISO 13128:2009
Proxy for the compilation of the technical documentation is the operational head of the
above named manufacturer, Mr Christoph Schneider.
D-54673 Neuerburg 2014
________________________________
Place and date of issue
Operational head Christoph Schneider

10
Declaration of conformity
We hereby declare, in the name of the manufacturer
Walter Blombach GmbH
Werkzeug- und Maschinenfabrik
with headquarters in Remscheid and Neuerburg
D-42871 Remscheid Postfach 12 01 61 Telephone: [phone] Fax: [phone]
D-54673 Neuerburg WABECO Str. 1-10 Telephone: [phone] Fax: [phone]
that the following named
CNC milling machine
Type:
CC-F1200 - CC-F1200 hs
CC-F1210 - CC-F1210 hs
in the serial version, meets the following relevant regulations
- EU Machine Directive 2006/42/EC
- EMC Directive 2004/108/EC
- EU Low Voltage Directive 2006/95/EC
In order to fulfil/implement the requirements of the directives named above, the already
published and applicable standards were drawn upon:
EN ISO 12100:2010
DIN EN 60204-1:2006
EN ISO 13128:2009
Proxy for the compilation of the technical documentation is the operational head of the
above named manufacturer, Mr Christoph Schneider.
D-54673 Neuerburg 2014
________________________________
Place and date of issue
Operational head Christoph Schneider

11
1. Important safety notes
1.1 Intended use
The milling machines described in these operating instructions are designed for the processing of
metal, plastic and timber only.
To ensure safe operation of the milling machines, the regulations set out in the chapter: "Safety
regulations" must be observed.
1.2 Improper and incorrect use
The milling machines described in these operating instructions have been developed and
manufactured for the purpose named above. Walter Blombach GmbH accepts no responsibility for
property damage and personal injury caused as a result of not intended and incorrect use of the
milling machines.
1.3 Modifications to the machine
For reasons of safety, it is forbidden for the user to make modifications of any type to the milling
machine.
Walter Blombach GmbH accepts no responsibility for property damage and personal injury caused as
a result of any modifications to the milling machine by the user that have not expressly been
authorised by the company.
1.4 Safety regulations for proper use
The machine may represent a source of danger if it is not used correctly. For this reason, it is
important that the following safety regulations are read attentively and observed carefully.
Every person that operates the machine, maintains or repairs it, must have read the operating
instructions, and in particular, the safety notes prior to putting the machine into operation.
In order to fulfil these requirements, these operating instructions must accompany the machine
throughout its entire lifetime and be available for research.
In the event that the machine changes owners, the operating instructions must thus be passed on to
the new owner along with the machine.

12
1. Important safety notes
1.4 Safety regulations for proper use
1. Only specially trained persons may operate the machine. The guarantee and warranty are voided
if damages are caused by improper operation.
2. We remind you that no liability will be accepted for damages caused by not observing these
operating instructions.
3. The operator of the machine is to ensure that at least one copy of the operating instructions is
stored in the immediate vicinity of the machine and available to the people who work with the
machine.
4. The operator is to ensure that the safety and danger notifications on the machine are observed
and that the signs are kept in a legible state.
5. Do not work without goggles.
6. Wear close fitting clothing and, if you have long hair, wear a hair net. Do not wear loose fitting or
loose items (ties, shirt sleeves, jewellery etc.).
7. Gloves may not be worn.
8. In the event of an emission noise level as of 80 dB (A) at the workplace, ear defenders must be
worn.
9. The machine may not operate without supervision.
10. Secure your machine in such a way that it cannot be switched on by children. Persons who have
not been trained may not operate the machine.
11. Before using the machine, make sure it is in good working condition. Pay special attention to any
damage to the grounded plug or the electrical connections. Never operate the machine with a
defective, crushed or exposed cable.
12. Plug the grounded plug into a suitable socket for the machine. The cable for the machine may only
be connected to a safety socket or a connection box. Have the safety socket or connection box
checked by an electrical specialist before hand.
13. The safety socket or connection box must be close enough to the machine that the power cable is
not under strain.
14. When carrying out maintenance and cleaning work, the machine must be switched off and the
grounded plug pulled out.
15. Set-up work is only to be carried out with the machine switched off.
16. Do not reach into the operating machine.

13
1. Important safety notes
1.4 Safety regulations for proper use
17. Always switch the machine off when you are not using it.
18. Remain with the machine until it has come to a standstill.
19. Only have repairs carried out by a qualified specialist! Repair work may only be carried out by
persons who are qualified for the relevant repairs and who are familiar with the appropriate health
and safety requirements.
20. Protect the machine from damp
21. Constantly check the machine for damages. Replace damaged parts only with original parts and
have these replaced by a specialist. The guarantee and warranty is voided if accessories and
replacement parts are use that are not designed for the machine.
22. To avoid insufficient lighting, we recommend setting up a light source that provides a value of at
least 500 Lux at the tool's cutting edge.
23. Do not remove the generated shavings with your hand. Use the appropriate tools (hand-held
sweeper, hook, brush).
24. Tools and work pieces may never be changed when the machine is running.
25. Work pieces must be secured in such a way that they are not moved from their position by the
rotation of the boring or milling machine.
26. Work pieces must be secured by suitable fixtures e.g. prisms, machine vice etc..
27. Chuck keys or similar tools may not be attached to the machine to ensure that they cannot be
caught by the spindle and thrown about.

14
1. Important safety notes
1.5 Safety features
1.5.1 for all milling machines
In order to enable you to work safely with our machines, we have incorporated the following safety
mechanisms. These meet the relevant European safety requirements:
■ Protective hood
The protective hood is secured to the machine housing and is designed to prevent touching of the
rotating tool spindle. The protective hood is constructed in such a way that the working height
(depending on the dimensions of the work piece and tool) can be adjusted. The protective hood
can be swivelled to enable fast exchange of tools.
■ ON/OFF switch with under-voltage trigger
The ON/OFF switch is fitted with an under-voltage trigger, thus, in the event of a power failure, the
machine does not switch itself back on automatically. This prevents risks caused by the
unexpected motion of the tool spindle.
■ Emergency off switch
The emergency off switch acts to quickly stop the machine.
■ Overload protection
The machine is fitted with an overload protection feature. This overload protection feature
switches the main drive motor off automatically when the machine is overloaded. The machine
can only then be switched on after a waiting period.
1.5.2 for Milling machines with CNC control assembly and CNC milling machines
■ Safety cabin (optional)
In CNC mode, the door to the safety cabin must be closed in order for the milling machine to work
in CNC operation.
You can only work in CNC mode with the doors closed.
Work carried out in conventional mode is carried out with the door open. The mode switch must be
switched to manual mode.
The main spindle can be switched on when the doors are closed or open.
Working in CNC mode without safety cabin may pose a serious risk to the machine
operator and cause serious accidents.
1.5.3 for CNC milling machines
■ Switch for operating modes
The mode switch has 3 settings (CNC mode – Idle position – Manual mode) that can only be
selected with a key. After selecting the mode, the key can be removed in order to prevent a
switching of the mode type by unauthorised persons.

15
1. Important safety notes
1.6 Explanations of the symbols
In the event of an emission noise level as of 80
dB (A) at the workplace, ear defenders must be
worn.
Caution:
Always pull the power plug prior to any
maintenance work!
Read the operating instructions prior to initial
operation or maintenance work!
Caution:
Dangerous electric voltage!
2. Delivery and set up
The machine is packed with care at the factory.
The following should be checked after delivery:
1. Whether the packaging shows damages to be reported or
2. Whether the machine shows transportation damages to be reported If this is the case, we ask you
to communicate this information immediately. Subsequent claims cannot be recognised.
The boring and milling machine must be set up on a suitable, even and firm surface. Suitable
surfaces are, for example:
■ A tool cabinet (available optionally)
■ A separate workbench with a level surface (spirit level) that is strong enough to carry the weight of
the machine without bending.
■ A steel plate with a level surface (spirit level)
The machine must be screwed securely to the surface it is set up on. There are holes in the base of
the machine that are designed for this purpose. Good working results and low-vibration operation
can only be ensured when the prerequisites for fixture as set out above are maintained.

16
2. Delivery and set up
The place of set up should be selected in such a way that
■ There is sufficient lighting
■ The electrical power supply with safety socket and earth are installed close enough to the machine
that the power cable is not subject to any strain.
■ The power cable should also be dimensioned in such a way that a multiple socket can be used, for
example, to power a coolant system.
2.1 Transporting the machine
We recommend three people to lift the machine, using the positions shown (1). In doing so, two
people should hold the machine on the left and right of the upper skid, the third should hold and
balance the machine at the end of the base plate.
Due to the weight of the machine it is advisable to lift the machine by crane, if this is possible. To lift,
wrap suitable lashing (2) as shown around the head of the machine. Before lifting the machine, ensure
that the milling head has been moved to the upper end position to prevent damage to the machine.
When lifting, pay attention to an ergonomic stance and sufficient safety!

17
3. Putting into operation
3.1 for all milling machines
■ Use a dry cloth to remove the corrosion protection that was applied to all exposed parts for
transport
■ In the event of marine impregnation of exposed parts, it is recommended you spray them with oil,
allow it to work, and then remove the impregnation with a dry cloth.
■ Once set up properly (see the section on delivery and set up) connect the grounded plug directly
to a safety socket and the 230 V 50/60 Hz (optional 110 V 60 Hz) mains power supply.
■ Provision of sufficient coolant for the operation of a coolant system
(optional)
■ Release the axis clamps and check the individual feed spindles for easy operation
■ Check all electronic operating elements, for example, ON/OFF switch, emergency off switch,
potentiometer etc. for functionality.
3.2 for all CNC milling machines
■ When putting CNC machines into operation for the first time, always read the start-up manual.
3.2.1 Setting up and connecting the control computer
When selecting a suitable control computer, pay attention to the system prerequisites of the
control software. These are listed on the rear of the CD case sent with the machine.
Follow the instructions in the start manual of the software to install the control software on the
computer. The start manual can be found in the CD case of the control software included with the
machine.
In the next step, the software must be adapted to your machine. To do this, follow the instructions sent
with the machine which detail the editing of the parameters.
When the software has been successfully installed on the control computer and all parameters have
been adapted successfully, the control computer must be connected with the machine controller.
The machine controller communicates with the computer via the serial interface (COM port). In order
to establish a connection between the machine controller and the computer, connect the end of the
interface cable that is on the machine console to the COM port of the computer.
CAUTION:
The axial cable of the step motors and the serial interface cable may only be plugged in or
removed when the controller is switched off. Otherwise this may lead to damage to the
controller, the machine or the control computer.

18
4. Specifications regarding the machine
4.1 Identification of the model
The precise model designation of your machine can be found on the type plate attached to the
machine.
4.2 Noise emission declaration
F1200 – F1200 hs – F1210 – F1210 hs
Noise emission declaration in accordance with DIN EN ISO 3744
Emission values in idle
F1200 F1200 hs
F1210 F1210 hs
Emission noise level at the workplace
at 50 % = 66.8 dB (A = 74.8 dB (A)
at 100 % = 66.7 dB (A) = 76.4 dB (A)
Sound power level
at 50 % = 73.7 dB (A) = 84.1 dB (A)
at 100 % = 79.1 dB (A) = 80.3 dB (A)
With an emission noise level as of 80 dB (A) at the workplace
ear defenders must be worn

19
4. Specifications regarding the machine
4.2.1 Technical data for F1200 - F1200 hs
F1200 F1200 hs
Working areas
Longitudinal path, x-axis 260 mm
Vertical path, z-axis 280 mm
Transverse path, y-axis 150 mm
Drill stroke 55 mm
Distance between milling machine table
and tool spindle
minimum 100 mm
maximum 380 mm
Protrusion of tool spindle, Z-stand 185 mm
Main drive motor
Nominal voltage 230 V
Nominal frequency 50/60 Hz
Nominal performance of the spindle
motor 1.4 kW 2.0 kW
Spindle revolutions, infinite 140 - 3000 rpm 100 – 7500 rpm
Machine accuracy
Concentricity of the tool spindle 0.01 mm
Milling head
Swivel range on both sides 90°
Tool spindle
Tool holder MK2 tightening thread M10
optional
MK3 tightening thread M12
SK30 DIN2080 tightening thread M12
Working table
450 x 180 mm
Number of grooves 3
Width of grooves 12 mm

20
4. Specifications regarding the machine
4.2.2 Dimensions of F1200 with 1.4 kW motor
* only for ball screw spindle
