Foreword
wc_tx000001gb.fm 5
CALIFORNIA
Proposition 65 Warning:
Engine exhaust, some of its constituents, and certain vehicle
components, contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm.
1 Foreword
This manual provides information and procedures to safely operate
and maintain this Wacker model. For your own safety and protection
from injury, carefully read, understand and observe the safety
instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this
manual or need an additional copy, please contact Wacker
Corporation. This machine is built with user safety in mind; however,
it can present hazards if improperly operated and serviced. Follow
operating instructions carefully! If you have questions about operating
or servicing this equipment, please contact Wacker Corporation.
The information contained in this manual was based on machines in
production at the time of publication. Wacker Corporation reserves the
right to change any portion of this information without notice.
All rights, especially copying and distribution rights, are reserved.
Copyright 2008 by Wacker Corporation.
No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express written permission from Wacker Corporation.
Any type of reproduction or distribution not authorized by Wacker
Corporation represents an infringement of valid copyrights and will be
prosecuted. We expressly reserve the right to make technical
modifications, even without due notice, which aim at improving our
machines or their safety standards.
WARNING

Safety Information CT 36 / CT 48
wc_si000139gb.fm 6
2. Safety Information
This manual contains DANGER, WARNING, CAUTION, NOTICE and
NOTE callouts which must be followed to reduce the possibility of
personal injury, damage to the equipment, or improper service.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE:Used without the safety alert symbol, NOTICE indicates a
hazardous situation which, if not avoided, could result in property
damage.
Note: Contains additional information important to a procedure.
2.1 Laws Pertaining to Spark Arrestors
Notice: State Health Safety Codes and Public Resources Codes
specify that in certain locations spark arresters be used on internal
combustion engines that use hydrocarbon fuels. A spark arrester is a
device designed to prevent accidental discharge of sparks or flames
from the engine exhaust. Spark arresters are qualified and rated by
the United States Forest Service for this purpose.
In order to comply with local laws regarding spark arresters, consult
the engine distributor or the local Health and Safety Administrator.
DANGER
WARNING
CAUTION

CT 36 / CT 48 Safety Information
wc_si000139gb.fm 7
2.2 Operating Safety
Familiarity and proper training are required for the safe operation of the
machine. Machines operated improperly or by untrained personnel
can be dangerous. Read the operating instructions contained in both
this manual and the Engine Manual and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the machine before
being allowed to operate it.
2.2.1 NEVER allow anyone to operate this equipment without proper
training. People operating this equipment must be familiar with the
risks and hazards associated with it.
2.2.2 NEVER touch the engine or muffler while the engine is on or
immediately after it has been turned off. These areas get hot and may
cause burns.
2.2.3 NEVER use accessories or attachments that are not recommended by
Wacker. Damage to equipment and injury to the user may result.
2.2.4 NEVER leave the machine running unattended.
2.2.5 NEVER operate the machine with the beltguard missing. Exposed
drive belt and pulleys create potentially dangerous hazards that can
cause serious injuries.
2.2.6 NEVER operate this machine in applications for which it is not
intended.
2.2.7 NEVER use the trowel around pop-ups in the concrete that are lower
than the lowest ring on the ring guard.
2.2.8 NEVER lift the machine solely by the handle. The component may fail,
causing the machine to fall, possibly injuring bystanders.
2.2.9 ALWAYS wear protective clothing appropriate to the job site when
operating the machine.
2.2.10 ALWAYS wear hearing and eye protection when operating this
machine.
2.2.11 ALWAYS remain aware of moving parts and keep hands, feet, and
loose clothing away from the moving parts of the machine.
2.2.12 ALWAYS read, understand, and follow procedures in the Operator’s
Manual before attempting to operate the machine.
2.2.13 ALWAYS store the machine properly when it is not being used. The
machine should be stored in a clean, dry location out of the reach of
children.
2.2.14 ALWAYS close fuel valve on engines equipped with one when
machine is not being operated.
WARNING

Safety Information CT 36 / CT 48
wc_si000139gb.fm 8
2.2.15 ALWAYS operate machine with all safety devices and guards in place
and in working order. DO NOT modify or defeat safety devices. DO
NOT operate machine if any safety devices or guards are missing or
inoperative.
2.2.16 ALWAYS be sure operator is familiar with proper safety precautions
and operation techniques before using machine.
2.2.17 ALWAYS test the function of the engine control module before
operating the trowel. DO NOT operate the trowel if the engine control
module is not functioning properly.
2.3 Operator Safety while using Internal Combustion Engines
Internal combustion engines present special hazards during operation
and fueling. Read and follow the warning instructions in the engine
Owner’s Manual and the safety guidelines below. Failure to follow the
warnings and safety standards could result in severe injury or death.
2.3.1 DO NOT run the machine indoors or in an enclosed area such as a
deep trench unless adequate ventilation, through such items as
exhaust fans or hoses, is provided. Exhaust gas from the engine
contains poisonous carbon monoxide gas; exposure to carbon
monoxide can cause loss of consciousness and may lead to death.
2.3.2 DO NOT smoke while operating the machine.
2.3.3 DO NOT smoke when refueling the engine.
2.3.4 DO NOT refuel a hot or running engine.
2.3.5 DO NOT refuel the engine near an open flame.
2.3.6 DO NOT spill fuel when refueling the engine.
2.3.7 DO NOT run the engine near open flames.
2.3.8 ALWAYS refill the fuel tank in a well-ventilated area.
2.3.9 ALWAYS replace the fuel tank cap after refueling.
DANGER

CT 36 / CT 48 Safety Information
wc_si000139gb.fm 9
2.4 Service Safety
A poorly maintained machine can become a safety hazard! In order
for the machine to operate safely and properly over a long period of
time, periodic maintenance and occasional repairs are necessary.
2.4.1 DO NOT attempt to clean or service the machine while it is running.
Rotating parts can cause severe injury.
2.4.2 DO NOT crank a flooded engine with the spark plug removed on
gasoline-powered engines. Fuel trapped in the cylinder will squirt out
the spark plug opening.
2.4.3 DO NOT test for spark on gasoline-powered engines if the engine is
flooded or the smell of gasoline is present. A stray spark could ignite
the fumes.
2.4.4 DO NOT use gasoline or other types of fuels or flammable solvents to
clean parts, especially in enclosed areas. Fumes from fuels and
solvents can become explosive.
2.4.5 DO NOT remove blades while the machine is hanging overhead.
2.4.6 ALWAYS support the machine securely before changing blades.
2.4.7 ALWAYS keep the area around the muffler free of debris such as
leaves, paper, cartons, etc. A hot muffler could ignite the debris and
start a fire.
2.4.8 ALWAYS replace worn or damaged components with spare parts
designed and recommended by Wacker Corporation.
2.4.9 ALWAYS disconnect the spark plug on machines equipped with
gasoline engines, before servicing, to avoid accidental start-up.
2.4.10 ALWAYS keep the machine clean and labels legible. Replace all
missing and hard-to-read labels. Labels provide important operating
instructions and warn of dangers and hazards.
2.4.11 ALWAYS handle blades carefully. The blades can develop sharp
edges which can cause serious cuts.
WARNING

Safety Information CT 36 / CT 48
wc_si000139gb.fm 10
2.5 Label Locations

CT 36 / CT 48 Safety Information
wc_si000139gb.fm 11
2.6 Safety and Information Labels
Wacker machines use international pictorial labels where needed.
These labels are described below:
Label Meaning
DANGER!
Engines emit carbon monoxide; operate only
in well-ventilated area. Read the Operator’s
Manual.
No sparks, flames, or burning objects near the
machine. Shut off the engine before refueling.
WARNING!
Hot surface!
WARNING!
Hand injury if caught in moving belt.
Always replace beltguard.
WARNING!
Always wear hearing and eye protection when
operating this machine.
WARNING!
Cutting hazard. Always replace blade guard!

Safety Information CT 36 / CT 48
wc_si000139gb.fm 12
WARNING!
Remove pan from trowel before lifting machine
overhead. Pans can fall and cause death or
serious injury if a person is hit. (Located on top
side of float pan.)
Variable speed throttle
CAUTION!
Read and understand the supplied Operator’s
Manuals before operating this machine. Fail-
ure to do so increases the risk of injury to your-
self or others.
CAUTION!
Lifting point.
Engine stop button:
Press to stop engine.
Label Meaning
1 1 8 6 8 8
R e m o v e p a n f r o m t r o w e l b e f o r e l i f t i n g m a c h i n e
o v e r h e a d .
P a n s c a n f a l l a n d c a u s e d e a t h o r s e r i o u s i n j u r y i f
a p e r s o n i s h i t .
G l e i t s c h e i b e v o m e t o n g l ä t t e r e n t f e r n e n b e v o r
d a s G e r ä t u b e r K o p f h ö h e g e h o b e n w i r d .
G l e i t s c h e i b e k a n n f a l l e n u n d s c h w e r e V e r l e t z u n g
o d e r T o d v e r u r s a c h e n w e n n P e r s o n a l g e t r o f f e n w i r d .
Q u i t e e l d i s c o d e f l o t a c i ó n a n t e s d e l e v a n t a r l a
m á q u i n a a l i s a d o r a d e h o r m i g ó n .
L o s d i s c o s p o d r í a n c a e r y m a t a r o l a s t i m a r
s e r i a m e n t e a u n a p e r s o n a q u e s e e n c u e n t r e c e r c a .
A v a n t d e l e v e r l  a p p a r e i l a u - d e s s u s d e v o t r e t ê t e ,
ô t e r l e d i s q u e d e t a l o c h a g e d e l a t r u e l l e .
L e d i s q u e d e t a l o c h a g e p e u t t o m b e r e t e n t r a î n e r
d e g r a v e s b l e s s u r e s o u m ê m e l a m o r t .

CT 36 / CT 48 Safety Information
wc_si000139gb.fm 13
A nameplate listing the model number, item
number, revision number, and serial number is
attached to each unit. Please record the infor-
mation found on this plate so it will be available
should the nameplate become lost or dam-
aged. When ordering parts or requesting ser-
vice information, you will always be asked to
specify the model number, item number, revi-
sion number, and serial number of the unit.
Use only Glygoyle 460 gear oil in gearbox.
This machine may be covered by one or more
patents.
Label Meaning

Safety Information CT 36 / CT 48
wc_si000139gb.fm 14
Label Meaning
Open the fuel flow valve.
Close the choke.
Turn engine key switch to “ON” position.
Place throttle in the IDLE position.
Pull the rewind starter.
Open the choke.

CT 36 / CT 48 Safety Information
wc_si000139gb.fm 15
Press the stop button.
Turn engine key switch to “OFF” position.
Close the fuel flow valve.
Label Meaning

Operation CT 36 / CT 48
wc_tx000373gb.fm 16
3. Operation
3.1 Application
This trowel is a modern, high production machine intended for floating
and finishing freshly poured concrete slabs. The machine's good
balance, adjustable handle, and easily reached controls add to
operator comfort and productivity. An automatic stop sensor provides
added operator safety. Finishing rates will depend on operator skill and
job conditions.
DO NOT use this machine for any application other than troweling
concrete.
3.2 New Machine Set-up
Trowels are shipped from the factory with the handle removed. Follow
instructions on Installing Blades and Installing and Adjusting Handles
when setting up new machines or when installing new handles and
blades.
3.3 Recommended Fuel
The engine requires regular grade unleaded gasoline. Use only fresh,
clean gasoline. Gasoline containing water or dirt will damage fuel
system. Consult engine owner’s manual for complete fuel
specifications.

CT 36 / CT 48 Operation
wc_tx000373gb.fm 17
3.4 Installing Blades
See Graphic: wc_gr003238
There are four types of blades available for the trowels. Float pans are
large "pizza pan" style blades, which hook on over finish or
combination blades and are available for the 36" machines only. Float
blades are available for all machines and clip on over finish or
combination blades. Both are used in the earliest stages of work, and
are not pitched.
Finish blades are used in the final stages of working, and are
progressively pitched to burnish the concrete.
Combination blades can be used throughout the concrete working
process. They are used in place of float blades or pans and finish
blades.
Note: Trowel blades must NOT be interchanged, i.e., do NOT put
larger diameter blades on a smaller diameter trowel.
3.4.1 Finish blades are flat on both edges and can be installed in either
direction.
When installing combination blades, orient blades as shown (a). This
positions the raised edges of the blade correctly for the clockwise
rotation of the machine.
3.4.2 Secure blades to trowel arms with screws (b). Dip threads of screws in
grease prior to installation. This will prevent concrete from cementing
the screws in place and will make removal of the blades easier later on.
3.4.3 Plug the remaining threaded holes in the blade brace with plastic plugs
(c) to prevent them from filling with concrete.
Do not lift the trowel overhead with a float pan attached, as the pan
could fall off and strike personnel working in the vicinity.
WARNING

Operation CT 36 / CT 48
wc_tx000373gb.fm 18
3.5 Installing and Adjusting Handles
See Graphic: wc_gr001758, wc_gr003219
On new machines the pipe handle comes assembled with the pitch
control (Twist or Pro-Shift®) (c), stop button (b), throttle (a), screws
(g), and nut (m).
To install the pipe handle assembly:
3.5.1 On machines with the foldable handle, straighten the handle and
tighten the knob (e) to secure the handle in position.
3.5.2 Pull the pitch control cable (j) from bottom end of the tube and remove
the cable nut (m) from the cable.
3.5.3 Thread the cable through the handle base (f) and over the pulley (h)
as shown.
3.5.4 Attach the pipe handle to the handle base with two M8x65 screws (g).
Torque the screws to 25 Nm (18 ft.lbs.).
3.5.5 Push the Pro-Shift® handle all the way forward (away from the
operator) OR turn the twist pitch control handle counterclockwise as far
as possible. Connect the cable to the fork (k) as shown and adjust the
cable nut so the cable is snug and the trowel blades lay flat (0° pitch).
3.5.6 Move throttle (a1) to idle position. Remove air cleaner cover. Feed
cable through clamp on recoil cover. Connect throttle cable to engine
throttle bracket by placing z-bend through hole in throttle plate. Clamp
cable into throttle casing bracket. Replace air cleaner cover.
3.5.7 Connect electrical wire on handle to both ends of the engine wire. See
handle instruction sheet for additional detail on installation.
Note: On machines with Wacker engines, do not connect wires in bag
to wires in handle.
3.5.8 On machines with an adjustable handle, position the handle by
loosening the knob (d) and adjusting the handle up or down to suit the
operator. Tighten the knob to secure the handle in position.

CT 36 / CT 48 Operation
wc_tx000373gb.fm 19
wc_gr001758
fg
h
j
k
m

Operation CT 36 / CT 48
wc_tx000373gb.fm 20

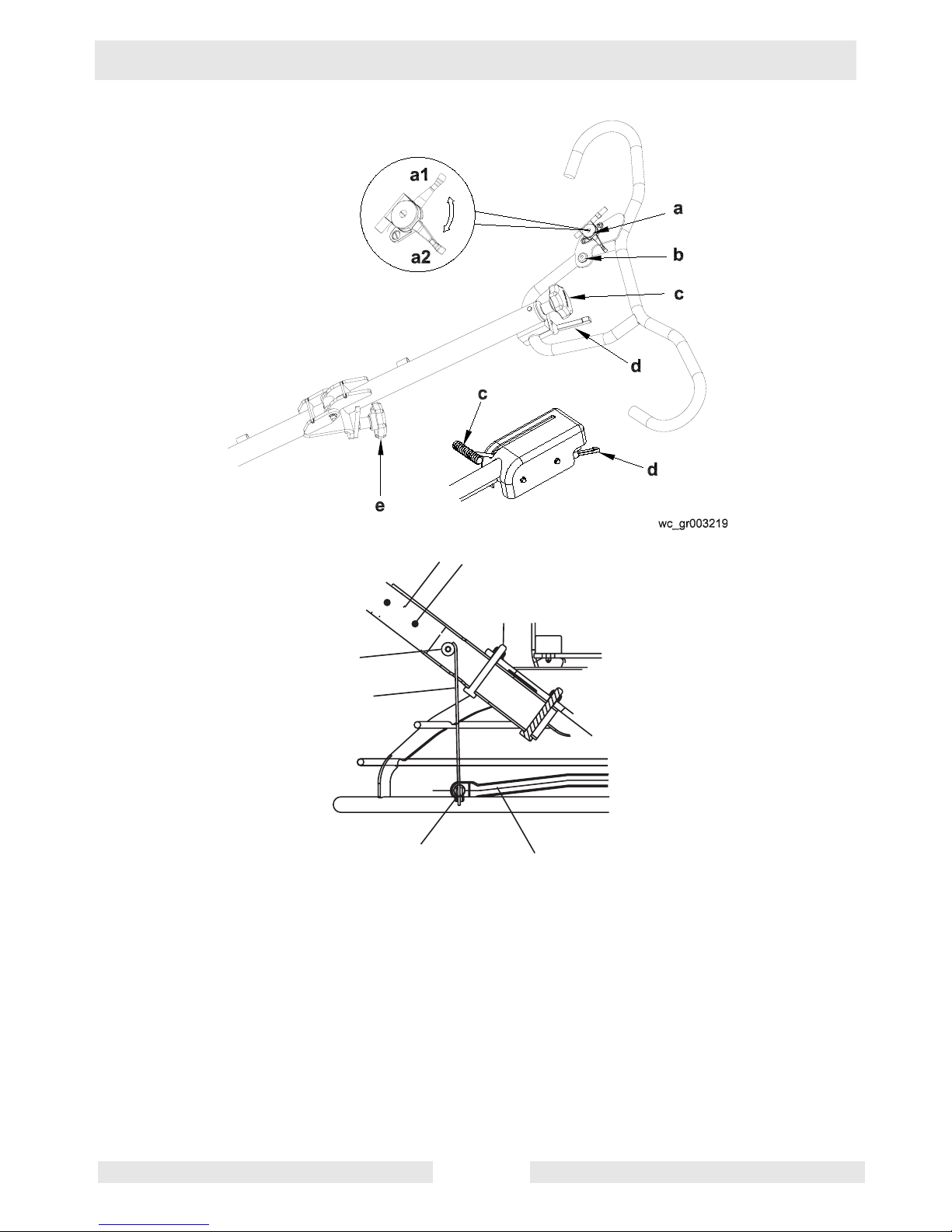

3.6 Controls
See Graphic: wc_gr003219
Ref. Description Ref. Description
a Throttle lever d Handle height adjustment (if
equipped)
b Stop button e Foldable handle adjustment (if
equipped)
c Twist pitch control or Pro-Shift®
pitch control
