Wacker Neuson PT 3A User manual

Pump
PT 3 /...
OPERATOR’S MANUAL
0155951en 007
0309
0155951EN

wc_tx000001gb.fm 3
CALIFORNIA
Proposition 65 Warning:
Engine exhaust, some of its constituents, and certain vehicle
components, contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm.
Foreword
This manual provides information and procedures to safely operate
and maintain this Wacker Neuson model. For your own safety and
protection from injury, carefully read, understand and observe the
safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this
manual or need an additional copy, please contact Wacker Neuson
Corporation. This machine is built with user safety in mind; however,
it can present hazards if improperly operated and serviced. Follow
operating instructions carefully! If you have questions about operating
or servicing this equipment, please contact Wacker Neuson
Corporation.
The information contained in this manual was based on machines in
production at the time of publication. Wacker Neuson Corporation
reserves the right to change any portion of this information without
notice.
All rights, especially copying and distribution rights, are reserved.
Copyright 2009by Wacker Neuson Corporation.
No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express written permission from Wacker Neuson Corporation.
Any type of reproduction or distribution not authorized by Wacker
Neuson Corporation represents an infringement of valid copyrights
and will be prosecuted. We expressly reserve the right to make
technical modifications, even without due notice, which aim at
improving our machines or their safety standards.
WARNING

wc_tx000001gb.fm 4

PT 3 /... Table of Contents
wc_bo0155951en_006TOC.fm 5
Foreword 3
1. Safety Information 7
1.1 Operating Safety .................................................................................. 8
1.2 Operator Safety while using Internal Combustion Engines .................. 9
1.3 Service Safety .................................................................................... 10

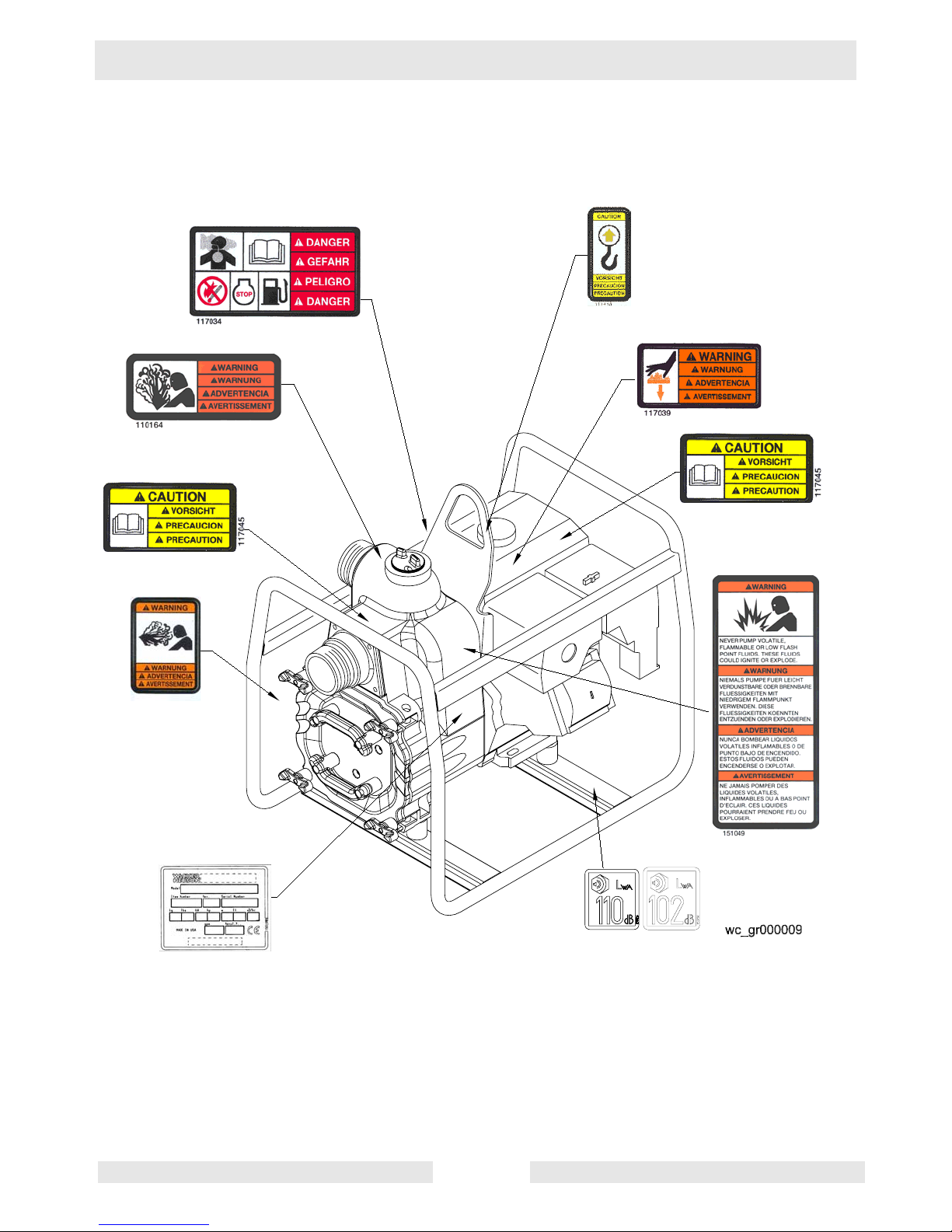

1.4 Label Locations (PT 2A / PT 3A, PT 2 / PT 3) .................................... 11
1.5 Label Locations (PT 2V / PT 3V) ........................................................ 12
1.6 Label Locations (PT 2H / PT 3H) ....................................................... 13

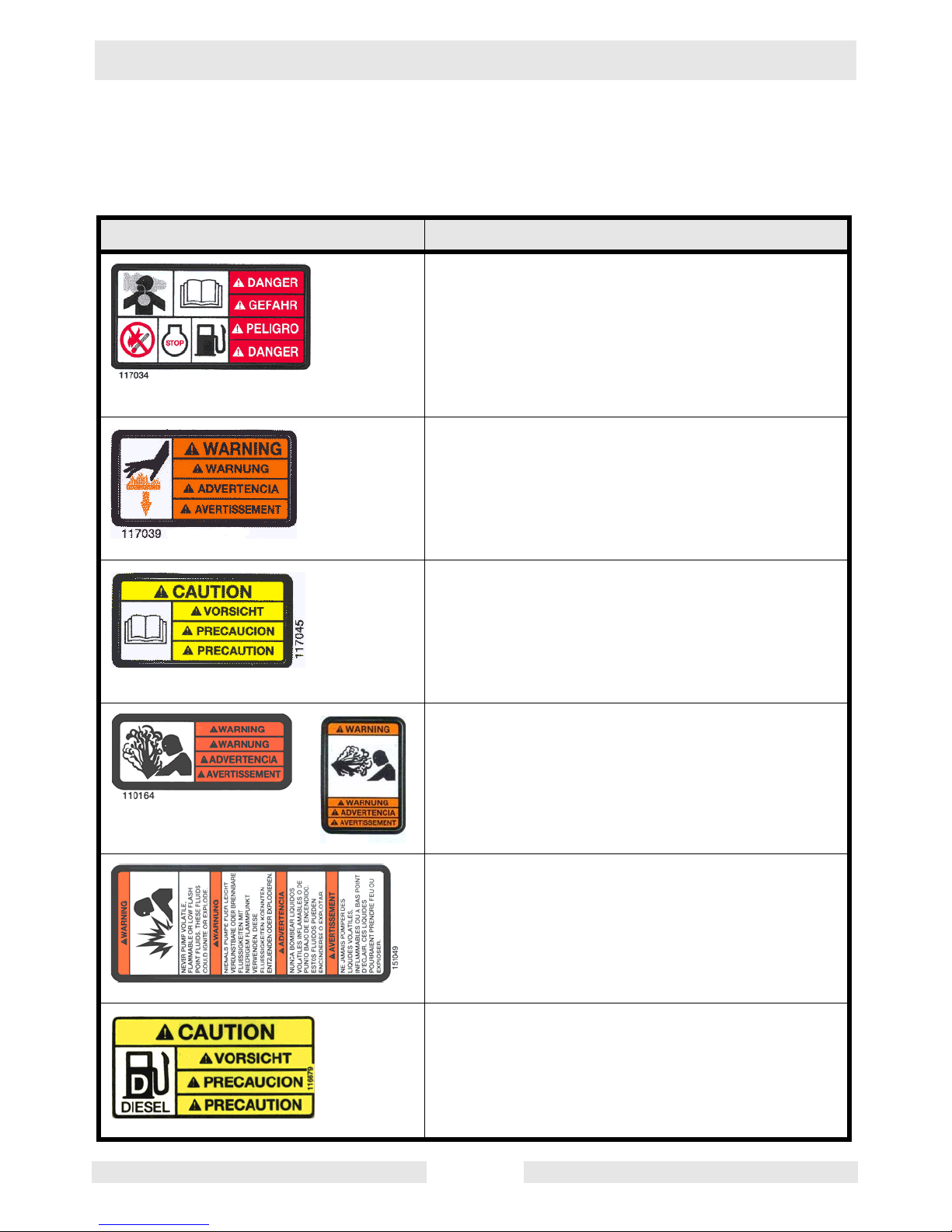

1.7 Safety Labels ...................................................................................... 14
1.8 Information Labels .............................................................................. 15
2. Operation 16
2.1 Application .......................................................................................... 16
2.2 Recommended Fuel (Wacker Neuson / Honda / Vanguard) .............. 16
2.3 Recommended Fuel (Hatz) ................................................................ 16
2.4 Before Starting ................................................................................... 17

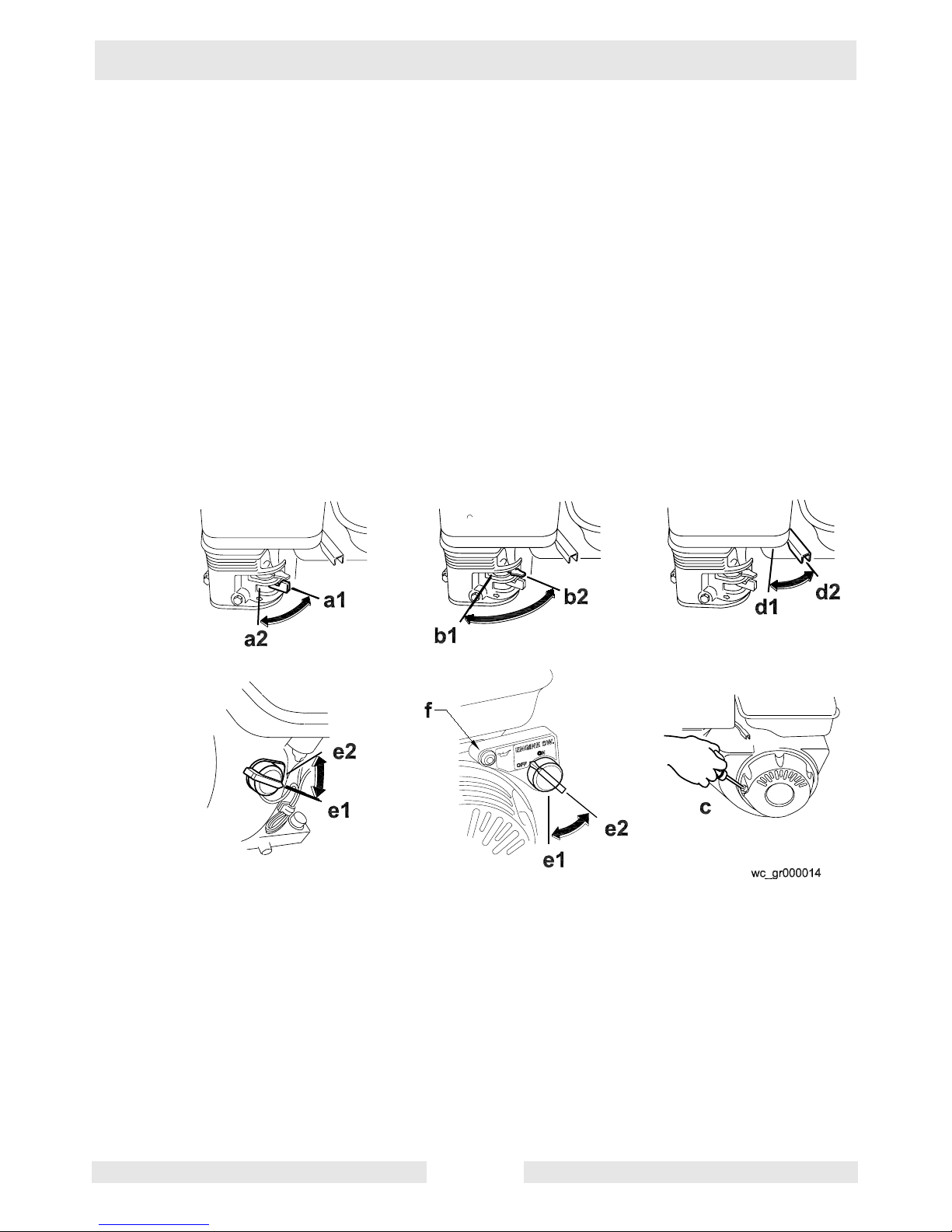

2.5 To Start (Wacker Neuson) .................................................................. 19
2.6 To Stop (Wacker Neuson) .................................................................. 19
2.7 To Start (Honda) ................................................................................. 20
2.8 To Stop (Honda) ................................................................................. 20
2.9 To Start (Vanguard) ............................................................................ 21
2.10 To Stop (Vanguard) ............................................................................ 21
2.11 To Start (Hatz) .................................................................................... 22
2.12 Cold Weather Starting (Hatz) ............................................................. 23
2.13 To Stop (Hatz) .................................................................................... 23
2.14 Operation ............................................................................................ 23
2.15 Hoses and Clamps ............................................................................. 24

Table of Contents PT 3 /...
wc_bo0155951en_006TOC.fm 6
3. Maintenance 25
3.1 Periodic Maintenance Schedule ..........................................................25
3.2 Engine Oil System (Hatz) ....................................................................26
3.3 Engine Oil (Wacker Neuson / Honda / Vanguard) ...............................28
3.4 Air Cleaner (Wacker Neuson) .............................................................29
3.5 Air Cleaner (Honda) ............................................................................30
3.6 Air Cleaner (Vanguard) .......................................................................31
3.7 Air Cleaner (Hatz) ................................................................................32
3.8 Spark Plug (Wacker Neuson / Honda / Vanguard) ..............................33
3.9 Sediment Cup (Honda) ........................................................................33
3.10 Cleaning Fuel Strainer (Wacker Neuson) ............................................34
3.11 Fuel Filter (Vanguard) .........................................................................34
3.12 Fuel Filter (Hatz) ..................................................................................35
3.13 Carburetor (Wacker Neuson / Honda) .................................................36
3.14 Carburetor (Vanguard) ........................................................................37
3.15 Valve Clearances (Hatz) .....................................................................38
3.16 Adjusting Impeller Clearance ..............................................................40
3.17 Cleaning Pump ....................................................................................41
3.18 Storage ................................................................................................42
3.19 Accessories .........................................................................................42
3.20 Troubleshooting ...................................................................................43
4. Technical Data 44
4.1 Engine .................................................................................................44
4.2 Pump ...................................................................................................45
4.3 Sound Measurements .........................................................................46
4.4 Dimensions ..........................................................................................46

PT 2/3 /... Safety Information
wc_si000003gb.fm 7
1. Safety Information
This manual contains DANGER, WARNING, CAUTION, NOTICE and
NOTE callouts which must be followed to reduce the possibility of
personal injury, damage to the equipment, or improper service.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE:Used without the safety alert symbol, NOTICE indicates a
situation which, if not avoided, could result in property damage.
Note: Contains additional information important to a procedure.
DANGER
WARNING
CAUTION

Safety Information PT 2/3 /...
wc_si000003gb.fm 8
1.1 Operating Safety
Notice: State Health Safety Codes and Public Resources Codes
specify that in certain locations spark arresters be used on internal
combustion engines that use hydrocarbon fuels. A spark arrester is a
device designed to prevent accidental discharge of sparks or flames
from the engine exhaust. Spark arresters are qualified and rated by
the United States Forest Service for this purpose.
In order to comply with local laws regarding spark arresters, consult
the engine distributor or the local Health and Safety Administrator.
Familiarity and proper training are required for the safe operation of the
machine. Machines operated improperly or by untrained personnel
can be dangerous. Read the operating instructions contained in both
this manual and the engine manual and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the machine before
being allowed to operate it.
1.1.1 Do not allow anyone to operate this equipment without proper training.
People operating this equipment must be familiar with the risks and
hazards associated with it.
1.1.2 Do not use accessories or attachments that are not recommended by
Wacker Neuson. Damage to equipment and injury to the user may
result.
1.1.3 Do not touch the engine or muffler while the engine is on or
immediately after it has been turned off. These areas get hot and may
cause burns.
1.1.4 Do not pump volatile, flammable, or low flash point fluids. These fluids
could ignite or explode.
1.1.5 Do not pump corrosive chemicals or water containing toxic
substances. These fluids could create serious health and
environmental hazards. Contact local authorities for assistance.
1.1.6 Do not open the priming plug when the pump is hot. Do not loosen or
remove inlet or discharge hose fittings when the pump is hot. Hot water
inside could be pressurized much like the radiator on an automobile.
Allow the pump to cool to the touch before loosening the plug and
before loosening or removing the inlet or discharge hose fittings.
1.1.7 Do not open pump housing cover while pump is operating, or start
pump with the cover off. The rotating impeller inside the pump can cut
or sever objects caught in it.
1.1.8 Do not block or restrict flow from inlet line or discharge line. Remove
kinks from discharge line before starting pump. Operation with a
blocked inlet line or discharge line can cause water inside pump to
overheat.
WARNING

PT 2/3 /... Safety Information
wc_si000003gb.fm 9
1.1.9 Be sure operator is familiar with proper safety precautions and
operation techniques before using machine.
1.1.10 Read, understand, and follow procedures in the Operator’s Manual
before attempting to operate the machine.
1.1.11 Be sure the machine is on a firm, level surface and will not tip, roll,
slide, or fall while operating.
1.1.12 Close fuel valve on engines equipped with one when machine is not
being operated.
1.1.13 Store the machine properly when it is not being used. The machine
should be stored in a clean, dry location out of the reach of children.
1.2 Operator Safety while using Internal Combustion Engines
Internal combustion engines present special hazards during operation
and fueling. Read and follow the warning instructions in the engine
owner’s manual and the safety guidelines below. Failure to follow the
warnings and safety standards could result in severe injury or death.
1.2.1 Do not run the machine indoors or in an enclosed area such as a deep
trench unless adequate ventilation, through such items as exhaust
fans or hoses, is provided. Engine exhaust contains carbon monoxide.
This is a poison you cannot see or smell. Exposure to carbon
monoxide can cause loss of consciousness and CAN KILL YOU IN
MINUTES.
1.2.2 Do not smoke while operating the machine.
1.2.3 Do not smoke when refueling the engine.
1.2.4 Do not refuel a hot or running engine.
1.2.5 Do not refuel the engine near an open flame.
1.2.6 Do not run the engine near open flames.
1.2.7 Do not test for spark on gasoline-powered engines if the engine is
flooded or the smell of gasoline is present. A stray spark could ignite
the fumes.
1.2.8 NEVER operate pump in enclosed or confined area.
1.2.9 Refill the fuel tank in a well-ventilated area.
1.2.10 Replace the fuel tank cap after refueling.
DANGER

Safety Information PT 2/3 /...
wc_si000003gb.fm 10
1.3 Service Safety
A poorly maintained machine can become a safety hazard! In order
for the machine to operate safely and properly over a long period of
time, periodic maintenance and occasional repairs are necessary.
1.3.1 Do not attempt to clean or service the machine while it is running.
Rotating parts can cause severe injury.
1.3.2 Do not crank a flooded engine with the spark plug removed on
gasoline-powered engines. Fuel trapped in the cylinder will squirt out
the spark plug opening.
1.3.3 Keep the area around the muffler free of debris such as leaves, paper,
cartons, etc. A hot muffler could ignite the debris and start a fire.
1.3.4 Replace worn or damaged components with spare parts designed and
recommended by Wacker Neuson Corporation.
1.3.5 Disconnect the spark plug on machines equipped with gasoline
engines, before servicing, to avoid accidental start-up.
1.3.6 Do not use gasoline or other types of fuels or flammable solvents to
clean parts, especially in enclosed areas. Fumes from fuels and
solvents can become explosive.
1.3.7 Handle impeller carefully. The impeller can develop sharp edges which
can cut.
WARNING

PT 2/3 /... Safety Information
wc_si000003gb.fm 11
1.4 Label Locations (PT 2A / PT 3A, PT 2 / PT 3)

Safety Information PT 2/3 /...
wc_si000003gb.fm 12
1.5 Label Locations (PT 2V / PT 3V)

PT 2/3 /... Safety Information
wc_si000003gb.fm 13
1.6 Label Locations (PT 2H / PT 3H)

Safety Information PT 2/3 /...
wc_si000003gb.fm 14
1.7 Safety Labels
Wacker Neuson machines use international pictorial labels where
needed. These labels are described below:
Label Meaning
DANGER!
Engines emit carbon monoxide; operate only in
well-ventilated area. Read the Operator’s Man-
ual.
No sparks, flames, or burning objects near the
machine. Shut off the engine before refueling.
WARNING!
Hot surface!
CAUTION!
Read and understand the supplied Operator’s
Manual before operating this machine. Failure to
do so increases the risk of injury to yourself or
others.
WARNING!
Do not open if pump is hot. Hot water and/or
steam inside could be pressurized.
WARNING!
Never pump volatile, flammable, or low flash
point fluids. These fluids could ignite or explode.
CAUTION!
Use only clean, filtered diesel fuel.

PT 2/3 /... Safety Information
wc_si000003gb.fm 15
1.8 Information Labels
CAUTION!
Lifting point.
Label Meaning
A nameplate listing the model number, item num-
ber, revision number, and serial number is
attached to each unit. Please record the informa-
tion found on this plate so it will be available
should the nameplate become lost or damaged.
When ordering parts or requesting service infor-
mation, you will always be asked to specify the
model number, item number, revision number,
and serial number of the unit.
This machine may be covered by one or more
patents.
Guaranteed sound power level in dB(A).
Label Meaning

Operation PT 2/3 /...
wc_tx000012gb.fm 16
2. Operation
2.1 Application
This pump is intended for removing clean water and water containing
some debris and solids. Refer to “Technical Data” for maximum solid
size.
2.1.1 Do not pump volatile, flammable, or low flash point fluids. These fluids
could ignite or explode.
2.1.2 Do not pump corrosive chemicals or water containing toxic
substances. These fluids could create serious health and
environmental hazards. Contact local authorities for assistance.
2.2 Recommended Fuel (Wacker Neuson / Honda / Vanguard)
The engine requires regular grade unleaded gasoline. Use only fresh,
clean gasoline. Gasoline containing water or dirt will damage fuel
system. Consult engine owner’s manual for complete fuel
specifications.
2.3 Recommended Fuel (Hatz)
The engine requires No. 2 diesel fuel. Use only fresh, clean fuel. Fuel
containing water or dirt will damage the fuel system. Consult the
engine owner’s manual for complete fuel specifications.
WARNING
WARNING

PT 2/3 /... Operation
wc_tx000012gb.fm 17
2.4 Before Starting
See Graphic: wc_gr000013
2.4.1 Read safety instructions at the beginning of this Operator’s Manual.
2.4.2 Place pump as near to water as possible, on a firm, flat, level surface.
2.4.3 To prime pump, remove prime plug (a) and fill pump housing with
water. If the pump housing is not filled with water before starting, it will
not begin pumping.
Do not open priming plug, discharge plug, or loosen hose fittings if
pump is hot! Water or vapor inside pump may be under pressure.
2.4.4 Check for leaks between pump and engine. If water is leaking, the seal
inside pump is worn or damaged. Continued operation may cause
water damage to engine.
2.4.5 Check that hoses are securely attached to pump. Suction hose (b)
must not have any air leaks. Tighten hose clamps (c) and couplings
(d). Check that discharge hose (e) is not restricted. Lay hose out as
straight as possible. Remove any twists or sharp bends from hose
which may block the flow of water.
2.4.6 Make sure suction strainer (f) is clean and securely attached to end of
hose. The strainer is designed to protect the pump by preventing large
objects from being pulled into the pump.
NOTICE: Strainer should be positioned so it will remain completely
under water. Running the pump with the strainer above water for long
periods can damage the pump.
2.4.7 Check fuel level, engine oil level, and condition of air cleaner.
WARNING

Operation PT 2/3 /...
wc_tx000012gb.fm 18

PT 2/3 /... Operation
wc_tx000012gb.fm 19
2.5 To Start (Wacker Neuson)
See Graphic: wc_gr000655
2.5.1 Open fuel valve by moving lever down (a1).
Note: If engine is cold, move choke lever to close position (d2). If
engine is hot, set choke to open position (d1).
2.5.2 Turn engine switch to “ON” (b2).
2.5.3 Open throttle by moving it slightly to left (c2).
2.5.4 Pull starter rope (e).
Note: If the oil level in the engine is low, the engine will not start. If this
happens, add oil to engine.
2.5.5 Open choke as engine warms (d1).
2.5.6 Open throttle fully to operate (c1).
2.6 To Stop (Wacker Neuson)
See Graphic: wc_gr000655
2.6.1 Reduce engine RPM to idle by moving throttle completely to right (c3).
2.6.2 Turn engine switch to “OFF” (b1).
2.6.3 Close fuel valve (a2).
a1
a2 b2
b1 c1 c2 c3
d2
wc_gr000655
e
d1

Operation PT 2/3 /...
wc_tx000012gb.fm 20
2.7 To Start (Honda)
See Graphic: wc_gr000014
2.7.1 Open fuel valve by moving lever to the right (a1).
Note: If engine is cold, move choke lever to close position (b1). If
engine is hot, set choke to open position (b2).
2.7.2 Turn engine switch to “ON” (e1).
2.7.3 Open throttle by moving it slightly to left (d1).
2.7.4 Pull starter rope (c).
Note: If the oil level in the engine is low, the engine will not start. If this
happens, add oil to engine. Some engines are equipped with an oil
alert light (f) that will come on while pulling the starter rope.
2.7.5 Open choke as engine warms (b2).
2.7.6 Open throttle fully to operate.
2.8 To Stop (Honda)
See Graphic: wc_gr000014
2.8.1 Reduce engine RPM to idle by moving throttle completely to right (d2).
2.8.2 Turn engine switch to “OFF” (e2).
2.8.3 Close fuel valve by moving lever to the left (a2).
