wahli IPOE-162 User manual

www.twiline.ch
PoE Injector Hutschiene
PoE-H
BESCHREIBUNG
Spannungsversorgung zu den Touch Panels TP-7 und TP-10 mittels Power over Ethernet. Das Gerät wird in
der Verteilung eingebaut. Es benötigt eine Spannungsversorgung 24VDC. Es wird in die LAN-Verbindung
von der Zentrale / Switch auf das Touch Panel zwischengeschaltet.
PoE-H.docx, 10.11.2017

Industrial IEEE 802.3at/af
Gigabit PoE+ Injector
IPOE-162
User’s Manual

Table of Contents
1. Package Content ....................................................................... 3
2. Product Features ....................................................................... 4
3. ProductSpecication ................................................................. 6
4 Hardware Description................................................................. 8
4.1 Physical Dimension ............................................................. 8
4.2 Product Outlook.................................................................. 9
4.3 Industrial PoE+ Injector Upper Panel ...................................10

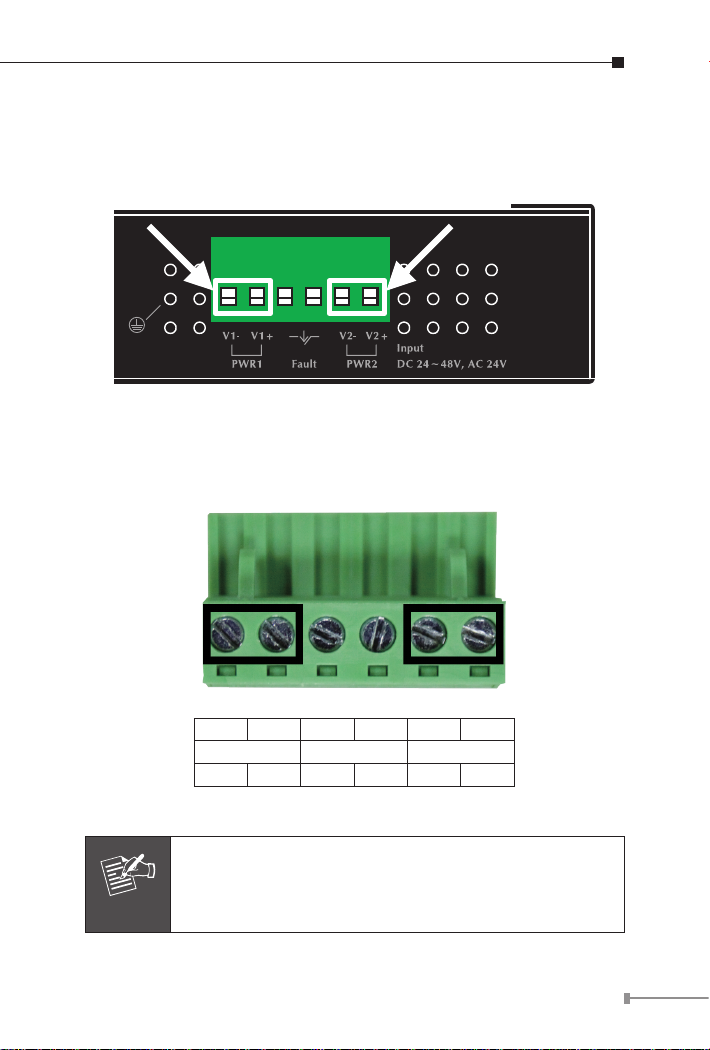

4.4 Wiring the Power Inputs.....................................................10

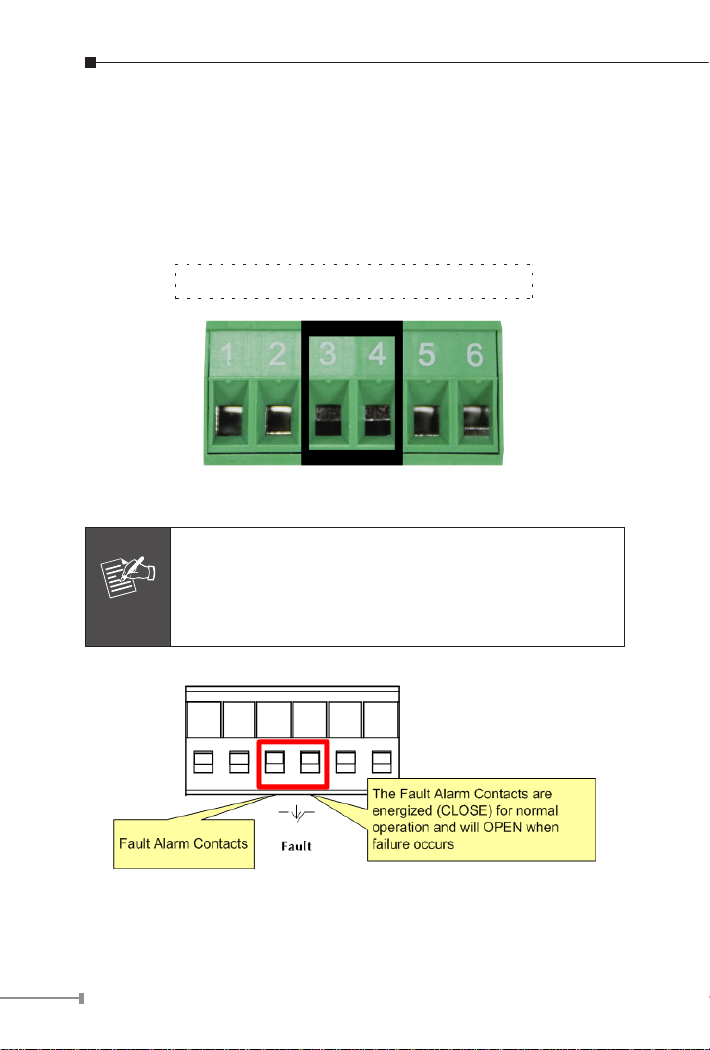

4.5 Wiring the Fault Alarm Contact ...........................................12
5. Mounting Installation ................................................................13

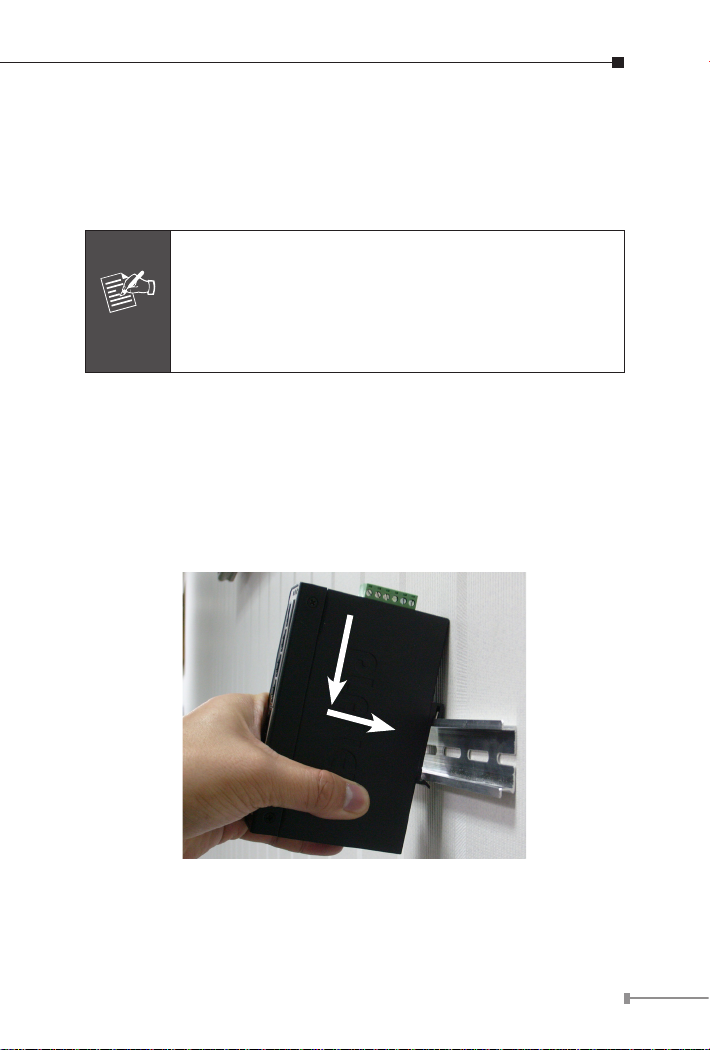

5.1 DIN-Rail Mounting..............................................................13
5.2 Remove DIN-Rail Mounting .................................................14
5.3 Wall Mount Plate Mounting .................................................15
6. Hardware Installation................................................................16
Customer Support..........................................................................19

3
1. Package Content
Thank you for purchasing PLANET Industrial IEEE 802.3at High Power
over Ethernet Injector, IPOE-162. Terms of “802.3at PoE+ Injector”
in following section of this User’s Manual means the IPOE-162.
Upon open the box of the Industrial IEEE 802.3at High Power over
Ethernet Injector and carefully unpack it. The box should contain the
following items:
IPOE-162:
Industrial IEEE 802.3at Gigabit High Power over Ethernet Injector x 1l
User’s Manual x 1l
DIN Rail Kit x 1l
Wall Mount Kit x 1l
Dusty cap x 2l
If any of these are missing or damaged, please contact your dealer
immediately, if possible, retain the carton including the original packing
material, and use them against to repack the product in case there is a
need to return it to us for repair.

4
2. Product Features
Interface
l2-Port RJ-45 interfaces
1-Port Data + Power output
1-Port Data input
lOne terminal block for master and slave power input. (Power
Range: 24 ~ 48V DC / 24V AC redundant power.
PoE
lGigabit High Power over Ethernet Mid-Span PSE
lIEEE 802.3at / 802.3af PoE compliant
lIEEE 802.3at / 802.3af splitter devices compatible
lSupport PoE Power up to 30 Watts for PoE port
lProvides DC 56V power over RJ-45 Ethernet cable to device with
Ethernet port
lAuto-detect of PoE IEEE 802.3at / 802.3af equipment and devices
from being damaged by incorrect installation
lRemote power feeding up to 100m
Hardware
lIP30 Slim Type Metal Case
lLED indicators for Power LED and PoE In-Use

5
Industrial Case / Installation
lDIN Rail and Wall Mount Design
lSupports EFT protection 6000 VDC for power line
lSupports 6000 VDC Ethernet ESD protection
l-40 to 75 Degree C operation temperature
Note
PD (Powered Device) is a PoE-enabled terminal by PSE
and thus consumes energy, such as IP Phones, network
cameras and Wireless access points, etc.
PSE (Power Sourcing Equipment) is a device (switch,
or hub for instance) that will provide power in a PoE
setup. Maximum allowed continuous output power per
such device in IEEE 802.3af is 15.4W, 30W in IEEE
802.3at.

6
3.ProductSpecication
Product IPOE-162
HardwareSpecication
Interface
"Data" Input Port 1 x RJ-45 STP
"PoE (Data+Power)"
Output Port 1 x RJ-45 STP
Input power
terminal block 1
LED Indicator System: Power 1, Power 2, Fault (Green)
PoE Port: PoE In-Use x 1 (Green)
Network Cable
10Base-T:
UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX:
UTP Cat. 3, 4, 5, up to 100m (328ft)
1000Base-T:
UTP Cat. 5, 5e, 6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate 10/100/1000Mbps
Dimension (W x D x H) 135 x 97 x 32 mm
Weight 473g
Unit Input Voltage 24 ~ 48V DC
24V AC
Power Consumption 30 Watts max.
Number of device can be
powered 1
Installation DIN Rail kit and Wall Mount ear
Alarm
Provides one relay output for power fail,
Alarm Relay current carry ability: 3A @
DC 30V
Enclosure IP30 Slim Type Metal Case

7
Power over Ethernet
PoE Standard IEEE 802.3at High Power over Ethernet
/ Mid-Span PSE
PoE Power Output DC 56V / 30 Watts
PoE Power supply Type Mid-Span
Power Pin Assignment 4/5(+), 7/8(-)
Standards Conformance
Standards Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit
Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
enhancement standard
FCC FCC Part 15B Class A
CE
EMI
EN 55022
EN 61000-3-2
EN 61000-3-3
EMS
EN 61000-4-2 (ESD)
EN 61000-4-3 (RS)
EN 61000-4-4 (EFT)
EN 61000-4-5 (Surge)
EN 61000-4-6 (CS)
EN 61000-4-8 (PFMF)
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Environment
Operating Temperature -40 ~ 75 Degree C
Storage Temperature -40 ~ 85 Degree C
Humidity 5 ~ 95% (Non-condensing)

8
4 Hardware Description

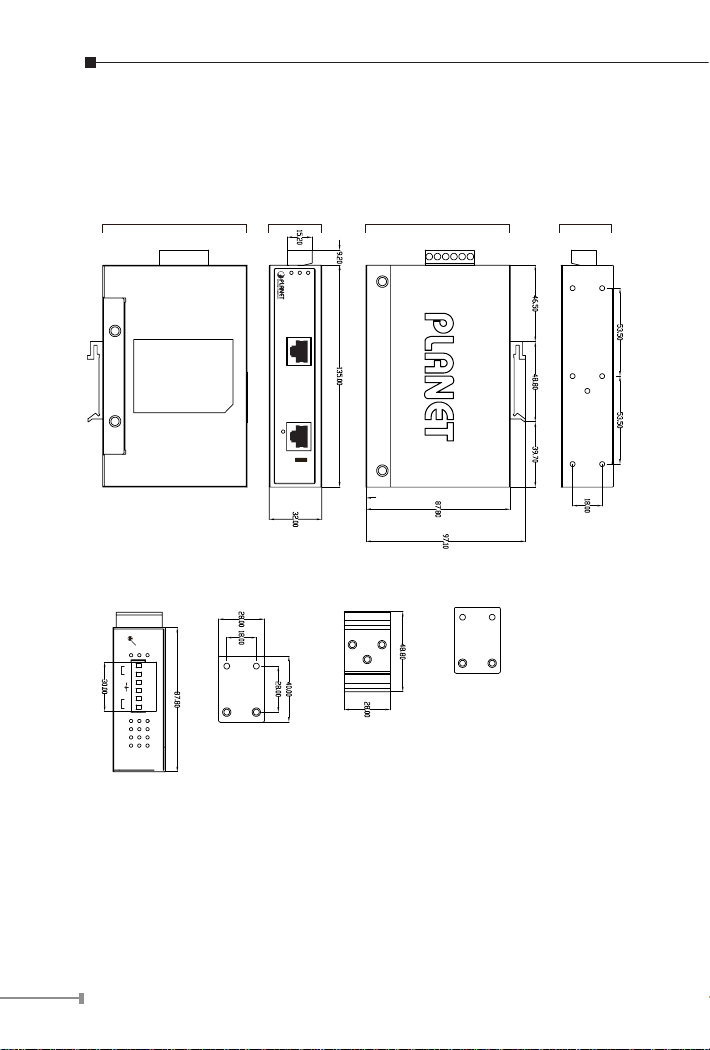

4.1 Physical Dimension
Side View
Bottom View Front View Top View
Mounting Kit Mounting KitDIN-Rail Kit
Rear View
10/100/1000T
10/100/1000T
Ethernet+DC
Ethernet
PoE
In-Use
IPOE-162
P1 P2 FAULT
802.3at
Input DC 24~48V, AC 24V
V1- V1+ V2- V2+
PWR1 PWR 2Fault
Figure 4-1

9
4.2 Product Outlook
10/100/1000T
10/100/1000T
Ethernet+DC
Ethernet
PoE
In-Use
IPOE-162
P1 P2 FAULT
802.3at
Figure 4-2
LED Indicators
LED Color Function
P1 Green Indicate the power 1 has power.
P2 Green Indicate the power 2 has power.
FAULT Green Indicate the either power 1 or power 2 has no
power.
PoE In-Use Green Indicate the port is providing 56V DC in-line
power.
