Wall-Smart 085-1-200-UBL Instruction manual

Make Your Wall Smart
“WS IN-WALL MOUNT FOR SONOS ARC " - Product descr pt on:
The “WS IN-WALL MOUNT FOR SONOS ARC” is an adapter for in-wall
nearl flush installation of a SONOS ARC sound bar.
The “WS IN-WALL MOUNT FOR SONOS ARC” conceals the sound bar while
allowing eas access, removal and operation.
Key features and benef ts:
•Nearl flush with the wall (7.6mm [0.3”] thick on-wall grille).
•Allows eas insertion and removal of the sound bar.
•Wall adapter includes knockouts to install US or UK backboxes and
receptacles (See page 4 for backbox installation instructions)
(to install an European backbox use 085-1-200-EBL/EWH “WS IN-
WALL MOUNT FOR SONOS ARC EU&IL BLACK/WHITE”)
•Wall adapter is designed for the use with the following backboxes:
oUK – BS4662 2 Gang (or equivalent)
oUS – HUBBELL Racobox 420 (or equivalent)
•Wall adapter is designed for High Fidelit audio output
•Grille is supplied white (UWH) or black (UBL)
•Grille is made with high qualit acoustic and IR transparent fabric
•Grille attaches magneticall to the wall mount base
•Wall Board thickness ma be 9.1mm[0.36"] up to 18.4mm[0.72"]
•Designed for the use with ARC sound bar (b SONOS)(not included)
•Wall adapter is supplied unassembled (See page 3 for instructions)
•See page 2 for package content

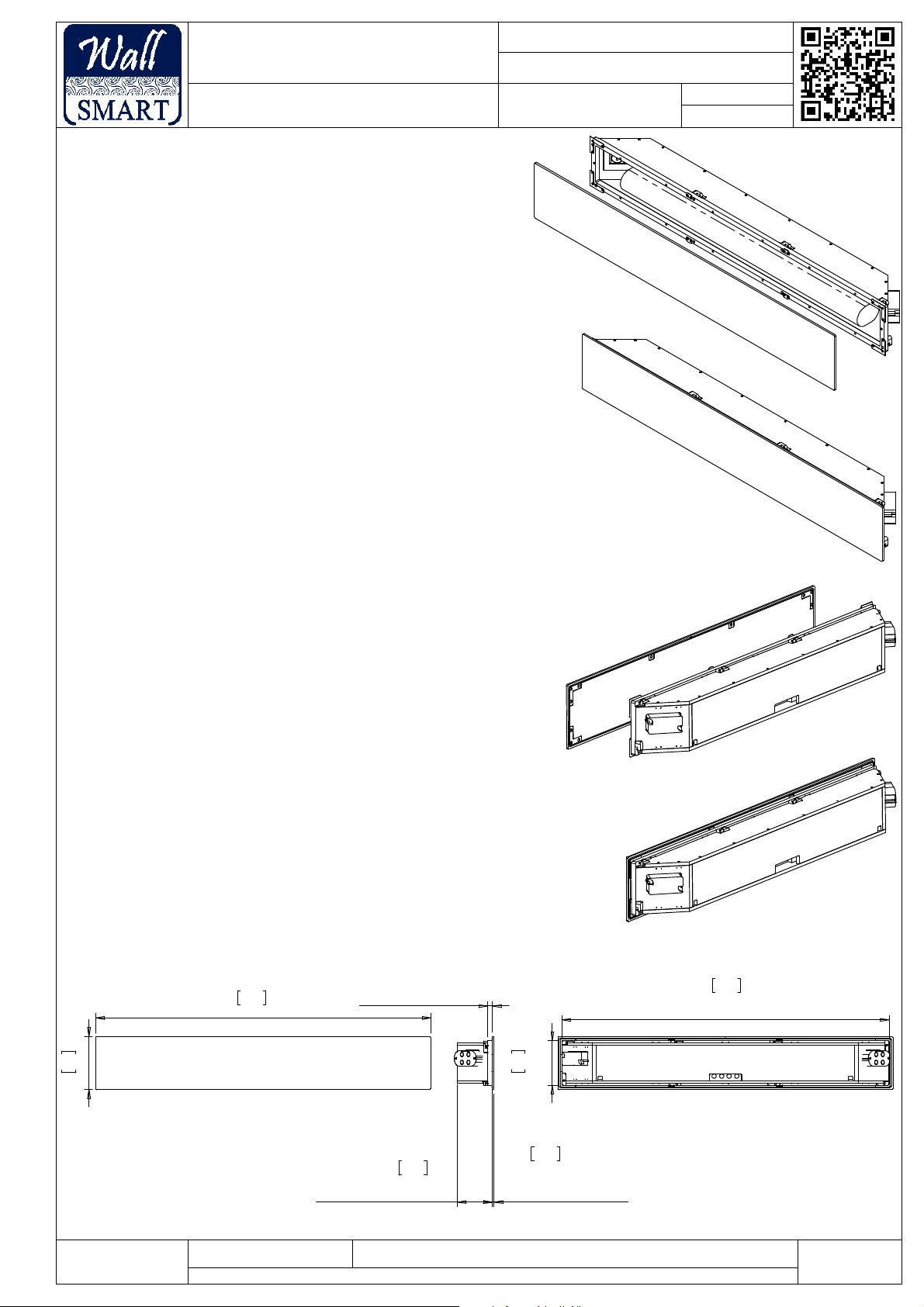

Key propert es:
•Dimensions: (W/H/D): 1447.8mm (57”)/228.6mm (9")/ 157.7mm
(6.21”)
•Weight: 6.7Kg, 14.8lbs.
•Material: Moisture resistant MDF (compliant with TSCA Title VI)
DIMENSIONS ARE IN MILLIMETERS
www.wall-smart.com
B
SHEET 1/5
DWG NO.
REVISION
WS IN-WALL MO NT FOR SONOS
085-4-200- -SPC
WALL-SMART
Model:
DATE 16/FEB/2022
NLESS OTHERWISE SPECIFIED:
REPROD CED OR COPIED WITHO T WRITTEN CONSENT OF WALL-SMART z zz
z
Phone: [phone] / [e-mail]
PROD CT SPEC.
Model No.: 085-1-200- BL/ WH
INFORMATION CONTAINED HEREIN IS PROPRIETARY AND MAY NOT BE SED,
ARC S& K BLACK/WHITE
Family:
by Wall-Smart Ltd.
0.30
7.6
GRILLE THICKNESS
ON-WALL
5.91
150.1
DEPTH BEHIND WALL
[0.36 ~ 0.72]
9.1 ~ 18.4
WALL EDGE
THICKNESS RANGE
55.7
1414
WALL OPENING
7.7
195
WALL OPENING
9.0
228.6
57.0
1447.8
Make Your Wall Smart
“WS IN-WALL MOUNT FOR SONOS ARC " - Product descr pt on:
The “WS IN-WALL MOUNT FOR SONOS ARC” is an adapter for in-wall
nearl flush installation of a SONOS ARC sound bar.
The “WS IN-WALL MOUNT FOR SONOS ARC” conceals the sound bar while
allowing eas access, removal and operation.
Key features and benef ts:
•Nearl flush with the wall (7.6mm [0.3”] thick on-wall grille).
•Allows eas insertion and removal of the sound bar.
•Wall adapter includes knockouts to install US or UK backboxes and
receptacles (See page 4 for backbox installation instructions)
(to install an European backbox use 085-1-200-EBL/EWH “WS IN-
WALL MOUNT FOR SONOS ARC EU&IL BLACK/WHITE”)
•Wall adapter is designed for the use with the following backboxes:
oUK – BS4662 2 Gang (or equivalent)
oUS – HUBBELL Racobox 420 (or equivalent)
•Wall adapter is designed for High Fidelit audio output
•Grille is supplied white (UWH) or black (UBL)
•Grille is made with high qualit acoustic and IR transparent fabric
•Grille attaches magneticall to the wall mount base
•Wall Board thickness ma be 9.1mm[0.36"] up to 18.4mm[0.72"]
•Designed for the use with ARC sound bar (b SONOS)(not included)
•Wall adapter is supplied unassembled (See page 3 for instructions)
•See page 2 for package content
Key propert es:
•Dimensions: (W/H/D): 1447.8mm (57”)/228.6mm (9")/ 157.7mm
(6.21”)
•Weight: 6.7Kg, 14.8lbs.
•Material: Moisture resistant MDF (compliant with TSCA Title VI)

B
085-4-200- -SPC
SHEET 2/5
DWG NO.
REVISION
NLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
WALL-SMART
Model:
DATE 16/FEB/2022
INFORMATION CONTAINED HEREIN IS PROPRIETARY AND MAY NOT BE SED,
REPROD CED OR COPIED WITHO T WRITTEN CONSENT OF WALL-SMART z zz
z
www.wall-smart.com
PROD CT SPEC.
Model No.:
Family:
Phone: [phone] / [e-mail]
by Wall-Smart Ltd.
085-1-200- BL/ WH
WS IN-WALL MO NT FOR SONOS
ARC S& K BLACK/WHITE

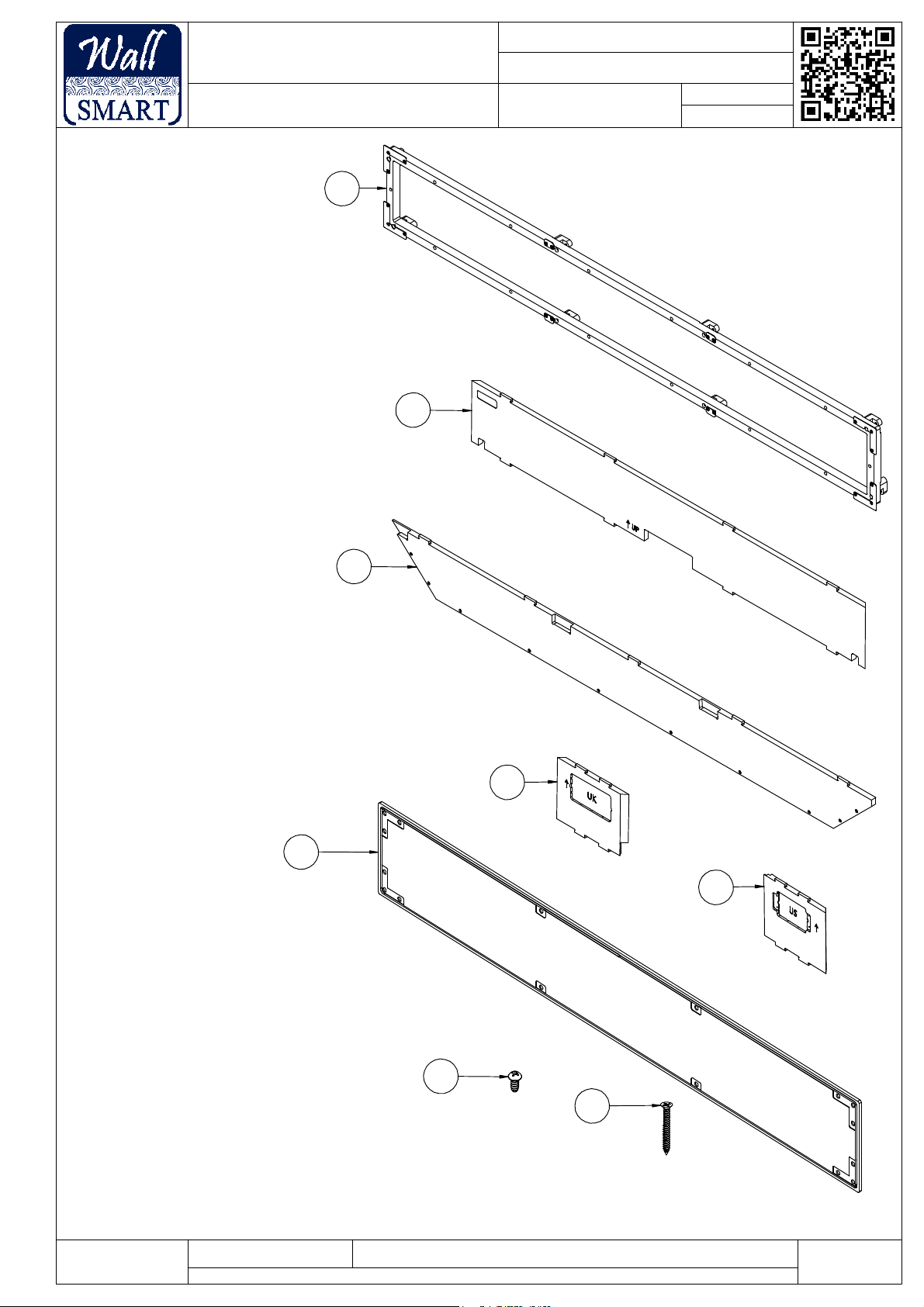

Adapter kit contains:
1. Front frame (X1)
2. Back wall (X1)
3. Top/Bottom wall (X2)
4. Side wall S (X1)
5. Side wall k (X1)
6. Grille (X1)
7. ST3x25 screws (X34)
8. KA3.5x8 screws (x4)
4
(x1)
6
(x1)
1
(x1)
5
(x1)
3
(x2)
8
(x4)
7
(x30)
2
(x1)

B
085-4-200- -SPC
SHEET 3/5
DWG NO.
REVISION
NLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
WALL-SMART
Model:
DATE 16/FEB/2022
INFORMATION CONTAINED HEREIN IS PROPRIETARY AND MAY NOT BE SED,
REPROD CED OR COPIED WITHO T WRITTEN CONSENT OF WALL-SMART z zz
z
www.wall-smart.com
PROD CT SPEC.
Model No.:
Family:
Phone: [phone] / [e-mail]
by Wall-Smart Ltd.
085-1-200- BL/ WH
WS IN-WALL MO NT FOR SONOS
ARC S& K BLACK/WHITE

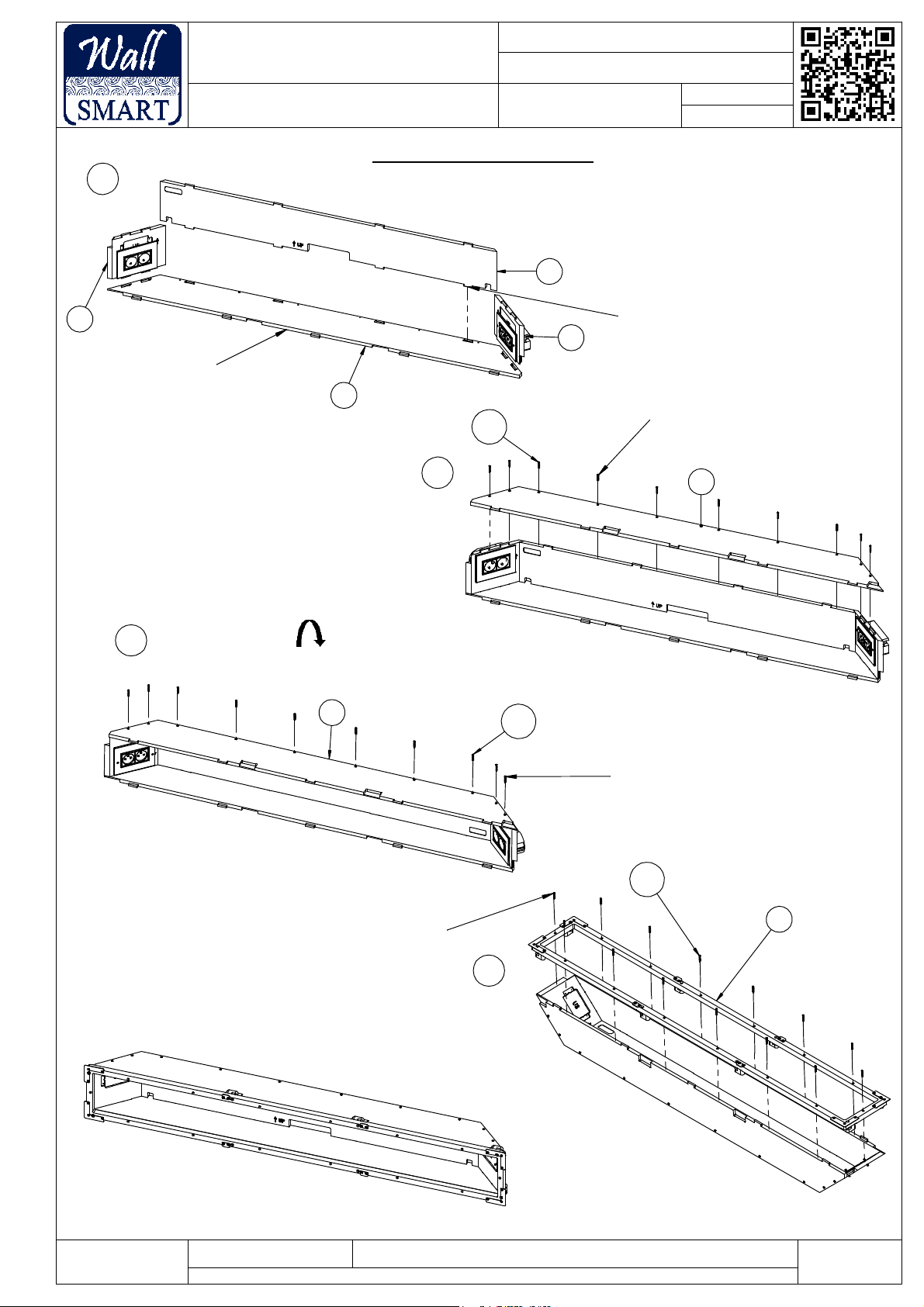

ASSEMBLY INSTRUCTIONS
3
7
(x10) Insert & screw Top wall (item 3)
using 10 screws (item 7)
7
(x10)
3
Screw in Bottom wall (item 3)
using 10 screws (item 7)
1
2
3
2
3
5
4Insert components 2,4 & 5
into the Bottom wall (item 3)
Rotate while holding the bottom wall
Bottom wall
1
7
(x14)
Insert & screw Front frame (item 1)
using 14 screws (item 7)

B
085-4-200- -SPC
SHEET 4/5
DWG NO.
REVISION
NLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
WALL-SMART
Model:
DATE 16/FEB/2022
INFORMATION CONTAINED HEREIN IS PROPRIETARY AND MAY NOT BE SED,
REPROD CED OR COPIED WITHO T WRITTEN CONSENT OF WALL-SMART z zz
z
www.wall-smart.com
PROD CT SPEC.
Model No.:
Family:
Phone: [phone] / [e-mail]
by Wall-Smart Ltd.
085-1-200- BL/ WH
WS IN-WALL MO NT FOR SONOS
ARC S& K BLACK/WHITE

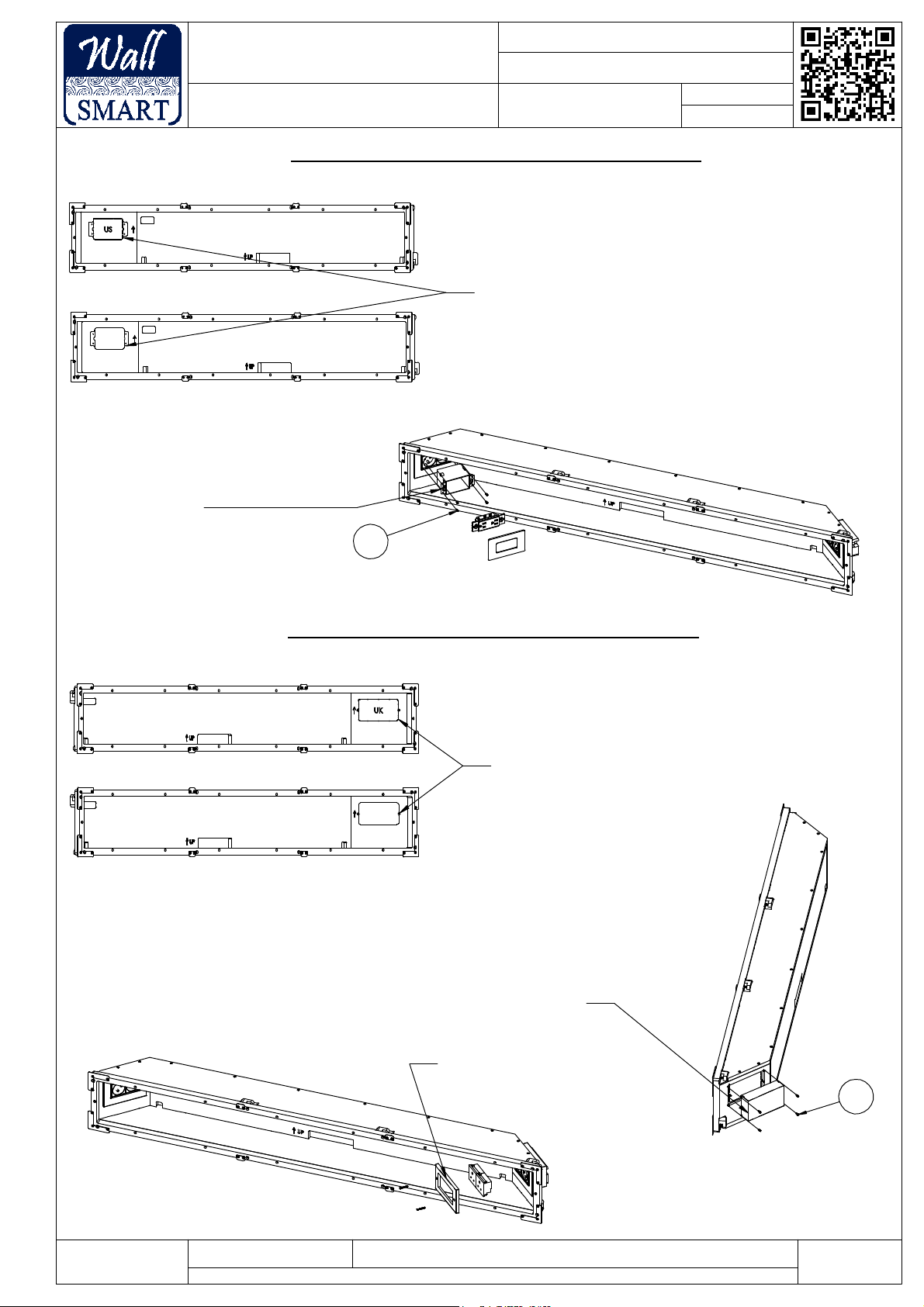

UK BACKBOX AND RECEPTACLE INSTALLATION
1. REMOVE K KNOCKO T
US BACKBOX AND RECEPTACLE INSTALLATION
1. REMOVE S KNOCKO T
3. INSATLL RECEPTACLE
2. SCREW IN A BS4662 2 GANG
BOX (OR EQ IVALENT)
8
(x4)
2. SCREW IN A RACOBOX 420
(OR EQ IVALENT) AND INSTALL
RECEPTICAL
8
(x4)

B
085-4-200- -SPC
SHEET 5/5
DWG NO.
REVISION
NLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
WALL-SMART
Model:
DATE 16/FEB/2022
INFORMATION CONTAINED HEREIN IS PROPRIETARY AND MAY NOT BE SED,
REPROD CED OR COPIED WITHO T WRITTEN CONSENT OF WALL-SMART z zz
z
www.wall-smart.com
PROD CT SPEC.
Model No.:
Family:
Phone: [phone] / [e-mail]
by Wall-Smart Ltd.
085-1-200- BL/ WH
WS IN-WALL MO NT FOR SONOS
ARC S& K BLACK/WHITE
5. GENTLY SCREW CLOCKWISE 8
RETENTION SCREWS NTIL DOG
EARS RETAIN THE NIT
WALL INSTALLATION
2. RO TE SO ND BAR ELECTRIC CORD
3. RO TE SO ND BAR MEDIA CABLES
6. CONNECT SO ND BAR
AND PLACE IT IN THE
WALL MO NT
7. ATTACH GRILLE MAGNETICALLY
1. C T OPENING (BOARD THICKNESS
9.1mm [0.36"] P TO 26.4mm [0.72"])
7.7
195
55.7
1414
4. INSERT WALL SMART®
WALL MO NT BASE
