S-Cape
™
2MR Hand Control Operation Guide 99300906

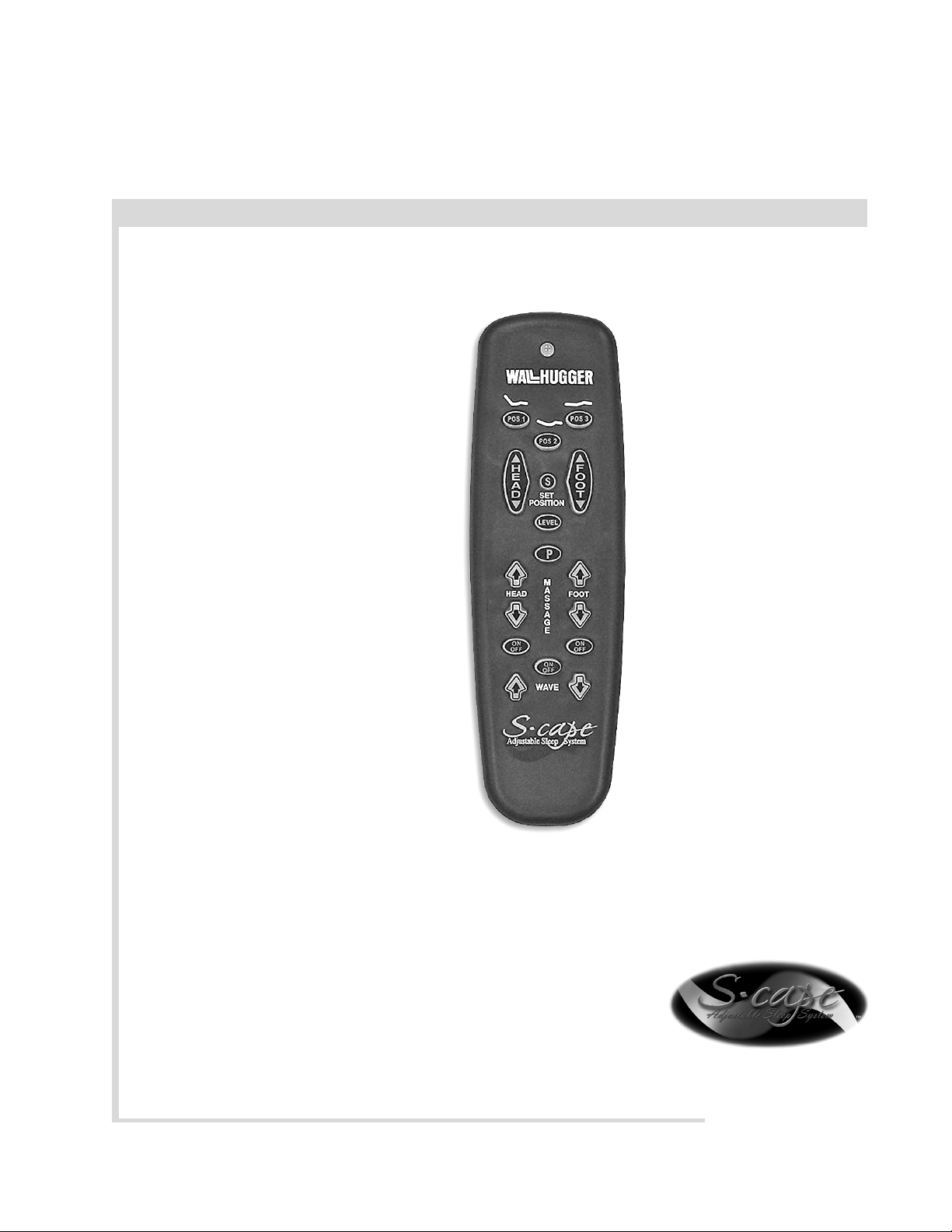

S-CAPE
™
2MR FUNCTION
IMPORTANT INFORMATION
READ ADVISORY INFORMATION IN THE OWNERS MANUAL CAREFULLY BEFORE USING
THIS PRODUCT. THE POTENTIAL FOR ELECTRICAL SHOCK EXISTS IF ELECTRICAL
COMPONENTS ARE NOT INSTALLED OR OPERATED PROPERLY.
TRANSMISSION INDICATOR LIGHT
Verifies a button is being pressed and
data is being sent to the bed.
POSITION BUTTONS
The adjustable base is equipped
with 3 factory preset positions.
Press and release a button and the
bed will automatically move to the
preset position. To stop the bed
while in motion, press and hold
any button until the bed stops.
LEVEL BUTTON
Press to return the bed to the
flat position. Note: to stop bed
while in motion, press any
button until bed movement
stops. Pressing this button will
shut off the massagers.
HEAD UP/DOWN BUTTON
Press and hold to raise or lower
the head section.
HEAD MASSAGE BUTTONS
Press and hold to increase or
decrease head massage
intensity.
WAVE SPEED BUTTONS
Press and hold—after the head
and/or foot massage, and the
wave system have been
activated—to increase or
decrease the wave speed.
HEAD MASSAGE ON/OFF
BUTTON
Switches the head massage on
or off. When switched on, the
massage feature will
automatically shut off after 30
minutes. WAVE ON/OFF BUTTON
Press to activate or deactivate
the wave vibration system.
CUSTOM POSITION
RECALL BUTTON
Press to return the bed to the
custom programmed position.
CUSTOM POSITION SET
BUTTON
Press to capture any position or
function (massage or wave) of
the bed as a programmed
position. Press the custom
position recall button to return
the bed to the custom
programmed position.
FOOT UP/DOWN BUTTON
Press and hold to raise or lower the
foot section.
FOOT MASSAGE BUTTONS
Press and hold to increase or
decrease foot massage intensity.
FOOT MASSAGE ON/OFF
BUTTON
Switches the foot massage on or
off. When switched on, the
massage feature will automatically
shut off after 30 minutes.
HAND CONTROL REQUIRES FOUR (4) AAA SIZE BATTERIES. TO CONSERVE BATTERY
LIFE, THE TRANSMITTER TURNS OFF ALL FUNCTIONS WHEN ANY BUTTON IS
PRESSED FOR MORE THAN 50 SECONDS.
NOTE
4

S-Cape
™
2MR Hand Control Operation Guide 99300906
“J BOX” PROGRAMMING PROCEDURE
When programming the hand control,
unplug the adjustable bed electrical
power cord. Wait 30 seconds, then plug
the cord back in to the power source.
This simple process automatically sets
the bed to the program mode for 90
seconds. For convenience, use this
procedure in lieu of pressing the learn
button (located on the J box, mounted to
the underside of the bed base frame).
“J BOX” PROGRAMMING
For adjustable beds equipped with “J box” only—no power down box.
At any point where “press the learn
button” is designated, disconnecting and
reconnecting the electrical power cord
will achieve the same function. Note that
this alternate programming feature is only
applicable to beds without a power down
box. Power down equipped adjustable
beds require use of the learn button
when programming the hand control.
POWER DOWN BOX OPERATION
In case of a power outage, press and hold
the learn button on the power down box
to lower the bed to the flat position
(FIGURE 1).
This function is only for lowering the bed
and will not operate the bed to any other
position. The (2) 9 volt batteries should
be replaced after this function is used.
In the event the power down feature does
not work, check to make sure the (2) 9
volt batteries are good.
LEARN
BUTTON
FIGURE 1: Power down box learn button.
POWER
DOWN BOX
5

S-Cape
™
2MR Hand Control Operation Guide 99300906

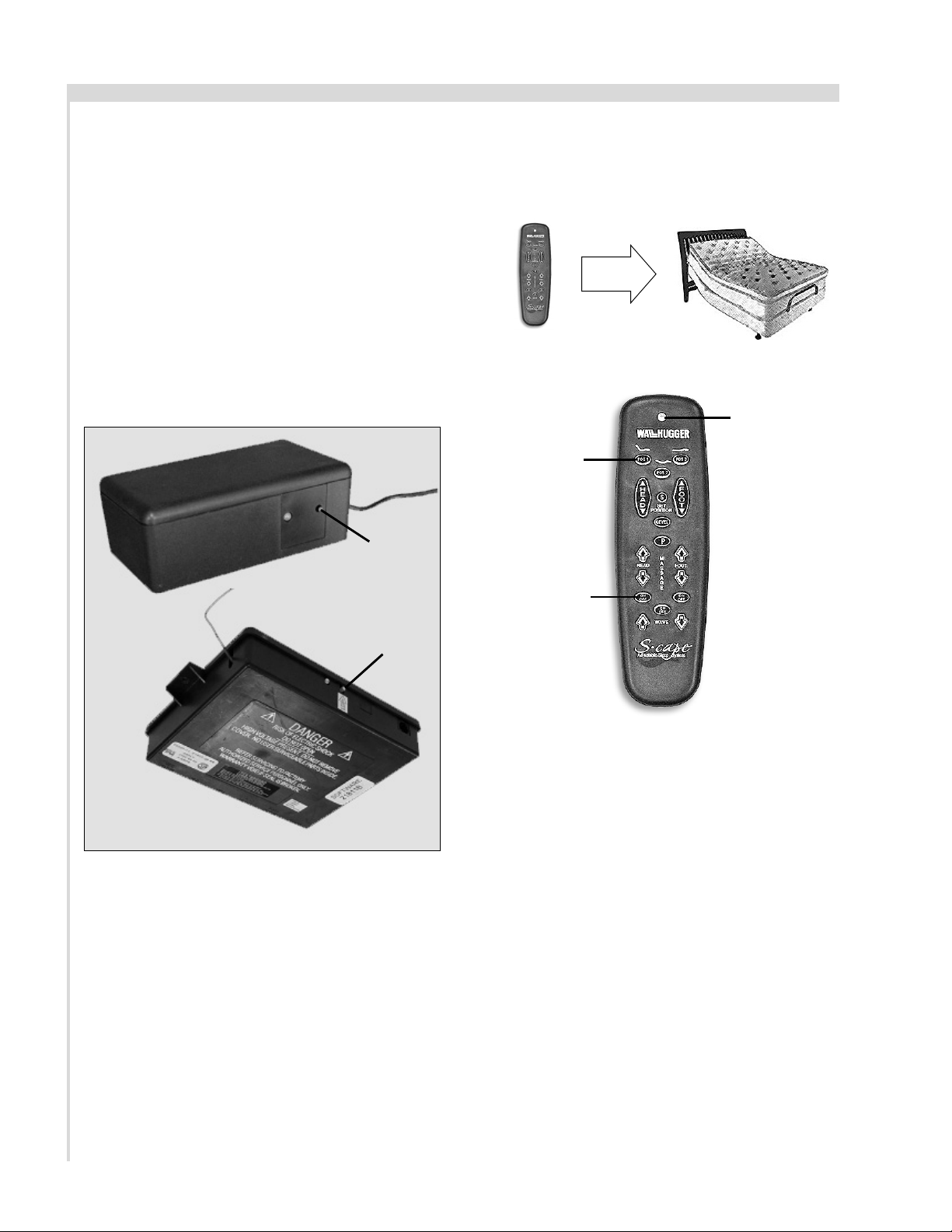

The two step procedure below is required to program 1 hand control to operate 1 bed. Before
beginning, make certain the bed is plugged into a working grounded electrical outlet. If
programming fails, initiate the programming procedure a second time.
S-CAPE
™
2MR PROGRAMMING 1 hand control - 1 bed
STEP 1
The bed will be equipped with either a
power down box or J box receiver unit
(FIGURE 2). Locate the receiver unit for the
bed and press the learn button for 1 second
and release. Note: If you experience
difficulty locating or reaching the learn
button on a J box equipped adjustable bed,
refer to J Box Programming on page 5.
STEP 2
On the hand control, simultaneously press
and hold the POS 1 and head massage
on/off buttons (FIGURE 3). The
transmission indicator light will flash
slowly and then flash rapidly to indicate
programming mode. Continue to hold for 5
seconds and then release the buttons.
One hand control is now programmed to
operate one bed.
POS 1
BUTTON
TRANSMISSION
INDICATOR
LIGHT
FIGURE 3
HEAD MASSAGE
ON/OFF
BUTTON
J BOX
FIGURE 2: Power down box and J box receiver units.
LEARN
BUTTON
LEARN
BUTTON
POWER
DOWN BOX
POWER DOWN
BOX RECEIVER
UNIT IS NOT
MOUNTED TO
BED FRAME.
J BOX RECEIVER
UNIT IS MOUNTED
TO THE BOTTOM
SIDE OF THE
BED FRAME.
6

S-Cape
™
2MR Hand Control Operation Guide 99300906

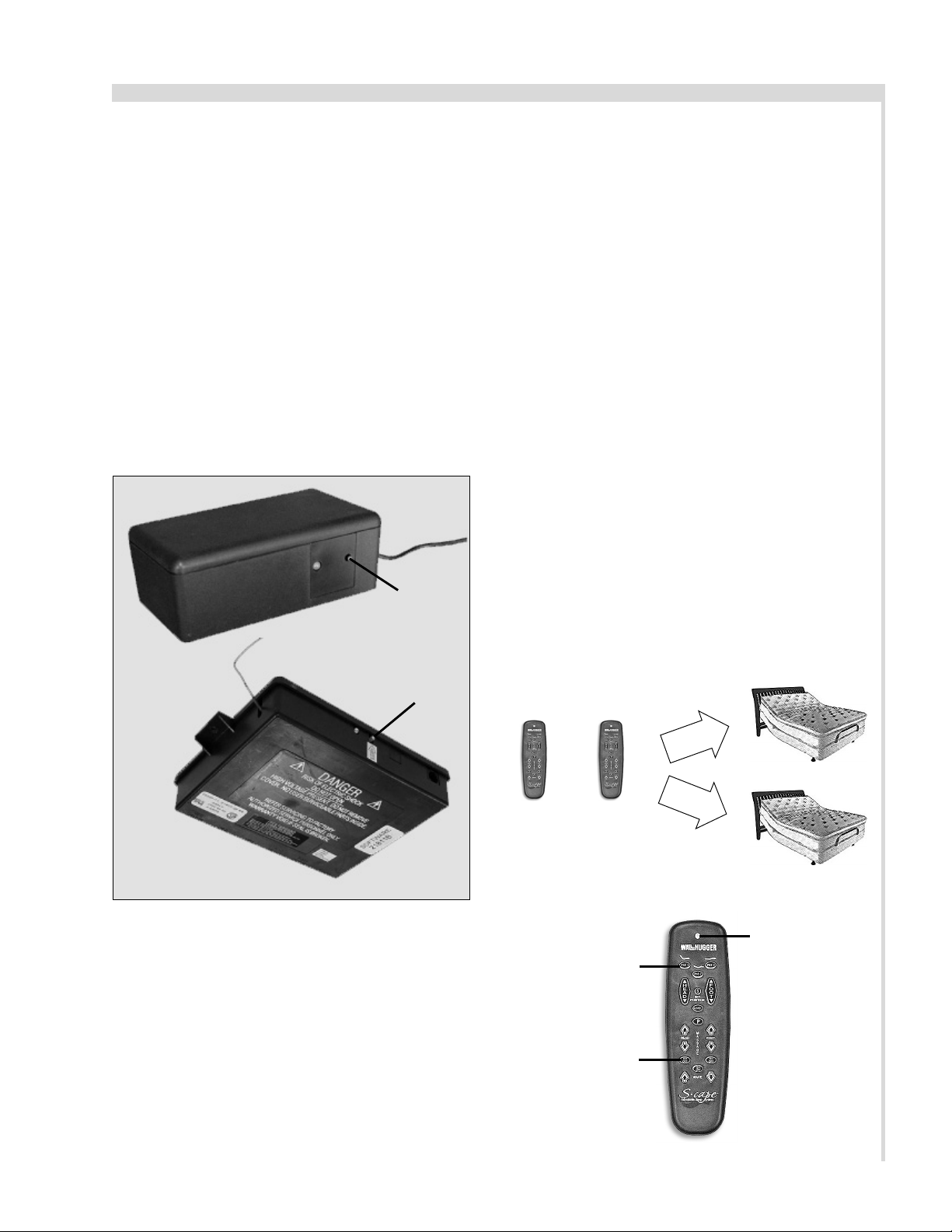

The three step procedure below is required to program 2 hand controls to operate 1 bed.
Before beginning, make certain the bed is plugged into a working grounded electrical outlet.
If programming fails, initiate the programming procedure a second time.
S-CAPE
™
2MR PROGRAMMING 2 hand controls - 1 bed
POS 1
BUTTON
TRANSMISSION
INDICATOR
LIGHT
FIGURE 3
HEAD MASSAGE
ON/OFF
BUTTON
STEP 1
The bed will be equipped with either a
power down box or J box receiver unit
(FIGURE 2). Locate the receiver unit for the
bed and press the learn button for 1 second
and release. Note: If you experience
difficulty locating or reaching the learn
button on a J box equipped adjustable bed,
refer to J Box Programming on page 5.
STEP 2
On hand control 1, simultaneously press
and hold the POS 1 and the head massage
on/off buttons (FIGURE 3). The
transmission indicator light will flash
slowly and then flash rapidly to indicate
programming mode. Continue to hold for 5
seconds and then release the buttons.
HAND
CONTROL 1
HAND
CONTROL 2
STEP 3
Repeat Step 1 and Step 2 with hand control
2.
Two hand controls are now programmed to
operate one bed.
J BOX
FIGURE 2: Power down box and J box receiver units.
LEARN
BUTTON
LEARN
BUTTON
POWER
DOWN BOX
POWER DOWN
BOX RECEIVER
UNIT IS NOT
MOUNTED TO
BED FRAME.
J BOX RECEIVER
UNIT IS MOUNTED
TO THE BOTTOM
SIDE OF THE
BED FRAME.
7
NOTE
OPERATE ONLY ONE (1) HAND CONTROL AT A
TIME. OPERATING TWO (2) HAND CONTROLS
AT THE SAME TIME WILL MOMENTARILY
BLOCK BOTH RF SIGNALS AND PREVENT BOTH
CONTROLS FROM FUNCTIONING.

S-Cape
™
2MR Hand Control Operation Guide 99300906

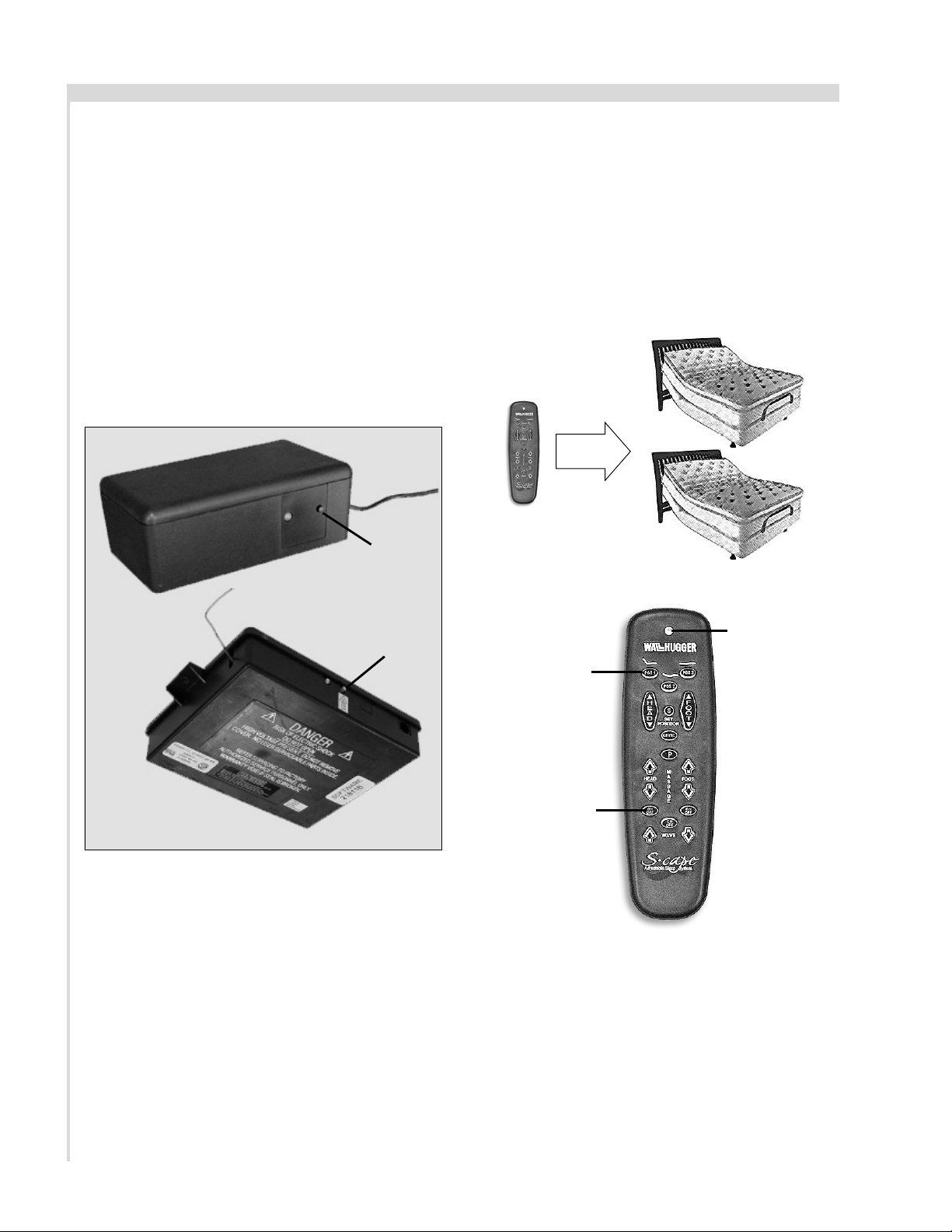

The three step procedure below is required to program 1 hand control to operate 2 beds.
Before beginning, make certain the beds are plugged into a working grounded electrical
outlet. If programming fails, initiate the programming procedure a second time.
S-CAPE
™
2MR PROGRAMMING 1 hand control - 2 beds
POS 1
BUTTON
TRANSMISSION
INDICATOR
LIGHT
FIGURE 3
HEAD MASSAGE
ON/OFF
BUTTON
STEP 1
The bed will be equipped with either a
power down box or J box receiver unit
(FIGURE 2). Locate the receiver unit for bed
1 and press the learn button for 1 second
and release. Note: If you experience
difficulty locating or reaching the learn
button on a J box equipped adjustable bed,
refer to J Box Programming on page 5. BED 1
BED 2
STEP 3
Repeat Step 1 and Step 2 with bed 2.
One hand control is now programmed to
operate two beds.
J BOX
FIGURE 2: Power down box and J box receiver units.
LEARN
BUTTON
LEARN
BUTTON
POWER
DOWN BOX
POWER DOWN
BOX RECEIVER
UNIT IS NOT
MOUNTED TO
BED FRAME.
J BOX RECEIVER
UNIT IS MOUNTED
TO THE BOTTOM
SIDE OF THE
BED FRAME.
STEP 2
On hand control 1, simultaneously press
and hold the POS 1 and the head massage
on/off buttons (FIGURE 3). The
transmission indicator light will flash
slowly and then flash rapidly to indicate
programming mode. Continue to hold for 5
seconds and then release the buttons.
8

S-Cape
™
2MR Hand Control Operation Guide 99300906
The six step procedure below is required to program 2 hand controls to operate 2 beds.
Before beginning, make certain the beds are plugged into a working grounded electrical
outlet. If programming fails, initiate the programming procedure a second time. NOTE:
OPERATE ONLY ONE (1) HAND CONTROL AT A TIME. OPERATING TWO (2) HAND CONTROLS AT THE
SAME TIME WILL MOMENTARILY BLOCK BOTH RF SIGNALS AND PREVENT BOTH CONTROLS FROM
FUNCTIONING.
STEP 5
On hand control 1, simultaneously press
and hold the POS 1 and the head massage
on/off buttons (FIGURE 3). The
transmission indicator light will flash
slowly and then flash rapidly to indicate
programming mode. Continue to hold for 5
seconds and then release the buttons.
STEP 6
Repeat Step 4 and Step 5 with hand control 2.
Two hand controls are now programmed to
operate two beds.
S-CAPE
™
2MR PROGRAMMING 2 hand controls - 2 beds
STEP 1
The bed will be equipped with either a
power down box or J box receiver unit
(FIGURE 2). Locate the receiver unit for
bed 1 and press the learn button for 1
second and release. Note: If you experience
difficulty locating or reaching the learn
button on a J box equipped adjustable bed,
refer to J Box Programming on page 5.
STEP 2
On hand control 1, simultaneously press
and hold the POS 1 and the head massage
on/off buttons (FIGURE 3). The
transmission indicator light will flash
slowly and then flash rapidly to indicate
programming mode. Continue to hold for 5
seconds and then release the buttons.
STEP 3
Repeat Step 1 and Step 2 with hand control 2.
STEP 4
The bed will be equipped with either a
power down box or J box (FIGURE 2).
Locate the receiver unit for bed 2 and press
the learn button for 1 second and release.
J BOX
FIGURE 2: Power down box and J box receiver units.
LEARN
BUTTON
LEARN
BUTTON
POWER
DOWN BOX
POWER DOWN
BOX RECEIVER
UNIT IS NOT
MOUNTED TO
BED FRAME.
J BOX RECEIVER
UNIT IS MOUNTED
TO THE BOTTOM
SIDE OF THE
BED FRAME.
POS 1
BUTTON
TRANSMISSION
INDICATOR
LIGHT
FIGURE 3
HEAD MASSAGE
ON/OFF BUTTON
9
HAND
CONTROL 1
BED 1
HAND
CONTROL 2
BED 2

S-Cape
™
2MR Hand Control Operation Guide 99300906
The six step procedure below is required to seperate 2 hand controls from operating 2 beds. One
hand contol per bed operation will result. Before beginning, make certain the beds are plugged into a
working grounded electrical outlet. If programming fails, initiate the programming procedure a
second time. NOTE: OPERATE ONLY ONE (1) HAND CONTROL AT A TIME. OPERATING TWO (2) HAND
CONTROLS AT THE SAME TIME WILL MOMENTARILY BLOCK BOTH RF SIGNALS AND PREVENT BOTH
CONTROLS FROM FUNCTIONING.
S-CAPE
™
2MR REPROGRAMMING separating 2 beds
STEP 4
The bed will be equipped with either a
power down box or J box (FIGURE 2). Locate
the receiver unit for bed 2 and press the learn
button for 1 second and release.
STEP 5
On hand control 2, simultaneously press and
hold the POS 1 and the head massage on/off
buttons (FIGURE 3). The transmission indicator
light will flash slowly and then flash rapidly to
indicate programming mode. Continue to hold
for 5 seconds and then release the buttons.
STEP 6
Repeat Step 4 and Step 5 with hand control 2.
Independent hand control operation is now
restored (hand control 1 operating bed 1; hand
control 2 operating bed 2).
STEP 2
On hand control 1, simultaneously press and
hold the POS 1 and the head massage on/off
buttons (FIGURE 3). The transmission indicator
light will flash slowly and then flash rapidly to
indicate programming mode. Continue to hold
for 5 seconds and then release the buttons.
STEP 3
Repeat Step 1 and Step 2 with hand control 1.
Note: wait 90 seconds before proceeding to
Step 4.
STEP 1
The bed will be equipped with either a power
down box or J box receiver unit (FIGURE 2).
Locate the receiver unit for bed 1 and press the
learn button for 1 second and release. Note: If
you experience difficulty locating or reaching
the learn button on a J box equipped
adjustable bed, refer to J Box Programming on
page 5.
POS 1
BUTTON
TRANSMISSION
INDICATOR LIGHT
FIGURE 3
HEAD MASSAGE
ON/OFF BUTTON
HAND CONTROL 1 BED 1
BED 2
HAND CONTROL 2
J BOX
FIGURE 2: Power down box and J box receiver units.
LEARN
BUTTON
LEARN
BUTTON
POWER
DOWN BOX
POWER DOWN
BOX RECEIVER
UNIT IS NOT
MOUNTED TO
BED FRAME.
J BOX RECEIVER
UNIT IS MOUNTED
TO THE BOTTOM
SIDE OF THE
BED FRAME.
10

www.adjustablesbyleggett.com
For customer care online, email:
[email protected]
