Richtmikrofon
VLOG

DGebrauchsanleitung
Lieber WALSER Kunde,
vielen Dank, dass Sie sich für das walimex pro Richtmikrofon
VLOG aus dem Hause WALSER entschieden haben. Unsere
Eigenmarke walimex pro steht für eine hohe Qualität zum günsti-
gen Preis, daher haben Sie hier Ihr optimales Tool für unkompli-
zierte und schnelle Filmaufnahmen in der Hand.
Wir wünschen Ihnen viel Spaß mit unserem Produkt.
Ihr Team von WALSER
■ Bitte lesen Sie sich die vorliegende Gebrauchsanleitung
sorgfältig durch, bevor Sie das Produkt zum ersten Mal be-
nutzen. Sie beinhaltet alle Informationen, die Sie benötigen,
um Verletzungen und Sachschäden vorzubeugen.
■ Befolgen Sie unbedingt alle hierin enthaltenen Sicherheits-
hinweise.
■ Bewahren Sie diese Gebrauchsanleitung an einem siche-
ren Ort auf. Achten Sie bei einem Verkauf oder der Weiter-
gabe des Produkts an Dritte darauf, dass Sie auch diese
Gebrauchsanleitung mit aushändigen.
Verweis auf die Konformitätserklärung
„Hiermit erklärt Walser GmbH & Co. KG, dass sich das Gerät
in Übereinstimmung mit den grundlegenden Anforderungen
und den übrigen einschlägigen Bestimmungen der zutreffenden
EU Richtlinien bendet“. Die Konformitätserklärung kann unter
folgender Adresse angefordert werden:
[email protected].

Hinweise zum Verständnis dieser
Gebrauchsanleitung
Kennzeichen und Symbole am Gerät
Dieses Zeichen bedeutet, dass Ihr Gerät die
Sicherheitsanforderungen aller geltenden
EU-Richtlinien erfüllt.
Umweltschonende Entsorgung
Elektrische und elektronische Geräte sowie
Batterien oder Akkus dürfen nicht mit dem allge-
meinen Hausmüll zusammen entsorgt werden.
Der Verbraucher ist gesetzlich dazu verpichtet,
elektrische und elektronische Geräte sowie Bat-
terien oder Akkus zu öffentlich eingerichteten
Sammelstellen oder zur Verkaufsstelle zurück-
zubringen, sobald das Gerät das Ende seiner
Lebensdauer erreicht hat. Einzelheiten sind der
nationalen Gesetzgebung zu entnehmen. Das
Symbol auf dem Produkt, in der Gebrauchsan-
leitung oder auf der Verpackung verweist auf
diese Vorschriften. Wiederverwertung, stofiche
Verwertung oder sonstige Formen von Wieder-
verwertung von Altgeräten bzw. Batterien/Akkus
sind ein wichtiger Beitrag zum Schutz unserer
Umwelt.
Wichtige Sicherheitsinformation
WARNUNG
■Betreiben Sie das Gerät nicht mit nassen Händen oder
Füssen.
■Reinigen Sie das Gerät nur auf die in dieser Gebrauchs-
anleitung angegebene Weise.
■Achten Sie darauf, dass das Gerät nicht herunterfällt.
Vergewissern Sie sich, dass das Gerät einen festen Halt
hat und sicher montiert wird. Lassen Sie ein herunterge-
fallenes Gerät von einer Elektrofachkraft prüfen, bevor Sie
es wieder einschalten.
■Wenn das Gerät einmal beschädigt oder defekt sein sollte:
Betreiben Sie das Gerät nicht mit beschädigtem Gehäuse.
Reparieren Sie das Gerät niemals selbst. Lassen Sie das
Gerät ausschließlich von einer Elektrofachkraft reparieren.
■Halten Sie das Gerät stets so instand wie diese Ge-
brauchsanleitung es vorschreibt.
■Öffnen Sie das Gerät nicht.
WARNUNG
Erstickungsgefahr durch Kleinteile
Halten Sie das Gerät und die Verpackung von Kindern und
Haustieren fern.

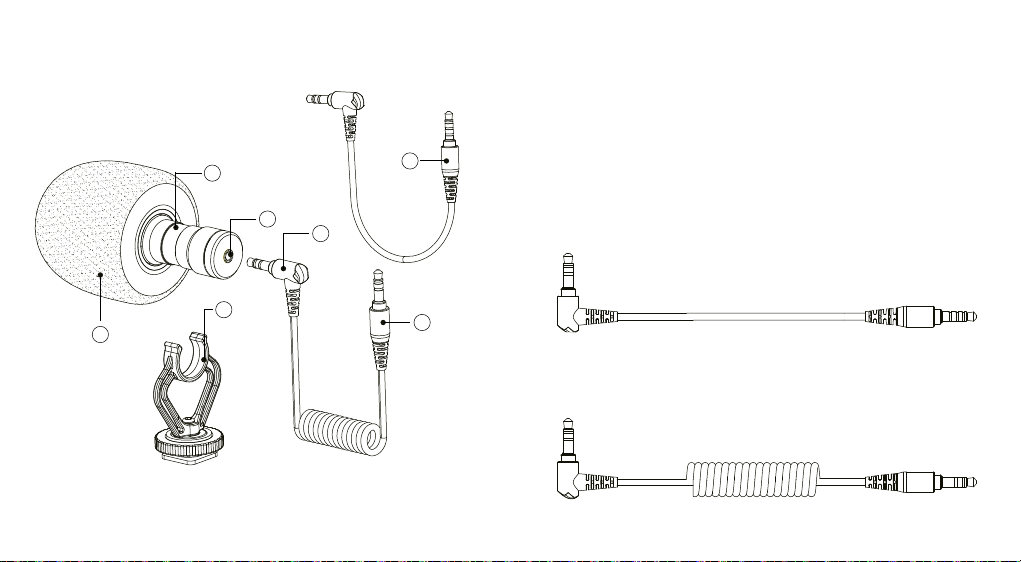

1. Fell-Windschutz
2. Mikrofon
3. 3,5 mm Audiobuchse
4. Rycote Lyre-Halterung
5. 3,5 mm Audioausgang
6. Audiokabel 3,5 mm auf TRS
7. Audiokabel 3,5 mm auf TRRS
Unterschied:
1. 3.5 mm TRRS Anschlusskabel (7)
- Für Smartphone, Tablet, Mac.
2. 3.5 mm TRS Anschlusskabel (6)
- Für Kameras, Camcorder, Audiorecorder, andere Audio-
und Video-Aufnahmegeräte.
Instruction Manual
Thank you for purchasing BOYA BY-MM1!
BY-MM1
Features
• Compact on-camera microphone
• Compatiable with smartphones, DSLR
cameras, Consumer Camcorders, PCs etc.
• Rugged metal construction
• No battery required
• Professional furry windshield included
Specifications
Transducer：
Polar pattern：
Frequency Response：
Sensitivity：
Signal to Noise Ratio：
Plug：
Dimensions：
Net Weight
Electret Condenser
Cardioid
35-18KHz +/-3dB
-42dB +/- 1dB / 0dB=1V/Pa，1kHz
76dB SPL
3.5mm TRS and TRRS connector
Φ22*81mm
86g
Universal Cardioid Microphone
BOYA AUDIO EQUIPMENT (SHENZHEN) CO., LIMITED
Add: A16 building, New Material Industrial Park of
Silicon Valley Power, Guanlan Town, Shenzhen, China
Tel: [phone]
Email: [e-mail]
www.boya-mic.com
Specifications
1
3.5 mm TRS connector
2
2
3
5
6
4
7

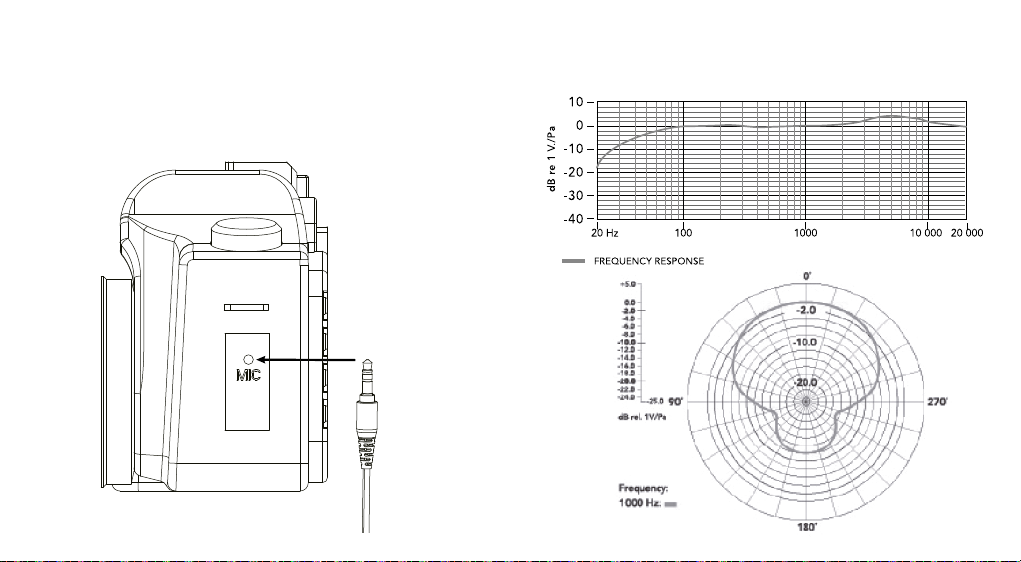

Using the microphone with cameras, camcorders,
audio recorders and other audio/video recording
devices.
1. Lcok the microphone on the camera hot shoe
2. Plug the 3.5 mm TRS connector into the audio
input jack of your device (audio recorder, amplifier,
PC, laptop).
What’s Included
1
Furry windsheild
Microphone
3.5mm audio jacket
Shock mount
3.5mm audio output cable
3.5mm to TRS audio output cable
3.5mm to TRRS audio output cable
1
2
3
4
5
6
7

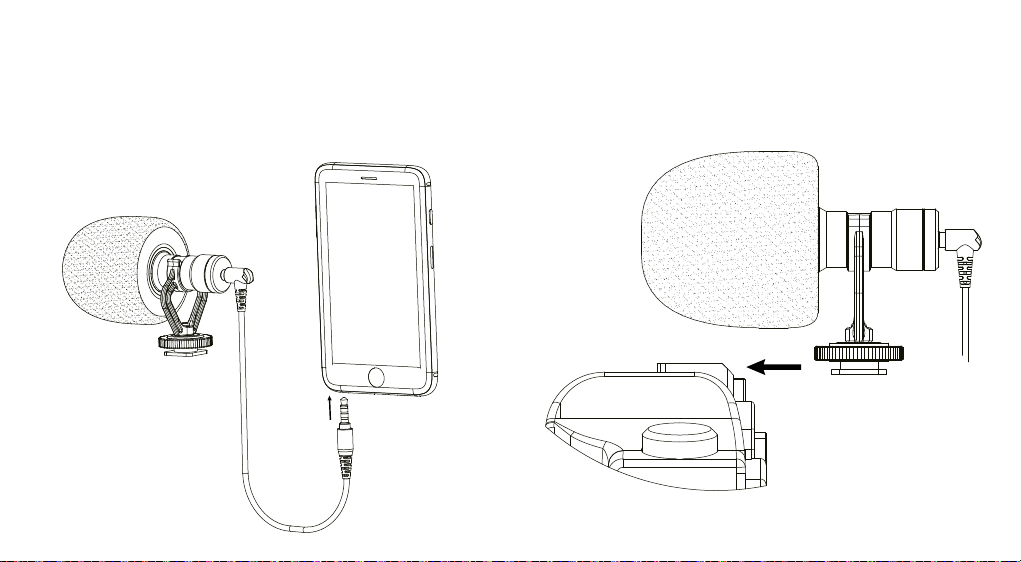

3.5 mm TRRS connector
Using the microphone with a Smartphone,
tablet or Mac.
1. Plug the 3.5 mm TRRS connector into the audio
jack of your smartphone, tablet or Mac.
2. Open the audio-only or video recording app and
begin recording.
The BOYA BY-MM1 is a cardioid microphone, which
specially design to improve the sound quality of videos
on the basis of build-in microphones.
With both TRS cable and TRRS output cable included,it
can be used on Smartphones, cameras, camcorders,
audio recorders, PCs, and other audio/video recording
devices.
BY-MM1 comes out in compact size and light weight
aluminium constructure , it will not be a heavy burden
while shooting. Plug and play design,no need to worry
the battery status. Included inside with a anti-shock
mount,which can effectively reduce unwanted vibration,
cable and handling noise. Also included a furry windproof
shield,which specially used for minimizing the wind and
environmental noise for outdoor recording , make sure
the sound crystal clear.
What’s difference?
-For Smartphone, tablet or Mac
-For cameras, camcorders, audio recorders and
other audio/video recording devices.
Troubleshooting
Problem Solution
Too much
ambience
noise is being
picked up
Make sure that the microphone is as close as
possible to the subject.
A certain amount of ambient noise is unavoidable in
loud environments.
The
microphone
can’t work
Make sure that using the correct audio connector.
1) For smartphone, tablet or Mac, using 3.5mm
flexiable cable.
2) For others devices, using 3.5mm straight cable.
If you have any problem using the BY-MM1
components, use the following checklist.
If any problem persist, please consult our local dealer,
or contact us directly at [e-mail].
