Warwick WA300 User manual

WARWICK OWNER’S MAN AL
BASS AMPLIFIERS
WA300 WA600 BC300
Family Owned ◊ Solar Powered ◊ Sustainably Manufactured in a Green Environment
All manuals and user guides at all-guides.com
all-guides.com

Languages
English 5
Technical Specifications
WA600 10
WA300 10
BC300 11
Front Panel Controls
WA300 13
WA600 13
BC300 13
Rear Panel Controls
WA300 14
WA600 14
BC300 14

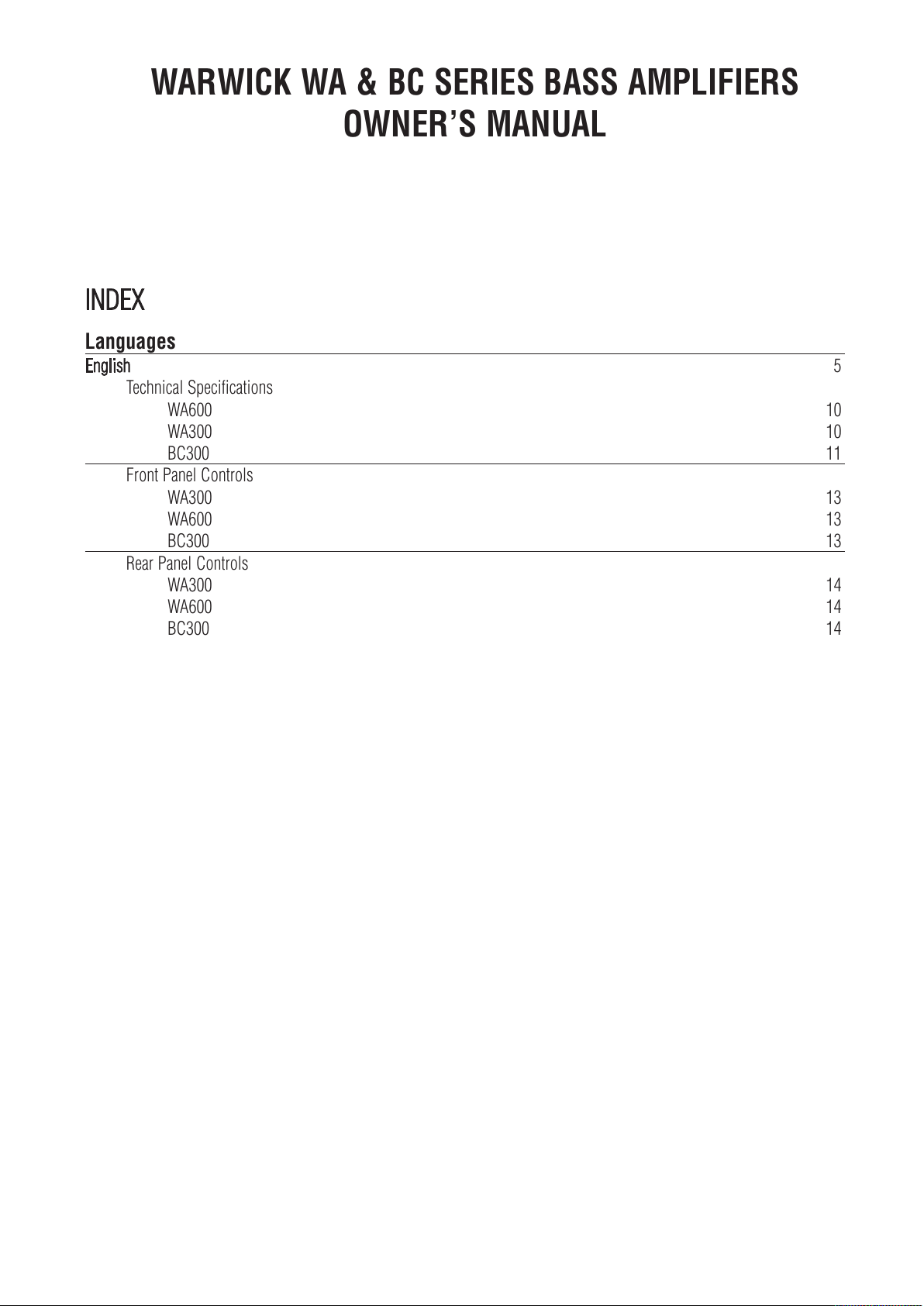

WARWICK WA & BC SERIES BASS AMPLIFIERS
OWNER’S MANUAL
INDEX
All manuals and user guides at all-guides.com

ENGLISH
5
All manuals and user guides at all-guides.com

ENGLISH
6

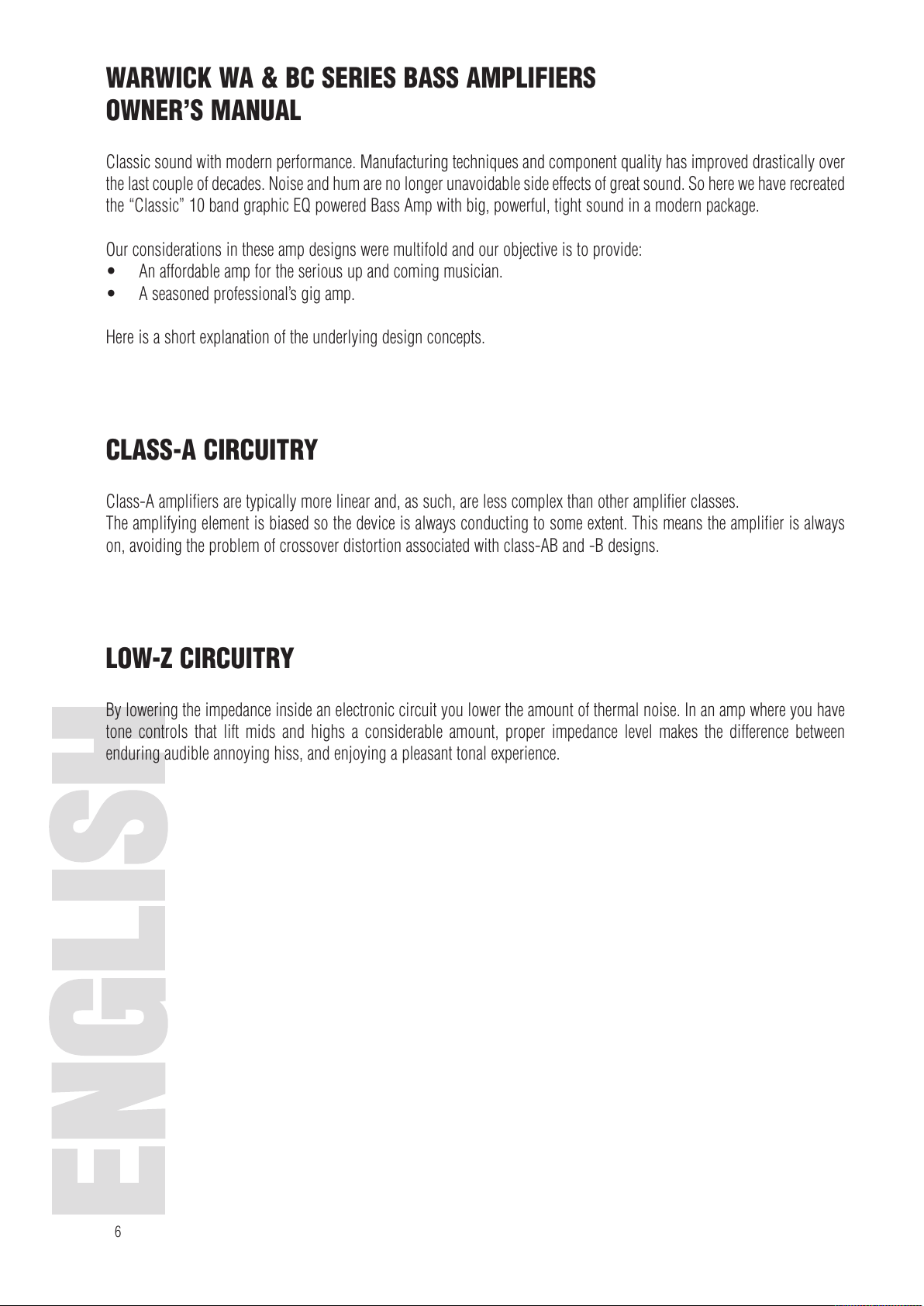

WARWICK WA & BC SERIES BASS AMPLIFIERS
OWNER’S MAN AL
Classic sound with modern performance. Manufacturing techniques and component quality has improved drastically over
the last couple of decades. Noise and hum are no longer unavoidable side effects of great sound. So here we have recreated
the “Classic” 10 band graphic EQ powered Bass Amp with big, powerful, tight sound in a modern package.
Our considerations in these amp designs were multifold and our objective is to provide:
• An affordable amp for the serious up and coming musician.
• A seasoned professional’s gig amp.
ere is a short explanation of the underlying design concepts.
CLASS-A CIRC ITRY
Class-A amplifiers are typically more linear and, as such, are less complex than other amplifier classes.
The amplifying element is biased so the device is always conducting to some extent. This means the amplifier is always
on, avoiding the problem of crossover distortion associated with class-AB and -B designs.
LOW-Z CIRC ITRY
By lowering the impedance inside an electronic circuit you lower the amount of thermal noise. In an amp where you have
tone controls that lift mids and highs a considerable amount, proper impedance level makes the difference between
enduring audible annoying hiss, and enjoying a pleasant tonal experience.
All manuals and user guides at all-guides.com

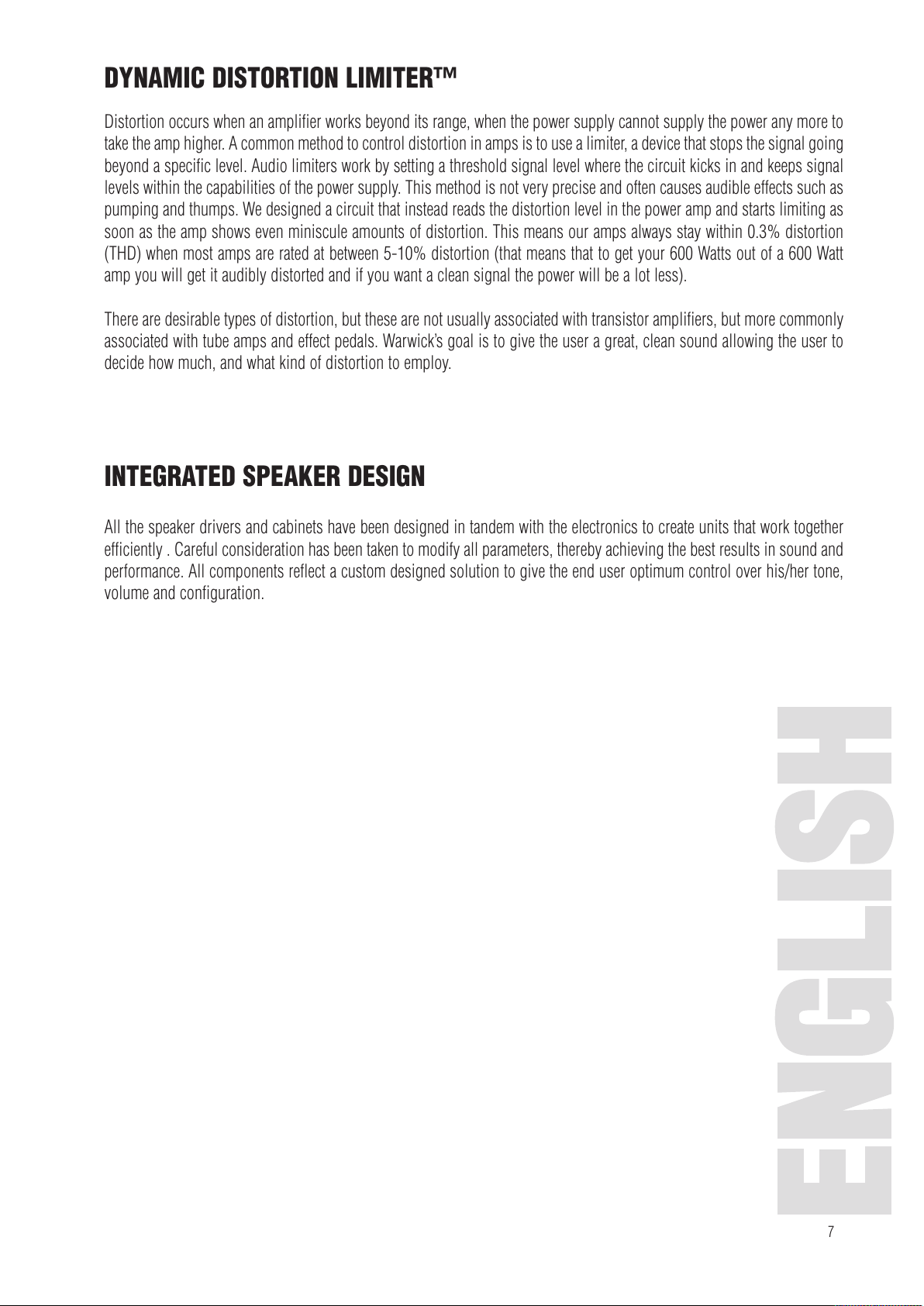

DYNAMIC DISTORTION LIMITER™
Distortion occurs when an amplifier works beyond its range, when the power supply cannot supply the power any more to
take the amp higher. A common method to control distortion in amps is to use a limiter, a device that stops the signal going
beyond a specific level. Audio limiters work by setting a threshold signal level where the circuit kicks in and keeps signal
levels within the capabilities of the power supply. This method is not very precise and often causes audible effects such as
pumping and thumps. We designed a circuit that instead reads the distortion level in the power amp and starts limiting as
soon as the amp shows even miniscule amounts of distortion. This means our amps always stay within 0.3% distortion
(T D) when most amps are rated at between 5-10% distortion (that means that to get your 600 Watts out of a 600 Watt
amp you will get it audibly distorted and if you want a clean signal the power will be a lot less).
There are desirable types of distortion, but these are not usually associated with transistor amplifiers, but more commonly
associated with tube amps and effect pedals. Warwick’s goal is to give the user a great, clean sound allowing the user to
decide how much, and what kind of distortion to employ.
INTEGRATED SPEAKER DESIGN
All the speaker drivers and cabinets have been designed in tandem with the electronics to create units that work together
efficiently . Careful consideration has been taken to modify all parameters, thereby achieving the best results in sound and
performance. All components reflect a custom designed solution to give the end user optimum control over his/her tone,
volume and configuration.
7
ENGLISH
All manuals and user guides at all-guides.com

ENGLISH
8

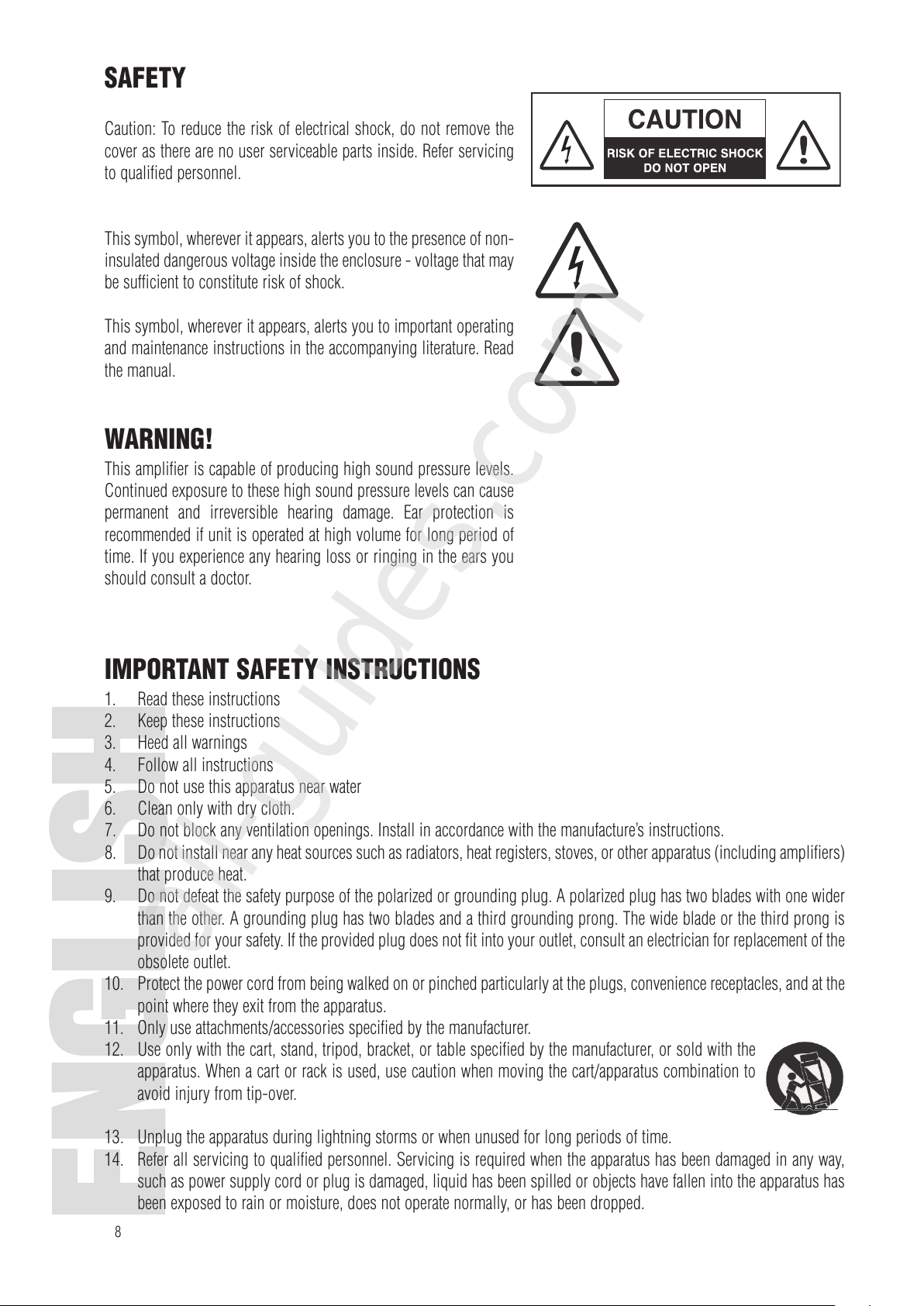

SAFETY
Caution: To reduce the risk of electrical shock, do not remove the
cover as there are no user serviceable parts inside. Refer servicing
to qualified personnel.
This symbol, wherever it appears, alerts you to the presence of non-
insulated dangerous voltage inside the enclosure - voltage that may
be sufficient to constitute risk of shock.
This symbol, wherever it appears, alerts you to important operating
and maintenance instructions in the accompanying literature. Read
the manual.
WARNING!
This amplifier is capable of producing high sound pressure levels.
Continued exposure to these high sound pressure levels can cause
permanent and irreversible hearing damage. Ear protection is
recommended if unit is operated at high volume for long period of
time. If you experience any hearing loss or ringing in the ears you
should consult a doctor.
IMPORTANT SAFETY INSTR CTIONS
1. Read these instructions
2. Keep these instructions
3. eed all warnings
4. Follow all instructions
5. Do not use this apparatus near water
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider
than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way,
such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
!
All manuals and user guides at all-guides.com
all-guides.com

ENGLISH

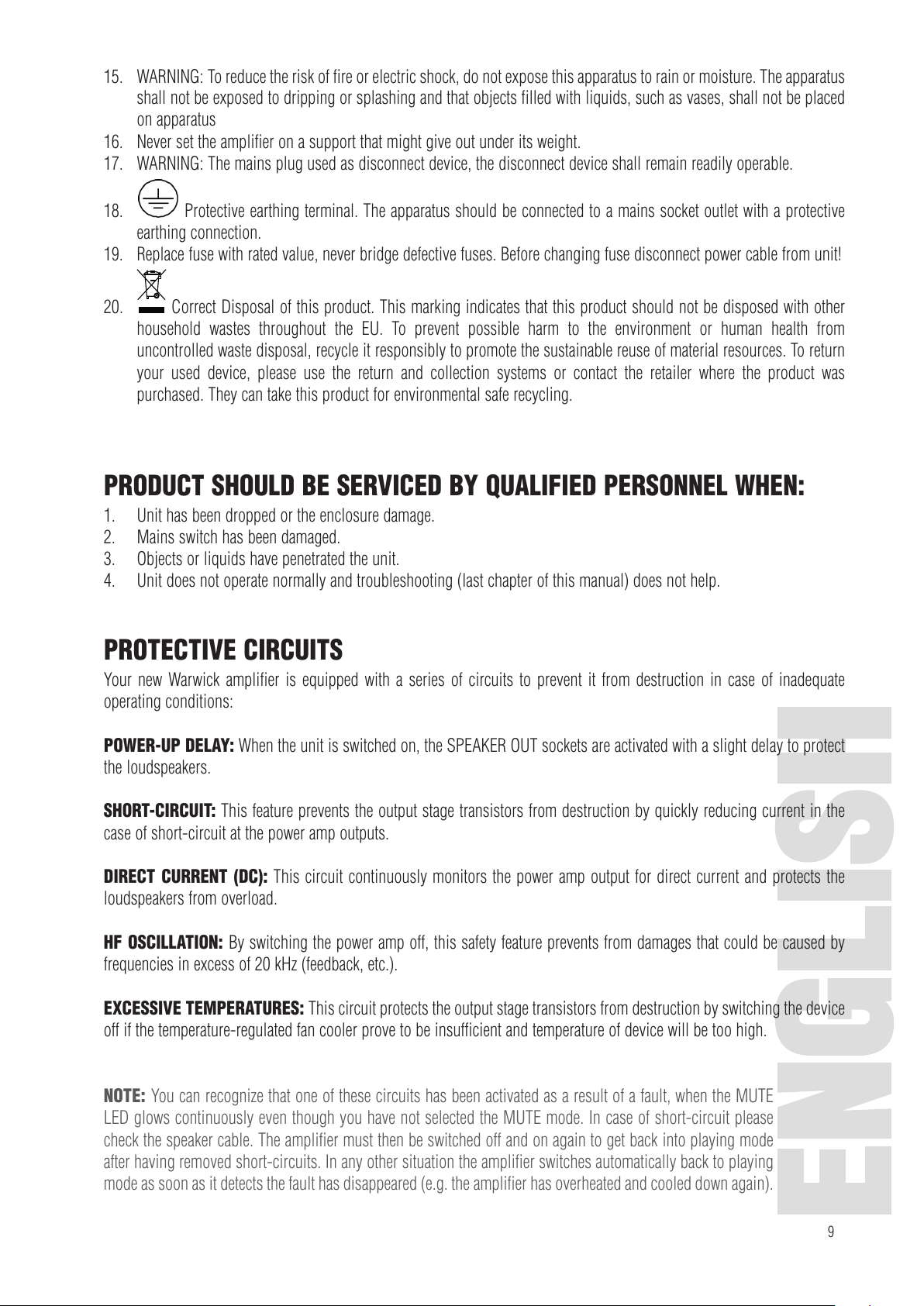

15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus
shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed
on apparatus
16. Never set the amplifier on a support that might give out under its weight.
17. WARNING: The mains plug used as disconnect device, the disconnect device shall remain readily operable.
18. Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective
earthing connection.
19. Replace fuse with rated value, never bridge defective fuses. Before changing fuse disconnect power cable from unit!
20. Correct Disposal of this product. This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
PROD CT SHO LD BE SERVICED BY Q ALIFIED PERSONNEL WHEN:
1. Unit has been dropped or the enclosure damage.
2. Mains switch has been damaged.
3. Objects or liquids have penetrated the unit.
4. Unit does not operate normally and troubleshooting (last chapter of this manual) does not help.
PROTECTIVE CIRC ITS
Your new Warwick amplifier is equipped with a series of circuits to prevent it from destruction in case of inadequate
operating conditions:
POWER- P DELAY: When the unit is switched on, the SPEAKER OUT sockets are activated with a slight delay to protect
the loudspeakers.
SHORT-CIRC IT: This feature prevents the output stage transistors from destruction by quickly reducing current in the
case of short-circuit at the power amp outputs.
DIRECT C RRENT (DC): This circuit continuously monitors the power amp output for direct current and protects the
loudspeakers from overload.
HF OSCILLATION: By switching the power amp off, this safety feature prevents from damages that could be caused by
frequencies in excess of 20 k z (feedback, etc.).
EXCESSIVE TEMPERAT RES: This circuit protects the output stage transistors from destruction by switching the device
off if the temperature-regulated fan cooler prove to be insufficient and temperature of device will be too high.
NOTE: You can recognize that one of these circuits has been activated as a result of a fault, when the MUTE
LED glows continuously even though you have not selected the MUTE mode. In case of short-circuit please
check the speaker cable. The amplifier must then be switched off and on again to get back into playing mode
after having removed short-circuits. In any other situation the amplifier switches automatically back to playing
mode as soon as it detects the fault has disappeared (e.g. the amplifier has overheated and cooled down again).
9
All manuals and user guides at all-guides.com

AMPS
10

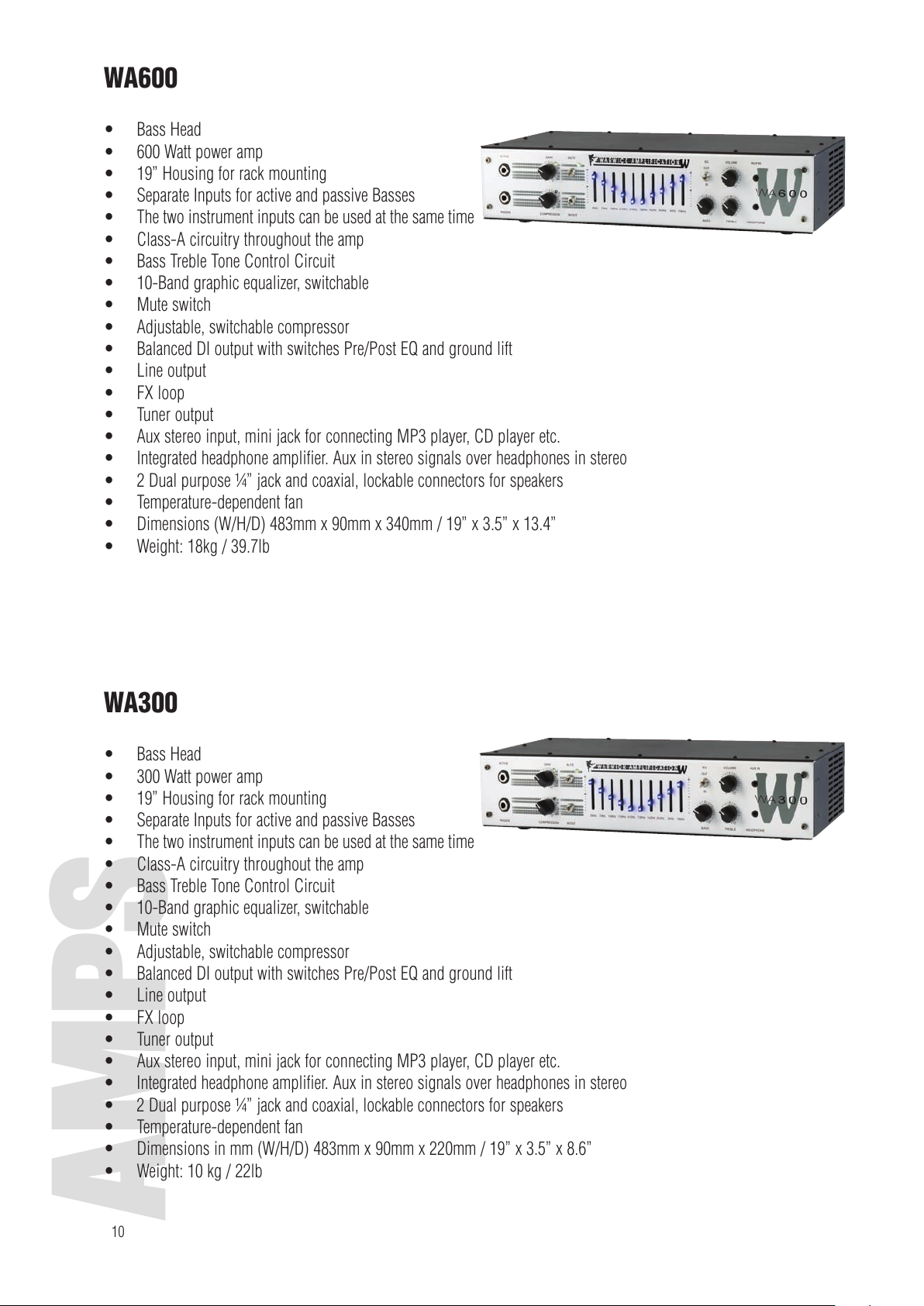

WA600
• Bass ead
• 600 Watt power amp
• 19” ousing for rack mounting
• Separate Inputs for active and passive Basses
• The two instrument inputs can be used at the same time
• Class-A circuitry throughout the amp
• Bass Treble Tone Control Circuit
• 10-Band graphic equalizer, switchable
• Mute switch
• Adjustable, switchable compressor
• Balanced DI output with switches Pre/Post EQ and ground lift
• Line output
• FX loop
• Tuner output
• Aux stereo input, mini jack for connecting MP3 player, CD player etc.
• Integrated headphone amplifier. Aux in stereo signals over headphones in stereo
• 2 Dual purpose ¼” jack and coaxial, lockable connectors for speakers
• Temperature-dependent fan
• Dimensions (W/ /D) 483mm x 90mm x 340mm / 19” x 3.5” x 13.4”
• Weight: 18kg / 39.7lb
WA300
• Bass ead
• 300 Watt power amp
• 19” ousing for rack mounting
• Separate Inputs for active and passive Basses
• The two instrument inputs can be used at the same time
• Class-A circuitry throughout the amp
• Bass Treble Tone Control Circuit
• 10-Band graphic equalizer, switchable
• Mute switch
• Adjustable, switchable compressor
• Balanced DI output with switches Pre/Post EQ and ground lift
• Line output
• FX loop
• Tuner output
• Aux stereo input, mini jack for connecting MP3 player, CD player etc.
• Integrated headphone amplifier. Aux in stereo signals over headphones in stereo
• 2 Dual purpose ¼” jack and coaxial, lockable connectors for speakers
• Temperature-dependent fan
• Dimensions in mm (W/ /D) 483mm x 90mm x 220mm / 19” x 3.5” x 8.6”
• Weight: 10 kg / 22lb
All manuals and user guides at all-guides.com

11
COMBO

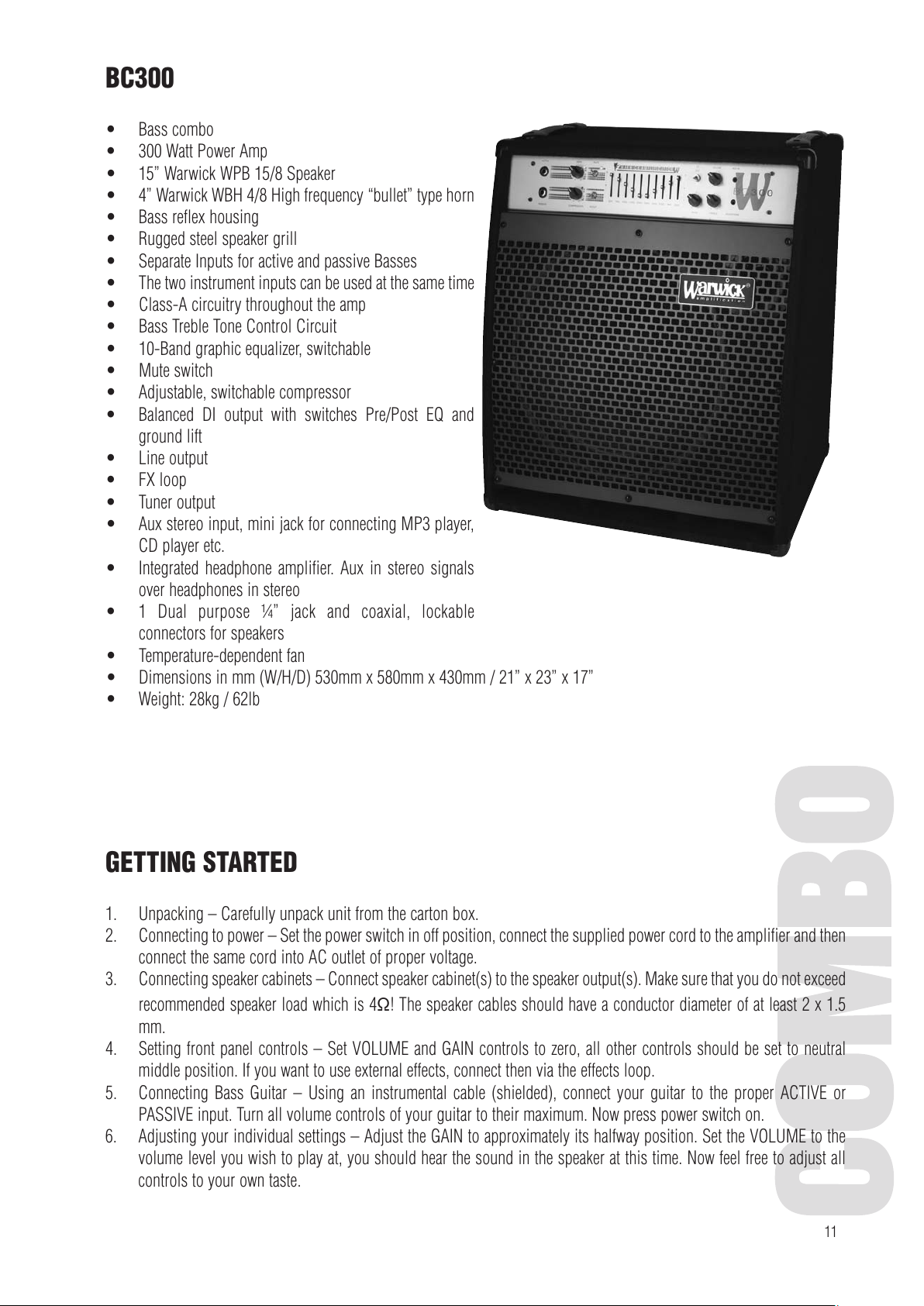

BC300
• Bass combo
• 300 Watt Power Amp
• 15” Warwick WPB 15/8 Speaker
• 4” Warwick WB 4/8 igh frequency “bullet” type horn
• Bass reflex housing
• Rugged steel speaker grill
• Separate Inputs for active and passive Basses
• The two instrument inputs can be used at the same time
• Class-A circuitry throughout the amp
• Bass Treble Tone Control Circuit
• 10-Band graphic equalizer, switchable
• Mute switch
• Adjustable, switchable compressor
• Balanced DI output with switches Pre/Post EQ and
ground lift
• Line output
• FX loop
• Tuner output
• Aux stereo input, mini jack for connecting MP3 player,
CD player etc.
• Integrated headphone amplifier. Aux in stereo signals
over headphones in stereo
• 1 Dual purpose ¼” jack and coaxial, lockable
connectors for speakers
• Temperature-dependent fan
• Dimensions in mm (W/ /D) 530mm x 580mm x 430mm / 21” x 23” x 17”
• Weight: 28kg / 62lb
GETTING STARTED
1. Unpacking – Carefully unpack unit from the carton box.
2. Connecting to power – Set the power switch in off position, connect the supplied power cord to the amplifier and then
connect the same cord into AC outlet of proper voltage.
3. Connecting speaker cabinets – Connect speaker cabinet(s) to the speaker output(s). Make sure that you do not exceed
recommended speaker load which is 4Ω! The speaker cables should have a conductor diameter of at least 2 x 1.5
mm.
4. Setting front panel controls – Set VOLUME and GAIN controls to zero, all other controls should be set to neutral
middle position. If you want to use external effects, connect then via the effects loop.
5. Connecting Bass Guitar – Using an instrumental cable (shielded), connect your guitar to the proper ACTIVE or
PASSIVE input. Turn all volume controls of your guitar to their maximum. Now press power switch on.
6. Adjusting your individual settings – Adjust the GAIN to approximately its halfway position. Set the VOLUME to the
volume level you wish to play at, you should hear the sound in the speaker at this time. Now feel free to adjust all
controls to your own taste.
All manuals and user guides at all-guides.com

ENGLISH
12
FRONT PANEL CONTROLS
ACTIVE – Input to plug in shielded guitar cable. This input is low sensitivity to suit the output from
guitars with active electronics.
PASSIVE – Input to plug in shielded guitar cable. This input is high sensitivity to suit the output from
passiveguitars.
GAIN – Controls the input signal level to the preamp.
COMPRESSION – Controls the amount of compression applied to the signal.
M TE – Switch mutes all outputs, except the tuner out and the headphone out. LED is provided next
to this switch to indicate when the amplifier is muted.
COMPRESSION IN/O T – Switches the compressor circuit in and out of the signal path.
EQ ALIZER – 10-band graphic equalizer section. Sliders control +/- 12dB of gain at the frequency indicated
below each control..
EQ IN/O T – Switches the EQ circuit in and out of the signal path
BASS – Shelving Bass Control gives +/- 18 dB gain at 60 z.
TREBLE – Shelving Treble Control gives +/- 18 dB gain at 10 z.
VOL ME – Controls the main output volume. Adjust this for your preferred overall playing volume.
A X IN – Input to connect external sound source. This can be used for plugging a CD, tape or MP3
player into the amp for practicing, rehearsing or for connecting a second preamp into the
system.
HEADPHONE – Output for connecting a headphone. Dedicated stereo headphone amp. It is recommended to
mute the amp when using headphones.
WA600咥㡆ϱWA300咥㡆ϱBC300咥㡆ϱ
WA600咥㡆ϱWA300咥㡆ϱBC300咥㡆ϱ
WA600咥㡆ϱWA300咥㡆ϱBC300咥㡆ϱ
All manuals and user guides at all-guides.com

13
ENGLISH
REAR PANEL CONTROLS
POWER – On/off switch for main power. For your safety remember to connect power cord to the amplifier
first, then to the AC outlet and then turn this switch on. It works backwards when you want
disconnect unit – firstly turn switch off, then disconnect cord from the AC outlet and finally
disconnect cord from amplifier.
MAINS IN AC – AC terminal with integrated fuse compartment for connection to the mains power supply. To
exchange the fuse you have to disconnect power cord first and use small screwdriver to remove
fuse carrier. Use only the same size and type for replacement. Using a fuse with a different rating
than specified can cause damage to your amplifier.
T NER O T – Dedicated output for tuners. Signal remains active in this output even when amplifier is muted
which allows for “silent tuning”.
SEND & RET RN – Insert point for external effects unit. To use effects loop connect the send socket to the input
of the effects unit and the output of the effects unit to the RETURN socket. The effects loop is of
the serial type.
LINE O T – Unbalanced output to external devises (auxiliary power amplifier, mixing console etc.).
DI O T – Balanced XLR output to external devices such as PA and studio mixing consoles.
PRE-POST – switch to control the DI OUT. In PRE position the signal at DI OUT is the signal without any
compression or equalization. In POST position signal at DI OUT is fed after the compressor,
tone controls and effects loop.
GRO ND LIFT – Switch to lift the chassis ground connection from the DI output. elps to prevent hum caused
by ground loops.
SPEAKER O T – Output combo connectors (¼” jack and lockable coaxial) for connecting speakers. These are
connected in parallel. Connect only speaker combinations with a summary load equal or greater
than 4Ω.
:$B5($5B:$B5($5B:$B5($5B:$B5($5B
DE93670540
DE93670540
DE93670540
DE93670540
7
%&B5($5B%&B5($5B%&B5($5B%&B5($5B
DE93670540
DE93670540
DE93670540
DE93670540
7
All manuals and user guides at all-guides.com
all-guides.com

ENGLISH
14
TRO BLESHOOTING
When your unit seems not to work properly, take a few minutes to troubleshoot before colling service. You can save yourself
time and money by doing it yourself because the source of the problem is often something quite simple.
WHAT IS THE PROBLEM?
1. There is no sound from the amp and LEDs don’t light up. -> Check your AC outlet.
1.1. Outlet is ok. -> check power cord, unit fuses and power switch.
1.2. No power in outlet. -> Check house fuse box.
2. There is no sound from the amp and LEDs light up. -> Check amp gain and/or volume controls, check guitar
controls. If controls are ok and all set above zero then listen for hum in the speaker.
2.1. There is no hum in the speaker. -> Check speaker and speaker cable.
2.2. There is small hum in the speaker. -> Unplug guitar, touch tip of cable and listen.
2.2.1. um is now very loud. -> Check your guitar electronics or try different guitar.
2.2.2. um does not change. -> Replace your guitar cable.
3. Sound quality is poor. -> Replace your guitar cable. If this does not help then check your speaker and speaker cable.
If problem isn’t covered above or if our solutions does not help then contact Warwick service information.
Our eads and Combos have all the following approvals:
In General China Europa USA USA/Canada
Japan Argentina Brazil Russia Australia
All manuals and user guides at all-guides.com

15
ENGLISH
WA300
WCA410 - 4WCA410 - 8WCA115 - 4WCA115 - 8
WA300
WCA410 - 8

WCA115 - 8
WCA410 - 8

WCA410 - 8
WCA115 - 8

WCA115 - 8
WA600
WCA410- 8

WCA410 - 8
WCA410 - 8WCA115 - 8WCA410- 8

WCA115 - 8
All manuals and user guides at all-guides.com

ENGLISH

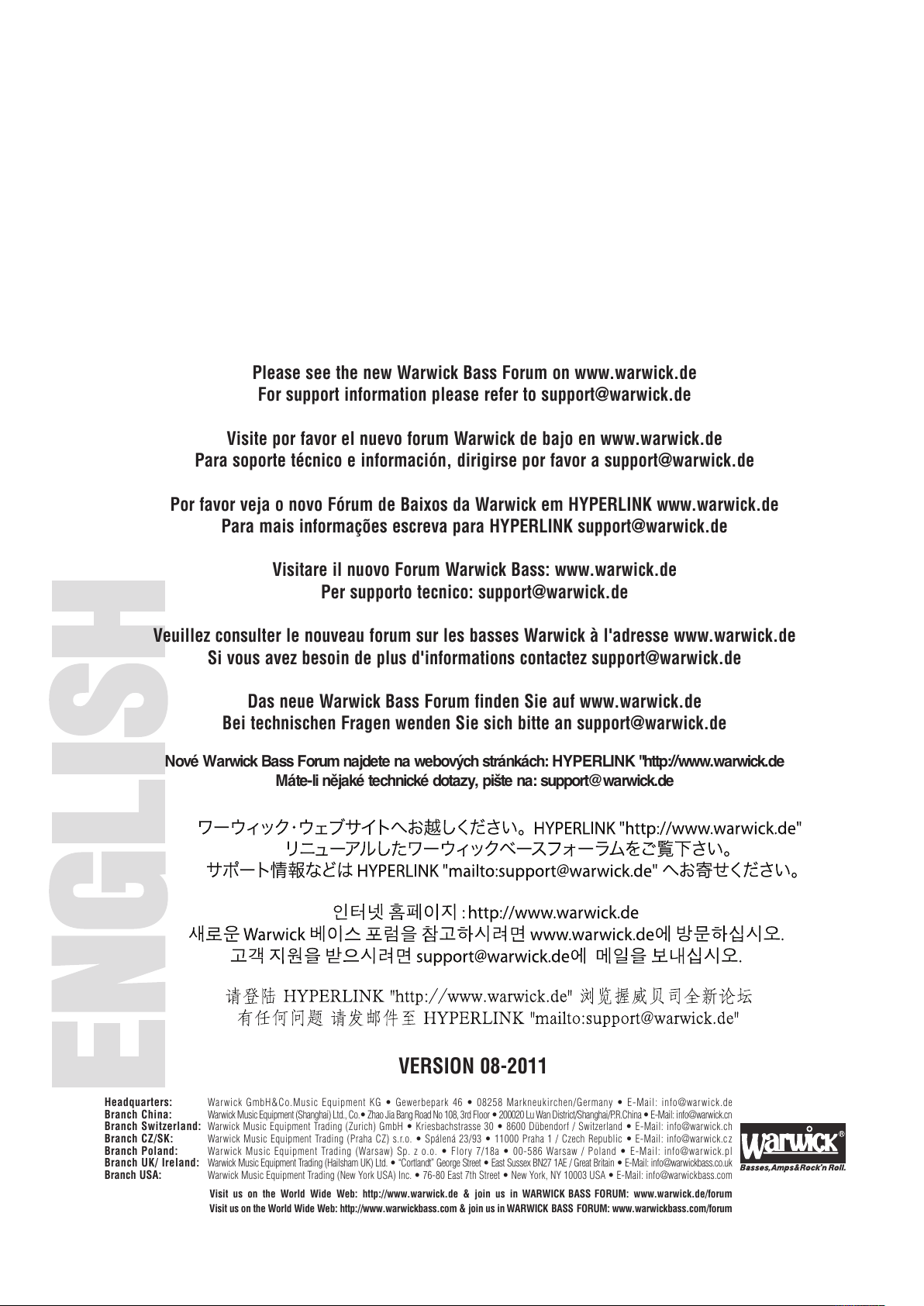

VERSION 08-2011
Nové Warwick Bass Forum ajdete a webov˘ch strá kách: HYPERLINK "http://www.warwick.de
Máte-li ûjaké tech ické dotazy, pi‰te a: [e-mail]
Please see the new Warwick Bass Forum on www.warwick.de
For support information please refer to [e-mail]
Visite por favor el nuevo forum Warwick de bajo en www.warwick.de
Para soporte técnico e información, dirigirse por favor a [e-mail]
Por favor veja o novo Fórum de Baixos da Warwick em H PERLINK www.warwick.de
Para mais informações escreva para H PERLINK [e-mail]
Visitare il nuovo Forum Warwick Bass: www.warwick.de
Per supporto tecnico: [e-mail]
Veuillez consulter le nouveau forum sur les basses Warwick à l'adresse www.warwick.de
Si vous avez besoin de plus d'informations contactez [e-mail]
Das neue Warwick Bass Forum finden Sie auf www.warwick.de
Bei technischen Fragen wenden Sie sich bitte an [e-mail]
Headquarters: Warwick Gmb &Co.Music Equipment KG • Gewerbepark 46 • 08258 Markneukirchen/Germany • E-Mail: [e-mail]
Branch China: Warwick Music Equipment (Shanghai) Ltd., Co.• Zhao Jia Bang Road No 108, 3rd Floor • 200020 Lu Wan District/Shanghai/P.R.China • E-Mail: [e-mail]
Branch Switzerland: Warwick Music Equipment Trading (Zurich) Gmb • Kriesbachstrasse 30 • 8600 Dübendorf / Switzerland • E-Mail: [e-mail]
Branch CZ/SK: Warwick Music Equipment Trading (Praha CZ) s.r.o. • Spálená 23/93 • 11000 Praha 1 / Czech Republic • E-Mail: [e-mail]
Branch Poland: Warwick Music Equipment Trading (Warsaw) Sp. z o.o. • Flory 7/18a • 00-586 Warsaw / Poland • E-Mail: [e-mail]
Branch UK/ Ireland: Warwick Music Equipment Trading ( ailsham UK) Ltd. • “Cortlandt” George Street • East Sussex BN27 1AE / Great Britain • E-Mail: [e-mail]
Branch USA: Warwick Music Equipment Trading (New York USA) Inc. • 76-80 East 7th Street • New York, NY 10003 USA • E-Mail: [e-mail]
Visit us on the World Wide Web: http://www.warwick.de & join us in WARWICK BASS FORUM: www.warwick.de/forum
Visit us on the World Wide Web: http://www.warwickbass.com & join us in WARWICK BASS FORUM: www.warwickbass.com/forum
All manuals and user guides at all-guides.com
