Watch Water Proxima One User manual

User Guide
Version 1.0
English

www.watchwater.de
INDEX
1. Introduction
2. General advice on the installation
3. System Programming
3.1 Buttons for the end users
3.2 Installation Instructions- Display Customer level
3.3 Setting Time of Day
3.4 Proxima System Cycle Sequence
3.5 Proxima system setup
3.6 Time control regeneration setup
4. How to setup Proxima System
2
Imprint
Watch Water GmbH
Fahrlach Straße 14
D-68165 Mannheim
The information and data given in this Installation guide can be changed without prior notice.
No part of this document may be reproduced in any form or by any means without the written
permission of the publisher, regardless of which method or which instruments, electronic or
mechanical, are used. All technical information, drafts, etc.are liable to law of copyright
protection. © Copyright 2016, Watch Water GmbH. Printed in Germany. All rights reserved
by Watch Water GmbH.

www.watchwater.de
Certification
Certified Quality
System
All Watch Water GmbH product used in this project is
certified as per NSF Drinking Water Standards.
Warranty
Restriction of warranty We reserve the right to change the contents of the
documentation without notice. Watch Water GmbH
assumes no liability for correct contents or damages which
are resulted from the usage of document. We are grateful
for references to mistakes or for suggestions for
improvement to be able to offer you even more efficient
products in the future.
Support
You need support? You can contact directly with the phone number
[phone] or
You can send an inquiry/problem report to
[e-mail]
Registered trademarks
Registered trademarks All trademarks mentioned in this User Guide and if
necessary third party registered are absolutely subject to
the conditions of each valid label right and the rights of
particular registered proprietor. All trademarks, trade
names or company names are or can be trademarks or
registered trademarks of their particular proprietors. All
rights which are not expressly allowed are reserved. If an
explicit label of trademarks, which are used in this
document, fails, should not mean that a name is free of
third party rights.
3

www.watchwater.de
1. Introduction
We would like to thank you for having acquired the Proxima system. We are convinced
that this product will give you satisfaction as it has been manufactured with extreme
care.
The Proxima system is delivered in a box and includes a by-pass valve. Please inspect
carefully your device in presence of deliverymen to be sure it has not been damaged
during transportation.
Before starting up your Proxima system, please read this manual carefully. Handle
your Proxima system carefully.
This packaging can be recycled.
Please find a few hints that will allow you to use your Proxima system in the best
way.
4

www.watchwater.de
2. General advice on the installation
Pressure
A minimum pressure of 1.8 bar is needed to allow the valve to regenerate properly.
Please do not operate over 8 bar. If this is the case, use a pressure reducer
upstream of your installation.
Power connection
Be sure that power cannot be switched off accidentally at a wall switch.
If the power cable is damaged, please ask a skilled electrician to change it.
Plumbing
The plumbing must be in good state. In Case of doubt, please change it.
We advise the use of pre-filter upstream the installation.
Note : All electrical & plumbing should be done in accordance to all local codes.
5

3. System Programming

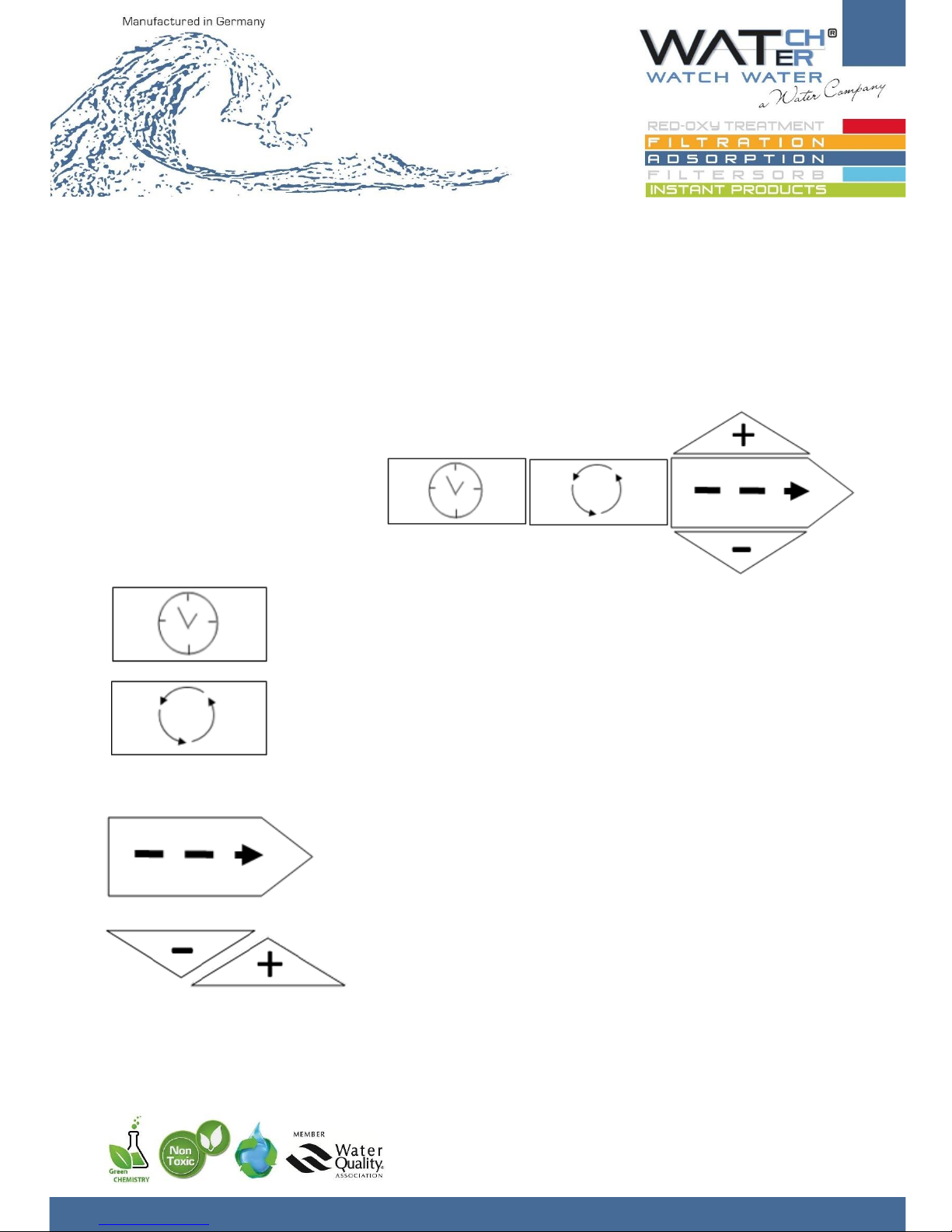

3.1 Buttons for the end users
www.watchwater.de 6
Display: day, remaining m³ or days until the next regeneration.
Button Functions:
SET CLOCK
•Setting the time "Replaces" and saves the
changes in memory
NEXT
•switches between capacity, time, and OXYMA
consumption and displays the next display in the
program code
REGEN
•turns on / off regeneration
•press for more than 3 seconds to go immediately
into regeneration
•Saves regeneration step in memory
PLUS & MINUS
•changes variables from display to display in
Program code

www.watchwater.de
3.2 Installation Instructions- Display Customer level
7
Time of day
Time display- „REGEN TODAY“ will alternate with
current header if regeneration is expected today.
*Water meter detects water flow.
Push to go to the next parameter.
Remaining capacity
Remaining capacity Display- Each push on
button decrease capacity by 0.01 M3.
Push to go to the next parameter.
Number of days until next regeneration
Display the number of days until next regeneration
occurs
-Each push on button decreases days by 1.
Push to go to the next parameter.
Flow
Flow rate display.
Push to go to the next parameter.

www.watchwater.de 8
3.3 Setting Time of Day
The user can also set the time of day. Time of day should only need to be
set after power outages lasting more than 24 hours, if the battery has
been depleted and a power outage occurs or when daylight saving time
begins or ends. If a power outage lasting more than 24 hours occurs, the
time of day will flash on and off which indicates the time of day should be
reset. If a power outage lasts less then 24 hours and the time of day
flashes on and off, the time of day should be reset and the non-
rechargeable battery replaced
Push on “ “ button
“Hours” setting. Number flashes.
By pushing on or , adjust the hours.
Push on to go to the next parameter.
„Minutes“ setting. Number flashes.
By pushing on or , adjust the
minutes
Push on to go to the normal mode. Scrolling of
the different parameters.

3.4 Proxima System Cycle Sequence
Proxima System instructions allows the end user to set the order of the
cycle. The Proxima System Setup allows the end-user to set how long
cycles will last. The end user may choose any cycle order from available
number of cycle.
END must be used as the last cycle option.
The following is an example of how to set a valve so that when
regeneration is initiated BACKWASH occurs first, FILL occurs second,
DRAW occurs third, and BACKWASH occurs fourth, RINSE occurs fifth.
www.watchwater.de 9

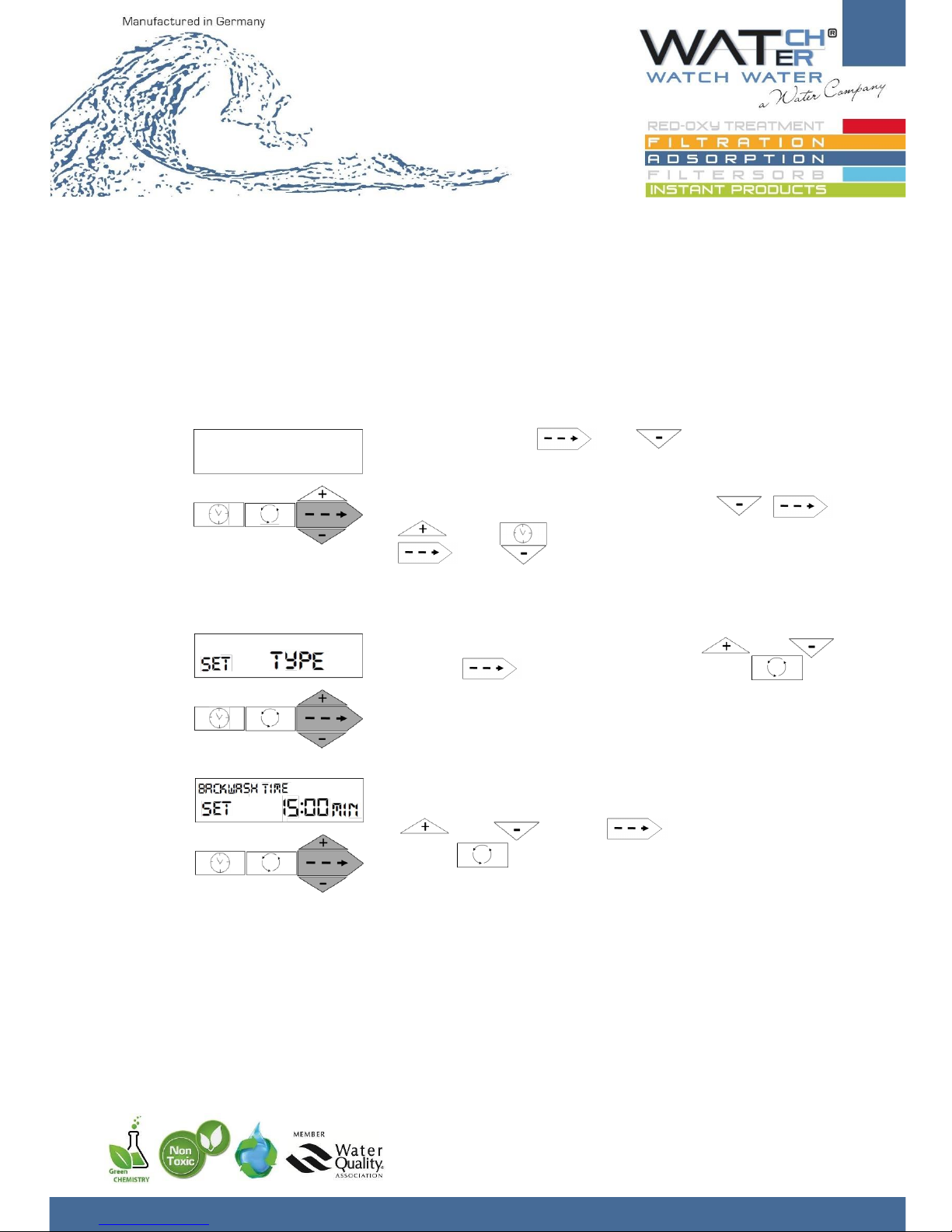

Step 1- Press and simultaneously for 3
seconds and release. Then press . and .
simultaneously for 3 seconds and release. If screen in
Step 2CS does not appear in 5 seconds the lock on the
valve is activated. To unlock press . .
and in sequence, then press
and simultaneously for 3 seconds and
release.
Step 2- Press and to select the
language.
Press to go to Step 3. Press to return to
previous step.
Step 3- Press and to select the valve
type of 25 mm (mini).
Press to go to Step 3. Press to return to
previous step.

www.watchwater.de 10
Step 4- Press or until BACKWASH
appears. Press to go to Step 5. Press .
to return to previous step.

3.5 Proxima system setup
In Proxima System Setup the Watch control valve chooses the time for
the cycles selected in Watch Cycle Sequence and specifies other operating
parameters for the system. The upper and lower limits of the allowable
values for the cycles are as follows:
www.watchwater.de 11
Step 1–Press and simultaneously
for 3 seconds and release. If screen in Step 2
does not appear in 5 seconds the lock on the
valve is activated. To unlock press .
. and in sequence, then press
and simultaneously for 3 seconds
and release.
Step 2–Choose FILTERING using or .
Press to go to Step 3. Press . to
exit Proxima System Setup.
Step 3–Select the time for the first cycle
(which in this example is BACKWASH) using
.or .Press to go to Step 4.
Press to return to previous step.

www.watchwater.de 12
Step 4–Select the time for the second cycle
(which in this example is FILL) using .
or .Press to go to Step 5. Press
.to return to previous step.
Step 5–Select the time for the third cycle
(which in this example is DRAW) using .
or .Press to go to Step 6. Press
.to return to previous step.
Step 6–Select the time for the forth cycle
(which in this example is BACKWASH) using
.or .Press to go to Step 7.
Press to return to previous step.
Step 7–Select the time for the third cycle
(which in this example is RINSE) using .
or .Press to go to Step 8. Press
.to return to previous step.
Step 8-VOLUME CAPACITY Off
If you would like to set up the regeneration
process based on Volume, than you can
mention the m3 Volume once this valve
reaches to zero, System will go into
regeneration at given (set up) time of day.
Step 9- Service alarm set to Off

www.watchwater.de
3.6 Time control regeneration setup
13
STEP 1 - Press and simultaneously
for 3 seconds.
STEP 2 –Day Override: When volume capacity is
set to oFF, sets the number of days between
regenerations. When volume capacity is set to
AUTO or to a number, sets the maximum number of
days between regenerations. If value set to oFF,
regeneration initiation is based solely on volume
used. If value is set as a number (allowable range
from 1 to 28) a regeneration initiation will be called
for on that day even if sufficient volume of water
were not used to call for a regeneration. Set Day
Override using or :
•number of days between regeneration (1 to 28); or
•oFF.
See Setting Options Table for more detail on setup.
Press to go to step 3. Press to return
to previous step.
STEP 3 –Next Regeneration Time (hour): Set the
hour of day for regeneration using or .
buttons. The default time is 2:00. This display will
show “on 0 m3”if “on 0”is selected in Set
Regeneration Time Option in WatchProxima
System Setup. Press to go to step 4 Press
.to return to previous step.

www.watchwater.de 14

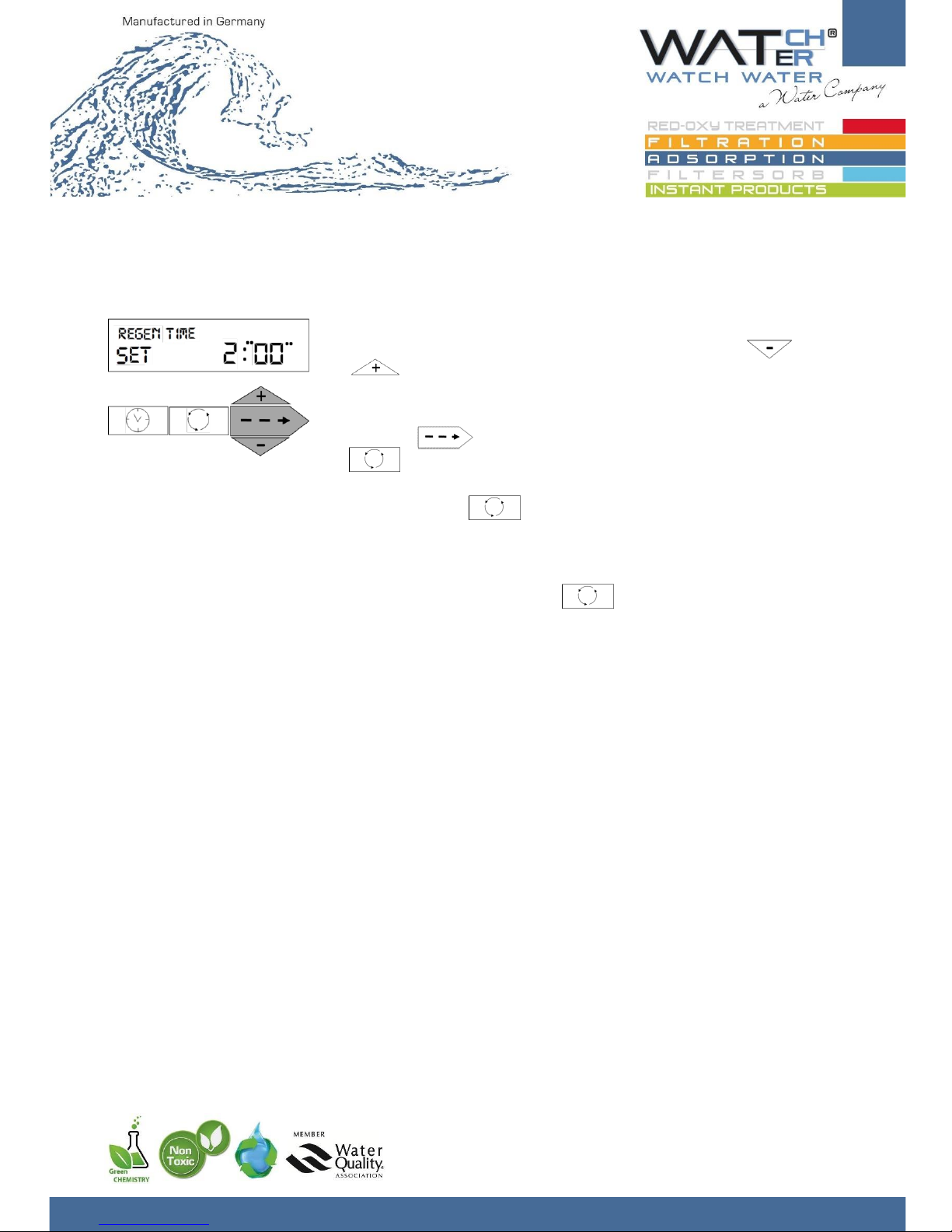

STEP 4 –Next Regeneration Time (minutes): Set
the minutes of day for regeneration using or
. . This display will not be shown if “on 0”is
selected in Set Regeneration
Time Option in WatchProxima System Setup.
Press to exit Installer Display Settings. Press
.to return to previous step.
To initiate a manual regeneration immediately, press
and hold the button for three seconds.
Return to the system will begin to regenerate
immediately. The control valve may be stepped
through the NORMAL MODE various regeneration
cycles by pressing the button.

www.watchwater.de
4. How to setup Proxima System
Setting time of day
15
Step 1 „->“ & „-“(3-5 sec) then again “->” & “-” (3-5 sec)
Step 2 Select BACKWASH
Step 3 Select FILL
Step 4 Select DRAWN
Step 5 Select BACKWASH
Step 6 Select RINSE
Step 7 Select END
When programming Proxima System choose from the different
options while using or .To select a specific option press
.to save it and continue to the next Step.
allows you to go back and access the recent Step
Step 1 „ „
Step 2 Select Hours of day
Step 3 Select Minutes
Proxima System Cycle Sequence

www.watchwater.de 16
Step 1 „->“ & „-“
Step 2 Select FILTERING
Step 3 Select 15min (BACKWASH)
Step 4 Select 10l (FILL)
Step 5 Select 1min (DRAWN time)
Step 6 Select 30min (BACKWASH)
Step 7 Select 15min (RINSE)
Step 8 Select Off (or Filtration capacity in m3)
Step 9 Select Service Alarm Off
By default Proxima System Setup
This system set up can be change depending upon the real time
situation.
Step 1 „->“ & „+“ (3-5 sec)
Step 2 Select days between regeneration (14 days)
Step 3 Select time of regeneration (2:00 or when no water is needed)
Step 4 Select time of regeneration (2:00 or when no water is needed)
Time control regeneration setup
