WatchNet WAB-P-FCRS User manual

WatchNET Access Integrated Security Management Software
Installing and Configuring Fingerprint Reader

Page 2of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
User Manual
a
WAB-P/U-FCRS
Biometric Fingerprint Reader

Page 3of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
Index
................................................................................................................................................................................
Revision History ....................................................................................................................................................4
Chapter 1 Introduction..........................................................................................................................................4
1.1 Summary.................................................................................................................................................4
1.2 Features ..................................................................................................................................................4
1.3 Specifications..........................................................................................................................................5
1.4 Application Mode ...................................................................................................................................5
Chapter 2 Wiring Diagram....................................................................................................................................6
2.1 Reader Back Pinouts ...............................................................................................................................6
2.2 Wiring Diagram (Standalone Wiring)......................................................................................................8
2.3 Wiring Diagram (External reader wiring)................................................................................................9
2.4 Lock Wiring Diagram...............................................................................................................................9
2.5 Dip Switch.............................................................................................................................................10
Chapter 3Configuring Fingerprint Reader ..........................................................................................................10
3.1 Enrolling Fingerpint Reader ..................................................................................................................10
3.2 Enrolling Fingerpint User ......................................................................................................................10
3.2.1 Enrolling Fingerpint using Enrollment Scanner ..........................................................................11
3.2.1.1 Plugin Device.................................................................................................................11
3.2.1.2 Select / Add the user.....................................................................................................11
3.2.1.3 Enable User ...................................................................................................................11
3.2.1.4 Select Athentication ......................................................................................................11
3.2.1.5 Select Device .................................................................................................................11
3.2.1.6 Enroll Fingerprint...........................................................................................................11
3.2.1.6.1 Start Enrollment .............................................................................................12
3.2.1.6.2 Select Finger ...................................................................................................12
3.2.1.6.3 Enroll Finger....................................................................................................13
3.2.1.6.4 Enroll Finger....................................................................................................13
3.2.1.6.5 Finished Enrollment........................................................................................13
3.2.2 Enrolling Fingerpint using Fingerprint Reader............................................................................14
3.2.2.1 Select / Add User...........................................................................................................14
3.2.2.2 Enable User ...................................................................................................................14
3.2.2.3 Select Device .................................................................................................................14
3.2.2.4 Enroll Finger ..................................................................................................................14
3.2.2.5 Finished Enrollment.......................................................................................................14
3.2.3 Download Fingerprint User into Fingerprint Reader..................................................................15

Page 4of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
Revision History
Revision
Date
Author
Description of Changes
1.0
03/28/2014
Peter Punzalan
Manual Created.
Chapter 1 Introduction
1.1 Summary
WAB-FCRS is an innovative fingerprint card access reader which fully integrates fingerprint and RFID
technology. The very compact design makes it suitable for installation on door frames. The WAB-FCRS
has standard Wiegand output to connect seamlessly with access controllers. This unit can easily replace
the existing card readers with a biometric unit to upgrade the security to a higher level by use of
fingerprint and card. The fingerprint enrollment is made easy when connected to WatchNET Access
control software through the standard card enrollment screen in the software.
Model Definition:
WAB P FCRS ---------- Built-in Proximity Reader
WAB U FCRS ---------- Built-in Mifare Reader
1.2 Features
P: Wiegand output format following the card
U: Standard WG26/34 bits output which can be compatible with any kind of Access Controller
Dustproof, waterproof features, suitable for any installation site
Fast response, anti-interference, low power consumption and good stability
WDT watchdog, having a power-on self-test function
Fast fingerprint matching speed, 480 fingerprints within one second
Multi-threaded code designed to take advantage of multi-core CPU
500dpi optical fingerprint sensor, anti scratch
The world's leading fingerprint algorithm, refusing false fingerprints
POE (Power Over Ethernet)
Blue / Green light to show Valid or Invalid
Production under ISO: 9001 standard system, high quality
It can be connected to a door controller or work as a standalone unit

Page 5of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
1.3 Specifications
CPU: ARM, 32 Bits, Cortex-M4, 400MHz DSP
Memory: 16MB Flash memory +4 MB RAM
Fingerprint capacity: 480 PCS, (Identify fake FP)
Support Card types: P：Biometric fingerprint reader, proximity,
multi-technology reader Supports proximity,
plus certain HID 125Khz and AWID 125Khz
U：Biometric fingerprint reader, supports CPU
and Mifare technology (Smartcard)
Fingerprint Sensor: 500 dpi optical sensor
Authentication modes: FingerPrint Only
FingerPrint or Card
FingerPrint + Card
Communication Interface: Wiegand output, TCP / IP
Relay Output : 1 (NC, NO, COM)
Reader Output: 1 (Wegand Output)
Reader Input : 1 (For IN/OUT Readers)
FAR/FRR specs : -0.001% / +0.001%
Voltage: POE+ / 12VDC
Operating Current: ≤200mA
Standby Current: ≤150mA
Working Temperature: -20°C to 65°C
Working Humidity: 0~95%
Dimension: 135mm L x 58mm W x 45mm
Weight: 400g
1.4 Application Mode
2 Application Modes :
Standalone Fingerprint Reader (Works as 1 door with lock relay, door contact, REX
button)
Outdoor/Indoor reader for Watchnet Access controllers

Page 6of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
Chapter 2 Wiring Diagram
2.1 Reader Back Pinouts

Page 7of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
Icon
Symbol
Description
J1
RX
RS 485 Connection
TX
GND
J2
NC
Normally Closed (Lock Output)
COM
COM in (Lock Output)
NO
Normally Open (Lock Output)
J3
BUT
REX (Request to Exit Button)
SEN
Door Contacts/Sensor
GND
Ground
J4
D1
Data 1 Wiegand Out (Connection to Controller)
D0
Data 0 Wiegand Out (Connection to Controller)
GND
Ground (Ground IN)
12V
12V (+12VDC IN)
J5
D1
Data 1 Wiegand In (Reader Input)
D0
Data 0 Wiegand In (Reader Input)
GND
Ground (Reader Output)
12V
12V (+12VDC Output)

Page 8of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
LED:
Blue LED –Power Indicator (Standby mode)
Green LED –Sensor Indicator (Relay Indicator)
Mounting panel
2.2 Wiring Diagram (Standalone Wiring)
Mounting
Screw
Mounting
Screw
Mounting
Screw
Cable Hole
86mm

Page 9of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
2.3 Wiring Diagram (External reader wiring)
2.4 Lock Wiring Diagram
Magnetic Lock Diagram

Page 10 of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]

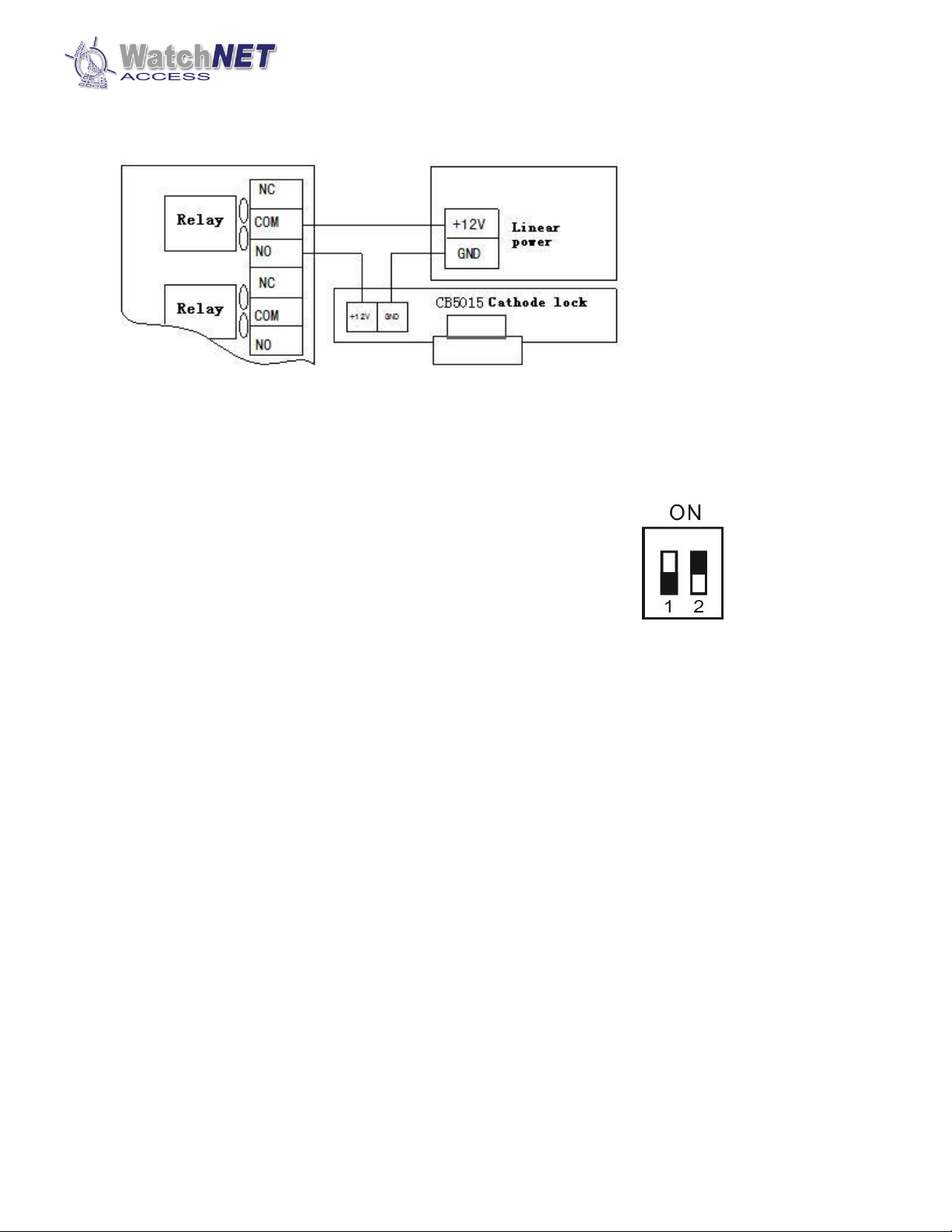

Electric Strike
2.5 Dip Switch
DIP 1: ON---Disconnect(will not be connected to the software), OFF---Connect
DIP 2: ON---Enable WDT(Watch Dog), OFF--- Disable WDT(Watch Dog)
Default Setting (Right picture):
DIP 1: OFF---Connect, will be connected to the software
DIP 2: ON---Enable WDT(Watch Dog), More stable
Chapter 3 Configuring Fingerprint reader
3.1 Enrolling Fingerprint Reader
1. Select Fingerprint Series on Communication Configuration –Fingerprint Tab
2. Open Controller Configuration –Search –NET –and select the WAB-P-FCRS reader
3. Assign IP and enter the Host IP based on the network settings and Server’s IP
4. Save and close Controller Configuration
Note: Enrolling biometric reader is same procedure when enrolling a controller
3.2 Enrolling Fingerprint Users
There are two ways of enrolling fingerprint readers:
1. Enroll Fingerprint users using the desktop enrollment scanner
2. Enroll Fingerprint using Biometric Reader

Page 11 of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
3.2.1 Enrolling Fingerprint using Enrollment scanner
3.2.1.1 Plugin Fingerprint Scanner and make sure it is properly installed
3.2.1.2 Add the User or select the user you wish to enroll fingerprint and go to Fingerprint Tab
3.2.1.3 Enable Use Fingerprint
3.2.1.4 Select the Private Auth Mode you wish
Fingerprint –Fingerprint Only
Card / Fingerprint –Card or Fingerprint
Card + Fingerprint –Card plus Fingerprint
Card + Pin –N/A
Fingerprint + Pin –N/A
Device Default –Fingerprint only
3.2.1.5 Select Enroll Device: BioUSB10
3.2.1.6 Click Enroll and another window will pop-up for enrollment software
Note: Simply follow the steps below

Page 12 of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
3.2.1.6.1 Click Next
3.2.1.6.2 Select the finger you wish to enroll and scan

Page 13 of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
3.2.1.6.3 Place the finger on the sensor
Note: You’ll need to place your finger 2 times
3.2.1.6.4 Once successfully enrolled finger will be highlighted, click Next to continue
3.2.1.6.5 Click Finish when done

Page 14 of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]

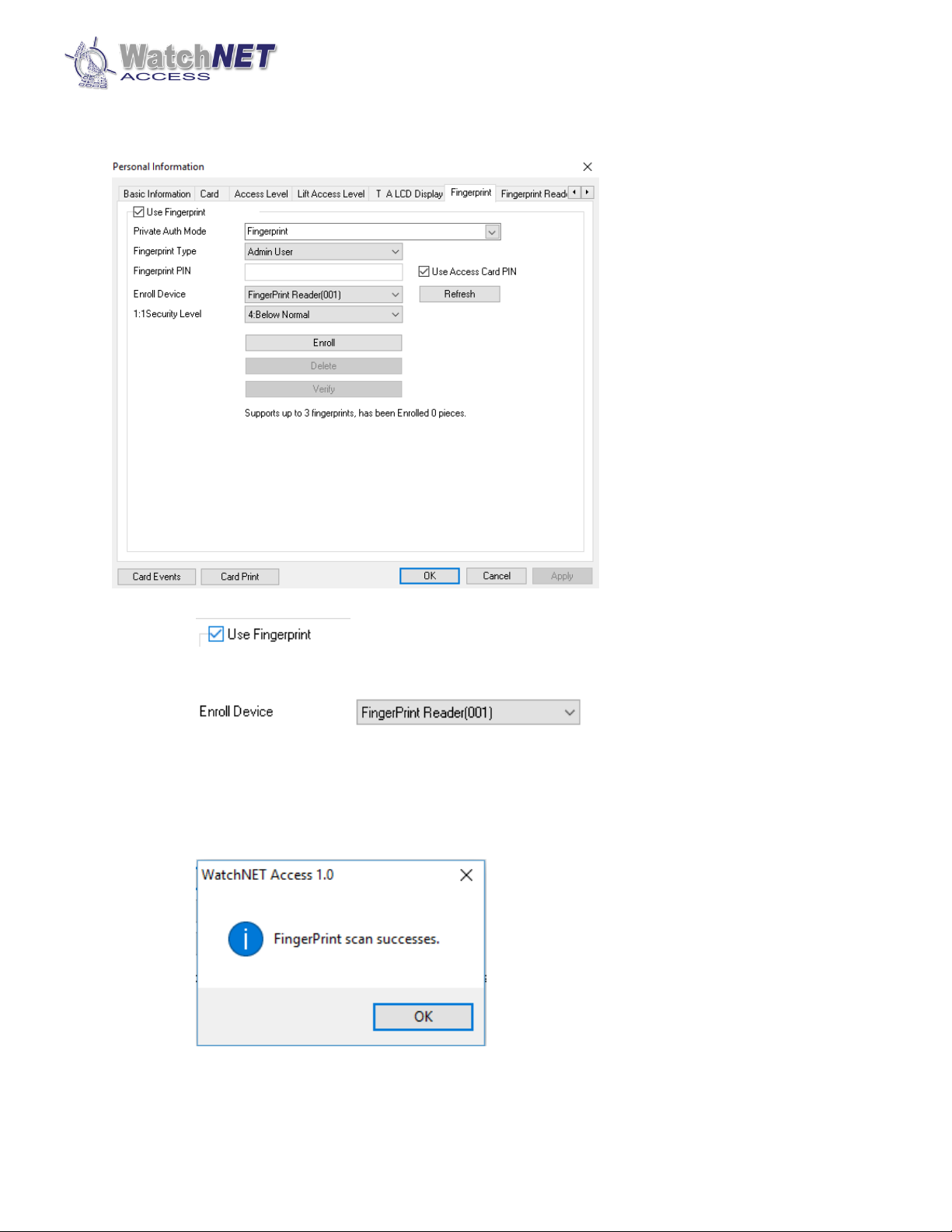

3.2.2 Enroll Fingerprint using Fingerprint Reader
3.2.2.1 Add the User or select the user you wish to enroll fingerprint and go to Fingerprint Tab
3.2.2.2 Enable Use Fingerprint
3.2.2.3 Select Enroll Device as FingerPrint Reader(001)
Note: If using multiple reader, rename each reader first so it won’t be confusing when
selecting the device
3.2.2.4 Click Enroll and the fingerprint scanner will start flashing, place finger to scan
3.2.2.5 Once finish a message will pop up:

Page 15 of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
3.3 Downloading Fingerprint users into Fingerprint Reader
Go to Fingerprint Reader , go to Fingerprint User Tab
And add the user.

Page 16 of 16 351 Ferrier Street • Markham, ON • L3R 5Z2
PHONE: [phone] TOLL FREE: 1-866-331-3341 • FAX: [phone]
www.watchnetaccess.com / [email protected]
After adding the user, go to Controller Configuration , select the Biometric reader
and click Download Configuration on the bottom.
