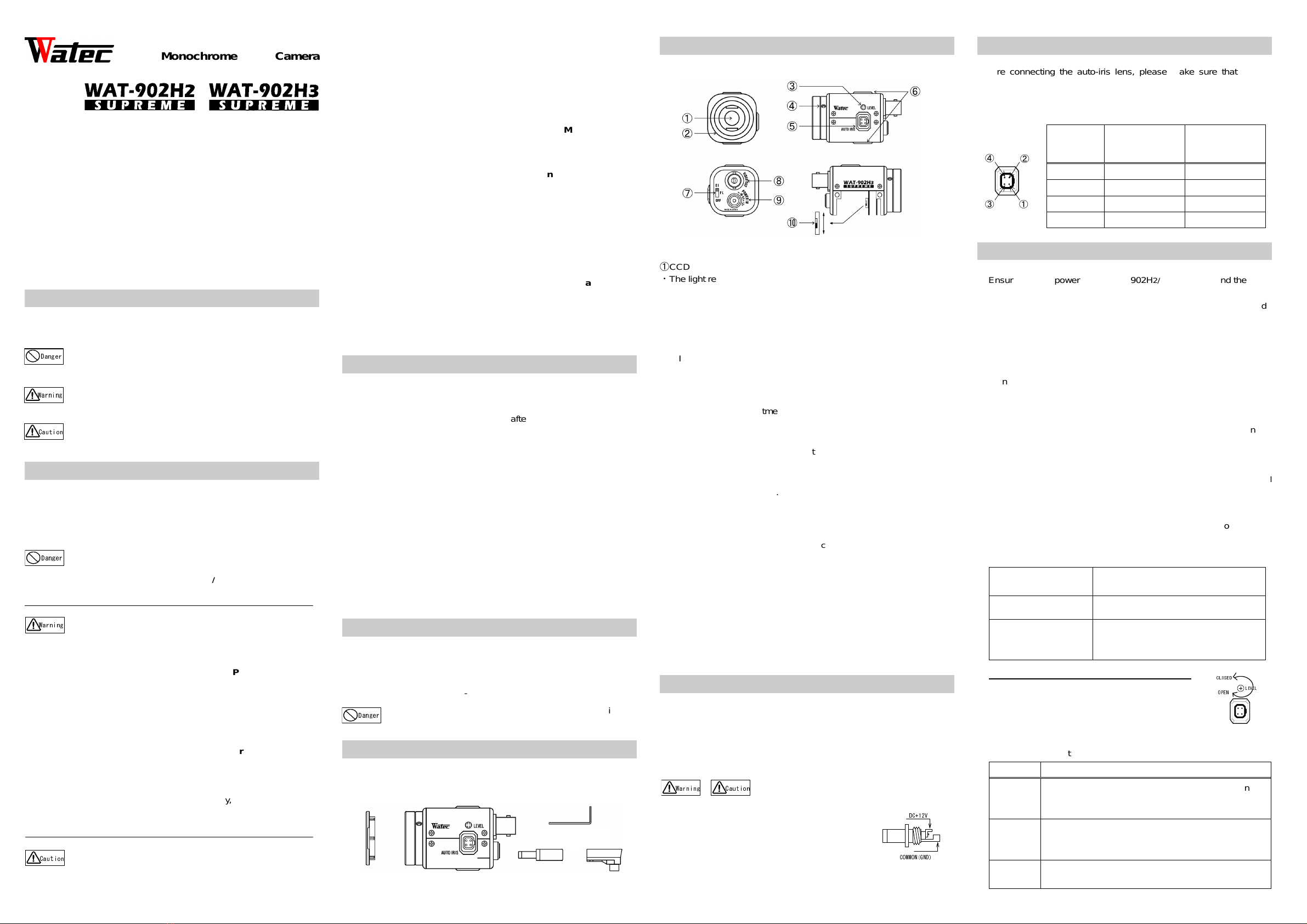

Monochrome CCD Camera
Operation Manual
This Operation Manual covers safety, camera functions, installation and
the correct operating procedure for the WAT-902H 2/3 SUPREME. First,
we ask you to read this Operation Manual thoroughly, then install and
operate the WAT-902H 2/3 SUPREME as advised. In addition, for future
reference, we also advise safekeeping of this manual.
Please contact the distributor or dealer from which the WAT-
902H 2/3 SUPREME was purchased, if you do not understand the
installation, operation or safety instructions laid out in this manual. Not
understanding the contents of the Operation Manual sufficiently may
cause damage to the camera.
Guide to the Safety Symbols
The definitions of the symbols used in this operation manual are:
When you do not adhere to or take notice of the “Danger”
sign, it may lead to a serious accident such as death or
injury caused by fire or electric shock.
When you do not adhere to or take notice of the “Warning”
sign, it may cause severe damage such as a physical injury.
When you do not adhere to or take notice of the “Caution”
sign, it may incur injury and cause damage to peripheral
objects in the immediate surroundings.
Cautions for Safety
WAT-902H 2/3 SUPREME is designed to be used safely; however, if not
used safely, it may lead to a physical accident caused by fire and
electric shock. Therefore, please keep and read the “Cautions for
Safety” below for protection against accidents.
• Do not disassemble and/or modify the WAT-902H 2/3
SUPREME.
• Do not operate the WAT-902H 2/3 SUPREME with wet
i hands.
•
Use a stabilized power adaptor designed for DC+12V±
±±
±
10%, with a current capacity of more than 250mA for
the WAT-902H2/3 SUPREME.
The recommended voltage is DC+12V±10%
• Do not expose the WAT-902H 2/3 SUPREME to wetness
or high moisture conditions.
The WAT-902H 2/3 SUPREME is designed and approved
for indoor use only. The WAT-902H 2/3 SUPREME is not
water-resistant or waterproof. If the location of the camera
is outdoors or in an outdoor like environment, we
recommend that you use an outdoor camera housing.
• Protect the WAT-902H 2/3 SUPREME from
condensation.
Keep the WAT-902H 2/3 SUPREME dry at all times during
storage and operation.
• Should the camera not work properly, switch off the power
immediately. Then check the camera according to the
“Problems and Trouble Shooting” section.
• Avoid the striking of hard objects or dropping the WAT-
902H 2/3 SUPREME.
The WAT-902H 2/3 SUPREME uses high quality electrical
parts and precision components.
• iDo not connect any power supply directly to the video
out terminal of the unit.
Do not connect the WAT-902H 2/3 SUPREME with any
monitor using a video/power single transmission terminal.
The WAT-902H
2/3 SUPREME is not designed for use with
this type of equipment. We also advise you to read the
operation manual of the monitor you plan to use before any
connections are made.
• Do not install the WAT-902H 2/3 SUPREME in a position
subject to direct sunlight.
Sunlight shinning directly onto the WAT-902H 2/3
S UPREME lens can cause damage to the CCD.
• Select a stable place for installation of the WAT-
902H 2/3 SUPREME.
Use a support of durable strength around an installation
position on a ceiling or wall when a camera stand or tripod
is used.
• Do not move the WAT-902H 2/3 SUPREME with the
cables connected.
Before moving the WAT-902H 2/3 SUPREME, always
remove the video cable and power cable from the rear of
the camera first.
• Avoid using the WAT-902H 2/3 SUPREME near any
strong electromagnetic field.
After installing into main equipment, if the WAT-902H 2/3
SUPREME is exposed to electromagnetic waves causing
the monitored image to become distorted, we recommend
the camera be shielded by appropriate protective casing.
Problems and Trouble Shooting
If any of the following problems occur when using the WAT-
902H 2/3 SUPREME,
• An optimal picture cannot be obtained, after checking that all the
cables and connections are correctly in place
• Smoke or any unusual odor emerges from the WAT-902H 2/3
SUPREME
• An object becomes embedded or a quantity of liquid seeps into the
camera housing
•
More than the recommended voltage or/and amperage has been
applied to the WAT-902H 2/3 SUPREME by mistake
• Anything unusual occurring to any equipment connected to the
WAT-902H 2/3 SUPREME.
Disconnect the camera immediately according to the following procedures:
①Switch off the main power supply to the camera.
②Remove the power and video cables connected to the WAT-902H 2/3
SUPREME.
③Contact the distributor or dealer from which the WAT-902H 2/3
SUPREME was purchased.
About EMC
The WAT-902H 2/3 SUPREME is in conformity with EMC test standards
carried out by authorized organizations in Japan.
EIA /FCC Part15 class B
CCIR EN61000-6-3/EN50130-4
Do not modify the WAT-902H 2/3 SUPREME. A modified
camera may not conform to EMC test standards.
Contents
Using the contents figures below, check to make sure all parts are
present before use.
Lens Mount Cap WAT-902H2/3 SUPREME DC plug Iris Connector
Description of Parts
①CCD FRONT FACE
・The light receiving face of the CCD camera
(Dirt, water or oil deposits on the CCD will cause an unclear picture on
the monitor. Attach the lens cap to protect the lens and CCD from
contamination and damage.)
②LENS MOUNT
・Mount for the lens (Thread type)
③IRIS LEVEL VOLUME
・By controlling the volume, the iris level of a DC iris lens can be
adjusted.
④FOCUSING ADJUSTMENT SCREWS
・There are 3 hex. adjustment screws each placed at intervals of 120゜
for fine focusing of the lens.
⑤AUTO-IRIS SOCKET
・This socket is for a video or DC auto-iris lens cable connector.
(Video/DC: Auto selected by the camera)
⑥TRIPOD MOUNTING SCREW HOLES
・Mounting holes for stands. The size of these threads are 1/4”, 20
threads, 4.5±0.2mm, which is the same as any standard camera
tripod (U1/4”).
⑦AE MODE CONTROL
・The switch for the shutter speed mode control according to the object
being monitored
⑧VIDEO OUT (BNC)
・The terminal for composite video signal output
⑨POWER IN
・The terminal designed for connection with the DC-plug of the power
adaptor
⑩AGC SELECTION SWITCH
・Switch for settingAGC HI or LO
Power Supply
Use a stabilized power adaptor designed for DC+12V±10%, with a
current capacity of more than 250mA.
Use the optional DC plug if the shape or polarity of the DC plug of the
power adaptor to be used is not compatible with the camera (See the
drawing on the right below).
The wiring on the connector must be exact.
Be careful not to touch the other terminal while
wiring. Protect the wiring portion by using
insulation tape after wiring. If the above care and
attention is not adhered to, damage to the
WAT-902H 2/3 SUPREME and power adaptor may
occur and may also cause fire.
Auto-iris Lens
Before connecting the auto-iris lens, please make sure that the pin
configuration is correct by confirming with the following table. If the
configuration of your iris connector is different from the following, the
plug and pins will need to be rewired.
Pin No. EIAJ Video
Auto-iris Lens
Arrangement
EIAJ DC
Auto-iris Lens
Arrangement
①Power Control －
②Not used Control ＋
③Iris signals Drive ＋
④Common (GND) Drive －
Set-up and Operation
1) Ensure that the power to the WAT-902H 2/3 SUPREME and the
peripheral equipment is turned off before making any connections.
2) Remove the lens mount cap from the WAT-902H 2/3 SUPREME and
attach the CS-mount lens. Use the optional C-mount adaptor
(30CMA-R) when a C-mount lens is used.
3) Connect the iris control cable to ⑤AUTO-IRIS SOCKET on the
WAT-902H 2/3 SUPREME when an auto-iris lens is being used.
4) Connect ⑧VIDEO OUT on the WAT-902H 2/3 SUPREME with the
monitor, using a coaxial cable with 75Ωimpedance, such as an
RG-59 or an RG-6/U. Select a monitor with the same television
system as the WAT-902H 2/3 SUPREME: EIA or CCIR. A monitor with
more than 600TV lines is recommended.
5) Insert the power plug of the power adaptor into ⑨POWER IN on the
back panel of the WAT-902H 2/3 SUPREME. Confirm that the power
adaptor is not connected to the power supply before insertion of the
power plug into ⑨POWER IN.
6) Turn on the power to the WAT-902H 2/3 SUPREME, monitor and all
other allied equipment. When a picture cannot be obtained on the
monitor, or a problem occurs, check and follow the procedure mentioned
in the【Problems and Trouble Shooting】section.
7) After following the procedure below and the picture is still out of focus,
open the iris fully and loosen ④FOCUSING ADJUSTMENT
SCREWS with the hex. wrench and move the lens forwards until a
clear picture is obtained.
Manual Lens Adjust the focus and iris to the best
position on the lens.
VideoAuto-iris Lens Adjust the focus on the lens.
DC Auto-iris Lens Adjust the iris level on the camera, then adjust the focus on the lens. See
below.
Iris Level Adjustment (for DC auto-iris lenses)
Adjust ③IRIS LEVEL VOLUME placed on the side
of the unit until an acceptable light level is attained.
No change will occur if a video iris lens or manual
iris lens is fitted.
8) Set the shutter mode by ⑦AE MODE CONTROL.
(Shutter mode is set to EI upon shipment.)
AE Mode Effect
EI Automatically selects the shutter speed in the range between EIA: 1/60-1/100000 sec., CCIR: 1/50-
1/100000 sec. according to the lighting condition.
FL Reduces the flickering phenomena occurring on the monitor screen caused by fluorescent or mercury
lamps.
OFF Fixes the shutter speed to EIA: 1/60 sec., CCIR: 1/50
sec..
Warning
DC+12V
COMMON(GND)
Caution
Warning Caution
Warning
Caution
Hex. Wrench

• Design and specifications are subject to change without notice.
• Watec is not responsible for any inconvenience or the attendant damages
to the video and monitoring recording equipment caused by misuse, mis-
operation or improper wiring of our equipment.
• If for any reason the WAT-902H 2/3 SUPREME does not work properly, or
if you have any questions regarding installation or operation, please
contact
the distributor or dealer from which it
was purchased.
1050Z00-Y2000012
9) Set the AGC mode by ⑩AGC SELECTION SWITCH.
(AGC mode is set to HI upon shipment.)
Mode Range Effect
HI 5～50dB
・When minimum illumination is more
important than the S/N ratio
(Surveillance in a low light
environment)
LO 5～32dB
・When SN ratio is more important than
minimum illumination.
・When adequate lighting is present or
a stable lighting condition is
available.
Options
To purchase these options, please contact the distributor or dealer from
which you purchased the WAT-902H 2/3 SUPREME.
Specifications
WAT-902H
2 SUPREME
WAT-902H 3 SUPREME
WAT-902H 2 SUPREME / WAT-902H 3 SUPREME
Model WAT-902H
2/3 SUPREME
EIA CCIR
Number of
Total Pixels 811(H)×508(V) 795(H)×596(V)
Number of
Effective Pixels 768(H)×494(V) 752(H)×582(V)
Sync. System Internal
Scanning System 2:1 interlace
Video Output Composite video, 1.0 V(p-p) 75Ω(Unbalanced)
Resolution (H) More than 570TVL (Center)
S/N More than 46dB (AGC=5dB, γ=1.0)
AE
Mode
OFF 1/60 sec. 1/50 sec.
FL 1/100 sec. 1/120 sec.
EI 1/60-1/100000 sec. 1/50-1/100000 sec.
AGC HI: 5-50dB / LO: 5-32dB
Gamma
Characteristics γ≒0.45
Lens iris Video / DC (EIAJ arrangement, Auto-select)
Back Light
Compensation ON
Power Supply DC+12V±10%
Operating
Temperature -10 -+40℃
Operating Humidity Less than 95% RH (Without condensation)
Storage
Temperature -30 -+70℃
Storage Humidity Less than 95% RH (Without condensation)
Lens Mount CS-mount
Size 35.5(W)×36(H)×63(L) (mm)
Weight Approx. 90g
Contact information
Watec Co., Ltd.
Add.: 254-2 Nihonkoku, Daihoji, Tsuruoka- Shi,
Yamagata-Ken, 997-0017 Japan
TEL: [phone] FAX: [phone]
E-mail: [e-mail]
URL:
http://www.watec.
co.jp
Model WAT-902H
2 SUPREME
EIA CCIR
Pick-up Element 1/2 inch interline transfer CCD image sensor
Unit Cell Size 8.4 μ m(H)×9.8 μ m(V) 8.6 μ m(H)×8.3 μ m(V)
Minimum Illumination 0.0003 lx. F1.4
Power Consumption 1.98W (165mA)
Model WAT-902H
3 SUPREME
EIA CCIR
Pick-up Element 1/3 inch interline transfer CCD image sensor
Unit Cell Size 6.35 μ m(H)×7.4 μ m(V) 6.5 μ m(H)×6.25 μ m(V)
Minimum Illumination 0.0005 lx. F1.4
Power Consumption 1.86W (155mA)
C
-
mo
unt Adaptor (30CMA
-
R)
This lens mount adaptor is
used to convert a CS-mount to
a C-mount.
Mini Stand (MS50)
A convenient stand for the
WAT-902H 2/3 SUPREME. With
this stand, the camera can be
adjusted to any desired angle.
