Water Well V65A User manual

USERS MANUAL
MODEL: V65A
Freestanding Cold and Ambient Water Dispenser
PLEASE READ USER MANUAL CAREFULLY
BEFORE USE, STORE IN A SAFE PLACE
The Water Well (Pty) Ltd
Address: P.O. Box 1854, Pinetown, 3600
Sharecall No.: 0860 099355
e-mail: [email protected] website: www.waterwell.co.za
Warranty Term: 12 Months
NOTE: This product's warranty is applicable only if the product has a valid
proof of purchase document
B
e
W
e
l
l
,
D
r
i
n
k
W
e
l
l
,
W
a
t
e
r
W
e
l
l
The Water Well
Q
u
e
n
c
h
i
n
g
t
h
e
N
a
t
i
o
n
’
s
T
h
i
r
s
t

1
Table of Contents
1. Important Safety Instructions 1/2
2. Characteristics 2
3.Installation of Water Dispenser 3
4.Installation of Filter Bottle 3/4
5. Installation of Standard Bottle 4
6. Specifications 5
7. Circuit Diagram 5
8. Parts Diagram 6
9.Trouble Shooting 7
1. Important Safety Instructions
When using electrical appliances, basic safety precautions should be
followed to prevent the risk of fire, electric shock, and injury to persons
or property. Read all instructions before using any appliance.
- DO NOT operate this or any other appliance that has a damaged
cord. Connect to properly polarised outlets only. No other appliance
should be plugged into the same outlet. Ensure that the plug is fully
inserted into the receptacle
- DO NOT run cord over carpeting or other heat insulators. DO NOT
cover the cord. Keep cord away from high traffic areas, and do not
submerge in water. DO NOT pull on the power cable
- We DO NOT recommend the use of an extension cord, as it may
overheat and become a fire hazard.
- Ensure the water dispenser is positioned in such a way that the power
plug is always accessable.
- Keep the water dispenser away from direct heat and out of direct
sunshine.
- Ambient surrounding temperatures should be within 10˚C - 32˚C for
optimum working conditions
- When the unit is plugged in and the power is turned on, please ensure
that there is always water coming out of both water taps to avoid the
reservoirs running dry and damaging the unit.
- Clean your water dispenser regularly, approx. every 1-3 months.
- DO NOT clean the water dispenser with water if the unit is still plugged
into the wall socket, instead wipe clean with a damp cloth.
- DO NOT clean your water dispenser with flammable fluids. The fumes
can create a fire hazard or explosion.
- Exercise caution and use reasonable supervision when appliance is
used near children

2 3
- WARNING: Supervisionis advised for young children and persons
without sufficient knowledge of the workings of the water dispenser
- Do not tilt the water dispenser beyond 45˚ always keep upright
- Ensure the water dispenser is on a flat surface and placed at least
15cm from the wall.
- WARNING - Keep the water dispenser well ventilated if placed in an
enclosed area
- If the water dispenser is not in use for long periods of time, unplug
the unit from the wall socket and drain water from the unit via both
taps and the drain situated at the rear of the unit.
- Clean your water dispenser before use, if it has not been used for a
long period, discard the water from the hot & cold water taps, before
drinking.
- WARNING - Do not damage the thermostat
CAUTION: Plastic bags can be dangerous. To avoid danger of
suffocation, keep this bag away from babies and
children.
2. Characteristics
1. The Water Well water dispensers are energy efficient and emit
very little noise.
2. All the components of the water dispenser are made of high grade
materials.
3. Water Dispenser unit keeps your water below 10°C, allowing you to
a fresh glass of cold water at anytime. The Water Dispenser also
dispenses water at room temperature.
4. The water dispenser uses a unique electronic refrigerating system
to cool the water, using only 120W of power when cooling.
5. This Water Dispener is perfect for home or office and can be used with
either a Standard Water Bottle or a Filtration Bottle.
3. Installation of the Water Dispenser
1. Remove the water dispenser from its packaging.
2. Place in an upright position away from direct heat or sunlight.
3. Clean the Water Dispener by wiping down the exterior with soap and
clean water. (DO NOT get any soapy water inside the water reservoir)
3. Once you have inserted your water bottle (see sections 4 & 5) allow
the water to flow into the water dispenser.
4. Disguard the first few litres of water from both the cold and ambient
water taps to eliminate any dust and dirt which may be in the unit.
5. Once water has filled the reservoir tanks and is flowing out of both
the ambient and cold water taps in the water dispenser, allow to stand
for a few minutes then plug the water dispenser into a wall socket.
Turn on the power switch on the back of the water dispenser. The
cooling indicator and the power lights on the front of the water
dispenser will come on.
6. Allow the water dispenser to stand for a while to reach the optimum
water temperature.
4. Installation of a Filter Bottle
Bottle Support

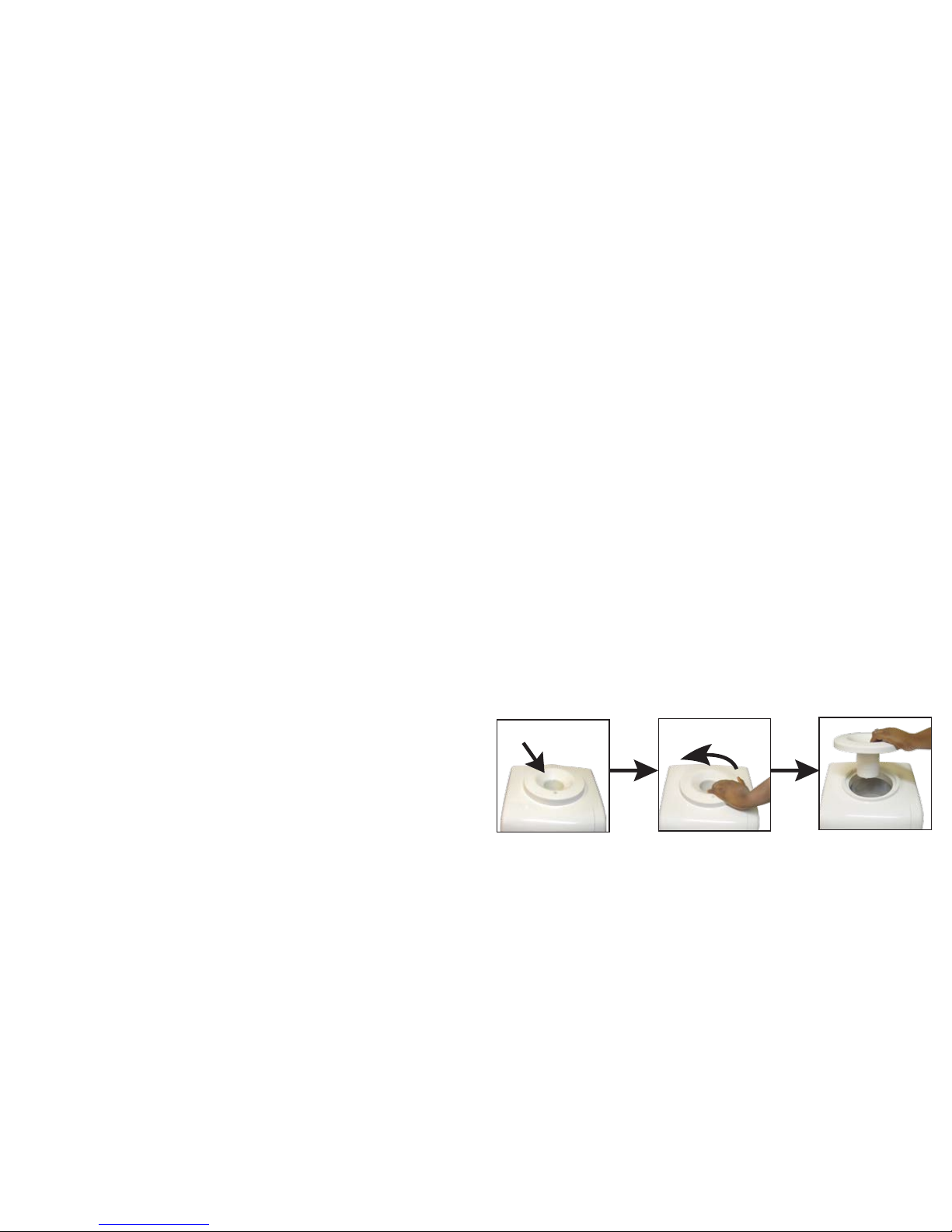

1. Remove the Bottle Support from the water dispenser by twisting the
Bottle Support to the left and lifting out of the water dispenser.
See Images 1 -3
Image 1 Image 2 Image 3

4 5
Image 1
3. Fill the filter bottle with 2lt of water and allow to filter into the water
dispenser. (NOTE: The first couple of filtrations through a filter bottle
may be slow)
4. Drain and discard the water from the water dispenser using the taps
and repeat point 3 twice more. (until water is clear in the bottom
compartment of the filter bottle.
5. Follow instructions 5 & 6 of the water dispenser installation
instructions.
5. Installation of Standard Water Bottle
1. After rinsing,fill your standard water bottle with water and secure the
bottle cap onto the bottle neck.
2. Invert the bottle and pierce the bottle neck onto the spike in the
middle of the bottle support, ensure the standard bottle is sitting level
on the water dispenser. See Images 1 - 3 above
3. Follow instructions 5 & 6 of the water dispenser installation
instructions.
Image 2 Image 3
2. Insert the Filter Bottle, with the Bottle Valve attached into the open
area (Reservoir Tank) on
top of the water dispenser,
ensure that the Filter Bottle
sits level on the top of the
water dispenser.
See Images 4 - 5
Image 4 Image 5
Model No.: V65A (BD90)
Rated voltage Frequency: 220 - 240V / 50Hz
Rated Cooling Power: 120W
Cold water capacity: 1.0l/h
Optimum Cold Water Temperature: ≤ 10˚C
Optimum Environmental Ambient 10˚C - 32 ˚C
Temperature
6. Technical Data
7. Circuit Diagram
Red
SW2
Tempcontrol I
SW1
Cooling
assembly
Yellow
Heater
Temp control II
L
E
N
Green
NOTE: Technical data, circuit diagram & rating plate may be changed
without prior notice

6 7
Troubleshooting
Note: Ensure the water dispenser is unplugged before attempting any
repairs below
Problem Possible Reasons Possible Solutions
Indicator
Light
not working
1. Power supply isn’t
connected
2. The appropriate switch
may not be turned on
1. Make sure the plug is
connected to the socket and
the socket switch is on
2. Ensure the appropriate
switch is in the ON position
Unit is
leaking
1. Water bottle is broken
2. Water Bottle Valve
may be broken
3. Silicone pipes may be
damaged
4. Water tap may be
damaged
1. Replace the water bottle
2. Replace Water Bottle Valve
3. Replace the silicone piping
4. Replace tap
Not Cooling
1. Fuse is burnt out
2. Cooling switch may be
damaged
3. Cooling line connection
is loose
1. Replace fuse
2. Replace Switch, check
connections
3. Repair connections
Parts Diagram
1. Bottle Support (inserts into the main water reservoir)
2. Indicator Lights 3. Cold Water Tap
4. Ambient Water Tap 5. Driptray with cover
6. Power Switch 7. Rating Label
8. Drain Cap 9. Power Cable
NOTE: This line drawing is for reference purposes only. The shape
is according to actual shape of the unit.
9
1
2
3
4
5
6
7
8
9
