Waterbox MARINE X 60.2 User manual
WWW.WATERBOXAQUARIUM S.COM
WB-BL01-7301
PRODUCT MANUAL
Reef Ready Aquarium
with Glass Sump
Waterbox Aquariums USA
320.W.Sabal Palm Place
Longwood FL32779
www.waterboxaquariums.com
,
MARINE X
FRAG
REEF
MX PENINSULA
MARINE X 60.2
MARINE X 90.3
MARINE X 110.4
5
6
7
FRAG 85.3
FRAG 105.4
FRAG 145.5
FRAG 165.6
13
14
15
16
REEF 100.3
REEF 130.4
REEF 180.5
REEF 220.6
19
20
21
22
MX Peninsula 3620
MX Peninsula 4820
9
10
CONTENTS
Tank Model
Cabinet Model
Tank Lot #
Cabinet Lot #
Purchase Date
Sellers
Address
TEL/Mobile
MY WATERBOX
WWW.WATERBOXAQUARIUMS.COM
23
WWW.WATERBOXAQUARIUMS.COM
USA: +1800-674-2608
Canada: +1 437 888 2612
Europe: +31 20 808 3685
UK: +44 1784 614175
WWW.WATERBOXAQUARIUMS.COM
4 5WWW.WATERBOXAQUARIUMS.COM

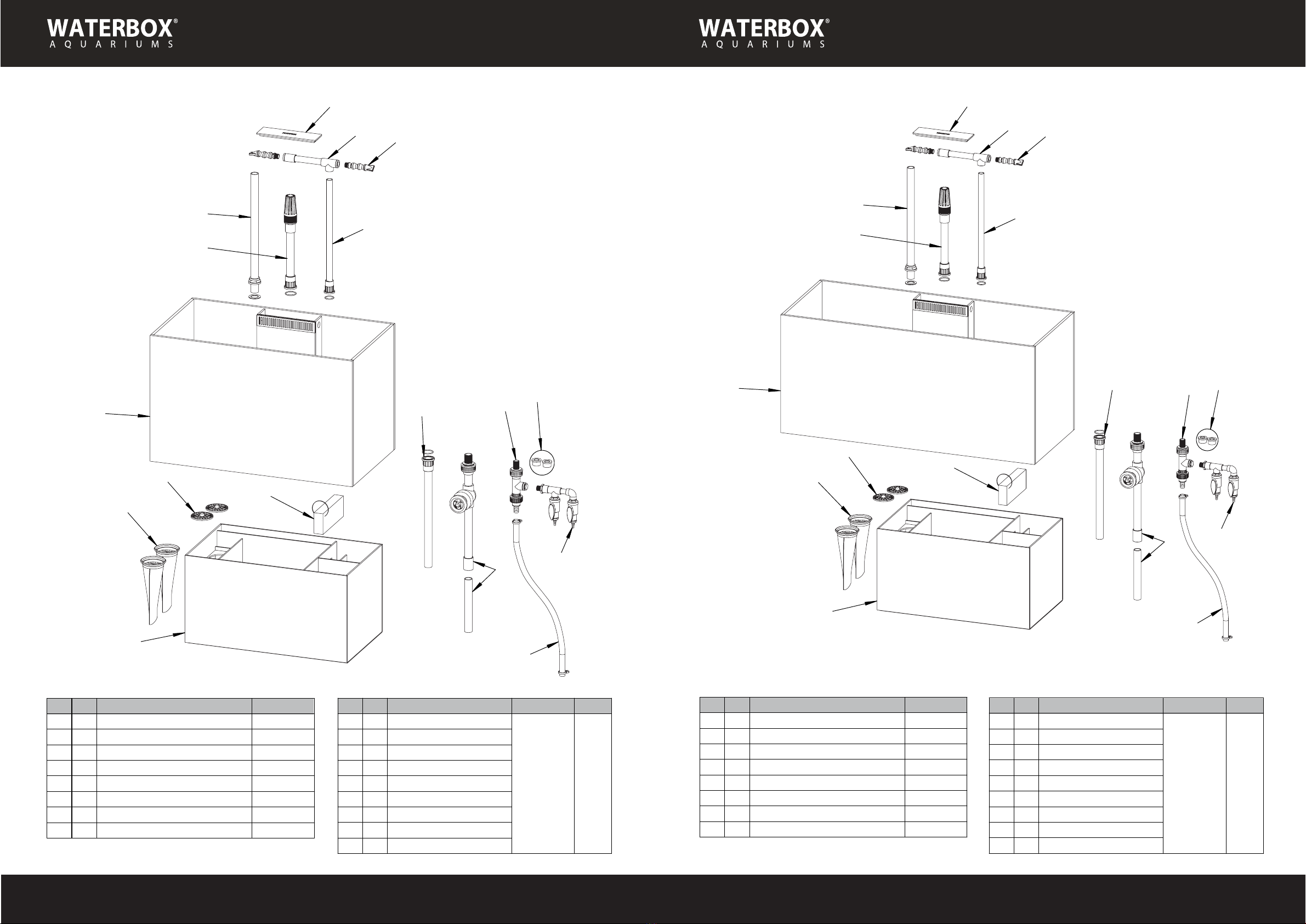

MARINE X 60.2
MARINE X
F
G
H1
H2
H8
H6
A
C
D
E
H9
H7
H3
H4
B
H5
I
ITEM
QTY
KIT
CODE
A
1
Tank M. X 60.2
S02GT02
B
1
Sump M. X 60.2
S02SP02
C
1
FELT 225 Micron -4"
850000451865
D
1
Filter Sock Silencer 4"
850000451933
E
1
Filter Sponge 408*90
S12FS24
F
1
LID-2608-C
810039390320
G
2
NZ 15-FRX
810039391174
I
1
Manifold 15 (OPTIONAL)
810039391969
ITEM
QTY
DESCRIPTION
KIT
CODE
H 1
1
Outlet assembly A07
Plumbing Kit
for
M. X 60.2
S22PK02
H 2
1
Outlet assembly A16
H 3
1
Outlet assembly B22
H 4
1
18/24 Black PVC Flexible Hose
H 5
1
Union connector kit (DN20)
H 6
1
Main drain standpipe H08
H 7
1
Main drain sump side J13
H 8
1
Emergency overflow standpipe K08
H 9
1
Emergency overflow sump side L13
WWW.WATERBOXAQUARIUMS.COM
67
WWW.WATERBOXAQUARIUMS.COM

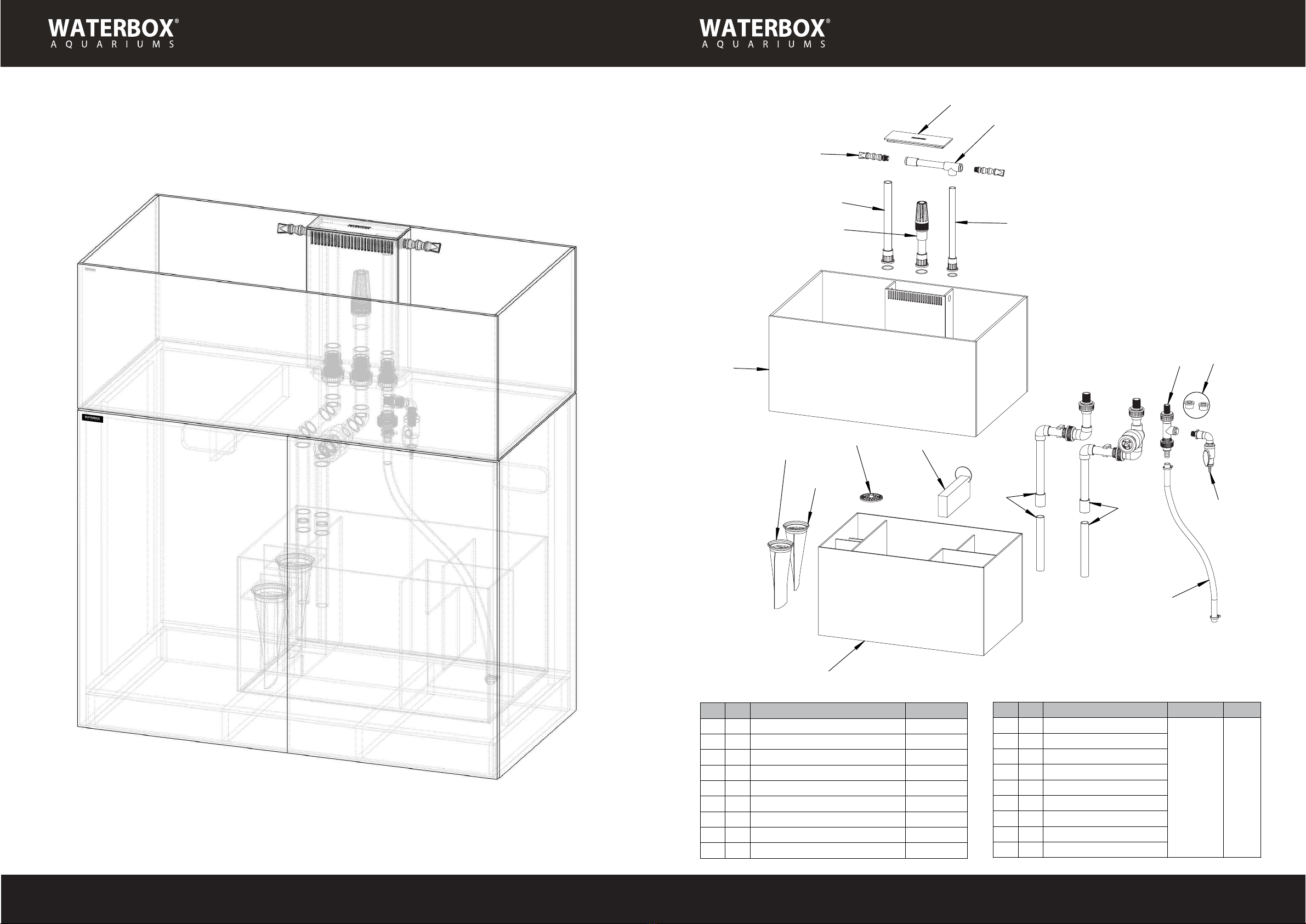

MARINE X 90.3 MARINE X 110.4
F
G
H1
A
C
D
E
H3
H4
B
H2
H6
H8
H7
H9
I
H5
ITEM
QTY
KIT
CODE
A
1
Tank M. X 90.3
S02GT03
B
1
Sump M. X 90.3/ M. X 110.4
S02SP03
C
2
FELT 225 Micron -4"
850000451865
D
2
Filter Sock Silencer 4"
850000451933
E
1
Filter Sponge 218*90
S12FS18
F
1
LID-2608
810039390313
G
2
NZ 15-FRX
810039391174
I
1
Manifold 15D (OPTIONAL)
810039391198
ITEM
QTY
DESCRIPTION
KIT
CODE
H 1
1
Outlet assembly A07
Plumbing Kit
for
M. X 90.3 & 110.4
S22PK03
H 2
1
Outlet assembly B04
H 3
1
Outlet assembly B22
H 4
1
18/24 Black PVC Flexible Hose
H 5
1
Union connector kit (DN20)
H 6
1
Main drain standpipe H04
H 7
1
Main drain sump side J14
H 8
1
Emergency overflow standpipe K09
H 9
1
Emergency overflow sump side L14
ITEM
QTY
DESCRIPTION
KIT
CODE
H 1
1
Outlet assembly A07
Plumbing Kit
for
M. X 90.3 & 110.4
S22PK03
H 2
1
Outlet assembly B04
H 3
1
Outlet assembly B22
H 4
1
18/24 Black PVC Flexible Hose
H 5
1
Union connector kit (DN20)
H 6
1
Main drain standpipe H04
H 7
1
Main drain sump side J14
H 8
1
Emergency overflow standpipe K09
H 9
1
Emergency overflow sump side L14
ITEM
QTY
KIT
CODE
A
1
Tank M. X 110.4
S02GT04
B
1
Sump M. X 90.3/ M. X 110.4
S02SP03
C
2
FELT 225 Micron -4"
850000451865
D
2
Filter Sock Silencer 4"
850000451933
E
1
Filter Sponge 218*90
S12FS18
F
1
LID-2608
810039390313
G
2
NZ 15-FRX
810039391174
I
1
Manifold 15D (OPTIONAL)
810039391198
F
H1
G
A
C
D
E
H3
H4
B
H2
H6
H8
H7
H9H5
I
WWW.WATERBOXAQUARIUMS.COM
8 9
WWW.WATERBOXAQUARIUMS.COM

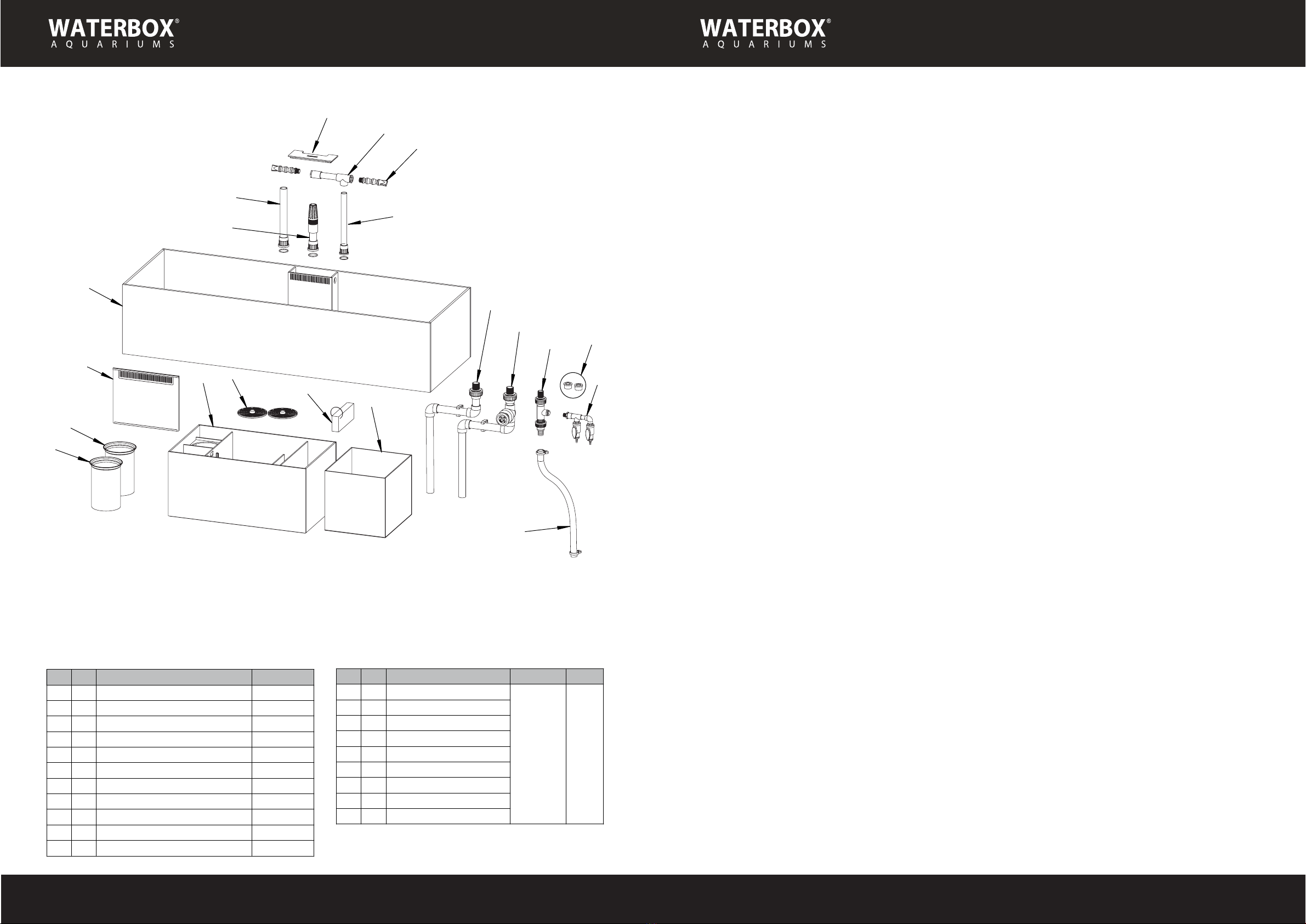

MX PENINSULA MX Peninsula 3620
A
B
C
D
E
F
G
H1
H2
H3
H4
H6
H7
H8
H9
H5
I
ITEM
QTY
KIT
CODE
A
1
Tank M.X PEN 3620
S02GT43
B
1
Sump M.X PEN 3620
S02SP43
C
2
FELT 225 Micron -4"
850000451865
D
2
Filter Sock Silencer 4"
850000451933
E
1
Filter Sponge 213*90
S12FS19
F
1
LID-2608-C
810039390320
G
2
NZ 15-FRX
810039391174
I
1
Manifold 15 (OPTIONAL)
810039391969
ITEM
QTY
DESCRIPTION
KIT
CODE
H 1
1
Outlet assembly A07
Plumbing Kit
for
M.X PEN 3620
S22PK43
H 2
1
Outlet assembly B04
H 3
1
Outlet assembly B22
H 4
1
18/24 Black PVC Flexible Hose
H 5
1
Union connector kit (DN20)
H 6
1
Main drain standpipe H04
H 7
1
Main drain sump side J18
H 8
1
Emergency overflow standpipe K04
H 9
1
Emergency overflow sump side L18
WWW.WATERBOXAQUARIUMS.COM
10 11
WWW.WATERBOXAQUARIUMS.COM
MX Peninsula 4820
A
B
C
D
E
F
G
H1
H2
H3
H4
H6
H7
H8
H9
H5
I
ITEM
QTY
KIT
CODE
A
1
Tank M.X PEN 4820
S02GT44
B
1
Sump M.X PEN 4820
S02SP44
C
2
FELT 225 Micron -4"
850000451865
D
2
Filter Sock Silencer 4"
850000451933
E
1
Filter Sponge 213*90
S12FS19
F
1
LID-2608-C
810039390320
G
2
NZ 15-FRX
810039391174
I
1
Manifold 15 (OPTIONAL)
810039391969
ITEM
QTY
DESCRIPTION
KIT
CODE
H 1
1
Outlet assembly A07
Plumbing Kit
for
M.X PEN 4820
S22PK44
H 2
1
Outlet assembly B04
H 3
1
Outlet assembly B22
H 4
1
18/24 Black PVC Flexible Hose
H 5
1
Union connector kit (DN20)
H 6
1
Main drain standpipe H04
H 7
1
Main drain sump side J18
H 8
1
Emergency overflow standpipe K04
H 9
1
Emergency overflow sump side L18
WWW.WATERBOXAQUARIUMS.COM
12 13
WWW.WATERBOXAQUARIUMS.COM

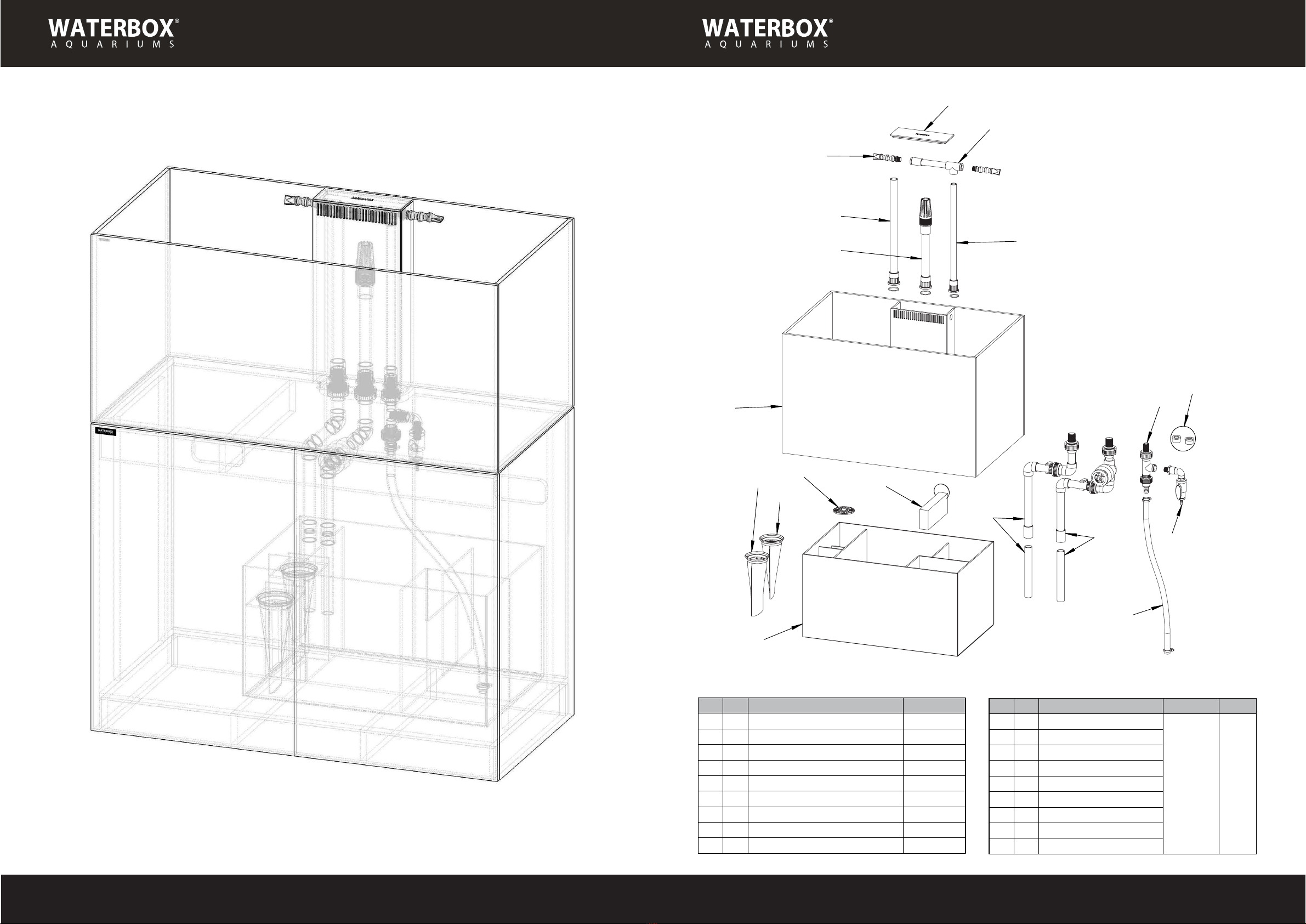

FRAG FRAG 85.3
ITEM
QTY
KIT
CODE
A
1
Tank FRAG 85.3
S02GT12
B
1
Sump REEF 100.3/130.4/FRAG 85.3/105.4
S02SP12
C
1
MESH 225 Micron -4"
850000451889
D
1
FELT 225 Micron -4"
850000451865
E
1
Filter Sock Silencer 4"
850000451933
F
1
Filter Sponge 240*90
S12FS14
G
1
LID-2610
810039390306
H
2
NZ 15-FRX
810039391174
J
1
Manifold 15
810039391969
ITEM
QTY
DESCRIPTION
KIT
CODE
I 1
1
Outlet assembly A07
Plumbing Kit
for
FRAG 85.3
S22PK12
I 2
1
Outlet assembly B11
I 3
1
Outlet assembly B22
I 4
1
18/24 Black PVC Flexible Hose
I 5
1
Union connector kit (DN20)
I 6
1
Main drain standpipe H06
I 7
1
Main drain sump side J25
I 8
1
Emergency overflow standpipe K06
I 9
1
Emergency overflow sump side L24
G
I1
H
I2
I6
I8
A
C
B
F
I7
I4
I3
D
I9
E
I5
J
WWW.WATERBOXAQUARIUMS.COM
14 15
WWW.WATERBOXAQUARIUMS.COM
FRAG 105.4 FRAG 145.5
ITEM
QTY
KIT
CODE
A
1
Tank FRAG 105.4
S02GT13
B
1
Sump REEF 100.3/130.4/FRAG 85.3/105.4
S02SP12
C
1
MESH 225 Micron -4"
850000451889
D
1
FELT 225 Micron -4"
850000451865
E
1
Filter Sock Silencer 4"
F
1
Filter Sponge 240*90
S12FS14
G
1
LID-2610
810039390306
H
2
NZ 15-FRX
810039391174
J
1
Manifold 15
810039391969
ITEM
QTY
DESCRIPTION
KIT
CODE
I 1
1
Outlet assembly A07
Plumbing Kit
for
FRAG 105.4
S22PK13
I 2
1
Outlet assembly B11
I 3
1
Outlet assembly B22
I 4
1
18/24 Black PVC Flexible Hose
I 5
1
Union connector kit (DN20)
I 6
1
Main drain standpipe H06
I 7
1
Main drain sump side J06
I 8
1
Emergency overflow standpipe K06
I 9
1
Emergency overflow sump side L07
G
H
I8
I6
I2
A
F
C
B
I3
I4
I7
I1
I9
D
E
J
I5
J9
J7
J4
J3 J5
H
E
D
G
A
J2
K
J1
I
J8
J6
C
B
L
F
ITEM
QTY
KIT
CODE
A
1
Tank FRAG 145.5
S02GT14
B
1
Sump REEF 180.5/220.6/FRAG 145.5/165.6
S02SP13
C
1
ATO REEF 180.5/220.6/FRAG 145.5/165.6
S02AT24
D
1
MESH 225 Micron -7"
850000451858
E
1
FELT 225 Micron -7"
850000451834
F
2
Filter Sock Silencer 7"
810039391013
G
1
Refugium Baffle 397
S11ZG01
H
1
Filter Sponge 470*90
S12FS13
I
1
LID-2610-C
850000451247
K
2
NZ 20-FX
810039391181
L
1
Manifold 15D
810039391198
ITEM
QTY
DESCRIPTION
KIT
CODE
J 1
1
Outlet assembly A13
Plumbing Kit
for
FRAG 145.5
S22PK14
J 2
1
Outlet assembly B23
J 3
1
Outlet assembly sump side D09
J 4
1
28/34 Clear PVC Flexible Hose
J 5
1
Union connector kit (DN25)
J 6
1
Main drain standpipe H10
J 7
1
Main drain sump side J15
J 8
1
Emergency overflow standpipe K11
J 9
1
Emergency overflow sump side L15
850000451933
WWW.WATERBOXAQUARIUMS.COM
16 17
WWW.WATERBOXAQUARIUMS.COM
FRAG 165.6
C
B
H
G
D
E
A
I
J1
K
J8
J6 J2
J3 J5
J4
J7
J9
L
F
ITEM
QTY
KIT
CODE
A
1
Tank FRAG 165.6
S02GT15
B
1
Sump REEF 180.5/220.6/FRAG 145.5/165.6
S02SP13
C
1
ATO REEF 180.5/220.6/FRAG 145.5/165.6
S02AT24
D
1
MESH 225 Micron -7"
850000451858
E
1
FELT 225 Micron -7"
850000451834
F
2
Filter Sock Silencer 7"
810039391013
G
1
Refugium Baffle 397
S11ZG01
H
1
Filter Sponge 470*90
S12FS13
I
1
LID-2610-C
850000451247
K
2
NZ 20-FX
810039391181
L
1
Manifold 15D
810039391198
ITEM
QTY
DESCRIPTION
KIT
CODE
J 1
1
Outlet assembly A13
Plumbing Kit
for
FRAG 165.6
S22PK15
J 2
1
Outlet assembly B23
J 3
1
Outlet assembly sump side D09
J 4
1
28/34 Clear PVC Flexible Hose
J 5
1
Union connector kit (DN25)
J 6
1
Main drain standpipe H10
J 7
1
Main drain sump side J09
J 8
1
Emergency overflow standpipe K11
J 9
1
Emergency overflow sump side L10
WWW.WATERBOXAQUARIUMS.COM
18 19
WWW.WATERBOXAQUARIUMS.COM
REEF REEF 100.3
ITEM
QTY
KIT
CODE
A
1
Tank REEF 100.3
S02GT22
B
1
Sump REEF 100.3/130.4/FRAG 85.3/105.4
S02SP12
C
1
MESH 225 Micron -4"
850000451889
D
1
FELT 225 Micron -4"
850000451865
E
1
Filter Sock Silencer 4"
850000451933
F
1
Filter Sponge 240*90
S12FS14
G
1
LID-2610
810039390306
H
2
NZ 15-FRX
810039391174
J
1
Manifold 15
810039391969
ITEM
QTY
DESCRIPTION
KIT
CODE
I 1
1
Outlet assembly A07
Plumbing Kit
for
REEF 100.3
S22PK22
I 2
1
Outlet assembly B04
I 3
1
Outlet assembly B22
I 4
1
18/24 Black PVC Flexible Hose
I 5
1
Union connector kit (DN20)
I 6
1
Main drain standpipe H04
I 7
1
Main drain sump side J25
I 8
1
Emergency overflow standpipe K04
I 9
1
Emergency overflow sump side L24
G
I1
H
I8
I6 I2
A
F
B
C
I4
I9
I3
D
I7
E
I5
J
WWW.WATERBOXAQUARIUMS.COM
20 21
WWW.WATERBOXAQUARIUMS.COM
REEF 130.4 REEF 180.5
ITEM
QTY
KIT
CODE
A
1
Tank REEF 130.4
S02GT23
B
1
Sump REEF 100.3/130.4/FRAG 85.3/105.4
S02SP12
C
1
MESH 225 Micron -4"
850000451889
D
1
FELT 225 Micron -4"
850000451865
E
1
Filter Sock Silencer 4"
850000451933
F
1
Filter Sponge 240*90
S12FS14
G
1
LID-2610
810039390306
H
2
NZ 15-FRX
J
1
Manifold 15
810039391969
ITEM
QTY
DESCRIPTION
KIT
CODE
I 1
1
Outlet assembly A07
Plumbing Kit
for
REEF 130.4
S22PK23
I 2
1
Outlet assembly B04
I 3
1
Outlet assembly B22
I 4
1
18/24 Black PVC Flexible Hose
I 5
1
Union connector kit (DN20)
I 6
1
Main drain standpipe H04
I 7
1
Main drain sump side J06
I 8
1
Emergency overflow standpipe K04
I 9
1
Emergency overflow sump side L07
G
I1
H
I8
I6
I2
A
C
B
F
I9
I4
I7
I3
D
E
I5
J
810039391174
J9
J7
J4
L
J3
H
E
D
G
A
J2
K
J1
I
J8
J6
C
B
J5
F
ITEM
QTY
KIT
CODE
A
1
Tank REEF 180.5
S02GT26
B
1
Sump REEF 180.5/220.6/FRAG 145.5/165.6
S02SP13
C
1
ATO REEF 180.5/220.6/FRAG 145.5/165.6
S02AT24
D
1
MESH 225 Micron -7"
850000451858
E
1
FELT 225 Micron -7"
850000451834
F
2
Filter Sock Silencer 7"
810039391013
G
1
Refugium Baffle 397
S11ZG01
H
1
Filter Sponge 470*90
S12FS13
I
1
LID-2610-C
850000451247
K
2
NZ 20-FX
810039391181
L
1
Manifold 15D
810039391198
ITEM
QTY
DESCRIPTION
KIT
CODE
J 1
1
Outlet assembly A13
Plumbing Kit
for
REEF 180.5
S22PK26
J 2
1
Outlet assembly B15
J 3
1
Outlet assembly sump side D09
J 4
1
28/34 Clear PVC Flexible Hose
J 5
1
Union connector kit (DN25)
J 6
1
Main drain standpipe H12
J 7
1
Main drain sump side J15
J 8
1
Emergency overflow standpipe K12
J 9
1
Emergency overflow sump side L15
WWW.WATERBOXAQUARIUMS.COM
22 23
WWW.WATERBOXAQUARIUMS.COM
REEF 220.6
C
B
H
G
D
E
A
I
J1
K
J8
J6
J2
J3 J5
J4
J7
J9
L
F
ITEM
QTY
DESCRIPTION
KIT
CODE
J 1
1
Outlet assembly A13
Plumbing Kit
for
REEF 220.6
S22PK27
J 2
1
Outlet assembly B16
J 3
1
Outlet assembly sump side D09
J 4
1
28/34 Clear PVC Flexible Hose
J 5
1
Union connector kit (DN25)
J 6
1
Main drain standpipe H11
J 7
1
Main drain sump side J09
J 8
1
Emergency overflow standpipe K13
J 9
1
Emergency overflow sump side L10
ITEM
QTY
KIT
CODE
A
1
Tank REEF 220.6
S02GT27
B
1
Sump REEF 180.5/220.6/FRAG 145.5/165.6
S02SP13
C
1
ATO REEF 180.5/220.6/FRAG 145.5/165.6
S02AT24
D
1
MESH 225 Micron -7"
850000451858
E
1
FELT 225 Micron -7"
850000451834
F
2
Filter Sock Silencer 7"
810039391013
G
1
Refugium Baffle 397
S11ZG01
H
1
Filter Sponge 470*90
S12FS13
I
1
LID-2610-C
850000451247
K
2
NZ 20-FX
810039391181
L
1
Manifold 15D
810039391198
This manual suits for next models
12
Other Waterbox Aquarium manuals
Waterbox
Waterbox ALU 2420 User manual
Waterbox
Waterbox EDEN 20 User manual
Waterbox
Waterbox ALU 2420 User manual
Waterbox
Waterbox SuperALU ALP 4820 User manual
Waterbox
Waterbox EDEN X 60 User manual
Waterbox
Waterbox REEF LX190.4 User manual
Waterbox
Waterbox REEF LX User manual
Waterbox
Waterbox CUBE 10 User manual
Waterbox
Waterbox MARINE DX Series User manual
Popular Aquarium manuals by other brands
TeichTip
TeichTip SunSun Wave Maker CW-110 user manual
afm marine
afm marine BIO PELLET REACTOR BP-1.0 User instructions
Hozelock Cyprio
Hozelock Cyprio Cascade 450 Installation and operating instructions
juwel
juwel Rio 125 instruction manual
AQUA SZUT
AQUA SZUT AKARA quick guide
Red Sea
Red Sea REEFER 350 G2L Assembly manual
